Adsorption of Cd²⁺ and Pb²⁺ by biofuel ash-based geopolymer synthesized by one-step hydrothermal method

2.1 Materials

BFA used in this study obtained from the bottom of a boiler that produces electricity by burning several kinds of biomass as fuel in JinZhou biomass power plant (Shijiazhuang, China). XRF test results are listed in Table 1.

Analytical reagent (AR) grade sodium hydroxide (NaOH), hydrochloric acid (HCl), cadmium nitrate (Cd(NO₃)₂·2H₂O), lead nitrate (Pb(NO₃)₂) were purchased from Tianjin, China. All the water used in the experiment was ultrapure water.

2.2 Modification of BFA

BFA was ground to ≤ 74 μm and subsequently washed by ultrapure water until the conductivity was constant. It was then oven dried at 105 °C overnight.

Geopolymer was synthetized by one-step hydrothermal alkali modification method as shown in Fig. 1. A fixed amount of BFA was mixed with 2 M NaOH at solid-liquid ratio of 1:15. The resulting mixture was fed into a round flask and heated in a 90 °C water bath with stirring for 12 h. The material was cooled naturally followed by aging for 2 h at ambient temperature and separated by centrifugation. The solid products were washed three time by deionized water, and freeze dried for 48 h. The solid was sieved to the particle size of ≤ 74 μm, and the final sample was called BFA -GP.

Close

Fig. 1

Schematic map showing BFA-GP synthetization.

Export to PPT

2.3 Characterization

Scanning Electron Microscope with Energy Dispersive Spectrometer (SEM- EDS, ProX, Phenom, Holland) was utilized to observe the microscopic morphology and chemical elements of BFA and BFA-GP. Transmission electron microscopy (TEM) characterization was carried out by a TEM/STEM FEI Tecnai F30 microscope. The surface area, total pore volume and pore size distribution were measured through N₂ adsorption–desorption method at approximately 77.3 K using Automatic Surface Area and Porosity Analyzer (ASAP 2460, Micromeritics, USA). The specific surface areas of BFA and BFA-GP were determined for the relative pressure range of 0.0–1.0 and calculated by the Brunauere-Emmette-Teller (BET) method. The total pore volume was determined for a single point P/P₀ value of 0.990. The pore size distributions of the samples were inferred from the adsorption isotherms by means of the Barrett-Joyner-Halenda (BJH) method. Before testing, the sample was degassed at 200 °C for 6 h. Mineral composition of BFA and BFA-GP was obtained by X-ray diffraction (XRD, D8 Advance, Bruker, Germany) using Cu-Kα radiation with a wavelength of 1.5406 Å, tube voltage and current are 40 KV and 40 mA, respectively. The range of XRD patterns was from 2θ of 10° to 80° with a scanning rate at 1.5°2θ/min. The functional groups in BFA-GP were probed using Fourier-transform infrared spectroscopy (FTIR, iS10, Nicolet, USA) by KBr pelletized technique. Each spectrum in the 4000–400 cm⁻¹ range was accumulated from 32 individual scans. The chemical components of samples were characterized by X-ray photoelectron spectroscopy (XPS) using a Thermo escalab 250XI spectrometer with monochromatic Al Kα radiation. The zeta potential of the geopolymer was measured at different pH (1–9) using Zeta-sizer instrument (MALVERN, UK) to calculate the point of zero charge (pHZPC).

2.4 Adsorption experiments

The solutions contained 320 mg L⁻¹ of Cd²⁺ and 1600 mg L⁻¹ of Pb²⁺ were prepared by dissolving the corresponding nitrate salts Cd(NO₃)₂·2H₂O and Pb(NO₃)₂ in deionized water, and diluted to the desired concentration in subsequent experiments.

Batch experiments were carried out to get the equilibrium adsorption data of Cd²⁺ or Pb²⁺ or their mixture onto BFA-GP. The experimental procedures are described as following: 0.1 g BFA-GP was put into a 50-mL Teflon centrifuge tube, 40 mL solution containing Pb²⁺ or Cd²⁺ or their mixture with different concentrations was then added. The pH of mixture solution was adjusted to 6.5 ± 0.2 with 0.1 M HCl or NaOH and the tubes were sealed with screw caps. All samples were prepared in duplicate. The Teflon centrifuge tubes were shaken at 298 K and 150 rpm for 24 h. After shaking, the mixtures were centrifuged at 3000 rpm for 10 min and then filtered through a 13-mm syringe filter with a 0.45-μm membrane. The supernatants were collected and the metal ion concentrations were measured by atomic absorption spectrophotometry (AA-7000, Shimadazu, Japan).

Kinetic adsorption were performed by adding 40 mL 400 mg L⁻¹ Pb²⁺ or 80 mg L⁻¹ Cd²⁺ solutions, or their mixture into eighteen 50-mL Teflon centrifuge tubes. The pH of mixture solution was adjusted to 6.5 ± 0.2 with 0.1 M HCl or NaOH and sealed with screw caps. The samples were shaken at 298 K and 150 rpm and at determined time intervals, 2 samples were collected, centrifuged and the supernatant were filtered and the metal ion concentrations were measured by the same method as in equilibrium adsorption.

Another set of adsorption experiments were performed to investigate the adsorption thermodynamics. Three pare of samples were prepared as in previous steps: 40 mL Pb²⁺ and Cd²⁺ in the range of 20–800 mg L⁻¹ and 2–160 mg/L and 0.1 g BFA-GP were put into 50-mL Teflon centrifuge tubes, the pH of sample solution was adjusted to 6.5 ± 0.2 with 0.1 M HCl or NaOH and the tubes were sealed with screw caps, but were shaken under different temperatures (298 K, 308 K, and 318 K) for 24 h before centrifugation and measure the Pb²⁺ and Cd²⁺ concentrations in supernatants.

The adsorption at equilibrium ( $q_e$ , mg g⁻¹) were determined according to Eq. (1):

3.1 Characterization of BFA-GP

3.1.1

3.1.1 Mineral composition

X-ray diffraction (XRD) was used to detect the mineral composition of BFA and BFA-GP. The XRD spectrograms of BFA and BFA-GP are shown in Fig. 2. The main minerals in BFA is quartz (JCPDS No: 46-1045) and margarite (JCPDS No: 18-0276) with some CaCO₃. The amorphous halo between 2θ 20° and 35° observed in the BFA XRD pattern is the characteristic of amorphous nature of biofuel ash (Siyal et al. 2016, Hui-Teng et al. 2021). After modification, the intensity of the diffraction peak of quartz at 2θ = 20.8° decreased, and the peak of margarite at 2θ = 27.9° disappeared, indicating that some of the quartz and all the margarite in the BFA dissolved during the modification. The broad peak around 2θ between 20° and 35° in the XRD pattern of BFA-GP may be attributed to the presence of amorphous geopolymer (Singhal, Gangwar and Gayathry 2017). The diffraction peak at 2θ = 26.6° which is belongs to both quartz and gismondine (JCPDS No: 20-0452) intensified, and a new peak appear at 2θ = 36.5° which is belongs to gismondine. The formation of gismondine is very favorable for heavy metal cations adsorption due to the precense of the ion exchange centers in zeolite where Al and Si tetrahedra are connected.

Close

Fig. 2

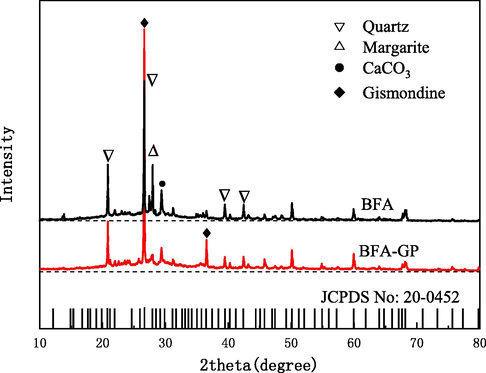

XRD patterns of BFA and BFA-GP.

Export to PPT

3.1.2

3.1.2 Microstructural characteristics and surface area

Fig. 3 presents SEM images of BFA and BFA-GP, and their corresponding energy dispersive spectrometry. By comparing Fig. 2(a) and (b), many cracks and opening pores and some small particles were produced by the modification. The change in the morphology of the product likely causes a significant increase in the specific surface area as shown in Fig. 2(b).

Close

Fig. 3

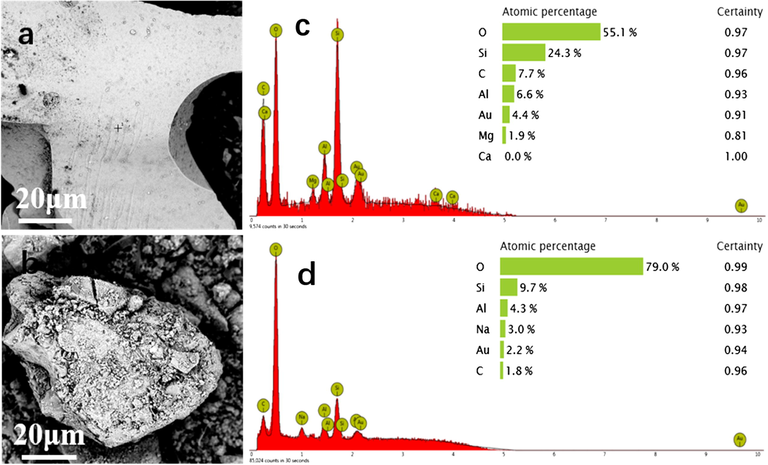

SEM micrographs of BFA (a), BFA-GP (b) and EDS analysis of BFA (c), BFA-GP (d).

Export to PPT

As demonstrated in Fig. 2(c, d), the main elements of BFA and BFA-GP were O, Si and Al. But a Na peak appeared in the spectrum of BFA-GP which come from NaOH solution, indicating that alkali activator participated in the modification and Na ions were fixed into BFA-GP. Similar results have been reported in previous literature (Sha et al. 2020).

The microstructure of BFA and BFA-GP were shown in high-resolution TEM images (Fig. 3). Many spherical particles of around 100–800 nm were observed in BFA as shown in Fig. 4(a)–(b). But in the images of BFA-GP, many fiber-like gismondine crystals with diameter of around 5 nm can be clearly observed (Fig. 4(d)–(f)). The morphology of geopolymer prepared by biofuel ash is different from that by coal bottom ash (Santa et al. 2021). This may be due to the varied Si/Al ratio of raw material and different polymerization conditions(Rożek, Król and Mozgawa 2019). Potassium salt and sodium salt in raw biofuel ash were dissolved during washing.

Close

Fig. 4

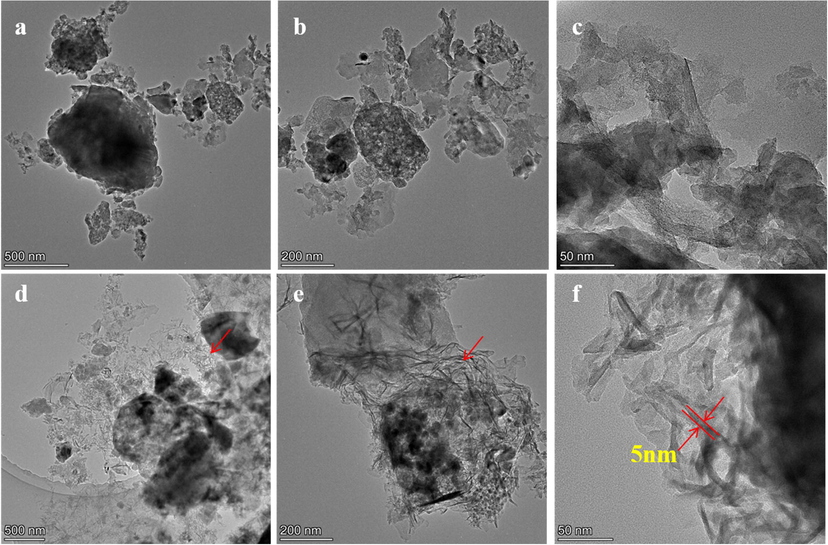

TEM images of BFA (a, b, c) and BFA-GP (d, e, f) at different magnifications.

Export to PPT

The N₂ adsorption-desorption isotherms of BFA and BFA-GP are displayed in Fig. 5. The specific surface area (S_BET), total open pore volume at P/Po = 0.99(V_T), t-Plot micropore volume (V_mic), and BJH desorption average pore width of BFA and BFA-GP were determined by N₂ adsorption–desorption test. The surface area of the BFA increased from 20.41 m² g⁻¹ to 56.63 m² g⁻¹ after modification; meanwhile, the total open pore volume also increased from 0.0337 cm³ g⁻¹ to 0.1600 cm³ g⁻¹, and the pore size increased from 12.5 nm to 13.6 nm. The increase in specific surface area and pore volume may be due to the dissolution and rearrangement of aluminosilicate, which resulted in new pores and small particles as seen in the SEM and TEM images (Fig. 3 and Fig. 4). The specific surface area is generally considered to be the most important property determining the adsorption capacity (Liu et al. 2016).

Close

Fig. 5

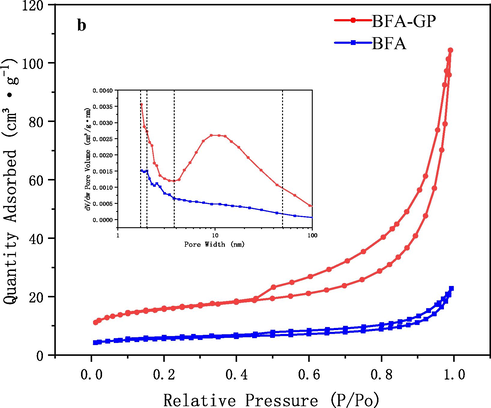

N₂ adsorption–desorption isotherm curves of BFA and BFA-GP.

Export to PPT

Usually, the characteristic pores in the material can be judged by the shape of the adsorption curve and the hysteresis loop. The adsorption curves of BFA and BFA-GP were type IV adsorption curves and were mostly produced by mesoporous substances. Moreover, according to the classification of international union of pure and applied chemistry (IUPAC), the hysteresis loop of BFA-GP was Type H3 type indicating that there were slit-like pores in the material. The pore size distributions of BFA and BFA-GP were displayed in the insert graph of Fig. 5. There were two main differences in pore size distribution between BFA-GP and BFA. One was the increase in pore width less than 2 nm, which may result from the formation of gismondine. Another significant difference was the pore width of 3–50 nm in the BFA-GP increased drastically. This change could be attributed to the formation of geopolymer identified as a mesoporous material with a characteristic pore size between 2 and 50 nm (Siyal et al. 2018).

3.1.3

3.1.3 FTIR and XPS analysis

FTIR spectra of BFA, BFA-GP, and BFA-GP after adsorption of Cd (BFA-GP-Cd) are shown in Fig. 6 (a). The comparison of BFA-GP with BFA shows some changes in the adsorption band. The broad absorption band around 3440 cm⁻¹ and the peak near 1630 cm⁻¹ represent asymmetric stretching vibration and deformational vibrations of H—O—H and —OH bond (Kara et al. 2017, Siyal et al. 2019). The two peaks intensified in the spectra of BFA-GP indicated that hydroxyls on the surface of geopolymer increased (Siyal et al. 2019). The peak at approximately 1420 cm⁻¹ and the small one at 874 cm⁻¹ in spectrum of BFA are ascribed to asymmetric stretching and out-of-plane bending vibrations of the O—C—O bonds of CO₃⁻² (Singhal et al. 2017). The decomposition of calcium carbonate in the hydrothermal process may explain the decrease of absorption intensity at these bands. Bands near 1030 cm⁻¹ are associated with asymmetric stretching vibrations of Si—O—T (T = Si or Al) (Barbosa et al. 2018). This is the principal band used to recognize the synthesis of geopolymers (Siyal et al. 2019) and is well characterized in the literature (Siyal et al. 2019, Wang et al. 2020, Tian, Nakama and Sasaki 2019). This peak deepened obviously after modification, indicating there are significant amount of geopolymer in BFA-GP. Here, Al—O is longer and weaker than Si—O, and the shift of the peak to lower wavenumbers (from 1033 cm⁻¹ for BFA to 1000 cm⁻¹ for BFA-GP) indicates that the degree of silicon substitution by aluminum increased. The bands at 777 cm⁻¹ corresponded to the cyclosilicate vibrations which is a kind of silica tetrahedron oligomer (Acisli, Acar and Khataee 2020, Lecomte et al. 2006) this is other evidence of rearrangement of aluminosilicate (He et al. 2020, Huang and Han 2011).

Close

Fig. 6

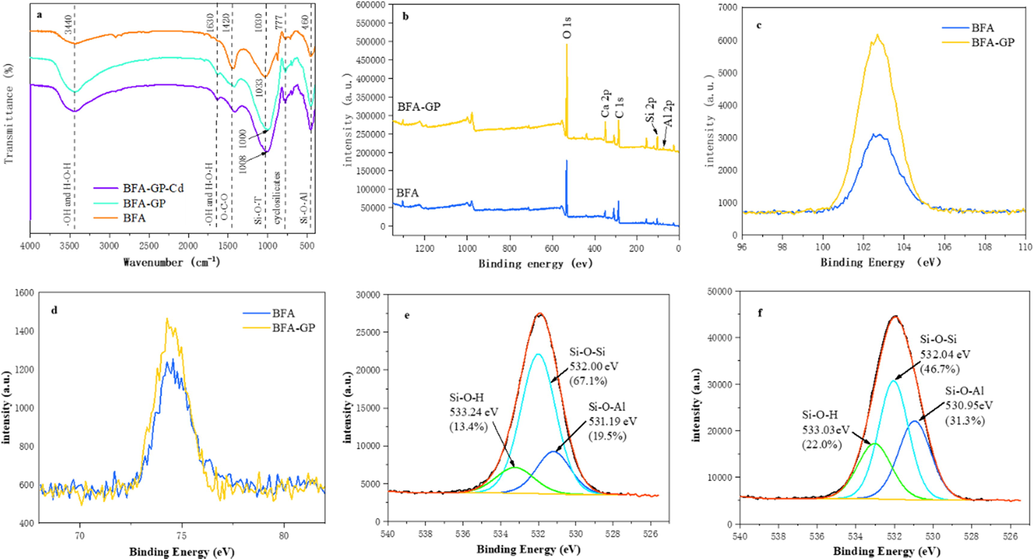

FTIR spectrum of the BFA, BFA-GP and BFA-GP-Cd (a) and XPS spectra of BFA and BFA-GP: (b) wide scan, (c) Si 2p spectra, (d) Al 2p spectra, (e) O 1 s high resolution XPS spectra of BFA, (f) O 1 s high resolution XPS spectra of BFA-GP.

Export to PPT

The spectrum of BFA-GP-Cd in Fig. 6 (a) show that the absorption of –OH at 3440 cm⁻¹ decreased compared to BFA-GP suggesting that coordination reaction likely occurred between Cd²⁺ and surface hydroxyl group. Meanwhile, the peak of Si—O—T (T = Si or Al) shift to higher wavenumbers after adsorption, indicating Si—O—T (T = Si or Al) group also adsorbed significant amount of Cd²⁺.

The XPS spectra provided molecular structure information of the BFA and BFA-GP as shown in Fig. 6. The intensity of peaks corresponding to Si, O, Al, and Ca elements changed indicating the transformation of chemical bond during the modification. The intensification of O, Si, and Al peaks mainly due to the polymerization of aluminosilicate. Formation of gismondine (CaAl₂Si₂O₈·4H₂O) may explain the peak intensification corresponding to calcium. There are three types of primary chemical states of oxygen in geopolymer including Si—O—Al, Si—O—Si, and Si—O—H with the main absorption signal positions at 531, 532, and 533 eV according to the literature (Simonsen et al. 2009, Jhang, Boscoboinik and Altman 2020). The fitted parameters of the O1 s XPS spectra are shown in Fig. 4(e) and (f) for BFA and BFA-GP, respectively. There are more Si—O—Al and Si—O—H in BFA-GP, which is in accordance with the FTIR results. These results reconfirmed that new composition such as geopolymer and gismondine were formed.

3.1.4

3.1.4 Zeta potential and zero charge point

The zeta potential graphs (Fig. 7) at solution pH range of 1–9 reveal that the point of zero charge (pHPZC) of BFA-GP is at 1.3, where the adsorbent surface is having electron neutrality (Gao et al. 2015). The result clearly suggest that BFA-GP exhibited negatively charge under pH > 1.3, and Zeta potential is lower than −23 mV when the pH of solution higher than 3. This property is important for geopolymer to generate electrostatic attraction for the metal cations.

Close

Fig. 7

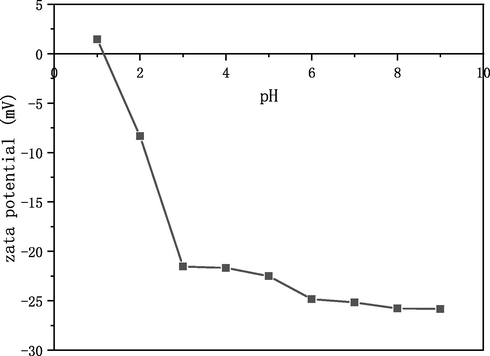

Zeta potentials of BFA-GP sample under different pH conditions.

Export to PPT

3.2 Comparison of Cd²⁺ adsorption on BFA-GP and BFA

Fig. 8 shows the adsorption amount of Cd²⁺ and Pb²⁺ by BFA and BFA-GP. The maximum adsorption amount of Cd²⁺ and Pb²⁺ increased from 7.94 to 29.92 mg g⁻¹ and 32.87 to 137.49 mg g⁻¹ respectively after modification, indicating BFA-GP synthetized is a high efficiency adsorbent for heavy metal ions.

Close

Fig. 8

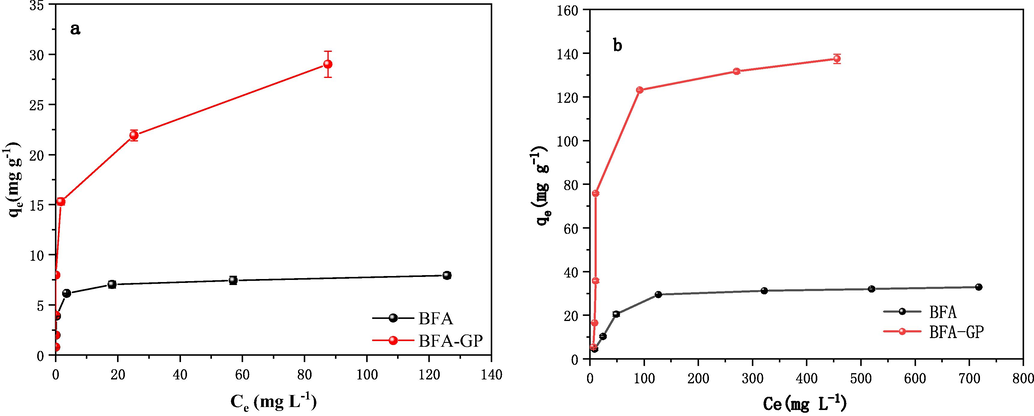

Adsorption isotherm of Cd²⁺ (a) and Pb²⁺ (b) on BFA-GP and BFA.

Export to PPT

3.3 Effect of pH

The pH value of the aqueous solution affects both the surface charges of adsorbent and the degree of ionization of heavy metal ion, so it is an important variable to adsorption effect (Bao et al. 2013). The Fig. 9 illustrated the adsorption amounts of metal ions at different pH conditions. The sorption ability of BFA-GP for heavy metals increased rapidly with the increasing of solution pH. The adsorption amounts of Pb²⁺ increased at pH between 3 and 6, and amount adsorbed was near constant after pH 6. With regard to Cd²⁺, the adsorption amounts were very low when pH was below 5, and increased quickly between pH 5 and 6, after pH 6 adsorption amounts increased slowly and reached equilibrium gradually. This results may be related to the surface charge of BFA-GP. At low pH, higher concentration of H⁺ present in the reaction solutions, which can compete with heavy metal ions for the adsorption sites, and the functional groups of adsorbent were protonated, significant electrostatic repulsion exists between positively charge surface and heavy metal ions. With the increasing of solution pH, the concentration of the H⁺ decreases and deprotonation would occur on the surface of BFA-GP, the surface negative charge increased, which enhanced the adsorption of positively charged metal cations by electrostatic attraction. Similar theories have also been proposed by other researchers for the metal adsorption (Liu and Zhang 2009, Duan and Su 2014, Huang et al. 2020b, Liu et al. 2016). Additionally, adsorption amounts of Cd²⁺ and Pb²⁺ reach constant at different pH maybe due to the different hydrolysis precipitation property of two ions (Xu 2008). Considering the large amount of precipitation of metal ions could affect the adsorption under high pH, selecting pH = 6.5 as the optimum condition for subsequent experiments.

Close

Fig. 9

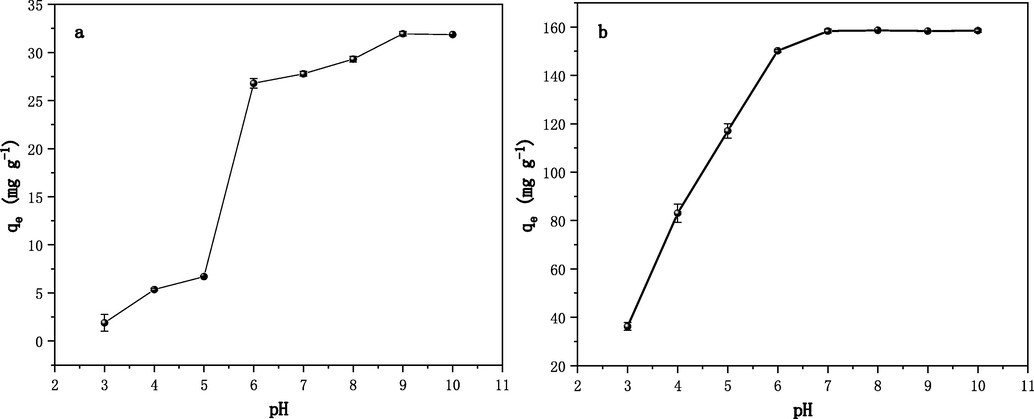

Effect of initial pH on Cd²⁺ (a) and Pb²⁺ (b) adsorption.

Export to PPT

3.4 Characterization of adsorption kinetics

Fig. 10 shows the kinetic adsorption curves of Cd²⁺ and Pb²⁺ on BFA-GP in pure and mixed solutions. The adsorption process of Cd²⁺ and Pb²⁺ by BFA-GP shows two different stages. The first stage is fast and should be adsorption on the surface and the second stage is slow adsorption and due to the diffusion to narrow cracks and pores(Qiu, Cheng and Huang 2018). At initial stage of the reaction, there are a large number of vacant adsorption sites on the adsorbent surface, and the heavy metal ions diffusing to the adsorbent surface can be captured by the adsorption sites quickly; on the other hand, the abundant Cd²⁺ and Pb²⁺ in the solution enhance mass transfer driving force in the liquid phase, which is beneficial to the diffusion of metal ions to the adsorbent surface. The adsorption rate slowed down after 240 min indicating that the adsorption sites on the adsorbent surface were saturated, the Cd²⁺ and Pb²⁺ began to diffuse to narrow pores in the BA-GP. At adsorption equilibrium, the adsorption quantity of Cd²⁺ and Pb²⁺ in pure solution was 26.84 and 143.73 mg g⁻¹, respectively. The adsorption capacity in a mixed Cd²⁺ and Pb²⁺ solution was 8.80 and 135.88 mg g⁻¹, this is 67.2% and 5.4% lower than their adsorption in pure solution.

Close

Fig. 10

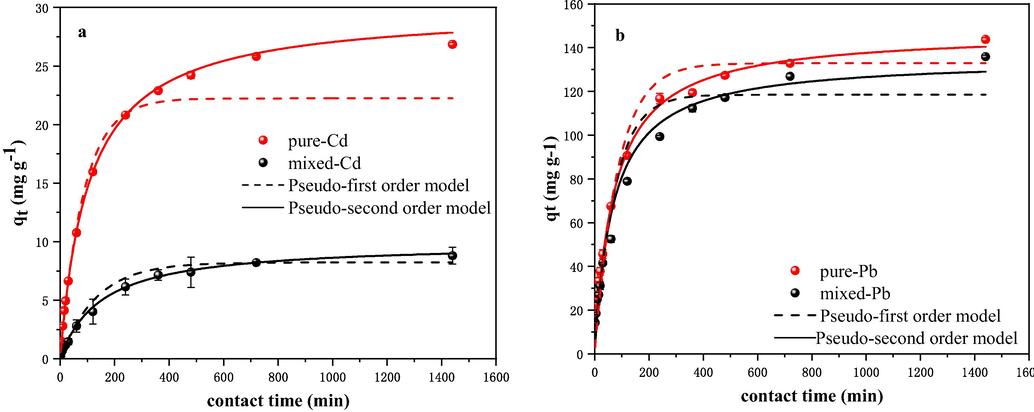

Adsorption kinetics of Cd²⁺ (a) and Pb²⁺ (b) onto BFA-GP in the pure and mixed metal system.

Export to PPT

To further investigation mechanisms of adsorption, pseudo-first-order kinetics model, pseudo-second-order kinetics model and intra-particle diffusion model have been used to evaluate the kinetics data both in pure and mixed solution.

Pseudo-first-order kinetics model often express the adsorption process in which the reaction rate is controlled by physical diffusion (Eq. (2)). Pseudo-second-order kinetics model is used to describe chemisorption exists between the adsorbate and the adsorbents (Eq. (3)). The intra-particle diffusion model is employed to decide if intra particle diffusion is the only rate limiting step in the adsorption process (Eq. (4)) (Zhu et al. 2017).

The fitting results of pseudo-first-order and pseudo-second-order kinetics model are illustrated in Fig. 10, and the kinetic parameters are presented in Table 2. The correlation coefficient of pseudo-second-order kinetics model is higher than that of the pseudo-first-order model, the equilibrium adsorption capacity calculated by the pseudo-second-order kinetic model is closer to the experimental values in all the cases. The results show that the adsorption process of Cd²⁺ and Pb²⁺ onto BFA-GP in pure and mixed solutions is more consistent with the pseudo-second-order kinetics model, indicating chemisorption is the predominant step of the adsorption process (Gao et al. 2015). This was also found in other studies (Wang, Terdkiatburana and Tadé 2008).

It is generally believed that the adsorption process can be divided into three steps: i) external diffusion—heavy metal ions diffuse onto the external surface of the adsorbent, ii) internal diffusion—adsorbates diffuse into the pore channels of the adsorbent, and iii) the reaction of adsorbates and adsorption sites external or internal of the adsorbent. The rate of reaction is usually fast, and thus the first two processes are the factors controlling adsorption rate. The intra-particle diffusion model is suitable to describe the kinetics in which the diffusion inside the particle is dominated. If the curve of q_t versus t^0.5 is a straight line and passes through the origin, then this indicates that the intra-particle diffusion process is the only rate-limiting step to control the adsorption rate (Kong et al. 2016).

Fig. 11 shows the fitting line segments of the intraparticle diffusion model for the experimental data and the fitting parameters are laid out in Table 3. The curves did not pass through origin, and the experimental data showed multiple linear relationships indicating that the adsorption of Cd²⁺ and Pb²⁺ onto BFA-GP is controlled by two or more factors. The experimental data plot can be fitted as two linear stages: i) 0–240 min with a fast reaction rate that is the external diffusion process; ii) a slow adsorption stage controlled by the internal diffusion process of Cd²⁺ and Pb²⁺.

Close

Fig. 11

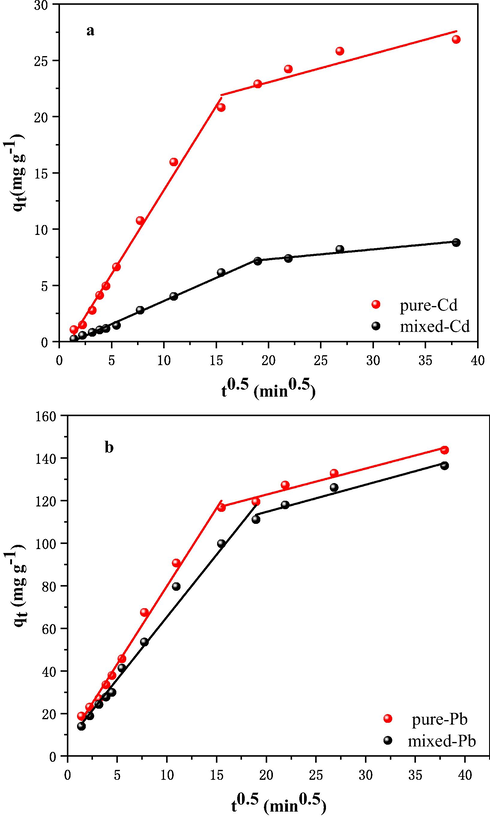

Intra-particle diffusion model plots of Cd²⁺ (a) and Pb²⁺ (b) in pure and mixed solution.

Export to PPT

3.5 Adsorption isotherms of Cd²⁺ and Pb²⁺ on BFA-GP

3.5.1

3.5.1 Adsorption isotherms in pure solution

Both Langmuir model (Eq. (5)) and Freundlich model (Eq. (6)) was used to fit the adsorption isotherms:

(5)

$$q_e=\frac{q_m{k}_l{C}_e}{1+k_l}$$ where ${\mathrm{q}}_{\mathrm{e}}(\mathrm{m}\mathrm{g}{\mathrm{g}}^{-1})$ represents the equilibrium adsorption amount, ${\mathrm{q}}_{\mathrm{m}}(\mathrm{m}\mathrm{g}{\mathrm{g}}^{-1})$ is the maximum adsorption amount calculated by the Langmuir equation, ${\mathrm{k}}_{\mathrm{l}}(\mathrm{L}{\mathrm{m}\mathrm{g}}^{-1})$ is the Langmuir adsorption equilibrium constant.

(6)

$$q_e=k_f{C}_e^{1/n}$$ where $k_f$ and n are the Freundlich equilibrium constants, which are related to the adsorption capacity and intensity of adsorption, respectively (Police et al. 2020). Values of n between 2 and 10 shows easy adsorption (Bao et al. 2013).

Nonlinear fitted curves of experimental data at different temperatures in pure solution by two adsorption isotherms are displayed in Fig. 12, the related constants are listed in Table 4. The correlation coefficients R² show that the Freundlich isotherms can better describe the adsorption of Cd²⁺ on BFA-GP indicating the heterogeneity of the adsorbent surface and multi-layer adsorption may occur (Chen et al. 2017). The Pb²⁺ adsorption on BFA-GP is more consistent with the Langmuir adsorption isotherm indicating that the adsorption process of Pb²⁺ was monolayer adsorption containing chemical reactions such as ion exchange and electron sharing (Qiu et al. 2018). Based on the data in Table 4, all the k_f values increase with increasing temperature, which indicates that high temperature benefits adsorption of Cd²⁺ and Pb²⁺ by BFA-GP. The values of n are always greater than 2 at different temperatures for both Cd²⁺ and Pb²⁺. This shows the high adsorption intensity between adsorbate and adsorbent.

Close

Fig. 12

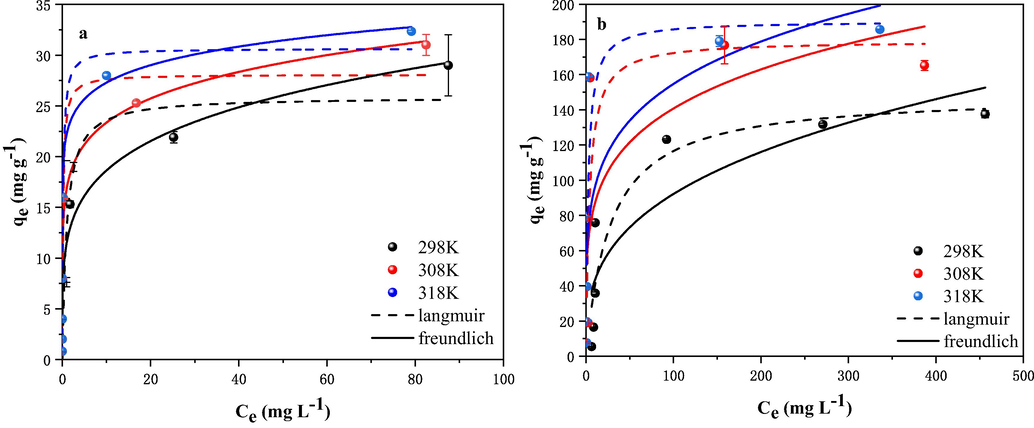

Adsorption isotherms of Cd²⁺ (a) and Pb²⁺ (b) at different temperature in pure systems.

Export to PPT

Table 4 Isotherm model parameters for Cd²⁺ and Pb²⁺ adsorption by BFA-GP in their pure solution.

Metal	T/K	qee	Langmuir			Freundlich
			$k_l$ $(\mathrm{L}{\mathit{mg}}^{-1})$	$q_m$ $(mg{L}^{-1})$	$R^2$	$k_f$	$\mathrm{n}$	$R^2$
Cd	298	29.92	1.0281	25.89	0.8794	11.5502	4.8099	0.9721
	308	31.01	5.5461	28.10	0.9175	16.9278	7.1505	0.9691
	318	32.34	5.3649	30.66	0.7001	22.2795	11.3308	0.9131
Pb	298	137.49	0.0359	149.01	0.8846	19.9510	3.0096	0.789
	308	165.20	0.2441	179.30	0.7799	53.1437	4.7288	0.6112
	318	185.62	0.3936	190.39	0.8053	59.1397	4.7893	0.6582

q_ee is the experimental value.

Comparison of the maximum adsorption capacities of BFA-GP for Cd²⁺ and Pb²⁺ with other similar adsorbents reported in literatures are listed in Table 5. Clearly, the BFA-GP produced in this study shown a higher or equivalent adsorption capacity for Cd²⁺ and Pb²⁺ compare with most of the similar adsorbents.

Table 5 Comparison of adsorptive capacity of Cd²⁺ and Pb²⁺ with similar adsorbents.

Adsorbents	Adsorptive capacity (mg g−1)		References
	Cd	Pb
BFA and slags-based geopolymers	10.58	50	(Pérez-Villarejo et al. 2018)
Alkali-activated fly ash	26.47	–	(Krol et al. 2018)
Zeolite-based geopolymer	26.25	–	(Javadian, 2013)
Geopolymer-alginate-chitosan composites	–	142.67	(Yan et al. 2019)
Biofuel ash based geopolymer	29.92	137.49	This study

3.5.2

3.5.2 Competitive adsorption

The competitive adsorption of heavy metals by BFA-GP was shown in Fig. 13 (a) and (b). When the concentrations of Cd²⁺ and Pb²⁺ in the solution are below 20 and 100 mg L⁻¹, respectively, the adsorption of Cd²⁺ and Pb²⁺ in mixed solution is consistent with adsorption in pure solution indicating that competitive adsorption is not significant at low concentrations. This is because BFA-GP can provide sufficient adsorption sites in low concentration solutions. If the concentration of the two ions in the solution is higher than 20 and 100 mg L⁻¹, then the adsorption amount of two ions in mixed solution was lower than that in pure solutions.

Close

Fig. 13

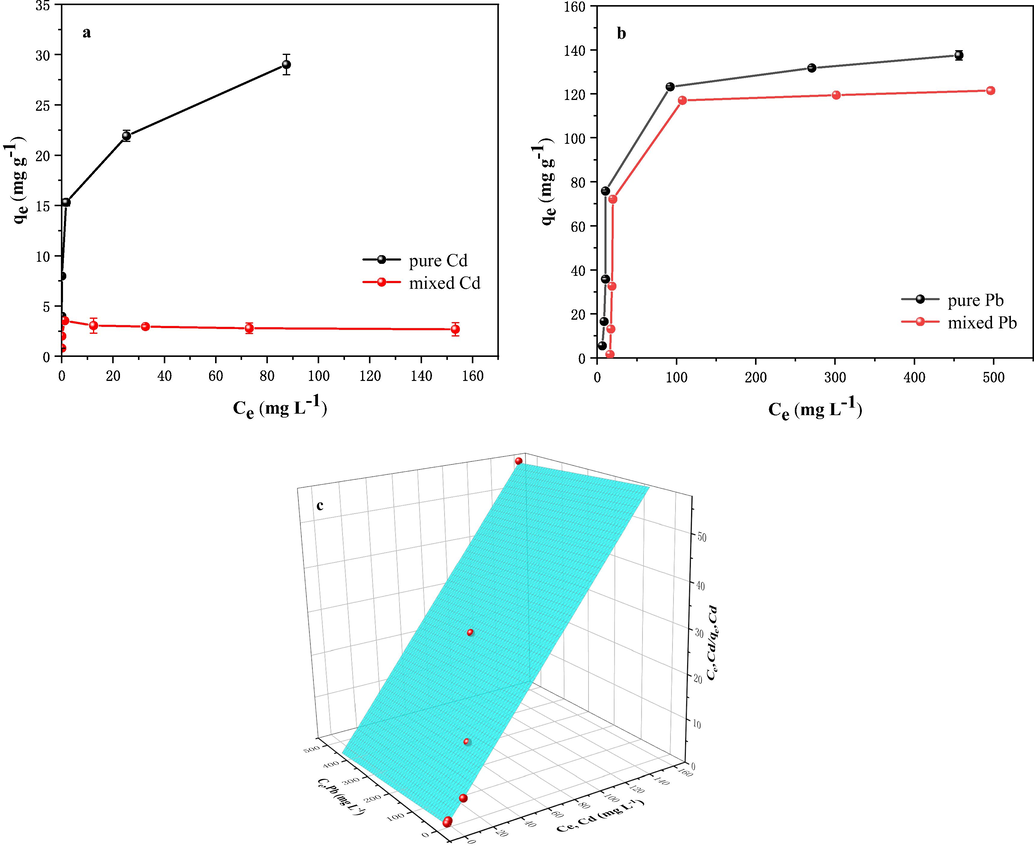

Comparison of adsorption quantity of Cd²⁺ (a) and Pb²⁺ (b) in pure and mixed solution and Langmuir competitive adsorption model for Cd²⁺ and Pb²⁺ adsorption on BFA-GP (c).

Export to PPT

The adsorption amount of Cd²⁺ in mixed solution is obviously lower than in pure solution, but the adsorption amount of Pb²⁺ has no significant changes indicating that the presence of Pb²⁺ seriously limits the adsorption of Cd²⁺. Similar results were shown in previous literature (Ma et al. 2015, Cheng et al. 2012, Huang et al. 2020a). Smaller hydration ion radius, smaller surface free energy and stronger adsorption affinity lead to easier adsorption (Chen et al. 2019b). The hydrated ionic radius of lead (4.01 Å) is smaller than that of cadmium (4.26 Å), and thus Pb²⁺ enters the micro-pore of the adsorbent more easily. The surface free energy of Cd²⁺ and Pb²⁺ hydrated ions is 4.26 and 4.01 kcal mol⁻¹, respectively. A larger free energy keeps Cd²⁺ in solution. The affinity depends on their hydrolysis constant K, and the ions with a large hydrolysis constant are more prone to forming metal hydroxy groups (e.g., Pb(OH)⁻ and Cd(OH)⁻) in the solution. The pK values of Pb²⁺ and Cd²⁺ are 7.7 and 10.1, respectively. In other words, the hydrolysis constant of Pb²⁺ is about 250-fold that of Cd²⁺, which determines that the adsorption affinity order is Pb²⁺>Cd²⁺.

Langmuir competitive adsorption model was introduced to fit the adsorption data obtained in mixed solution. Langmuir competitive adsorption model can be expressed as follow (Huang et al. 2020b):

(8)

$$\frac{C_{e,1}}{q_{e,1}}=\frac{1}{q_{\mathit{max},1}{k}_{l,1}}+\frac{1}{q_{\mathit{max},1}}{C}_{e,1}+\frac{k_{l,2}}{q_{\mathit{max},1}{k}_{l,1}}{C}_{e,2}$$ where C_e,i (mg L⁻¹) refers to heavy metal equilibrium concentrations, q_e,i (mg g⁻¹) stand for equilibrium adsorption quantity of heavy metal, k_l,i (mg L⁻¹) represent the adsorption coefficient, indicating the sorption affinity.

The Langmuir model fitting for the mixed system is shown in Fig. 13 (c). According to the competitive model fitting results, the correlation coefficients of Cd²⁺ and Pb²⁺ were 0.9995 and 0.9947, respectively, indicating that adsorption behaviors could be nicely fitted with a Langmuir competitive model. q_max of Cd²⁺ and Pb²⁺ calculated by Langmuir model was 2.58 and 126.10 mg g⁻¹. The fitting results are very consistent with the experimental data. This result indicates that adsorption of heavy metal ions onto BFA-GP will be restricted by other coexisting ions.

3.6 Adsorption thermodynamics of Cd²⁺ and Pb²⁺ on BFA-GP

The effect of temperature on adsorption of Cd²⁺ and Pb²⁺ onto BFA-GP is shown in Fig. 14. The experiments were conducted at 298, 308, and 318 K. The distribution coefficient values (K) increased with increasing temperature indicating the endothermic nature of the adsorption.

Close

Fig. 14

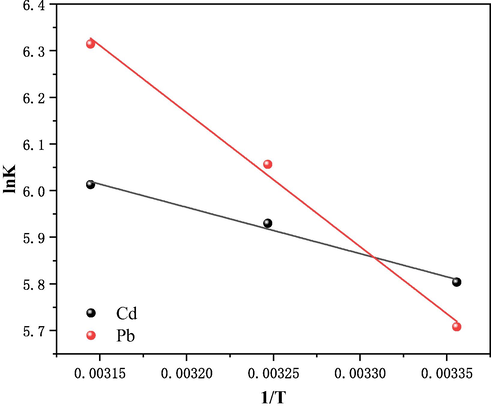

Plot of ln K against 1/T obtained for the adsorption of Cd²⁺ and Pb²⁺ onto BFA-GP.

Export to PPT

Thermodynamic parameter, free energy change ( $\mathrm{\Delta }\mathrm{G}$ ), enthalpy change ( $\mathrm{\Delta }\mathrm{H}$ ) and entropy change ( $\mathrm{\Delta }\mathrm{S}$ ) were calculated using Van’t Hoff equation (Gao et al. 2015).

Thermodynamic parameters of adsorption Cd²⁺ and Pb²⁺ on BFA-GP are listed in Table 6. $\mathrm{\Delta }\mathrm{H}$ values are positive confirming that BFA-GP adsorption for Cd²⁺ and Pb²⁺ is endothermic(Chatterjee, Basu and Jana 2019), means a high temperature is favorable for the reaction. This is consistent with the increase of heavy metal ion adsorbing onto the BFA-GP with the increasing of temperature, as shown in Fig. 9. Although there is no clear criterion defining the adsorption type on the basis of $\mathrm{\Delta }\mathrm{H}$ , the adsorption process with $\mathrm{\Delta }\mathrm{H}$ ranges from 20.9 to 418.4 kJ mol⁻¹ and is recognized as a chemisorption process (Nuri and Ersoz, 2019). The enthalpy change of Cd²⁺ and Pb²⁺ is 8.262 and 23.912 kJ mol⁻¹, respectively. This confirmed that chemisorption is involved in the adsorption process of Pb²⁺. The ΔG values are negative indicating that the adsorption reaction is spontaneous. The entropy change ( $\mathrm{\Delta }\mathrm{S}$ ) is negative, which indicates that the confusion degree of the system is reduced after the adsorption reaction, and the metal ions in the solution are fixed on the surface of the adsorbent.

3.7 Mechanism of Cd²⁺ and Pb²⁺ adsorption on BFA-GP

Fig. 15 displays the SEM images and elemental mapping images of BFA-GP after adsorption Cd²⁺ and Pb²⁺. The adsorption of heavy metal ions on BFA-GP was confirmed by EDS analysis. The characteristic signals of cadmium and lead elements are observed in Fig. 12 (c) and (f), respectively. In Fig. 15(a), amorphous geopolymer can be seen as white cloud-like particles on the surface of BFA-GP, and Cd can be observed predominantly adsorb on the surface of those geopolymer particles. In Fig. 15(d), needle like gismondine particles can be clearly observed, and Pb also predominantly adsorbed by gismondine particles as shown in Fig. 15(e). This clearly indicated the newly produced geopolymer and gismondine promoted the adsorption for Pb and Cd by BFA.

Close

Fig. 15

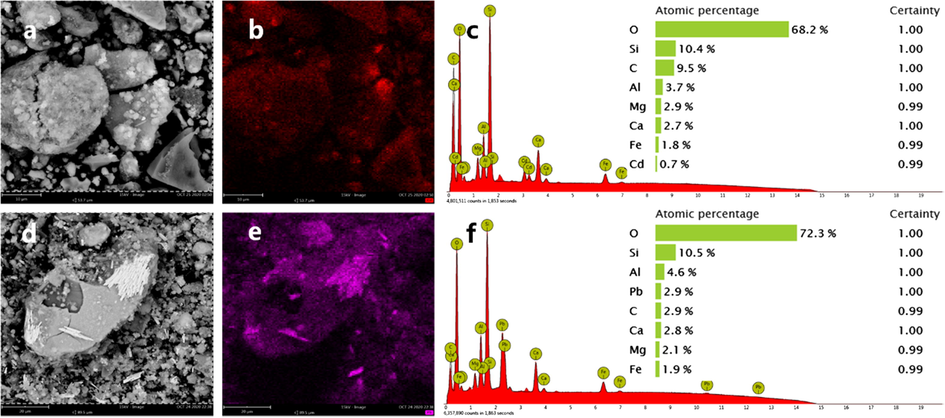

SEM-EDS analysis of BFA-GP loaded with Cd²⁺ (a, b, c) and Pb²⁺ (d, e, f).

Export to PPT

Fig. 16 shows the bond energy absorption analysis of BFA-GP before and after adsorption of Cd²⁺ ions and Pb²⁺ ions. The adsorption of Cd²⁺ and Pb²⁺ onto BFA-GP were also observed by the XPS spectrum. The characteristic signals of cadmium or lead elements are not observed in the spectra of BFA-GP, but appeared in the spectra of BFA-GP samples after adsorption. The bond energy absorption positions for Cd 3d are 405.58 and 412.28 eV corresponding to Cd 3d_5/2 and Cd 3d_3/2, respectively. The bond energy absorption positions for Pb 4f are 138.68 and 143.68 eV representing Pb 4f_7/2 and Pb 4f_5/2, respectively (Huang et al. 2020a). Moreover, Fig. 16 (d,e,f) showed that the binding energy peaks of O1s move from 531.88 to 531.68, 531.78, and 531.48 eV after adsorption of Cd, Pb, and Cd + Pb, respectively, it may be due to that the chelate reaction between heavy metal ions and oxygen containing functional groups including Si—O—Si, Si—O—Al, and Si—O—H changed the bonding energy of O1s (Kaewmee et al. 2020). The reduction in the bond strengths of Ca 2p after adsorption clearly indicated that ion-exchange occurred between heavy metal ions and Ca²⁺ in Ca—A—-Si—H gel (Qiu et al. 2018). Hence, the mechanisms of the adsorption process should include electrostatic attraction, chelate reaction, and ion-exchange.

Close

Fig. 16

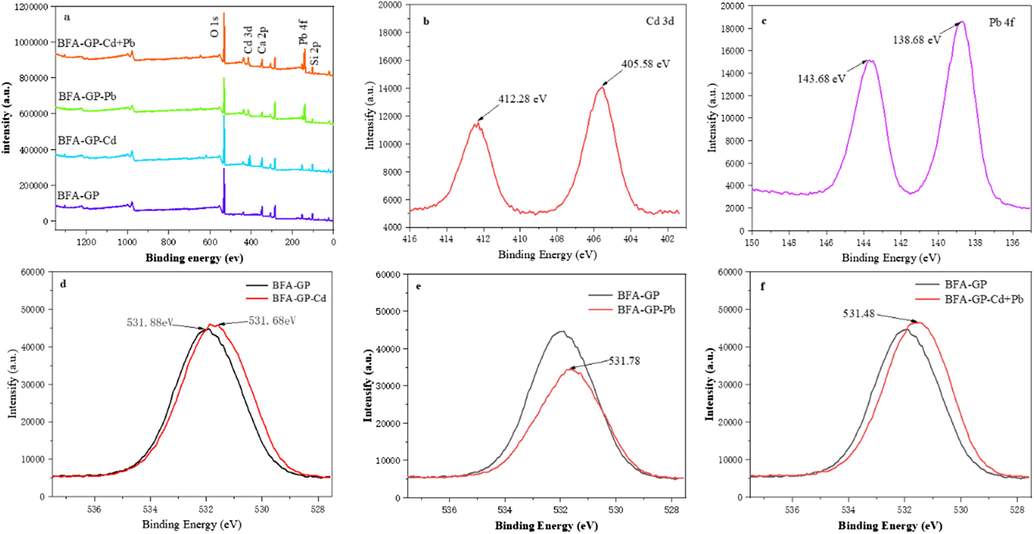

XPS spectra of BFA-GP before and after loading Cd²⁺ and Pb²⁺ in pure and mixed solution: (a) survey spectra, (b) Cd 3d spectra, (c) Pb 4f spectra, (d) O1s spectra of BFA-GP-Cd, (e) O1s spectra of BFA-GP-Pb, (f) O1s spectra of BFA-GP-Cd + Pb.

Export to PPT
