Application of potato (Solanum tuberosum) plant wastes for the removal of methylene blue and malachite green dye from aqueous solution

2.1 Preparation of adsorbents

The potato leaves and stems were washed thoroughly by double distilled water to remove the dust and other impurities. Leaves were firstly dried at room temperature and then in a hot air oven at 60 °C. The washed stems were boiled in double distilled water for 45 min to separate the fibers and dried in a hot air oven at 60 °C (Mas-Haris and Sathasivam, 2009). The dried leaves and stem were ground in a domestic grinder and screened to separate the particles of 100–150 μm. Resulting potato leaves powder (PLP) and potato stem powder (PSP) were kept in a glass bottle for use in adsorption studies. Characteristics of the PSP and PLP were determined and the results are summarized in Table 1.

2.2 Adsorption experiments

A stock solution (1000 mg/L) of MB and MG (obtained from Merck) was prepared by dissolving an appropriate amount of each dye in double distilled water, which was diluted to desired concentrations of 10, 20, 30, 40 and 50 mg/L. Batch adsorption experiments were carried out to investigate the effect of pH, ionic strength, adsorbent dose, initial dye concentration, contact time and temperature on the adsorption of MB and MG on PLP and PSP by varying the parameters under study and keeping other parameters constant. In each experiment pre-weighed amount of adsorbent was added to 50 mL of dye solution taken in a 150 mL of conical flask and the pH was adjusted by using 0.1 M NaOH or 0.1 M HCl. The resulting solution was agitated at 200 rpm on a stirrer at constant temperature and centrifuged (Remi Research centrifuge). The dye concentration in supernatant solution were determined at characteristic wavelength (MB λ_max = 665 nm; MG λ_max = 617 nm) by double beam UV–visible spectrophotometer (Systronics 2202).

The percentage removal of dye and amount of dye adsorbed on PSP and PLP (q_e) was calculated by Eqs. (1) and (2), respectively:

2.3 Characterization of PLP and PSP

FTIR study was carried out on FTLA 2000 spectrophotometer to analyze functional groups, using potassium bromide (KBr) disk method and the morphology of adsorbents was investigated by FEI Quanta 200 scanning electron microscope operated at 20 kV accelerated voltage.

3.1 Characterization

The FTIR technique is an important tool to identify functional groups, which are capable of adsorbing dyes. FTIR spectra of PSP and PLP, before and after adsorption of MB and MG dye, were shown in Fig. 1a and b. It was observed that spectra of PSP and PLP having similar bands confirm the presence of same functional groups in both the adsorbents. The broad absorption peaks around 3400 cm⁻¹ was due to vibration of the hydroxyl group linked in cellulose and lignin and adsorbed water (Mas-Haris and Sathasivam, 2009). The peak observed at 2930 cm⁻¹ was assigned to the stretching vibration of C–H bond in methyl group. The peaks located at 1630 cm⁻¹ were characteristics of carbonyl group stretching. The peak at 1609 cm⁻¹ was due to bending vibration of O–H groups. The peak around 1365 cm⁻¹ was due to bending vibration of C–H of methyl group. The C–O stretching band at 1246 cm⁻¹ also confirms the lignin structure of the adsorbents and corresponding bending peak present around 600 cm⁻¹. The peak around 1050 cm⁻¹ was due to C–O–C stretching of cellulose present in PSP and PLP. Characteristic changes were observed in the FTIR spectrum of PSP and PLP after adsorption of MB and MG dye on its surface. The results indicated that some peaks were shifted or disappeared, and new peaks were also detected. These changes observed in the spectrum indicated the possible involvement of those functional groups on the surface of the PSP and PLP in the adsorption process. The SEM micrograph of a typical PLP and PSP sample at 1000× magnification depicted in Fig. 2a and b shows the uneven and rough surface in PSP and PLP which provides suitable binding sites for MB and MG dye molecule.

Close

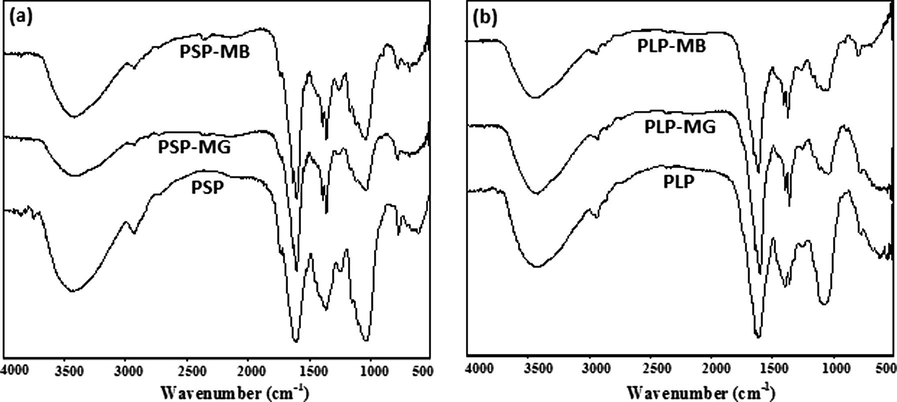

Figure 1

FTIR spectra of PSP (a) and PLP (b) before and after the adsorption of MB and MG.

Export to PPT

Close

Figure 2

SEM images of PSP (a) and PLP (b).

Export to PPT

3.2 Determination of pH_PZC of PSP and PLP

The point of zero charge (pH_PZC) of an adsorbent is a very important characteristic that determines the pH at which the adsorbent surface has net electrical neutrality (El-Qada et al., 2006). To find out pH_pzc, the experiments were conducted at different pH ranges from 3 to 11, by adding 0.1 g of adsorbent to 50 mL of 0.1 M KNO₃ solution and agitated on a magnetic stirrer. The pH of the solution was measured after 25 min. As shown in Fig. 3, the pH_PZC of PSP and PLP was determined to be 6.1 and 5.9, respectively. At the solution pH > pH_PZC, the adsorbent surface negatively charged and favors uptake of cationic dyes due to increased electrostatic force of attraction. At pH < pH_PZC, the surface becomes positively charged, concentrations of H⁺ were high and they compete with positively charged MB and MG cations for vacant adsorption sites causing a decrease in dye uptake. Thus, MB and MG adsorption onto PSP and PLP is favoured at pH higher than pH_PZC. It was found that the percentage color removal was less at low pH and maximum at the pH 7. Therefore, all the experiments were carried out at the pH 7.

Close

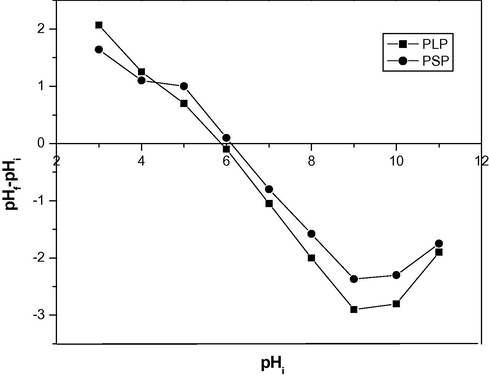

Figure 3

The plots of pH_f − pH_i vs. pH (adsorbent dose: 2 g/L; temperature: 303 K; contact time: 25 min).

Export to PPT

3.3 Effect of adsorbent dose

The effect of adsorbent dose on removal of the dye from aqueous solution was studied using adsorbent dose of PSP and PLP ranging from 0.5 to 3.0 g/L and plots between percentage removal against adsorbent dose (g/L) shown in Fig. 4. It can be seen that the %dye removal increased as the dose increased from 0.5 to 2 g/L. The uptake of dye that (MB/MG) increased with increase in the adsorbent (PSP/PLP) dose can be attributed to increased surface area and the adsorption sites (Liu et al., 2011). Further increase in adsorbent dose, did not show significant increase in %removal of dye, this was due to the concentration of MB/MG reached at equilibrium status between solid and solution phase. Therefore, 2 g/L adsorbent dose was chosen for further experiments.

Close

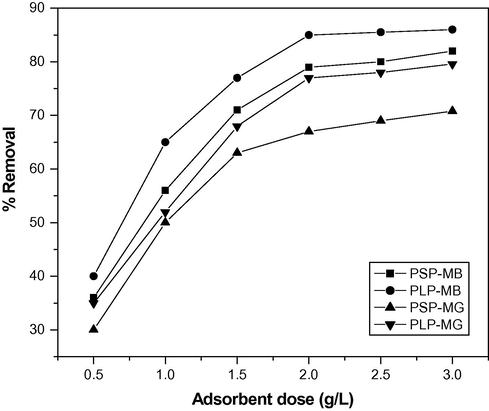

Figure 4

Effect of adsorbent dose on adsorption of MB/MG onto PSP/PLP (initial dye concentration: 10 mg/L; pH 7; temperature: 303 K; contact time: 25 min).

Export to PPT

3.4 Effect of ionic strength

The wastewater has commonly higher salt concentration which makes it necessary to study the effects of ionic strength on the adsorption of dye. The effect of ionic strength on the adsorption capacities of MB/MG on PSP/PLP was studied at 0–0.1 mol/L NaCl concentrations at 303 K and solution pH. From Fig. 5, increasing ionic strength has significantly decreased the adsorption capacity of MB/MG on PSP/PLP. The values of q_e decreased from 3.95 to 2.6 mg/g, 4.25 to 3.2 mg/g, 3.35 to 2.2 mg/g and 3.85 to 2.55 mg/g for the PSP-MB, PLP-MB, PSP-MG and PLP-MG systems, respectively, as the concentration of NaCl increased from 0 to 0.1 mol/L. This trend indicated that the adsorbing efficiency decreased when NaCl concentration increased in the dye solution, which could be attributed to the competitive effect between dye ions and Na⁺ from the salt for the sites available for the sorption process (Hamdaouia et al., 2008). As the ionic strength increased the effective concentration of MB and MG decreased, therefore, the adsorptive capacity of dyes onto adsorbents decreased.

Close

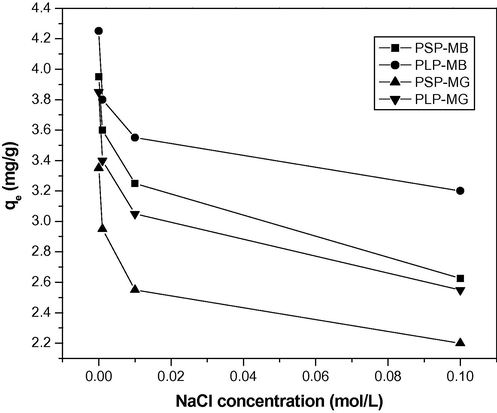

Figure 5

The effect of NaCl concentration on adsorption of MB/MG on PSP/PLP (adsorbent dose: 2 g/L; initial dye concentration: 10 mg/L; pH: 7; temperature: 303 K; contact time: 25 min).

Export to PPT

3.5 Adsorption kinetic studies

Kinetic adsorption experiments were carried out to investigate the contact time necessary for each adsorption system to come to equilibrium. The experiments were carried out by agitating 10 mg/L of dye solution with 2 g/L of adsorbent at different periods of contact time ranging from 0 to 33 min. From Fig. 6, it can be seen that the adsorption of dye molecules was rapid in the initial stages and was gradually decreased with the progress of adsorption until the equilibrium was reached. The equilibrium time for PSP-MB, PLP-MB, PSP-MG and PLP-MG systems were found to be 15, 24, 18 and 21 min, respectively. It revealed that systems based on PLP need more time to reach equilibrium point than that of PSP based systems.

Close

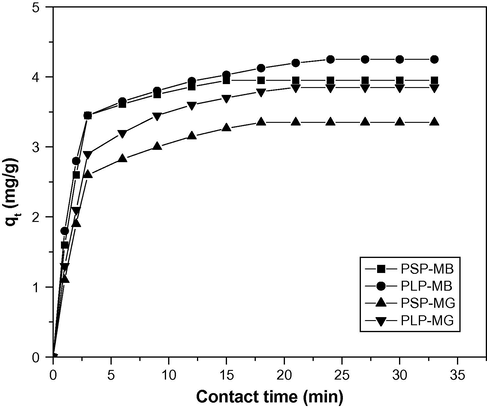

Figure 6

Adsorption kinetics of the adsorption of MB/MG on PSP/PLP (adsorbent dose: 2 g/L; initial dye concentration: 10 mg/L; pH: 7; temperature: 303 K).

Export to PPT

The principle behind the adsorption kinetics involves the search for a best model that well represents the experimental data. Two classical kinetics models (i) a pseudo-first order kinetic model of Lagergren (ii) a pseudo-second order kinetic model of Ho were employed to simulate the experimental data of PSP-MB, PLP-MB, PSP-MG and PLP-MG systems.

The pseudo-first order rate expression can be given as (Lagergren, 1898):

Close

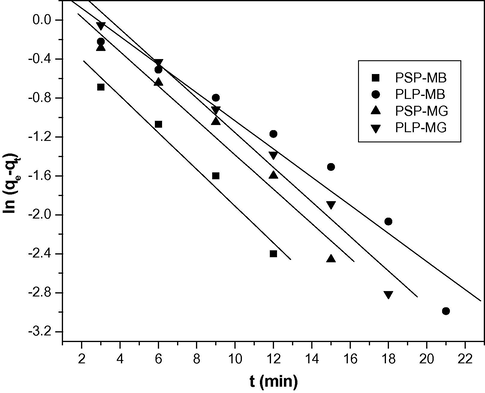

Figure 7

Pseudo-first order kinetics plots for the adsorption of MB/MG on PSP/PLP (adsorbent dose: 2 g/L; initial dye concentration: 10 mg/L; pH: 7; temperature: 303 K).

Export to PPT

The adsorption kinetics may be described by a pseudo-second order model can be expressed as (Ho and McKay, 1999):

Close

Figure 8

Pseudo-second order kinetics plots for the adsorption of MB/MG on PSP/PLP (adsorbent dose: 2 g/L; initial dye concentration: 10 mg/L; pH: 7; temperature: 303 K).

Export to PPT

Adsorption kinetics is usually controlled by different mechanisms of which the most general are the diffusion mechanisms which can be explained by intraparticle diffusion model proposed by Weber and Morris. Intraparticle diffusion model can be expressed as (Weber and Morris, 1963):

Close

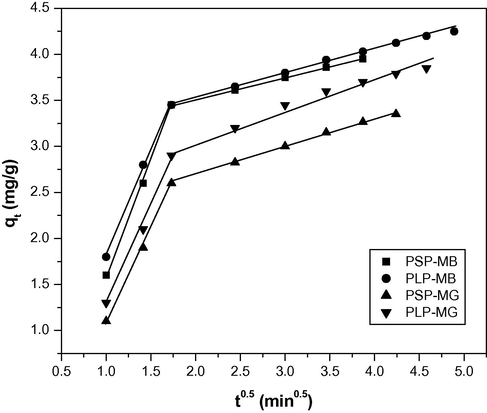

Figure 9

Intraparticle diffusion plots for the adsorption of MB/MG on PSP/PLP (adsorbent dose: 2 g/L; initial dye concentration: 10 mg/L; pH: 7; temperature: 303 K).

Export to PPT

3.6 Equilibrium studies

The analysis of the adsorption process requires the relevant adsorption equilibrium for better understanding of the adsorption process. Adsorption equilibrium describes the nature of adsorbate-adsorbent interaction. The equilibrium experiments were conducted for different initial dye concentrations and it was observed that the amount of dye adsorbed of PSP-MB, PLP-MB, PSP-MG and PLP-MG systems increased from 3.95 to 17.4 mg/g, 4.25 to 19.9 mg/g, 3.35 to 13.25 mg/g and 3.85 to 16.4 mg/g, respectively, as the initial dye concentration was increased from 10 to 50 mg/L, indicating that the initial concentration provided a powerful driving force to overcome the mass transfer resistance between the aqueous and solid phases. Whereas the percent dye removal decreased from 82% to 76%, 87% to 83%, 67% to 58.8% and 75% to 68.2% for PSP-MB, PLP-MB, PSP-MG and PLP-MG systems, respectively, for an increase in initial dye concentration from 10 to 50 mg/L. These equilibrium data were analyzed using the Langmuir and Freundlich isotherm models.

3.6.1

3.6.1 Langmuir isotherm model

The Langmuir isotherm is valid for monolayer adsorption onto a surface with a finite number of identical sites. It can be expressed as:

(6)

$$q_{\text{e}}=Q_{\text{m}}{\mathit{bC}}_{\text{e}}/(1+{\mathit{bC}}_{\text{e}})$$

The linearized forms of Eq. (6) (Ghoul et al., 2003) can be written as follows:

(7)

$$C_{\text{e}}/q_{\text{e}}=1/{\mathit{bQ}}_{\text{m}}+C_{\text{e}}/Q_{\text{m}}$$ where q_e is the amount of dye adsorbed on adsorbent (mg/g) at equilibrium, C_e is the equilibrium concentration (mg/L) of the dye in solution, Q_m is the monolayer adsorption capacity (mg/g) and b is the Langmuir constant (L/mg) related to the free energy of adsorption. The values of Q_m and b were calculated from the slopes (1/Q_m) and intercepts (1/bQ_m) of the linear plots of C_e/q_e vs. C_e (Fig. 10) and are given in Table 3. Values for the correlation coefficients strongly supported the assumption that the adsorption data follows the Langmuir model of adsorption. Values of Q_m for different systems were found to be in the order PLP-MB > PSP-MB > PLP-MG > PSP-MG suggested that the adsorption capacity of PLP was greater than PSP for both the dyes and adsorption capacity of both the adsorbents were greater for MB than MG dye. The Langmuir parameter, Q_max values obtained in this work were compared with other results reported in the literature (Table 4).

Close

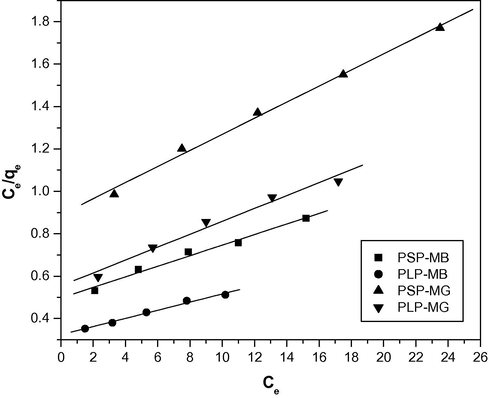

Figure 10

The Langmuir plots for the adsorption of MB/MG on PSP/PLP (adsorbent dose: 2 g/L; initial dye concentration: 10 mg/L; pH: 7; temperature: 303 K).

Export to PPT

Table 3 Isotherm parameters for adsorption of MB/MG on PSP/PLP.

Adsorption system	Langmuir isotherm parameters				Freundlich isotherm parameters
	Qmax	b	R2	ARE (%)	KF	n	R2	ARE (%)
PSP-MB	41.6	0.048	0.983	0.44	2.27	1.3	0.997	0.636
PLP-MB	52.6	0.058	0.988	1.161	3.15	1.2	0.996	3.322
PSP-MG	27.0	0.041	0.994	0.0307	1.45	1.4	0.997	2.862
PLP-MG	33.3	0.054	0.977	1.765	2.06	1.3	0.998	0.792

Table 4 Previously reported adsorption capacities of various agricultural and plant wastes for MB and MG.

Adsorbents	Dye	Qmax	References
Oil palm trunk fiber	MG	149	Hameed and El-Khaiary (2008a)
Dead leaves of Platanus vulgaris	MG	85.47	Hamdaouia et al. (2008)
Banana pseudo-stem fiber	MG	26.5	Gupta et al. (2011)
Neem sawdust (Azadirachta indica)	MG	4.3	Khattria and Singhb (2009)
Treated ginger waste	MG	84	Ahmad and Kumar (2010)
Arundo donax root carbon	MG	8.6	Zhang et al. (2008)
Leaves of Solanum tuberosum	MG	33.3	This study
Stem of Solanum tuberosum	MG	27	This study
Pineapple stem	MB	119	Hameed et al. (2009)
Tea waste	MB	85	Uddin et al. (2009)
Date stones and palm-trees waste	MB	40 and 35	Belala et al. (2011)
Yellow passion fruit waste	MB	44.7	Pavan et al. (2008)
Sulfuric acid treated Parthenium and phosphoric acid treated Parthenium	MB	39 and 88	Lata et al. (2007)
Pumpkin seed hull	MB	141	Hameed and El-Khaiary (2008b)
Garlic peel	MB	82.6	Hameed and Ahmad (2009)
Neem (Azadirachta indica) leaf powder	MB	19.6	Bhattacharyya and Sharma (2005)
Leaves of Solanum tuberosum	MB	52.6	This study
Stem of Solanum tuberosum	MB	41.6	This study

3.6.2

3.6.2 Freundlich isotherm model

The Freundlich isotherm is an empirical equation assuming that the adsorption process takes place on heterogeneous surfaces. This isotherm can be expressed by the following equation (Kumar et al., 2006):

(8)

$$q_{\text{e}}=K_{\text{f}}{C}_{\text{e}}^{1/n}$$

The logarithmic forms of Eq. (8) can be written as follows:

(9)

$$\ln q_{\text{e}}=\ln K_{\text{f}}+(1/n)\ln C_{\text{e}}$$ where K_f and n are Freundlich constants related to adsorption capacity [mg g⁻¹ (mg L⁻¹)^−1/n] and adsorption intensity of adsorbents. The values of the K_f and n were calculated from the intercepts (ln K_f) and slopes (1/n) of the plots ln q_e vs. ln C_e (Fig. 11) and are presented in Table 3. The high values of the correlation coefficient indicate that the experimental data were also fitted well in Freundlich model. The order of adsorption capacity was similar as to that observed in the Langmuir isotherm. Values of n > 1 represented favorable adsorption condition for all the four adsorption systems (Hameed, 2009).

Close

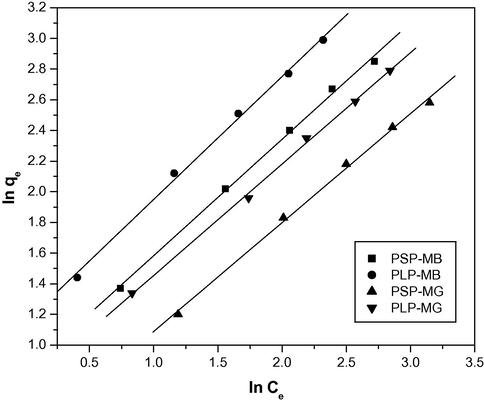

Figure 11

The Frendlich plots for the adsorption of MB/MG on PSP/PLP (adsorbent dose: 2 g/L; pH: 7; temperature: 303 K).

Export to PPT

3.7 Thermodynamic studies

The effect of temperature on the adsorption of MB and MG on PSP and PLP adsorbents were investigated at 303, 313, and 323 K. Fig. 12 showed that the adsorption capacity decreased from 3.95 to 3.75 mg/g, 4.25 to 4.12 mg/g, 3.35 to 3.15 mg/g and 3.85 to 3.7 mg/g of PSP-MB, PLP-MB, PSP-MG and PLP-MG systems, respectively, as the temperature increased from 303 to 323 K. These findings indicated that the decrease in feasibility of adsorption at higher temperature due to increase in kinetic energy of dye molecule may cause escape of dye from solid surface to solution phase. A similar observation was also reported in the study on the adsorption of MB onto Scolymus hispanicus L. (Barka et al., 2011).

Close

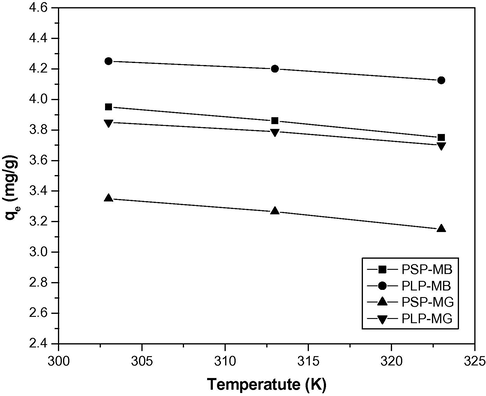

Figure 12

Effect of temperature on adsorption of MB/MG on PSP/PLP (adsorbent dose: 2 g/L; initial dye concentration: 10 mg/L; pH 7).

Export to PPT

Thermodynamic parameters, such as change in enthalpy (ΔH°), entropy (ΔS°) and Gibb’s free energy (ΔG°) were determined for the PSP-MB, PLP-MB, PSP-MG and PLP-MG systems, using Eq. (11) (Nandi et al., 2009) and (12).

The values of ΔH° and ΔS° were determined from the slope (−ΔH°/R) and the intercept (ΔS°/R) of the plots of ln (q_em/C_e) vs. 1/T. The ΔG° values were calculated by using Eq. (12). The values of thermodynamic parameters are presented in Table 5. Negative values of ΔG° indicated that the adsorption process was feasible and spontaneous in nature. The values of ΔG° increased in the order PSP-MG < PLP-MG < PSP-MB < PLP-MB indicate the adsorption was more spontaneous for PLP-MB system. It also revealed that adsorption of MB/MG on PLP was more spontaneous than on PSP and adsorption of MB dye was more spontaneous than MG dye. Negative value of ΔS° described the decrease in randomness at the adsorbent-solution interface during the adsorption. Negative values of ΔH° confirm the overall adsorption of MB/MG on PSP/PLP is an exothermic process and are < −10 kJ/mol, which indicates that physical adsorption was the predominant mechanism in the adsorption process (Bhatnagar et al., 2010; Kumar and Gayathri, 2009).

3.8 Recovery of adsorbents and dyes

In order to assess the practical utility of the PSP and PLP adsorbents, desorption experiments were conducted to regenerate the adsorbents and to recover the dyes. For desorption experiment, dye loaded adsorbents were treated by 1% (v/v) of HCl/ethanol solution for a predetermined time. Treated solution were collected and analyzed for dye content in solution after desorption. The regeneration efficiency (%RE) of the adsorbents was calculated using Eq. (13).

where q₀ and q_r are the adsorption capacities of adsorbents before and after regeneration, respectively. Three consecutive cycles of adsorption–desorption experiments were performed for all the four systems. After the three cycle of regeneration, 3.8%, 4.5%, 4% and 4.9% reduction in the adsorption capacities was observed for PSP-MB, PLP-MB, PSP-MG and PLP-MG systems, respectively. The solution containing desorbed dye was distilled off and the dye was recovered and solvent was reused for the next cycle.
