Combination of RSM and NSGA-II algorithm for optimization and prediction of thermal conductivity and viscosity of bioglycol/water mixture containing SiO₂ nanoparticles

1 Introduction

Optimization is the art of finding the best answer among existing conditions. It is highly important in the engineering systems design to minimize the cost and maximizing the net profit (Hemmat Esfe et al., 2017b). The optimization of different systems has been attracted by many researchers and engineers in recent years (Zhang et al., 2021; Zou, 2021).

Heat transfer processes have a key role in many industries such as electricity production, air conditioning, cars, solar collectors, and so on (Azmi et al., 2013; Delavari and Hashemabadi, 2014; Kuznetsov and Nield, 2010; Qin et al., 2014; Sonawane et al., 2011; Wang et al., 2010). Thermal conductivity is considered as one of the most vital parameters where there is a fluid and it has substantial effect on the system heat transfer (Sonawane et al., 2011). Using nanofluid is one of the emerging technologies for the improvement of heat transfer in engineering systems. The suspension of nanoparticles in a fluid has the potential in cooling fluid due to creation of higher thermal conductivity. The effective parameters on the thermal conductivity can be found according to the type of base fluid (Hemmat Esfe et al., 2015). The nanofluids are usually used in heat exchangers. The nanofluids can increase heat transfer coefficient 50–60% at optimum operating conditions (Hemmat Esfe et al., 2017b).

A fluid containing nanoparticles with a size of less than 100 nm is called nanofluid and it was firstly used by Choi (Choi and Eastman, 1995). The nanoparticles could be metal oxide, metal sulfide, carbide, nitrite, and carbon materials such as carbon nanotube, graphene, and so on (Huminic and Huminic, 2012). Although the nanofluids improve thermal conductivity, they can also affect the rheological behaviour of solution such as the viscosity of solution. Rheological behaviour of different nanofluids including ZnO-Ag (50%-50%)/water hybrid Newtonian nanofluid (Ruhani et al., 2019), hybrid tungsten oxide (WO₃)-MWCNTs/engine oil (Aghahadi et al., 2019), nanofluid containing oxide nanoparticle (Saeedi et al., 2018) has been investigated experimentally. Also, the nanofluids can cause fouling of tubes, friction and precipitation (Hemmat Esfe et al., 2016; Moradi et al., 2019). Determination of nanofluid viscosity containing SiO₂ or Al₂O₃ was experimentally conducted and response surface model was used to generate an equation for the viscosity as a function of volume concentration ad temperature. It was found that the viscosity increases with nanoparticle concentration and reduces with the system temperature (Abdullah et al., 2021). Moreover, suction and dual stretching effect on the dynamics of various hybrid nanofluids was investigated by Shah et al. (Shah et al., 2020a). According to (Elnaqeeb et al., 2021; Koriko et al.; Shah et al., 2021), more accurate simulation of fluid conveying nanoparticles is achievable when the viscosity and thermal conductivity are assumed to vary with nanoparticle's radius, volume fraction and most especially temperature.

Determination of thermal conductivity and viscosity of various nanofluids as well as influence of various parameters such as temperature, concentration, and ultrasonic time on these two properties have been investigated separately. There are a few research studies to investigate the interaction of these two parameters on the thermo-physical properties (Hemmat Esfe et al., 2017c; Sonawane and Juwar, 2016). Therefore, it will be highly important these two parameters in a system simultaneously.

A number of research studies has been performed in recent years in this regard. Effect of temperature (26 – 50 °C) and the hybrid nanoparticles volume fraction (SWCNT-ZnO (30%-70%)) (0.05% −1.6%) in ethylene glycol–water (60%-40%) base fluid on the nanofluid thermal conductivity was studied by Safe et al. (Hemmat Esfe et al., 2017a). Then, neural network was used for determination of a relationship between temperature as well as volume fraction and the nanofluid thermal conductivity and viscosity. It was found that the thermal conductivity is much more affected by the nanoparticles volume fraction in comparison with temperature. It was concluded that there was 45% increasing in thermal conductivity at temperature and volume fraction of 50 °C and 1.6% respectively (Hemmat Esfe et al., 2017a). Akilu et al. (Akilu et al., 2017) synthesised titanium oxide-copper oxide/carbon (TiO₂-CuO/C) using wet-mixing protocol, then, the nanoparticles dispersed in ethylene glycol (EG) as a base fluid. The maximum increase in thermal conductivity and viscosity was obtained 16.7%, and 80% at 2.0% volume fraction and temperature of 40.25 °C. The change in nanofluid pH was proposed as one of the methods for holding the nanoparticles dispersed in the fluid.

Silica nanoparticles have been used in many applications because it has some advantages including low cost, hydrophilic, large surface area per volume, high biocompatibility, and low polydispersity index. Using SiO₂ nanoparticles in nanofluids application has been investigated widely and it can be found in literature in more detail (Shah et al., 2020b). It was found that it possesses some benefits such as minimal pressure drop, maximum increase in heat transfer, appropriate suspension stability, and better rheological and thermal specifications in comparison with other nanoparticles (Muhammad et al., 2021; Shah et al., 2020b). Zyla and Fal (Żyła and Fal, 2017) investigated thermophysical properties of SiO₂–ethylene glycol nanofluids and there was a linear increase in thermal conductivity and viscosity with an increase in the nanoparticle volume fraction.

The data should be firstly modelled for the optimization of discrete experimental data. Response surface method and neural network are two common methods which are used for the modelling experimental data and determination of objective functions (Hemmat Esfe et al., 2017c). Using neural network has been widely used for the optimization of nanofluid systems (Akhgar et al., 2019; Faridzadeh et al., 2014; Goodarzi et al., 2019; Rostami et al., 2021; Shahsavar et al., 2019; Toghraie et al., 2019; Zadeh and Toghraie, 2018). Many algorithms such as GA، ICA، PSO, and NSGA-II have been used for the optimization of thermal conductivity, viscosity, pressure drop, and so on (Ahrar and Djavareshkian, 2017; Hemmat Esfe et al., 2017b). The optimization can be mono-objective or multi-objective. In mono-objective optimization, the aim is optimization of one objective function. Then, effect of operating parameters on the function value is investigated. However, more than one objective function involves optimization simultaneously (Hemmat Esfe et al., 2017b). Using NSGA-II algorithm for the optimization of thermo-physical properties of bioglycol and water fluid containing silicon oxide nanoparticles will be the novelty of the current study. Experimental data used in this study were taken from literature (Abdolbaqi et al., 2016). The nanofluids were prepared by SiO₂ nanoparticle dispersion (0.5%-2%) in various base fluids like 30:70% and 20:80% by volume of bioglycol/water mixtures. For 20%:80% of bioglycol/water, the amount of 7.2% increase in thermal conductivity was observed in the volume concentration of 2.0% at a temperature of 70 °C (Abdolbaqi et al., 2016). Firstly, the experimental data was used to determine the thermal conductivity and viscosity equations as function of temperature and volume fraction by the response surface method.

2 Modelling using RSM

The response surface methodology (RSM) is a common statistical and mathematical approach for modelling and analysing a system in which the response of interest is affected by different variables and the aim of this approach is the optimization of the response (Aydar, 2018). The main benefit of this approach is decreasing the number of experiments and proposing a mathematical equation between dependant and independent variables in the system. The RSM uses statistical techniques like multiple regressions. For example, the first-order linear regression with two variables can be expressed as follows (Aydar, 2018):

It can be simplified using the following assumption:

The σ² can be written as follows:

The equation (8) is considered for the calculation of the sum of squares (Aydar, 2018).

The accuracy of the regression model is evaluated by the following equation:

It is not suitable to use R² when new variables are added to the model. It is common to use adjusted R² when it is required to add new variables into the model (Aydar, 2018):

3 Multi-object optimization using NSGA II

In this study, a non-dominated sorting genetic algorithm (NSGA-II) was used for the determination of optimal values of dynamic viscosity and thermal conductivity. Apart from non-dominated sorting and crowding distance functions, this algorithm also uses mutation and crossover functions. The crossover function is the most important in the NSGA-II algorithm (Aydar, 2018). The combination of the two parent’s genetic information to create new offspring is done by the crossover function. Moreover, maintenance of genetic diversity from a generation of a population of genetic algorithm chromosomes to the next is carried out by mutation function.

The primary distinction between NSGA-II and genetic algorithms is that they use different functions for the optimization of the system parameters. The structure of NSGA-II algorithm is provided in Fig. 1. The non-dominated sorting as well as crowding distance functions play key role in population generation and modification and improve the algorithm performance (Deb et al., 2002).

Close

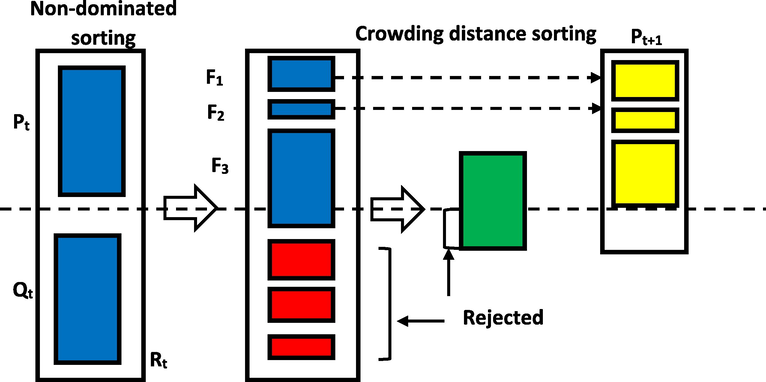

Fig. 1

NSGA-II algorithm structure.

Export to PPT

The non-dominated sorting function compares different answers in different rows and columns and selects a member which satisfies the optimal conditions. For example, the aim of this paper to find a member which has the lowest dynamic viscosity and the highest thermal conductivity. The selected member must have the highest value in the row which has the constant viscosity and the lowest value in the column which has the constant thermal conductivity. In the last step, the crowding distance is used for the modification of new generations’ answers. The main duty of this function is that maintaining an external archive and select a global optimum position (Yusoff et al., 2011). The schematic of the crowding distance function is shown in Fig. 2.

Close

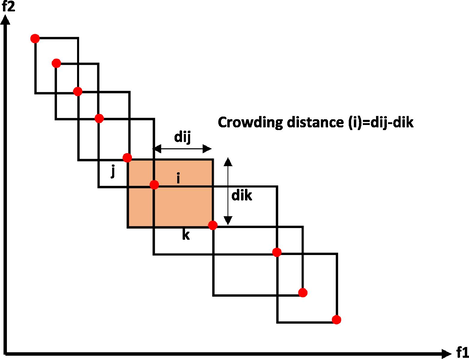

Fig. 2

structure of crowding distance function.

Export to PPT

Crowding distance for each member is obtained based on the first and last members as follows (Yusoff et al., 2011):

Fig. 3 shows general NSGA-II algorithm flowchart. It can be seen that the neural network technique is used for the optimization in NSGA-II algorithm for the determination of the fitness function. In addition, the population generation is performed using crossover and mutation operators. The number of iterations in NSGA-II optimization algorithm was defined in the last section of the algorithm.

Close

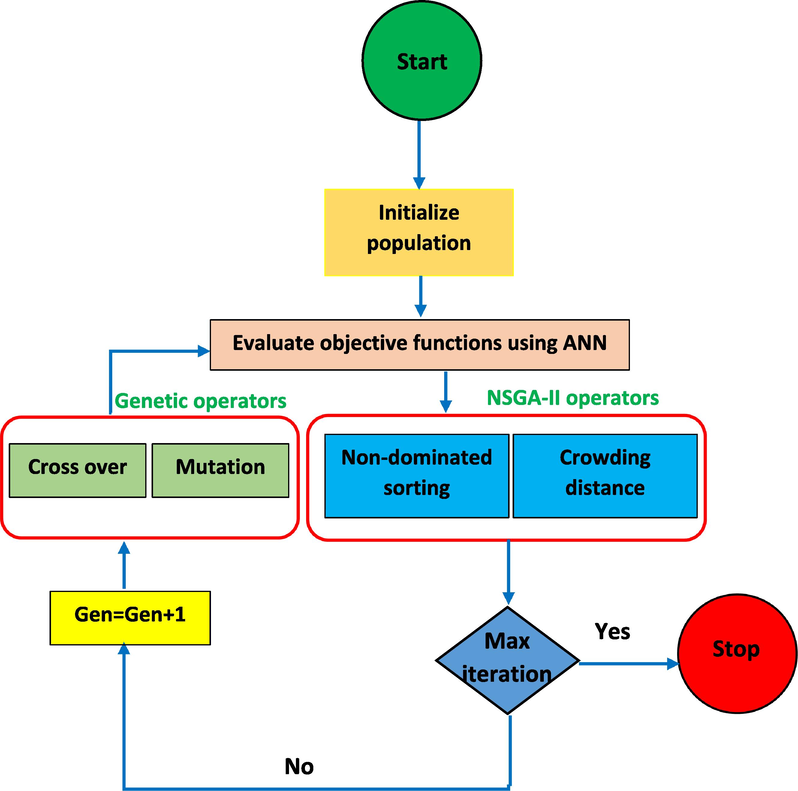

Fig. 3

NSGA-II algorithm flowchart.

Export to PPT

4 Results and discussion

4.1

4.1 RSM results

The experimental data reported in the literature (Abdolbaqi et al., 2016) was used to derive thermal conductivity and dynamic viscosity equations as a function of operating parameters. It was obtained using Design-Expert software. The derived thermal conductivity and viscosity equations can be expressed as follows:

(11)

$$K_{\mathit{nf}}=5.4686e^{-1}+2.1675e^{-2}\times \varphi -3.59e^{-3}\times T-2.52e^{-3}\times {\varphi }^2+8.34e^{-5}\times T^2-4.87e^{-7}\times T^3$$

(12)

$${\mu }_{\mathit{nf}}=3.40544+1.736e^{-1}\times \varphi -9.0417e^{-2}\times T-1.112e^{-3}\times T\times \varphi +1.07e^{-4}\times T^2-4.796e^{-6}\times T^3$$ where K_nf, µ_nf, T, and φ are nanofluid thermal conductivity (W/m.K), nanofluid viscosity (mPa.s), temperature (° C), and volume fraction of nanoparticles (%). The volume ratio of bioglycol/water (W) mixtures was 20:80%.

To investigate the accuracy of RSM model and obtained equations, F-value, P-value as well as coefficient of variation was determined. Moreover, the analysis of Variance (ANOVA) approach was used to calculate these parameters. Based on the ANOVA analysis, the model developed for the determination of the thermal conductivity and viscosity is valid, when the F value > 1 and the P-value <0.05. The results were provided in Table 1. From Table 1, it could be concluded that thermal conductivity, as well as dynamic viscosity, has been estimated accurately with the model due to the higher amount of F-value while the amount of P-value are lower (<0.001). The P-value less than 0.1 means that the model terms is significant. As it can be seen, most of the parameters are significant for both thermal conductivity as well as dynamic viscosity.

Table 1 ANOVA analysis of the thermal conductivity and dynamic viscosity for RSM.

Source	Sum of squares		df		Mean square		F value		P value
	Knf	µnf	Knf	µnf	Knf	µnf	Knf	µnf	Knf	µnf
model	0.011	3.67	7	6	1.63e−3	0.61	1018	2195	>0.0001	>0.0001
φ	4.15e−3	0.094	1	1	4.15e−3	0.094	2578	337.80	>0.0001	>0.0001
T	1.31e−3	0.32	1	1	1.31e−3	0.32	812	1157.22	>0.0001	>0.0001
Φ.T	4.24e−6	5.41e−3	1	1	4.23e−6	5.41e−3	2.63	19.44	0.1192	0.0002
T2	1.65e−5	0.15	1	1	1.65e−5	0.15	10.23	531.53	0.0042	>0.0001
T3	7.69e−5	7.45e−3	1	1	7.69e−5	7.45e−3	47.77	26.78	>0.0001	>0.0001
Φ2	3.34e−5	–	1	–	3.34e−5	–	20.71	–	0.0002	–
Φ2.T	4.73e−6	–	1	–	4.73e−6	–	2.93	–	0.1008	–
Φ.T2	–	9.56e−4	–	1	–	9.56e−4	–	3.43	–	0.0767
Residual	3.54e−5	6.40e−3	22	23	1.61e-6	2.78e−4
Cor total	0.012	3.67	29	29

The statistical deviation between experimental data and predicted values by the developed model was evaluated by the coefficient of determination (R²). The value equal to 1 or a number close to one means that the developed model is accurate. The value of R² and adjusted R² are 0.9943 and 0.9918 for the thermal conductivity and 0.9921 and 0.9902 for the viscosity respectively. The adjusted R² is much more reliable than R² value due to affecting any bias in the system on its value. In the current study, both adjusted R² and R² values are almost same indicating the developed model accuracy.

Eqs. (11) and (12) were used for the calculation of predicted values for the thermal conductivity as well as dynamic viscosity. Fig. 4 ((a) and (b)) presents the predicted value by the developed model for the thermal conductivity as well as viscosity vs. experimental data of thermal conductivity and dynamic viscosity of bioglycol/water nanofluid. It was observed that there is a great agreement between the predicted values by the developed model and experimental data. Therefore, it could be concluded that the developed model by response surface method is reliable for the prediction of thermal conductivity and dynamic viscosity values.

Close

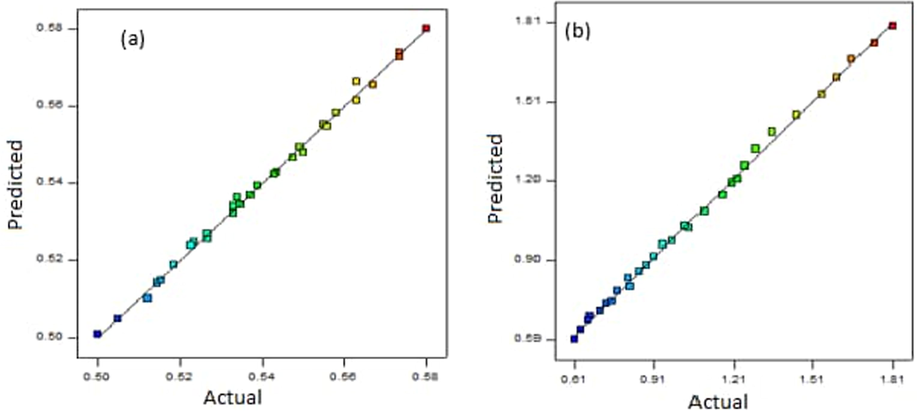

Fig. 4

(a) Predicted thermal conductivity (W/m.K) as well as (b) dynamic viscosity (mPa.s) (x-axis) against the experimental data (y-axis) for bioglcol/water nanofluid.

Export to PPT

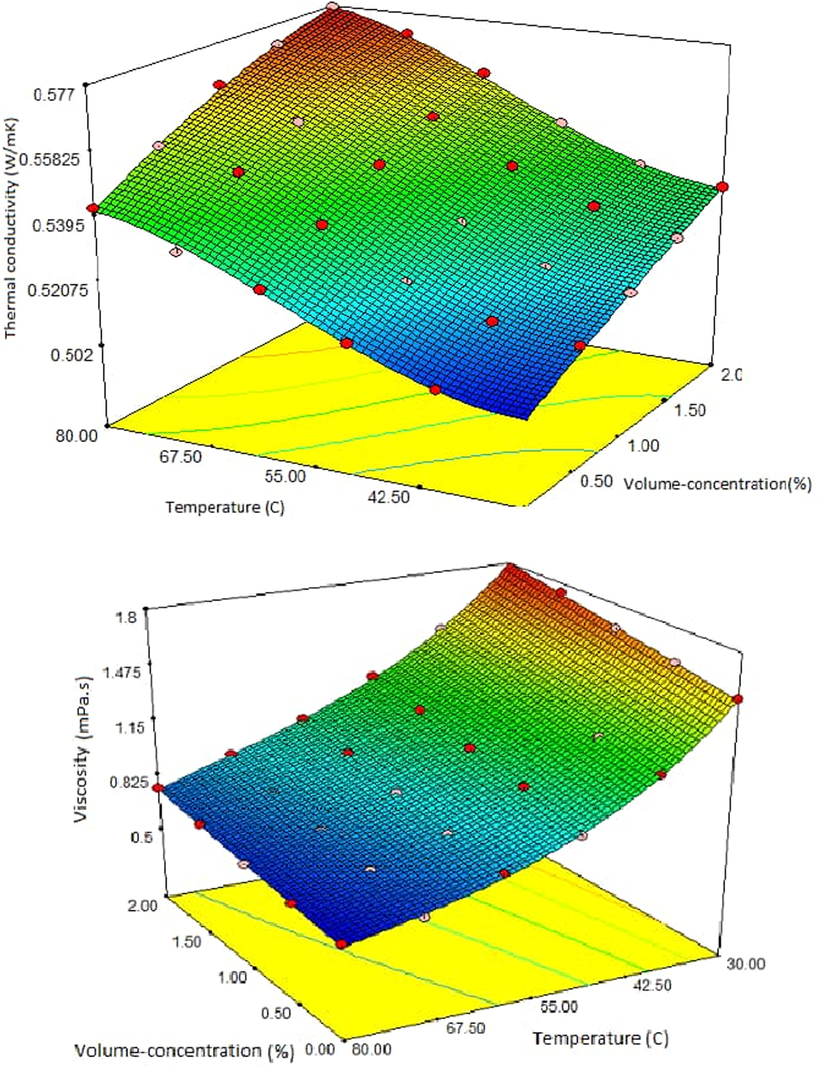

Three-dimensional response surface plots that provide the influence of each parameter on the thermal conductivity and viscosity are given in Fig. 5. There is a decrease in viscosity with increasing temperature while the thermal conductivity was increased by increasing temperature for all volume concentrations. The maximum viscosity of 1.814 mPa.s was obtained at temperature and volume concentration of 30 °C and 2% but the minimum viscosity (0.61 mPa.s) was for the solution without nanoparticles and the temperature of 80 °C. In terms of thermal conductivity, the lowest (0.501 W/m.K) and highest (0.576 W/m.K) thermal conductivities were found at temperature and volume concentration of (30 °C and 0%) and (80 °C and 2%) respectively. Furthermore, addition of nanoparticles in the fluid was increased the amount of both thermal conductivity and viscosity. Also, it should be noted that influence of temperature is much more significant than volume fraction on both thermal conductivity and viscosity. Similar findings were obtained in literature in a system with a base fluid of water and cobalt-oxide (ND-Co₃O₄) nanoparticles (Hemmat Esfe et al., 2016).

Close

Fig. 5

3D response surface plots as function of temperature as well as nanoparticles volume fraction.

Export to PPT

4.2

4.2 NSGA II results

Multi-object optimization was performed on the bioglycol/water nanofluid containing SiO₂ nanoparticles. NSGA II algorithm was implemented by applying different iteration times including first, fifth, tenth, fifteenth, and twentieth and 25 members of population. The optimization results for different iteration times were provided in Fig. 6. The twentieth iteration time is considered as Pareto front. It is seen that the first and fifth fronts are undefeated, and the system is not able to reach stability by applying these fronts. But, the system was achieved stability at the 10th front. The 15th and 20th fronts were also obtained to show this stability.

Close

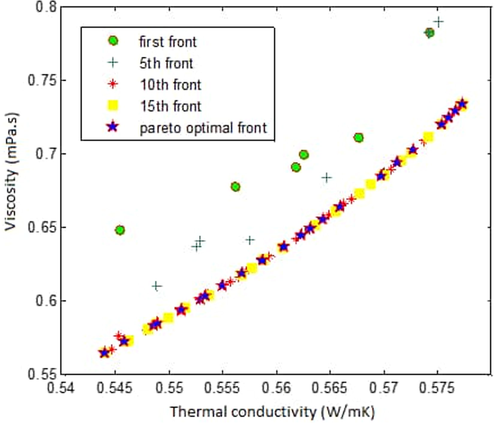

Fig. 6

Thermal conductivity (x-axis) and dynamic viscosity (y-axis) reslut were obtained by NSGA-II.

Export to PPT

Fig. 7 presents the Pareto front (20th front) for the two-objective optimization of thermal conductivity and viscosity for the bioglycol/water (20–80) nanofluid containing SiO₂ nanoparticles. The Non-dominated sorting, as well as crowding distance functions, were used to obtain these results. In Pareto front all obtained points are optimum. Also, it should be noted that the points are non-superior to each other. The designer can select each of these points based on the system requirement. In Fig. 7, the horizontal axis is the thermal conductivity and vertical axis is the viscosity. The fitted curve was also obtained for the Pareto front and its second-order equation can be written as follows:

(13)

$${\mu }_{\mathit{nf}}=3.4K_{\mathit{nf}}^2-0.95K_{\mathit{nf}}-0.94$$

Close

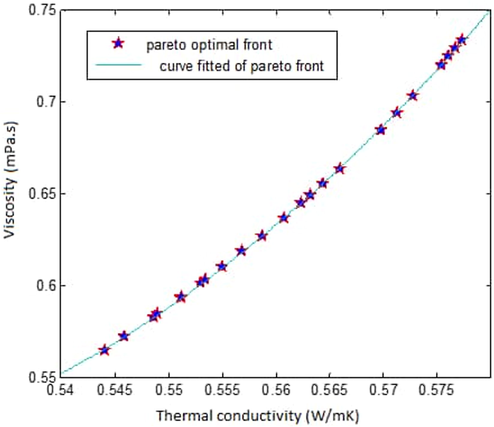

Fig. 7

Pareto optimal front.

Export to PPT

Table 2 shows multi-object optimization results for the enhancement of thermal conductivity and minimizing viscosity for bioglycol/water (20–80) nanofluid containing SiO₂ nanoparticles. According to Table 2, it is possible to find what is the system viscosity at optimum operating conditions in terms of thermal conductivity and vice versa. Also, what the needed temperature and volume fraction are for achieving a certain thermal conductivity as well as dynamic viscosity of the system. For example, the system viscosity is 0.564 mPa.s and 0.735 mPa.s for the lowest (0.544 W/m.K) and highest (0.577 W/m.K) thermal conductivities respectively. Furthermore, the optimum condition is obtained at the highest temperature (80 °C) or a temperature close to this temperature.

Table 2 Optimum points obtained by NSGA-II optimization method for bioglycol/water (20–80) nanofluid.

Viscosity (mPa.s)	Thermal conductivity (w/m.K)	Temperature (°C)	Volume Conc. (%)
0.735	0.577	79.901	2.000
0.564	0.544	80.000	0.000
0.568	0.545	79.990	0.047
0.636	0.560	79.950	0.838
0.574	0.546	80.000	0.120
0.664	0.566	79.990	1.178
0.603	0.553	79.990	0.450
0.643	0.561	79.953	0.924
0.611	0.555	80.000	0.560
0.650	0.563	80.000	1.025
0.655	0.564	79.998	1.071
0.670	0.567	80.000	1.269
0.617	0.556	80.000	0.630
0.597	0.552	79.998	0.383
0.695	0.571	80.000	1.543
0.660	0.565	80.000	1.139
0.645	0.562	80.000	0.958
0.701	0.572	79.990	1.615
0.678	0.568	80.000	1.341
0.626	0.558	79.966	0.729
0.709	0.573	79.968	1.710
0.704	0.572	80.000	1.650
0.719	0.575	79.999	1.833
0.578	0.547	79.999	0.159

5 Conclusion

In this study, nanofluid optimization in terms of thermal conductivity as well as dynamic viscosity was performed using response surface method and NSGA-II optimization approach. Firstly, the equations were obtained for the thermal conductivity and dynamic viscosity as function of operating condition using response surface method. Then, NSGA-II optimization approach was used for minimizing viscosity and maximizing thermal conductivity of the nanofluid. The results showed that increasing temperature increases the thermal conductivity, but the viscosity was decreased. There was also an increase in both thermal conductivity as well as dynamic viscosity with increasing the amount SiO₂ nanoparticles volume fraction. The optimal values for the thermal conductivity and dynamic viscosity were found at the maximum temperature in the system and optimum SiO₂ can be selected based on the process requirement.
