Corrosion inhibition of carbon steel in hydrochloric acid 0.5 M by hexa methylene diamine tetramethyl-phosphonic acid

R. Laamari; J. Benzakour; F. Berrekhis; A. Abouelfida; A. Derja; D. Villemin

doi:10.1016/j.arabjc.2010.06.046

View/Download PDF

Buy Reprints

PDF

Translate this page into:

Original Article

4 (

); 271-277

doi:

10.1016/j.arabjc.2010.06.046

Corrosion inhibition of carbon steel in hydrochloric acid 0.5 M by hexa methylene diamine tetramethyl-phosphonic acid

R. Laamari^a,*, J. Benzakour^a, F. Berrekhis^b, A. Abouelfida^a, A. Derja^a, D. Villemin^c

a Laboratoire d’Electrochimie et de Chimie Analytique, Université Cadi Ayyad, Faculté des Sciences Semlalia, BP 2390, Marrakech, Morocco

b Laboratoire de Chimie Physique, Ecole Normale Supérieure, BP 2400 Marrakech, Morocco

c École Nationale Supérieure d’Ingénieurs de Caen UMR 6507 CNRS, Bd Maréchal Juin 14050 Caen Cedex, France

*Corresponding author r.laamari@ucam.ac.ma (R. Laamari)

Received: 2010-6-23, Accepted: 2010-6-24, Published: 2010-07-01

Disclaimer:
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.

Peer review under responsibility of King Saud University.

Available online 3 July 2010

Abstract

The efficiency of hexa methylene diamine tetra methyl-phosphonic acid (HMDTMP), as corrosion inhibitor for carbon steel in 0.5 M HCl, has been determined by gravimetric and electrochemical measurements. Polarization curves indicate that the compound is a mixed inhibitor, affecting both cathodic and anodic corrosion currents. Adsorption of HMDTMP derivatives on the carbon steel surface is in agreement with the Langmuir adsorption isotherm model, and the calculated Gibbs free energy value confirms the chemical nature of the adsorption. EIS results show that the charge in the impedance parameters (R_t and C_dl) with concentrations of HMDTMP is indicative. The adsorption of this molecule leads to the formation of a protective layer on carbon steel surface. The electrochemical results have also been supplemented by surface morphological studies.

Keywords

Corrosion

Inhibition

Impedance

Adsorption

Phosphonic acid

Show Related Articles from PubMed

1 Introduction

Acid solutions are widely used in industry, chemical cleaning, descaling, and pickling, which lead to corrosive attack. Therefore, the consumption of inhibitors to reduce corrosion has increased in recent years. The corrosion control by inhibitors is one of the most common, effective, and economic methods to protect metals in acid media (Benali et al., 2005; Fouda et al., 2006). The majority of the well-known inhibitors are organic compounds containing heteroatoms, such as oxygen, nitrogen, or sulfur, and multiple bonds, which allow an adsorption on the metal surface (Bereket et al., 2002; Ali et al., 2003). It has been observed that the adsorption of these inhibitors depends on the physico-chemical properties of the functional groups and the electron density at the donor atom. The adsorption occurs due to the interaction of the lone pair and/or π-orbitals of inhibitor with d-orbitals of the metal surface atoms, which evokes a greater adsorption of the inhibitor molecules onto the surface, leading to the formation of a corrosion protection film (Olivares et al., 2006; Trasatti, 1992; Popova et al., 2003 ). The adsorption is also influenced by the structure and the charge of metal surface, and the type of testing electrolyte (Lagrenee et al., 2002; Tamil Selvi et al., 2003; Kissi et al., 2006; El Ashry et al., 2006; Vosta and Eliasek, 1971 ). A large number of organic compounds were studied as corrosion inhibitors for iron and low alloyed steels (Lagrenee et al., 2002; Quraishi et al., 2008; Shukla et al., 2009 ). Most of them are toxic in nature. This has led to the development of non-toxic corrosion inhibitors such as Tryptamine (Moretti et al., 2004), Cefazolin (Singh and Quraishi, 2010), Mebendazole (Ahamad and Quraishi, 2010), and Cefatrexyl (Morad, 2008), Tryptamine (Lowmunkhong et al., 2010), Cefotaxime (Shukla and Quraishi, 2009), sulfa drugs (El-Naggar, 2007), 2.3-diphenylbenzoquinoxaline (Obot and Obi-Egbedi, 2010).

Phosphonates, which were originally introduced as scale inhibitors in water treatment, were later proved to be good corrosion inhibitors also (Awad and Turgoose, 2004). Their impact on environment was reported to be negligible at the concentration levels used for corrosion inhibition (Awad, 2005; Jaworska et al., 2002). There are excellent sequestering agents for electroplating, chemical plating, degreasing, and cleaning (Frang, 1983). The use of phosphonic acids for the protection of carbon steel from corrosion in different media has been the subject of works reported by several researchers (Choi et al., 2002; Gonzalez et al., 1996; Fang et al., 1993; Telegdi et al., 2001; Amar et al., 2003, 2008 ).

The objective of the present work is to investigate the inhibitor effects of hexa methylene diamine tetra methyl-phosphonic acid (HMDTMP) on carbon steel corrosion in 0.5 M hydrochloric acid (HCl) using weight loss, potentio-dynamic polarization, Electrochemical impedance spectroscopy (EIS), and scanning electronic microscope (SEM).

2 Experimental

2.1

2.1 Materials and solutions

The corrosion inhibitor studied hexa methylene diamine tetra methyl-phosphonic acid (HMDTMP) was synthesized by the micro-wave technique. The obtained product is purified and characterized by ¹H NMR, ¹³C NMR, ³¹P NMR, and IR spectroscopic methods. The molecular structure is shown in Fig. 1.

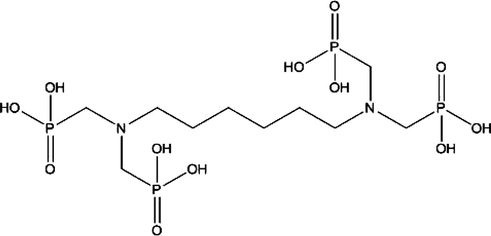

Structure of hexa methylene diamine tetra methyl-phosphonic acid (HMDTMP).

The aggressive solutions were made of AR grade 37% HCl. Appropriate concentrations of acid were prepared using double distilled water. The inhibitors were added to freshly prepared 0.5 M HCl in the concentration range of 5 × 10⁻⁴–4 × 10⁻³ M.

Electrochemical experiments were performed using a conventional three electrode cell assembly. The working electrode is a carbon steel rotating disk with a surface area of 1 cm². The electrode pre-treatment was carried out by polishing mechanically with silicon carbide abrasive paper up to 1200 grade. Then, it was rinsed with acetone and finally washed thoroughly with distilled water. A saturated calomel electrode (SCE) was used as the reference electrode. All the measured potentials presented in this paper are referred to this electrode.

The counter electrode was a platinum plate with a surface area of 2 cm².

2.2

2.2 Methods

2.2.1

2.2.1 Gravimetric measurements

The tests were carried out in a glass vessel containing 250 mL of 0.5 M HCl with and without addition of different concentrations of inhibitor at room temperature (25 °C). After immersion times (24 h), the specimens were withdrawn, rinsed with doubly distilled water, washed with acetone, dried, and weighted.

2.2.2

2.2.2 Electrochemical measurements

Two electrochemical techniques, namely DC-Tafel slope and AC-electrochemical impedance spectroscopy (EIS), were used to study the corrosion behaviour. All experiments were performed in one-compartment cell with three electrodes connected to voltalab 10 (Tacussel–Radiometer PGZ 100) system controlled by the Tacussel Volta master 4 corrosion analysis software model.

Polarization curves were obtained by changing the electrode potential automatically from −800 to +200 mV versus open circuit potential (E_ocp) at a scan rate of 1 m Vs⁻¹.

EIS measurements were carried out under potentiostatic conditions in a frequency range from 100 kHz to 0.1 Hz, with amplitude of 10 mV peak-to-peak, using AC signal at open circuit potential (OCP) E_ocp. All experiments were measured after immersion for 60 min in 0.5 M HCl with and without the addition of inhibitor.

2.2.3

2.2.3 Surface morphology

For morphological study, surface features (0.9 × 0.8 × 0.2 cm) of carbon steel were examined after exposure to 0.5 M HCl solutions after one day with and without the inhibitor. JEOL JSM-5500 scanning electron microscope was used for this investigation.

3 Results and discussions

3.1

3.1 Weight loss studies

The weight loss results regarding the corrosion parameters for carbon steel in 0.5 M HCl solution in the absence and presence of different concentrations of the inhibitor are summarized in Table 1.

Table 1 Weight loss data of mild steel in 0.5 M HCl for various concentrations of HMDTMP.

C (mol dm⁻³)	w (mg cm⁻² h⁻¹)	IE (%)
Blank	0.34	–
5 × 10⁻⁴	0.13	62
10⁻³	0.07	79
2 × 10⁻³	0.03	91
4 × 10⁻³	0.01	97

The inhibition efficiency (IE%) was determined by using the following equation:

(1)

IE % = \frac{W_{0} - W}{W_{0}} \times 100

where W and W₀ are the corrosion rates of carbon steel with and without the inhibitor ,respectively.

It can be seen that the corrosion rate values in 0.5 M HCl solution containing HMDTMP, decreased as the concentration of inhibitor increased. Maximum inhibition efficiency was shown at 10⁻³ M of HMDTMP. This result reveals that the compound under investigation is fairly an efficient inhibitor for carbon steel dissolution in 0.5 M HCl solution. The inhibition of corrosion of carbon steel by HMDTMP can be explained in terms of adsorption on the metal surface (Singh and Quraishi, 2010; Ahamad and Quraishi, 2010; Morad, 2008; Lowmunkhong et al., 2010; Shukla and Quraishi, 2009 ). This compound can be adsorbed on the carbon steel surface by the interaction between lone pairs of electrons of nitrogen, oxygen, and phosphorus atoms of the inhibitor and the metal surface. This process is facilitated by the presence of vacant orbital of low energy in iron atom, as observed in the transition group elements (Badr, 2009; Sastri, 1998).

3.2

3.2 Polarization measurements

Fig. 2 shows the influence of HMDTMP on the cathodic and anodic potentiodynamic polarization curves of carbon steel in 0.5 M HCl. Electrochemical corrosion parameters such as corrosion potential E_corr, cathodic Tafel slops b_c, and corrosion current density i_corr, obtained by Tafel extrapolation of the cathodic curves to the open circuit corrosion potentials are collected in Table 2. The inhibition efficiency is calculated by the following expression:

(2)

IE % = \frac{i_{corr}^{0} - i_{corr}}{i_{corr}^{0}}

where

i_{corr}^{0}

and

i_{corr}

are the corrosion current density values without and with the inhibitor, respectively.

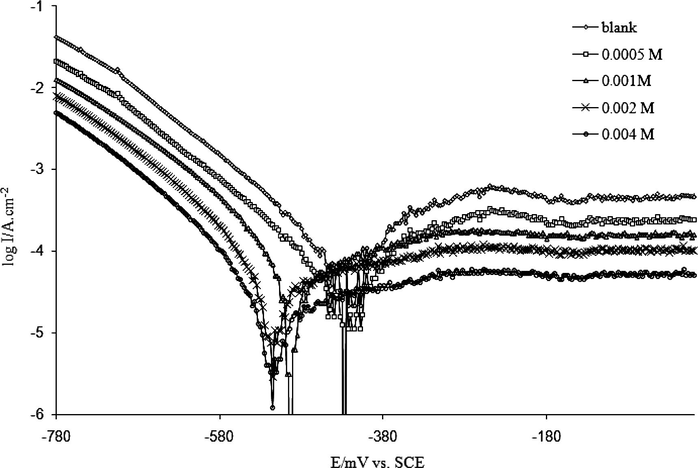

Potentiodynamic polarization curves for mild steel in 0.5 M HCl containing different concentrations of HMDTMP.

Table 2 Potentiodynamic polarization parameters of mild steel in 0.5 M HCl for various concentrations of HMDTMP.

C (mol dm⁻³)	E_corr (mV/SCE)	I_corr (μA cm⁻²)	b_c (mV dec⁻¹)	IE (%)
Blank	−426	641	−100	–
5 × 10⁻⁴	−449	197	−96	69
10⁻³	−493	100	−95	84
2 × 10⁻³	−507	52	−92	91
4 × 10⁻³	−514	25	−95	93

The obtained results indicate that the cathodic and anodic curves exhibit Tafel-type behavior. Additionally, the form of these curves is very similar either in the cathodic or in the anodic side, which indicates that the mechanisms of carbon steel dissolution and hydrogen reduction apparently remain unaltered in the presence of the inhibitor (Badr, 2009; Sastri, 1998; Lagrenee et al., 2002 ). The addition of HMDTMP compound decreased both the cathodic and anodic current densities and acts as a mixed-type inhibitor in 0.5 M HCl with overall shift of E_corr to more negative values with respect to the open circuit potential. The corrosion current value I_corr is decreased from 641 μA cm⁻² of the blank to 25 μA cm⁻² corresponding to the addition of 4 × 10⁻³ M inhibitor. Furthermore, we notice that the inhibition efficiency increased with inhibitor concentration reaching a maximum value of 96% at 4 × 10⁻³ M HMDTMP. The results also show that the slopes of cathodic Tafel lines b_c were slightly changed on increasing the concentration of the tested compound. This indicates that there is no change of the mechanism of inhibition in the presence and absence of the inhibitors. We also noted that the results found from the weight loss are in good agreement with the polarization curves.

3.3

3.3 Adsorption isotherm

Basic information on the interaction between the inhibitor and the carbon steel can be provided by the adsorption isotherm. Two main types of interaction can describe the adsorption of the organic compound: physical adsorption and chemisorption. These are influenced by the chemical structure of the inhibitor, the type of the electrolyte, the charge, and nature of the metal.

The plots of $\frac{C_{inh}}{θ}$ against $C_{inh}$ for the inhibitor at 298 K were straight lines (Fig. 3) indicating that the inhibitor obeys Langmuir adsorption isotherm given by the equation:

(3)

\frac{C_{inh}}{θ} = \frac{1}{K_{ads}} + C_{inh}

where C is the molar concentration of the inhibitor, K_ads is the equilibrium constant of the adsorption process, and θ is the degree of coverage by inhibitor molecules on the metal surface calculated from the relationship:

(4)

θ = \frac{w_{0} - w}{w_{0}}

Adsorption equilibrium constant (K_ads) and free energy of adsorption

(Δ G_{ads}^{\circ})

were calculated using Eq. (3) and the relationships (Shukla and Quraishi, 2009):

(5)

Δ G_{ads}^{\circ} = - 2.303 RT \log (55.5 K_{ads})

The value of 55.5 is the concentration of water in solution expressed in mol dm⁻³.

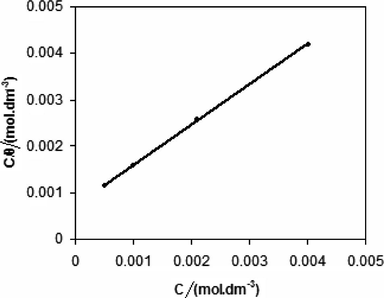

Langmuir adsorption isotherm model of HMDTMP on the carbon steel surface at 298 K.

It generally accepted that the values of $(Δ G_{ads}^{\circ})$ up to −20 kJ mol⁻¹, the types of adsorption were regarded as physisorption, the inhibition acts due to the electrostatic interaction between the charged molecules and the charged metal, while the values around −40 kJ mol⁻¹ or smaller, were seen as chemisorption, which is due to the charge sharing or a transfer from the inhibitor molecules to the metal surface to form covalent bond (Badr, 2009; Sastri, 1998; Lagrenee et al., 2002; Szlarska-Smialowska and Mankovwski, 1978; Yurt et al., 2006 ). In this study, the free energy of adsorption $(Δ G_{ads}^{\circ})$ and the adsorption equilibrium constant (K_ads) are found to be −28.107 kJ mol⁻¹ and 1.42 × 10³ mol dm⁻³, respectively. The higher value of K_ads and the negative and low value of $Δ G_{ads}^{\circ}$ indicate the spontaneous adsorption of the inhibitor and have strong interaction with the metal surface (Wahdan et al., 2002; Touhami et al., 2000; Bouklah et al., 2006 ). It suggested that the adsorption mechanism of the HMDTMP on carbon steel in 0.5 M HCl solution was typical of chemisorptions.

3.4

3.4 Electrochemical impedances spectroscopy

Electrochemical impedance spectroscopy (EIS) is a well-established and powerful tool in the study of corrosion. Surface properties, electrode kinetics, and mechanistic information can be obtained from the impedance diagrams (Lorenz and Mansfeld, 1981). Fig. 4 shows the Nyquist plot obtained at the open circuit potential after immersion for 1 h. Table 3 summarizes the impedance data extracted from EIS experiments carried out both in the absence and presence of increasing concentrations of HMDTMP.

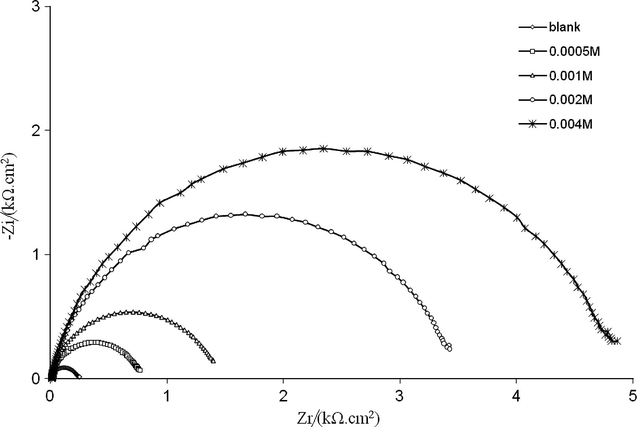

Nyquist plot for MS in 0.5 M HCl in the presence and absence of different concentrations of HMDTMP.

Table 3 Impedance measurements and inhibition efficiency for carbon steel in 0.5 M HCl containing different concentrations of HMDTMP.

C (mol dm⁻³)	R_s (Ω cm²)	C_dl (μF/cm²)	α_dl	R_p (Ω cm²)	IE (%)
Blank	1	740	0.83	235	–
5 × 10⁻⁴	1.6	221	0.83	770	69
10⁻³	1.3	106	0.85	1380	83
2 × 10⁻³	3.7	40.3	0.87	3390	93
4 × 10⁻³	4	9.6	0.89	4872	95

The inhibition efficiency got from the charge-transfer resistance is calculated by the following expression

(6)

IE % = \frac{R_{t} - R_{t}^{0}}{R_{t}} \times 100

R_{t}

and

R_{t}^{0}

are the charge-transfer resistance values with and without the inhibitor, respectively.

The semicircular appearance of Nyquist plot shows that the charge-transfer process takes place during dissolution (Muralidharan et al., 1997). From the curves it is clear that the impedance response for carbon steel in uninhibited acid solution has significantly changed after the addition of inhibitor. The simplest fitting is represented by Rundles equivalent circuit (Fig. 5), which is a parallel combination of the charge-transfer resistance (R_t) and a constant phase element, CPE_dl, both in series with the solution resistance (R_s).

Equivalent circuit used to fit the EIS data of carbon steel in 0.5 M HCl in the presence and absence of HMDTMP.

The fact that the impedance diagrams have an approximately semicircular appearance shows that the corrosion of carbon steel in 0.5 M HCl is controlled by a charge-transfer process.

Data in Table 3 show that the R_s values are very small compared to the R_t values. By increasing the inhibitor concentrations, the R_t values increase and the C_dl values decrease, which causes an increase in inhibition efficiency. The most pronounced effect and the highest R_t is obtained by concentration 4 × 10⁻³ M of the inhibitor.

The decrease in C_dl can result from the decrease of the local dielectric constant and/or from the increase of thickness of the electrical double layer, which suggests an adsorption of the inhibitor molecules on the carbon steel surface (Singh and Quraishi, 2010). The thickness of the protective layer δ, is related to C_dl by the following equation (Bentiss et al., 2002):

(7)

δ = \frac{ɛ_{0} \times ɛ_{r}}{C_{dl}}

where ɛ₀ is the dielectric constant and ɛ_r is the relative dielectric constant. McCafferty and Hackerman (1972) attributed the change in C_dl values to the gradual replacement of water molecules by the adsorption of the organic molecules on the metal surface, decreasing the extent of metal dissolution.

The increase in the α_dl values in 0.5 M HCl in the presence of increasing HMDTMP concentrations may be a result of decreasing surface heterogeneity due to inhibitor adsorption on the most active adsorption sites (Popova and Christov, 2005).

The impedance data confirm the inhibition behavior of the inhibitor with that obtained from other techniques. It can be concluded that the inhibition efficiency found from weight loss, polarization curves, and electrochemical impedance spectroscopy measurements are in good agreement.

3.5

3.5 SEM investigation

Fig. 6 shows the results of the SEM analysis on the topography of the samples examined. Fig. 6a presents the micrograph obtained from the carbon steel sample after exposure to the corrosive environment, and Fig. 6b reveals the surface on the carbon steel after exposure to the 0.5 M HCl solution containing the inhibitor HMDTMP at 4 × 10⁻³ M concentration. It is important to stress out that when the compound is present in the solution, the morphology of the carbon steel surface are quite different from the previous one. We noted the formation of a film, which is distributed in a random way on the whole surface of the metal. This may be interpreted as due to the adsorption of the inhibitor on the metal surface incorporating into the passive film in order to block the active site present on the carbon steel surface.

SEM micrographs of samples after immersion in 0.5 M HCl (a) without (b) with 4 × 10−3 M HMDTMP.

4 Mechanism of inhibition

A clarification of mechanism of inhibition requires full knowledge of the interaction between the protective compound and the metal surface. Many of the organic corrosion inhibitors have at least one polar unit with atoms of nitrogen, sulfur, oxygen, and phosphorous. It has been reported that the inhibition efficiency decreases in the order of O < N < S < P. Also, iron is well-known for its co-ordination affinity to heteroatom bearing ligands (Shorky et al., 1998). From the previous results of various experimental techniques used, it was concluded that hexa methylene diamine tetra methyl-phosphonic acid inhibit the corrosion of carbon steel in 0.5 M HCl by adsorption at the metal/solution interface.

In hydrochloric acid medium, inhibitor molecules exist as protonated species and it is assumed that Cl⁻ ions are first adsorbed on the metal surface and the net positive charge on the metal surface enhances the specific adsorption of chloride ions (Blomgren and Bockris, 1959). The adsorption of the cationic forms of inhibitor would be limited by the concentration of the anions on the metal surface. The hexa methylene diamine tetra methyl-phosphonic acid molecules may also be adsorbed via donor–acceptor interactions between the unshared electrons pairs of the heteroatoms (P, N, O) to form a bond with the vacant d-orbitals of the iron atom on the metal surface, which act as a Lewis acid, leading to the formation of a protective chemisorbed film (Ahamad and Quraishi, 2010).

5 Conclusion

All measurements showed that the hexa methylene diamine tetra methyl-phosphonic acid has excellent inhibition properties for the corrosion of carbon steel in 0.5 M HCl solution. The weight loss measurements show that the inhibition efficiency increases with HMDTMP concentration and reaches its highest value (97%) at 4 × 10⁻³ M concentration.
Potentio-dynamic polarization measurements showed that the HMDTMP acts as mixed-type inhibitor. EIS measurements also indicate that the inhibitor increases the charge-transfer resistance and show that the inhibitive performance depends on adsorption of the molecules on the metal surface.
The inhibition efficiencies determined by weight loss, potentio-dynamic polarization, and EIS techniques are in reasonably good agreement.
The adsorption model obeys the Langmuir isotherm at 298 K. The negative value of $Δ G_{ads}^{\circ}$ indicate that the adsorption of the inhibitor molecule is a spontaneous process and an adsorption mechanism is typical of chemisorption.

References

Ahamad I., Quraishi M.A., . Corros. Sci.. 2010;52:651.
Ali Sk.A., Saeed M.T., Rahman S.U., . Corros. Sci.. 2003;45:253.
Amar H., Benzakour J., Derja A., Villemin D., Moreau B., . J. Electroanal. Chem.. 2003;558:131-139.
Amar H., Benzakour J., Derja A., Villemin D., Moreau B., Braisaz T., Tounsi A., . Corros. Sci.. 2008;50:124.
Awad H.S., . Anti-Corros. Methods Mater.. 2005;52:22.
Awad H.S., Turgoose S., . Corrosion. 2004;60:1168.
Badr G.E., . Corros. Sci.. 2009;51:2529.
Benali O., Larabi L., Tabti B., Harek Y., . Anti-Corros.Method Mater.. 2005;52:280.
Bentiss F., Mehdi B., Mernari B., Traisnel M., Vezin H., . Corrosion. 2002;58:399.
Bereket G., Hur E., Ogretir C., . J. Mol. Struct. (Theochem.). 2002;578:79.
Blomgren E., Bockris J.O.M., . J. Phys. Chem.. 1959;63:1475.
Bouklah M., Hammouti B., Lagrene M., Bentiss F., . Corros. Sci.. 2006;48:2831.
Choi D.J., You S.J., Kim J.G., . Mater. Sci. Eng. A. 2002;335:228.
El Ashry E.S.H., El Nemr A., Esawy S.A., Ragab S., . Electrochim. Acta. 2006;51:3957.
El-Naggar M.M., . Corros. Sci.. 2007;49:2226.
Fang J.L., Li Y., Ye X.R., Wang Z.W., Liu Q., . Corrosion. 1993;49:266.
Fouda A.S., Al-Sarawy A.A., El-Katori E.E., . Desalination. 2006;201:1.
Frang J.L., . Multiple Complex Electroplating. Beijing, China: Defence Industry Press; 1983. p. 273
Gonzalez Y., Lafont M.C., Pebere N., Moran F., . J. Appl. Electrochem.. 1996;26:1259.
Jaworska J., Genderen-Takken H.V., Hanstveit A., Plassche E., Feijtel T., . Chemosphere. 2002;47:655.
Kissi M., Bouklah M., Hammouti B., Benkaddour M., . Appl. Surf. Sci.. 2006;252:4190.
Lagrenee M., Mernari B., Bouanis M., Traisnel M., Bentiss F., . Corros. Sci.. 2002;44:573.
Lorenz W.J., Mansfeld F., . Corros. Sci.. 1981;21:647.
Lowmunkhong P., Ungthararak D., Sutthivaiyakit P., . Corros. Sci.. 2010;52:30.
McCafferty E., Hackerman N., . J. Electrochem. Soc.. 1972;119:146.
Morad M.S., . Corros. Sci.. 2008;50:436.
Moretti G., Guidi F., Grion G., . Corros. Sci.. 2004;46:387.
Muralidharan S., Syed Azim S., John Berchmans L., Iyer S.V.K., . Anti-Corros. Methods Mater.. 1997;44:30.
Obot I.B., Obi-Egbedi N.O., . Corros. Sci.. 2010;52:282.
Olivares O., Likhanova N.V., Gomez B., Navarrete J., Llanos-Serrano M.E., Arce E., Hallen J.M., . Appl. Surf. Sci.. 2006;252:2894.
Popova A., Christov M., . Corros. Sci.. 2005;48:3208.
Popova A., Sokolova E., Raicheva S., Christov M., . Corros. Sci.. 2003;45:33.
Quraishi M.A., Ahamad I., Singh A.K., Shukla S.K., Lal B., Singh V., . Mater. Chem. Phys.. 2008;112:1035.
Sastri V.S., . Corrosion Inhibitors, Principles and Applications. New York: John Wiley and Sons; 1998. p. 839
Shorky H., Yuasa M., Sekine I., Issa R.M., El-Baradie H.Y., Gomma G.K., . Corros. Sci.. 1998;40:2173.
Shukla S.K., Quraishi M.A., . Corros. Sci.. 2009;51:1007.
Shukla S.K., Singh A.K., Ahamad I., Quraishi M.A., . Mater. Lett.. 2009;63:819.
Singh A.K., Quraishi M.A., . Corros. Sci.. 2010;52:152.
Szlarska-Smialowska Z., Mankovwski J., . Corros. Sci.. 1978;18:953.
Tamil Selvi S., Raman V., Rajendran N., . J. Appl. Electrochem.. 2003;33:1175.
Telegdi J., Shaglouf M.M., Shaban A., Karman F.H., Betroti I., Mohai M., Kalman E., . Electrochim. Acta. 2001;46:3791.
Touhami F., Aouniti A., Abed Y., Hammouti B., Kertit S., Ramdani A., Elkacemi K., . Corros. Sci.. 2000;42:929.
Trasatti S., . Electrochim. Acta. 1992;37:2137.
Vosta J., Eliasek J., . Corros. Sci.. 1971;11:223.
Wahdan M.H., Hermas A.A., Morad M.S., . Mater. Chem. Phys.. 2002;76:117.
Yurt A., Ulutas S., Dal H., . Appl. Surf. Sci.. 2006;253:919.

Introduction

Experimental

Materials and solutions
Methods

Results and discussions

Weight loss studies
Polarization measurements
Adsorption isotherm
Electrochemical impedances spectroscopy
SEM investigation

Mechanism of inhibition

Conclusion

Fulltext Views
34

PDF downloads
29

View/Download PDF
Download Citations

BibTeX
RIS

Show Sections

[1] Ahamad I., Quraishi M.A., . Corros. Sci.. 2010;52:651.

[2] Ali Sk.A., Saeed M.T., Rahman S.U., . Corros. Sci.. 2003;45:253.

[3] Amar H., Benzakour J., Derja A., Villemin D., Moreau B., . J. Electroanal. Chem.. 2003;558:131-139.

[4] Amar H., Benzakour J., Derja A., Villemin D., Moreau B., Braisaz T., Tounsi A., . Corros. Sci.. 2008;50:124.

[5] Awad H.S., . Anti-Corros. Methods Mater.. 2005;52:22.

[6] Awad H.S., Turgoose S., . Corrosion. 2004;60:1168.

[7] Badr G.E., . Corros. Sci.. 2009;51:2529.

[8] Benali O., Larabi L., Tabti B., Harek Y., . Anti-Corros.Method Mater.. 2005;52:280.

[9] Bentiss F., Mehdi B., Mernari B., Traisnel M., Vezin H., . Corrosion. 2002;58:399.

[10] Bereket G., Hur E., Ogretir C., . J. Mol. Struct. (Theochem.). 2002;578:79.

[11] Blomgren E., Bockris J.O.M., . J. Phys. Chem.. 1959;63:1475.

[12] Bouklah M., Hammouti B., Lagrene M., Bentiss F., . Corros. Sci.. 2006;48:2831.

[13] Choi D.J., You S.J., Kim J.G., . Mater. Sci. Eng. A. 2002;335:228.

[14] El Ashry E.S.H., El Nemr A., Esawy S.A., Ragab S., . Electrochim. Acta. 2006;51:3957.

[15] El-Naggar M.M., . Corros. Sci.. 2007;49:2226.

[16] Fang J.L., Li Y., Ye X.R., Wang Z.W., Liu Q., . Corrosion. 1993;49:266.

[17] Fouda A.S., Al-Sarawy A.A., El-Katori E.E., . Desalination. 2006;201:1.

[18] Frang J.L., . Multiple Complex Electroplating. Beijing, China: Defence Industry Press; 1983. p. 273

[19] Gonzalez Y., Lafont M.C., Pebere N., Moran F., . J. Appl. Electrochem.. 1996;26:1259.

[20] Jaworska J., Genderen-Takken H.V., Hanstveit A., Plassche E., Feijtel T., . Chemosphere. 2002;47:655.

[21] Kissi M., Bouklah M., Hammouti B., Benkaddour M., . Appl. Surf. Sci.. 2006;252:4190.

[22] Lagrenee M., Mernari B., Bouanis M., Traisnel M., Bentiss F., . Corros. Sci.. 2002;44:573.

[23] Lorenz W.J., Mansfeld F., . Corros. Sci.. 1981;21:647.

[24] Lowmunkhong P., Ungthararak D., Sutthivaiyakit P., . Corros. Sci.. 2010;52:30.

[25] McCafferty E., Hackerman N., . J. Electrochem. Soc.. 1972;119:146.

[26] Morad M.S., . Corros. Sci.. 2008;50:436.

[27] Moretti G., Guidi F., Grion G., . Corros. Sci.. 2004;46:387.

[28] Muralidharan S., Syed Azim S., John Berchmans L., Iyer S.V.K., . Anti-Corros. Methods Mater.. 1997;44:30.

[29] Obot I.B., Obi-Egbedi N.O., . Corros. Sci.. 2010;52:282.

[30] Olivares O., Likhanova N.V., Gomez B., Navarrete J., Llanos-Serrano M.E., Arce E., Hallen J.M., . Appl. Surf. Sci.. 2006;252:2894.

[31] Popova A., Christov M., . Corros. Sci.. 2005;48:3208.

[32] Popova A., Sokolova E., Raicheva S., Christov M., . Corros. Sci.. 2003;45:33.

[33] Quraishi M.A., Ahamad I., Singh A.K., Shukla S.K., Lal B., Singh V., . Mater. Chem. Phys.. 2008;112:1035.

[34] Sastri V.S., . Corrosion Inhibitors, Principles and Applications. New York: John Wiley and Sons; 1998. p. 839

[35] Shorky H., Yuasa M., Sekine I., Issa R.M., El-Baradie H.Y., Gomma G.K., . Corros. Sci.. 1998;40:2173.

[36] Shukla S.K., Quraishi M.A., . Corros. Sci.. 2009;51:1007.

[37] Shukla S.K., Singh A.K., Ahamad I., Quraishi M.A., . Mater. Lett.. 2009;63:819.

[38] Singh A.K., Quraishi M.A., . Corros. Sci.. 2010;52:152.

[39] Szlarska-Smialowska Z., Mankovwski J., . Corros. Sci.. 1978;18:953.

[40] Tamil Selvi S., Raman V., Rajendran N., . J. Appl. Electrochem.. 2003;33:1175.

[41] Telegdi J., Shaglouf M.M., Shaban A., Karman F.H., Betroti I., Mohai M., Kalman E., . Electrochim. Acta. 2001;46:3791.

[42] Touhami F., Aouniti A., Abed Y., Hammouti B., Kertit S., Ramdani A., Elkacemi K., . Corros. Sci.. 2000;42:929.

[43] Trasatti S., . Electrochim. Acta. 1992;37:2137.

[44] Vosta J., Eliasek J., . Corros. Sci.. 1971;11:223.

[45] Wahdan M.H., Hermas A.A., Morad M.S., . Mater. Chem. Phys.. 2002;76:117.

[46] Yurt A., Ulutas S., Dal H., . Appl. Surf. Sci.. 2006;253:919.
