Corrosion inhibition of iron in hydrochloric acid using pyrazole

1 Introduction

All corrosion reduction processes are inhibitory (Hackerman, 1993). The use of chemical additions is one of the most practical methods for corrosion inhibition (Trabanelli, 1991). Acid solutions are generally used for the removal of rust and scale in several industries (Bentiss et al., 1999). Hydrochloric acid is extensively used in industries, the most important fields of application being acid pickling, industrial acid cleaning, acid descaling and oil well acidizing. The continued manifestation of corrosion and corrosion products on iron and steel is still causing a lot of concern to corrosion scientists and engineers. Investigation into the mechanism of corrosion inhibition by certain nitrogen-containing compounds has continued to reveal interesting results (Khaled, 2009a,b, 2010a,b,c).

Pyrazole compounds have been hitherto little studied as corrosion inhibitors. Only derivatives of 3(5)-methylpyrazole have been examined as inhibitors for hydrogen sulfide corrosion of carbon steel (Proskurnya et al., 1982; Bocharnikov et al., 1979). This paper describes a study of the inhibition properties of 1H-Pyrazole (PA) for corrosion of pure iron (99.995) in 1 M HCl. The behaviour of this compound in 1 M HCl has been investigated and its inhibition efficiency has been determined by electrochemical methods (potentiodynamic polarization and electrochemical impedance spectroscopy).

2 Experimental details

Iron specimens from Johnson Mattey (Puratronic, 99.995%) were mounted on Teflon. An epoxy resin was used to fill the space between Teflon and iron electrode in order to prevent crevice corrosion. The electrochemical measurements were performed in a typical three-compartment glass cell. The iron specimen was the working electrode. Pt gauze was used as an auxiliary electrode and a saturated calomel electrode (SCE) as a reference electrode. The auxiliary electrode was separated from the working electrode compartment by fritted glass. The reference electrode was connected to Luggin capillary to minimize IR drop and chloride contamination.

Solutions were prepared from deionized water of resistivity 13 MΩ cm. The specimens were polished with emery papers up to 4/0 grit size, washed with double distilled water, etched in 12 M HCl for 10 min, and rinsed with double distilled water and then with acetone before immersion in the solutions. This procedure was used to ensure a reproducible starting surface state. The electrode potential was allowed to stabilize for 30 min before starting the measurements. All experiments were conducted at 25 °C. The solutions were prepared by mixing HCl (Fisher Scientific) with 1H-Pyrazole (PA) (Aldrich). The measurements were performed by means of an EG&G Princeton Applied Research Potentiosate/Galvanostat (PAR model 273) in combination with a Solarton 1250 frequency response analyzer and was used for polarization and capacitance measurements. The system was attached to a PC for collecting data. The potentiodynamic current – potential curves were recorded by changing the electrode potential automatically from −1000 to 0.000 mV with a scan rate of 1 mV s⁻¹. Electrochemical impedance spectroscopy (EIS) measurements were carried out in a frequency range of 10 KHz to 100 μHz using amplitude of 5 mV peak to peak using a.c. signal at open circuit potential. The softwares used in this study are electrochemical impedance software (Model 398), corrosion software (Model 352–252, version 2.23) and Equivalent circuit software (EQUIVCRT.PAS).

3 Results and discussion

Fig. 1 shows typical anodic and cathodic potentiodynamic polarization curves for iron in 1 M HCl in the absence and presence of various concentrations (10⁻³–10⁻² M) of PA at 25 °C. Values of associated electrochemical parameters and the inhibition efficiency (P%) are given in Table 1. The inhibition efficiency (P%) is obtained from Eq. (1) Khaled, 2008

Close

Figure 1

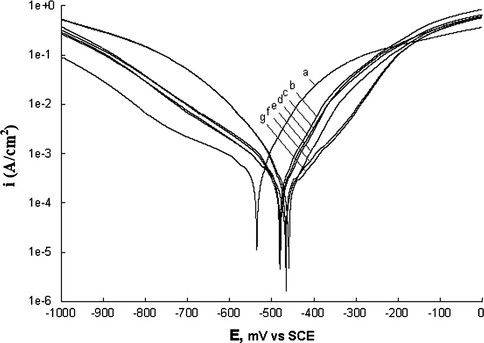

Potentiodynamic polarization curves of Iron immersed in 1 M HCl and different concentrations of PA. (a) Blank, (b) 1 × 10⁻³, (c) 3 × 10⁻³, (d) 5 × 10⁻³, (e) 7 × 10⁻³, (f) 9 × 10⁻³, (g) 10 × 10⁻³.

Export to PPT

Fig. 2 shows that increasing the inhibitor concentration decreases the corrosion rate and increases the inhibition efficiency. The decrease in i_corr with the inhibitor concentration is associated with a shift of corrosion potential E_corr to less negative values. These results suggest that PA behaves mainly as anodic inhibitor. The approximately constant values of the Tafel slopes (near 0.09 V dec⁻¹ for b_a and 0.13 V dec⁻¹ for b_c) suggest that inhibition mechanism for PA involves a single reaction site blocking (Moretti and Quartarone, 1996; Hoar and Khera, 1960).

Close

Figure 2

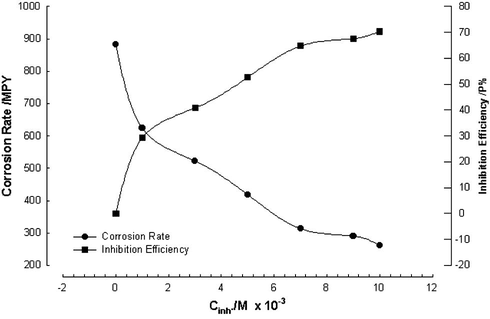

The corrosion rate/mpy and the inhibition efficiency P% for iron in 1 M HCl containing different concentrations of PA (from potentiodynamic data).

Export to PPT

Fig. 3 shows the effect of the exposure duration in 1 M HCl on the impedance spectra (EIS). The results obtained provided the determination of the working electrode (WE) exposure time. This was required by comparative examination envisaged. The EIS were recorded after an exposure for 30, 60, 90, 120,150, and 180 min. It is seen from the results presented in Fig. 3 that the diameter of the impedance semicircle depends on the duration of the WE exposure in the solution prior to the EIS recording.

Close

Figure 3

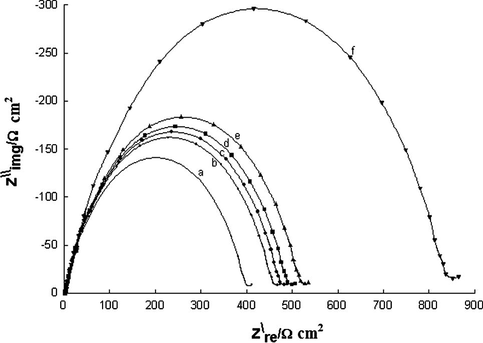

Impedance spectra recorded at different time of exposure of the working electrode in 1 M HCl: (a) 30, (b) 60, (c) 90, (d) 120, (e) 150, (f) 180 min.

Export to PPT

Fig. 4 shows the complex – plane impedance plots of iron in 1MHCl without and with various concentrations of PA (10⁻³–10⁻² M). The impedance diagrams obtained are not perfect semicircles and this difference has been attributed to frequency dispersion (Mansfeld et al., 1982). The charges transfer resistance R_ct values are calculated from the difference in impedance at lower and higher frequencies, as suggested by Tsuru et al. (1978). To obtain the double layer capacitance C_dl, the frequency at which the imaginary component of the impedance is maximum, $(-Z_{\text{img}}^{\text{g`}})$ , is found and C_dl values are obtained from the Eq. (2) (Bentiss et al., 1999).

Close

Figure 4

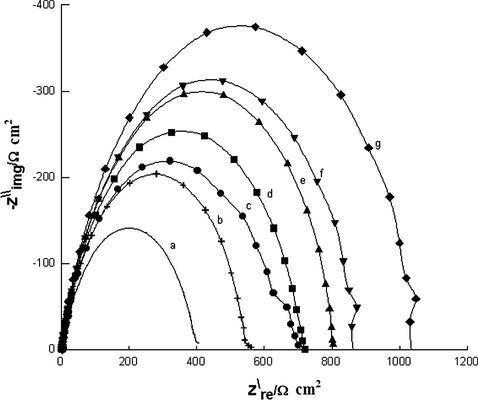

Complex-plane impedance of iron in 1 M HCl in the presence of different concentrations of PA at 25 °C. (a) Blank, (b) 1 × 10⁻³ M, (c) 3 × 10⁻³ M, (d) 5 × 10⁻³ M, (e) 7 × 10⁻³ M, (f) 9 × 10⁻³ M, (g) 10 × 10⁻³ M.

Export to PPT

Charge transfer resistance calculates the inhibition efficiency of the corrosion of iron, as in Eq. (3) (Khaled, 2008).

Close

Figure 5

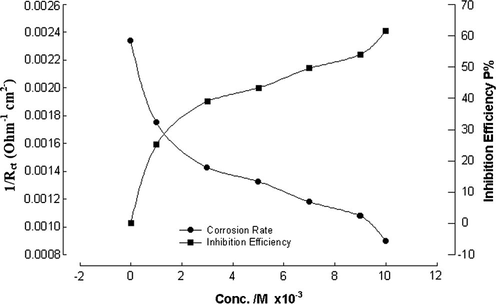

The inverse charge transfer resistance 1/R_ct and the inhibition efficiency P% for iron in 1 M HCl containing different concentrations of PA (from impedance data).

Export to PPT

Fig. 6 it is clear that by increasing the concentration of the inhibitor PA the double layer capacitance decreases C_dl.

Close

Figure 6

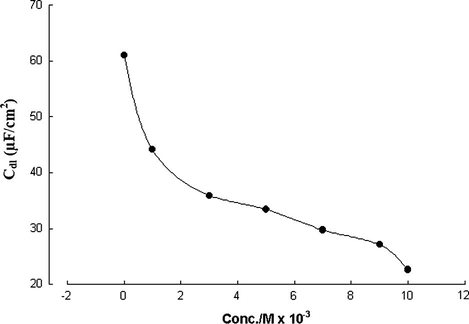

The double layer capacitance C_dl for iron in 1 M HCl containing different concentrations of PA.

Export to PPT

Fig. 7 is the structure model of the interface iron/1 M HCl + PA. The EIS spectra in the presence of PA can be well described by this model. Some examples on applying non-least square fit (NLSF) are shown in Fig. 8. It is clear from these curves in Fig. 8 that there is some disagreement between the fit and the data at high and low frequency ranges. At higher frequencies the error in the fit is most likely due to the effect of stray capacities and uncompensated solution resistance of the system; however, the resistive component of the impedance can be estimated without much error as shown in the plot of the impedance in Fig. 8b.

Close

Figure 7

Equivalent circuit model for iron /1 M HCl interface.

Export to PPT

Close

Figure 8

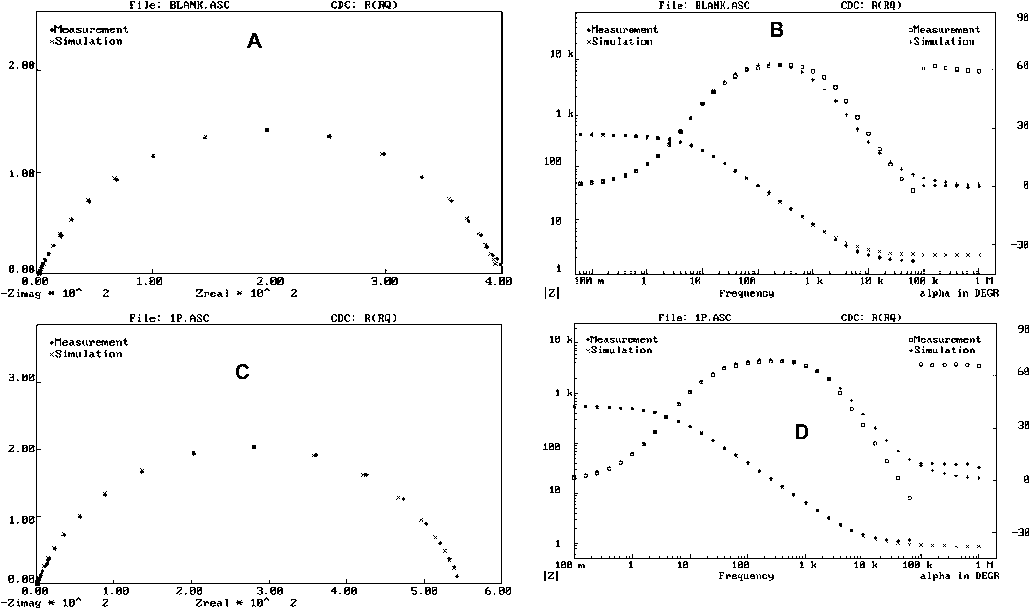

Impedance data for corroding iron at corrosion potential in 1 M HCl at 25 °C. Plot[A, C] shows the complex plan representation each data point corresponds to a different frequency; Plot[B, D] shows the magnitude and phase angel of the impedance as a function of frequency. Plot[A, B] for blank, and[C, D] for 10⁻³ M pyrazole/1 M HCl. (+) curves are the nonlinear regreation to the data, open symbols are experimental data.

Export to PPT

The degree of surface coverage θ for different concentrations in HCl has been evaluated from electrochemical measurements, using Eq. (4) Khaled, 2008:

The Plot of C_inh/θ versus C_inh yields a straight line Fig. 9, proving that the adsorption of PA from HCl solutions on the iron surface obeys the Langmuir adsorption isotherm.

Close

Figure 9

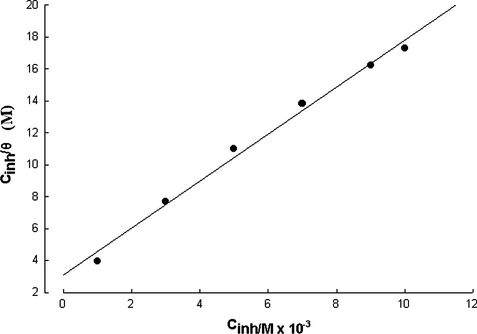

Langmuir adsorption plots for iron in 1 M HCl containing different concentrations of pyrazole.

Export to PPT

The adsorption of PA on the metal surface can occur either directly on the basis of donor–acceptor interactions between the π-electrons of the heterocyclic compound and the vacant d-orbitals of iron surface atoms or the interaction of PA with already adsorbed chloride (Hackerman et al., 1966). The performance of pyrazole as an inhibitor in 1 M HCl can be explained in the following way. In aqueous acidic solutions, the pyrazole compound exists either as neutral molecules or in the form of cations. Amines may be adsorbed on the metal surface in the form of neutral molecules, involving the displacement of water molecules from the metal surface and sharing of electrons between the nitrogen atoms and the metal surface (Hackerman and Makrides, 1955). Amines and heterocyclic nitrogen compounds may also adsorb through electrostatic interactions between the positively charged nitrogen atom and the negatively charged metal surface (Mann, 1936). The presence of lone pairs and π-electrons of the pyrazole compound enhanced the inhibitory effect of this compound.

4 Conclusion

It can be concluded that:

1. PA inhibits the corrosion of iron in HCl solutions.

2. PA behaves as an anodic inhibitor.

3. The adsorption of PA from HCl obeys Langmuir adsorption isotherm.
