Discovery of novel 1,2,4-triazine-chalcone hybrids as anti-gastric cancer agents via an axis of ROS-ERK-DR5 in vitro and in vivo
⁎Corresponding authors at: Department of Pharmacy, The First Affiliated Hospital of Zhengzhou University, Zhengzhou 450000, China (C. Liu, S.-Y. Zhang). liuchong121212@163.com (Chong Liu), yfwang@zzu.edu.cn (Ya-Feng Wang), liuyang8016@126.com (Yang Liu), saiyangz@zzu.edu.cn (Sai-Yang Zhang)
-
Received: ,
Accepted: ,
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.
Abstract
In this work, a series of novel 1,2,4-triazine-chalcone hybrids were designed through the molecular hybridization strategy, synthesized by two step chlorinations and further aldol condensation and evaluated their antiproliferative activity against MGC-803, HCT-116, PC-3, EC-109 and A549 cells. Compound 9l displayed significant antiproliferative activity against MGC-803, HCT-116, PC-3, EC-109 and A549 cell lines with IC50 values of 0.41, 0.43, 0.61, 0.78 and 0.52 μM, respectively. Subsequent mechanistic investigations suggested that compound 9l induced the generation of ROS and inhibited the activation of the ERK pathway. Compound 9l induced extrinsic cell apoptosis by up-regulating DR5 dependent on the generation of ROS, while up-regulation of DR5 caused by compound 9l relied on the inhibition of ERK. Thus, compound 9l inhibited the gastric cancer cells via an axis of ROS-ERK-DR5 in vitro. Compound 9l also showed potent activity on cell proliferation inhibition, and was effective in suppressing the growth of MGC-803 xenograft tumor in nude mice without obvious toxicity. Therefore, compound 9l is to be reported as anti-gastric cancer agent in vitro and in vivo via an axis of ROS-ERK-DR5.
Keywords
1,2,4-Triazine
Chalcone
Antiproliferative activity
ROS
ERK
DR5
1 Introduction
Gastric cancer is the fifth most common cancers with over 1,000,000 estimated new cases every year globally and the third most common cause of cancer related deaths, with 784,000 deaths globally in 2018 (Freddie et al., 2018). Perioperative, adjuvant chemotherapy or targeted therapies licensed to treat gastric cancer have apparently improved the survival rate of patients (Ilson, 2017). However, drug resistance and cancer recurrence occured in more than about 60% of patients receiving treatment (Ilson, 2017). Noteworthy, there are few clinical drugs which can specially inhibit advanced and relapse gastric cancers (Biagioni et al., 2019). Therefore, novel agents targeting gastric cancer are highly desirable and necessary.
Reactive oxygen species (ROS) is an important participant in cellular oxidative stress (Sies and Jones, 2020). ROS affects many physiological behaviors including cell metabolism, survival and death. High levels of ROS cause cell damage, DNA damage and apoptosis by oxidation and nitration of macromolecules including lipids, proteins, RNA and DNA (Sies and Jones, 2020). In addition, the levels of ROS may also affect the activation of related cell signaling pathways such as MAPK (Mitogen-Activated Protein Kinases) (Prasad et al., 2017). MAPK is a conserved tertiary kinase cascade which has a wide range of effects on cells (Rezatabar et al., 2019). As an important member of MAPK, the ERK (Extracellular Regulated Protein Kinases) signaling pathway can regulate cell apoptosis by regulating death receptors. Thus, exploiting the increase of ROS levels in cancer cells has become a novel target strategy to improve therapeutic activity and selectivity in the development of anticancer agents.
Chalcone is a natural product with versatile biological and pharmacological properties especially anticancer activity (Zhuang et al., 2017). Simple chalcones or chalcone hybrids exhibited anticancer activity by the interaction with molecular targets such as ROS; mitochondrial pathway, tubulin, MAPK signaling pathway or JAK/STAT signaling pathway (The Janus Tyrosine Kinase / Signal Transducer and Activator of Transcription) (Mahapatra et al., 2015; Gao et al., 2020; Lu et al., 2020; Guan et al., 2021; Zhang et al., 2016; Fu et al., 2016). Chalcones which induced apoptosis of cancer cells via regulating ROS levels and its related signaling pathways are usually reported as anticancer agents (Zhu et al., 2018; Takac et al., 2020; Zhang et al., 2017; Zhu et al., 2018; Hou et al., 2020; Zhang et al., 2015; Hseu et al., 2012; Ashour et al., 2020; Fu et al., 2019). For example, as shown in Fig. 1, Flavokawain B exhibited its anti-proliferative potency against HSC-3 cells (Human oral squamous cell carcinoma cells) via inducing the generation of ROS and down regulating the MAPK signaling pathway (Hseu et al., 2012). 1,2,3-Triazole-chalcone 1 inhibited RPMI-8226 cells (Human multiple myeloma cells) with an IC50 of 0.49 μM, caused the cell cycle arrest at G2/M phase, induced apoptosis via triggering mitochondrial apoptotic pathway and inducing the accumulation of ROS (Ashour et al., 2020). Chalcone-dithiocarbamate 2 was reported as a ROS-mediated apoptosis inducer by inhibiting catalase to exert anticancer activity against human prostate carcinoma PC-3 cells (IC50 = 1.05 μM) (Fu et al., 2019).

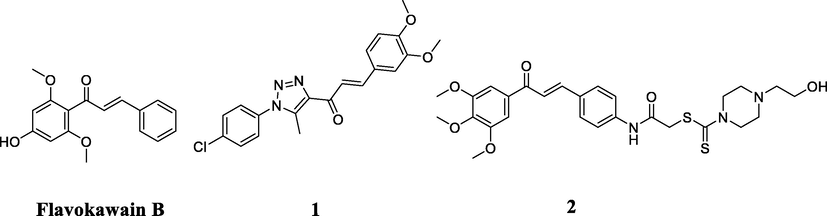

Structures of reported chalcones with anticancer activity via regulating ROS levels.
1,2,4-Triazine is a common and crucial scaffold which was found in many biologically active compounds with many interesting pharmacological activities including anti-microbial, anti-HIV, anti-inflammatory and anti-cancer activities (Marín-Ocampo et al., 2019; Cascioferro et al., 2017; Bhide et al., 2006; Bernat et al., 2020; Xiang et al., 2020; Megally Abdo et al., 2020; Kuroda et al., 2006; Dao et al., 2017; Song et al., 2020; Fu et al., 2017; Song et al., 2021). As a class of anticancer agents; 1,2,4-triazine compounds exhibited promising therapeutic efficacy and clinical potentials to bind to different biological targets (e.g. receptors, enzymes and signaling pathway) (Cascioferro et al., 2017). In fact, many groups have reported various 1,2,4-triazine derivatives as anticancer agents. 3,6-Disubstituted 1,2,4-triazine 3 was a Wnt signaling pathway inhibitor (IC50 = 0.106 μM) in human colorectal cancer cell line HCT-96 (Kuroda et al., 2006). 3,5,6-Trisubstituted 1,2,4-triazine 4 potently inhibited the proliferation of human glioma cancer cell line U-87MG and HCT-96 cells with IC50 values of 13.3 and 0.19 μM. And compound 4 showed moderate inhibitory activity to FAK (IC50 = 0.23 μM) (Dao et al., 2017). 1,2,4-Triazine-based compound 5 was identified as a neddylation pathway inhibitor which blocked the neddylation and inhibited the activity of NAE (NEDD8-activating enzyme) and exhibited antiproliferative potency against human gastric cancer MGC-803 cells (IC50 = 8.22 μM) (Song et al., 2020) (Fig. 2). In this work, we continued with our study on 1,2,4-triazine derivatives to discover potent anticancer agents.

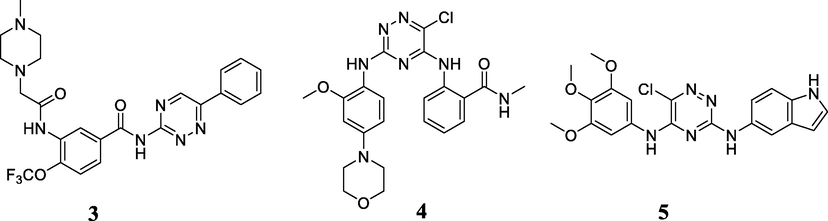

Structures of reported 1,2,4-triazine derivatives with anticancer activities.
Based on the above findings and as a continuation of our studies on chalcone and 1,2,4-triazine derivatives, 1,2,4-triazine scaffold and chalcone fragment were combined through the molecular hybridization strategy to get novel anticancer compounds. Thus, novel 1,2,4-triazine-chalcone derivatives were firstly designed through the molecular hybridization strategy, synthesized and further explored its antiproliferative activity (Fig. 3). Fortunately, the incorporation of a 1,2,4-triazine scaffold into chalcones could significantly improve the antiproliferative ability. Compound 9l displayed most potent antiproliferative ability against MGC-803 cells with IC50 values of 0.41 μM. Further mechanistic studies indicated compound 9l inhibited the gastric cancer cells via an axis of ROS-ERK-DR5 in vitro and in vivo.

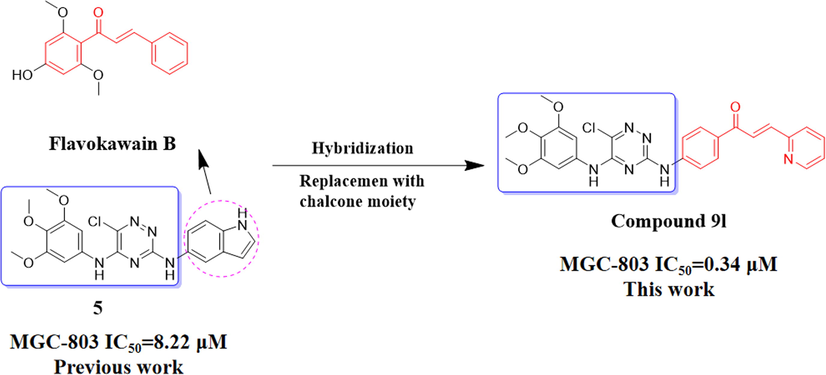

Design of 1,2,4-triazine-chalcone derivative 9l in this work and the structures of Flavokawain B (Hseu et al., 2012) and compound 5 (Song et al., 2020).
2 Chemistry
The chemical synthesis routes of 1,2,4-triazine-chalcone derivatives was outlined in Scheme 1. The starting compound chloride 6 were prepared from 1,2,4-triazine-3,5(2H,4H)-dione within 2 steps according to the previously reported work (Song et al., 2020). Substitution of compound 6 reacted with the 3,4,5-trimethoxyaniline gave compound 7 in the presence of triethylamine at 65 °C in tetrahydrofuran. Then compound 7 reacted with 4-aminoacetophenone to formed compound 8 in the presence of camphor sulfonic acid in isopropanol at 85 °C. Finally, the aldol reactions between compound 8 with different aromatic aldehydes furnished target compounds 9a-9o in ethanol in the presence of sodium hydroxide at 25 °C. Characterization of compounds 9a-9o was carried out by means of NMR and HRMS spectra.

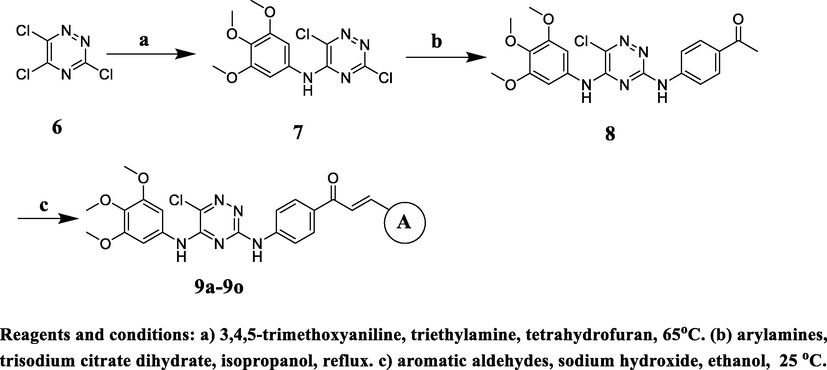

Synthesis of compounds 9a-9o.
3 Biological evaluation
3.1 In vitro antiproliferative activity
The in vitro antiproliferative activities of new target compounds 9a-9o were evaluated against human gastric cancer cell line MGC-803, human colorectal cancer cell lineHCT-116, human prostate cancer cell line PC-3, human esophageal cancer cell line EC-109 and human lung cancer cell line A549 using MTT assay and 5-Fluorouracil (5-FU) as the positive drug. The following Table 1 depicted the results of in vitro antiproliferative activity.
Compd.
Ar
IC50 (μM) a
MGC-803
HCT-96
PC-3
EC-109
A549
9a
phenyl
0.95 ± 0.02
0.95 ± 0.08
1.81 ± 0.07
3.84 ± 0.12
2.84 ± 0.9
9b
4-F-phenyl
0.81 ± 0.05
1.01 ± 0.9
1.54 ± 0.08
6.27 ± 0.14
1.46 ± 0.07
9c
4-Br-phenyl
1.88 ± 0.32
2.28 ± 0.34
5.64 ± 0.18
> 10
1.47 ± 0.19
9d
4-Cl-phenyl
1.62 ± 0.12
1.91 ± 0.15
4.92 ± 0.14
3.84 ± 0.12
1.47 ± 0.19
9e
4-OCH3-phenyl
1.55 ± 0.28
1.75 ± 0.31
7.21 ± 0.17
> 10
1.03 ± 0.9
9f
4-CH3-phenyl
0.80 ± 0.18
0.72 ± 0.25
1.81 ± 0.07
2.91 ± 0.10
1.81 ± 0.46
9g
3,4,5-(OCH3)3-phenyl
0.54 ± 0.05
0.62 ± 0.08
1.24 ± 0.05
2.27 ± 0.09
0.89 ± 0.03
9h
3,4-(OCH3)2-phenyl
0.92 ± 0.64
1.06 ± 0.12
3.48 ± 0.9
> 10
> 10
9i
3-OH-4-OCH3-phenyl
0.81 ± 0.08
0.88 ± 0.15
0.48 ± 0.04
0.79 ± 0.06
1.12 ± 0.13
9j
3-CH3-4-OCH3-phenyl
1.38 ± 0.20
0.89 ± 0.09
0.77 ± 0.02
> 10
1.85 ± 0.12
9k
2-thienyl
3.14 ± 0.72
5.32 ± 0.81
3.51 ± 0.16
> 10
4.51 ± 0.21
9l
2-pyridyl
0.41 ± 0.03
0.43 ± 0.03
0.61 ± 0.07
0.78 ± 0.08
0.52 ± 0.08
9m
3-pyridyl
0.43 ± 0.03
0.44 ± 0.02
0.52 ± 0.05
0.75 ± 0.03
0.71 ± 0.02
9n
4-pyridyl
0.44 ± 0.01
0.53 ± 0.02
0.77 ± 0.08
0.96 ± 0.03
0.82 ± 0.08
9o
3-OCH3-4- pyridyl
0.75 ± 0.01
0.77 ± 0.03
1.42 ± 0.06
1.04 ± 0.12
0.98 ± 0.12
5-Fu
–
6.88 ± 1.07
15.8 ± 1.02
18.4 ± 1.73
10.8 ± 1.52
22.7 ± 1.42
As shown in Table 1, most of 1,2,4-triazine-chalcone derivatives exhibited potent antiproliferative potency against MGC-803, HCT-96, PC-3, EC-109 and A549 and obviously better than the positive control drug 5-FU and compound 5. Particularly, compound 9l exhibited the most potent growth inhibitory effects against the tested five human cancer cell lines (MGC-803, HCT-96, PC-3, EC-109 and A549) with IC50 values of 0.41, 0.43, 0.61, 0.78 and 0.52 μM, respectively. The antiproliferative activities of the compounds varied with respect to its groups on A ring. Most of compounds showed potent antiproliferative potency against four cell lines (MGC-803, HCT-96, PC-3 and A549) with IC50 values less than 5.0 μM. And, MGC-803 cells were more sensitive to the compounds than other cancer cells with IC50 values less than 2.0 μM. Therefore, we discussed the structure-activity relationships of these compounds by using the antiproliferative activity results of MGC-803 cells. Compared compounds 9a with 9b-9d and 9e-9j, compounds 9b-9d with electron-donating groups at phenyl group of A ring exhibited weaker potency than compounds 9e-9j with electron-withdrawing groups at phenyl group of A ring and compound 9a without substituent group at phenyl group of A ring against MGC-803 cells. Therefore, the relationships between the antiproliferative activity of electron-donating groups at A ring and compounds 9a and 9e-9j were 3,4,5-(OCH3)3 > 3-OH-,4-(OCH3 > 4-CH3 > 3,4,-(OCH3)2 > H > 3-CH3-,4-OCH3 > 4-CH3. In addition, the relationships between the antiproliferative activity of electron-withdrawing groups at A ring and compounds 9a and 9b-9e were 4-F > H > 4-Cl > 4-Br.
Moreover, aromatic heterocyclic substituent groups of A ring displayed big difference compared with compound 9a. Compounds 9l-9o with the pyridyl groups of A ring displayed better antiproliferative activity against five cancer cells with IC50 values than the compounds with phenyl groups of A ring. But, the thienyl group of A ring (compound 9k) might significantly impair antiproliferative activity than the compounds 9a-9j with the phenyl groups of A ring and compounds 9l-9o with pyridyl groups of A ring. The the relationships between the antiproliferative activity of electron-donating groups at A ring and compounds 9a and 9e-9j were 2-pyridyl > 3-pyridyl > 4-pyridyl > phenyl groups > thienyl group.
All the results also indicated that the combinations of 1,2,4-triazine scaffold and chalcones were effective to improve the antiproliferative ability and compound 9l displayed 22-fold antiproliferative potency than compound 5 against MGC-803 cells.
3.2 Compound 9l inhibited gastric cancer cells in vitro
For the outstanding antiproliferative activity against gastric cancer cells MGC-803, compound 9l also was selected to do further researches on another gastric cancer MGC-803 and SGC-7901 cells. As shown in Fig. 4A, compound 9l inhibited the activity of gastric cancer MGC-803 and SGC-7901 cells in a dose-dependent manner. And, it did not show high toxicology on gastric normal cells GES-1. Compound 9l also inhibited MGC-803 and SGC-7901 in a time-dependent manner (Fig. 4B, C & D). With the treatment time raising, cell viability was obviously inhibited, and the inhibition rate against MGC-803 and SGC-7901 cells was over 80% in high dose treatment group (Fig. 4B & D). The growth curves of gastric cancer cells were shown in Fig. 4C & E, compound 9l evidently inhibited gastric cancer cells. The inhibition of gastric cancer cells by compound 9l induced cell death, nucleus fragment and concentration and morphology changes (Fig. 4F & G).

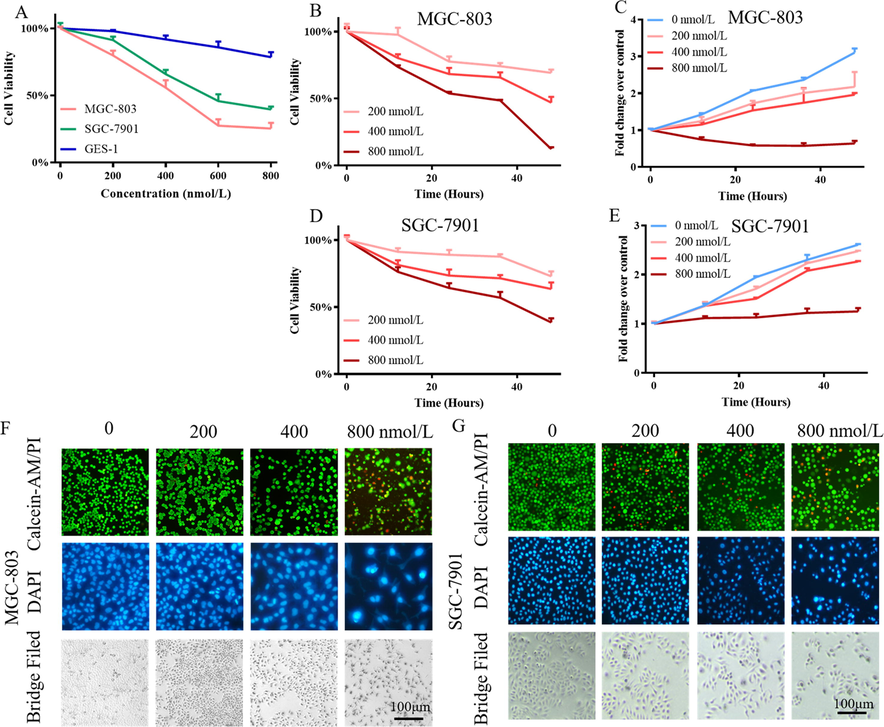

Compound 9l inhibited gastric cancer cells in vitro. A, B & D. Cell viability of gastric cancer MGC-803 and SGC-7901 cells after the treatment with indicated concentrations of 9l for 48 h; C & E. Growth curves of gastric cancer cells after the treatment indicated concentrations of 9l; F & G. Cell death Avermectin induced (upper panel, dead cells were stained red), cellular morphologies (lower panel) and nucleus (mid panel). Cells were treated with different concentrations of compound 9l for 48 h, then cells were stained with different dyes.
These results indicated that compound 9l inhibited gastric cancer MGC-803 and SGC-7901 cells in time and dose-dependent manners.
3.3 Compound 9l induced the generation of ROS to inhibit the ERK pathway
One promising anticancer mechanism of chalcones is to modulate the generation of ROS. ROS affects many physiological behaviors including cell metabolism, survival and death. Therefore, the levels of ROS in gastric cancer MGC-803 and SGC-7901 cells after the treatment with compound 9l were detected next. As the concentration of compound 9l raising, compound 9l up-regulated the levels of ROS in gastric cancer cells (Fig. 5A). The increment of ROS may have an influence on the ERK pathway. Therefore, the members of the ERK cascade were detected. As shown in Fig. 5B, C & D, compound 9l inhibited the activation (phosphorylation) of c-Raf, MEK (Mitogen-activated protein kinase) and ERK, which resulted in a decrease of p-P90RSK and c-Myc which were 2 substrates of ERK pathway in gastric cancer MGC-803 and SGC-7901 cells. NAC (N-acetyl-L-cysteine), a well-known antioxidant, could reduce the levels of ROS in cells. In gastric cancer MGC-803 and SGC-7901 cells, NAC evidently reversed the inhibition of the ERK pathway induced by compound 9l (Fig. 5E, F & G).
Compound 9l inhibited ERK pathway via ROS generation. A. ROS level of gastric cancer MGC-803 and SGC-7901 cells after the treatment with indicated concentrations of 9l; B to G. Levels of ERK pathway related proteins in gastric cancer MGC-803 and SGC-7901 cells. MGC-803 and SGC-7901 cells were treated with different concentrations of compound 9l for 48 h alone, or combine with NAC.
In summary, compound 9l increased the levels of ROS in gastric cancer MGC-803 and SGC-7901 cells and induced ERK pathway inhibition depending on the ROS increment.
3.4 Compound 9l induced cell apoptosis in gastric cancer cells
The cell apoptosis of gastric cancer MGC-803 and SGC-7901 cells were tested after the treatment with compound 9l. The results showed compound 9l induced cell apoptosis in a dose-dependent manner in gastric cancer MGC-803 and SGC-7901 cells (Fig. 6A). As shown in Fig. 6A, after treatment with the 800 nM concentration of compound 9l for 48 h, the percentages of total apoptotic cells from 5.4% (0 nM, MGC-803), 7.2% (0 nM, SGC-7901) significantly increased to 44.0% (800 nM, MGC-803), 44.7% (800 nM, SGC-7901) respectively. These results suggested that compound 9l could dose-dependently induce cell apoptosis in MGC-803 and SGC-7901 cells. At the protein levels, the up-regulations of FADD (Fas-associating protein with a novel death domain), DR5 (Death receptor 5), cleaved-Caspase8 indicated that compound 9l induced an extrinsic-apoptosis in gastric cancer MGC-803 and SGC-7901 cells. As the results shown, the intronic-apoptosis related pro-apoptosis protein Bax was up-regulated; anti-apoptosis proteins Bcl-2, XIAP (X-linked inhibitor of apoptosis protein), c-IAP1 (Cellular inhibitor of apoptosis protein 1) were down-regulated; Caspase9, Caspase3 and PARP (poly ADP-ribose polymerase) were cleaved (Fig. 6C, E&F, S1, S2). Further studies suggested compound 9l induced depolarization of mitochondrial membrane potential (ΔΨm, Fig. 6B & D), which is a marking event of intronic-apoptosis. As a result, compound 9l significantly induced apoptosis in gastric cancer MGC-803 and SGC-7901 cells. Their apoptosis rates both exceeded 44%. To sum up, compound 9l induced extrinsic and intronic apoptosis in gastric cancer MGC-803 and SGC-7901 cells.

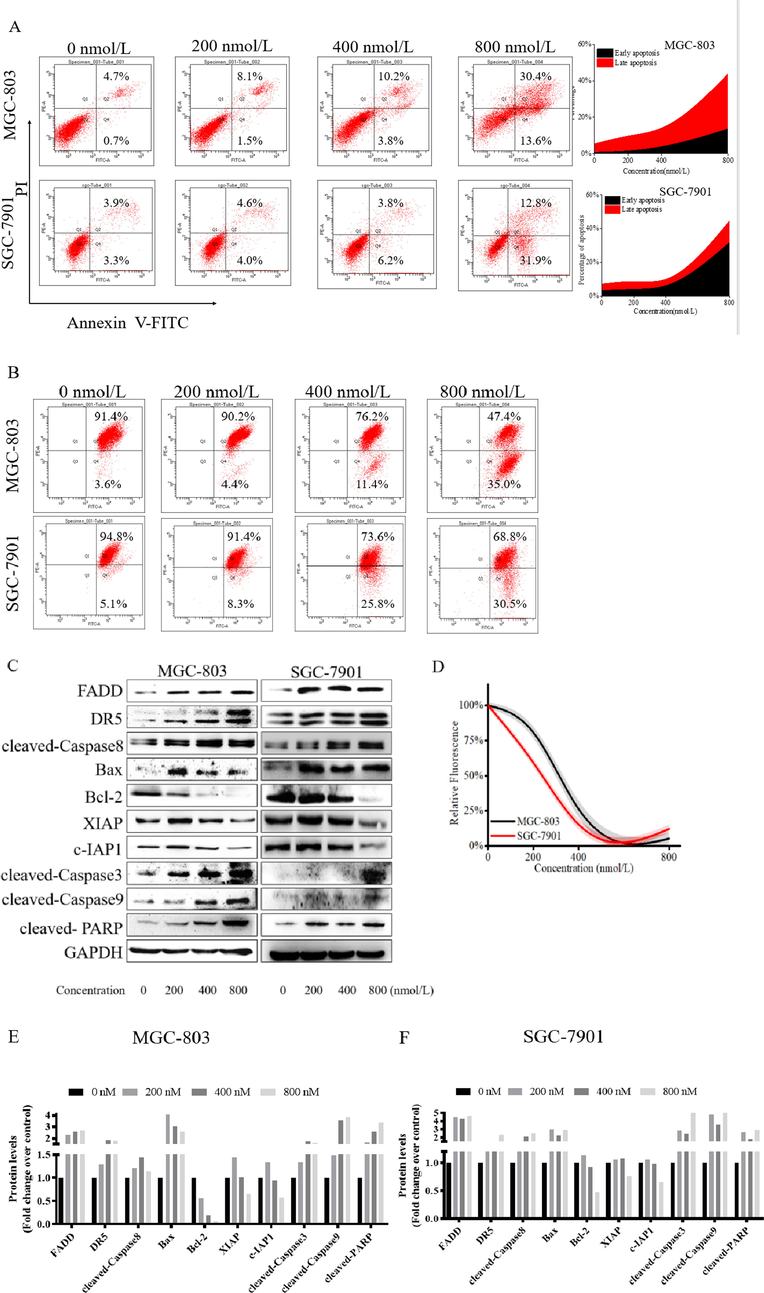

Compound 9l induced cell apoptosis in gastric cancer MGC-803 and SGC-7901 cells. Cells were treated with indicated concentrations of compound 9l for 48 h. A. Cell apoptosis percentage of gastric cancer MGC-803 and SGC-7901 cells induced by compound 9l; B & D. Mitochondrial membrane potential (ΔΨm) depolarization of gastric cancer cells induced by compound 9l; C. E & F. Levels of cell apoptosis related proteins in gastric cancer MGC-803 and SGC-7901 cells.
3.5 Compound 9l induced cell apoptosis in gastric cancer cells depending on ROS generation
The generation of ROS usually induces intrinsic apoptosis. To study the relationship between ROS generation and apoptosis induced by compound 9l, further researches were done with NAC. As shown in Fig. 7, NAC reversed the effects of compound 9l on inducing depolarization of mitochondrial membrane potential (ΔΨm, Fig. 7A & B), inducing cell apoptosis (Fig. 7C & D), inhibiting cell viability (Fig. 7E) in gastric cancer MGC-803 and SGC-7901 cells. These results indicated that the inducement of cell apoptosis by compound 9l depending on ROS generation. At the protein levels, NAC inhibited the up regulation of DR5, and cleavage of Caspase8, Caspase9, Caspase3 and PARP induced by compound 9l in gastric cancer MGC-803 and SGC-7901 cells (Fig. 7F & G).

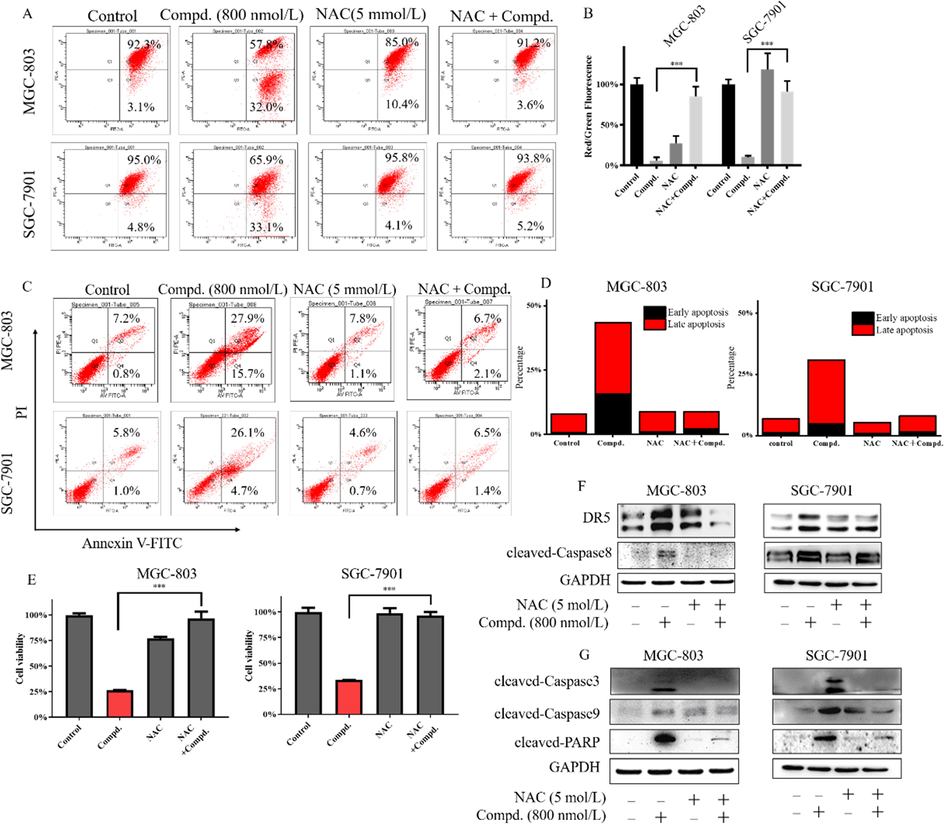

Compound 9l induced cell apoptosis via ROS generation, cells were treated with compound 9l, NAC or both compound 9l and NAC for 48 h. A & B. Mitochondrial membrane potential (ΔΨm) depolarization of gastric cancer MGC-803 and SGC-7901 cells; C & D. Cell apoptosis percentage of gastric cancer cells; E. Cell viability of gastric cancer cells after the treatment with compound 9l, NAC or both compound 9l and NAC for 48 h; F & G. Levels of apoptosis related proteins after the treatment with compound 9l, NAC or both compound 9l and NAC for 48 h.
Thus, it indicated that compound 9l induced extrinsic and intronic apoptosis in gastric cancer MGC-803 and SGC-7901 cells depending on the generation of ROS.
3.6 Compound 9l inhibited gastric cancer cells depending on its effects on p-ERK and DR5
The ERK pathway may affect the expression of DR5. In addition, the expression of DR5 could induce cell apoptosis. To check the necessity of ERK and DR5 existence on the inhibition of gastric cancer cells induced by compound 9l, the RNA interference (siRNA) was used to knock-down ERK/p-ERK (siMAPK1, Fig. S3) and DR5 (siDR5-1, Fig. S4). The knock-down reversed the up-regulation of DR5 and cleavage of PARP induced by compound 9l (Fig. 8 A&B, S5). The cleavage of PARP induced by compound 9l could also be reversed by knockdown of DR5 (Fig. 8 C&D). In the morphology study of the cell nucleus, the knock-down of ERK/p-ERK or DR5 protected the gastric cancer cells from apoptosis-like change induced by compound 9l (Fig. 8 E&F). Briefly, the inhibition induced by compound 9l on gastric cancer cells depending on the existence of p-ERK and DR5. These results indicated that the up-regulation of DR5 induced by compound 9l depending on the inhibition of the ERK pathway and the cell apoptosis induced by compound 9l depended on the DR5 up-regulation. The cell apoptosis happened via an axis of ROS-ERK-DR5. Therefore, compound 9l induced cell apoptosis via an axis of ROS-ERK-DR5.

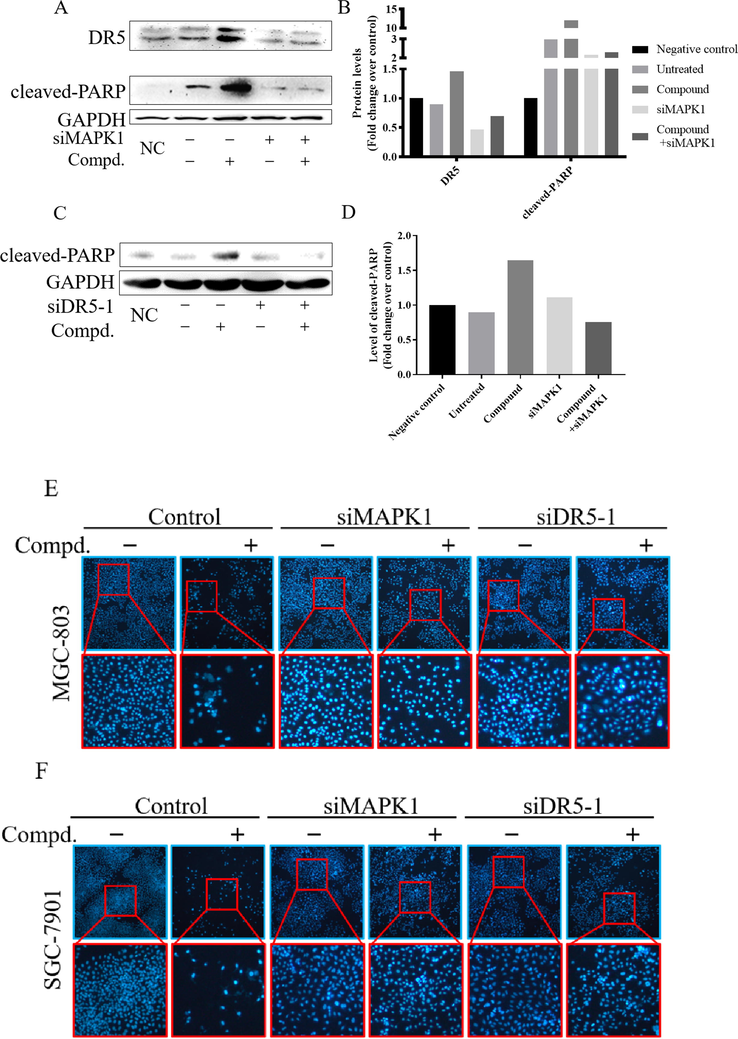

Compound 9l inhibited gastric cancer cells via its effect on ERK and DR5. Cells were treated with compound 9l (800 nmol/L) with or without siRNA for ERK or DR5 (100 pmol/L) for 48 h. A, B, C &D. Cell apoptosis related protein levels; E & F. Cell nucleus morphologies of gastric cancer cells.
3.7 Compound 9l inhibited gastric cancer in vivo
To verify the anti-cancer activity of compound 9l in vivo, the MGC-803 bearing xenograft mice model was established. Models were treated with vehicle control, compound 9l (16, 24 mg/kg) and 5-Fu (positive control, first-line chemotherapy drug of gastric cancers) after tumor volume reached 100 mm3. The tumor volume was measured and recorded every other day since the treatment began. As shown in Fig. 9A, compound 9l showed a high inhibition activity on tumor growth. Tumor tissues were collected and measured for their weight after the mice were executed, the tumor weight of compound 9l high-dose treated group was decreased by over 85% (Fig. 9B & E). The further study on tissues showed that the p-ERK, Ki67 was down-regulated and the DR5, cleaved-PARP were up-regulated which were consistent with the in vitro results (Fig. 9C, D, G & I). The tissue was tunnel positive after the treatment with compound 9l indicating that the apoptosis was induced by compound 9l (Fig. 9F & H).

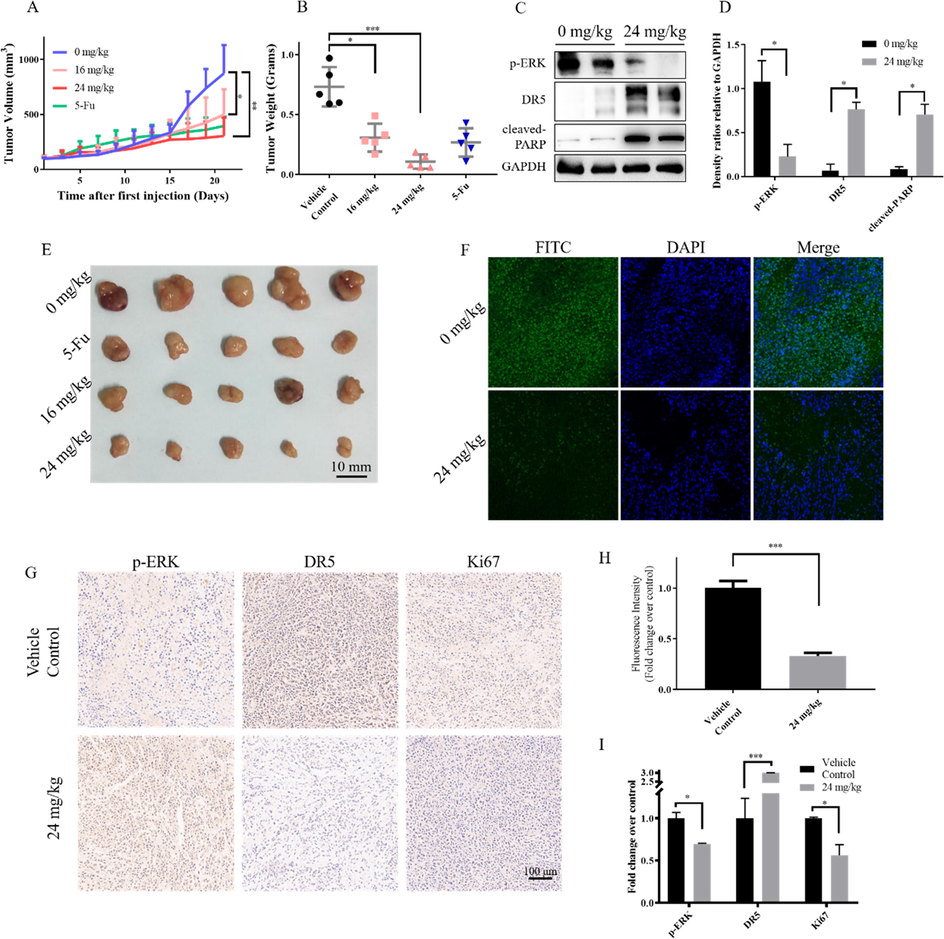

Compound 9l inhibited gastric cancer in vivo. A. Tumor volume during the treatment with compound 9l; B. Tumor weight of different groups; C & D. Protein levels in the tumor tissue; E. Pictures of tumor tissue; F & H. The tunnel level of tumor tissue; G & I. Level of the p-ERK, DR5 and Ki67 in the tumor tissue.
These results showed compound 9l inhibited gastric cancer in vivo.
3.8 Compound 9l showed no significant toxicity in vivo
During the treatment, the animals in the treated group during the treatment did not exhibit differences in motility and activity from the control group. The body weight of mice was measured and recorded every 2 days. Data on Fig. 10 A showed there is no significant difference between vehicle control and treated groups. Blood biochemical indexes related to hepatic and renal function were detected as well, indexes of alanine aminotransferase (ALT), glutamic oxalacetic transaminase (AST), total bilirubin (T-BIL), uric acid (UA), creatinine (CRE), blood urea nitrogen (BUN) did not significantly change (Fig. 10B to G). The H&E staining results also showed on significant toxicity of compound 9l on the main organs (Fig. 10H).

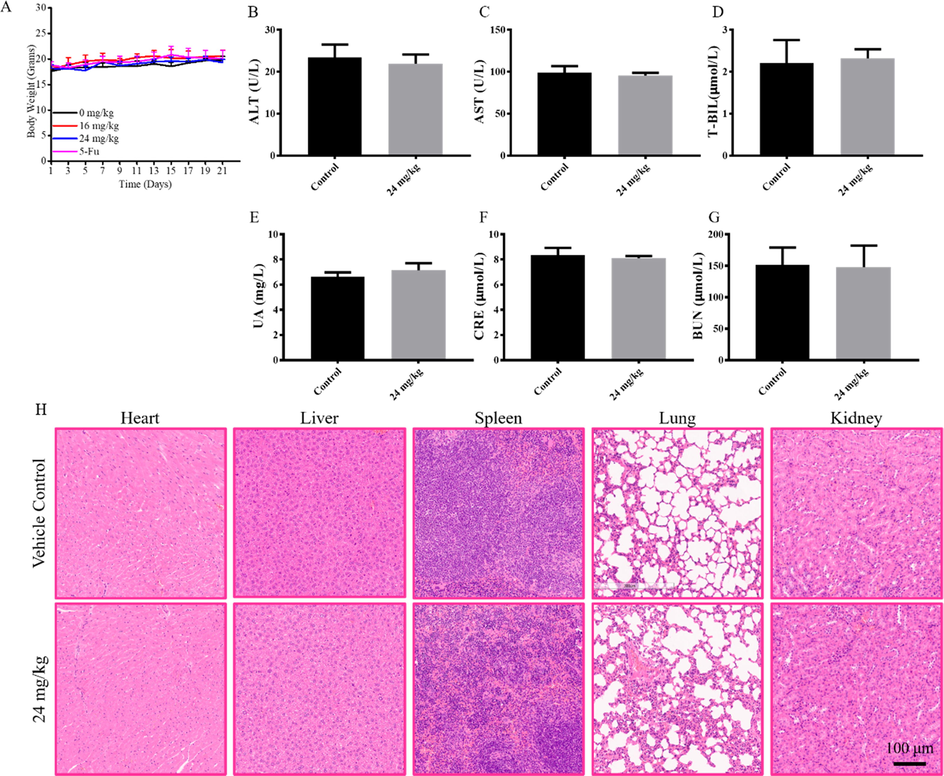

Compound 9l showed no significant toxicity in vivo. A. Body weight of mice during the treatment with compound 9l; B to G. Blood biochemistry indexes; H. H&E staining of mice organs.
These results indicated compound 9l had no significant toxicity in vivo.
4 Conclusion
Exploiting increased ROS levels and related cell signaling pathways in cancer cells have become a novel target strategy to develop anticancer agents with high therapeutic activity and selectivity. In this work, a series of novel 1,2,4-triazine-chalcone derivatives were designed and synthesized, and their antiproliferative potency on MGC-803, HCT-96, PC-3, EC-109 and A549 cells were evaluated. Compound 9l exhibited most potent anticancer activities against MGC-803, HCT-96, PC-3, EC-109, and A549 with IC50 values of 0.41, 0.43, 0.61, 0.78 and 0.52 μM, respectively. Therefore, compound 9l was selected as the key compound for this series.
In the further studies, compound 9l showed potent activity on inhibiting gastric cancer MGC-803 and SGC-7901 cells (Fig. 4). Compound 9l could induce the generation of ROS and inhibit the activation of the ERK pathway depending on the generation of ROS (Fig. 5). Compound 9l induced extrinsic cell apoptosis via up-regulating DR5 (Fig. 6 & Fig. 7). The cell apoptosis induced by compound 9l also depended on the generation of ROS (Fig. 7). To detect the causal relationship between the 2 events caused by ROS generation, ERK inhibition and cell apoptosis, ERK and DR5 were knocked down respectively. As shown in Fig. 6, the up-regulation of DR5 caused by compound 9l relied on the inhibition of ERK. Thus, the compound 9l inhibited the gastric cancer cells via an axis of ROS-ERK-DR5. The anticancer activity of compound 9l was verified in vivo next (Fig. 9). Compound 9l was effective in suppressing MGC-803 xenograft tumor growth in nude mice (Fig. 9) with no significant toxicology to the animals (Fig. 10). Besides the activity on cell apoptosis, compound 9l also showed an activity of cell proliferation inhibition (Fig. S6 to S9).
In summary, compound 9l is an efficient compound as anticancer agent via an axis of ROS-ERK-DR5 in vitro and in vivo (Fig. 11). Therefore, we here reported novel 1,2,4-triazine-chalcone derivatives as anticancer agents via an axis of ROS-ERK-DR5 in vitro and in vivo and the combination of 1,2,4-triazine scaffold and chalcone may offer significant potentiality for the discovery of anticancer agents.

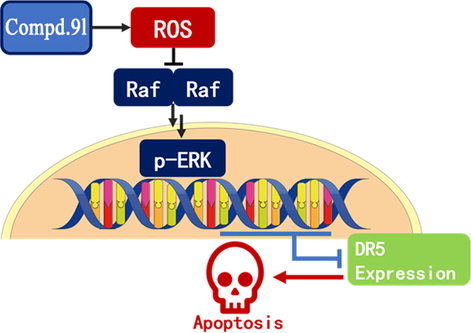

Potential mechanism model compound 9l which activated the ROS-ERK-DR5 axis to inhibit gastric cancers.
5 General information
All the chemical reagents were purchased from commercial suppliers (Energy chemical Company and Zhengzhou He Qi Company). Melting points were determined on an X-5 micromelting apparatus. NMR spectra data was recorded with a Bruker spectrometer.
5.1 Synthesis of compound 7
A solution of compound 6 (1.0 mmol), 3,4,5-trimethoxyaniline and triethylamine (2.0 mmol) were added into 20 mL tetrahydrofuran. And the mixture reacted at 65 °C. After 2 h, organic phases were evaporated to get crude products and then were purified to give compound 7 by column chromatography.
3,6-Dichloro-N-(3,4,5-trimethoxyphenyl)-1,2,4-triazin-5-amine (7)
Yellow powder, Yield, 51%, m.p. 229–230 °C.1H NMR (400 MHz, DMSO‑d6) δ 10.09 (s, 1H), 7.06 (s, 2H), 3.77 (s, 6H), 3.68 (s, 3H).13C NMR (100 MHz, DMSO‑d6) δ 160.08, 152.56, 151.14, 143.40, 135.59, 131.95, 101.87, 60.11, 55.92.
5.2 Synthesis of compound 8
A solution of compound 7 (1.0 mmol), 4-aminoacetophenone and camphor sulfonic acid (0.5 eq) were added into isopropanol (20 mL). And the mixture was stirred at 85 °C. After 6 h of reaction, a yellow solid appeared in the solution and filtered to obtain an unpurified crude product and then was purified to give compound 8 by column chromatography.
Yellow powder, Yield, 68%, m.p. 197–198 °C.1H NMR (400 MHz, DMSO‑d6) δ 9.72 (s, 1H), 9.43 (s, 1H), 7.62 (d, J = 8.1 Hz, 2H), 7.18 (t, J = 7.6 Hz, 2H), 7.01–6.91 (m, 3H), 3.70 (d, J = 11.6 Hz, 9H).13C NMR (100 MHz, DMSO‑d6) δ 158.39, 152.55, 149.96, 139.72, 135.00, 134.54, 132.86, 128.30, 121.83, 119.33, 102.19, 60.08, 55.78.
5.3 Synthesis of compound 9a-9o
A solution of compound 8 (1.0 mmol), aromatic amines (1.0 eq) and NaOH (0.5 eq) were added into ethanol (20 mL). And the mixture was stirred at 25 °C. After 2 h, the solvent was evaporated under vacuum, and the crude residue was purified by silica gel column chromatography to give compound 9a-9o.
(E)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl)amino)-1,2,4-triazin-3-yl) amino) phenyl)-3-phenylprop-2-en-1-one (9a)
Yellow powder, Yield, 53%, m.p. 232–234 °C. 1H NMR (400 MHz, DMSO‑d6) δ 10.16 (s, 1H), 9.59 (s, 1H), 8.03 (d, J = 8.8 Hz, 2H), 7.84 (ddd, J = 27.2, 19.8, 10.7 Hz, 5H), 7.70 (d, J = 15.6 Hz, 1H), 7.54–7.39 (m, 3H), 6.99 (s, 2H), 3.73 (d, J = 12.0 Hz, 9H). 13C NMR (101 MHz, DMSO‑d6) δ 187.26, 158.06, 152.64, 150.22, 144.60, 142.92, 135.72, 135.31, 134.82, 132.71, 130.70, 130.37, 129.55, 128.88, 128.64, 122.09, 98.27, 102.58, 60.09, 55.89. HR-MS (ESI): Calcd, C27H24ClN5O4, [M+H]+: 518.1595, found: 518.1594.
(E)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl) amino)-1,2,4-triazin-3-yl) amino) phenyl)-3-(4-fluorophenyl) prop-2-en-1-one (9b)
Yellow powder, Yield, 38%, m.p. 252–253 °C. 1H NMR (400 MHz, DMSO‑d6) δ 10.13 (d, J = 12.8 Hz, 1H), 9.58 (s, 1H), 8.03 (d, J = 8.8 Hz, 2H), 7.95 (dd, J = 8.7, 5.6 Hz, 2H), 7.89–7.77 (m, 3H), 7.70 (d, J = 15.6 Hz, 1H), 7.31 (t, J = 8.8 Hz, 2H), 6.98 (d, J = 7.0 Hz, 2H), 3.78–3.69 (m, 9H). 13C NMR (100 MHz, DMSO‑d6) δ 187.16, 171.98, 158.05, 152.63, 150.21, 144.61, 141.69, 135.73, 135.25, 132.71, 131.02, 130.93, 130.66, 129.57, 121.98, 98.24, 96.00, 95.78, 102.51, 60.09, 55.86. HR-MS (ESI): Calcd, C27H23ClFN5O4, [M+H]+: 536.1501, found: 536.1500.
(E)-3-(4-bromophenyl)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl)amino)-1,2,4-triazin-3-yl)amino)phenyl)prop-2-en-1-one (9c)
Yellow powder, Yield, 34%, m.p. 249–250 °C. 1H NMR (400 MHz, DMSO‑d6) δ 10.12 (s, 1H), 9.58 (s, 1H), 8.06–7.89 (m, 2H), 7.86–7.64 (m, 7H), 6.98 (d, J = 7.0 Hz, 3H), 3.74 (s, 6H), 3.71 (s, 3H). 13C NMR (101 MHz, DMSO‑d6) δ 196.10, 158.07, 152.63, 150.23, 144.46, 135.61, 135.27, 132.69, 131.21, 130.99, 130.09, 129.10, 98.02, 102.59, 60.10, 55.86.
(E)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl) amino)-1,2,4-triazin-3-yl) amino) phenyl)-3-(4-chlorophenyl) prop-2-en-1-one (9d)
Yellow powder, Yield, 34%, m.p. 250–251 °C. 1H NMR (400 MHz, DMSO‑d6) δ 10.16 (d, J = 12.0 Hz, 1H), 9.59 (d, J = 9.5 Hz, 1H), 8.02 (d, J = 8.9 Hz, 2H), 7.93–7.88 (m, 2H), 7.86–7.79 (m, 2H), 7.73–7.65 (m, 1H), 7.54 (t, J = 10.1 Hz, 2H), 7.37 (d, J = 14.5 Hz, 1H), 7.00 (d, J = 12.1 Hz, 2H), 3.73 (dd, J = 16.0, 8.6 Hz, 9H). 13C NMR (151 MHz, DMSO‑d6) δ 187.61, 158.54, 153.13, 150.70, 145.19, 141.96, 135.72, 135.34, 134.30, 133.21, 131.26, 130.86, 130.13, 129.41, 128.77, 123.30, 98.73, 102.98, 60.59, 56.35. HR-MS (ESI): Calcd, C27H23Cl2N5O4, [M+H]+: 552.1205, found: 552.1204.
(E)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl) amino)-1,2,4-triazin-3-yl) amino) phenyl)-3-(4-methoxyphenyl) prop-2-en-1-one (9e)
Yellow powder, Yield, 41%, m.p. 230–232 °C.1H NMR (400 MHz, DMSO‑d6) δ 10.15 (s, 1H), 9.58 (s, 1H), 8.03 (d, J = 8.8 Hz, 2H), 7.85 (t, J = 9.5 Hz, 4H), 7.67 (d, J = 15.5 Hz, 1H), 7.44 (s, 1H), 7.32 (d, J = 7.7 Hz, 1H), 7.23 (d, J = 7.7 Hz, 1H), 6.99 (s, 2H), 3.90 (s, 3H), 3.75 (s, 6H), 3.71 (s, 3H). 13C NMR (100 MHz, DMSO‑d6) δ 192.80, 158.04, 152.63, 150.28, 143.00, 140.42, 138.22, 136.95, 135.63, 135.26, 132.46, 129.51, 129.9, 128.82, 126.58, 120.98, 98.10, 102.55, 60.10, 55.84, 20.79. HR-MS (ESI): Calcd, C28H26ClN5O5, [M+H]+: 570.1520, found: 570.1527.
(E)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl)amino)-1,2,4-triazin-3-yl)amino)phenyl)-3-(p-tolyl)prop-2-en-1-one (9f)
Yellow powder, Yield, 46%, m.p. 235–236 °C. 1H NMR (600 MHz, DMSO‑d6) δ 10.15 (s, 1H), 9.59 (s, 1H), 8.01 (d, J = 8.6 Hz, 1H), 7.76 (ddt, J = 47.1, 38.4, 13.7 Hz, 6H), 7.29 (d, J = 7.3 Hz, 2H), 6.97 (d, J = 25.6 Hz, 2H), 3.75–3.70 (m, 9H), 2.51 (s, 3H).13C NMR (100 MHz, DMSO‑d6) δ 187.71, 158.56, 153.13, 150.72, 145.02, 143.51, 140.93, 138.72, 137.44, 135.72, 133.22, 132.59, 131.29, 130.16, 130.02, 129.62, 129.33, 129.19, 127.09, 121.46, 98.74, 103.02, 60.59, 56.36, 21.55. HR-MS (ESI): Calcd, C28H26ClN5O4, [M+H]+: 532.1752, found: 532.1752.
(E)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl)amino)-1,2,4-triazin-3-yl)amino)phenyl)-3-(3,4,5-trimethoxyphenyl)prop-2-en-1-one (9g)
Yellow powder, Yield, 47%, m.p. 249–250 °C. 1H NMR (400 MHz, DMSO‑d6) δ 10.16 (s, 1H), 9.58 (s, 1H), 8.04 (d, J = 8.8 Hz, 2H), 7.84 (dd, J = 12.1, 3.2 Hz, 3H), 7.65 (d, J = 15.5 Hz, 1H), 7.21 (s, 2H), 7.00 (s, 2H), 3.88 (s, 6H), 3.75 (s, 6H), 3.73 (s, 3H), 3.70 (s, 3H). 13C NMR (101 MHz, DMSO‑d6) δ 187.18, 158.07, 153.09, 152.64, 150.20, 144.53, 143.39, 139.57, 135.70, 135.26, 132.70, 130.80, 130.37, 129.56, 121.24, 98.21, 106.31, 102.53, 60.9, 56.07, 55.87, 55.60. HR-MS (ESI): Calcd, C30H30ClN5O7, [M+H]+: 608.1912, found: 608.199.
(E)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl)amino)-1,2,4-triazin-3-yl)amino)phenyl)-3-(3,4-dimethoxyphenyl)prop-2-en-1-one (9h)
Yellow powder, Yield, 38%, m.p. 264–265 °C. 1H NMR (400 MHz, DMSO‑d6) δ 10.14 (s, 1H), 9.59 (s, 1H), 8.03 (d, J = 8.7 Hz, 2H), 7.80 (dd, J = 20.8, 12.1 Hz, 3H), 7.66 (d, J = 15.4 Hz, 1H), 7.51 (s, 1H), 7.36 (d, J = 8.2 Hz, 1H), 7.06–6.97 (m, 3H), 3.85 (d, J = 19.0 Hz, 6H), 3.74 (s, 6H), 3.71 (s, 3H). 13C NMR (151 MHz, DMSO‑d6) δ 187.65, 158.59, 153.16, 151.62, 150.71, 149.53, 144.89, 143.90, 136.16, 135.82, 133.22, 131.52, 129.94, 128.16, 124.08, 120.14, 98.73, 92.12, 91.17, 103.08, 60.60, 56.40, 56.20, 56.10, 40.46, 40.32, 40.18, 40.04, 39.90, 39.76, 39.62. HR-MS (ESI): Calcd, C29H28ClN5O6, [M+Na]+: 600.1620, found: 600.1627.
(E)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl)amino)-1,2,4-triazin-3-yl)amino)phenyl)-3-(3-hydroxy-4-methoxyphenyl)prop-2-en-1-one (9i)
Yellow powder, Yield, 32%, m.p. 270–271 °C. 1H NMR (400 MHz, DMSO‑d6) δ 10.12 (s, 1H), 9.57 (s, 1H), 9.15 (s, 1H), 7.99 (d, J = 8.2 Hz, 2H), 7.81 (d, J = 8.2 Hz, 2H), 7.61 (d, J = 7.9 Hz, 2H), 7.27 (d, J = 12.5 Hz, 2H), 7.01 (d, J = 9.7 Hz, 3H), 3.85 (s, 3H), 3.75 (s, 6H), 3.73 (s, 3H). 13C NMR (101 MHz, DMSO‑d6) δ 187.16, 157.99, 152.63, 150.25, 150.13, 146.61, 144.28, 143.48, 135.25, 132.68, 131.03, 129.35, 127.70, 121.80, 99.31, 98.28, 94.63, 91.91, 102.54, 60.9, 55.85, 55.65. HR-MS (ESI): Calcd, C28H26ClN5O6, [M+Na]+: 586.1464, found: 586.1471.
(E)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl)amino)-1,2,4-triazin-3-yl)amino)phenyl)-3-(4-methoxy-3-methylphenyl)prop-2-en-1-one (9j)
Yellow powder, Yield, 37%, m.p. 248–249 °C. 1H NMR (400 MHz, DMSO‑d6) δ 10.14 (s, 1H), 9.59 (s, 1H), 8.00 (d, J = 8.8 Hz, 2H), 7.81 (dd, J = 8.7, 2.3 Hz, 4H), 7.71 (d, J = 16.2 Hz, 1H), 7.08–6.92 (m, 4H), 3.83 (s, 3H), 3.73 (d, J = 10.5 Hz, 9H). 13C NMR (151 MHz, DMSO‑d6) δ 187.64, 161.68, 158.57, 153.13, 150.71, 144.88, 143.43, 136.16, 135.72, 133.22, 131.70, 131.46, 131.02, 129.91, 127.93, 99.99, 98.73, 94.88, 94.13, 103.01, 60.60, 56.35, 55.85, 55.61. HR-MS (ESI): Calcd, C29H28ClN5O5, [M+H]+: 562.1852, found: 562.19.
(E)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl)amino)-1,2,4-triazin-3-yl)amino)phenyl)-3-(thiophen-2-yl)prop-2-en-1-one (9k)
Yellow powder, Yield, 38%, m.p. 254–255 °C.1H NMR (400 MHz, DMSO‑d6) δ 10.20 (s, 1H), 9.65 (s, 1H), 7.93 (t, J = 14.0 Hz, 3H), 7.86–7.75 (m, 4H), 7.65 (d, J = 3.2 Hz, 1H), 7.51 (d, J = 15.3 Hz, 1H), 7.19 (dd, J = 5.0, 3.7 Hz, 1H), 7.13 (s, 1H), 6.98 (s, 2H), 3.75 (t, J = 6.6 Hz, 9H). 13C NMR (151 MHz, DMSO‑d6) δ 187.14, 158.51, 153.16, 150.78, 145.03, 140.37, 136.26, 135.87, 133.19, 132.98, 131.12, 130.51, 129.85, 129.16, 120.82, 98.80, 103.20, 60.63, 56.41. HR-MS (ESI): Calcd, C25H22ClN5O4S, [M+H] +: 524.959, found: 524.959.
(E)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl)amino)-1,2,4-triazin-3-yl)amino)phenyl)-3-(pyridin-2-yl)prop-2-en-1-one (9l)
Yellow powder, Yield, 32%, m.p. 216–217 °C. 1H NMR (400 MHz, DMSO‑d6) δ 10.23 (s, 1H), 9.63 (s, 1H), 8.72 (d, J = 4.4 Hz, 1H), 8.15 (d, J = 15.4 Hz, 1H), 7.97 (dd, J = 12.1, 9.0 Hz, 4H), 7.84 (d, J = 8.8 Hz, 2H), 7.69 (d, J = 15.4 Hz, 1H), 7.53–7.45 (m, 1H), 6.99 (s, 2H), 3.75 (s, 6H), 3.73 (s, 3H). 13C NMR (101 MHz, DMSO‑d6) δ 187.42, 158.08, 152.61, 150.29, 144.21, 142.03, 137.21, 136.65, 135.29, 133.22, 132.64, 129.89, 129.55, 129.22, 124.84, 122.73, 98.30, 97.90, 102.73, 60.10, 55.79. HR-MS (ESI): Calcd, C26H23ClN6O4, [M+H]+: 519.1548, found: 519.1547.
(E)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl)amino)-1,2,4-triazin-3-yl)amino)phenyl)-3-(pyridin-3-yl)prop-2-en-1-one (9m)
Yellow powder, Yield, 42%, m.p. 262–264 °C. 1H NMR (400 MHz, DMSO‑d6) δ 10.16 (s, 1H), 9.60 (s, 1H), 9.00 (s, 1H), 8.61 (d, J = 4.5 Hz, 1H), 8.32 (d, J = 8.1 Hz, 1H), 8.03 (dd, J = 12.2, 7.7 Hz, 3H), 7.83 (d, J = 8.8 Hz, 2H), 7.72 (d, J = 15.7 Hz, 1H), 7.50 (dd, J = 7.9, 4.8 Hz, 1H), 6.99 (s, 2H), 3.74 (d, J = 3.8 Hz, 6H), 3.71 (s, 3H). 13C NMR (101 MHz, DMSO‑d6) δ 191.94, 157.99, 152.63, 150.29, 149.65, 149.05, 145.02, 135.89, 135.29, 134.37, 132.66, 132.61, 131.20, 129.72, 129.53, 129.37, 123.28, 98.15, 102.64, 60.9, 55.83. HR-MS (ESI): Calcd, C26H23ClN6O4, [M+H]+: 519.1548, found: 519.1549.
(E)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl)amino)-1,2,4-triazin-3-yl)amino)phenyl)-3-(pyridin-4-yl)prop-2-en-1-one (9n)
Yellow powder, Yield, 44%, m.p. 243–244 °C. 1H NMR (400 MHz, DMSO‑d6) δ 10.19 (s, 1H), 9.61 (s, 1H), 8.67 (d, J = 4.5 Hz, 1H), 8.50 (dd, J = 23.7, 15.5 Hz, 1H), 8.07 (dd, J = 22.7, 12.0 Hz, 2H), 7.82 (dd, J = 13.9, 9.1 Hz, 3H), 7.78–7.60 (m, 2H), 7.28 (dd, J = 31.7, 4.7 Hz, 1H), 6.99–6.94 (m, 2H), 3.75–3.68 (m, 9H). 13C NMR (151 MHz, DMSO‑d6) δ 187.60, 158.52, 153.13, 150.81, 150.20, 145.48, 143.19, 142.47, 140.50, 135.73, 134.72, 133.19, 132.48, 130.33, 126.93, 123.42, 122.88, 98.75, 103.01, 60.59, 56.36. HR-MS (ESI): Calcd, C26H23ClN6O4, [M+Na]+: 541.1367, found: 541.1362.
(E)-1-(4-((6-chloro-5-((3,4,5-trimethoxyphenyl)amino)-1,2,4-triazin-3-yl)amino)phenyl)-3-(6-methoxypyridin-3-yl)prop-2-en-1-one (9o)
Yellow powder, Yield, 28%, m.p. 249–250 °C. 1H NMR (400 MHz, DMSO‑d6) δ 10.24 (s, 1H), 9.62 (s, 1H), 8.08 (d, J = 15.2 Hz, 1H), 7.95 (d, J = 8.8 Hz, 2H), 7.86–7.77 (m, 4H), 7.71 (s, 1H), 7.62 (d, J = 15.1 Hz, 1H), 7.40 (d, J = 7.2 Hz, 1H), 6.98 (s, 2H), 4.01 (s, 3H), 3.75 (s, 6H), 3.70 (s, 3H). 13C NMR (151 MHz, DMSO‑d6) δ 187.87, 163.67, 158.60, 153.17, 150.82, 145.29, 142.08, 140.41, 135.82, 133.19, 130.94, 129.98, 125.12, 99.68, 98.75, 93.13, 103.23, 60.59, 56.38, 53.49. HR-MS (ESI): Calcd, C27H25ClN6O5, [M+Na]+: 571.1473, found: 571.1479.
5.4 Cell culture
Five human cancer cell line and GES-1 cells used were cultured in humidified incubator at 37 °C and 5% CO2. The RPMI-1640 medium was supplemented with 10% fetal bovine serum, penicillin (100 U/mL) and streptomycin (0.1 mg/mL).
5.5 MTT assay
Five human cancer cell line and GES-1 cells were seeded into 96-well plates and incubated for 24 h. Then cells were treated with different concentrations of compounds. MTT reagent (20 μL per well) was added after another 48 h, and then the cells were incubated at 37 °C for 4 h. Formazan was then dissolved with DMSO. Absorbencies of formazan solution were measured at 490 nm. The IC50 values of tested compounds were calculated by SPSS version 17.0.
5.6 Western blotting analysis
Gastric cancer MGC-803 and SGC-7901 cells were seeded in dishes and treated with compound 10 l or DMSO. After 48 h, MGC-803 and SGC-7901 cells were collected and then lysed. The denatured lysates of each groups were electrophoretic separated in SDS-PAGE. Proteins were then transferred onto PVDF membranes from gels. After blocking for 2 h, membranes were incubated with primary antibodies conjugation. Then, the membranes were washed and incubated with 2nd antibodies. At last, specific proteins were detected.
5.7 Xenograft studies
A human gastric cancer subcutaneous transplantation tumor model was established with MGC-803 cells in nude mice (BALB/c-nu, female, 6–8 weeks). After the tumor volume reaches 100 mm3 the MGC-803 bearing mice were randomized into 3 groups and intraperitoneal injection with normal saline or drugs daily for 21 days. Tumor volume was measured every 2 days (Length × Width2/2). Mice were executed after treatment. 500 μL blood samples was collected each mouse, samples were then centrifuged at 2000 g for 10 min for biochemistry analysis. Tumor and organs tissues were harvested for H&E staining or immunochemistry detection. The experiments in the study were performed comply with the protocols approved by the Institutional Animal Care and Use Committee, Zhengzhou University.
5.8 General methods
In this work, some other assays including colony formation assay, cell apoptosis assay and immunostaining assay were referred to our previous work (Fu et al., 2017; Song et al., 2020; Jian et al., 2019).
In this work, some other assays including colony formation assay, cell apoptosis assay and immunostaining assay were referred to our previous work.
Acknowledgement
This work was supported by the National Natural Sciences Foundations of China (U2004123 for Sai-Yang Zhang). Henan Association of Science and Technology (No. 2020HYTP056 for Sai-Yang Zhang, China) and Science and Technology Department of Henan Province (No. 20202310144, for Sai-Yang Zhang, China). The open fund of state key laboratory of Pharmaceutical Biotechnology, Nan-jing University, China (Grant no. KF-GN-202101).
Declaration of Competing Interest
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
