Effect of three 2-allyl-p-mentha-6,8-dien-2-ols on inhibition of mild steel corrosion in 1 M HCl

2.1 Synthesis of 2-allyl-p-mentha-6,8-dien-2-ols P1−P3

We were the first to accomplish stereoselective synthesis of 2-allyl-p-mentha-6,8-dien-2-ols from carvone and allylmagnesium chloride in ether. Condensation of allylmagnesium compounds on carvone leads to 2-allyl-p-mentha-6,8-dien-2-ols P1–P3 in good yields, respectively (Scheme 1). These molecules contain the allylic moiety in the axial position, and the hydroxyl group, in the equatorial position of the cyclohexane ring which adopts a chair conformation (Majidi et al., 2005).

Close

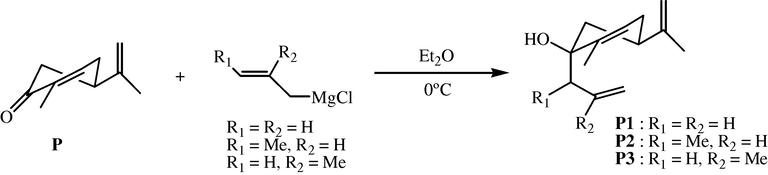

Scheme 1

Export to PPT

The reaction, in all cases, is stereoselective and the alkylation of P takes place on the “si face” in a quasi-equatorial fashion. The ¹³C NMR spectrum of each alcohol P1–P3 was consistent with the presence of only one diastereoisomer except for alcohol P2. Moreover, we point out that the addition of crotylmagnesium chloride to carvone is not stereoselective. The ¹³C NMR spectrum of the corresponding 2-allyl-p-mentha-6,8-dien-2-ol P2 illustrated that this compound existed in the shape of two diastereoisomers (56/44). Thus, only two diastereomers have been obtained from the four expected. One deduces that a stereospecific reaction was involved when asymmetric functional carbon has been created. Although, the crotyl magnesium chloride exists almost exclusively in the primary form (Hutchison et al., 1973), it reacts with Carvone such that exclusively α-métallylcarveol products are formed.

The structure of alcohols P1–P3 was proved by IR and NMR spectroscopy. Their IR spectra lack carbonyl absorption but contain a band at 1650, 3080, and 3460 cm⁻¹, typical of stretching vibration of C⚌C bond, the vinylic protons of the allylic moieties (C⚌CH₂) and associated hydroxyl group, respectively. In the ¹H NMR spectra of these compounds we observed signals from protons of both p-menthene fragment and massifs due to protons of allylic moieties (Section 2).

The stereochemistry at the carbinol center of alcohols P1–P3 was initially assigned based on the relative chemical shifts of the carbinol centers in the ¹³C NMR spectra. The signal for the carbinol carbon appears at lower fields for an equatorial than for an axial hydroxyl group (see Section 2) (Stothers et al., 1972). The carbinol signal further downfield should belong to the axial-addition product. These data are consistent with our previous results (Majidi et al., 2004) that the addition of arylic magnesium chloride to cycloalkenone is stereoselective: the attack occurs from the axial side of the molecule.

2.2 Synthesis of inhibitors

Infrared (IR) spectra were recorded on Schimatzu IR-470. ¹H NMR spectra were determined on a Brüker AC250 (300 MHz) spectrometer with Me₄Si as the internal standard. ¹³C NMR spectra of CDCl₃ solution were recorded on Brüker AC250 (60 MHz).

2.3 Gravimetric, R_p polarisation and EIS measurements

Steel samples (0.21% C, 0.38% Si, 0.09% P, 0.01% Al, 0.05% Mn, 0.05% S) are used. The aggressive solution (1 M HCl) was prepared by the dilution of analytical grade 37% HCl with bidistilled water. Prior to all measurements, the steel samples were polished with different emery paper up to 1200 grade and washed thoroughly with bidistilled water and dried with acetone.

Gravimetric measurements were carried out in a double walled glass cell equipped with a thermostat-cooling condenser. The solution volume was 100 ml. The steel specimens used had a rectangular form (2 cm × 2 cm × 0.05 cm). The immersion time for the weight loss was 1 h at 333 K.

Electrochemical measurements were carried out in conventional three-electrode electrolysis cylindrical Pyrex glass cell. The working electrode (WE) had the form of a disc cut form the steel sheet. The area exposed to the corrosive solution was 1 cm². A saturated calomel electrode (SCE) and a disc platinum electrode were used, respectively, as reference and auxiliary electrodes. The temperature was thermostatically controlled at 298 ± 1 K.

Electrochemical experiments were recorded using an EG&G instruments potentiostat-galvanostat model 263A, at scan rate of 0.5 mV/S, coupled to a computer equipped with a software 352 Soft Corr III. Before recording the polarisation curves the test solution was de-aerated and magnetically stirred for 30 min in the cell with pure nitrogen to attain stationary (E_corr). Gas pebbling was maintained throughout the experiments. WE was then inserted and prepolarised at −800 mV (SCE) for 10 min in order to remove oxide film from the electrode. The scan rate was 1 mV s⁻¹.

Polarisation resistance measurements were performed by scanning through a potential range which is very close to the corrosion potential. The potential range is ±10 mV around E_corr. Polarisation resistance (R_P) values are obtained from the current potential plots.

The electrochemical impedance spectroscopy (EIS) measurements were carried out with the electrochemical system (Tacussel) which included a digital potentiostat model Voltalab PGZ 100 computer at E_corr after immersion in solution without bubbling, the circular surface of steel exposing of 1 cm² to the solution were used as the working electrode. After the determination of steady-state current at a given potential, sine wave voltage (10 mV) peak to peak, at frequencies between 100 kHz and 10 MHz were superimposed on the rest potential. Computer programs automatically controlled the measurements performed at rest potentials after 30 min of exposure. The impedance diagrams are given in the Nyquist representation.

3.1 Weight loss tests

The corrosion rate (W_corr) of steel in 1 M HCl solution at various concentrations of molecule tested was determined after 1 h of immersion period at 333 K. Values of corrosion rates and inhibition efficiencies are given in Table 1. In the case of the weight loss method, the inhibition efficiency (E_W%) was determined by the following relation:

Table 1 Influence of 2-allyl-p-mentha-6,8-dien-2-ols (P1–P3) concentration on the steel corrosion in 1 M HCl at 1 h.

Compounds	C (g/l)	W (mg/cm2h)	E (%)
Blank	1 M	12.6776	–
P1	1	3.5635	71.89
	1.5	2.7688	78.15
	2	2.1579	82.97
	2.5	1.5486	87.78
	3	1.0956	91.38
P2	1	5.6128	55.72
	1.5	4.6187	63.56
	2	3.7065	70.76
	2.5	3.2589	74.29
	3	2.5138	80.17
P3	1	6.6625	47.44
	1.5	5.4766	56.8
	2	5.0142	60.44
	2.5	4.4042	65.25
	3	3.5458	72.03

It has been observed that the inhibition efficiency increased with increasing concentration and reached a maximum value at an optimum concentration 3 g/L. we noted that all compounds used in this study showed very good inhibition of corrosion. The best action is observed with 2-allyl-p-mentha-6,8-dien-2-ol P1 which leads to 92% at 3 g/L.

3.2 Polarisation measurements

Cathodic and anodic polarisation curves for steel in 1 M HCl in the presence of 3 g/L of P1, P2 and P3 at 308 K are shown in Fig. 1. In the cathodic domain, it is clear that the current density decreases with the addition of 2-allyl-p-mentha-6,8-dien-2-ols compounds; this indicates that these compounds are adsorbed onto the metal surface and hence inhibition occurs.

Close

Figure 1

Polarisation curves of steel in 1 M HCl without and with 3 g/l of P1, P2 and P3.

Export to PPT

At the same concentration (3 g/L), the value of I_corr of steel in the case of P1 is smaller than those of P2 and P3. Compound P1 gives more inhibition efficiency than P2 and P3 in 1 M HCl; this enhanced efficiency is due to the absence of the methyl group in molecule P1. The polarisation study confirms the excellent inhibiting character of P1 obtained with weight loss measurements.

In order to better understand the inhibition mechanism of P1, a detailed study on this compound was carried out. Polarisation curves for steel at various concentrations of P1 in de-aerated normal HCl solutions are shown in Fig. 2. The extrapolation of the Tafel straight line allows the calculation of the corrosion current density (I_corr). The values of (I_corr), the corrosion potential (E_corr), the cathodic Tafel slopes (βc) and the corrosion inhibition efficiency (E_I%) for different concentrations of P1 are given in Table 2. The inhibition efficiency (E_I) of the inhibitor for the corrosion of steel was calculated by using corrosion current density as follows:

Close

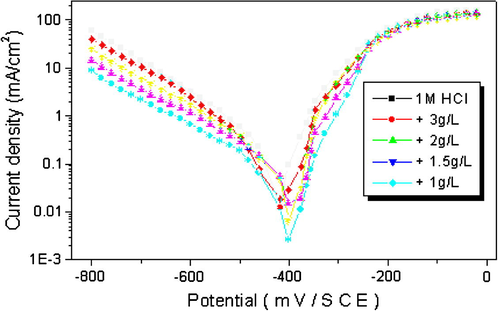

Figure 2

Polarisation curves of steel in 1 M HCl containing various concentrations of P1.

Export to PPT

It is clear from the results that the addition of inhibitor caused a decrease in the current density. The values of the corrosion current (I_corr) of steel in the inhibited solution were smaller than those for the inhibitor free solution. Cathodic current potential curves gave rise to parallel Tafel lines indicating that the hydrogen evolution is activation controlled and the reduction mechanism is not affected by the presence of inhibitors. The addition of inhibitors did not change the values of corrosion potential (E_corr) when the concentration increases. These results demonstrated that the hydrogen evolution reaction was inhibited and that the inhibition efficiency increased with inhibitor concentration.

In the anodic range, the polarisation curves of steel in 1 M HCl without and with P1 show an increase of overvoltage near the corrosion potential. For an overvoltage higher than 240 mV SCE, the presence of inhibitor P1 does not change the current versus potential characteristics (Fig. 2). This fact means that the inhibition mode of P1 depends on electrode potential and acts essentially as a cathodic inhibitor. The same results have been reported by other authors (Mengoli et al., 1991). This potential can be defined as the desorption potential. At potential higher than 240 mV SCE, the significant steel dissolution leads to desorption of the inhibiting film. In this case, the desorption rate of P1 is raised more that its adsorption.

The inhibiting properties of the tested inhibitor have also been evaluated by the determination of the polarisation resistance. The inhibition efficiency ( $E_{R_{\text{p}}}$ ) was defined as follow:

The corresponding polarisation resistance (R_P) values of steel in 1 M HCl in the absence of different concentrations of the inhibitor are given in Table 2.

3.3 Electrochemical impedance spectroscopy (EIS)

The corrosion behaviour of steel in 1 M hydrochloric acidic solution, in the absence and presence of P1, is also investigated by the EIS at 308 K after 30 min of immersion. The charge-transfer resistance (R_t) values are calculated from the difference in impedance at lower and higher frequencies, as suggested by Tsuru et al. (1978). The double-layer capacitance (C_dl) and the frequency at which the imaginary component of the impedance is maximal (−Z_max) are found as represented in the equation:

Impedance diagrams are obtained for frequency range 100 kHz–10 mHz at the open circuit potential for steel in 1 M HCl in the presence and absence of inhibitor. Nyquist plots for steel in 1 M HCl at 3 g/L of P1–P3 is presented in Fig. 3. Table 3 gives values of charge-transfer resistance, R_t double-layer capacitance, C_dl, and f_max derived from Nyquist plots and inhibition efficiency, the inhibition efficiency got from the charge-transfer resistance is calculated by the following relation:

Close

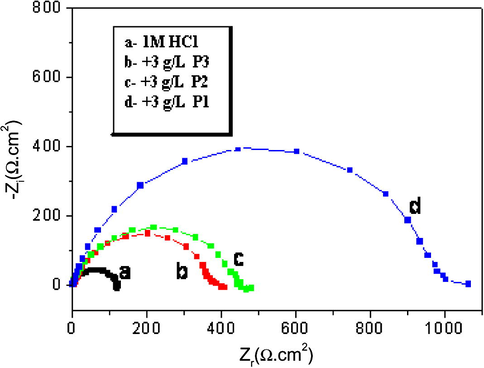

Figure 3

Nyquist plots of steel in 1 M HCl containing various compounds at 3 g/L.

Export to PPT

R_t and ${\text{R}}_{\text{t}}^{\prime }$ are the charge-transfer resistance values without and with inhibitor, respectively.

Generally, Fig. 3 showed that the impedance spectra exhibit one single depressed semicircle, and the diameters of semicircle increases with the inhibitors mainly with P1. From the results of Table 3 and Fig. 4, it is clear that the compound P1 is the best inhibitor.

Close

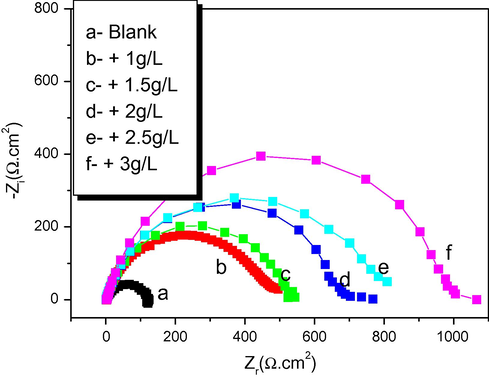

Figure 4

Nyquist plots of steel in 1 M HCl at various concentrations of P1.

Export to PPT

In order to better understand the inhibition mechanism of P1, a detailed study on this compound was carried out. The impedance parameters are mentioned in Table 3.

In fact, the presence of both inhibitors enhances the value of R_t in acidic solution. Values of double-layer capacitance are also brought down to the maximum extent in the presence of inhibitor and the decrease in the values of C_dl follows the order similar to that obtained for I_corr in this study. The decrease in C_dl is due to the adsorption of this compound onto the metal surface leading to the formation of film from acidic solution (Bentiss et al., 1999).

As we notice, the impedance diagrams (Fig. 4) show perfect semi-circles whose size increases with the concentration of the inhibitor indicating a charge-transfer process mainly controlling the corrosion of steel. Similar diagrams were described in the literature for the electrode of iron and steel with and without inhibitor 1 M HCl (Elachouri et al., 2001; Bentiss et al., 1999). From the impedance data, the charge-transfer resistance (R_t) increases with the inhibitor concentration (Table 4). Also, the double-layer capacitance (C_dl) decreases with increase in the concentration of the inhibitor.

3.4 Effect of temperature

The corrosion rate of steel with temperature was studied in molar HCl both in the absence and presence of inhibitor at a maximal concentration (3 g/L) in the temperature range 313–343 K using weight loss measurements, the corresponding results are summarised in Table 5. The corrosion rate is more increased with the rise of temperature for uninhibited acid solution. The presence of inhibitor leads to a decrease in the corrosion rate. The inhibitory action of inhibitor is slightly increased at elevated temperature leading to the increase of E%. The apparent activation energy is easily determined by the following relations:

Table 5 Effect of temperature (313–343 K) on the corrosion inhibition of steel 1 M HCl by 2-allyl-p-mentha-6,8-dien-2-ols (P1–P3) at 1 h.

Compounds	T (°C)	W (mg/cm2h)	W0 (mg/cm2h)	E (%)
P1	313	0.71386	3.4780	79.47
	323	1.0312	9.41863	89.04
	333	1.0965	12.6776	91.35
	343	2.0277	19.369	89.5
P2	313	1.0367	3.4780	70.19
	323	2.324	9.41863	75.3
	333	2.5138	12.6776	80.17
	343	6.4713	19.369	66.58
P3	313	1.2503	3.4780	64.04
	323	2.9630	9.41863	68.54
	333	3.5458	12.6776	72.03
	343	7.1960	19.369	62.84

W′ and W° are the corrosion rates of steel with and without inhibitor, respectively. $E_{\text{a}}^{\prime }$ and E_a are the apparent activation energies in the presence and absence of inhibitor, respectively.

Straight lines of Arrhenius slopes are obtained. The evaluation of activation energies is deduced from the corresponding slopes (Fig. 5). Values obtained are 50.90, 18.52, 38.50 and 45.27 kJ/mol for free acid and in added with P1, P2 and P3, respectively. It is obviously seen that the activation energy strongly decreases in the presence of inhibitors. Some authors (Donahue et al., 1965; Banejee et al., 1992), attributed this result to that the inhibitor species are physically adsorbed onto the metal surface.

Close

Figure 5

Arrhenius plots for steel in 1 M HCl in the absence and presence of 5, 6 and 7.

Export to PPT

3.5 Adsorption isotherm

The values of surface coverage θ for different concentrations of the inhibition in acidic media of different compounds were evaluated from weight loss using the equation (Landolt et al., 1993):

Close

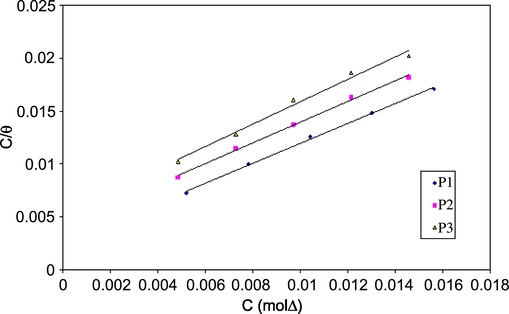

Figure 6

Langmuir isotherm adsorption model of inhibitors on the surface of steel in 1 M HCl.

Export to PPT

The $\mathrm{\Delta }{G}_{\text{ads}}^{\circ }$ were estimated from the equilibrium constant b deduced from the intercept of linear plots: $\mathrm{\Delta }{G}_{\text{ads}}^{°}(\mathbf{P}\mathbf{1})=-25.0\text{kJ}/\text{mol}$ , $\mathrm{\Delta }{G}_{\text{ads}}^{°}(\mathbf{P}\mathbf{2})=-23.7\text{kJ}/\text{mol,}\mathrm{\Delta }{G}_{\text{ads}}^{°}(\mathbf{P}\mathbf{3})=-23.1\text{kJ}/\text{mol}$ .

Analysis of results shows that the inhibitor P1, which gives maximum efficiency exhibits more negative of $\mathrm{\Delta }{G}_{\text{ads}}^{°}$ indicating that it is strongly adsorbed on the metal surface. In general, the negative values of $\mathrm{\Delta }{G}_{\text{ads}}^{°}$ indicate the spontaneous adsorption of inhibitors on the steel surface (Talati et al., 1983). A value of −40 kJ/mol for $\mathrm{\Delta }{G}_{\text{ads}}^{\circ }$ is usually adopted as a threshold value between chemisorption and physisorption (Donahue et al., 1965) then, this value indicates that inhibitor interacts on the steel surface by electrostatic effect.
