Enhanced antibacterial activity of chitosan, guar gum and polyvinyl alcohol blend matrix loaded with amoxicillin and doxycycline hyclate drugs

2.1 Chemical and reagents

The reagents and chemicals used in this study were of analytical grade. CS (MW 1526.5 g/mol i.e., 50,000–190,000 Da) was purchased from Sigma-Aldrich Germany and food grade GG (MW 535.15 g/mol i.e., 200,000 to 300,000 Da) from India by Dabur Limited. The drugs amoxicillin and doxycycline hyclate were provided by DON valley pharmaceuticals and NOVA med pharmaceuticals respectively.

2.2 Fabrication of membranes and drug loading

Various compositions of CS/GG/PVA were prepared in order to obtain the optimum formulation for the blended membranes. Amongst all B#2 was considered the best due to its swelling characteristics and porosity. Amoxicillin and doxycycline hyclate drugs were loaded into (B#2) membranes having composition of 60% CS (0.6 g), 20% GG (0.2 g) and 20% PVA (0.2 g). In 2% acetic acid solution CS (60%) was dissolved at 60 ℃ with continuous stirring. In 20 ml distilled water, 20% PVA was dissolved with constant stirring and heating at 90 ℃. After that this prepared solution of PVA was poured into CS solution and blended again for an hour at 60 ℃ with stirring. In 50 ml distilled water, 20% GG was dissolved and solution of GG was prepared in which later on drug was added via stirring at 40 ℃. This solution of GG having drug was added to solution of CS-PVA solution and again blended for an hour at 90–100 ℃ with constant stirring. With same procedure, membranes having different amounts of drugs were prepared. Composition of polymers and amounts of drugs were given in Table 1.

2.3 Characterization

FTIR investigation of synthesized films done at Happ-Genzel device detector type DTGS with resolution 16 cm⁻¹, background scans are 96 and wavenumber at 4000–650 cm⁻¹. XRD was carried out on X-ray diffraction device with sort D8, Bruker, Germany with series commencing 0 to 70 2Θ. Scanning electron microscope at 10 kx enlargement by means of Evo LS 10, Zeiss, Germany was employed for morphological analysis. Swelling behavior for films was assessed after particular extent of time. Mass of dry membrane piece along with empty petri dish was calculated. Then the membrane was soaked in distilled water for 10 min and after that H₂O was eliminated and the membrane was evaluated another time. Similar practice was repeatedly done, in support of every fabricated film with the same time duration.

2.4 Anti-bacterial activity and cytotoxicity

Anti-bacterial activity (Abbas et al., 2019) and cytotoxicity (Abbas et al., 2018) of membranes was done using disc diffusion method and hemolytic assay respectively via in vitro investigations which showed a pharmacological action against a range of bacteria. Triton-100X was employed as positive control along with phosphate buffer saline was exploited as negative control.

3.1 FTIR analysis

Fourier transform infrared spectroscopy provides the functional group identification for the materials. Fig. 1 shows the IR spectra of blended membranes of GG, CS and PVA. IR spectra of amoxicillin demonstrated a peak due to O-H and N-H stretching (str.) vibrations at around 3470 cm⁻¹ along with C = O stretching of β-lactamic, characteristic bands at 1769 cm⁻¹, C = O stretching of amide at 1688 cm⁻¹ and due to asymmetric stretching of carboxylate at 1587 cm⁻¹. Adtionally, because of C-O bending vibration other peaks were credited at 1008 cm⁻¹ (Songsurang et al., 2011). The IR spectrum of doxycycline shows a broad band between 3000 and 3400 cm⁻¹ of O-H str. and N-H str. at 3166 cm⁻¹, C-H bend at 1450 cm⁻¹, a strong signal at 1666 cm-1 of C = O str, and C-O-H bend at 1390 cm⁻¹ (Junejo and Safdar, 2019). FTIR spectra of B#2 showed distinctive broad band of O-H str. at 3200–3400 cm⁻¹, a precise peak of N-H bending at 1539 cm⁻¹, a characteristic peak due to C-O-H bending at 1407 cm⁻¹, because of C-O str. a strong absortion take placed at 1000–1020 cm⁻¹ and due to C-H bending of alkynes a sharp peak observed at 620 cm⁻¹. whereas in K10 and K25 there is variation of values which is correlated with incorporation of amoxicillin drug into the blended membranes of CS, GG along with PVA. The IR spectra of K10 an K25 showed distinctive absorption of O-H str. at 3272 cm^-1a broad band, C-H str. 2922 cm⁻¹, C = C ring str. 1632–1640 cm⁻¹, C-O-H bending at 1407 cm⁻¹, ether sharp absorption take placed at C-O str. at 1021 cm⁻¹ and because of C-H bending of alkynes a sharp peak observed at 619 cm⁻¹. in K25. The spectrums of S10 and S25 show the shifting of peaks that indicated the development of blended membrane. The spectrums showed characteristics absorption; O-H str. at 3200–3400 cm⁻¹ broad peak, C-H str. at 2922 cm⁻¹, -C≡C- str. of asymmetrical alkynes at 2117 cm⁻¹, aromatic C = C str. at 1632–1650 cm⁻¹, C-O-H ben. at 1407 cm⁻¹, ether strong absorption occurs at 1021 cm⁻¹. Table 2 shows the values of absorption peaks along with wavenumber of B#2, K10, S10, K25 and S25 in IR spectra. FTIR results has revealed the successful crosslinking between the constituents materials.

Close

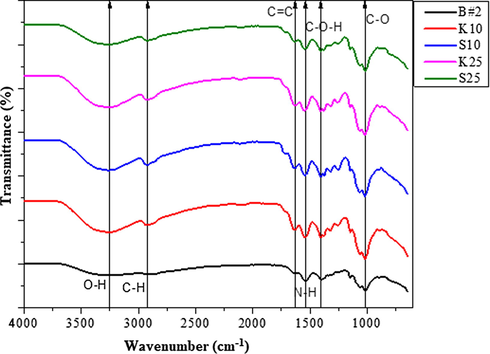

Fig. 1

IR spectra of membranes (B#2, K10, S10, K25 and S25) exhibiting the presence of different functional groups.

Export to PPT

3.2 XRD analysis

For the examination of crystalline or amorphous configuration of chitosan and poly(vinyl) alcohol substances membranes X-ray diffraction study was exploited, as such characteristics are proclaimed to influence retention of water as well as degradability characteristics of polymers. Chemical constitution details and crystalline segments were recognized through the crystal construction. (Manikandan et al., 2017; Maruthamani et al., 2017; Prabaharan and Gong, 2008). The crystalline structure indicates the crystalline phase and chemical composition information. X-ray diffraction study revealed (Fig. 2) that a prominent peak in B#2 and K10 was observed at 11.02˚ and was considered to be as a peak of crystallinity, and was absent in among all other loaded membranes (S10, K25 and S25) owing to minor shifting in peak of 2θ due to a new bond formation between the chitosan and PVA functional groups. This indicates that the drugs have minute effect on the crystalline peak. Successful bonding among CS, PVA and GG was confirmed by XRD (at 22.6˚), which is in accordance with previous reports (​Lou et al., 2014).

Close

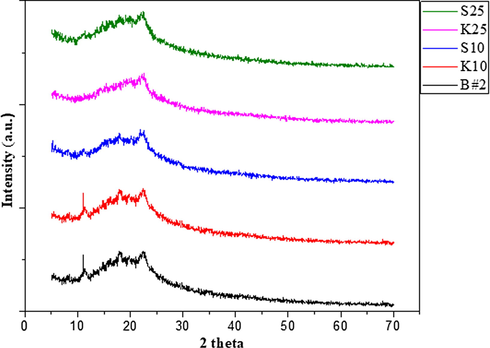

Fig. 2

XRD analysis of fabricated membranes samples.

Export to PPT

3.3 SEM analysis

To examine the morphological features of the fabricated blended membranes, scanning electron microscopy was utilized. The smooth surface of synthesized membranes revealed the excellent polymer blending which was confirmed by SEM images (Fig. 3). Some of the samples show rough surface due to porous structure. The magnification of each SEM image was 10 kx which showed the membranes porosity. In swelling characteristics, porosity of the membranes was a significant feature (Islam and Yasin, 2012). The porosity permits the more rapidly swelling plus excellent discharge of drug, hence showing that the nature of prepared membranes is hydrophilic (Boukhouya et al., 2018; Gong et al., 2012).

Close

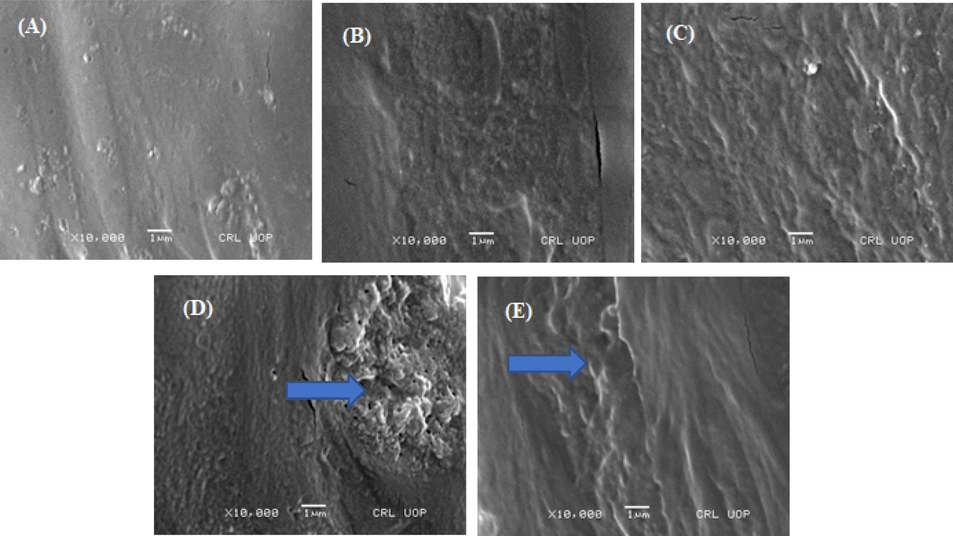

Fig. 3

SEM images of synthesized membranes: (A) B#2 Sample, (B) K10 Sample, (C) S10, (D) K25 and (E) S25 samples at 10 kx magnifications.

Export to PPT

3.4 Swelling characteristics

Swelling properties of natural materials relies on the nature of medium and swelling is caused by solvent diffusion into material structure from extracellular medium. Swelling behaviors of prepared membranes were tested in water and buffer media. The pH of the swelling medium was 5.4–5.6 in distilled water, while the matrix’s pH turned 4–4.5 in the buffer solution of 7.4 pH. The sample B#2 with low concentrations of GG and large amount of CS showed good swelling properties among other membranes (Fig. 4). The swelling pattern has indicated the successful crosslinking between CS/GG/PVA. It was concluded that membranes with less amounts of GG and higher amount of CS become porous and absorb more solvent, as a result these membranes expressed good swelling. The swelling can be calculated by the equation (Yasin et al., 2008);

Close

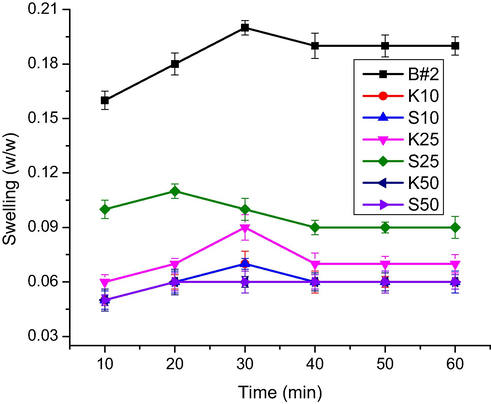

Fig. 4

Graphical presentation of swelling pattern of fabricated membranes.

Export to PPT

The swelling at equilibrium can be studied by the formula; (Sullad et al., 2010)

W_s and W_d are the weights of swelled and dry membranes in grams respectively. B#2 due to its swelling characteristics was preferred for drug loading. Breakdown of synthesized loaded membranes was less in the buffer solution of pH 7.4, than acidic medium signifying the good disintegration in the acidic medium. Hence, we can conclude that the polymeric material targets the stomach for the controlled release of drug in acidic environment, thereby polymer disintegrate itself. Results also discovered that sample K25 and S25 showed best swelling amongst the loaded membranes. These results indicated that 25 mg was the ideal amount of drug that was encumbered in 1 g polymer blended membrane.

3.5 Antimicrobial activity

For the cure of a range of contagious diseases such as swellings and abrasions, there is affluent practice in the exploit of therapeutic flora in the various regions of the globe. Considerable latest attention has been paid to extricate and bio-active substances secluded from species of plant utilized in drug due to aftereffects along with confrontation that pathogenic microbes formulate versus antibiotics. Antimicrobials foundation on plants symbolizes an enormous unexploited foundation for drugs along with additional searching of plant antimicrobials requirements to happen. Antimicrobial’s properties of plant source contain vast healing aptitude. They are efficient in the cure of contagious diseases whereas at the same time extenuating a lot of aftereffects which are frequently linked by man-made antimicrobials. The standard was utilized at a concentration of 10 mg/mL. Table 3 indicates the activities of the loaded polymeric membranes against different strains of bacteria. The results has revealed the antibacterial properties of the loaded membranes.

3.6 Biocampatibility

For erythrocyte cellular membrane firmness, fabricated sample treated by means of secluded red blood cells through young individual, investigated. It was in vitro procedure plus very easy for primary inspection of natural and inorganic substances in laboratories, ahead of their initial animal investigation. From findings (Table 4) it was assumed that CS, PVA along with GG with altered amounts of antibiotic (amoxicillin and doxycycline hyclate) did not exhibits red blood cells lysis action. The values of cell lysis have been mentioned in Table 4. As CS and GG along with PVA did not disturb the membrane of red blood cells, it was stated that most of the biologically active substances were tannins liable for cytotoxicity. Moreover, in organic solvent they show solubility. The phytochemical scrutiny of therapeutic plant under inquiry confirmed a substantial concentration of tannins and supplementary phytoconstituent. The outcomes attained in current exploration are found in agreement with preceding investigations. Uddin et al discovered that cytotoxic capability of extricates was of immense importance for their customary applications in the healing of diseases except cancer (Uddin et al., 2011).

Previous studies report on the significance of plant-based membranes and their applications for various purposes. Reddy et al. (Reddy et al., 2006) described the formation of blend microspheres of CS and GG. Cefadroxil was cross-linked with glutaraldehyde and produced semi-interpenetrating polymer network (IPN). The SEM showed non-uniform microspheres and drug was delivered in controlled manner at pH 7.4 up to 10 h. Similarly, Sinha and Kumria (Sinha and Kumria, 2001) stated the use of natural polysaccharides for the development of solid dosage forms for drug delivery to the colon. The reason for using polysaccharide-based system for colon is linked with the presence of variety of bacteria in colon which secrete many enzymes. Some of the approaches for colon-specific delivery system include core coating of the drug, embedding in biodegradable material and formation of conjugate. Variety of polysaccharides have already been discussed and utilized as colon-specific drug carrier, i.e., CS chondroitin sulphate, pectin, cyclodextrin, GG, inulin and amylose.

The blend of pAAm-g-GG and CS was prepared to form IPN hydrogel microspheres using GA as a linking agent by emulsion method. The microspheres used for ciprofloxacin (CFX) release and CFX was released in 12 h. The structure, grafting reaction, stability in IPN hydrogels and molecular dispersion was finalized by the SEM, FTIR, DSC and XRD techniques and drug release kinetics was performed by swelling study pH 7.4 (Kajjari et al., 2011). Similarly, the formulation of hydrogel based on CS and GG was prepared and employed for controlled release of Paracetamol drug. This drug may cause problems in body organs like gastric and may also disturb the metabolism of liver. Hence, for the delivery of this drug, it was combined with alginate beads for safe deliver, which was characterized by swelling and antimicrobial potential. Also, the cytotoxicity and biocompatibility of the developed system using HeLa cell line. The drug released by combining with alginate beads showed promising anti-protease and anti-inflammatory potential. Results revealed that the beads thus prepared was safe to deliver drug since properties of the system did not change. In view of promising properties as well as safe and controlled release of drug, it was suggested for the delivery of Paracetamol in controlled manner (Sami et al., 2018).

Also, CS-ALG based hydrogels was prepared and utilized for targeted drug delivery and protection of lysosomal membranes for the eliminating of food-borne microbes. The CS-ALG based hydrogels was of spherical shape and bears negative charge. The activity of CS-ALG hydrogels was promising and 100% microbes were eliminated using ALG/CS that was loaded with lysozyme. Results depict that the CS-ALG hydrogels are highly efficient against microbes like E. coli and S. aureus which can be employed for the control of food borne microbes for the safety of food (Wu et al., 2018). In another study, a lipid-based hydrogel was prepared by melt-emulsification followed by ultra-sonication technique and same was used for release of quercetin (QN) in a control manner. Additionally, CMCS and poloxamer 407 was prepared using genipin linker, which showed promising response for drug deliver and it was revealed that the hydrogel released the quercetin up to 80.52% within 72 h. which suggest the use of CMCS based hydrogels for the controlled release of quercetin for practical applications (Yu et al., 2018) . Also, GG based materials showed promising properties for the controlled release of different drugs. One of the drawbacks for GG based hydrogel is the swelling property in water, preclude them for the deliver of drug in a control manner. However, this issue can be solved by modifying the GG based hydrogels by grafting and derivatization for practical. At current, different systems based on GG have been formulated in the form of matrix tablets, coatings and nano/microparticles and these formulations showed excellent performance for the delivery and release of different types of pharmaceutical agents (Prabaharan, 2011).

A GGH modified with OSA and oleic acid having hydrophobic property is fabricated, which was used for the encapsulation of mint oil and efficiency was contrasted with GA and GA–OSA based systems. In this context, the GA–OSA revealed promising retaining of the oil versus GA based system. In view of promising oil retention efficiency of GGH–OSA, it was suggested to use this system to substitute the GA for oil encapsulation (Sarkar et al., 2013) . Similarly, CMGG based system was fabricated, which was combined with curcumin and employed as a bioactive material for biological application, which was characterized by advanced techniques. A 90–95% (curcumin) was released in 96 h at pH 7.4 using CMGG-g-gelatin. The CMGG-g-gelatin system was biocompatible with excellent antimicrobial property. Based on the efficiency, it was revealed that the combination of curcumin and CMGG-g-gelatin enhanced the properties of the system and resultantly, the excellent performance was offered by the system as an active biological material (Manna et al., 2015).

Moreover, GG due to its highest viscosity in aqueous solution applied significantly is a promising agent in medical field. In this context, rifampicin drug, which is poorly soluble in water was delivered using GG based micelles. The GG based micelles revealed promising antibacterial property against selected microbes. The biocompatibility was also studied and results revealed that the GG based micelles are safe to use for drug delivery and release in a controlled manner. In drug delivery application, it was observed that the GG based micelles enhanced the drug activity, which was tested for THP-1 cells. A time dependent apoptosis was recorded manner in cell apoptosis study [28]. In another study (Bajpai et al., 2017) reported the preparation of doxycycline hydrogels ladened with GA/PSA for controlled and sustained drug delivery through oral route. The hydrogels were characterized XRD and FTIR. It was further featured by zeta potential and SEM. The release of the drug doxycycline was monitored at 37 °C and pH 7.4 to check the impact under physiological conditions. The drug was also tested against bacterial strains for their antibacterial action e.g. E. coli.On the same line, the exudate GG was modified via graft copolymerization reaction under the influence of microwaves. The 2-hydroxyl ethyl methacrylate (PHEMA) was polymerized to have a graft copolymerization. The ceric ammonium nitrate was applied as a free radical initiator. The different characterization techniques were used to validate the synthesis mechanism including ¹³ C nuclear magnetic resonance, FTIR, CHNSO and thermal gravimetric analysis. These drugs were useful as pH sensitive drug distribution carrier with environment of gastrointestinal tract (GI). The swelling properties of GG-g-P(HEMA) tablets was recorded under physiological stress to be useful for GI (Mahto and Mishra, 2019). Also, Gjoseva et al. (Gjoseva et al., 2018) demonstrated the development of CS microparticulated mucoadhesive DDS with enhanced healing response. A doxycycline hyclate (DOXY) was prepared and ladened with low and medium mol. Mass of CS/TPP MPs. The coacervation/solvent displacement technique was employed for coating with ethyl cellulose. Now we have both coated and uncoated CS/TPP MPs and they did not lay any impact on epithelial cell line and furthermore showed high mucoadhesive potential. The impact generated by MPs was slow and gradual due to the formulation and concentration of the material. Moreover, the it was claimed that CS-based MPs leads to synergy in anti-inflammatory activity. Hence, in the light of present investigation, it is concluded that the material based on chitosan, guar gum is efficient biomaterial for biological applications.
