Fluorescence spectrophotometry for COVID-19 determination in clinical swab samples
⁎Corresponding author. fredy@chem.its.ac.id (Fredy Kurniawan) fredykurniawan5@gmail.com (Fredy Kurniawan)
-
Received: ,
Accepted: ,
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.
Peer review under responsibility of King Saud University.
Abstract
Considering the limitations of the assays currently available for the detection of severe acute respiratory syndrome coronavirus 2 (SARS-CoV-2) and its emerging variants, a simple and rapid method using fluorescence spectrophotometry was developed to detect coronavirus disease 2019 (COVID-19). Forty clinical swab samples were collected from the nasopharyngeal and oropharyngeal cavities of COVID-19-positive and -negative. Each sample was divided into two parts. The first part of the samples was analyzed using reverse transcription-polymerase chain reaction (RT-qPCR) as the control method to identify COVID-19-positive and -negative samples. The second part of the samples was analyzed using fluorescence spectrophotometry. Fluorescence measurements were performed at excitation and emission wavelengths ranging from 200 to 800 nm. Twenty COVID-19-positive samples and twenty COVID-19-negative samples were detected based on RT-qPCR results. The fluorescence spectrum data indicated that the COVID-19-positive and -negative samples had significantly different characteristics. All positive samples could be distinguished from negative samples by fluorescence spectrophotometry. Principal component analysis showed that COVID-19-positive samples were clustered separately from COVID-19-negative samples. The specificity and accuracy of this experiment reached 100%. Limit of detection (LOD) obtained 42.20 copies/ml (Ct value of 33.65 cycles) for E gene and 63.60 copies/ml (Ct value of 31.36 cycles) for ORF1ab gene. This identification process only required 4 min. Thus, this technique offers an efficient and accurate method to identify an individual with active SARS-CoV-2 infection and can be easily adapted for the early investigation of COVID-19, in general.
Keywords
COVID-19
SARS-CoV-2
Fast analysis
Fluorescence spectroscopy
Excitation
Emission
1 Introduction
The ongoing COVID-19 global pandemic has caused nations health, economic, and social crises. COVID-19 is uncommon pneumonia caused by SARS-CoV-2 (Ji et al., 2020; Vale et al., 2021), a virus belonging to the family Coronaviridae. SARS-CoV-2 is more contagious than other coronavirus such as SARS-CoV and the Middle East respiratory syndrome coronavirus (MERS-CoV) (Vale et al., 2021; Zhu et al., 2020). As of 20 May 2022, more than 522 million confirmed COVID-19 globally (WHO, 2022). Early data have indicated that approximately 20% of COVID-19 patients require hospitalization, including 5% admitted to the intensive care unit (Koyama et al., 2020). The fatality rate for COVID-19 in the world is 1.2% (data per 20 May 2022) (WHO, 2022), which is lower than SARS (9.6%) and MERS (34.3%) (Koyama et al., 2020). COVID-19 mortality is higher in people with comorbidities such as chronic lung disease, diabetes, heart disease, hypertension, and obesity (Nikolic et al., 2021). Controlling COVID-19 presents a major challenge because the disease often presents symptoms similar to colds and flu, thus hindering diagnosis (Song et al., 2021; Tymm et al., 2020; Woo et al., 2020).
Moreover, COVID-19 causes asymptomatic infections characterized by the positive detection of the SARS-CoV-2 nucleic acid in patient samples and the lack of typical clinical symptoms and apparent abnormalities in lung computed tomography (CT) (Mizumoto et al., 2020). Asymptomatic individuals can transmit the virus to others, which poses a great danger because no specific signs or symptoms are observed (Daniel et al., 2021; McRae et al., 2020). Early November 2021, scientists identified a new variant of the SARS-CoV-2 in Botswana (known as Omicron) and has since turned up in a traveler arriving in Hong Kong from South Africa (Callaway, 2021). Identifying new strains is not easy, and proper methods are essential to prevent the spread of COVID-19 (Afzal, 2020; Ji et al., 2020; Song et al., 2021).
RT-qPCR is the most common method for COVID-19 diagnosis. This method has good accuracy without any interference from other viruses (Babady et al., 2021). However, RT-qPCR is relatively time-consuming (approximately 2 h), and the results are obtained after 1 to 3 days (Ji et al., 2020). This technology also needs an experienced laboratory technician and requires repeated measurements for a valid result (Cui and Zhou, 2020; Song et al., 2021). Another disadvantage of the RT-qPCR method is a high false-negative rate (46.3%) (Pan et al., 2020). Individuals with false-negative results may contribute significantly to the virus spread, thus hampering effective infection control. RT-qPCR can detect SARS-CoV-2 in both symptomatic and asymptomatic patients. However, new cases related to SARS-CoV-2 gene mutations are reported to be undetected using at least one of the commercialized primers (Afzal, 2020). As gene mutations alter viral RNA sequences, new targets need to be detected. Effective assays and reagents pose a challenge for detecting new targets using RT-qPCR. Developing appropriate assays and reagents requires advanced research, which may be time-consuming. Other standard methods, i.e., chest computed tomography (chest CT) and lateral flow immunoassays, are used for symptomatic patients (Cavalera et al., 2021; Wang et al., 2020). Several days are needed to confirm that a patient is infected with SARS-CoV-2. Therefore, various methods have been introduced as alternatives to replace the standard techniques. One of these methods is fluorescence spectroscopy.
Fluorescence spectroscopy has good selectivity and sensitivity and is a rapid, cost-effective, simple, and non-destructive method (Diao et al., 2020). It is a perfect candidate for the detection of COVID-19 in clinical samples (Barauna et al., 2020; Khan and Rehman, 2020). The samples fluoresce under a light source in a visible light range and produce a response in the form of fluorescence as excitation and emission peaks (Fardiyah et al., 2020; Juniawan et al., 2020). The physicochemical properties of viruses can serve as unique markers that could be detected via fluorescence emission. Although gene mutations may change the physicochemical properties of viruses (Bakhshandeh et al., 2021), these changes can still be detected by fluorescence spectrophotometry. It is can be detected because the presence of the virus in infected individuals remains specific enough to distinguish them from uninfected individuals. Thus, fluorescence analysis of the intact virus could help identify the coronavirus family. Various samples can be tested without requiring a complicated preparation process.
Some researchers have used fluorescence spectrophotometry to diagnose coronaviruses but with other techniques. Diao et al. developed an immunochromatographic fluorescence assay for detecting the nucleocapsid gene (N gene) of SARS-CoV-2 (Diao et al., 2020). This assay could detect COVID-19 in the urine of 73.6% of diagnosed patients based on the presence of the N gene. This technique has a working principle similar to that of a pregnancy test. However, this assay involves some complicated preparation and reagents to enable fluorescence.
Woo et al. reported a sensitive fluorescence detection assay for SARS-CoV-2 RNA in clinical samples using one-pot isothermal ligation and transcription (Woo et al., 2020). They used the principle of isothermal amplification for RNA. From their work on 40 nasopharyngeal SARS-CoV-2 samples, the assay reached positive and negative predictive values of 95% and 100%, respectively. However, this assay still needs to extract SARS-CoV-2 RNA, and its purification is often a prerequisite for diagnostic assays based on isothermal RNA amplification methods. It includes four main components, namely probes, SplintR ligase, T7 RNA polymerase, and a fluorogenic dye. The fluorogenic dye is used to bind the RNA aptamer. Their binding stabilizes the planar structure of the fluorogenic dye and facilitates fluorescence emission as an output. This assay enables sensitive RNA detection without pre-amplification steps such as those required in RT-qPCR.
In the present study, fluorescence spectrophotometry was used to investigate nasopharyngeal and oropharyngeal swab samples from individuals with or without COVID-19. This method is simpler, cheaper, and faster than the standard method (RT-qPCR). The performance of the fluorescence spectrophotometry was examined based on the excitation and emission peak wavelengths of the virus protein to differentiate between individuals with and without COVID-19. The method in this work showed a good result and had the potency to be used in routine analysis.
2 Materials and methods
2.1 Materials
RADI transport medium (RTM) was obtained from KH Medical (Gyeonggi-do, Republic of Korea). RTM is used to collect and transport clinical specimens containing viruses from the collection site to the testing laboratory. Sterile distilled water was obtained from the Institute of Tropical Disease, Airlangga University. The QIAamp Viral RNA mini kit was obtained from QIAGEN, Cat. No. 52,904 (Hilden, Germany). Sulfuric acid (H2SO4, 98%) and hydrogen peroxide (H2O2, 30%) were purchased from Merck, Germany. Piranha solution (98% H2SO4: 30% H2O2 = 3:1) was used for glass apparatus cleaning. Technical ethanol (96%), used for cleaning and disinfecting purposes, was purchased from SAP Chemical, Indonesia.
2.2 Sample collection and preparation
The collecting sample procedure in this work has passed the ethical committee of Airlangga University Hospital with ethical clearance number 162/KEP/2021. Clinical swab samples were collected from hospitals throughout East Java, Indonesia, without particular criteria. All patients were treated as per the standard protocol for swab sampling. Sterile cotton swabs (KH Medical, Republic of Korea) were used to probe the patients' nasopharyngeal and oropharyngeal cavities and were immediately placed into a sterile tube containing RTM. The samples were stored below −20 °C and transported to the Institute of Tropical Disease, Airlangga University. In this work, 40 samples were selected randomly. Each sample was divided into two parts. The first part was tested using a standard method, RT-qPCR (ThermoFisher Scientific, ABI 7500), to validate individuals who were positive or negative for COVID-19. The negative and positive samples were coded as Nn and Pn, respectively, where n is the data number (1, 2, 3, etc.) generated from the RT-qPCR test.
The second part for fluorescence measurement was prepared by taking 1 mL of the sample and placing it into a fluorescence cuvette. The sample was then diluted with 2 mL sterile distilled water. Finally, the cuvette was sealed with parafilm for safety and subsequent measurement. All preparation steps were conducted in a Biosafety Level III laboratory with the relevant safety protocols for handling SARS-CoV-2.
2.3 Assay protocol for swab sample identification by RT-qPCR testing
2.3.1 Nucleic acid extraction
Viral nucleic acids were extracted from 200 µL of clinical samples using the QIAamp Viral RNA mini kit. Briefly, 5 µL of internal control A was added to each clinical sample as the internal control (IC) from the extraction process. The nucleic acid extraction solution was added to the reaction tube within 10 min. The extracted nucleic acid was transferred to a centrifuge tube and stored at −25 – −15 °C for long-term storage.
2.3.2 Reagent preparation and setting conditions for RT-qPCR analysis
2.3.2.1 Applied biosystems 7500 RT-qPCR instrument system
The PCR mixture was prepared according to Table SM1, and 21 µL was dispensed into each PCR tube. If IC A was added during the extraction process, the mixture was prepared without IC A, and 20 µL of the mixture was dispensed into each PCR tube. (0.5 µL of IC A was added to wells assigned as the positive control (PC) and negative control (NC)).
2.3.2.2 RT-qPCR amplification
The PC, NC, and nucleic acids extracted from clinical samples (10 µL) were added to the PCR mixture's respective tubes. The mixture was centrifuged at 3000 rpm for 60 s and then placed on the real-time fluorescence quantitative PCR instrument. The cycle conditions were then set on the PCR instrument for nucleic acid amplification (Table SM2).
2.4 Fluorescence analysis of swab samples

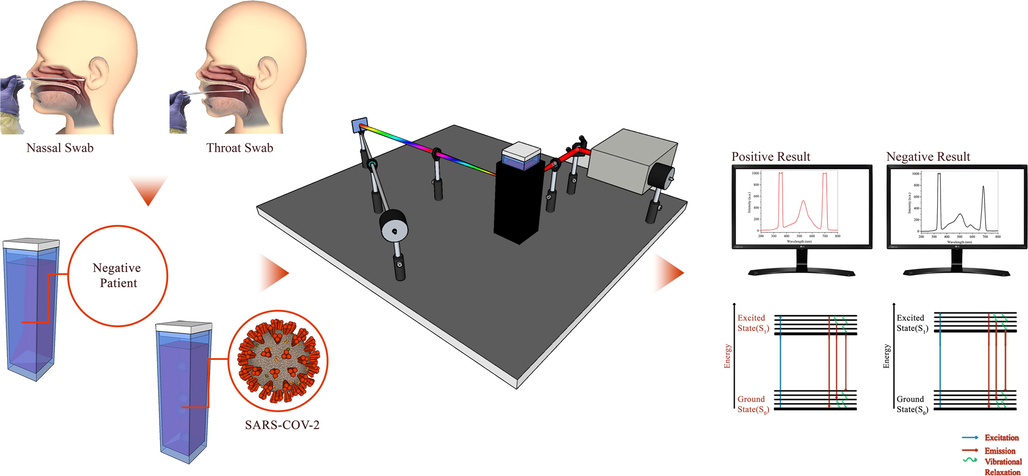

Fig. 1 shows the scheme of the fluorescence analysis process used in this work. The fluorescence analysis of all samples was performed using a PerkinElmer LS55 Fluorescence Spectrometer (PerkinElmer, USA) equipped with a standard photomultiplier detector and FL WinLab software. The initial step, i.e., pre-scan, was performed to determine the excitation and emission wavelength at the maximum intensity of the sample (Fardiyah et al., 2020; Juniawan et al., 2020). The pre-scan proceeded at excitation wavelengths of 200–800 nm, then continued at emission wavelengths of 200–900 nm. The pre-scan was conducted five times. The wavelength obtained at the maximum intensity was used for further measurement. The scan condition speed was set at 500 nm/min with excitation and emission monochromator slits of 10 nm. All samples were scanned five times. All data were statistically analyzed using one-way ANOVA and least significant difference (LSD) testing. Further data processing was performed through principal component analysis (PCA).
Schematic representation of the fluorescence analysis process for detecting COVID-19-negative and -positive samples.
This method's specificity and accuracy were calculated using equations (1) and (2). Specificity defines as the probability that a test result will be negative when the disease is not present. Whereas accuracy is the total coincidence rate.
2.5 The effect of Ct value in fluorescence analysis
Fluorescence spectrophotometry also was performed to analyze the COVID-19-positive samples with various Ct values. This work aims to know the Ct value effect in the fluorescence spectrum. Nine COVID-19-positive samples with high Ct values (22–33 cycles) were obtained using RT-qPCR identification. For fluorescence measurement, each sample was prepared as described in section 2.2. All samples were analyzed using fluorescence spectrophotometry with steps as explained in section 2.4. All data were analyzed using PCA.
3 Results and discussion
3.1 Identification of patients positive and negative for COVID-19
3.1.1 Identification using the standard method (RT-qPCR)
RT-qPCR testing was performed to validate the positive or negative patients for COVID-19. The results of the RT-qPCR assay are shown in Table 1, with the amplification plot shown in Fig. SM1-SM4. In total, 20 samples were negative, and 20 samples were positive for COVID-19.
No.
Ct value
Conclusion
Sample code for fluorescence analysis
E gene
Number of copies
ORF1ab
Number of copies
1.
N/A
N/A
N/A
N/A
Negative
N1
2.
N/A
N/A
N/A
N/A
Negative
N2
3.
N/A
N/A
N/A
N/A
Negative
N3
4.
N/A
N/A
N/A
N/A
Negative
N4
5.
17.34
1.14 × 106
15.07
1.29 × 106
Positive
P1
6.
15.56
3.34 × 106
14.31
3.04 × 106
Positive
P2
7.
17.73
8.96 × 106
16.77
0.67 × 106
Positive
P3
8.
16.24
2.22 × 106
15.06
1.92 × 106
Positive
P4
9.
17.09
1.87 × 106
13.84
2.32 × 106
Positive
P5
10.
17.74
0.55 × 106
15.58
0.44 × 106
Positive
P6
11.
13.90
4.21 × 106
12.19
2.49 × 106
Positive
P7
12.
19.33
0.24 × 106
16.79
0.24 × 106
Positive
P8
13.
17.08
0.78 × 106
15.05
0.58 × 106
Positive
P9
14.
16.93
0.54 × 106
15.62
0.41 × 106
Positive
P10
15.
16.72
0.60 × 106
15.18
0.51 × 106
Positive
P11
16.
19.94
0.11 × 106
19.06
0.07 × 106
Positive
P12
17.
12.61
5.45 × 106
11.23
3.78 × 106
Positive
P13
18.
18.22
0.27 × 106
16.31
0.29 × 106
Positive
P14
19.
13.44
3.48 × 106
11.89
2.70 × 106
Positive
P15
20.
18.76
0.20 × 106
17.27
0.18 × 106
Positive
P16
21.
18.91
0.10 × 106
17.27
0.08 × 106
Positive
P17
22.
11.89
2.10 × 106
9.88
1.72 × 106
Positive
P18
23.
12.59
1.55 × 106
10.95
1.10 × 106
Positive
P19
24.
8.56
79.49 × 106
8.37
24.00 × 106
Positive
P20
25.
N/A
N/A
N/A
N/A
Negative
N5
26.
N/A
N/A
N/A
N/A
Negative
N6
27.
N/A
N/A
N/A
N/A
Negative
N7
28.
N/A
N/A
N/A
N/A
Negative
N8
29.
N/A
N/A
N/A
N/A
Negative
N9
30.
N/A
N/A
N/A
N/A
Negative
N10
31.
N/A
N/A
N/A
N/A
Negative
N11
32.
N/A
N/A
N/A
N/A
Negative
N12
33.
N/A
N/A
N/A
N/A
Negative
N13
34.
N/A
N/A
N/A
N/A
Negative
N14
35.
N/A
N/A
N/A
N/A
Negative
N15
36.
N/A
N/A
N/A
N/A
Negative
N16
37.
N/A
N/A
N/A
N/A
Negative
N17
38.
N/A
N/A
N/A
N/A
Negative
N18
38.
N/A
N/A
N/A
N/A
Negative
N19
40.
N/A
N/A
N/A
N/A
Negative
N20
All positive samples had low Ct (Cycle threshold) values (≤20 cycles) for both the envelope protein gene (E gene) and replicase open reading frame 1ab (ORF1ab). The E gene and ORF1ab are biomarkers indicating the presence of SARS-CoV-2 (Al-Qahtani, 2020; Barauna et al., 2020). The results showed that the number of copies of the E gene and ORF1ab was large in the positive samples. A large number of copies indicates a high number of viruses in the sample (Babady et al., 2021). The results from RT-qPCR were then used to validate the fluorescence analysis.
3.1.2 Identification based on fluorescence spectra
In this study, SARS-CoV-2 was detected directly using a fluorescence spectrometer without complicated preparation and chemicals. The 20 positive samples from nasopharyngeal and oropharyngeal swabs could be distinguished from negative samples. This identification was based on the specific emission wavelength. The fluorescence spectra of SARS-CoV-2 are probably a result of the combination of the envelope, the spike (S) protein, E-protein, M−protein, and HE-Protein (Madurani et al., 2021). All these proteins are located on the outer part of the virus and play a critical role in virus detection.
Fluorescence measurement was performed for 20 negative and positive COVID-19 samples based on the RT-qPCR results. The excitation and emission wavelengths at the maximum intensity were obtained from the pre-scan step, and the results are summarized in Table SM3. The average peak excitation wavelength of the negative and positive samples was 342.71 ± 0.91 nm and 343.17 ± 8.41 nm, respectively. Simultaneously, the average peak emission wavelength was 349.57 ± 0.98 nm and 358.82 ± 9.06 nm for the negative and positive samples, respectively. These wavelengths were then used for scanning to determine the profile of fluorescence spectra for negative and positive samples.
The result of the scanning process for fluorescence measurement is shown in Fig. 2. The excitation spectrum (Fig. 2A) is not specific for distinguishing the positive sample from the negative sample. Fig. 2B shows the emission spectra of the negative and positive samples, which showed different small profiles. The sample showed unique fluorescence characteristics, indicated by the emission peak shift in the yellow and blue regions (Fig. 2B). The specific emission wavelength from the sample is listed in Table 2 (the complete data can be seen in Table SM4). Positive samples were observed at an average of 522.47 ± 11.78 nm and 692.18 ± 10.89 nm. Whereas the negative samples were noticed at an average of 508.37 ± 5.68 nm and 685.27 ± 0.44 nm. These emission wavelengths are relatively slight differences, so it is difficult to distinguish positive and negative samples directly from their fluorescence spectra. Therefore, statistical data processing is needed, i.e., the significance test and the multivariate analysis. The significance test was performed using ANOVA and LSD, while the multivariate analysis was analyzed using PCA.
Excitation (A) and emission (B) peaks of negative (black) and positive (red) samples. The specific emission wavelength region: the first (yellow area) and the second (blue area).
Sample group
Wavelengths (nm)
Average of the first emission peak
Average of the second emission peak
Negative
508.37 ± 5.68
685.27 ± 0.44
Positive
522.47 ± 11.78
692.18 ± 10.89
Statistical analysis of both the first and second emission wavelengths using ANOVA showed that the F-calculated value was higher than the F-critical value (Table SM5 and SM6). The null hypothesis is no significant difference between positive and negative wavelengths. Hence, the null hypothesis was rejected, indicating that the measurement data showed precision with a significant 95% confidence interval difference. The LSD test of both the first and second emission peak wavelengths showed a significant difference in the mean data between sample variations (Table SM7 and SM8).

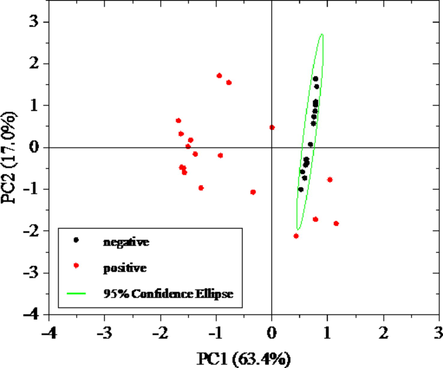

Further data processing was performed using PCA. PCA is an unsupervised technique that reduces the spectral data space to principal components (PCs), responsible for the most variance in the original dataset (Barauna et al., 2020). In contrast, the loading on the first two PCs was used to derive specific biomarkers indicative of the infected and non-infected categories. In this study, for classification models in PCA, the samples were designated from 20 negative and 20 positive samples for COVID-19 according to the RT-qPCR data. The PCA used the full spectrum of emissions from all samples. PCA calculations show significantly different coordinate regions for positive and negative samples on the graph. The results of PCA (Fig. 3) indicate that samples negative for COVID-19 are clustered in a specific area, as shown by the green ellipse. Conversely, the samples positive for COVID-19 are outside of the green ellipse. Negative samples have a narrower region than the positive samples. The specificity of this work was achieved 100%.
Principal component analysis of COVID-19 samples.
3.2 The effect of Ct value in fluorescence analysis
Variations in the Ct value of the COVID-19-positive sample were observed in its influence in fluorescence testing. In this study, nine positive samples with high Ct values have been identified by RT-qPCR, and the result is shown in Table SM9. For fluorescence analysis, the pre-scan data is shown in Table SM10. The excitation and emission wavelength from the pre-scan step were used in the scanning process to know the profile of fluorescence spectra in variations of Ct values. The result of the scanning process in fluorescence measurement is shown in Fig. SM5. The excitation and emission peaks show a similar pattern with the low Ct value (Fig. 2). The multivariate analysis by PCA also proved that the data distributed uniform (Fig. SM6). The lower Ct value means it has a higher viral load. The result means that a small amount of the virus can still be detected. In this work, the LOD obtained 42.20 copies/ml (Ct value of 33.65 cycles) for the E gene and 63.60 copies/ml (Ct value of 31.36 cycles) for ORF1ab.
3.3 Performance of fluorescence spectrophotometry for COVID-19 detection
Spectroscopy techniques have attracted much focus for their development as biomedical tools for early diagnosis to monitor human disease (Lukose et al., 2021). The principle underlying this method is based on vibrational spectroscopy, which relies on the molecular vibrations of the chemical structure of molecules (Barauna et al., 2020; Lukose et al., 2021; Madurani et al., 2021; Sivakumar et al., 2021). Infrared (Barauna et al., 2020; Mayerhöfer et al., 2021) and Raman (Desai S et al., 2020; Hernández-Arteaga et al., 2022) spectroscopies are reported to be capable of assisting in the diagnosis of infection caused by SARS-CoV-2. From intact viruses, biomolecules, such as DNA, RNA, proteins, and lipids, can produce unique spectral vibrations based on their structural heterogeneity.
Moreover, conventional fluorescence spectrophotometry has not been explored widely but seems promising for future technologies. According to our results, we propose that this technique can be applied to detecting other pathogens. First, it is a simple technique that requires no complicated preparation steps. Second, it is a rapid analysis that only takes 4 min to detect the infection (Table 3). Third, the accuracy (total coincidence rate) was calculated with equation (2), which reached 100% for this work. RT-qPCR has high accuracy (84–98%) compared to standard methods, but this method needs approximately two hours to obtain the result. The accuracy of other standard methods such as chest CT and lateral flow immunoassay is shown to be approximately 68% and 97%, respectively. The performance of alternative spectroscopy methods such as ATR-infrared, Raman spectroscopy, fluorescence immunochromatography, and sensitive fluorescence-based on one-pot isothermal RNA detection is not more accurate than that of the proposed method (Table 3).
Method
Accuracy
Analysis time
Specificity
Limit of detection
Ref.
RT-qPCR
84–98%
∼2 h
97–100%
1.20 copies/ml
Fukasawa et al., 2021
Chest CT
68%
several days
N/A
N/A
Fang et al., 2020
Lateral flow immunoassay
95–97%
2–5 min
95-100%
N/A
Cavalera et al., 2021
ATR-Infrared
90%
2–5 min
89%
1582 copies/ml
Barauna et al., 2020
Raman spectroscopy
91.6%
2–5 min
88.8%
N/A
Desai S et al., 2020
Fluorescence immunochromatography
73%
4 min
100%
N/A
Diao et al., 2020
Sensitive fluorescence-based on one-pot isothermal RNA detection
95%
30–50 min
N/A
aM
Woo et al., 2020
Fluorescence spectrophotometry
100%
4 min
100%
42.20 copies/ml for E gene and 63.60 copies/ml for ORF1ab
This work
This work shows an excellent result for 40 samples. All the positive samples can be distinguished from the negative samples. Expanding to more samples can help to check how accurate this method is. It allows further development and validation of the fluorescence spectrophotometry technique. The limitation of this study is only used to identify samples from COVID-19 patients, ignoring the possible congenital diseases. This method can be developed to test in various interferences samples. In addition to its sensitivity, application to other pathogens and specificity to each pathogen can be evaluated. Fluorescence spectrophotometry can be combined with several techniques to improve the accuracy of diagnosis. This technique can also be developed for system miniaturization. Furthermore, it can be connected to smart devices, such as smartphones, for portable testing. Portable technologies would facilitate its use in hospitals, clinics, airports, stations, and other high-traffic areas as well as at home.
4 Conclusions
Overall, our results demonstrate that fluorescence spectrophotometry is advantageous for SARS-CoV-2 detection compared to other detection methods. Clinical swab samples from the positive or negative patients can be identified directly based on their fluorescence spectral profile depending on the physicochemical characteristics of the viral protein in RTM. They have significantly different emission wavelengths. All positive samples could be clearly distinguished from negative samples using fluorescence spectrophotometry. This measurement only took 4 min. The detection limit of this work is 42.20 copies/ml for the E gene and 63.60 copies/ml for ORF1ab with 100% in specificity and accuracy. We thus propose that fluorescence spectrophotometry be promoted as a potential technique for COVID-19 detection. An increase in the number of samples is required for future research.
5 Data statement
The research data is confidential.
CRediT authorship contribution statement
Kartika A. Madurani: Conceptualization, Methodology, Data curation, Writing – original draft. Suprapto Suprapto: Conceptualization, Methodology, Data curation, Writing – original draft. Muhammad Yudha Syahputra: Conceptualization, Methodology, Data curation, Writing – original draft. Ika Puspita: Visualization, Investigation. Abdul Hadi Furqoni: Visualization, Investigation. Listya Puspasari: Visualization, Investigation. Hafildatur Rosyidah: Visualization, Investigation. Agus Muhamad Hatta: Software, Validation. Juniastuti Juniastuti: Software, Validation. Maria Inge Lusida: Software, Validation. Masato Tominaga: Writing – original draft. Fredy Kurniawan: Supervision.
Acknowledgments
The authors acknowledge the ethical committee of Universitas Airlangga Hospital for ethical clearance in this research. Grateful to Dra. Ita Ulfin, M.Si. as the Head of Laboratory of Instrumentation and Analytical Science, Chemistry Department, Faculty of Science and Data Analytics, Institut Teknologi Sepuluh Nopember and ITD Airlangga University for laboratory facilities. Acknowledgments are also given to Mochammad Zakki Fahmi, Ph.D., and Dr. Hendro Juwono, M.Si, for fruitful discussion.
Funding
The Indonesian Government supported this work, especially the National Agency for Research and Innovation (BRIN) and the Ministry of Finance under Lembaga Pengelola Dana Pendidikan (LPDP), under the project scheme of Research and Innovation Consortium for COVID-19 [BRIN decree ID 60/II/HK/2022] and dissertation scheme [grant number PRJ-46/LPDP.4/2020].
Declaration of Competing Interest
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
