Formulation and characterization of a novel cutaneous wound healing ointment by silver nanoparticles containing Citrus lemon leaf: A chemobiological study

2.1 Materials

Bovine serum, antimycotic antibiotic solution, 2,2-diphenyl-1- pikrilhydrazil (DPPH), dimethyl sulfoxide (DMSO), decamplmaneh fetal, 4- (Dimethylamino) benzaldehyde, hydrolyzate, Ehrlich solution, and borax-sulfuric acid mixture, Dulbazolic mixture Modified Eagle Medium (DMED) all were obtained from the US Sigma-Aldrich company.

2.2 Synthesis of Ag nanoparticles containing Citrus lemon leaf aqueous extract

Extraction from Citrus lemon leaf is a technique used for preparing green-synthesized Ag-NPs as the first step. To achieve this end, we extracted from 25 g of Citrus lemon leaves by using distilled water in a microwave.

Generally, this procedure was performed as follows: 1.5 g of NaOH pellets plus 100 ml of AgNO₃ were dissolved in 50 ml of distilled water [(Merck, CAS# 7761–88-8) × H₂O (5 × 10^-4M)], to which 20 ml of Citrus lemon leaf extract were added and stirred at 25 °C for 1 h. After this process, the solution color changed into black, indicating the formation of Ag nanoparticles. Finally, the solution was let to precipitate, then, the precipitations were filtered and washed with ethanol, acetone, and distilled water. Final precipitations were dried at 90 °C for 14 to provide the best Ag nanoparticles powder (Zangeneh, 2020; Mohammadi et al., 2020).

2.3 Chemical characterization of Ag nanoparticles containing Citrus lemon aqueous extract

Several techniques were used to characterize nanoparticles, including TEM, UV–Vis and FT-IR (Zangeneh, 2020).

TEM is a method by which the size and shape of nanoparticles were determined (Zangeneh, 2020). UV–Vis spectroscopy analysis is a method by which the characteristic absorption bands of silver were evaluated (Zangeneh, 2020).

FT-IR (Shimadzu IR affinity.1) was used to identify the potential biomolecules in the Citrus lemon aqueous extract that participated in the reduction of silver nanoparticles (Zangeneh, 2020).

2.4 Antioxidant activities of Ag nanoparticles containing Citrus lemon aqueous extract

2, 2- diphenyl-1-picrylhydrazyl (DPPH) was used to examine antioxidant activities of Ag-NPs, Citrus lemon aqueous leaf extract and silver salts (Hosseinimehr et al., 2011). First of all, 100 ml of CH₃OH were added to 39.4 g of DPPH to prepare its solution which was added to different concentrations of Ag-NPs, Citrus lemon aqueous leaf extract and silver salt (0–1000 µg/mL). Then we added DPPH solution to samples, as explained above, and incubated it at 37 °C for 30 min. After that, absorbances of the mixture were determined at 570 nm. In this experiment, CH₃OH (50%) and butylated hydroxytoluene (BHT) were considered negative and positive controls. Antioxidant activities of samples were calculated according to the following formula: $$\mathrm{I}\mathrm{n}\mathrm{h}\mathrm{i}\mathrm{b}\mathrm{i}\mathrm{t}\mathrm{i}\mathrm{o}\mathrm{n}\left(\%\right)=\frac{\mathrm{S}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{e}\mathrm{A}.}{\mathrm{C}\mathrm{o}\mathrm{n}\mathrm{t}\mathrm{r}\mathrm{o}\mathrm{l}-\mathrm{A}.}\times 100$$

2.5 Cytotoxicity properties of Ag nanoparticles containing Citrus lemon aqueous extract

In this research, we used Human Umbilical Vein Endothelial Cells (HUVECs) to evaluate cytotoxicity effects of Ag nanoparticles, Citrus lemon leaf aqueous extract and silver salt using MTT.

These cell lines were plated on DMEM media using 96-well plates with antimycotic solution, 10% FBS, streptomycin and penicillin. The number of cells in each plate-based well was 10,000, which were incubated at 37 °C for 24 h and treated with Ag nanoparticles, Citrus lemon leaf aqueous extract and silver salt with different dilation sizes, (0–1000 µg/mL) and incubated for 24 h. Then, 5 mg/ml of MTT were added to all wells, which were finally incubated at 37 °C for 4 h. After the evaluation of absorbance at 531 nm, the percentage of cell viability was calculated from the following equation (Arulmozhi et al., 2013): $$\mathrm{C}\mathrm{e}\mathrm{l}\mathrm{l}\mathrm{v}\mathrm{i}\mathrm{a}\mathrm{b}\mathrm{i}\mathrm{l}\mathrm{i}\mathrm{t}\mathrm{y}(\%)=\frac{\mathrm{S}\mathrm{a}\mathrm{m}\mathrm{p}\mathrm{l}\mathrm{e}\mathrm{A}.}{\mathit{Control}A.}\times 100$$

2.6 Cutaneous wound healing

All procedures to be performed on the test animals were approved by Research Ethics Committee of Health and Medical Education Ministry of Iran through Standards based on Helsinki Protocol (Helsinki, Finland, 1975) adopted by Payam-e Noor University of Kermanshah (No. 01/Z/G 1395/12/01) in April 17, 2006.

To perform experiments, 60 male, 10-week-old Sprague Dawley rats weighing 210–220 g were used. Under conditions of ambient temperature of 21 °C and 50–60% humidity, the rats were kept separately in transparent plastic cages placed in a noise-free room with dim lighting in 12-hour light/dark cycles. The rats had non-restricted access to standard water and food pellets during experiments.

A wound (2 $\times$ 2 cm) involving the removal of all skin layers was created by a scalpel after the induction of anesthesia by intramuscular injection of 40 mg/kg Ketamine, depth of which contained dermis and hypodermis (Fig. 1). Then, the rats were assigned randomly to 6 groups (n = 10) as follows: treated with (1) 0.2% Ag-NPs ointment; (2) 0.2% Ag salt ointment; (3) 0.2% Citrus lemon ointment; (4) 3% tetracycline ointment; (5) Eucerin basal ointment; and (6) untreated (control) groups. In this study, 0.2% Ag-NP and Citrus lemon ointments were formulated by using Eucerin basal ointment.

Close

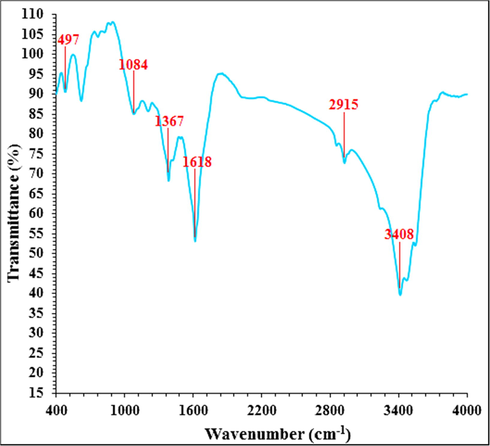

Fig. 1

FT-IR spectra of silver nanoparticles green-synthesized by Citrus lemon leaf.

Export to PPT

The ointment has been applied to the wound beds for the next 10 days. By monitoring the wounds using transparent paper and a permanent marker, percentages of wound contracture were evaluated on day 10. Some graph paper with 1 mm² area was used to measure recorded wound areas, the changes of which were assessed to obtain an indication of duration of wound contraction period of time. Taking the initial wound size as 100%, percentages of wound contracture were calculated using the measured surface areas, as shown below: $$\%Woundcontracture=(Woundareaon1stday-Woundareaon10thday)/Woundareaon1stday\times 100$$

Wound samples were taken from each group after 10 days of treatments. Equally split histological sections were placed in 10% formalin and sent to the lab. One half of each sample was examined histologically by 2 pathologists performing a slightly modified procedure reported (Ghashghaii et al., 2017; Zangeneh et al, 2019). Then, photos were captured by a digital camera (Dino capture; version 1.2.7) and entered into computer software (Photoshop C2-4; Adobe) to be analyzed digitally. Histopathological analyses were performed using 5 photomicrographs selected from 5 microscopic fields of each tissue sample. Parameters evaluated using histopathological sections included fibrin deposition, hemorrhage, polymorph nuclear and mononuclear cell infiltration, re-epithelialization, epithelium cornification, re-vascularization, fibroblast and macrophage contents, necrosis, presence of fibrocytes, and collagen maturation and organization. Once total cellularity (magnification × 200) and numbers of fibroblasts, fibrocytes, lymphocytes, neutrophils and blood vessels (magnification × 800) of wound area have been counted, their means (M) and standard deviations (SD) were calculated. Other half of each sample underwent biochemical studies to determine concentrations of hexosamine, hexuronic acid and hydroxyl proline (Ghashghaii et al., 2017).

2.7 Statistical analysis

Data was gathered and entered into “SPSS-24”, a computer software program, and analyzed by “one-way ANOVA” and then by Duncan post hoc test (p ≤ 0.01).

3.1 Chemical characterization of Ag nanoparticles containing Citrus lemon aqueous extract

As a mathematical technique, Fourier transform infrared spectroscopy (FTIR) is used to obtain infrared spectra of absorption or emission of a liquid, solid or gas. FTIR spectrometer collects high resolution spectral data over a wide spectral range simultaneously. This can be considered a significant advantage of FTIR spectrometer over the dispersive one measuring intensity merely over a narrow wavelength range at a time. FTIR technique is an adequate way to detect bioactive components in the field of naturally occurring products (Zangeneh, 2020; Mohammadi et al., 2020; Hamelian et al., 2020; Goorani et al., 2020). In our study, FTIR spectrum was used to detect potential biomolecules present in Citrus lemon aqueous leaf extract responsible for reducing Ag-NPs. Fig. 1 shows the FT-IR spectrum of Ag nanoparticles containing Citrus lemon leaf aqueous extract in the wavenumber of 400–4000 cm⁻¹. In Fig. 1, wavenumber 3408 is due to hydroxyl and phenolic groups. The bands at 2915, 1367–1618, 1084, and 497 cm⁻¹ are referred to as asymmetric CH₂ stretching, aromatic rings, C-O stretching and Ag-O, respectively.

FE-SEM analysis is a method for assessing the size and morphology of materials such as Ag nanoparticles and is extensively utilized in chemistry, physics, and biology investigations (Zangeneh, 2020; Mohammadi et al., 2020; Hamelian et al., 2020) In this study, the FE-SEM image of Ag nanoparticles containing Citrus lemon seed aqueous extract is shown in Fig. 2. In this figure, Ag nanoparticles are spherical, with an average size of 25.1 nm. It seems that few Ag-NPs form an agglomerated structure because of the presence of hydroxyl groups.

Close

Fig. 2

FE-SEM image of silver nanoparticles green-synthesized by Citrus lemon leaf.

Export to PPT

Transmission Electron Microscopy (TEM) is a technique using an electron beam to provide images of an NP sample with higher resolution in comparison with light-based imaging techniques. As the preferred technique, TEM is employed to measure NP size, grain size, size distribution and morphology directly (Zangeneh, 2020; Mohammadi et al., 2020; Shahriari et al., 2019; Goorani et al., 2020). Fig. 3 shows that Ag nanoparticles containing Citrus lemon seed extract are spherical and, on the average, 25.1 nm in size. Furthermore, a small number of them can be seen in other forms.

Close

Fig. 3

TEM image of silver nanoparticles green-synthesized by Citrus lemon leaf.

Export to PPT

Fig. 4 reveals the UV–Vis spectra analysis for Ag nanoparticles containing Citrus lemon seed aqueous extract. In this study, UV–Vis spectroscopic analysis indicated an absorption peak at 417 nm. Formation of Ag-NPs at this peak is supported by a lot of research indicating 400–450 nm as the range of wavelengths for Ag-NP formation from medicinal plants (Zangeneh, 2020; Mohammadi et al., 2020; Hamelian et al., 2020; Hemmati et al., 2019).

Close

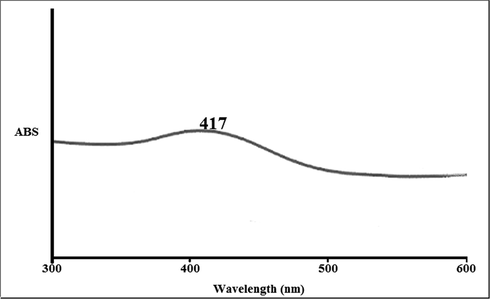

Fig. 4

UV–Vis spectrum of silver nanoparticles green-synthesized by Citrus lemon leaf.

Export to PPT

3.2 Antioxidant and cytotoxicity of Ag nanoparticles containing Citrus lemon aqueous extract

Using DPPH test, we assessed antioxidant properties of silver nanoparticles (Ag-NPs) green-synthesized by Citrus lemon aqueous seed extract.

In this study, we assessed antioxidant properties Ag-NPs green-synthesized by Citrus lemon leaf aqueous extract by suing DPPH Test, which is used to evaluate free radical scavenging activities of different antioxidant materials. This approach depends on the reduction of free radical DPPH by antioxidants in the absence of other free radicals and this action generates a color based on which absorption intensity can be evaluated by spectroscopy. The highest light absorption of DPPH radical was observed at 515–520 nm, at which methanolic solution is purple and acts as an electron absorber of a donor molecule like an antioxidant, thus changing DPPH to DPPH2. Consequently, purple color of the solution becomes yellow; therefore, absorption intensity decreases at 515–520 nm. We can find out the importance of antioxidant activities by evaluating the absorption intensity reduction through spectroscopy (Zangeneh, 2020; Mohammadi et al., 2020; Hamelian et al., 2020; Hemmati et al., 2019; Jalalvand et al., 2019; Shahriari et al., 2019; Goorani et al., 2020).

Fig. 5 illustrates scavenging capacity of BHT and Ag-NPs green-synthesized by Citrus lemon aqueous leaf extract at different concentrations expressed as percent inhibition.

Close

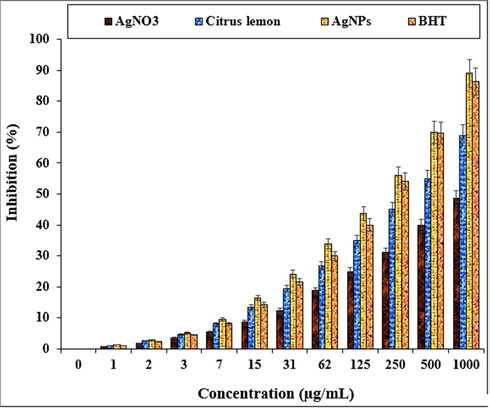

Fig. 5

Antioxidant properties of AgNO₃, Citrus lemon leaf aqueous extract, Ag nanoparticles and BHT against DPPH.

Export to PPT

In the antioxidant test, IC50 of Citrus lemon leaf aqueous extract, Ag nanoparticles and BHT were 373, 189, and 215 µg/mL, respectively (Table 1).

Studies have shown that antioxidant features of metallic nanoparticles green-synthesized by medicinal herbs are more significant than other metal nanoparticles. Considerable antioxidant activities of metallic nanoparticles green- synthesized by several medicinal herbs like Gundelia tournefortii L., Allium noeanum Reut. Ex Regel, Falcaria vulgaris, Thymus vulgaris and Camellia sinensis have been already confirmed. Ag nanoparticles green-synthesized by medicinal herbs show noticeable antioxidant activities against the formation of free radicals in the living system. Green-formulated Ag-NPs have important redox activities and play a noticeable role in scavenging free radicals (Zhaleh et al.,2019; Shahriari et al., 2019; Goorani et al., 2020).

Research has shown that phenolic and flavonoid compounds added to metallic nanoparticles had important antioxidant activities (Zangeneh, 2020; Shahriari et al., 2019; Goorani et al., 2020).

As mentioned in the introduction, Citrus lemon contains antioxidant compounds. Antioxidant molecules of Citrus lemon are α-Pinene, Sabinene, β-Pinene, Δ-3-Carene, α-Terpinene, p-Cymene, Limonene, cis-Ocimene, γ-Terpinene, Linalool oxide, α-Terpinolene, Linalool, cis-p-Menth-2-en-1-ol, Terpinen-4-ol, α-Terpineol, Linalyl acetate, Geraniol, α-Terpinyl acetate, Piperitenone oxide, Neryl acetate, Geranyl acetate, β-Elemene, trans- Caryophyllene, β-Farnesene, α-Humulene, Germacrene D and α-Farnesene (Al-Jabri et al., 2014; Di Vaio et al., 2010; Espina et al., 2011; Golmakani and Moayyedi, 2015).

MTT is a calorimetric assay used to examine metabolic activity of cells (Arulmozhi et al., 2013). NAD (P) H-dependent cellular oxidoreductase enzymes reflect the number of viable cells present under specified conditions. Such enzymes are capable of reducing tetrazolium dye MTT 3-(4, 5- dimethylthiazol-2-yl)-2, 5-diphenyltetrazolium bromide to its insoluble formazan with purple color. Other dyes, including XTT, MTS and WSTs, closely related to teltrazolium are used with 1-methoxyohenazine meth sulfate (PMS) as the intermediate electron acceptor. With cell-impermeable WST-1, reduction takes place outside cells via plasma membrane electron transmission [15–16, 18]. Nevertheless, this traditionally accepted explanation is contended currently due to newly found evidence of MTT reduction to formazan with lipid cellular structures with no obvious involvement of oxidoreductases (Arulmozhi et al., 2013).

Measurements of cytotoxicity (loss of viable cells) or of cytostatic activity (shift from proliferation to quiescence) of potential medicinal agents and toxic materials can be performed by tetrazolium dye assays. Since MTT reagents are sensitive to the light, respective assays are usually performed in the dark (Arulmozhi et al., 2013).

In this study, the cells treated with different concentrations of the present silver salt, Citrus lemon leaf aqueous extract and Ag nanoparticles were assessed by MTT assay for 48 h in terms of the cytotoxicity effects on normal (HUVEC) cell lines. Absorbance rates were evaluated at 570 nm, which represented viability of a normal cell line (HUVEC) even up to 1000 μg/mL for silver salt, Citrus lemon leaf aqueous extract and Ag nanoparticles (Fig. 6).

Close

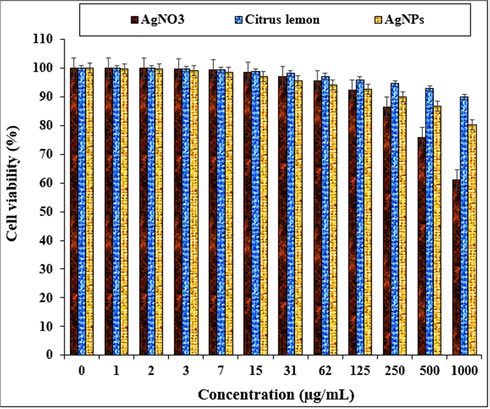

Fig. 6

Cytotoxicity properties of AgNO₃, Citrus lemon leaf aqueous extract and Ag nanoparticles against HUVEC cell line.

Export to PPT

3.3 Cutaneous wound healing potentials of Ag nanoparticles containing Citrus lemon aqueous extract

Physical injuries create wounds leading to opening or breaking of skin including punctured, scratched, scraped and cut skin. As a result of failed healing phases, wounds are likely to become chronic (Mussel et al., 2003). Although human body is generally equipped with a self-healing defense mechanism, wound healing process can be delayed under such critical conditions as microbial infections. In some cases, a lot of bodily pains and costly treatments result from wound complexity (Kream and Stefano, 2010; Bolboacă and Jäntschi, 2008; Mandal et al., 2007; Abolhassani, 2010).

Wound dressing is considerably effective in the healing process. Duration of healing time is shortened and chances of scar formation are reduced only if wounds are covered properly. The main purpose of dressing wounds is to accelerate wound healing process by preventing microbes from growing, absorbing wound fluid and keeping a wet environment around wounds (Guo and DiPietro, 2010; Souba and Wilmore, 1999; Hajialyani et al., 2018). Some antimicrobial activity is exhibited by plant extracts potentially, reducing the rate of growth of microorganisms. Medicinal herbs covering the skin are absorbed by body, curing a wide range of diseases such as arthritis, skin wounds and infections as well as diseases like hypertension, asthma and diabetes if the herbs are used orally (Guo and DiPietro, 2010; Souba and Wilmore, 1999). Some examples of medicinal plants used for treating wounds are Nyctanthes arbor-tristis L., Momordica charantia L., Bryonia laciniosa L., Biophytum sensitivum, Coleus forskohlii, Piper nigrum, Aloe vera,Chromola enaodorata, Indigofera aspalathoides DC., Fraxinus angustifolia, Ficus religiosa, Curcuma longa L., Cassia roxburghii, Trigonella foenum-graecum, Azadirachta indica A., Lansium domesticum Corrêa, Citrus reticulate and Centella asiatica (Hajialyani et al., 2018).

Results obtained from macroscopic, microscopic and biochemical studies showed that Ag nanoparticles ointment significantly decreasesd/ increasesd the percent of wound area, the numbers of total cells, neutrophils and lymphocytes/ the percent of wound contracture; numbers of blood vessels, fibrocytes and fibroblasts, fibroblast/ fibrocyte ratios, and concentrations of hydroxyproline, hexosamine and hexuronic acid compared to other study groups (Figs. 7–11).

Close

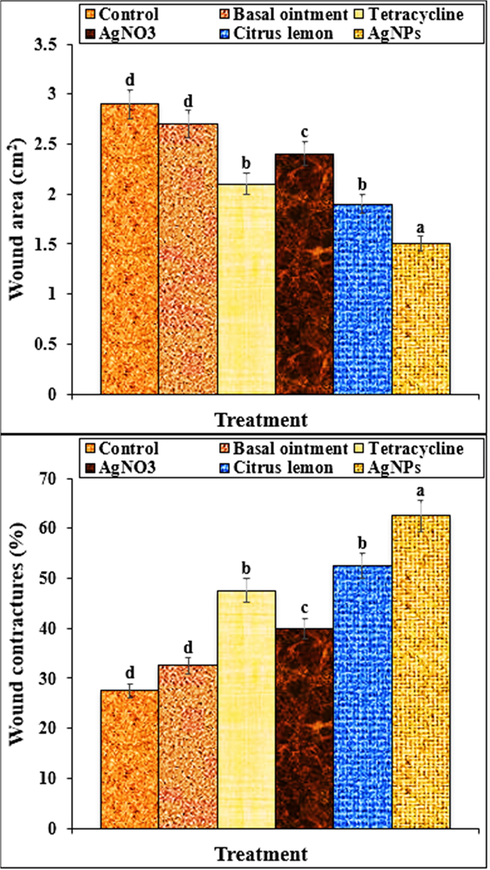

Fig. 7

The levels of wound area and wound contracture in groups treated with by basal, tetracycline, AgNO₃, Citrus lemon leaf aqueous extract and Ag nanoparticles ointments. Different letters show a significant difference between test groups (p ≤ 0.01).

Export to PPT

Close

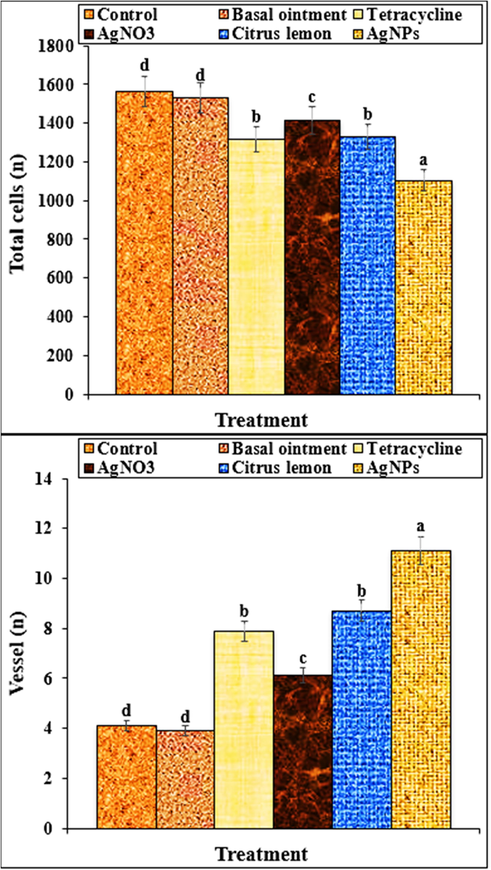

Fig. 8

The number of total cells and vessels in groups treated with basal, tetracycline, AgNO₃, Citrus lemon leaf aqueous extract and Ag nanoparticles ointments. Different letters show a significant difference between test groups (p ≤ 0.01).

Export to PPT

Close

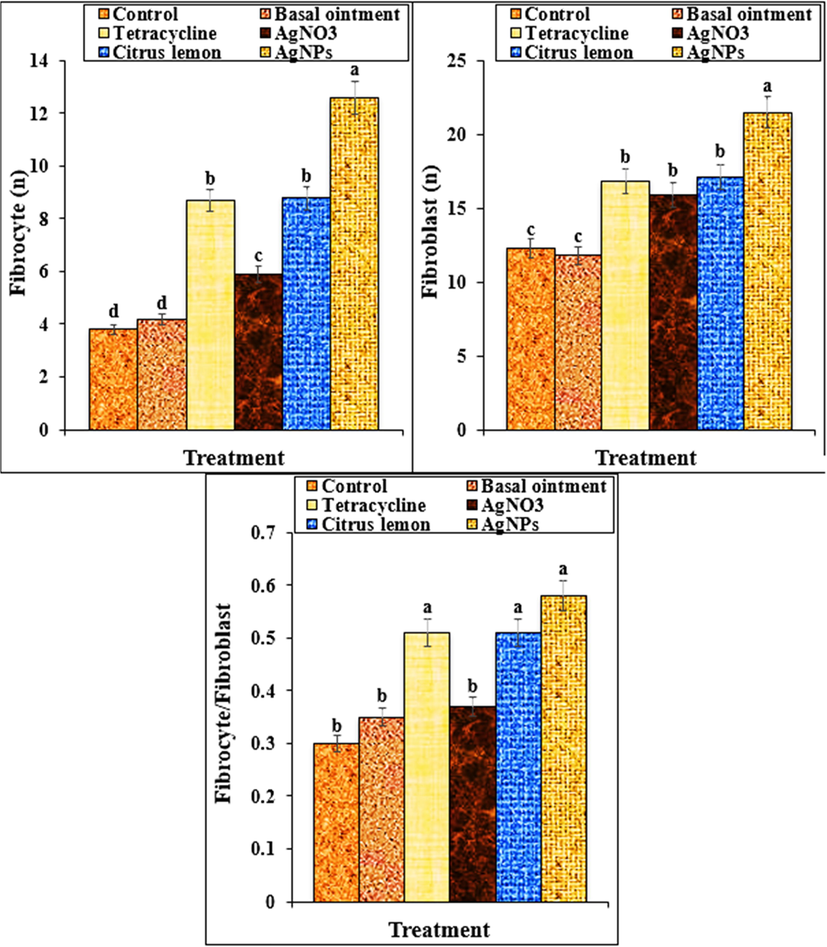

Fig. 9

The number of fibrocytes and fibroblasts and the ratios of fibrocyte/fibroblast in groups treated with basal, tetracycline, AgNO₃, Citrus lemon leaf aqueous extract and Ag nanoparticles ointments. Different letters show a significant difference between test groups (p ≤ 0.01).

Export to PPT

Close

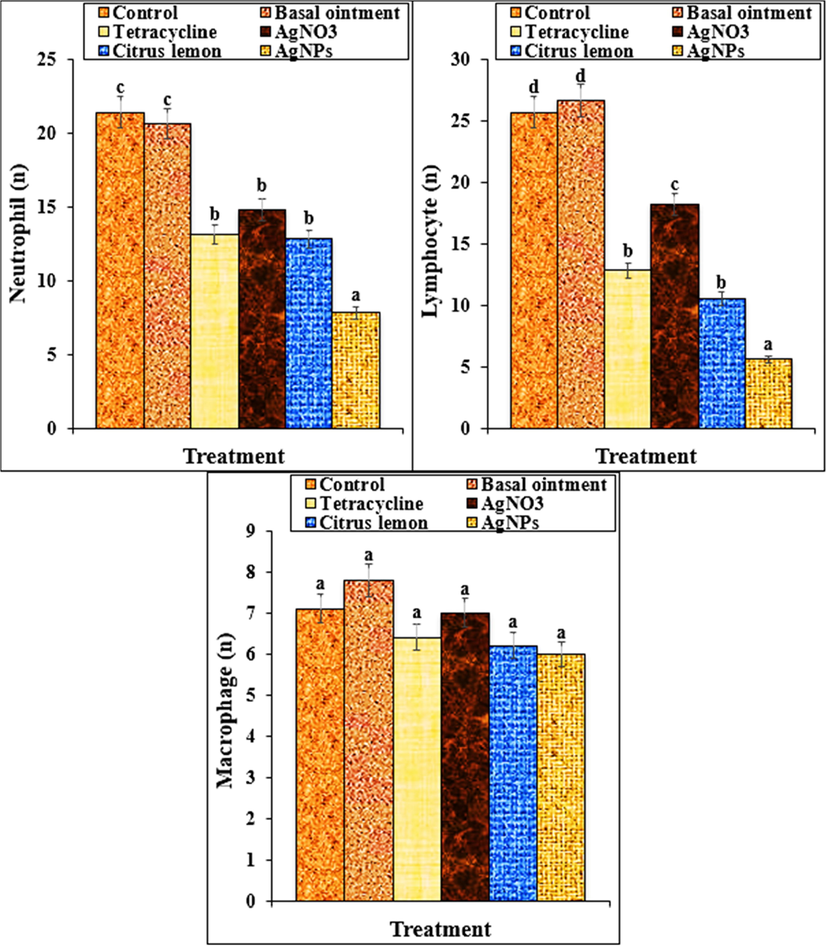

Fig. 10

The numbers of neutrophils, lymphocytes and macrophages in groups treated with basal, tetracycline, AgNO₃, Citrus lemon leaf aqueous extract and Ag nanoparticles ointments. Different letters show a significant difference between test groups (p ≤ 0.01).

Export to PPT

Close

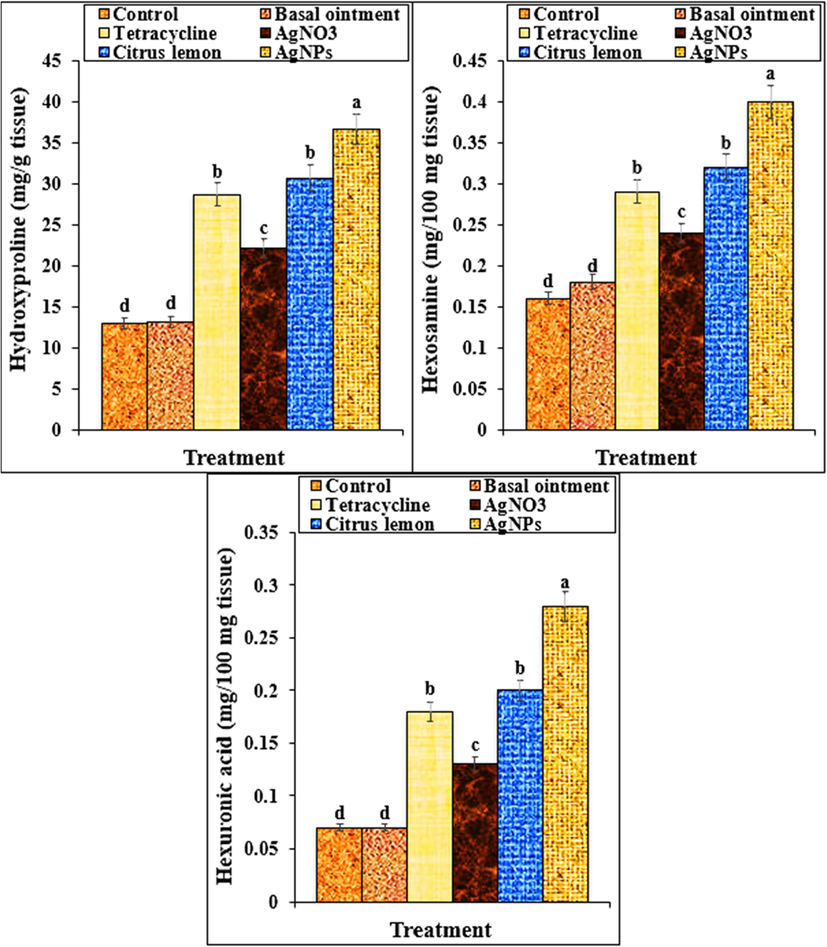

Fig. 11

Concentrations of hydroxyproline, hexosamine and hexuronic acid in groups treated with basal, tetracycline, AgNO₃, Citrus lemon leaf aqueous extract and Ag nanoparticles ointments. Different letters show a significant difference between test groups (p ≤ 0.01).

Export to PPT

As shown by studies, the amount of angiogenesis at the wound site increased as the wound appeared, causing more fibroblasts to migrate to the site.

Then, fibroblasts induced production of collagen (proline, hydroxyl proline, glycine) and of extracellular matrix compounds like hexosomine and hexuronic acid (Azhdari-Zarmehri et al., 2014). After that, fibroblasts changed into fibroecytes. Effectiveness of fibrocytes in healing wounds was far higher than that of fibroblasts (Azhdari-Zarmehri et al., 2014; Caetano et al., 2016).

Moreover, inflammatory cells, i.e., macrophages, neutrophils and lymphocytes, migrated to the wound site after angiogenesis (Dwivedi et al., 2017; Nayak et al., 2007). High activities of inflammatory cells increased the presence of pus in the wound site. Antioxidant compounds such as metallic nanoparticles reduced extra activities and accumulation of metallic nanoparticles in the wound site (Koh and DiPietro, 2011).
