Investigation into the adsorption of CO₂, N₂ and CH₄ on kaolinite clay

3.1 Microscopic structural characterization

The pysisorption of low-pressure CO₂ and N₂ using an ASAP 2460 analyzer (Micromeritics, Georgia, USA) was performed to obtain the microscopic structure of kaolinite clay. Due to the pore shrinkage effect at ultra-low temperature of 77 K, N₂ molecule cannot enter into the ultrafine pore space (Wang et al., 2015). On the contrary, CO₂ molecule has the ability to diffuse into smaller micropore. Thereby, CO₂ molecule can more accurately probe the micropore information, and the micropore morphology of kaolinite clay was determined by low-pressure CO₂ adsorption. The low-pressure N₂ adsorption was adopted to provide the mesopore and macropore properties of kaolinite clay. According to the obtained adsorption data, the pore size distribution, pore volume and specific surface area can be determined.

3.2 Adsorption isotherm measurement

The adsorption isotherm measurements for CO₂, N₂ and CH₄ were conducted using a high-resolution gravimetric analyzer (IGA-100B, U.K.). Unlike the traditional volumetric method, gravimetric method is a direct experiment method to measure the adsorption quantity. As demonstrated by Liu et al. (2019), for the isothermal adsorption measurement conducted on shale, gravimetric system has a higher accuracy than volumetric system. Hence, gravimetric method was chosen to conduct the adsorption experiments of CO₂, N₂ and CH₄ on kaolinite clay.

In addition, due to the cation-exchange property of clay sheets and the full/partial changes of clay atoms, clay minerals always have the strong hydrophilicity (Wang and Huang, 2019). Accordingly, in order to remove the effect of moisture on the sorption performances of CO₂, N₂ and CH₄ on kaolinite clay, the experiment system was degassed at 378 K for 10 h before the sorption measurement. Then, the experiment pressure was enhanced to the set value and the adsorption quantity versus time was automatically recorded. This experiment process was repeated until the maximum experiment pressure was reached.

4.1 Adsorption model

The isothermal sorption curve can not only give insight into the adsorptive potential for an adsorbent but also provide the information about the surface properties of adsorbent and the interaction between adsorbate-adsorbent systems (Du et al., 2021b; Hameed et al., 2017; Kamboh et al., 2014; Song et al., 2017). At present, many adsorption models, such as Langmuir model, Brunauer-Emmett-Teller model and pore-filling model, have been proposed to model the adsorption isotherms (Tang et al., 2017). Among these models, Langmuir model is the most commonly used model based on the simplicity and the reasonable explanation to the model variables. Langmuir model assumes that the adsorption is occurring on the chemically, energetically and structurally homogeneous surface by monolayer sorption (Zhou et al., 2012). The isothermal sorption curves of CO₂, N₂ and CH₄ were matched by Langmuir model. Eq. (1) gives the form of Langmuir model.

The fitness of Langmuir equation to experiment results can be analyzed by correlation coefficient (R²) and average relative error (ARE) (Song et al., 2017). The average relative error was calculated by Eq. (2).

4.2 Separation coefficient

The separation coefficient can be used as an indicator to estimate the competitive adsorption of fluids on adsorbent (Merkel et al., 2015). A greater separation coefficient reveals that the difference in interaction strengths of fluids is more remarkable and the pre-adsorbed component with weaker adsorption can be easily and effectively replaced by the component with stronger adsorption. The separation coefficient is expressed by Eq. (3) (Song et al., 2017).

4.3 Henry’s coefficient

When the experiment pressure is small, the adsorption quantity increases linearly with pressure, which is known as Henry’s law (Tang et al., 2015). Over the Henry’s region, each adsorbate molecule can be independently in contact with the whole material surface. The interaction force between adsorbate and material surface is dominated at the low pressure condition (Du and Wang, 2021). Consequently, Henry’s coefficient (K_H) can be identified as a useful index to estimate the adsorption affinity. The larger K_H corresponds to the stronger adsorption affinity.

At the low-pressure region, the relation of uptake and pressure can be described by virial equation, as shown in Eq. (4) (Du et al., 2020a; Ning et al., 2012).

where K₀, K₁, K₂ and K₃ are the first, second, third and fourth viral coefficients, respectively; K₀ is related to Henry’s coefficient, and K_H = exp(−K₀).

Considering the smaller adsorption amount, the higher-order term in Eq. (4) can be removed, and Eq. (5) can be gained.

Through matching the linear part of ln(P/q) as a function of n, K₀ can be acquired, and then K_H can be calculated.

4.4 Adsorption thermodynamics

The main thermodynamics parameters discussed in this work are Q_st, ΔΩ, ΔG and ΔS. Q_st is important in assessing the heat evolved/consumed during the adsorption/desorption processes (Sircar, 1992). Q_st at a given uptake (q_i) can be calculated using Clausius-Clapeyron equation, as expressed in Eq. (6) and Eq. (7) (Xue et al., 2018).

ΔΩ is adopted to estimate the required work to reach adsorption equilibrium (Ridha and Webley, 2010). ΔG is utilized to determine the spontaneity of sorption process. Ω and ΔG can be calculated by Eq. (8) and Eq. (9), respectively (Du et al., 2020b).

ΔS is useful to understand the variation in the disorderliness of adsorbate-adsorbent systems, which can be gained by Eq. (10) and Eq. (11) (Song et al., 2017).

5.1 Pore structure of kaolinite clay

5.1.1

5.1.1 Mesopore and macropore morphology of kaolinite clay

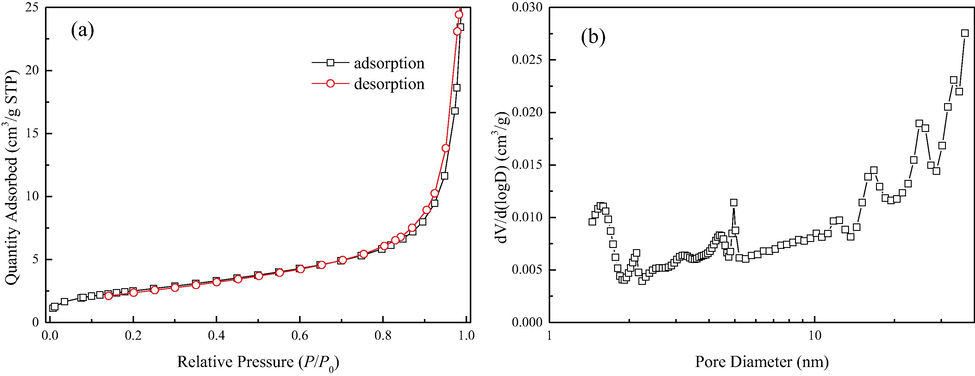

The N₂ adsorption and desorption isothermal curves at 77 K are plotted in Fig. 1(a), and the pore size distribution (PSD) analyzed by N₂ adsorption is described in Fig. 1(b). It is clear that when the relative pressure is high, adsorption isotherm and desorption isotherm do not coincide. The hysteresis loop given in Fig. 1(a) belongs to type H3, illustrating that kaolinite clay contains a large amount of mesopores and these mesopores are slit-shaped (Hwang and Pini, 2019). The slit-shaped mesopores are mainly formed by the particles stacking of platy mineral. In addition, as plotted in Fig. 1(b), kaolinite clay has a continuous PSD ranging from 1.5 nm to 38 nm.

Close

Fig. 1

Low-pressure N₂ adsorption and desorption isotherms (a) and pore size distribution (b).

Export to PPT

Table 1 reports the pore structure parameters of kaolinite clay and shale obtained from N₂ adsorption. Clearly, kaolinite clay does not have macropore, and the proportion of mesopore volume to total pore volume (V_mes/V_t) is up to 90.00%. Accordingly, the BET specific surface area (S_BET) and V_t of kaolinite clay are mainly contributed by mesopore. S_BET and V_t for shale are both higher than those for kaolinite clay. The higher S_BET and V_t are beneficial to the adsorption of fluid on shale. Meanwhile, unlike kaolinite clay, shale also has a certain amount of macropores. These macropores can offer more flow paths and facilitate the fluid movement. Therefore, fluid flow on actual shale reservoirs is easier than that on kaolinite clay.

Table 1 Pore structure of kaolinite clay and shale obtained from N₂ adsorption measurement.

Material	Vt (cm3/g)	Vmac (cm3/g)	Vmes (cm3/g)	Vmic (cm3/g)	Vmac/Vt (%)	Vmes/Vt (%)	Vmic/Vt (%)	SBET (m2/g)	Data
Kaolinite clay	0.0160	0	0.0144	0.0016	0	90.00	10.00	9.11	This study
Nanchuan shale	0.0349	0.0038	0.0302	0.0009	10.89	86.53	2.58	35.41	Gu et al., 2017
Longmaxi shale	0.0239	0.0034	0.0169	0.0036	14.23	70.71	15.06	26.87	Gu et al., 2017

Note: V_mac is the macropore volume; V_mes is the mesopore volume; V_mic is the micropore volume; and V_t is the total pore volume.

5.1.2

5.1.2 Micropore morphology of kaolinite clay

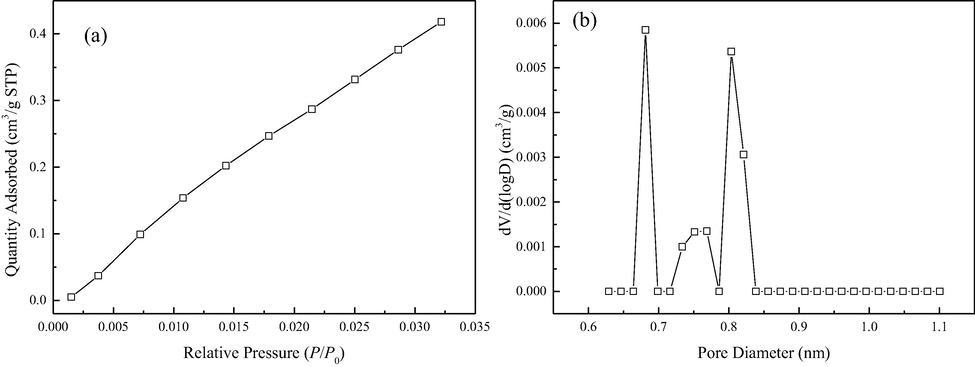

The measured adsorption isotherm of CO₂ at 273.15 K is described in Fig. 2(a), and the PSD of micropore of kaolinite clay is presented in Fig. 2(b). As given in Fig. 2(b), the PSD of micropore of kaolinite clay is not continuous. The micropore of kaolinite clay is concentrated at 0.68 nm, 0.75 nm and 0.81 nm.

Close

Fig. 2

Adsorption isotherm of CO₂ (a) and micropore size distribution of kaolinite clay (b).

Export to PPT

The comparison of micropore structure of kaolinite clay and shale is recorded in Table 2. The specific surface area (S_CO2) and volume (V_CO2) of micropore of kaolinite clay obtained by the adsorption of CO₂ are 1.85 m²/g and 0.00077 cm³/g, respectively. S_CO2 and V_CO2 for kaolinite clay are significantly lower than S_BET and V_t for kaolinite clay, respectively. Mesopore of kaolinite clay are more developed than micropore, and the studied kaolinite clay is mainly mesoporous material. As reported in Table 2, S_CO2 and V_CO2 for shale are both higher than those for kaolinite clay, indicating that shale has more developed micropore structure than kaolinite clay. With pore size decreases, the interaction energies on multiple surfaces superpose, leading to the noticeable improvement of attraction (Heller and Zoback, 2014). Consequently, micropore is more favorable for gas adsorption, and shale with well-developed micropore structure has greater adsorption capacity than kaolinite clay. In addition to clay minerals, shale also contains a certain amount of organic matter. The organic matter is responsible for the more developed micropore structure of shale.

Table 2 Micropore characterization results of kaolinite clay and shale.

Material	VCO2 (cm3/g)	SCO2 (m2/g)	Data
Kaolinite clay	0.00077	1.85	This study
Jiaoshiba shale	0.00370	9.32	Huo et al., 2017
Longmaxi shale	0.00964	9.20	Cheng et al., 2020

5.2 Adsorption behaviors of CH₄, N₂ and CO₂ in kaolinite clay

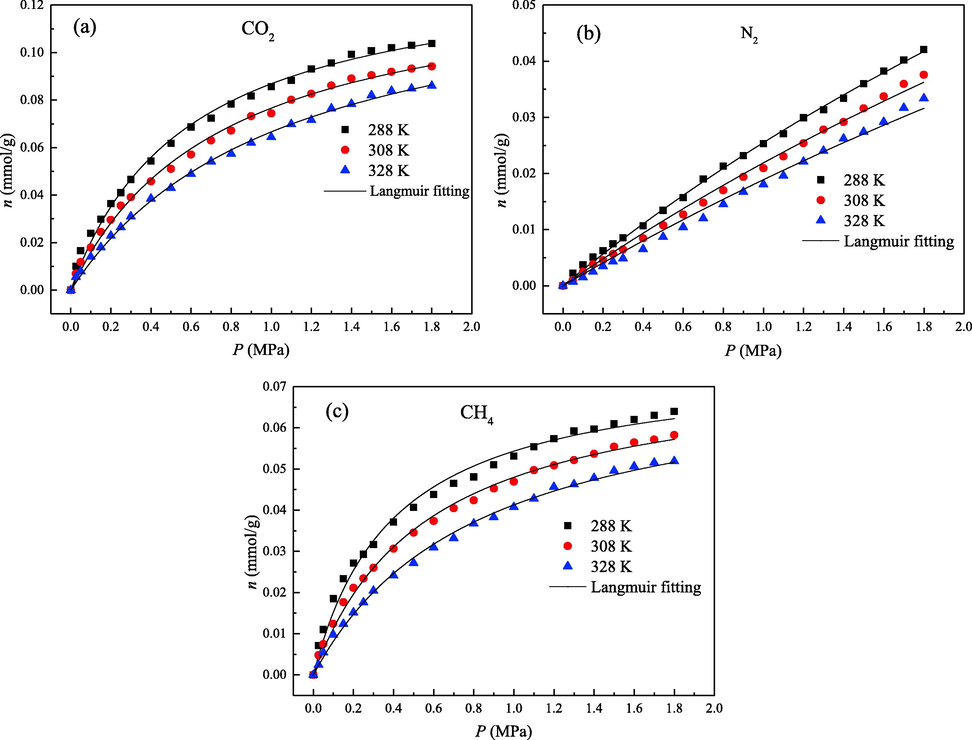

The obtained isothermal sorption curves of CO₂, N₂ and CH₄ on kaolinite clay are displayed in Fig. 3(a), 3(b) and 3(c), respectively. Obviously, as the equilibrium pressure enhances, the uptakes for three gases all improve, suggesting that high pressure promotes CO₂ storage and the accumulation of CH₄-in-place. Raising equilibrium pressure can give adsorbate molecules greater opportunity to collide with matrix surface, resulting in more adsorbate molecules to be retained in the adsorbed phase. Meanwhile, Jin and Fioozabadi (2014) found that CH₄ and CO₂ can also be trapped in the middle of bigger pores with increasing pressure when the micropores are occupied by previously injected CH₄ and CO₂. As a result, high pressure can increase the uptakes of three gases on kaolinite clay.

Close

Fig. 3

Isothermal adsorption curves at different temperatures: (a) CO₂, (b) N₂ and (c) CH₄.

Export to PPT

From Fig. 3, it can be found that the uptakes of three gases all decrease monotonically with temperature. A higher experiment temperature indicates the larger average kinetic energy of adsorbate molecules (Tang et al., 2015). With improving temperature, the injected adsorbate molecules have the adequate energy to overcome the electrostatic force and van der Walls force and stay in the gaseous phase (Zhou et al., 2012). The negative relation of adsorption quantity and temperature suggests that CO₂, N₂ and CH₄ adsorption on kaolinite clay is an exothermic process.

By comparing the sorption performances of CO₂, N₂ and CH₄ on kaolinite clay, we can see that the shape of adsorption isotherm of N₂ is different from those of CO₂ and CH₄. N₂ adsorption isotherm is linear, while the isotherms of CO₂ and CH₄ belong to Type I isotherm according to International Union of Pure and Applied Chemistry (IUPAC) classification. The shape of isothermal sorption curves of CO₂ and CH₄ on studied kaolinite clay is similar to the results of Heller and Zoback (2014) about the sorption of CH₄ and CO₂ on pure kaolinite sample. The difference in the isotherm shapes for three gases denotes that the interaction of N₂-kaolinite is distinct from those of CO₂-kaolinite and CH₄-kaolinite. When equilibrium pressure is small, the isothermal sorption curves of CO₂ and CH₄ are steeper, and their sorption rates are faster. As the pressure enlarges, the sorption rates of CO₂ and CH₄ gradually decline. At the initial stage, the available micropores for CO₂ and CH₄ are very plentiful. Meanwhile, previous study has pointed out the sorption potential will become deeper with the pore size decreases (Broom and Thomas, 2013). Hence, the abundant micropores with deeper sorption potential give rise to the quicker sorption of CO₂ and CH₄ at the early phase. However, for N₂ adsorption on kaolinite clay, the sorption rate almost keeps constant over the whole pressure range. The linear relation of the uptake of N₂ with pressure manifests that N₂ adsorption quantity is smaller and the interaction of N₂-kaolinte is weaker. This may be due to the pore size occupied by adsorbed N₂ is bigger than that occupied by adsorbed CO₂ and CH₄. The bigger pore has the shallower adsorption potential, which leads to the slow and constant sorption rate of N₂.

As depicted in Fig. 3, the order of the uptakes of three gases on kaolinite clay is as follows: CO₂ > CH₄ > N₂, agreeing with the findings of Xiong et al. (2017). When researching the sorption of three gases on New Albany shale, Chareonsuppanimit et al. (2012) found that the ratio of adsorption capacities for N₂, CH₄ and CO₂ is 1:3.2:9.3. The ratios of CO₂ adsorption amount (q_CO2) to N₂ adsorption amount (q_N2) and q_CO2 to CH₄ adsorption amount (q_CH4) on studied kaolinite clay are both lower than those on New Albany shale. The greater value of q_CO2 than q_CH4 on kaolinite clay supports the technical feasibility of applying CO₂-ESGR project in kaolinite-rich shale reservoirs.

The difference in adsorption behaviors of CO₂, N₂ and CH₄ on porous material is mainly due to the difference in physical characteristics of three gases, e.g., shape, polarity, kinetic diameter, dipole moment and quadrupole moment (Charriere et al., 2010). Table 3 summarizes the physical characteristics of CO₂, N₂ and CH₄. The linear shape and smaller kinetic diameter promote CO₂ to enter into more confined micropore, while these ultramicropores are only partly accessible to CH₄ owing to the molecule sieve effect. The research results of Liu et al. (2013) show that the available pore space for CH₄ adsorption within the organic matter is 40% smaller than that for the adsorption of CO₂. Meanwhile, the boiling point of CH₄ is lower than that of CO₂, which means that adsorbed CH₄ is easier to escape from the matrix by “evaporation” (Ettinger et al., 1966). Furthermore, CO₂ molecule possesses a permanent quadrupole moment, while CH₄ molecule is charge neutral. The quadrupole moment enhances the interaction of CO₂-kaolinite, bringing about the stronger adsorbed layer for CO₂ as confirmed by Jin and Firoozabadi (2014). Thereby, the studied kaolinite clay preferentially adsorbs CO₂ over CH₄. The smaller adsorption quantity of N₂ than CH₄ on kaolinite clay is mainly attributed to the lower polarizability of N₂ molecule, which leads to the weaker interaction between N₂ and kaolinite clay.

Fig. 3 presents the matching results of the sorption isotherms using Langmuir model, and the corresponding fitting parameters in Langmuir model are detailed in Table 4. It is evident that the simulated data are consistent with the experimental results. The consistency between experimental data and modeling results over a broad pressure and temperature range implies the excellent applicability of Langmuir model to simulate three gases adsorption on kaolinite clay.

5.3 Separation coefficients of CH₄, N₂ and CO₂ in kaolinite clay

The calculated separation coefficients of CO₂ over CH₄ (α_CO2/CH4), CO₂ over N₂ (α_CO2/N2) and CH₄ over N₂ (α_CH4/N2) are recorded in Table 5. The values of α_CO2/CH4 are all bigger than one, demonstrating that the adsorbed CH₄ can be directly displaced by injected CO₂ on kaolinite clay. As listed in Table 5, the order of separation coefficients on kaolinite clay is as follows: α_CO2/N2 > α_CH4/N2 > α_CO2/CH4. As the outstanding adsorption materials, clay minerals have been widely used for gas separation (Broom and Thomas, 2013). For CH₄ enrichment from extracted coalbed gas, whose main components are CH₄ and N₂, addition of kaolinite clay to modify the adsorption materials can be considered. The values of α_CO2/CH4, α_CO2/N2 and α_CH4/N2 all exhibit a decreasing trend with temperature. Low temperature not only increases the uptake but also improves the separation efficiency. The negative relationship of α_CO2/CH4 with temperature has also been found on other adsorbents (Liu et al., 2018). Liu et al. (2018) thought that the induced desorption of adsorbate from matrix surface is the main reason for the decrease in α_CO2/CH4 at high temperature. Meanwhile, in the previous study about CO₂ and CH₄ competitive adsorption on kerogen, α_CO2/CH4 also continuously declines with pressure (Anh et al., 2018). Therefore, the shallow shale reservoirs with lower temperature and pressure condition boost the replacement of adsorbed CH₄ by CO₂, agreeing with the findings of Wang et al (2018).

The values of α_CO2/CH4 on shale are also shown in Table 5. It can be found from Table 5 that α_CO2/CH4 values on shale are bigger than those on kaolinite clay, elucidating that the actual shale formation is more suitable for the extraction of CH₄ by CO₂ injection. The findings of Wang and Huang (2019) pointed out α_CO2/CH4 reduces as the pore size enlarges. As discussed in Section 5.1, shale has a more developed micropore structure. Accordingly, even though increasing kaolinite clay content can improve the adsorption ability of shale, it damages the displacement efficiency of CO₂ on shale. Hence, to select the target reservoir for implementation of CO₂-ESGR project, the content of kaolinite clay in shale sediment needs to be paid more attention.

5.4 Adsorption affinities of CH₄, N₂ and CO₂ in kaolinite clay

The gained K_H of CH₄, N₂ and CO₂ in kaolinite clay are listed in Table 6. CO₂ has a largest K_H, while the K_H value of N₂ is the smallest. The adsorption affinity of CO₂ on kaolinite clay is biggest, and N₂ has a lowest affinity. For the adsorbate-adsorbent pair, the interaction strength depends on dipole moment-field gradient interaction energy, quadrupole moment-field gradient and induction energy (Deng et al., 2012). As given in Table 3, the highest quadrupole moment and polarizability make the strongest interaction of CO₂-kaolinite and the largest K_H for CO₂. Although N₂ molecule has a quadrapole moment, CH₄ polarizability is higher. The combined effect results in the larger K_H for CH₄ than N₂. In addition, temperature has a negative impact on K_H for three gases, revealing that increasing temperature can decrease the adsorption affinity.

The comparison of K_H for CH₄ and CO₂ on kaolinite clay and shale is elucidated in Table 6. The difference in K_H for CH₄ and CO₂ on Youyang shale and Weiyuan shale is more apparent than that on kaolinite clay. Because K_H has a positive correlation with adsorption quantity, the difference in the uptakes of CH₄ and CO₂ on kaolinite clay is smaller. This smaller difference in the uptakes of CH₄ and CO₂ on kaolinite clay is not conducive to the enlargement of α_CO2/CH4. Therefore, α_CO2/CH4 on shale is greater than that on kaolinite clay.

From Table 6, we can find that K_H values of CO₂ on two shale samples are both higher than that on kaolinite clay, which reflects that the adsorption affinity and adsorption capacity of CO₂ are larger on shale. For example, the uptake of CO₂ on Youyang shale is 0.17 mmol/g under 298 K and 1.80 MPa, while the uptake of CO₂ on kaolinite clay under a lower temperature of 288 K and 1.80 MPa is only 0.10 mmol/g. In addition, K_H values of CH₄ on kaolinite clay are slightly bigger than those on shale. Therefore, the uptakes of CH₄ on kaolinite clay and shale are almost equivalent.

5.5 Thermodynamics analysis of CH₄, N₂ and CO₂ in kaolinite clay

5.5.1

5.5.1 Surface potentials of CH₄, N₂ and CO₂ in kaolinite clay

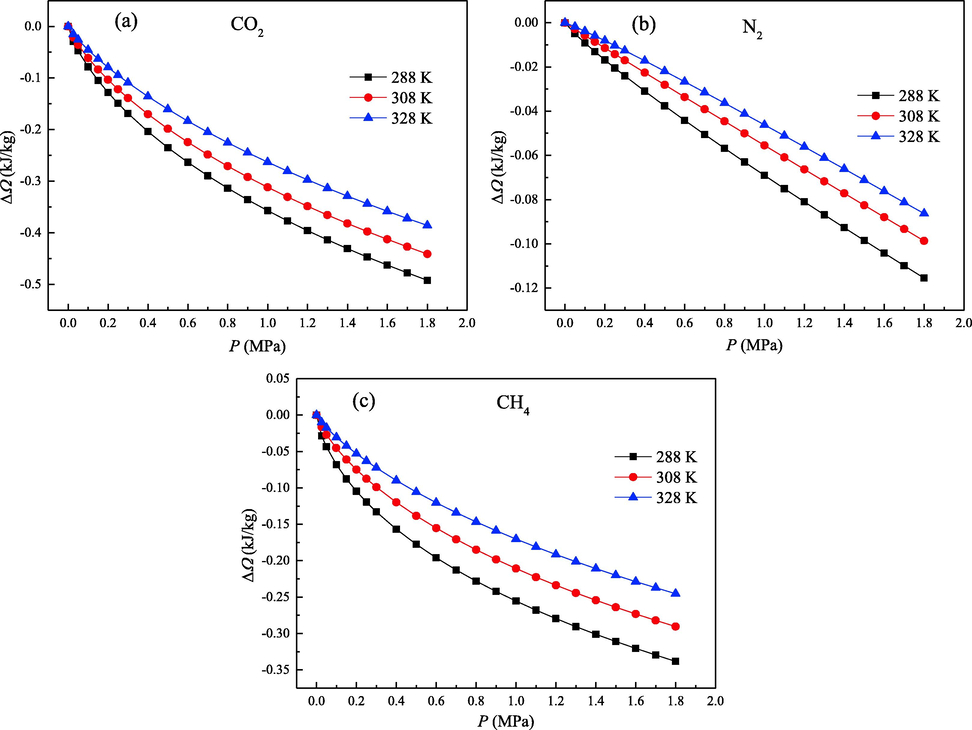

Surface potential ΔΩ corresponds to the needed minimum work to load adsorption material to reach a specific level (Mofarahi and Bakhtyari, 2015). Fig. 4 presents the gained ΔΩ of three gases in kaolinite clay. The ΔΩ values of three gases under experimental temperature and pressure are all negative. The absolute values of ΔΩ versus equilibrium pressure show a rapid increase upon further filling of adsorbate molecules into pore space. Under higher pressure (loading) condition, the more isothermal work is needed to load additional adsorbate molecules into the pore structure than at the preliminary stage (Ridha and Webley, 2010). The enhancement of isothermal work for adsorbate molecules with pressure is owing to the screened active sorption sites of porous material. As depicted in Fig. 4, ΔΩ for three gases are close to zero when the equilibrium pressure approaches zero. On the basis of the definition of ΔΩ proposed by Van Ness, the specific chemical potential of porous media in contact with molecules is becoming equal to the specific potential of porous media without contact with molecules at lower loading condition (Van, 1969). Thereby, reducing pressure causes ΔΩ to approach zero.

Close

Fig. 4

Surface potentials at different temperatures: (a) CO₂, (b) N₂ and (c) CH₄

Export to PPT

It is clear that the absolute values of ΔΩ for three gases display a noticeable reduction upon the temperature improvement from 288 K to 328 K. Previous study has shown that the less adsorption quantity brings about the lower (less negative) surface potential (Du et al., 2020b). Thus, adsorption amount and surface potential both reduce as the temperature increases. This is because the less adsorbate molecules are required to fill into cavity pore under higher temperature.

At the same condition, CO₂ has the biggest absolute value of ΔΩ, while N₂ possesses the smallest absolute value of ΔΩ. The smallest uptake of N₂ on kaolinite clay results in the least isothermal work and the lowest ΔΩ. The increase rates of ΔΩ for CO₂ and CH₄ are larger at the early stage, and then they reduce gradually with pressure. However, the increase rate of ΔΩ for N₂ keeps the same over the whole pressure range. The variation trends of ΔΩ with pressure are accordant with the change trends of the uptakes of three gases with pressure.

5.5.2

5.5.2 Changes of Gibbs free energy of CH₄, N₂ and CO₂ in kaolinite clay

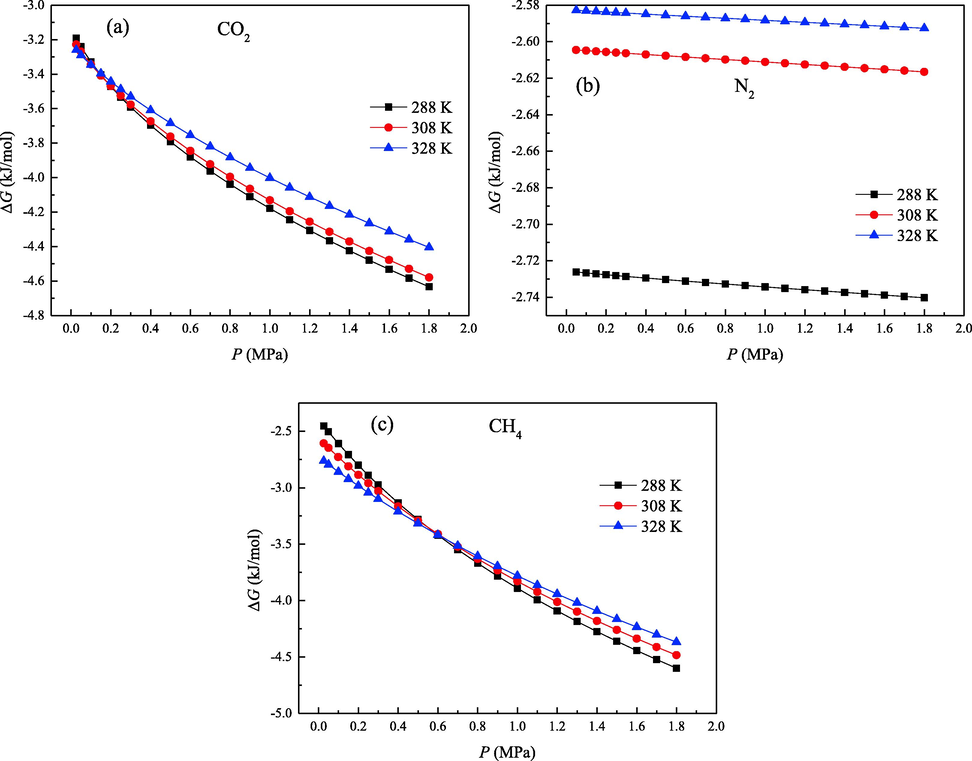

When temperature and pressure keep constant, the increment of free energy per unit surface area is called Gibbs free energy (Zhou et al., 2011). Gibbs free energy is caused by the asymmetric force field of atoms (molecules or ions) on the material surface (Nie et al., 2000). When the surface of porous material is formed, the force acting on the surface atoms is unbalanced, and the surface atoms are affected by the attraction which points vertically to the interior of solid. Therefore, the surface atoms tend to move towards the interior of solid, which makes the surface atoms to obtain an additional energy, namely, Gibbs free energy. Accordingly, the change of Gibbs free energy ΔG is a critical parameter to measure the spontaneity of adsorption system. Fig. 5 describes ΔG of three gases in kaolinite clay. ΔG values of three gases are all negative, which indicates that gas adsorption in kaolinite clay is spontaneous process.

Close

Fig. 5

Changes of Gibbs free energy at different temperatures: (a) CO₂, (b) N₂ and (c) CH₄.

Export to PPT

As the pressure rises, the absolute value of ΔG enhances, showing that increasing pressure improves the spontaneity of sorption. As a result, there is a monotonous enhancement of the uptake with pressure. Injection of N₂ into shale reservoir can cause CH₄ desorption by reducing CH₄ partial pressure and lowering CH₄ adsorption spontaneity. The technology of N₂-ESGR is also feasible to drive CH₄ exploitation. Moreover, the influence of pressure on ΔG of CH₄ and CO₂ is more evident than that of N₂. For N₂ adsorption on kaolinite clay, improving temperature decreases the spontaneity of adsorption. For the sorption of CH₄ and CO₂, the relation of ΔG with temperature is complicated. At the pressure larger than 0.10 MPa, low temperature helps to gain higher ΔG of CO₂. When pressure is higher than 0.50 MPa, low temperature corresponds to the higher ΔG of CH₄. Therefore, only under the condition of high pressure, low temperature facilitates the spontaneity of adsorption of CO₂ and CH₄ in kaolinite clay.

As given in Fig. 5, the absolute value of ΔG of CO₂ is the biggest, while N₂ has the smallest absolute value of ΔG. Consequently, CO₂ adsorption on kaolinite clay has the highest spontaneity, and the spontaneity degree of N₂ adsorption on kaolinite clay is the lowest. According to the minimum energy principle, the lower the system energy is, the more stable the system is (Zhou et al., 2011). The matrix surface always tries to adsorb other substances around to reduce the surface free energy. The larger change of surface free energy gives the adsorption material a greater motivation to reduce energy by adsorbing gas. Therefore, CO₂ with biggest ΔG has the largest uptake on kaolinite clay, while the adsorption of N₂ on kaolinite clay is the most difficult.

The change of surface free energy is not only related to the spontaneity of adsorption, but also to the matrix deformation. As pointed out by Nie et al. (2000), the larger change of surface free energy can lead to the greater deformation and the easier fracture of coal body. For the selection of site for CO₂ geological sequestration, one of most significant factors is the long-term stability of CO₂ storage (Huang et al., 2018). To increase the safety of CO₂ sequestration into deep subsurface and reduce the risk in CO₂ leakage into surrounding strata, more efforts should be focused on the deformation and the change of strength of shale after CO₂ adsorption.

5.5.3

5.5.3 Isosteric heats of adsorption of CH₄, N₂ and CO₂ in kaolinite clay

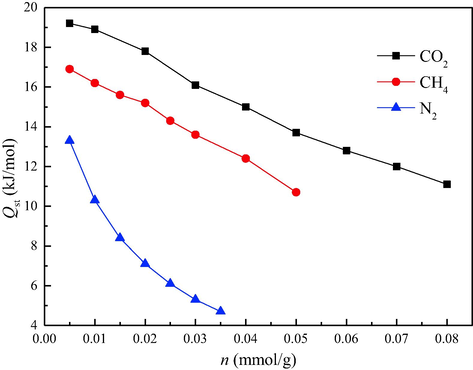

Isosteric heat of adsorption Q_st indicates adsorption heat effect and is one of the critical variables for the design of adsorptive separation process. Fig. 6 depicts the acquired Q_st of three gases versus loading in kaolinite clay. The enthalpy change ΔH (-Q_st) values for three gases are negative, which confirms that the adsorption of three gases in kaolinite clay is exothermic process. All of Q_st values are smaller than 40 kJ/mol, validating that the adsorption of three gases in kaolinite clay is physisorption.

Close

Fig. 6

Isosteric heats of adsorption for three gases in kaolinite clay.

Export to PPT

With the loading increases, Q_st for three gases all show a monotonous downward trend. If the adsorption material surface is energetically homogeneous, Q_st is not relevant to the loading, while Q_st changes with loading when the adsorption material surface is energetically heterogeneous (Chakraborty et al., 2006; Sircar, 1991). The decrease in Q_st with loading proves the heterogeneous surface of kaolinite clay. During the adsorption process, Q_st value is affected by the interaction energy of adsorbate-adsorbate and adsorbate-adsorbent pairs. At the preliminary stage of adsorption, lots of active adsorption sites are available, and the adsorbates are directly adsorbed on the preferential adsorption sites, causing the stronger force between adsorbate and adsorbent and the weaker lateral interaction between adsorbate molecules. As the loading increases, more and more pore space is occupied, and the interaction energy of adsorbate-adsorbent is lower than adsorbate-adsorbate interaction energy. Thus, Q_st declines with improving loading.

Clearly, CO₂ has the largest Q_st, and Q_st value of N₂ is the smallest. The biggest Q_st indicates that the interaction of CO₂-kaolinite is the strongest. Accordingly, N₂ with the lowest Q_st has the weakest interaction with kaolinite. The quadrupole moment strengthens the interaction of CO₂ with kaolinite, and hence CO₂ adsorption gives off more heat. Meanwhile, Q_st enhances constantly until the diameter ratio of the pore to the molecular approaches one, and increasing pore curvature has a positive effect on Q_st (Keffer et al., 1996). Because CO₂ can migrate into smaller pores, more heat is released for CO₂ adsorption. The reduction rate of Q_st with loading for N₂ is the fastest. The rapid decrease in Q_st illustrates the weaker intermolecular force between N₂ molecules at the late stage of adsorption.

5.5.4

5.5.4 Entropy losses of CH₄, N₂ and CO₂ in kaolinite clay

Entropy loss ΔS is defined as the change from the entropy of a clean porous material and adsorbates in the perfect-gas state to that of the adsorption system containing a porous material with adsorbed molecules inside its pore (Myers, 2004). Information about ΔS during the adsorption process is conducive to comprehending the packing patter and the confined mobility of adsorbed adsorbates.

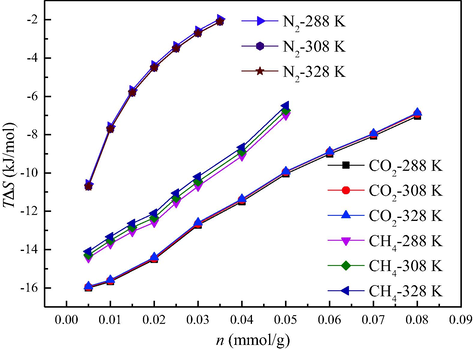

The results of ΔS of three gases are detailed in Fig. 7. From Fig. 7, it can be seen that ΔS values are all negative, indicating that gas adsorption in kaolinite clay is from an unrestricted stage to a restricted stage. As reported by Zhou et al. (2012), adsorption always implies the formation of a more orderly rearrangement on matrix surface and the loss of the degree of freedom of molecules. Within the micropore, the value of translational entropy is bigger than that of rotational entropy, and the majority of entropy loss is contributed by the loss of translational degree during sorption process (Myers, 2004). Therefore, the translation of molecules is more limited in the micropore.

Close

Fig. 7

Entropy losses for three gases at different temperatures.

Export to PPT

As the loading increases, the absolute values of ΔS for three gases decline. Larger adsorption loading causes the lower (less negative) ΔS. When the available pore is gradually occupied by adsorbate molecules, the disorderliness degree of investigated adsorption system increases. Therefore, higher adsorption loading condition is unfavorable for the efficient packing. At the early phase, molecules are adsorbed in the smaller pores, and the adsorbed molecules are more confined. With the increase in loading, the majority of injected molecules are retained in the bigger pores. In these large pores, the movement of adsorbed molecule is not effectively limited, bringing about the lower ΔS. In addition, under different temperatures, the curves of ΔS basically coincide. Therefore, temperature has a negligible influence on ΔS, which is in accordance with the report of Duan et al. (2016) about CH₄ and CO₂ adsorption on shale.

It should be noted that ΔS of N₂ is the lowest, while CO₂ has the highest ΔS. Myers (2004) discovered that the adsorbent with smaller pores has bigger absolute values of entropy change. Due to the more restricted pore for CO₂ adsorption, the movement of adsorbed CO₂ is more difficult. Meanwhile, the higher quadrupole moment and polarizability enhance the interaction of CO₂-kaolinite, giving rise to the more efficient adsorbate packing by producing the structured fluid. Therefore, ΔS values of CO₂ are higher than those of N₂ and CH₄. The highest ΔS reveals that adsorbed CO₂ molecules form a most ordered rearrangement. The smaller ΔS for N₂ than CH₄ is because of the lower polarizability of N₂, which induces the weaker interaction between electrostatic-field gradients and N₂ molecules. Furthermore, the decrease of ΔS for N₂ with loading is more rapid than those for CO₂ and CH₄. The quick reduction of ΔS for N₂ elucidates the weaker interaction strength of N₂-kaolinite and the lower orderliness of adsorbed N₂ on kaolinite surface.
