Kinetics analysis for non-isothermal decomposition γ-irradiated indium acetate

1 Introduction

Thermal decomposition of solids is an important field of solid state chemistry with wide technical applications (Brown et al., 1980). However, details of the kinetics were not reported (Levy and Herley, 1971). Previous work on the thermal decomposition of metal acetates indicated that the isothermal decomposition kinetics could be affected markedly by prior exposure to ionizing radiation (Monshi et al., 1998,1999; Alshehri et al., 2000; Mahfouz et al., 2000).

In this investigation, the kinetics of non-isothermal decomposition of anhydrous indium acetate before and after γ-irradiated was studied by dynamic thermogravimetry. The study also aims to investigate the mechanistic model of decomposition and the kinetic values of the main decomposition process in view of the behaviour of indium acetate as an economic catalyst.

2 Experimental

Indium acetate (BDH, England) was used without further purification. The sample used for investigation was dried at 200 °C in a muffle furnace to ensure complete dehydration.

The investigated sample weights were in the range of 100 mg. The decomposition was followed in air using dynamic thermogravimetric techniques in the temperature range (298–1273 K) using TGA-1, Perkin–Elmer. Three different heating rates 2, 5, and 10 °C/min were applied.

For irradiation, samples were encapsulated under vacuum in glass vials and were exposed to successively increasing doses of radiation at constant intensity using ⁶⁰Co γ-ray cell 220 (Nordion INT-INC, Intario, Canada) at a dose rate of 10⁴ Gy/h. The source was calibrated against Fricke ferrous sulphate dosimeter and the dose rate in the irradiated samples was calculated by applying appropriate corrections on the basis of photon mass attenuation and energy-absorption coefficient for the sample and the dosimeter solution (Spinks and Woods, 1990).

3 Results and discussion

Fig. 1 shows thermogravimetry (TG) and differential thermal analysis (DTA) curves of the thermal decomposition of indium acetate in air. The TG curve shows that the decomposition of In (CH₃COO)₃ takes place in one major step accompanied by an endothermic peak at 523 K corresponding to the formation of In₂O₃ and some volatile products. The weight loss was estimated to be about (46.66%) of the total weight which is in good agreement with the theoretical calculated value (47.56%).

Close

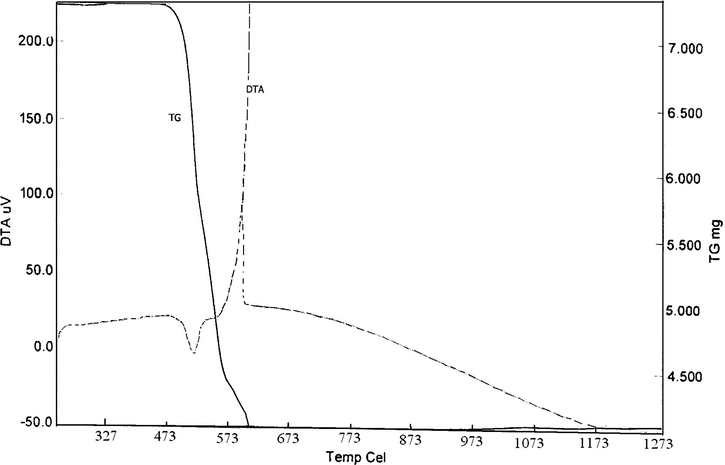

Figure 1

TG and DTA of indium acetate.

Export to PPT

3.1

3.1 Non-isothermal decomposition

Non-isothermal decomposition of un-irradiated and pre-γ-irradiated indium acetate sample is shown in Fig. 2. The rate is set to a constant value β and the function g(α) is given by Doyle’s equation (Doyle, 1961) $$g(\alpha )=\left(\frac{A}{B}\right){\int }_0^T\exp \left[\frac{-E}{\mathit{RT}}\right]\mathit{dT}=\frac{\mathit{AE}}{R\beta }p(x)$$

Close

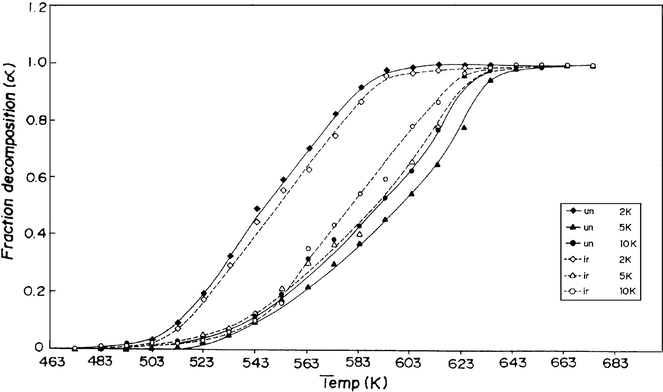

Figure 2

Dynamic measurements for indium acetate thermal decomposition.

Export to PPT

The fraction p(x) has been defined as $$p(x)=\frac{e^{-x}}{x}-{\int }_x^{\infty }\frac{e^{-\mu }d\mu }{\mu }$$ where μ = E/RT and x is the corresponding value of μ at which a fraction α of material has decomposed. In the Coats–Redfern method, the function g(α) is approximated to the form: $$\frac{\log g(\alpha )}{T^2}=\log \frac{\mathit{AR}}{E\beta }-\frac{E}{2.3\mathit{RT}}$$ Accordingly log(g(α)/T²) is to be calculated and plotted against 1/T for all possible mechanisms and the best straight line determines the operating mechanism. E_a and A values are calculated from the slop and intercept (Coats and Redfern, 1964). Fig. 3 shows the results of data analysis performed according to Coats–Redfern equation. The results indicate that the best fit of dynamic data of indium acetate was achieved using two-dimensional phase-boundary reaction model (R₂) as listed in Table 1. Trapped electrons and radicals in the host lattice of γ-irradiated indium acetate retard the decomposition process and reduce the number of reactive sites available for the decomposition. The calculated kinetic parameters for the non-isothermal decomposition of indium acetate are listed in Table 2. No significant changes were detected in the calculated kinetic parameters as a result of gamma irradiation.

Close

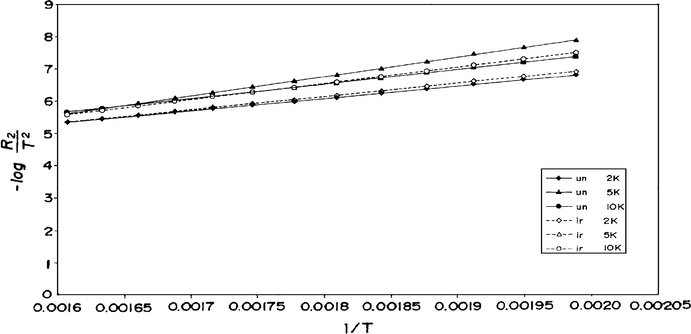

Figure 3

Non-isothermal decomposition of indium acetate according to the two-dimensional phase-boundary reaction.

Export to PPT

Table 1 Mechanistic equations examined in this work.

Equation	Function	Function
One-dimensional diffusion	α2	D1
Two-dimensional diffusion	(1 − α)ln(1 − α) + α	D2
Jander equation, three-dimensional diffusion	[1 − (1 − α)1/3]2	D3
Ginstling–Brounshtein equation three-dimensional diffusion	(1 − 2α/3) − (1 − α)2/3	D4
Two-dimensional phase-boundary reaction	1 − (1 − α)1/2	R2
Three-dimensional phase-boundary reaction	1 − ln(1 − α)1/3	R3
First-order kinetic	ln(1 − α)	F1
Prout–Thompkins branching nuclei	ln[α/(1 − α)]	A1
Random nucleation: Avrami equation	−[ln(1 − α)]1/2	A2
Random nucleation: Erofe’ev equation	−[ln(1 − α)]1/3	A3

Table 2 Activation energy of non-isothermal decomposition of indium acetate.

Kinetic parameters	Non-isothermal technique
	Heating rate (°C/min)
	2	5	10
Ea kJ mol−1 (un-irradiated)	82.37	89.13	95.27
Ea kJ mol−1 (irradiated)	86.82	94.53	103.74

3.3

3.3 Mechanism of decomposition

In general, the mechanism of the decomposition of solids could be: (i) electron transfer, (ii) proton transfer, (iii) breaks down of the anion or bond scission. Electron transfer operates mainly at low temperatures while at high temperatures proton transfer and bond rupture dominate. Thermal decomposition of indium acetate under the present experimental conditions showed that the rate of reaction in the acceleratory region initially increases with time until a maximum is attained.

Close

Export to PPT

Anion break down is envisaged as proceeding through a catalytic-type process on the surfaces of the oxidic indium particles that constitute the active advancing interfaces. The decomposition thereafter proceeds by two-dimensional phase-boundary reaction according to the non-isothermal investigation for both un-irradiated and pre-γ-irradiated samples of indium acetate.

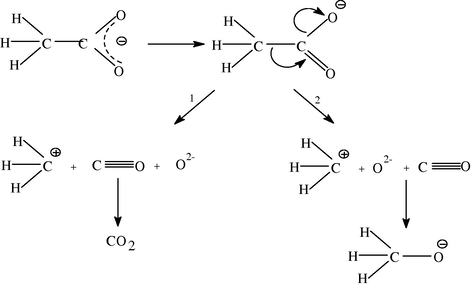

The following mechanism could be suggested to explain the decomposition process and the formation of gaseous products. The main step in the suggested mechanism is the rupture of C–O and C–C bonds followed by electronic rearrangement.
