Monitoring corrosion and corrosion control of low alloy ASTM A213 grade T22 boiler steel in HCl solutions

3.1 Corrosion rate monitoring

Corrosion measurement employs a variety of techniques to determine how corrosive the environment is and at what rate metal loss is being experienced. Corrosion measurement is the quantitative method by which the effectiveness of corrosion control and prevention techniques can be evaluated and provides the feedback to enable corrosion control and prevention methods to be optimized. In this study, polarization and EFM measurements were selected as electrochemical dc and ac techniques to monitor corrosion rate, vide infra:

3.1.1

3.1.1 Electrochemical measurements

3.1.1.1

3.1.1.1 Polarization measurements

The generation of polarization curves continues to be important in aqueous corrosion research. The current (I) needed to maintain the metal (working electrode (WE)) at each applied potential (E_w) is ascertained and the potential/current data is plotted to give the experimental polarization curve (Liening, 1986). In addition, polarization curves are useful in identifying the nature of the inhibition process. Thus, changes observed in the polarization curves after inhibitor addition are usually used as criteria to classify the inhibitor as cathodic, anodic or mixed (Cubley, 1990).

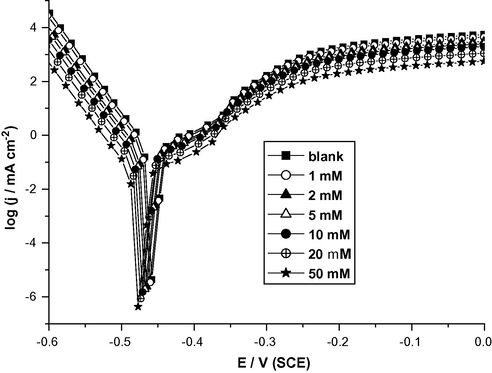

Fig. 2 presents Tafel polarization plots recorded for steel in aerated 0.50 M HCl solution without and with Ser of various concentrations (1.0–5.0 mM) at 30 °C. It is seen that the polarization curves display a well-defined cathodic Tafel region. However, the anodic polarization curve does not display an extensive Tafel region, may be due to passivation and pitting (see the inflection in the anodic branch). Corrosion currents and the other electrochemical kinetic parameters (Table 1) associated with polarization measurements were measured based on the method presented in our previous studies (Amin et al., 2009a; Amin et al., 2009b).

Close

Figure 2

Polarization curves recorded for steel in aerated 0.50 M HCl solutions without and with various concentrations (1.0–50 mM) of Ser at a scan rate of 0.50 mVs⁻¹ at 30 °C.

Export to PPT

Table 1 Electrochemical parameters, inhibition efficiencies (I(%)) and corrosion rates (υ) associated with Tafel polarization and EFM measurements, for steel in 0.5 M HCl solutions without and with various concentrations of Ser at 30 °C.

[Ser] (mM)	Tafel polarization						EFM
	Ecorr (mV (SCE))	jcorr (mA cm−2)	βa (mV dec−1)	−βc (mV dec−1)	υTafel (μ−1)	ITafel (%)	υEFM (μ−1)	IEFM (%)	jcorr (mA cm−2)
Blank	−459	0.2	86	55	2.32	–	2.56	–	0.22
1	−461	0.16	88	54	1.86	19.25	1.98	21	0.17
2	−465	0.11	87	56	1.28	45.73	1.39	43.88	0.12
5	−468	0.09	85	55	1.05	55	1.16	58	0.10
10	−471	0.07	87	55	0.81	67	0.70	69.54	0.06
20	−475	0.04	86	57	0.46	82	0.41	83.88	0.035
50	−478	0.02	85	58	0.23	91	0.17	93.05	0.015

As it can be seen, the corrosion potential (E_corr) shifts in the negative direction and both cathodic and anodic reactions of steel corrosion were inhibited with the increase of Ser concentration. In addition, values of j_corr decrease with increase in Ser concentration. This compound therefore exerted an efficient inhibitory effect both on anodic dissolution of the low alloy steel and on cathodic hydrogen evolution reaction. However, Ser suppressed the cathodic reaction to greater extents than the anodic one. Based on these results, Ser acts mainly as a cathodic-type inhibitor. It has been shown that the amino acids act as inhibitors through adsorption on the metal surface (His et al., 1990; Gommaa and Wahdanb, 1994). These amino acids can be protonated at the amine group in acidic solution, and can be adsorbed to cathodic sites of the electrode surface. Thus, they hinder the cathodic reaction and acts as cathodic inhibitors.

It is obvious that the shapes of the polarization plots for inhibited electrodes are not substantially different from those of uninhibited electrodes. The presence of Ser decreases the corrosion rate but does not change other aspects of the behaviour. This means that the inhibitor does not alter the electrochemical reactions responsible for corrosion. In addition, the absence of significant changes in the cathodic Tafel slope in the presence of inhibitor indicates that the hydrogen evolution is slowed down by the surface blocking effect of the inhibitor. This indicates that the inhibitive action of Ser, may be related to its adsorption and formation of a barrier film on the electrode surface. XPS examinations of the electrode surface confirmed the existence of inhibitor adsorbed film; see more details in Section 3.2.

The effect of temperature on the inhibited acid-metal reaction is highly complex, because many changes occur on the metal surface, such as rapid etching and desorption of the inhibitor and the inhibitor itself, in some cases, may undergo decomposition and/or rearrangement. The effect of temperature on the cathodic and anodic polarization curves of steel in 0.50 M HCl solution without and with various concentrations of Ser was also studied (dada not shown here). The obtained data showed that increasing the solution temperature, irrespective of the absence or presence of the inhibitor, leads to increasing the current density values of the two branches of the polarization curves and consequently the values of j_corr. Moreover, cathodic shifts were observed in the corrosion potential (E_corr) values at higher temperatures. This result reflects the enhancement of both the cathodic hydrogen evolution reaction and anodic corrosion reaction with temperature. Table 2, as an example, collects the various electrochemical parameters, together with the rates of corrosion and inhibition efficiency values, recorded for steel in 0.5 M HCl solution containing 10 mM Ser as a function of temperature. It follows from the data of Table 2 that the rate of corrosion enhances, while the inhibition efficiency values decrease with increase in temperature.

Table 2 Electrochemical parameters, inhibition efficiencies (I(%)) and corrosion rates (υ) associated with Tafel polarization and EFM measurements, for steel in 0.5 M HCl solution containing 10 mM Ser at different temperatures.

T (K)	Tafel polarization						EFM
	Ecorr (mV (SCE))	jcorr (mA cm−2)	βa (mV dec−1)	−βc (mV dec−1)	υTafel (μ−1)	ITafel (%)	υEFM (μ−1)	IEFM (%)	jcorr (mA cm−2)
283	−454	0.02	87	57	0.23	82	0.21	81	0.018
293	−465	0.05	86	55	0.58	75	0.55	76	0.047
303	−471	0.07	87	55	0.81	67	0.70	69.54	0.06
313	−477	0.12	91	65	1.39	61	1.28	60	0.11
323	−482	0.22	102	78	2.56	52	2.79	53	0.24
333	−495	0.43	118	91	5.00	38	4.77	41	0.41

It is seen that Ser has inhibiting properties at all the studied temperatures and the values of I(%) decrease with temperature increase. This shows that the inhibitor has experienced a significant decrease in its protective properties with increase in temperature. This decrease in the protective properties of the inhibitor with increase in temperature may be connected with two effects; a certain drawing of the adsrption-desorption equilibrium towards desorption (meaning that the strength of adsorption process decreases at higher temperatures) and roughening of the metal surface which results from enhanced corrosion. These results suggest that physical adsorption may be the type of adsorption of the inhibitor on the steel surface.

3.1.1.2

3.1.1.2 Electrochemical frequency modulation method

Compared to chemical methods, electrochemical techniques can obtain the instantaneous corrosion rate, implement in-situ measurement, and provide plenty of information. Thus, they are expected to be applied to detect and monitor corrosion of metals and alloys in various corrosive media. Several electrochemical techniques are available to determine corrosion rate, such as the linear polarization resistance (LPR) technique, Tafel-extrapolation, and electrochemical impedance spectroscopy (EIS).

The LPR and EIS techniques require B value to calculate corrosion rate from polarization resistance R_p according to the equation j_corr = B/R_p. And Tafel-extrapolation measurement, despite of its application here to evaluate corrosion rates, is time consuming and will damage the electrode surface due to the polarization over a wide potential range. Compared with these three electrochemical techniques, EFM technique can quickly determine the corrosion current value without prior knowledge of Tafel slopes, and with only a small polarizing signal. These advantages of EFM technique make it an ideal candidate for online corrosion monitoring (Kus and Mansfeld, 2006).

The main objective of performing EFM measurements is to confirm validation of corrosion rates measured by Tafel extrapolation method, one of the most popular DC techniques for estimation of corrosion rate. The EFM intermodulation spectra (spectra of current response as a function of frequency) of steel in 0.50 M HCl solutions devoid of and containing various concentrations of Ser have been studied (data not presented here). The values of causality factors obtained under different experimental conditions were approximately equal the theoretical values (two and three) indicating that the measured data are of quality (Gommaa and Wahdanb, 1994).

Corrosion currents, (j_corr)_EFM, were calculated as a function of Ser concentration (see also Table 1) using equations presented elsewhere (Rehim et al., 2008). These (j_corr)_EFM values were inserted in Eqs. (1) and (2) to calculate inhibition efficiency I_EFM(%) and corrosion rates (υ_EFM), respectively. The recorded values of I_EFM(%) and υ_EFM were also collected in Table 1. Addition of increasing concentrations of Ser to HCl solution decreases the corrosion current density, indicating that Ser inhibits the corrosion of steel through adsorption. The calculated inhibition efficiency enhances with Ser concentration. It is quite obvious that the data obtained from Tafel extrapolation method were in a good agreement with the results obtained from the EFM technique.

The EFM parameters have also been calculated at different temperatures and listed in Table 2. Inspection of the data of Table 2 reveals that the temperature increase leads to an essential decrease of the inhibition efficiency (I_EFM(%)) values which on one hand may be attributed to the corrosion rate increase and on the other hand to the probable partial desorption of the inhibitor under these conditions. However, it seems that an inhibiting adsorption layer exists at any given temperature. It may be assumed that the density of the inhibitor adsorbed layer within outer Helmholtz layer (OHL) decreases, while the diffuse part of the double electrical layer increases with temperature. This effect is accompanied by a certain increase in the rate of corrosion and surface roughness. It is apparent that the inhibition efficiency increases with increasing inhibitor concentration, while it decreases with increasing temperature, confirming the suggestion that physical adsorption occurs. It is worth noting from Tables 1 and 2 that the rates of corrosion and the inhibition efficiencies obtained from the EFM method are comparable and run parallel with those obtained from the Tafel extrapolation method. These findings confirm corrosion rates measured by the Tafel extrapolation method.

3.2 XPS examinations

The formation of a protective surface film of inhibitor at the electrode surface was further confirmed by XPS examinations of the electrode surface. Fig. 3 presents the XPS recorded for steel immersed in 0.5 M HCl solution containing 10 mM Ser for 24 h at E_corr. XPS spectra of the N(1s) confirmed the protonation of nitrogen in the Ser molecule. The N(1s) spectra presented in Fig. 3 can be deconvoluted into component bands at 399.9 ± 0.2 eV (–NH–), 401 ± 0.2 eV ( $-{\text{NH}}_2^{+}$ ) and 402.9 ± 0.2 eV (quaternary N⁺), respectively. Two chemically distinct adsorbed Ser species were detected in the experiment, namely 399.9 eV for the unprotonated N (N:), and 401.3 eV and 402.8 eV for the protonated N ${\text{NH}}_2^{+}$ and quaternary N⁺).

Close

Figure 3

The N(1s) photoelectron spectra recorded for steel immersed for 12 h in 0.5 M HCl solution containing 10 mM Ser at E_corr at 30 °C.

Export to PPT

Two possible mechanisms of Ser adsorption can be presented see the different modes of adsorption in the insert of Fig. 3. The first may be direct physisorption (electrostatic in nature) of protonated Ser species on the electrode surface already charged with a negative layer of chemisorbed Cl⁻ ions (Rehim et al., 2008). The second may be chemical adsorption owing to the coordinate bonds formed between the lone electron pairs of the unprotonated N-atoms and the empty orbits of Fe atoms.

3.3 Adsorption isotherms and standard free energy of the adsorption process

The steel corrosion inhibition by Ser can be explained by its adsorption so as to impede the adsorption of the aggressive species in the corrosive solution. The adsorption on the corroding surfaces never reaches the real equilibrium and tends to reach an adsorption steady state. However, when the corrosion rate is sufficiently small, the adsorption steady state has a tendency to become a quasi-equilibrium state. In this case, it is reasonable to consider the quasi-equilibrium adsorption in thermodynamic way using the appropriate equilibrium adsorption isotherms (Vracar and Drazic, 2002).

The extent of corrosion inhibition depends on the surface conditions and the mode of adsorption of the inhibitors (Khairou and El-Sayed, 2003). Under the assumptions that the corrosion of the covered parts of the surface is equal to zero and that corrosion takes place only on the uncovered parts of the surface (ie., inhibitor efficiency is due mainly to the blocking effect of the adsorbed species), the degree of surface coverage (θ) has been estimated from the chemical and electrochemical techniques employed in this study as follows: θ = I(%)/100 (assuming a direct relationship between surface coverage and inhibition efficiency) (Moretti et al., 1996; de Damborenea and Bastidas, 1997; Christov and Popova, 2004; Bentiss et al., 1999).

The values of surface coverage to different concentrations of inhibitors, obtained from the Tafel extrapolation and the EFM measurements at different temperatures, have been used to explain the best isotherm to determine the adsorption process. Adsorption isotherms are very important in determining the mechanism of organo-electrochemical reactions (Khairou and El-Sayed, 2003). The most frequently used isotherms are Langmiur, Hill de Boer, Parsons, Temkin, Flory-Huggins and Dahar-Flory-Huggins and Bockris-Swinkel (Moretti et al., 1996; de Damborenea and Bastidas, 1997; Christov and Popova, 2004; Bentiss et al., 1999; Damaskin, 1971; Langmuir and Am, 1917; Alberty and Silbey, 1997). All these isotherms are of the general form:

In the range of temperature studied (283–333 K), The best correlation between the experimental results, obtained from the two techniques, and the isotherm functions was obtained using Temkin adsorption isotherm (Eq. (4)).

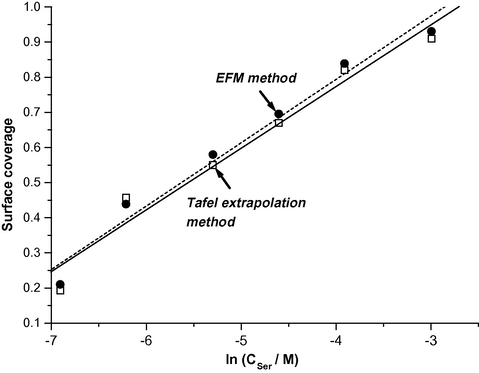

Fig. 4, as a representative example, shows fitting of the Tafel extrapolation and EFM data obtained for steel electrode in 0.50 M HCl solutions containing various concentrations of Ser to Temkin isotherm at 303 K. Similar plots were obtained for the other tested temperatures. The values of correlation coefficient (R²) were used to determine the best fit isotherm. Perfectly linear plots were obtained with correlation coefficient of (0.997 and 0.998). The isotherms’ parameters (K and a) and the free energies of the inhibitor adsorption ( $\mathrm{\Delta }{G}_{\text{ads}}^0$ ) calculated from the equation (O’M. Bockris and Khan, 1993):

Close

Figure 4

Fitting of the surface coverage, derived from Tafel extrapolation and EFM techniques, for steel in 0.50 M HCl solution containing various concentrations of Ser to Temkin adsorption isotherm at 303 K.

Export to PPT

It follows from the data of Table 3 that the values of K are relatively high and decrease with temperature. It is well-known that large values of K mean better inhibition efficiency of the inhibitor, i.e., strong electrical interaction between the double layer existing at the phase boundary and the adsorbing inhibitor molecules. On the other hand, small values of K, however, compromise such interactions between adsorbing inhibitor molecules and the metal surface so that the inhibitor molecules are easily removable by the solvent molecules from the surface. These results confirm the suggestion that this inhibitor is physically adsorbed and the strength of adsorption decreases with temperature. Positive values of “a” may indicate the existence of lateral forces of attraction between adsorbate molecules in the adsorption layer (O’M. Bockris and Khan, 1993).

The negative value of $\mathrm{\Delta }{G}_{\text{ads}}^0$ ensures the spontaneity of the adsorption process and stability of the adsorbed layer on the electrode surface. This stability of the adsorbed layer decreases with increase in temperature. This is clearly seen from the decrease in the absolute value of $\mathrm{\Delta }{G}_{\text{ads}}^0$ with the rise in temperature (see again Table 3). This also favours physical adsorption. Generally, values of $\mathrm{\Delta }{G}_{\text{ads}}^0$ lower than −40 kJ mol⁻¹ are consistent with the electrostatic interaction between the charged molecules and the charged metal (physi-sorption); those around −50 kJ mol⁻¹ or higher involve charge sharing or charge transfer from organic molecules to the metal surface to form a coordinate type of bond (chemi-sorption) Alberty and Silbey, 1997; Schapinik et al., 1960.

Based on the data presented in Table 3, the calculated value of $\mathrm{\Delta }{G}_{\text{ads}}^0$ , obtained from the two methods employed, was found to be lower than −40 kJ mol⁻¹. This confirms the occurrence of physical adsorption. Thus, the most probable mechanism of Ser adsorption is the physical type; inspect again modes of adsorption presented in the insert of the XPS spectra (Fig. 3). In general, the proceeding of physical adsorption requires the presence of both electrically charged metal surface and charged species in the bulk of the solution.

3.4 Apparent activation energy of the corrosion process

The temperature increases the rate of all electrochemical processes and influences adsorption equilibria and kinetics as well. Temperature investigations allow the determination of activation energy, pre-exponential factor and other thermodynamic activation functions in absence and in presence of inhibitor. The obtained results can elucidate the mechanism of corrosion inhibition. In the present work, further insight into the adsorption mechanism is offered by considering the apparent activation energies ( $E_a^o$ ) for the steel dissolution in HCl solutions in the absence and presence of different concentrations of the tested inhibitor. The apparent activation energies were obtained by applying the well-known Arrhenius Equation (O’M. Bockris and Reddy, 1977):

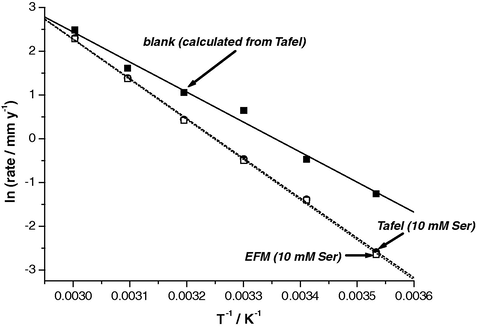

Arrhenius plots obtained from the Tafel extrapolation and EFM methods were constructed for steel in 0.50 M HCl solutions containing various concentrations of Ser in the range of temperature (283–333 K). Fig. 5 represents the Arrhenius plots, obtained from the two methods, of steel in 0.50 M HCl solution containing 10 mM Ser (as an example). Similar trend was obtained for the other tested concentrations of the inhibitor. The values of $E_a^o$ were calculated from these plots and listed in Table 4 as a function of Ser concentration. The value of 57 kJ mol⁻¹ obtained for the activation energy $E_a^o$ of the corrosion process in 1.0 M HCl lies in the range of the most frequently cited values, the majority of which are grouped around 60.7 kJ mol⁻¹ (Riggs and Hurd, 1967). The higher values of $E_a^o$ in presence of the inhibitor than in its absence can be interpreted as an indication of physical adsorption.

Close

Figure 5

Arrhenius plot of the corrosion rate, obtained from the Tafel extrapolation and EFM methods, recorded for steel in 0.50 M HCl without and with 10 mM Ser.

Export to PPT

The increase in $E_a^o$ is proportional to the inhibitor concentration, indicating that the energy barrier for the corrosion interaction is also increased (Szauer and Brandt, 1981; El Sherbini, 1999; Bastidas et al., 1997). This means that the corrosion reaction will be further pushed to the surface sights that are characterised by progressively higher values of $E_a^o$ as the concentration of the inhibitor in the solution becomes larger. In other words, the adsorption of the inhibitor on the electrode surface leads to the formation of a physical barrier that reduces the metal reactivity in the electrochemical reactions of corrosion (Mansfeld, 1987).
