Ni(II)-selective PVC membrane sensor based on 1,2,4-triazole bis Schiff base ionophore: Synthesis, characterization and application for potentiometric titration of Ni²⁺ ions against EDTA

2.1 Equipments and instruments

Structures of the ligand HMBT and its Ni complex have been confirmed using the following instruments and methods: Perkin-Elmer 2400 CHN elemental analyzer in the microanalytical center of Cairo University have been used for elemental analysis (% of C, H and N) whereas the metal content in Ni complex has been analyzed and determined inductive coupled plasma analysis with a PerkinElmer/Optima 7000 DV instrument. Molar conductivity (measured for 10⁻³ M DMF of the complex) has been estimated at ambient temperature using Jenway conductivity meter. FTIR spectra of both ligand and its complex have been recorded using 1430-Perkin-Elmer infrared-spectrophotometer within 4000 to 400 cm⁻¹ range as KBr discs. Shimadzu spectrometer (model UV-3600) have been used to measure the UV–Vis spectra applying the nujol mull technique. The magnetic susceptibility measurements of finally grinded metal complex have been measured using a Sherwood Scientific MK1-Model Gouy magnetic susceptibility balance. Thermogravimetric analysis (TGA) of perfectly dried ligand and Ni complex were recorded on TG-50-Schimadzu thermogravimetric analyzer under 10 °C/min heating rate and inert atmosphere inside the temperature ranging from ambient temperature up to 800 °C. Each of the potentiometric measurements was detected at room temperature (25 ± 1C) with a Hanna (HI2211-01) digital pH/mV meter using Ni-HMBT-PVC matrix membrane sensors with sensitivity of ±0.1 mV combined with a double-junction Ag/AgCl reference electrode (Orion Model 90–02) that contained 10% (w/v) potassium nitrate in the outer compartment. The pH measurements were conducted using a 420A ionalizer (Orion model) along with its glass electrode. The role of the ISE internal filling solution was served by a 0.01 mol L⁻¹ nickel (II) solution. (Ag/AgCl)/ internal solution (0.01 mol L⁻¹ nickel (II))/PVC membrane/sample solution/ (Ag/AgCl) reference electrode (Orion Model 90–02) carried out the all the aforementioned measurements.

2.2 Chemicals and solutions

Sodium tetraphenyl borate (STB), o-nitrophenyloctyl ether (o-NPOE) and high molecular mass poly (vinyl chloride) (PVC, 99%) were obtained from Fluka. Nickel(II) chloride hexahydrate, 3,5-diamino-1,2,4-triazole, o-vaniline, dioctyl phthalate (DOP), dioctylphenylphosphonate (DOPP), and bis(ethylhexyl)sebacate (DOS) and tetrahydrofuran (THF) were purchased from Aldrich. In order to prepare all aqueous solutions, doubly distilled water (DDW) was utilized.

2.3 Synthesis of ionophore (HMBT)

The ionophore bis Schiff base compound named 2-((5-(2-hydroxy-3-methoxybenzylideneamino)-2H-1,2,4-triazol-3-ylimino)methyl)-6-methoxyphenol (abbreviated as HMBT) has been synthesized by modification of a previously reported method (Chohan and Sumrra, 2010) in which 10 mmol of 1,2,4-triazole-3,5-diamine (0.99 g) dissolved in 20 ml hot ethanolic solution was dropped wisely and slowly added to boiled ethanolic solution containing 30 mmol of o-vaniline (1.52 g in 30 ml EtOH). The resulting reaction solution was left to reflux while stirring for 2 h during which orange yellow precipitate appeared. The reaction proceeded for another 2 h to ensure the reaction is complete. Finally, the formed product was obtained through filtration of the hot solution. The product was rinsed several times by using hot ethanol followed by ether and finally subjected to vacuum dryness over anhydrous CaCl₂.

Yield: 2.84 g (77.4%). Colour: yellowish orange. m.p. 258 °C. Anal. Calcd (%) for HMBT (C₁₈H₁₇N₅O₄; 367.36 g mol⁻¹): C, 58.85; H, 4.66; N, 19.06. Found: C, 58.87; H, 4.72; N, 19.08. EI-mass spectra m/z = 369 (M+2). IR (cm⁻¹, KBr phase): 3462(s), 3217(w), 1636(s), 1584(m), 1230(s), 1064(m).

2.4 Synthesis of complex Ni(II) complex (HMBT-Ni₂)

Ni(II) complex of the ionophore bis Schiff base ligand HMBT, abbreviated as HMBT-Ni₂, was synthesized by drop wise addition of hot methanolic solution containing 0.476 g of NiCl₂·6H₂O (0.002 mol) in 10 ml MeOH to methanolic/DMF solution (90/10%) containing 0.367 g (0.001 mol) of HMBT. The resultant reaction solution was left to reflux with stirring for 2 h during which faint green precipitate was formed. The reaction extended for another 1 hourafter which the precipitate was filtered from hot solution. The product was rinsed severally using hot ethanol followed by ether and finally subjected to vacuum dryness over anhydrous CaCl₂.

Yield: 0.41 (69.6%). Colour: Faint green. m.p. 294 °C (chairing). Λ_m (/Ω⁻¹ cm² mol⁻¹) = 24.5. Anal. Calcd for HMBT-Ni₂ (C₁₈H₁₉N₅Cl₂O₆Ni₂; 589.67 g mol⁻¹): C, 36.66; H, 3.25; N, 11.88; Ni, 19.91. Found: C, 36.71; H, 3.21; N, 11.91; Ni, 19.85. IR (cm⁻¹, KBr phase): 3417(s, br), 3262(s, br), 1647(s), 1583(s), 1282(m), 1065(s), 597(w), 4533(w).

2.5 Preparation of electrode

The procedure for constructing PVC membranes involved mixing (32%) of powdered PVC and (4%) of ionophore HMBT with (63%) of plasticizers (o-NPOE, DOPP, DOP or DOS) as the solvent mediators and (1%) STB (Saber and Ahmed, 2016). This mixture was dissolved in 6 ml of THF by vigorous shaking and then poured into a glass ring with an inner diameter of 3 cm resting on a smooth glass plate. The evaporation of this solvent was done at 25 °C for 48 h. This was followed by the removal of the resulting membrane from the glass mold. Subsequently, disks whose diameter was 7 mm and average thickness was 0.2 mm were mounted on a laboratory-made electrode body (Saleh et al., 2001; Saber, 2010). To this mixture, an aqueous solution of 10⁻² M NiCl₂ was added as an internal reference solution amidst the presence of the electrode with a diameter of 1.0 mm. The involved electrodes were conditioned for a minimum of 48 h by soaking them in a fresh 0.01 M NiCl₂ solution in a dark place and subsequently storing it in the same solution.

2.6 Electrode calibration

Successive aliquots (20 ml) of 10⁻⁸ and 10⁻² M of nickel chloride solutions were transferred into 50 ml beakers. Thereafter, all the Ni²⁺ electrodes in conjunction with Ag/AgCl reference electrode were immersed inside the solution. After stirring, the stable electromotive force (e.m.f.) for each concentration was recorded and plotted as a function of the logarithm of nickel ion concentration. Linear working range and detection limit of the nickel electrode, the slope and unknown concentration of nickel ion solution were calculated from the resulting curve.

2.7 pH impact on the potential of electrode

A testing was done to determine the pH impact on the electrode potential measurements for 10⁻², 10⁻³ M of NiCl₂. Then, 20 ml of all the solutions being tested were shifted to a 50 ml beaker followed by immersing the reference electrode (Ag/AgCl) along with the planned Ni(II)-selective electrode. This solution witnessed the immersion of a glass electrode system. The examined solutions’ pH was found in the range of 2.0–10.0 by adding 0.1 M NaOH or 0.1 M HCl solutions.

2.8 Selectivity measurements

Another technique was used to determine the values of selectivity coefficient concerning chosen inorganic cations (IUPAC, 2000). This was done via a measurement of potential readings involving 10⁻³ M of the interfering ion and 10⁻³ M for Ni²⁺. This was followed by a calculation of K^pot_Ni2+, the selectivity coefficient. The following equation is used to calculate X^Z+. $$log{K}_{\mathit{Ni}(II);XZ+}^{\mathit{pot}}=E_2-E_1/S+log\left[N{i}^{2+}\right]-log{\left[X^{Z+}\right]}^{1/Z}$$ where E1 denotes the electrode 10⁻³ M of Ni(II) potential, E2 signifies the 10⁻³ M solution’s electrode potential of X, the interfering cation, S represents the calibration curve’s slope at room temperature whereas Z denotes the interfering ion’s charge.

2.9 Analytical application

3.1 Structure elucidation of HMBT and HMBT-Ni₂

3.1.1

3.1.1 Elemental analysis and general characteristics

Both HMBT and HMBT-Ni₂ compounds were separated and their compositions were confirmed by applying elemental analyses technique. The results supported the structure of HMBT to be as shown in Fig. 1 and the formation of its complex with Ni(II) ion in the bimetallic form. The molar conductivity of HMBT-Ni₂, measured from 10⁻³ M solution in DMF solvent, was calculated to be 24 Ω⁻¹ cm² mol⁻¹. Such low value ensured the formation of the complex in the neutral form (saad et al., 2017; Gaber et al., 2019). The analytical results also supported the formula of the HMBT-Ni₂ as [Ni₂(HMBT)(H₂O)₂ Cl₂]. Both compounds are easily soluble in most polar solvents but barely soluble in alternative non-polar solvents. High purity of both compounds was confirmed through the sharpness melting point.

Close

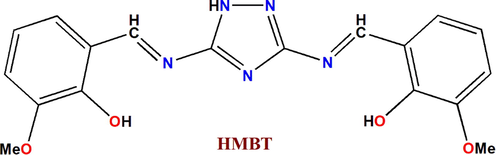

Fig. 1

Structure of HMBT ionophore.

Export to PPT

3.1.2

3.1.2 Mass spectrum

The formation of HMBT ligand is represented in Fig. 1 and confirmed by the measurement of the mass spectrum (Fig. 2). According to Fig. 2, the base and molecular ion peak appearing at m/z 369 corresponded to the (M+2) of HMBT (calculated molecular weight for HMBT with molecular formula of C₁₈H₁₇N₅O₄ is 367.36). The peaks appearing at m/z 352, 305, 276, 199, 171 and 101 were imputed to the various fragments as presented in Scheme 1. Almost all these fragments confirm the formation of the bis-Schiff base product.

Close

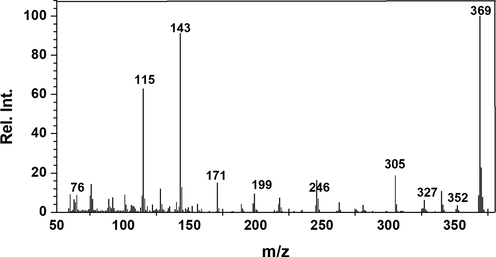

Fig. 2

Mass spectrum of HMBT ionophore.

Export to PPT

Close

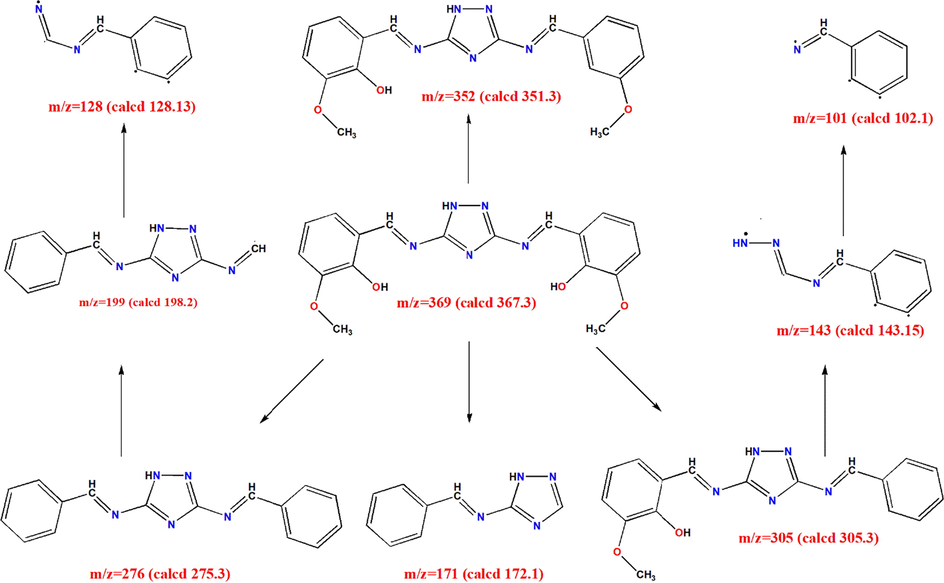

Scheme 1

Fragmentation pathways of HMBT indicating the calculated and found fragments molecular weights.

Export to PPT

3.1.3

3.1.3 FTIR spectrum

Comparison of the spectrum of HMBT-Ni₂ with that of HMBT ligand is beneficial to assign the binding function groups of the ligand to the nickel center. Fig. 3 shows the IR spectra of both HMBT and HMBT-Ni₂. The spectrum of HMBT illustrated the bands located at 3462, 3217, 1636, 1584, 1230, 1064 cm⁻¹ imputed to the stretching wavenumbers of OH, NH, C⚌N(imine), C⚌N(triazole ring), C—O and N—N bonds, respectively. A comprehensive study of the IR spectrum of HMBT-Ni₂ illustrated the existence of spectral peaks at 3417, 3262, 1647, 1583, 1282, 1065 cm⁻¹ (Chohan and Sumrra, 2010; Sumrra and Chohan, 2013). The bands located 1647 and 1282 were assigned to the stretching frequency of C⚌N(imine) and C—O, successively (Elsherbiny and El-Ghamry, 2015). These two bands exhibited a change in their places when compared with their places in the ligand spectra which confirms their connection to the Ni centers through N and O atoms, respectively. The bands appearing at 3417 and 3262 cm⁻¹ assigned to υ(OH) of water molecules connected to the metal center and υ(NH), respectively (Saad et al., 2019). The position of the other groups; NH, C⚌N (triazole ring), and N-N bonds, did not show significant change in their places appearing almost at the same places as in the spectrum of HMBT and hence confirming that these groups did not participate in the complex formation. Further proof for the involvement of C⚌N and deprotonated OH in the complex formation is the generation of two new bands in the spectrum of HMBT-Ni₂ only with no equivalent peaks in the spectrum of HMBT. The first band appeared at 597 and assigned to υ(Ni—O) whereas the second band appeared at 453 cm⁻¹ and assigned to υ(Ni—N).

Close

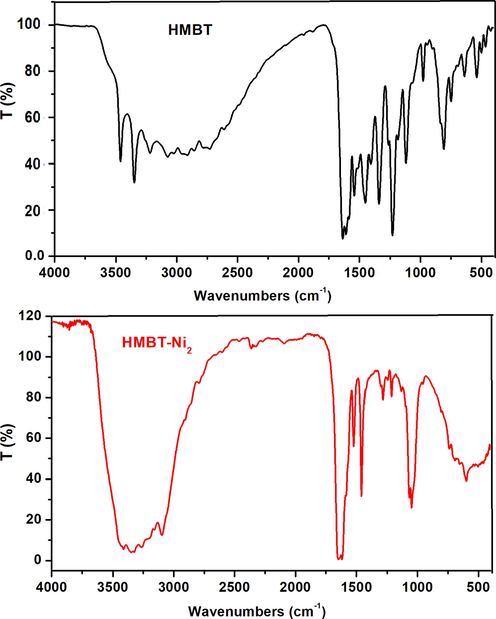

Fig. 3

Representation of IR spectra of HMBT and its Ni(II) chelate, HMBT-Ni₂.

Export to PPT

3.1.4

3.1.4 Thermal analysis (TG/DTG) results

The analytical thermogravimetry (TG) is considered an important tool in structure elucidation through interpretation of temperature ranges of each decomposition step, types of intermediates and the final remnant left behind after the compounds are fully decomposed. Additionally, for coordination compounds, such analytical tool can also provide important knowledge concerning the solvent and anion molecules existing outside or inside the coordination sphere as a part of the complex structure. Accordingly, the TG thermogram and its first derivative (DTG) for HMBT and its Ni(II) chelate HMBT-Ni₂ are illustrated in Fig. 4.

Close

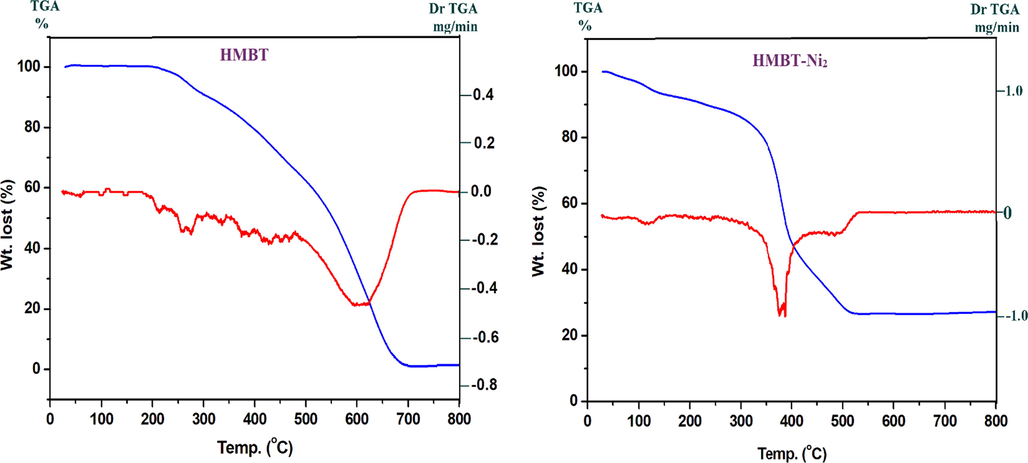

Fig. 4

TG/DTG thermograms of HMBT and its Ni(II) chelate, HMBT-Ni₂.

Export to PPT

From these thermograms, it is obvious that HMBT and HMBT-Ni₂ underwent full decomposition within the temperature range 25–800 °C through three and four decomposition stages, respectively, according to the following Schemes:

For HMBT, the first step appeared assigned to the loss of two methyl groups and the second step corresponded to the loss of triazole moiety in addition to half oxygen molecule. The last step assigned to the loss of the remaining part.

The four stages of HMBT-Ni₂ complex assigned to the loss of two coordinated water molecules within the first step and two methyl groups during the second step. The third corresponded to the loss of chlorine molecule and hydroxy phenyl group. The remaining organic ligand was forfeited within the fourth and last step of HMBT-Ni₂ decomposition resulting in the formation of the thermally stable NiO as a remnant product from with the metal content in the complex has been estimated to be 20.21% which is close to the calculated percent.

3.1.5

3.1.5 UV–Vis spectra and magnetic moment inspection

The nujel mull spectrum of HMBT-Ni₂ represents the existence of three spectral bands with high to moderate intensities centered at 245, 312 and 395 cm⁻¹ (Fig. 5). The first two bands have inter-ligand charge transfer character. The band centered at 395 cm⁻¹ is characterized by having mixed inter-ligand charge transfer and ligand to metal charge transfer character (Kundu et al., 2015). The characteristic weak low energy and broad d-d bands centered around 636 cm⁻¹ which can be accounted by a square planar geometry for Ni(II) complexes in agreement with the compound diamagnetism (Kundu et al., 2015; Ibrahim et al., 2018).

Close

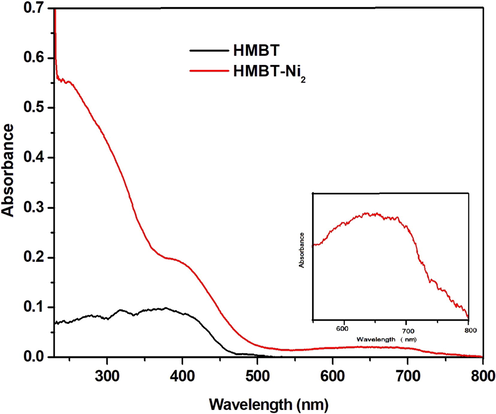

Fig. 5

UV–Vis spectra of HMBT and HMBT-Ni₂.

Export to PPT

3.1.6

3.1.6 Molecular modeling studies

The optimization of HMBT-Ni₂ structure was done using PM3 method implemented in HyperChem 8.0 program (HyperChem, 2007) to confirm the best geometrical arrangement of the ligand molecule around the Ni(II). The optimized structure of HMBT-Ni₂ due to the difficulty to get crystal structure. The optimized molecular structures of HMBT-Ni₂ are presented in Fig. 6. Table 1 represented some chosen bond distances and angles. From Fig. 6 and the data depicted in table 1, it is obvious that the nickel ions are positioned almost nearly in average flat plane delineated by the O and N donor atoms of the HMBT in addition to chloride ion and coordinated water oxygen atom. The cis angles around the Ni centers range from 87.00° to 99.72° approaching to the right angle. On the other hand, the trans angles, the smallest one is 170.16° and the largest is 174.41°, which are also the straight angle. Such angles ranges recommend marginally distorted square planar architecture around the Ni ions with almost no tetrahedral distortion (Ibrahim et al., 2018). Such distortion from the regular square planar structure is due to different character of the atoms forming the environment around the Ni(II) ions (Leovac et al., 2007).

Close

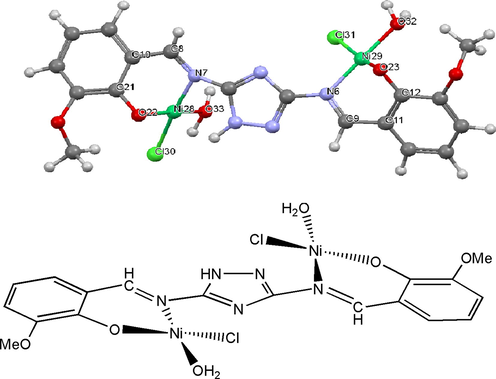

Fig. 6

The optimized and molecular structures of HMBT-Ni₂.

Export to PPT

Table 1 Some chosen bond lengths (Å) and angles (□) of HMBT-Ni_2.

Bond type	(Å)	Angle type	(□)
C11-C12	1.4467	H38-C27-H39	106.27
C12-O23	1.3145	N7-Ni28-O22	90.21
O23-Ni29	1.7955	N7-Ni28-Cl30	170.06
Ni29-O32	1.8766	O22-Ni28-Cl30	99.72
C4-N5	1.3611	O22-Ni28-O33	172.19
C4-N7	1.3855	N6-Ni29-Cl31	89.02
N6-C9	1.3025	O23-Ni29-O32	89
N6-Ni29	1.8696	Ni29-O32-H34	114.05
N7-C8	1.3055	Ni29-O32-H35	111.05
N7-Ni28	1.8163	Ni28-O33-H36	99.27

3.2 Performance characteristics of sensors

Four membrane compositions were investigated (Table 2). The statistical deviation data of slopes show that the preparation process is highly reproducible. Table 2 summarizes the response attributes of the fabricated selective electrodes of nickel ion. For each of these sensors, an evaluation of characteristics related to performance clearly demonstrated that the performance of sensors 1 membrane with o-NOPE plasticizer is optimal. The electrochemical behavior (Table 3) of the investigated sensor was examined in accordance with IUPAC recommendations (IUPAC, 2000). The sensor is known to show the widest working concentration range of 1 × 10⁻² – 1 × 10⁻⁸ M (Fig. 7), a Nernstian slope of 29.3 ± 0.2 mV/decade for electrode with membrane 1. Meanwhile, the proposed sensor’s minimum response time was shown to be 11 s (Fig. 8) by changing the Ni(II) concentration in a series of solutions (1.0 × 10⁻² to 1.0 × 10⁻⁷ mol l⁻¹).Such sensor gave detection limit of 5.0 × 10⁻⁸ M. Thus, cells that employed sensor 1 were used for all additional studies.

Close

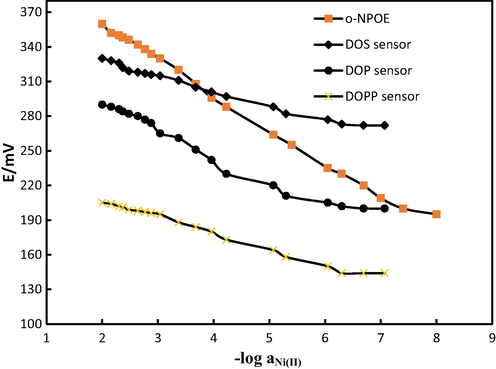

Fig. 7

Calibration curve of the Ni(II) membrane sensors.

Export to PPT

Close

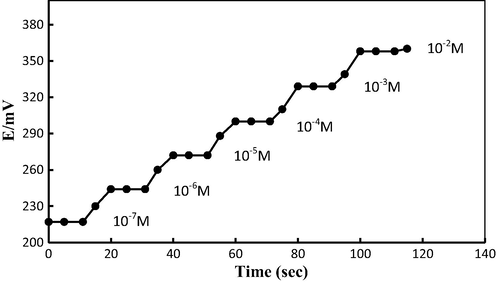

Fig. 8

Dynamic response time of the electrode for step changes in the concentration of Ni(II).

Export to PPT

3.3 Solvent mediators

It is important for plasticizers to maintain compatibility with polymers for ensuring feasible mechanical attributes. This study entailed the utilization of four variations of plasticizers (o-NPOE, DOP, DOPP, and DOS) with HMBT. The impact of various solvent mediators on the membrane response was studied after soaking in a solution of NiCl₂. The electrode having membrane types 1 yields an expected Nernstian response for Ni²⁺. This is ascertained by comparing the HMBT membrane’s calibration curves; one membrane contains o-NPOE (type-1), while others contain DOP (type-2), DOPP (type-3), or DOS (type-4). The type-1 membrane’s curve has a broader linear range of 10⁻⁷ to10⁻² M, whereas its Nernstian response was better, which was not the case with other membrane types (Fig. 7, Table 2). The response of electrode with membrane 1 is improved after the utilization of o-NOPE.

3.4 pH influence on the membrane response

The pH-profile of type-1 membrane is prepared for identifying the electrode’s ideal pH range. 10⁻³ and 10⁻² M Ni²⁺ solutions were used to examine the electrode measurements dependence on pH values. The adjustment of pH was done through the use of 0.1 M hydrochloric acid or 0.1 M sodium hydroxide. As far as type-1 membranes are concerned, the sensor’s functional pH range is 3–8 for the two solutions mentioned above (Fig. 9). The nickel ions’ hydrolysis caused the curves’ breakdown in the typical medium. When the medium is acidic, it is possible to observe an unexpected alteration at pH < 3 for all examined concentrations (10⁻³ and 10⁻² M).

Close

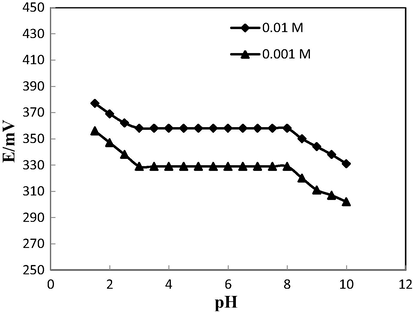

Fig. 9

pH-potential Profile of Ni(II) membrane sensors at different concentrations.

Export to PPT

3.5 Potentiometric selectivity

Selectivity coefficient K^pot _A;B. elucidates the impact of interfering ions on the sensor’s response behavior. Negative data of this coefficient implies that the investigated ion is preferred in relation to the interfering ion. Similarly, positive data means that an electrode is preferred in relation to the interfering ion. Notably, the measurements of selectivity coefficients are predicated on their method as well as activity. In this regard, the IUPAC recommends a couple of methods: separate solution method (SSM) and fixed interference method (FIM). This study utilized the SSM method to measure data of selectivity coefficient. Table 4 summarizes the resultant values. As shown in the table, the log K^pot_Ni;M values were negative for all tested ions. This implies that the ions will not interfere with or disturb the functionality of Ni ion selective membranes.

3.6 Comparison of the characteristics of Ni(II) sensor with those of the previously Ni(II) reported sensors

Table 5 shows a comparison of the limits of detection, dynamic ranges, slopes and pH ranges of the proposed sensoralso in comparison with previously reported Ni(II) sensors. The proposed sensor’s utility is proved with regard to the detection limit, dynamic range, as well as selectivity.

3.7 Analytical applications

The titration curve illustrates a sharp inflection point at the titrant volume that corresponds to the end point. The evaluation of Ni(II)–selective membrane was demonstrated and one successfully as an indicator electrode in the titration of Ni(II) ions with EDTA in order to detect nickel ions in solutions of 3–8 pH range. Fig. 10 shows the titration of a 10 ml solution of 1.0 × 10⁻² M of Ni(II) ions against 1.0 × 10⁻² M standard solution of EDTAat a pH of around 5.0. The titration curve’s end point is sharp and it is possible to determine the concentration of Ni(II) with good accuracy (1.0 ± 0.1) × 10⁻² M.

Close

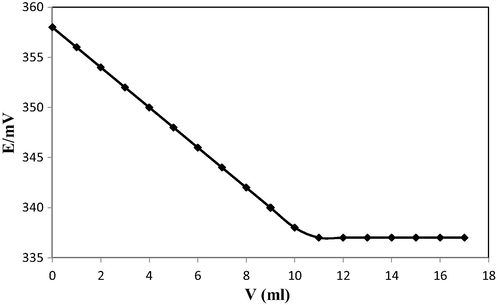

Fig. 10

Potentiometric titration curve of 10.0 ml of a 1.0 × 10⁻²M Ni(II) solution, with a 1.0 × 10⁻² M EDTA using the proposed membrane sensor as an indicator electrode.

Export to PPT

The statistical comparison for the proposed method’s data and the conventional volumetric technique (complexometric cyanide ions titration (Suzuki et al., 2003) (Table 6) was made in terms of precision and accuracy. The findings showed a good agreement between the results derived by visual complexometric cyanide ions titration as well as those of the proposed electrode. This does not indicate any major difference between the two methods in terms of either accuracy and precision. At the same time, it is possible to utilize the proposed sensor to analyze Ni²⁺ ion in real samples. The proposed method offers the advantages of high accuracy, simplicity, colored solutions, applicability to turbid, low cost, applicable for quality control of ionophore formulations, possible incorporation in automated systems, and rapidity.

Due to the prudent selectivity of Ni(II) sensor, it was used to directly monitor Ni(II) ions in binary mixtures. Table 7 shows the findings obtained through this procedure. It is evident that the recovery of Ni(II) ions in various binary mixtures is in the range of 92.8–100.5%.
