Nontoxic corrosion inhibitors for N80 steel in hydrochloric acid

1 Introduction

The N80 carbon steel has been generally used as the main construction material for down hole tubular, flow lines and transmission pipelines in petroleum industry. Acidization of a petroleum oil well is one of the important stimulation techniques for enhancing oil production. It is commonly brought about by forcing a solution of 15–28% hydrochloric acid into the well to remove plugging in the bore well and stimulate production in petroleum industry. To reduce the aggressive attack of the acid on tubing and casing materials (N80 steel), inhibitors are added to the acid solution during the acidifying process (Allen and Roberts, 1982). In the previous work various organic inhibitors have been tested for the corrosion inhibition of N80 steel in hydrochloric medium (Vishwanatham and Sinha, 2009; Emranuzaman et al., 2004; Quraishi et al., 2002; Neemla et al., 1989). Corrosion protection of N80 steel in HCl by condensation products of aniline and phenol, (Vishwanatham and Sinha, 2009) was studied. Corrosion inhibition of N80 steel in hot hydrochloric acid medium by disalicylidene acetone, dicinnamylidene acetone and divanilidene acetone was reported (Quraishi et al., 2002). Despite the vast number of corrosion inhibition investigations, there remains relatively few works directed toward the study of non-toxic organic compounds as corrosion inhibitors for steel in hydrochloric acid (Yadav and Sharma, 2011; Khaled, 2008; Hluchan et al., 1998; Ashassi-Sorkhabi et al., 2004; Ghareba and Omanoic, 2010). The effective acidizing inhibitors that are usually found in commercial formulations, suffer from drawbacks, they are effective only at high concentrations and they are harmful to the environment due to their toxicity, so it is important to search for new nontoxic and effective organic corrosion inhibitors for N80 steel – 15% hydrochloric acid system.

Thus, it was considered interesting to prepare nontoxic imidazoline compounds like 1-(2-aminoethyl)-2-oleylimidazoline (AEOI) and 1-(2-oleylamidoethyl)-2-oleylimidazoline (OAEOI) and to assess their inhibitive properties for oil-well tubular steel (N80) in 15% hydrochloric acid.

2 Experimental

Rectangular steel coupons in the size of 6.0 × 2.0 × 0.3 cm were cut from the N80 steel casing (supplied by ONGC) with a small hole ≈2 mm diameter at the upper edge of specimen for weight loss studies. For electrochemical studies the size of the electrodes was 1 × 1 × 1 cm with a 4 cm long tag for electrochemical contact. N80 steel sample used for the study was analyzed in MET-CHEM Laboratories, Baroda, India and found to have the composition, C(0.31%), S(0.008%), P(0.010%), Si(0.19%), Mn(0.92%), Cr(0.20%) and Fe the rest. The corrosive solution was 15% HCl, obtained by dilution of hydrochloric acid (Emerk, sp gravity ≈1.18) with distilled water. The inhibitor concentration in weight loss and electrochemical study was in the range of 10–150 ppm. The volume of test solution for weight loss and for electrochemical measurement was 300 and 150 ml, respectively. The test coupons were mechanically polished with different grades of emery papers and cleaned with acetone and washed with distilled water and finally dried in dry air before every experiment. After weighing accurately, the specimens were immersed in 300 ml of 15% HCl with and without the addition of different concentrations of inhibitors. After 6 h the coupons were taken out, washed, dried and weighed accurately. The temperature (30–50 °C) experiments were also carried out for a period of 6 h using water circulated Ultra thermostat (model NBE, Germany) with an accuracy of ±0.5 °C. Duplicate experiments were performed in each and the mean value of weight loss was reported. The corrosion inhibition ability of an inhibitor is expressed in terms of inhibitor efficiency and is determined by the percentage decrease in corrosion rate after inhibition test.

Corrosion rate (CR) for the specimen can be calculated in millimeter penetration per years (mmpy) with the help of the following equation:

The potentiodynamic polarization curves were recorded in the absence and presence of the inhibitors at different concentrations with N80 steel (area 1 cm²) as working electrode using Potentiostat (VoltaLab 10) at 25 °C. Experiments were performed with saturated calomel electrode as reference electrode and platinum as counter electrode. The potentiodynamic polarization study has been carried out at a steady state and at a scan rate of 10 mV/s and potential range from −400 to −550 mV. From the anodic and cathodic polarization curves, Tafel slopes (βa and βc) and corrosion current (I_corr) were obtained. For calculating %IE by electrochemical polarization method we use the following formula:

AC-impedance studies were carried out in a three electrode cell assembly using computer controlled VoltaLab 10 electrochemical analyser, using N80 steel as the working electrode, platinum as counter electrode and saturated calomel as reference electrode. The data were analyzed using Voltamaster 4.0 software. The electrochemical impedance spectra (EIS) were acquiredin the frequency range 10 kHz–1 mHz at the rest potential by applying 10 mV sine wave AC voltage. The charge transfer resistance (R_ct) and double layer capacitance (C_dl) were determined from Nyquist plots. The inhibition efficiencies were calculated from charge transfer resistance values by using the following formula:

Fourier transform infrared spectroscopic analysis was performed by Perkin Elmer FTIR, (model spectrum – 2000) on the corrosion product removed from metal panels after the immersion tests in the presence of the inhibitors. Morphology of the metal surface was studied with the help of scanning electron microscope model SEM Jeol JSM-5800. SEM micrographs were obtained for polished metal surface, metal surface exposed to 15% HCl solution for 6 h with and without inhibitor/inhibitor mixtures.

2.1

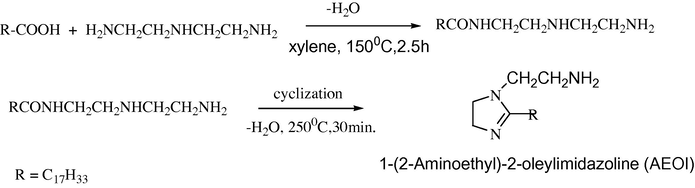

2.1 Synthesis of inhibitors

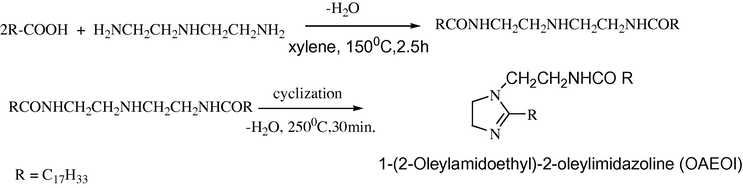

The imidazoline derivatives AEOI and OAEOI were synthesized by the reaction of oleic acid with diethylenetriamine in xylene as the solvent in 1:1 and 1:2 M ratio, respectively (Wang et al., 2003). The synthesis process was carried out in a three-necked flask with thermometer, stirrer and water splitter. The reactant was refluxed at 140–150 °C until no more water came over from the water splitter. The water splitter was removed, the pressure of the reaction system was adjusted to 14.12 kPa, and the reaction temperature was raised to 250 °C for another 30 min. The desired product was obtained. The purity of the product was checked by TLC. The yield was found to be 82% and 86%, respectively.

Close

Export to PPT

Close

Export to PPT

3 Results and discussion

3.1

3.1 Weight loss tests

The percentage inhibition efficiencies (%IE) in the presence of 10, 20, 50, 100 and 150 ppm of AEOI and OAEOI have been evaluated by weight loss technique after 6 h of immersion and at 25 °C. The corrosion rate (CR) and inhibition efficiency obtained by weight loss data are shown in Table 1. It is evident from these values that both the inhibitors are significantly effective even at low concentrations, like 10 ppm and there is a linear increase in %IE in the whole range of concentrations studied. The variation in inhibition efficiency with concentration is shown in Fig. 1. It is evident from Fig. 1 that inhibition efficiencies (IE) of both the inhibitors increase with increase in concentration and becomes more or less constant at 150 ppm.

Table 1 Effect of inhibitors concentration on corrosion of N80 steel at 25 °C.

Conc. (ppm)	OAEOI		AEOI
	CR (mmpy)	%IE	CR (mmpy)	%IE
0	9.54	–	9.54	–
10	2.93	69.25	3.41	64.25
20	1.97	81.32	2.66	72.16
50	1.02	88.26	1.78	81.36
100	0.46	93.16	1.1	88.45
150	0.26	96.23	0.93	90.26

Close

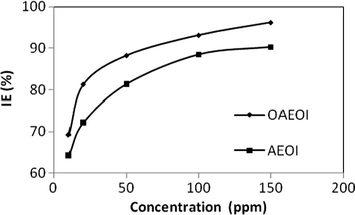

Figure 1

Inhibition efficiency (%IE) vs. concentration (ppm) of OAEOI and AEOI at 25 °C.

Export to PPT

3.2

3.2 Electrochemical polarization studies

Electrochemical polarization behavior in the presence of 20, 100 and 150 ppm of AEOI and OAEOI for N80 steel in 15% HCl at 25 °C is shown in Figs. 2 and 3 and various parameters obtained are given in Table 2. The curves in Figs. 2 and 3, illustrate that the nature of the curve remains almost same even after the addition of the inhibitors and also on increasing the concentration of the inhibitors indicating that the inhibitor molecules retard the corrosion process without changing the mechanism of corrosion process in the medium of investigation (Rastogi et al., 2003). The anodic and cathodic polarization curves shifted toward lower current density in the presence of both the inhibitors indicating the mixed nature of the inhibitors. The increase in the cathodic and anodic Tafel slopes (β_c and β_a) is related to the decrease in both the cathodic and anodic currents. The minor shift in the value of corrosion potential (E_corr.) in the presence of both the inhibitors also support the mixed nature of the inhibitors (Badr, 2009).

Close

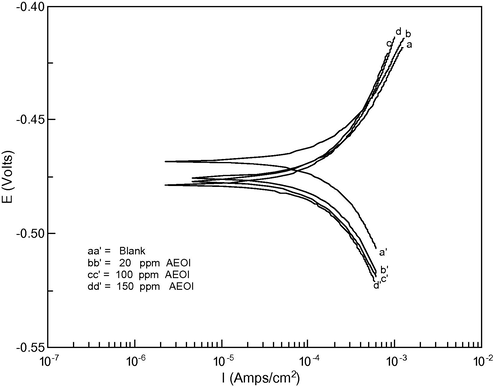

Figure 2

Polarization curves for N80 steel in 15% HCl containing various concentrations of AEOI at 25 °C.

Export to PPT

Close

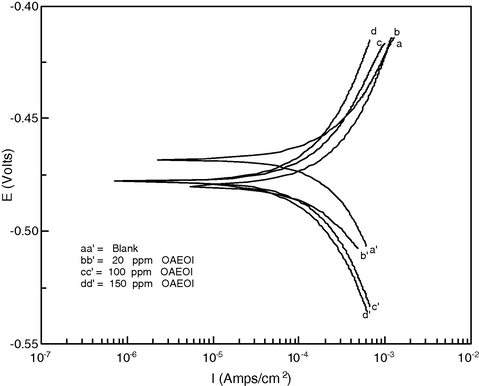

Figure 3

Polarization curves for N80 steel in 15% HCl containing various concentrations of OAEOI at 25 °C.

Export to PPT

Table 2 Potentiodynamic polarization parameters of the corrosion of N80 steel in 15% HCl in the absence and presence of different concentrations of OAEOI and AEOI at 25 °C.

Inhibitors	Conc. of Inhibitors (ppm)	Tafel slope		Icorr (μA cm−2)	Ecorr (mV)	%IE	%IE from wt. loss
		Anodic βa	Cathodic βc
Blank OAEOI	0	109	153	471.4	−468	–	–
	20	135	181	84.9	−480	82.45	81.32
	100	142	186	37.7	−477	92.26	93.16
	150	148	198	23.6	−477	95.01	96.23
AEOI	20	132	178	136.7	−474	71.33	72.16
	100	140	182	108.4	−475	87.16	88.45
	150	146	191	42.4	−478	91.16	90.26

3.3

3.3 Electrochemical impedance spectroscopy (EIS)

The impedance data of N80 steel, recorded in the presence of 10, 20, 50, 100 and 150 ppm of the inhibitor OAEOI in 15% HCl solution at 25 °C as Nyquist plots are shown in Fig. 4. The calculated equivalent circuit parameters for N80 steel in 15% HCl solution at 25 °C in the presence of 10, 20, 50, 100 and 150 ppm of the inhibitor is presented in Table 3. From the data in Table 3, it is clear that the value of R_ct increases on increasing the concentration of the inhibitor, indicating that the corrosion rate decreases in the presence of the inhibitor. It is also clear that the value of C_dl decreases on the addition of inhibitors, indicating a decrease in the local dielectric constant and/or an increase in the thickness of the electrical double layer, suggesting the inhibitor molecules function by the formation of the protective layer at the metal surface (Ahamad et al., 2010).

Close

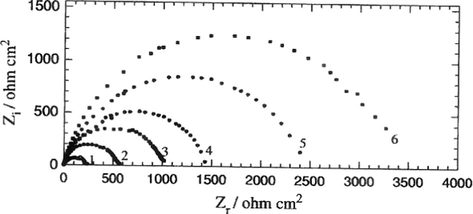

Figure 4

Nyquist plot for N80 steel in 15% HCl acid containing various concentrations of OAEOI (1) 0.0 ppm (2) 10 ppm (3) 20 ppm (4) 50 ppm (5) 100 ppm (6) 150 ppm at 25 °C.

Export to PPT

Table 3 Equivalent circuit parameters and inhibition efficiency for N80 steel in 15% HCl acid in the presence of OAEOI at 25 °C.

Conc. (ppm)	Rct (Ω cm2)	Cdl (μF cm−2)	%IE
0	182	34.35	–
10	587	26.54	68.99
20	1015	23.65	82.07
50	1460	21.26	87.53
100	2450	18.38	92.57
150	3466	15.76	94.75

In order to confirm the potentiodynamic results, the corrosion inhibition efficiencies (IE) in the presence of 10, 20, 50, 100 and 150 ppm concentrations of the inhibitor OAEOI in 15% HCl acid at 25 °C were also calculated from the corresponding electrochemical impedance data and is given in Table 3. The corrosion inhibition efficiencies calculated from impedance data are in good agreement with those obtained from electrochemical polarization data and weight loss measurement.

3.4

3.4 Effect of temperature and thermodynamic parameters of inhibitor adsorption

Experiments were carried out at different temperature (298–323 K) in the presence of 150 ppm of inhibitors. It has been found that the corrosion rate increases with the increase in temperature for both the inhibitors (Table 4). The corrosion rate of N80 steel in the absence of inhibitors increased steeply from 303 to 323 K whereas, in the presence of inhibitors the corrosion rate increased slowly. The inhibition efficiency was found to decrease with temperature. The results show that the inhibition efficiency offered by AEOI and OAEOI was 70.37% and 76.43%, respectively at 323 K. The corrosion parameter in the absence and presence of inhibitors in the temperature range 298–323 K has been summarized in Table 4.

Table 4 Immersion test result of N80 steel in 15% HCl in the presence of 150 ppm concentration of inhibitors at different temperature (303–323 K).

Inhibitor	Temp (K)	%IE	CR (mmpy)	ΔH (kJ/mol)	Ea (kJ/mol)	ΔGads (kJ/mol)	ΔS (J/mol)
Blank	298	–	9.54				–
	303		12.09
	313		19.27	−35.64	38.9	–	–
	323		30.42
OAEOI	298	96.23	0.26
	303	89.45	1.28
	313	83.16	3.25	−89.65	72.63	−68.75	−21.17
	323	76.43	7.17
AEOI	298	90.26	0.93
	303	85.16	1.79
	313	78.14	4.21	−94.40	66.18	−52.12	−31.20
	323	70.37	9.01

The apparent activation energy (E_a) for dissolution of N80 steel in 15% HCl was calculated from the slope of plots by using Arrhenius equation:

(5)

$$\log k=-E_{\text{a}}/2.303\mathit{RT}+\text{log}A$$ where k is rate of corrosion, E_a is the apparent activation energy, R is the universal gas constant, T is absolute temperature and A is the Arrhenius pre-exponential factor. By plotting log k against 1/T the values of activation energy (E_a) has been calculated (E_a = −(slope) × 2.303 × R) (Fig. 5). Activation energy for the reaction of N80 steel in 15% HCl increases in the presence of inhibitors (Table 4). The increase in activation energy E_a indicates the retardation in corrosion rate which could have occurred because of adsorption of the inhibitors at the surface of the metal (Popova et al., 2003).

Close

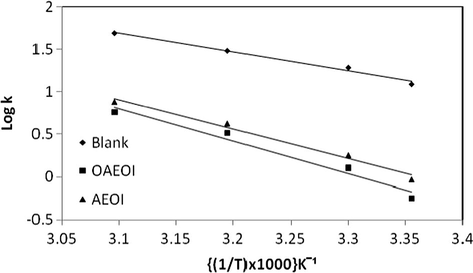

Figure 5

Arrhenius plot for AEOI and OAEOI.

Export to PPT

The values of change of entropy (ΔS) and change of enthalpy (ΔH) can be calculated by using the formula:

(6)

$$k=(\mathit{RT}/\mathit{Nh})\exp (\mathrm{\Delta }S/R)\exp (\mathrm{\Delta }H/\mathit{RT})$$ where k is rate of corrosion, h is Planks constant, N is Avogadro number, ΔS is the entropy of activation, and ΔH is the enthalpy of activation. A plot of log (k/T) vs. 1/T (Fig. 6) should give a straight line, with a slope of (−ΔH/2.303R) and an intercept of [log (R/Nh) + ΔS/2.303R], from which the values of ΔS and ΔH can be calculated (Table 4).

Close

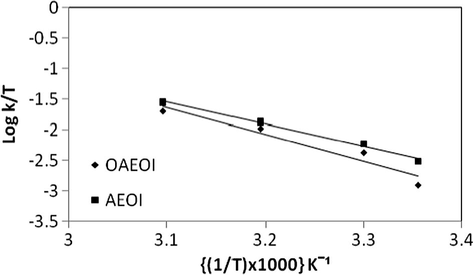

Figure 6

Transition state plot for AEOI and OAEOI.

Export to PPT

The negative value of ΔS (Table 4) for both the inhibitors indicates that activated complex in the rate determining step represents an association rather than a dissociation step, meaning that a decrease in disorder takes place during the course of transition from reactant to the activated complex (Saliyan and Adhikari, 2007). The negative sign of ΔH indicates that the adsorption of inhibitor molecules is an exothermic process. Generally, an exothermic process signifies either physisorption or chemisorption or a combination of both. Typically, the enthalpy of physisorption process is lower than that of 40.00 kJ/mol while the enthalpy of chemisorptions process approaches 100 kJ/mol (Kosari et al., 2011). In the present study the absolute value of the heat of adsorption ΔH° for AEOI and OAEOI was found −94.40 and −89.65 kJ/mol (Table 4), indicating the chemisorptions of the inhibitors at the surface of N80 steel. The average values for free energy of adsorption (ΔG_ads), were calculated using the following equation:

(7)

$$K=\frac{1}{55.5}\exp \left(\frac{-\mathrm{\Delta }{G}_{\mathit{ads}}}{\mathit{RT}}\right)$$ where θ is degree of coverage on metal surface, C is concentration of inhibitors in mol l⁻¹, R is molar gas constant in J K⁻¹ mol⁻¹ and T is temperature. The value of 55.5 in the above equation is the concentration of water in the solution in mol/liter. The equilibrium constant (K) has been replaced by the equation $\left[K=\frac{\theta }{(1-\theta )\times C}\right]$ By plotting log k against 1/T the value of ΔG_ads can be calculated (ΔG_ads = −2.303 × R × Slope) from the slope of the straight line obtained (Fig. 7). The standard free energy of adsorption (ΔG_ads) for AEOI and OAEOI was found to be −52.12 and −68.75 kJ/mol (Table 4), respectively, indicating that the inhibitors were adsorbed on the metal surface by chemisorption (Tao et al., 2009). The negative values indicate the spontaneity of the adsorption process and stability of the adsorbed layer on N80 steel surface.

Close

Figure 7

Variation of log K_equ with 1/T for N80 steel in 15% HCl in presence of OAEOI and AEOI.

Export to PPT

3.5

3.5 Adsorption isotherms

The mechanism of corrosion inhibition may be explained on the basis of adsorption behavior. The most frequently used adsorption isotherms are Langmuir, Temkin, and Frumkin. The degree of surface coverage (θ) for different concentrations of inhibitor in 15% hydrochloric acid has been evaluated by weight loss value. The data were tested graphically by fitting to various isotherms. A straight line is obtained on plotting log (θ/1−θ) and θ against log C (Figs. 8 and 9) suggesting that adsorption of the compound on the surface of N80 steel follows Langmuir as well as Temkin adsorption isotherm (Singh et al., 2003).

Close

Figure 8

Langmuir plots for AEOI and OAEOI.

Export to PPT

Close

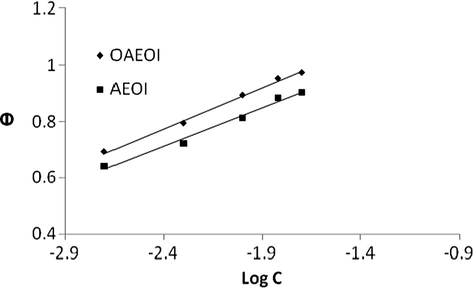

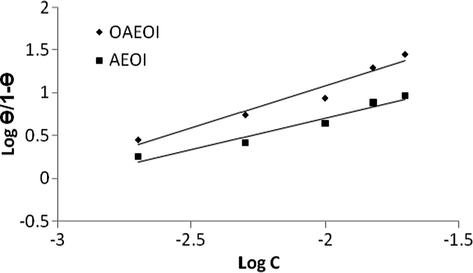

Figure 9

Temkin plots for AEOI and OAEOI.

Export to PPT

3.6

3.6 SEM study

Fig. 10 (a, b, c, d) shows the microphotographs for N80 steel in 15% hydrochloric acid in the absence and presence of 150 ppm of OAEOI at 200× magnification. On comparing these micrographs, it appears that in the presence of inhibitors, the surface of the test material has improved remarkably with respect to its smoothness. The smoothening of the surface would have been caused by the adsorption of inhibitor molecules on it and thus, the surface is fully covered.

Close

Figure 10

SEM of (a) polished sample (b) sample in presence of 15% hydrochloric acid (c) sample in presence of 150 ppm of OAEOI.

Export to PPT

3.7

3.7 FTIR spectroscopic analysis of corrosion product

The products formed on the metal surface after the corrosion test in acid in the presence of the AEOI and OAEOI were analyzed using the FTIR spectrophotometer (Figs. 11 and 12). A band at 3210 and 3250 cm⁻¹ (Finar, 1998) was observed for AEOI and OAEOI, respectively, which may indicate N–H stretching for amino group present in AEOI and OAEOI. A peak observed at 2980 and 2990 cm⁻¹ in the spectrum of AEOI and OAEOI, respectively, indicates C–H stretching of methyl group. A peak at 1620 and 1610 cm⁻¹ in the spectrum of AEOI and OAEOI, respectively, indicated N⚌C–N stretching of imidazoline ring. A peak at 1690 cm⁻¹ in the spectrum is attributed to C⚌O stretching of carbonyl group. The presence of all the groups present in pure AEOI and OAEOI in the spectrum of the surface product indicate the adsorption of inhibitors AEOI and OAEOI at the surface of N80 steel.

Close

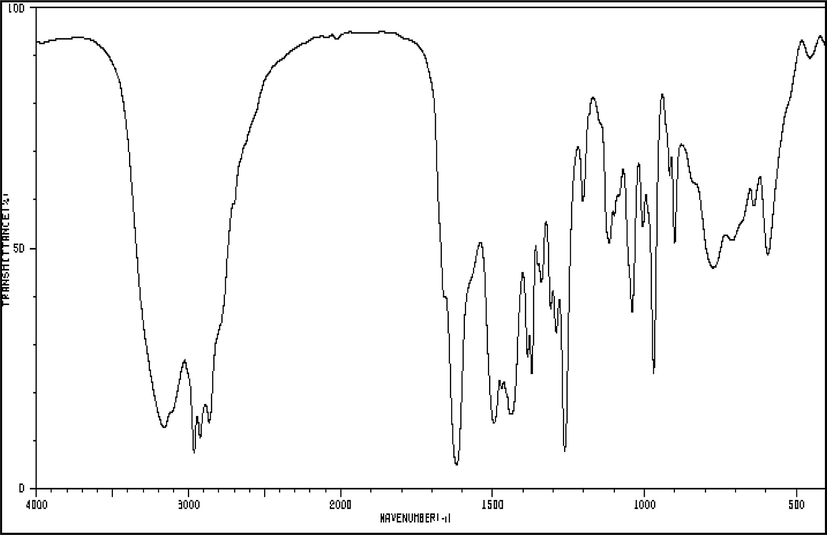

Figure 11

FTIR spectrum of surface product formed on the metal after the corrosion test in presence of inhibitor AEOI.

Export to PPT

Close

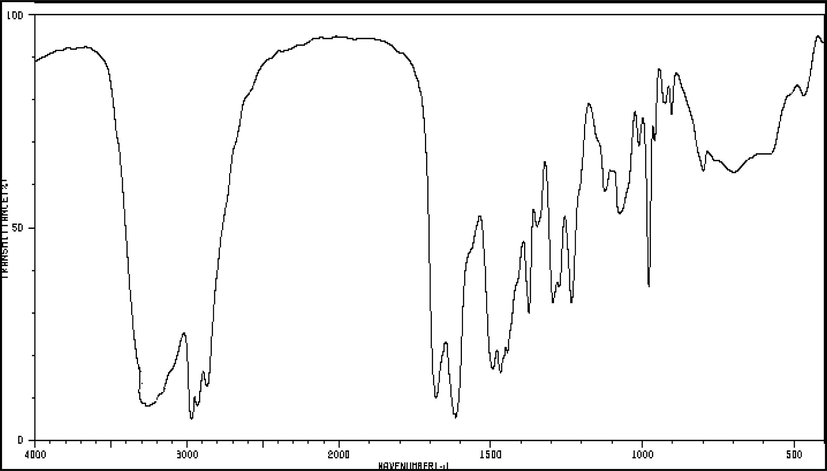

Figure 12

FTIR spectrum of surface product formed on the metal after the corrosion test in the presence of inhibitor OAEOI.

Export to PPT

4 Discussion

The protective action of the inhibitors AEOI and OAEOI were considered in the context of their adsorption on the metal surface. In acid solution, the inhibitors can exist as protanated species which may be adsorbed through electrostatic interaction between the positively charged inhibitor molecules and the negatively charged metal surface. Adsorption of the unprotonated inhibitors AEOI and OAEOI on the metal may occur by the interaction between the vacant d-orbital of iron atom at the surface and the lone pair electron of nitrogen atom present in the inhibitors. The mechanism of inhibition of corrosion is believed to be through the formation of a protective film on the metal surface. Further, when log (θ/1−θ) and θ are plotted against log C, straight lines are obtained for both the inhibitors (Figs. 8 and 9) suggesting inhibitors adsorption following Langmuir isotherm and Tempkin isotherm. The inhibition efficiency of OAEOI is higher than that of AEOI due to its larger size and the presence of more number of active atoms. The adsorption is occurring through nitrogen of amino group and nitrogen and delocalized π-electrons of the imidazoline ring. The presence of π-electrons of the imidazoline ring and large hydrophobic hydrocarbon chain facilitates the adsorption process at the surface of the metal. The lowering of inhibition efficiency with temperature may be due to higher desorption rate at higher temperature. The increase in activation energy in the presence of inhibitors is due to the formation of a barrier at the surface of the steel which prevents the dissolution of the metal. The negative value of G_ads and ΔH indicate that the adsorption is spontaneous and exothermic process, respectively.

5 Conclusions

Both the inhibitors AEOI and OAEOI act as efficient corrosion inhibitors for N80 steel in 15% HCl solution. OAEOI shows appreciably higher efficiency than the AEOI due to the presence of more number of active centers and larger size as compared to the inhibitor AEOI. Both the inhibitors act as mixed inhibitors. It is suggested from the results obtained from SEM and Langmuir adsorption isotherm that the mechanism of corrosion inhibition is occurring through adsorption process. EIS measurements show that charge transfer resistance (R_ct) increases and double layer capacitance (C_dl) decreases in the presence of inhibitors indicating the adsorption of the inhibitors at the surface of N80 steel.
