Novel pyrimidine and its triazole fused derivatives: Synthesis and investigation of antioxidant and anti-inflammatory activity
*Corresponding author. Tel.: +91 9241752830; fax. +91 8234287242 chetanbhalgat2004@yahoo.co.in (Chetan M. Bhalgat) chetanbhalgat2004@gmail.com (Chetan M. Bhalgat)
-
Received: ,
Accepted: ,
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.
Available online 30 December 2010
Peer review under responsibility of King Saud University.
Abstract
In the present study, we have carried out the synthesis of novel dihydropyrimidinecarbonitrile (1a–c), its dimethylated adduct (2a–c), and hydrazine derivative (3a–c) of 2a–c and its triazole fused derivatives (4a–c, 5a–c and 6a–c). The structure of newly synthesized compounds was confirmed by IR, 1H NMR, mass spectral data and elemental analysis. Further the novel derivatives were investigated for their in vitro antioxidant and anti-inflammatory activity. The results revealed that some of the tested compounds showed potent antioxidant and anti-inflammatory activity. The mass spectral pattern of 6a has been investigated in order to elucidate the structure.
Keywords
Dihydropyrimidinecarbonitrile
Triazole fused pyrimidine
Antioxidant
Anti-inflammatory activity
1 Introduction
Pyrimidine, being an integral part of DNA and RNA, imparts to diverse pharmacological properties as effective bactericide and fungicide (Williams and Cline, 1936; Reidlinger and Dworczak, 1994; Hardtman and Otto, 1972). Certain pyrimidine derivatives were also known to exhibit antimalarial (Brown and Evans, 1985), antifilarial (Brown and Rees, 1984), antioxidant (Vanessa et al., 2010; Prasenjit et al., 2010) and anti-HIV activities (Okabe et al., 1991). Some of the 3,4-dihydropyrimidines (DHPM) have emerged as integral backbones of several calcium channel blockers, antihypertensive agents, adrenergic and neuropeptide antagonist (Pasha et al., 2005). Several alkaloids containing 3,4-dihydropyrimidine have been isolated from marine sources and among them the batzelladine alkaloids are found to be potent HIV-gp-120-CD4 inhibitors (Kappe, 2000; Kappe et al., 2005; Patil et al., 1995).
Along with the varied biological activities of pyrimidine, other heterocycles fused with pyrimidines play an essential role in several biological processes and have a considerable chemical and pharmacological importance. Triazole in association with the pyrimidine has shown good antifungal (Singh et al., 2004) and hypoglycemic action (Agarwal, 1991). [1,2,4]Triazole fused pyrimidine exhibit good antimicrobial activity (Fathy et al., 2004), antitumour activity (Swelam, 1998), analgesic, anti-inflammatory and ulcerogenic activities (Hend et al., 2008).
In the view of the facts mentioned above and as part of our initial efforts to discover potentially active new agents. Hence, we have synthesized some new dihydropyrimidinecarbonitrile and its triazole fused derivatives. The novel derivatives were characterized by spectral data and elemental analysis and these compounds were used for their antioxidant and anti-inflammatory screening. Compound 6a is one of the final triazole derivatives of pyrimidine and its intermediates 1a and 3a have shown good antioxidant activity so we have described the electron spray ionization mass spectral fragmentation of 6a.
2 Materials and methods
2.1 Materials and reagents
Unless otherwise noted, materials were obtained from commercial suppliers and used without further purification. Melting point was determined by Micro control based melting point instrument and is uncorrected. All reactions were monitored by thin-layer chromatography on 0.25 mm silica gel (60GF-254) plates, by using ethyl acetate: butanol: chloroform in the ratio of [1:2:1] as mobile phase and visualized with UV light. Column chromatography was performed on silica gel (200–300 mesh). Infra red (IR) spectra was recorded by using KBr disk on a Thermo Nicolate IR-400 FTIR spectrophotometer, 1H NMR spectra was recorded on Bruker Avance-300F spectrometer (300 MHz) using tetramethylsilane as internal standard (chemical shift in δ ppm). Mass spectra were recorded on a Triple Quadrupole LC–MS–MS (Sciex with ESI source) spectrometer. The elemental analysis was carried out by using Heraus CHN rapid analyzer. All the compounds gave C, H and N analysis within ±1.2% of the theoretical values. Spectra facilities and elemental analysis were carried out by Department of University scientific instrument centre, Karnatak University, Dharwad, India and Suven Life Sciences, Hyderabad India.
2.2 Synthesis
2.2.1 General procedure for the synthesis of 6-oxo-4-substituted aryl-2-sulfanyl-1,6-dihydropyrimidine-5-carbonitrile (1a–c)
Mixture equimolar quantities of ethyl cyanoacetate (5.7 g, 50 mmol), thiourea (3.8 g, 50 mmol), appropriate aromatic aldehyde (50 mmol) and potassium carbonate (6.9 g, 50 mmol) in absolute ethanol (50 ml) was gently refluxed till the completion of reaction. The reaction mixture was neutralized with glacial acetic acid to precipitate out the product. The product was isolated and recrystallized from ethanol as yellow crystals.
2.2.2 General procedure for the synthesis of 1-methyl-2-(methylsulfanyl)-6-oxo-4-substituted aryl-1,6-dihydropyrimidine-5-carbonitrile (2a–c)
To a solution of 6-oxo-4-substituted aryl-2-sulfanyl-1,6-dihydropyrimidine-5-carbonitrile (1a–c, 20 mmol) in N,N-dimethyl formamide (DMF, 30 ml), potassium carbonate (5.52 g, 40 mmol) and methyl iodide (5.68 g, 40 mmol) were added and stirred till the completion of reaction at room temperature. Then the reaction mixture was diluted with cold water and neutralized by glacial acetic acid. The product was filtered off and recrystallized from ethanol as creamy crystals.
2.2.3 General procedure for the synthesis of 2-hydrazinyl-1-methyl-6-oxo-4-substituted aryl-1,6-dihydropyrimidine-5-carbonitrile (3a–c)
A mixture of compound 1-methyl-2-(methylsulfanyl)-6-oxo-4-substituted aryl-1,6-dihydropyrimidine-5-carbonitrile (2a–c, 10 mmol) and hydrazine hydrate (80%, 1.90 g, 30 mmol) in absolute alcohol was refluxed till the completion of reaction. The reaction mixture was poured into crushed ice. Then the product was isolated and recrystallized from ethanol/DMF mixture as yellow crystals.
2.2.4 General procedure for the synthesis of 8-methyl-7-oxo-5-substituted aryl-7,8-dihydro[1,2,4]triazolo[4,3-α]pyrimidine-6-carbonitrile (4a–c)
A mixture of compound 2-hydrazinyl-1-methyl-6-oxo-4-substituted aryl-1,6-dihydropyrimidine-5-carbonitrile (3a–c, 5 mmol) in 20 ml formic acid was refluxed till the completion of reaction. The excess of formic acid was distilled. The reaction mixture after cooling was poured into crushed ice. Then the product was isolated and recrystallized from DMF as yellow crystals.
2.2.5 General procedure for the synthesis of 3,8-dimethyl-7-oxo-5-substituted aryl-7,8-dihydro[1,2,4]triazolo[4,3-α]pyrimidine-6-carbonitrile (5a–c)
A mixture of compound 2-hydrazinyl-1-methyl-6-oxo-4-substituted aryl-1,6-dihydropyrimidine-5-carbonitrile (3a–c, 5 mmol) in 20 ml acetic anhydride was refluxed till the completion of reaction. The excess of acetic anhydride was distilled. The reaction mixture after cooling was poured into crushed ice. Then the product was isolated and recrystallized from DMF as yellow crystals.
2.2.6 General procedure for the synthesis of 8-methyl-7-oxo-3-phenyl-5-substituted aryl-7,8-dihydro[1,2,4]triazolo[4,3-α]pyrimidine-6-carbonitrile (6a–c)
A mixture of compound 2-hydrazinyl-1-methyl-6-oxo-4-substituted aryl-1,6-dihydropyrimidine-5-carbonitrile (3a–c, 5 mmol) in 20 ml benzoyl chloride was refluxed till the completion of reaction. The excess of benzoyl chloride was distilled. The reaction mixture after cooling was poured into crushed ice. Then the product was obtained as semisolid.
The physical constants and spectral (IR, 1H NMR, mass) characterization and elemental analysis supported the structure of various synthesized compounds (Tables 1 and 2). S.S.Ψ – semisolid.
Compound
Chemical name
Ar
Reaction time (h)
Yield (%)
M.P. (°C)
Mol. formula
Rf value#
1a
6-Oxo-4-phenyl-2-sulfanyl-1,6-dihydropyrimidine-5-carbonitrile
C6H5
10
53
235–238
C11H7N3OS
0.45
1b
4-(3-Methoxyphenyl)-6-oxo-2-sulfanyl-1,6-dihydropyrimidine-5-carbonitrile
3-OCH3·C6H4
14
61
237–240
C12H9N3O2S
0.49
1c
6-Oxo-2-sulfanyl-4-(3,4,5-trimethoxyphenyl)-1,6-dihydropyrimidine-5-carbonitrile
3,4,5-(OCH3)C6H2
12
63
220–222
C14H13N3O4S
0.52
2a
1-Methyl-2-(methylsulfanyl)-6-oxo-4-phenyl-1,6-dihydropyrimidine-5-carbonitrile
C6H5
3
62
148–150
C13H11N3OS
0.56
2b
4-(3-Methoxyphenyl)-1-methyl-2-(methylsulfanyl)-6-oxo-1,6-dihydropyrimidine-5-carbonitrile
3-OCH3·C6H4
4
66
175–178
C14H13N3O2S
0.58
2c
1-Methyl-2-(methylsulfanyl)-6-oxo-4-(3,4,5-trimethoxyphenyl)-1,6-dihydropyrimidine-5-carbonitrile
3,4,5-(OCH3)C6H2
4
59
210–212
C16H17N3O4S
0.6
3a
2-Hydrazinyl-1-methyl-6-oxo-4-phenyl-1,6-dihydropyrimidine-5-carbonitrile
C6H5
6
71
275–277
C12H11N5O
0.58
3b
2-Hydrazinyl-4-(3-methoxyphenyl)-1-methyl-6-oxo-1,6-dihydropyrimidine-5-carbonitrile
3-OCH3·C6H4
5
70
280–283
C13H13N5O2
0.59
3c
2-Hydrazinyl-1-methyl-6-oxo-4-(3,4,5-trimethoxyphenyl)-1,6-dihydropyrimidine-5-carbonitrile
3,4,5-(OCH3)C6H2
7
66
252–255
C15H17N5O4
0.61
4a
8-Methyl-7-oxo-5-phenyl-7,8-dihydro[1,2,4]triazolo[4,3-a]pyrimidine-6-carbonitrile
C6H5
6
72
250–252
C13H9N5O
0.59
4b
5-(3-Methoxyphenyl)-8-methyl-7-oxo-7,8-dihydro[1,2,4]triazolo[4,3-a]pyrimidine-6-carbonitrile
3-OCH3·C6H4
9
67
258–260
C14H11N5O2
0.57
4c
8-Methyl-7-oxo-5-(3,4,5-trimethoxyphenyl)-7,8-dihydro[1,2,4]triazolo[4,3-a]pyrimidine-6-carbonitrile
3,4,5-(OCH3)C6H2
7
55
296–298
C16H15N5O4
0.62
5a
3,8-Dimethyl-7-oxo-5-phenyl-7,8-dihydro[1,2,4]triazolo[4,3-a]pyrimidine-6-carbonitrile
C6H5
7
69
265–268
C14H11N5O
0.61
5b
5-(3-Methoxyphenyl)-3,8-dimethyl-7-oxo-7,8-dihydro[1,2,4]triazolo[4,3-a]pyrimidine-6-carbonitrile
3-OCH3·C6H4
7
62
251–254
C15H13N5O2
0.63
5c
3,8-Dimethyl-7-oxo-5-(3,4,5-trimethoxyphenyl)-7,8-dihydro[1,2,4]triazolo[4,3-a]pyrimidine-6-carbonitrile
3,4,5-(OCH3)C6H2
8
57
287–290
C17H17N5O4
0.68
6a
8-Methyl-7-oxo-3,5-diphenyl-7,8-dihydro[1,2,4]triazolo[4,3-a]pyrimidine-6-carbonitrile
C6H5
7
61
S.S.Ψ
C19H13N5O
0.54
6b
5-(3-Methoxyphenyl)-8-methyl-7-oxo-3-phenyl-7,8-dihydro[1,2,4]triazolo[4,3-a]pyrimidine-6-carbonitrile
3-OCH3·C6H4
9
48
S.S.Ψ
C20H15N5O2
0.55
6c
8-Methyl-7-oxo-3-phenyl-5-(3,4,5-trimethoxyphenyl)-7,8-dihydro[1,2,4]triazolo[4,3-a]pyrimidine-6-carbonitrile
3,4,5-(OCH3)C6H2
8
54
S.S.Ψ
C22H19N5O4
0.57
Compound
IR (KBr) ν (cm−1)
1H NMR DMSO-δ (ppm)
Mass m/z
% Calculated (found)
C
H
N
1a
3655 (NH), 2204 (C≡N), 1633 (C⚌O), 1514 (C⚌N)
7.46–7.87 (m, 5H, Ar-H), 11.60 (s, 1H, NH), 1.46 (s, 1H, SH)
230.4 M+1
57.63 (57.60)
3.08 (3.05)
18.33 (18.30)
1b
3645 (NH), 2214 (C≡N), 1636 (C⚌O), 1581 (C⚌N), 1234 (C–O–C)
6.81–7.18 (m, 4H, Ar-H), 3.68(s, 3H, OCH3), 10.93 (S, 1H, NH), 1.74 (s, 1H, SH)
260.3 M+1
55.59 (55.60)
3.50 (3.50)
16.21 (16.20)
1c
3631 (NH), 2203 (C≡N), 1628 (C⚌O), 1509 (C⚌N), 1243 (C–O–C)
7.12 (s, 2H, Ar-H), 3.53 (s, 9H, OCH3), 11.17 (s,1H,NH), 1.61 (s, 1H, SH)
320.3 M+1
52.66 (52.58)
4.10 (4.07)
13.16 (13.15)
2a
2219 (C≡N), 1681 (C⚌O), 1551 (C⚌N), 1365 (C–N)
7.59–7.97 (m, 5H, Ar-H), 2.63 (s, 3H, S–CH3), 4.11 (s, 3H, N–CH3)
258.3 M+1
60.68 (60.69)
4.31 (4.30)
16.33 (16.35)
2b
2217 (C≡N), 1670 (C⚌O), 1598 (C⚌N), 1368 (C–N), 1257 (C–O–C)
6.92–7.15 (m, 4H, Ar-H), 1.96 (s, 3H, S–CH3), 2.98 (s, 3H, N–CH3), 3.72 (s, 3H, OCH3)
288.4 M+1
58.52 (58.46)
4.56 (4.53)
14.62 (14.60)
2c
2210 (C≡N), 1668 (C⚌O), 1587 (C⚌N), 1365 (C–N), 1242 (C–O–C)
7.08 (s, 2H, Ar-H), 2.14 (s, 3H, S–CH3), 3.21 (s, 3H, N–CH3), 4.11 (s, 9H, OCH3)
348.4 M+1
55.32 (55.34)
4.93 (4.92)
12.10 (12.12)
3a
3339 (NH–NH2), 2206 (C≡N), 1695 (C⚌O), 1619 (C⚌N)
7.51–7.91 (m, 5H, Ar-H), 2.09 (s, 1H, NH), 2.50 (s, 2H, NH2), 3.21 (s, 3H, N–CH3)
242.4 M+1
59.74 (59.72)
4.60 (4.59)
29.03 (29.04)
3b
3261 (NH–NH2), 2218 (C≡N), 1667 (C⚌O), 1599 (C⚌N), 1253 (C–O–C)
6.72–7.04 (m, 4H, Ar-H), 1.94 (s, 1H, NH), 2.17 (s, 2H, NH2), 2.91 (s, 3H, N–CH3), 3.88 (s, 3H, OCH3)
272.3 M+1
57.56 (57.50)
4.83 (4.80)
25.82 (25.76)
3c
3326 (NH–NH2), 2214 (C≡N), 1664 (C⚌O), 1595 (C⚌N), 1246 (C–O–C)
6.56 (s, 2H, Ar-H), 1.83 (s, 1H, NH), 2.08 (s, 2H, NH2), 3.09 (s, 3H, N–CH3), 4.01 (s, 9H, OCH3)
333.3 M+1
54.38 (54.22)
5.17 (5.11)
21.14 (21.09)
4a
2230 (C≡N), 1680 (C⚌O), 1624 (C⚌N), 1320 (C–N)
7.40–7.92 (m, 5H, Ar-H), 8.28 (s, 1H, CH-triazole), 2.41 (s, 3H, N–CH3)
252.3 M+1
62.15 (62.08)
3.61 (3.57)
27.87 (21.78)
4b
2219 (C≡N), 1668 (C⚌O), 1599 (C⚌N), 1322 (C–N), 1251(C–O–C)
7.03–7.40 (m, 4H, Ar-H), 8.32 (s, 1H, CH-triazole), 2.27 (s, 3H, N–CH3), 3.83 (s, 3H, O–CH3).
282.4 M+1
59.78 (59.82)
3.94 (3.92)
24.90 (24.86)
4c
2217 (C≡N), 1670 (C⚌O), 1593 (C⚌N), 1340 (C–N), 1246 (C–O–C)
6.88 (s, 2H, Ar-H), 7.94 (s, 1H, CH-triazole), 2.13 (s, 3H, N–CH3), 3.64 (s, 9H, O–CH3).
342.4 M+1
56.30 (56.22)
4.43 (4.44)
20.52 (20.50)
5a
2229 (C≡N), 1674 (C⚌O), 1626 (C⚌N), 1321 (C–N)
7.32–7.86 (m, 5H, Ar-H), 2.38 (s, 3H, N–CH3), 1.89 (s, 3H, C–CH3)
266.3 M+1
63.39 (63.29)
4.18 (4.15)
26.40 (26.36)
5b
2219 (C≡N), 1667 (C⚌O), 1593 (C⚌N), 1319 (C–N), 1251 (C–O–C)
6.94–7.47 (m, 4H, Ar-H), 2.41 (s, 3H, N–CH3), 2.76 (s, 3H, C–CH3), 3.62 (s, 3H, O–CH3).
296.3 M+1
61.01 (60.78)
4.44 (4.39)
23.72 (23.65)
5c
2217 (C≡N), 1670 (C⚌O), 1594 (C⚌N), 1340 (C–N), 1246 (C–O–C)
7.26 (s, 2H, Ar-H), 2.50 (s, 3H, N–CH3), 2.09 (s, 3H, C–CH3), 3.75 (s, 9H, O–CH3).
356.3 M+1
57.46 (57.38)
4.82 (4.79)
19.71 (19.66)
6a
2361 (C≡N), 1668 (C⚌O), 1619 (C⚌N), 1318 (C–N)
7.03–8.13 (m, 10H, 2Ar-H), 2.50 (s, 3H, N–CH3)
328.3 M+1
69.71 (69.59)
4.00 (4.02)
21.39 (21.28)
6b
2372 (C≡N), 1786 (C⚌O), 1598 (C⚌N), 1322 (C–N), 1214 (C–O–C)
6.82–7.96 (m, 9H, 2Ar-H), 2.34 (s, 3H, N–CH3), 4.22 (s, 3H, O–CH3).
358.4 M+1
67.22 (67.18)
4.23 (4.20)
19.60 (19.57)
6c
2361 (C≡N), 1687 (C⚌O), 1595 (C⚌N), 1324 (C–N), 1289 (C–O–C)
6.65–7.88 (m, 7H, 2Ar-H), 2.27 (s, 3H, N–CH3), 3.62 (s, 9H, O–CH3).
418.4 M+1
63.30 (63.32)
4.59 (4.56)
16.78 (16.72)
3 Pharmacological screening
3.1 Antioxidant screening: (in vitro)
3.1.1 Hydrogen peroxide scavenging activity
A solution of hydrogen peroxide (20 mM) was prepared in phosphate buffer saline (pH 7.4). Various concentrations (12.5, 25, 50, 100 μg/ml) of 1 ml of the test samples or standard, ascorbic acid (Ismaili et al., 2008; Rang et al., 2003) in methanol were added to 2 ml of hydrogen peroxide solution in phosphate buffer saline. The absorbance was measured at 230 nm after 10 min (Jayaprakasha et al., 2004).
3.1.2 Nitric oxide scavenging activity
The reaction mixture (6 ml) containing sodium nitroprusside (10 mM, 4 ml), phosphate buffer saline (pH 7.4, 1 ml) and test samples or standard, ascorbic acid solution in dimethyl sulphoxide (1 ml) at various concentrations (12.5, 25, 50, 100 μg/ml) was incubated at 25 °C for 150 min. After incubation, 0.5 ml of reaction mixture containing nitrite ion was removed, 1 ml of sulphanilic acid reagent was added to this, mixed well and allowed to stand for 5 min for completion of diazotization. Then, 1 ml of naphthyl ethylene diamine dihydrochloride was added, mixed and allowed to stand for 30 min in diffused light. A pink colored chromophore was formed. The absorbance was measured at 640 nm (Marcocci et al., 1994).
3.1.3 Lipid peroxidation inhibitory activity
Egg lecithin (3 mg/ml phosphate buffer, pH 7.4) was sonicated in an ultrasonic sonicator for 10 min to ensure proper liposome formation. Test samples (100 μl) of different concentrations (12.5, 25, 50, 100 μg/ml) were added to liposome mixture (1 ml); the control was without test sample. Lipid peroxidation was induced by adding ferric chloride (10 μl, 400 mM) and l-ascorbic acid (10 μl, 200 mM). After incubation for 1 h at 37 °C the reaction was stopped by adding hydrochloric acid (2 ml, 0.25 N) containing trichloroacetic acid (150 mg/ml), thiobarbituric acid (3.75 mg/ml) and butylated hydroxy anisole (0.50 mg/ml). The reaction mixture was subsequently boiled for 15 min, cooled, centrifuged at 1000 rpm for 15 min and the absorbance of the supernatant was measured at 532 nm and compared with that of ascorbic acid (Duh and Yen, 1997).
For all the above antioxidant methods, experiments were done in triplicate and average is taken, the % inhibition at different concentration was calculated by the following formula where, Vt = mean absorption of test compound, Vc = mean absorption of control.
The IC-50 value was derived from the% inhibition at different concentration.
3.2 Anti-inflammatory screening (in vitro)
The synthesized compounds are screened for anti-inflammatory activity by using inhibition of albumin denaturation technique which was studied according to Muzushima and Kobayashi (1968) with slight modification. The standard drug and test compounds were dissolved in minimum amount of DMF and diluted with phosphate buffer saline (pH 7.4) in such a way that concentration of DMF in all solutions was less than 2.5%. Test solution (1 ml) containing concentration (100 μg/ml) of drug was mixed with 1 ml of 1% albumin solution in phosphate buffer saline and incubated at 27 ± 1 °C in an incubator for 15 min. Denaturation was induced by keeping the reaction mixture at 60 ± 1 °C in a water bath for 10 min. After cooling, the turbidity was measured at 660 nm with UV–visible spectrophotometer. Percentage of inhibition of denaturation was calculated from control where no drug was added. Each experiment was done in triplicate and average is taken. The diclofenac was used as standard drug. (Robert and Morrow, 2001; Rang et al., 2003). The percentage of inhibition was calculated using the formula where, Vt = mean absorption of test compound, Vc = mean absorption of control.
4 Results and discussion
4.1 Chemistry

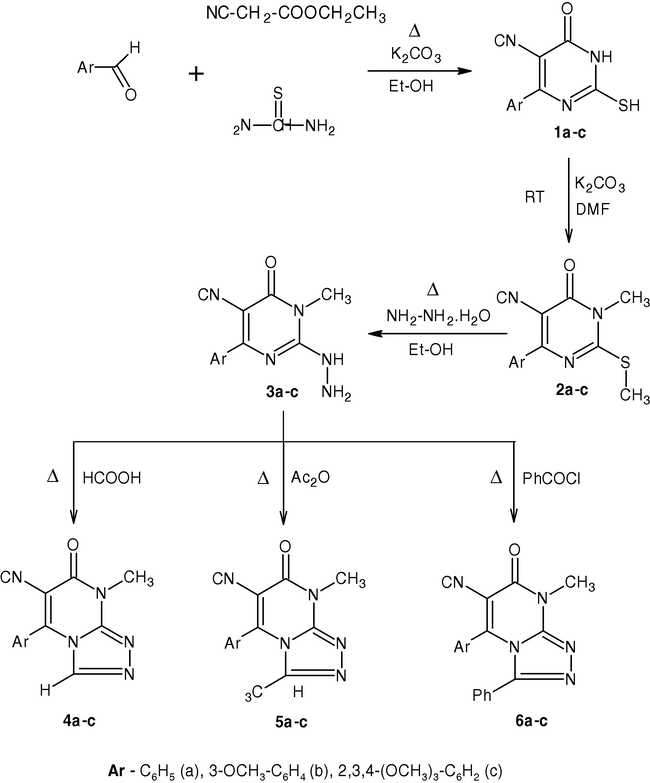

In the present work the title compounds were synthesized by the cyclization of three-components like arylaldehydes, thiourea and ethyl cyanoacetate in ethanol by using potassium carbonate to form 6-oxo-4-substituted aryl-2-sulfanyl-1,6-dihydropyrimidine-5-carbonitrile (1a–c), at room temperature stirring of 1a–c with methyl iodide in DMF in presence of potassium carbonate yields 1-methyl-2-(methylsulfanyl)-6-oxo-4-substituted aryl-1,6-dihydropyrimidine-5-carbonitrile (2a–c). The 2-hydrazino derivatives, 2-hydrazinyl-1-methyl-6-oxo-4-substituted aryl-1, 6-dihydropyrimidine-5-carbonitrile (3a–c) was obtained by heating 2a–c with hydrazine hydrate in ethanol. Condensation of latter with formic acid afforded the corresponding 8-methyl-7-oxo-5-substituted aryl-7, 8-dihydro[1,2,4]triazolo[4,3-α] pyrimidine-6-carbonitrile (4a–c). On the other hand, the 3-methyl derivatives 3,8-dimethyl-7-oxo-5-substituted aryl-7,8-dihydro[1,2,4]triazolo[4,3-α]pyrimidine-6-carbonitrile (5a–c) and 3-phenyl derivatives, 8-methyl-7-oxo-3-phenyl-5-substituted aryl-7,8-dihydro[1,2,4]triazolo[4,3-α]pyrimidine-6-carbonitrile (6a–c) were prepared by the condensation with acetic anhydride and benzoyl chloride, respectively (Fig. 1).Scheme 1. Synthetic route of compounds 1–6.

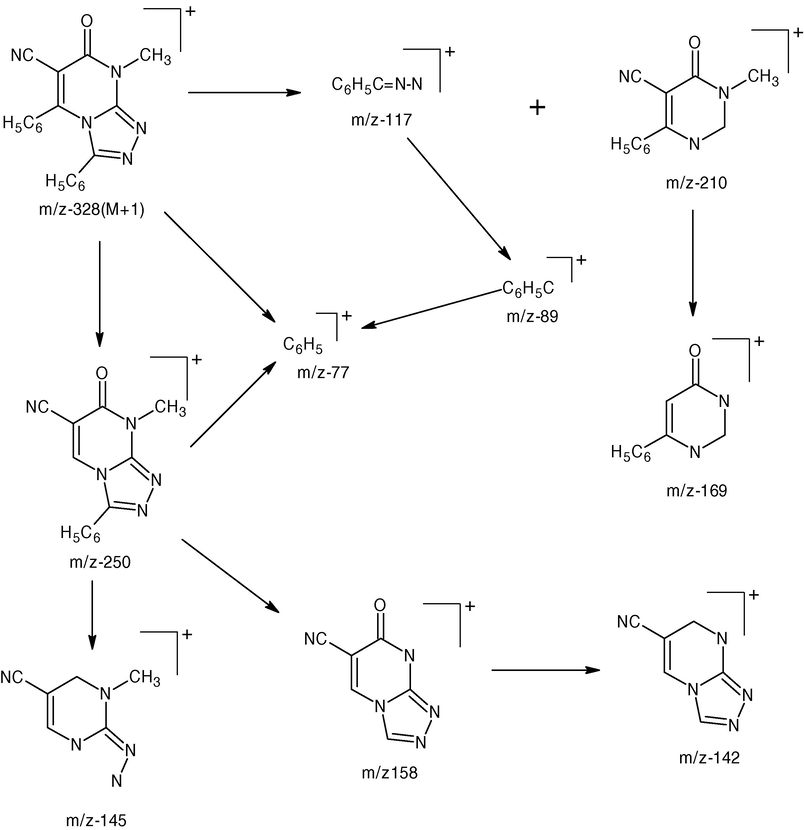

All the pyrimidines and their [1,2,4]triazole fused pyrimidine derivatives were synthesized and confirmed by physical data, IR, 1H NMR, mass spectra and elemental analysis. All the compounds have shown C≡N peak in 2220–2200 cm−1, C⚌O peak in 1700–1625 cm−1, C⚌C peak in 1555–1470 cm−1. While the methoxy and trimethoxy derivatives have showed the C–O–C peak in 1255–1230 cm−1. The 1a–c compounds showed peak in 3631–3653 cm−1 for the N–H stretch in IR and 10.93–11.17 (s, 1H, NH⚌SH) peak in 1H NMR, which is absent in 2a–c compounds. While 2a–c has shown 2.98–4.11 peak for N–CH3 and 1.96–2.63 peak for S–CH3 in 1H NMR. The 3a–c compounds showed the peak in 3340–3280 cm−1 for the NH–NH2 in IR and 1.83–2.09 for NH and 2.08–2.50 for NH2. The fused triazoles (4a–c, 5a–c and 6a–c) were not showing the N–H stretch in IR and NH, NH2 peak in 1H NMR. The mass spectrum of 6a showed an intense molecular ion peak at m/z 328 (M+1) corresponding to molecular formula C19H13N5O. This was found to be the base peak. M+1 ion of 6c underwent fragmentation to produce a peak at m/z 250 by losing C6H5 (m/z 77). Simultaneously a peak at m/z 210 was observed by losing C6H5C⚌N–N (m/z 117). C6H5C⚌N–N ion underwent further fragmentation to give peak at m/z 89 for C6H5C ion. The ion at m/z 89 underwent loss C to give peaks at m/z 77 (C6H5). Fragmentation pattern of 6a has been shown in Fig. 2.Scheme 2. MS fragmentation diagram of 8-methyl-7-oxo-3,5-diphenyl-7,8-dihydro[1,2,4] triazolo [4,3-a]pyrimidine-6-carbonitrile (6a).
4.2 Pharmacological screening
4.2.1 Antioxidant activity
All the synthesized compounds were screened for in vitro antioxidant activity by various methods as scavenging of hydrogen peroxide, scavenging of nitric oxide radical, lipid peroxidation inhibitory activity. In vitro antioxidant activity of synthesized compound is summarized in Table 3.
Compound
IC-50 (Mean ± S.D.)a (μg/ml)
Scavenging of nitric oxide radical
Scavenging of hydrogen peroxide
Lipid peroxidation inhibitory activity
Standard
56 ± 0.087
38 ± 0.121
26 ± 0.333
1a
67 ± 0.121
43 ± 0.024
37 ± 0.183
1b
78 ± 0.318
52 ± 0.318
42 ± 0.453
1c
51 ± 0.058
41 ± 0.087
40 ± 0.121
2a
108 ± 0.78
63 ± 0.279
59 ± 0.066
2b
87 ± 0.082
59 ± 0.333
70 ± 0.024
2c
85 ± 0.162
55 ± 0.453
64 ± 0.121
3a
74 ± 0.081
41 ± 0.066
34 ± 0.162
3b
47 ± 0.052
52 ± 0.279
43 ± 0.333
3c
53 ± 0.066
45 ± 0.087
48 ± 0.183
4a
97 ± 0.453
57 ± 0.318
56 ± 0.066
4b
88 ± 0.183
68 ± 0.121
60 ± 0.318
4c
91 ± 0.318
83 ± 0.318
65 ± 0.045
5a
99 ± 0.453
82 ± 0.066
58 ± 0.087
5b
85 ± 0.045
84 ± 0.162
61 ± 0.162
5c
92 ± 0.024
89 ± 0.087
64 ± 0.453
6a
112 ± 0.333
103 ± 0.024
71 ± 0.279
6b
104 ± 0.279
92 ± 0.121
73 ± 0.318
6c
110 ± 0.318
85 ± 0.183
63 ± 0.087
The investigation of antioxidant screening revealed that some of the tested compounds showed moderate to good antioxidant activity. Particularly, compounds 3a, 3c, 1a, 1c, 3b and 3c have shown more promising antioxidant activity as compare to standard, ascorbic acid, while other derivatives are moderately active. 1c has shown good antioxidant activity as compare to standard by scavenging of nitric oxide radical and scavenging of hydrogen peroxide method, while 3b showed most potent antioxidant activity by scavenging of nitric oxide radical method.
4.2.2 Anti-inflammatory activity
Synthesized compounds were also tested for anti-inflammatory activity. Compared to the standard Diclofenac sodium, they have shown acceptable anti-inflammatory activity. In vitro anti-inflammatory activity of synthesized compounds is summarized in Table 4 and Fig. 6. Among the tested compounds, 3b, 2b, 1b and 1c showed better anti-inflammatory activity. Amongst all 3b found with most potent activity.
Compound
Mean absorbance ± S.D.a
Inhibition of denaturation (%)
Control
0.0468 ± 0.0003
Standard
0.0861 ± 0.0001
83.97
1a
0.0559 ± 0.0008
19.44
1b
0.0499 ± 0.0020
66.24
1c
0.0498 ± 0.0010
64.10
2a
0.0529 ± 0.0025
13.03
2b
0.0794 ± 0.0004
69.66
2c
0.0554 ± 0.0026
18.38
3a
0.0584 ± 0.0046
24.79
3b
0.0824 ± 0.0007
76.07
3c
0.0615 ± 0.0016
31.41
4a
0.0556 ± 0.0014
18.80
4b
0.0671 ± 0.0019
43.38
4c
0.0533 ± 0.0046
13.89
5a
0.0487 ± 0.0005
04.06
5b
0.0619 ± 0.0006
32.27
5c
0.0709 ± 0.0009
51.50
6a
0.0567 ± 0.0020
21.15
6b
0.0579 ± 0.0018
23.72
6c
0.0507 ± 0.0024
08.34
5 Conclusion
The synthesized compounds were tested for antioxidant and anti-inflammatory activity. In antioxidant activity 1a–c and 3a–c derivatives have shown more promising results. This may be due to the available NH and SH group present in 1a–c and NH–NH2 present in 3a–c. Few synthesized compounds have shown good anti-inflammatory action, amongst 3b has shown excellent activity. Observed good anti-inflammatory activity may be due to 3-OCH3 group present in structure and may be reduced in trimethoxy compound due to its OCH3 group at para position. This observation may promote a further development of this group of pyrimidines may lead to compounds with better pharmacological profile than standard antioxidant and anti-inflammatory drugs.
Acknowledgments
The authors are thankful to Principal, Sri Adichunchanagiri College of Pharmacy, B.G. Nagara for providing laboratory facilities. Authors are also grateful to Department of University Scientific Instrument Centre, Karnatak University, Dharwad, India and Suven Life Sciences, Hyderabad for providing spectral and elemental analysis data.
References
- Indian J. Pharm. Sci.. 1991;53(5):192-196.
- Comprehensive Heterocyclic Chemistry. Oxford: Pergamon press; 1984.
- The Chemistry of Heterocyclic Compounds. New Jersey: John Wiley & Sons Inc.; 1985.
- Food Chem.. 1997;60:639-645.
- Acta Pharm.. 2004;54:13-26.
- Hardtman, G.E., Otto, H., 1972. US-Pat. 366369. Chem. Abstr. 77, 52313.
- Acta Pharm.. 2008;58:359-378.
- Eur. J. Med. Chem.. 2008;43:1270-1275.
- Bioorg. Med. Chem.. 2004;12:5141-5146.
- Eur. J. Med. Chem.. 2000;35:1043-1052.
- Tetrahedron. 2005;56:1859-1862.
- Methods Enzymol.. 1994;234:462-473.
- J. Pharm. Pharmacol.. 1968;20:169.
- J. Org. Chem.. 1991;56:4393.
- Indian J. Chem.. 2005;44B:823.
- J. Org. Chem.. 1995;60:1182-1188.
- T. Ph. Res.. 2010;3:17-26.
- Pharmacology (third ed.). New York: Churchill Livingstone; 2003.
- Dyes Pigm.. 1994;24:185-204.
- Text Book Goodman and Gillman’s, The Pharmacological Basis of Therapeutics (10th ed.). New York: McGraw-Hill Professional; 2001.
- Indian J. Heterocycl. Chem.. 2004;14:43-46.
- Indian J. Heterocycl. Chem.. 1998;8:147-150.
- J. Braz. Chem. Soc.. 2010;21(8):1477-1483.
- J. Am. Chem. Soc.. 1936;58:1504.
