Numerical simulation of CO2 separation from gas mixtures in membrane modules: Effect of chemical absorbent

Young Researchers and Elite Club, South Tehran Branch, Islamic Azad University, Tehran, Iran
Iran Polymer and Petrochemical Institute, Tehran, Iran

⁎Corresponding author. Tel.: +98 9378459498. saeed.shirazian@gmail.com (Saeed Shirazian)

Disclaimer:
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.

Peer review under responsibility of King Saud University.

Abstract

In this study, a mathematical model is proposed for prediction of CO2 absorption from N2/CO2 mixture by potassium threonate in a hollow-fiber membrane contactor (HFMC). CFD technique using numerical method of finite element was applied to solve the governing equations of model. Effect of different factors on CO2 absorption was analyzed and for investigation of absorbent type effect, functioning of potassium threonate was compared with diethanolamine (DEA). Axial and radial diffusion can be described with the two dimensional model established in this work. The obtained simulation results were compared with the reported experimental data to ensure accuracy of the model predictions. Comparison of model results with experimental data revealed that the developed model can well predict CO2 capture by potassium threonate in HFMCs. Increment of absorbent flow rate and concentration eventuate in enhancement of CO2 absorption. On the other hand, capture of CO2 will be reduced with increment of gas flow rate. According to the model results, potassium threonate can be considered as a more efficient absorbent as compared with DEA.

Keywords

Separation
Membrane
Mathematical modeling
Numerical simulation
Mass transfer

Nomenclature

C

concentration (mol/m3)

C outlet

outlet concentration of solution the tube side (mol/m3)

C inlet

inlet concentration of solution the tube side (mol/m3)

C i - tube

concentration of solution the tube side (mol/m3)

C i - shell

concentration of solution the shell side (mol/m3)

C i - membrane

concentration of solution membrane (mol/m3)

D

diffusion coefficient (m2/s)

F

liquid feed flow (m3/s)

m

physical solubility

P

pressure (pa)

r

radial coordinate (m)

r 1

inner tube radius (m)

r 2

outer tube radius (m)

r 3

inner shell radius (m)

u

average velocity in tube side (m/s)

z

axial coordinate

V z-shell

z – velocity in the shell (m/s)

V z-tube

z – velocity in the tube (m/s)

1

1 Introduction

CO2 that normally exists in natural gas streams, biogas produced from anaerobic absorption, flue gas generated by combustion of fossil fuels, and coal gasification is the most important greenhouse gas on the earth (Zhang et al., 2013). CO2 capture will improve the calorific value of natural gas (NG), reduce the volume of gas that is transported through the pipeline, decrease equipment corrosion and inhibit atmospheric pollution and global warming (Zhang et al., 2013; Chew et al., 2010; Razavi et al., 2015). Consequently there is a need to design a novel method to eliminate CO2 from gas streams.

CO2 can be removed from gas streams by different methods that two most important of them are absorption and membrane separation (Razavi et al., 2013; Fasihi et al., 2012; Shirazian et al., 2012a,b; Rezakazemi et al., 2013a; Ghadiri et al., 2013a; Shirazian and Ashrafizadeh, 2013, 2011; Fadaei et al., 2011). From the mentioned methods, absorption has been established as a well-accepted method at industrial applications (Adewole et al., 2013). However this method has some drawbacks such as expensive chemical solvents, low efficiency of process, production of large amounts of wastewater and sludge in the process, costly equipment, consumption of energy for solvent regeneration, high complexity of the processes, and negative environmental impact due to consumption of solvents (Thiruvenkatachari et al., 2009). Accordingly, there is a need to find an alternative technology that would be cost effective and energy efficient such as membrane separation for CO2 removal from gas streams.

Nowadays, capture of CO2 from gas streams using membrane separation technology has become an attractive approach as compared to the aforementioned separation methods (Yeo et al., 2012; Fadaei et al., 2011; Ghadiri and Shirazian, 2013). This method is more capital efficient and could achieve higher efficiency of separation with this method. Additionally, simplicity of process in modern compact modules, high reliability, low capital and operating cost of process, the nature of environmentally friendly, high space efficiency, low energy consumption, clean and continuous process are some of the advantages of application of membrane for gas separation which makes it favorable for large scale applications (Adewole et al., 2013; Yeo et al., 2012; Rezakazemi et al., 2013b; Ghadiri et al., 2013b).

As compared to different types of membranes, polymeric membranes that have low molecular weight, process ability into thin films, absorbent materials, composites and hollow fibers and large variety in structure and properties have the most usage in industrial applications (Zhang et al., 2013; Razavi et al., 2015; Yeo et al., 2012; Miramini et al., 2013). Numerous polymers that so far have been utilized for membranes fabrication used in gas separation, include cellulose acetate (CA), polyimide (PI), polysulfone (PSf), polyethersulfone (PES), and polycarbonates (PC) Zhang et al., 2013. Depending on different gas separation requirements, specific polymeric membrane is chosen and applied. Polysulfone and cellulose acetate are the earliest commercial membranes, while PI and CA have been mostly used for CO2/CH4 separation commercially (Han and Lee, 2011; Spillman, 1995).

Among the various kinds of membranes, hollow-fiber membrane contactors are the most desirable device since they present higher surface/volume ratio. In recent years, many researchers have focused on investigation of different factors affecting HFMCs performance such as different absorbents, various polymers as a membrane, and flow rate of gas and liquid (Fasihi et al., 2012; Ghadiri et al., 2013a,b,c, 2014a,b, 2015; Fadaei et al., 2011a,b, 2012; Miramini et al., 2013; Ghadiri and Ashrafizadeh, 2014; Marjani et al., 2012a,b, 2011a,b; Marjani and Shirazian, 2010, 2011a,b,c,d,e, 2012a).

In membrane gas absorption, the absorbent plays a vital role for CO2 capture. Among the various absorbents, alkanolamines such as AMP, DEA, TEA, DGA, MEA, MEDA and DIPA have the most appliances as absorbent for removal of CO2 from gas streams. Choosing a liquid absorbent depends on the properties of absorbent such as rate of reaction with CO2, thermal stability, vapor pressure and easily regeneration (Razavi et al., 2013; Li and Chen, 2005; Blauwhoff et al., 1984).

Lu et al. studied effect of AMP and Piperazine as activators for solution of MDEA on CO2 capture from gas mixture (Lu et al., 2007). Ren et al. investigated CO2 capture by PVDF membranes and also the effect of process parameters on separation efficiency (Ren et al., 2006). With the aim of simulation, use of membrane separation for elimination of CO2 from gas mixtures in industrial scale would become more easily and more cost effective. Simulations of HFMCs have attracted many research attentions. Mathematical modeling and numerical simulation of membrane contactors considering chemical reaction have been studied in the literature (Fasihi et al., 2012; Shirazian et al., 2012a,b; Shirazian and Ashrafizadeh, 2013, 2011; Fadaei et al., 2011a,b, 2012; Ghadiri and Shirazian, 2013; Ghadiri et al., 2013b,c, 2014a,b; Marjani et al., 2012a,b, 2011a,b; Marjani and Shirazian, 2010, 2011a,b,c,d,e, 2012a; Fazaeli et al., 2015; Tahvildari et al., 2016). The main aim of the simulation works was to determine the concentration of CO2 in the membrane contactor. However, some works accounted for chemical reaction.

Although amine solutions have more uses in membrane gas separation as compared with other absorbents, they have some disadvantages including easily degradation, particularly in oxygenated atmosphere, corrosion and high volatility (Mandal and Bandyopadhyay, 2005; Portugal et al., 2008). Because of these disadvantages, researchers try to develop more suitable absorbents such as amino acid salt solutions. Stability of amino acid salt solutions in the oxygenated atmosphere is higher than alkanolamines. Because amino acid salt solutions have ionic nature, not only they are less volatile but also they have high surface tensions. Potassium threonate is an amino acid salt that has a reasonable capacity in membrane separation of CO2. Potassium threonate, in spite of good capability of regeneration, high surface tension and low volatility, is not deleterious for health (Portugal et al., 2008).

Portugal et al. (2008) investigated CO2 capture in aqueous solution of Potassium threonate and determined densities and viscosities of aqueous solution at concentration range of 0.1–3 M and temperatures from 293 to 313 K. Their results showed that the pseudo-first-order reaction can be used to describe CO2 absorption in the aqueous solution of Potassium threonate. Moreover, it was indicated that CO2 absorption rate was enhanced by increasing CO2 and potassium threonate concentrations (Portugal et al., 2008).

In this work, because of potassium threonate advantages along with advantages of membrane separation, capture of CO2 by potassium threonate in HFMC is simulated. In addition to the investigation of influence of various parameters on CO2 removal, performance of potassium threonate is compared with DEA for selecting the most effective one.

2

2 Mass transfer model

In the present work, a comprehensive 2D phenomenological model is developed for the capture of CO2 from CO2/N2 gas stream in a hollow-fiber membrane contactor. Fig. 1 represents the schematic diagram of the HFMC simulated in this study. The membrane module consists of 21 fibers with an inner and outer diameter of 1.4 mm and 2.2 mm respectively within a module which has an outer diameter of 16 mm. Razavi et al. have provided a table containing geometrical characteristics of the simulated HFMC in their study (see Table 1) (Razavi et al., 2013). Gas mixture and liquid solution of chemical absorbent flow counter currently into the tube and shell of the HFMC respectively. Flow rate of gas mixture is kept between 100 and 400 cm3/min and flow rate of liquid solution of absorbent is in the range of 50–350 cm3/min. Absorbent concentration in liquid solution is 0.5 M.

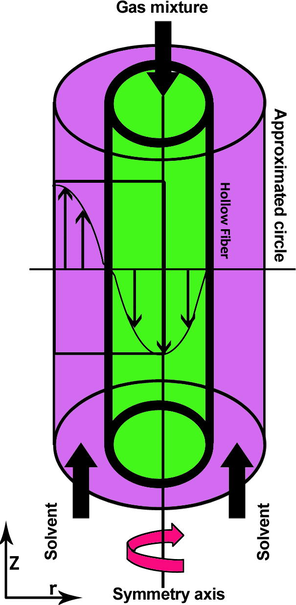

A graphical diagram for the hollow-fiber membrane contactor.
Figure 1
A graphical diagram for the hollow-fiber membrane contactor.
Table 1 Characteristics of hollow fiber module.
Module o.d. (mm) 16
Shell i.d. (mm) 14
Fiber o.d. (mm) 2.2
Fiber i.d. (mm) 1.4
Fiber length (cm) 31.4
Number of fibers 21
Average pore size (mm) 0.2
Fiber porosity, ε (%) 50
Surface area (m2) 0.02

2.1

2.1 Model equation

By applying Navier–Stokes equation, velocity distribution in the tube side can be derived, but for developing velocity profile in the tube side, a fully developed Newtonian laminar flow is assumed (Bird et al., 1960):

(1)
V z - tube = 2 u 1 - r r 1 2 where r1 and u indicate inner radius of fiber and average velocity of stream in the tube, respectively.

It should be noted that according to the free surface model, cross sectional area of fiber is considered to be circle-shaped (Happel, 1959). The continuity equation for each component can be expressed as follows (Bird et al., 1960):

(2)
C i t = - ( · C i V ) - ( · J i ) + R i where Ci, t, V, Ji and Ri indicate concentration (mol cm−3), time (s), velocity (m/s), diffusion flux (mol m−2 s−1) and reaction rate of component i (mol m−3 s−1), respectively.

For simplifying Eq. (2), the process assumed to be steady state and Ji was substituted with Fick’s law.

2.1.1

2.1.1 Tube side equations

In the tube side of HFMC there is no chemical reaction, addition to the fact that convective mass transfer in radial direction is not considerable in comparison with axial direction. Consequently Eq. (2) can be written as follows:

(3)
D CO 2 - tube 2 C CO 2 - tube r 2 + 1 r C CO 2 - tube r + 2 C CO 2 - tube z 2 = V z - tube C CO 2 z where r and z denote the radial and axial coordinates, respectively.

Boundary conditions considered for the tube side are as follows:

(4)
At r = r 1 , C CO 2 - tube = C CO 2 - membrane
(5)
At r = 0 , C CO 2 - tube r = 0
(6)
At z = 0 , convective flux
(7)
At z = L , C CO 2 - tube = C CO 2 , 0

It should be noted that convective flux in Eq. (6) indicates that the mass transfer through this boundary by diffusion mechanism is neglected.

2.1.2

2.1.2 Shell side equations

The steady-state continuity equation in the shell side is expressed as follows:

(8)
D CO 2 - Shell 2 C CO 2 - Shell r 2 + 1 r C CO 2 - Shell r + 2 C CO 2 - Shell z 2 = V z - Shell C CO 2 - Shell z - R CO 2

As stated before, by solving Navier–Stokes equation, velocity distribution in the shell side can be obtained (Bird et al., 1960) as follows:

(9)
- · η ( V z - Shell + ( V z - Shell ) T ) + ρ ( V z - Shell · ) V z - Shell + p · V z - Shell = 0 V (m/s), P (Pa), ρ (kg m−3), η (kg m−1 s−1) and F (N) denote velocity, pressure, density, dynamic viscosity and body force, respectively. The shell radius can be estimated by applying Happel free surface model as follows:
(10)
r 3 = 1 1 - ϕ 1 / 2 r 2
where r2 indicates the tube outer radius. Φ is the volume fraction of void section and can be defined by
(11)
1 - ϕ = nr 2 2 R 2
where n and R are the number of fibers and inner radius of modules, respectively.

Boundary conditions used for the shell are as follows:

(12)
At r = r 3 , C CO 2 - shell r = 0
(13)
At r = r 2 , C CO 2 - shell = C CO 2 - membrane × m
(14)
At z = 0 , C CO 2 - shell = 0 , V z- shell = V 0
(15)
At z = L , Convective flux, p = p atm
where m denotes solubility of CO2 in absorber.

2.1.3

2.1.3 Membrane equations

Transport of CO2 into the membrane pores is accomplished just via diffusion mechanism. Steady state and no reaction assumptions will simplify the continuity equation as follows:

(16)
D CO 2 - membrane 2 C CO 2 - membrane r 2 + 1 r C CO 2 - membrane r + 2 C CO 2 - membrane z 2 = 0

In which boundary conditions can be written as follows:

(17)
At r = r 1 , C CO 2 - membrane = C CO 2 - shell
(18)
At r = r 2 , C CO 2 - membrane = C CO 2 - shell m

2.1.4

2.1.4 Absorbent equations

The steady state continuity equation for potassium threonate absorber is written as follows:

(19)
D i - shell 2 C i - shell r 2 + 1 r C i - shell r + 2 C i - shell z 2 = V z - shell C i - shell z - R i Ri denotes the chemical reaction between CO2 and potassium threonate absorbent (Portugal et al., 2008). Boundary conditions required for solving Eq. (19) are given as follows:
(20)
At r = r 3 , C absorbent - shell r = 0
(21)
At r = r 2 , C absorbent - shell r = 0
(22)
At z = 0 , C absorbent-shell = C absorbent, 0
(23)
At z = L , Convective flux

2.2

2.2 Numerical procedure

The governing equations in membrane, tube and shell side were solved by the commercial finite element package of COMSOL Multiphysics version 3.5., according to the finite element method (FEM). Moreover solver of UMFPACK was used for solving symmetric problems. Some researchers have asserted the applicability and accuracy of UMFPACK for solving membrane equations (Razavi et al., 2013, 2014; Fasihi et al., 2012; Shirazian et al., 2012a,b,c,d,e; Rezakazemi et al., 2013a,b,c, 2011a,b, 2012; Shirazian and Ashrafizadeh, 2013, 2011, 2010a,b, 2014, 2015a,b,c; Fadaei et al., 2011a,b, 2012; Ghadiri et al., 2013b; Marjani et al., 2012a,b,c, 2011a,b; Marjani and Shirazian, 2010, 2011a,b,c,d,e, 2012a,b,c,d,e; Hemmati et al., 2015; Hoshyargar et al., 2012; Khansary et al., 2015; Kohnehshahri et al., 2011; Moghadassi et al., 2011; Mohammadi et al., 2015; Moradi et al., 2013; Nosratinia et al., 2015; Pishnamazi et al., 2012; Ranjbar et al., 2013; Shirazian et al., 2011a,b, 2009, 2014; Sohrabi et al., 2011a,b,c,d,e; Valavi et al., 2013). Triangular mesh elements used for the evaluation of gas behavior in the HFMC are illustrated in Fig. 2 in which r1 and r2 represent the radius of shell side and free surface respectively.

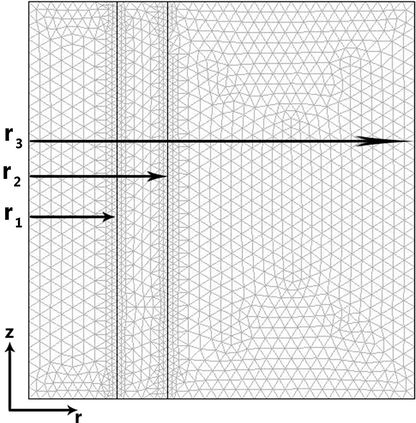

Model domain and FE model used for simulation.
Figure 2
Model domain and FE model used for simulation.

3

3 Results and discussion

3.1

3.1 Model validation

According to author’s investigations, absorption of CO2 by potassium threonate using hollow-fiber membrane contactors has not been studied experimentally. Therefore, developed model in this study was validated through comparison of simulation results with experimental results of CO2 removal from N2 in the HFMC reported in the literature (Lin et al., 2008). As it can be seen in Fig. 3, there is a reasonable agreement between simulation results and experimental data. However, some deviations can be observed between experimental and modeling data which could be attributed to the estimation of reaction kinetics and constants.

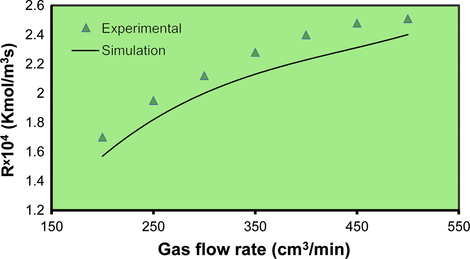

Relation between reaction rate and gas flow rates (for validation of model).
Figure 3
Relation between reaction rate and gas flow rates (for validation of model).

3.2

3.2 Velocity distribution

Figs. 4 and 5 illustrate velocity distribution of absorbent inside the shell side of HFMC. It is clearly seen that the velocity profile is almost parabolic and reveals the maximum velocity of absorbent phase at the center of shell side. The latter could be due to the boundary conditions imposed on two sides of shell side and also the effects of viscous forces on the fluid which makes a symmetry velocity profile. Additionally, velocity amount on the two shell walls is zero because of no-slip conditions. Figs. 4 and 5 also represent that after a short distance from entrance of shell side, velocity profile becomes fully developed. The velocity profile in Fig. 5 is depicted against dimensionless radial distance (r/r3).

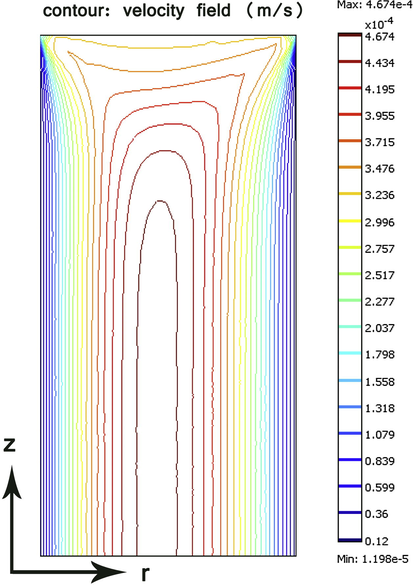

Velocity field in the shell side (absorbent channel) of the hollow-fiber membrane contactor.
Figure 4
Velocity field in the shell side (absorbent channel) of the hollow-fiber membrane contactor.

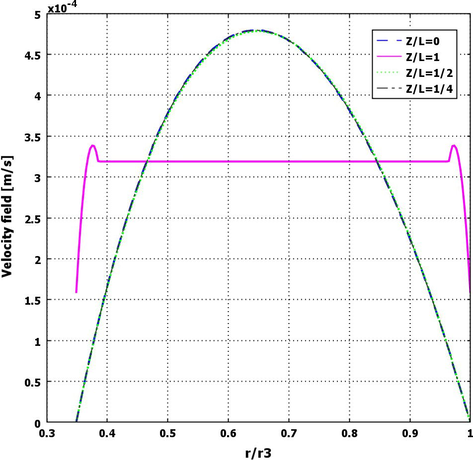

Velocity profile in the shell side (absorbent channel) along the membrane length.
Figure 5
Velocity profile in the shell side (absorbent channel) along the membrane length.

3.3

3.3 Concentration distribution of CO2

Distribution of dimensionless concentration (C/Co) for CO2 in the membrane, tube and shell side of the HFMC is illustrated in Fig. 6. While gas mixture flows from one side of the HFMC, in which CO2 concentration is maximum, the potassium threonate solution flows from the other side in which gas concentration of CO2 is considered to be zero. As the gas mixture flows through the tube, concentration difference caused CO2 transferred to the membrane (Shirazian et al., 2012a; Ghadiri et al., 2013c; Shirazian and Ashrafizadeh, 2010a; Sohrabi et al., 2011c). Generally, the gas in the membrane contactor is transferred by two mechanisms, i.e. diffusion and convection. Diffusion is observed in radial direction due to concentration gradient, while convection is observed in axial direction due to velocity of fluid. However, in the tube side the diffusional mass transfer is favorable because it can increase the amount of CO2 capture. Gas mixture is transferred through the membrane pores to the other side and the moving solvent in the shell side could absorb the CO2.

Dimensionless concentration distribution for CO2 in the tube, the membrane and the shell of the HFMC.
Figure 6
Dimensionless concentration distribution for CO2 in the tube, the membrane and the shell of the HFMC.

Fig. 7 illustrates the distribution of CO2 concentration in the tube in the axial direction. CO2 concentration reduces with increasing the length of membrane due to CO2 removal by absorbent solution. Additionally, variation rate of CO2 along the HFMC has not been altered significantly.

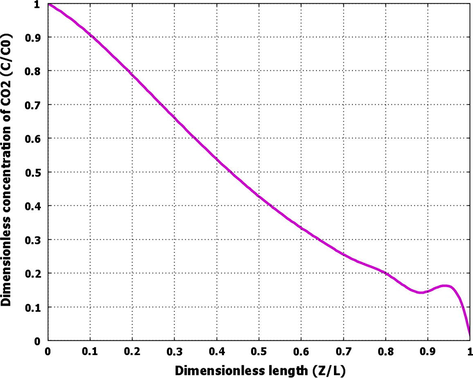

The profile of carbon dioxide concentration in the tube (gas channel) in axial direction (z-direction).
Figure 7
The profile of carbon dioxide concentration in the tube (gas channel) in axial direction (z-direction).

3.4

3.4 Concentration distribution of the absorbent

Fig. 8 shows a representation of the distribution of dimensionless concentration of potassium threonate in the shell side of HFMC. When CO2 diffuses through the membrane pores, it reacts with potassium threonate solution flowing in the shell side. Consequently, absorbent concentration reduces along the HFMC considerably due to consumption of solvent. Axial concentration distribution of potassium threonate along the contactor can be observed in Fig. 9. The absorbent concentration decays in the middle of HFMC length faster than entrance region of HFMC. It is due to the fact that CO2 concentration in the entrance of shell side is negligible. Therefore, concentration of absorbent solution in the mentioned region has not changed significantly. Fig. 10 indicates total flux of CO2 and absorbent simultaneously that helps to perceive the mechanism of system functioning.

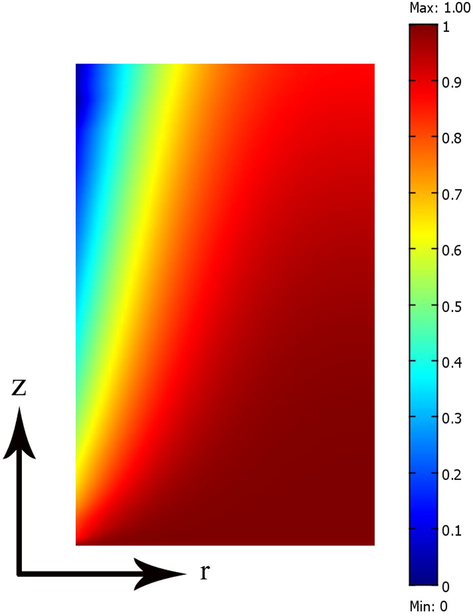

Dimensionless concentration of potassium threonate in the shell of the HFMC.
Figure 8
Dimensionless concentration of potassium threonate in the shell of the HFMC.

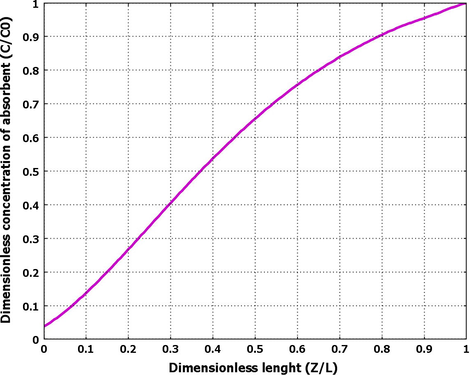

Axial variation of potassium threonate concentration along the HFMC.
Figure 9
Axial variation of potassium threonate concentration along the HFMC.

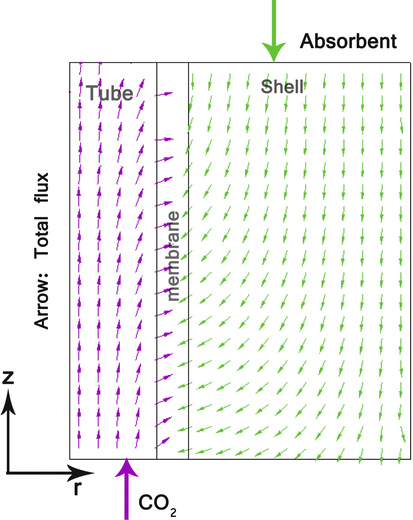

Total flux of CO2 and absorbent in the membrane module.
Figure 10
Total flux of CO2 and absorbent in the membrane module.

3.5

3.5 Effects of gas and liquid flow rates on CO2 capture

In this section, simultaneous performance of potassium threonate and DEA absorbents is compared to evaluate the efficiency of separation process using each absorbent. Figs. 11 and 12 show relationship between reaction rate of CO2 and the two mentioned absorbents versus liquid and gas flow rate, respectively. As it can be seen in Fig. 11, for both absorbents, the reaction rate increases by increase of liquid flow rate. This is because of the fact that the enhancement of liquid flow rate results in increase of Reynolds number and consequently mass transfer coefficient. Additionally, with further increment of liquid flow rate, reaction rate of CO2 removal does not alter significantly. Therefore, optimum amount of absorbent could be achieved and costs due to expensive absorbents and environmental problems attributed to it, will be decreased. It is obvious from this figure that efficiency of potassium threonate is higher than DEA considerably and for all of the liquid flow rates, reaction rate of potassium threonate is much more than DEA. Therefore it seems that potassium threonate is better absorbent for CO2 capture than DEA. Fig. 12 shows variation of reaction rate of CO2 with absorber as a function of gas flow rate. According to this figure, enhancement of gas flow rate results in decrease of reaction rate. This could be due to the fact that as gas flow rate increases, resistance time in the contactor declines. Consequently absorption of CO2 to liquid phase decreases.

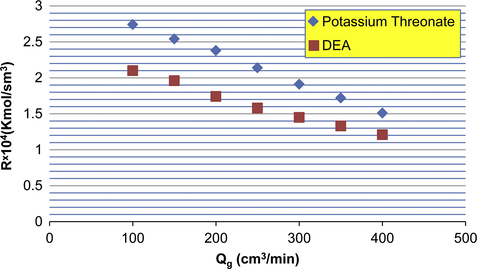

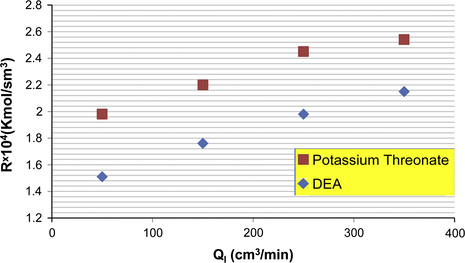

Correlation between reaction rate and gas flow rate.
Figure 11
Correlation between reaction rate and gas flow rate.
Correlation between reaction rate and liquid flow rate.
Figure 12
Correlation between reaction rate and liquid flow rate.

4

4 Conclusions

In this study, simulation of CO2 capture by potassium threonate through HFMCs was conducted using CFD technique. Numerical method of finite element was applied to solve equations of mass transfer and a two dimensional mathematical model for prediction of the CO2 absorption through the HFMC was developed. Because of importance of absorbent types in gas separation, function of two absorbents of potassium threonate and DEA was compared. Comparison of model predictions with experimental results reveals that reasonable agreement exists between them. Simulation results reveal that potassium threonate can be considered as a more efficient absorber as compared with DEA. According to the model results, that increment of absorbent concentration and flow rate eventuate in increment of CO2 absorption. On the contrary, enhancement of gas flow rate reduces CO2 capture. It can be concluded from the obtained results that the proposed model in this work can well predict CO2 removal through the HFMCs.

References

  1. , . Current challenges in membrane separation of CO2 from natural gas: a review. Int. J. Greenhouse Gas Control. 2013;17:46-65.
    [Google Scholar]
  2. , , , . Transport Phenomena. New York: John Wiley & Sons; .
  3. , , , . A study on the reaction between CO2 and alkanolamines in aqueous solutions. Chem. Eng. Sci.. 1984;39(2):207-225.
    [Google Scholar]
  4. , , , . Ordered mesoporous silica (OMS) as an adsorbent and membrane for separation of carbon dioxide (CO2) Adv. Colloid Interface Sci.. 2010;153(1–2):43-57.
    [Google Scholar]
  5. , , , . Mass transfer modeling of ion transport through nanoporous media. Desalination. 2011;281(1):325-333.
    [Google Scholar]
  6. , , , . Mass transfer simulation of solvent extraction in hollow-fiber membrane contactors. Desalination. 2011;275(1–3):126-132.
    [Google Scholar]
  7. , . Mass transfer simulation of ion separation by nanofiltration considering electrical and dielectrical effects. Desalination. 2012;284:316-323.
    [Google Scholar]
  8. , . Computational fluid dynamics simulation of transport phenomena in ceramic membranes for SO2 separation. Math. Comput. Modell.. 2012;56(11–12):278-286.
    [Google Scholar]
  9. , . Computational simulation of CO2 removal from gas mixture by chemical absorbent in porous membrane. RSC Adv.. 2015;5:36787.
    [CrossRef] [Google Scholar]
  10. , , . Mass transfer in molybdenum extraction from aqueous solutions using nanoporous membranes. Chem. Eng. Technol.. 2014;37(4):597-604.
    [Google Scholar]
  11. , , . Computational simulation of mass transfer in extraction of alkali metals by means of nanoporous membrane extractors. Chem. Eng. Process.. 2013;69:57-62.
    [Google Scholar]
  12. , . Computational simulation for transport of priority organic pollutants through nanoporous membranes. Chem. Eng. Technol.. 2013;36(3):507-512.
    [Google Scholar]
  13. , , , . Modeling and CFD simulation of water desalination using nanoporous membrane contactors. Ind. Eng. Chem. Res.. 2013;52(9):3490-3498.
    [Google Scholar]
  14. , , , . Mathematical modeling and simulation of CO2 stripping from monoethanolamine solution using nano porous membrane contactors. Int. J. Greenhouse Gas Control. 2013;13:1-8.
    [Google Scholar]
  15. , . Simulation of membrane distillation for purifying water containing 1,1,1-trichloroethane. Chem. Eng. Technol.. 2014;37(3):543-550.
    [Google Scholar]
  16. , , , . Modeling of water transport through nanopores of membranes in direct-contact membrane distillation process. Polym. Eng. Sci.. 2014;54(3):660-666.
    [Google Scholar]
  17. , , , . CFD simulation for separation of ion from wastewater in a membrane contactor. J. Water Process Eng.. 2015;6:144-150.
    [Google Scholar]
  18. , , . Chapter 4 recent high performance polymer membranes for CO2 separation. In: Membrane Engineering for the Treatment of Gases: Volume 1: Gas-Separation Problems with Membranes. The Royal Society of Chemistry; . p. :84-124.
    [Google Scholar]
  19. , . Viscous flow relative to arrays of cylinders. AIChE J.. 1959;5(2):174-177.
    [Google Scholar]
  20. , . Phenol removal from wastewater by means of nanoporous membrane contactors. J. Ind. Eng. Chem.. 2015;21:1410-1416.
    [Google Scholar]
  21. , . Prediction of flow behavior of crude oil-in-water emulsion through the pipe by using rheological properties. Orient. J. Chem.. 2012;28(1):109-113.
    [Google Scholar]
  22. , , , . Mathematical-thermodynamic solubility model developed by the application of discrete Volterra functional series theory. Fluid Phase Equilib.. 2015;385:205-211.
    [Google Scholar]
  23. , . Modeling and numerical simulation of catalytic reforming reactors. Orient. J. Chem.. 2011;27(4):1351-1355.
    [Google Scholar]
  24. , , . Review of CO2 absorption using chemical solvents in hollow fiber membrane contactors. Sep. Purif. Technol.. 2005;41(2):109-122.
    [Google Scholar]
  25. , . Absorption of carbon dioxide by the absorbent composed of piperazine and 2-amino-2-methyl-1-propanol in PVDF membrane contactor. J. Chin. Inst. Chem. Eng.. 2008;39(1):13-21.
    [Google Scholar]
  26. , . Effects of activators on mass-transfer enhancement in a hollow fiber contactor using activated alkanolamine solutions. J. Membr. Sci.. 2007;289(1–2):138-149.
    [Google Scholar]
  27. , , . Simultaneous absorption of carbon dioxide and hydrogen sulfide into aqueous blends of 2-amino-2-methyl-1-propanol and diethanolamine. Chem. Eng. Sci.. 2005;60(22):6438-6451.
    [Google Scholar]
  28. , , . CFD simulation of dense gas extraction through polymeric membranes. World Acad. Sci., Eng. Technol.. 2010;37:1043-1047.
    [Google Scholar]
  29. , , . Simulation of heavy metal extraction in membrane contactors using computational fluid dynamics. Desalination. 2011;281(1):422-428.
    [Google Scholar]
  30. , , . Hydrodynamic investigations on heavy metal extraction in membrane extractors. Orient. J. Chem.. 2011;27(4):1311-1316.
    [Google Scholar]
  31. , , . Computational fluid dynamics simulation of ammonia removal from wastewaters by membrane. Asian J. Chem.. 2011;23(7):3299-3300.
    [Google Scholar]
  32. , , . Investigation on copper extraction using numerical simulation. Asian J. Chem.. 2011;23(7):3289-3290.
    [Google Scholar]
  33. , , . Investigation on numerical simulation of acetone and ethanol separation from water by using membrane. Asian J. Chem.. 2011;23(7):3293-3294.
    [Google Scholar]
  34. , , . CFD simulation of mass transfer in membrane evaporators for concentration of aqueous solutions. Orient. J. Chem.. 2012;28(1):83-87.
    [Google Scholar]
  35. , , . Modeling of organic mixtures separation in dense membranes using finite element method (FEM) Orient. J. Chem.. 2012;28(1):41-46.
    [Google Scholar]
  36. , , . Theoretical studies on copper extraction by means of polymeric membrane contactors. Orient. J. Chem.. 2012;28(1):23-28.
    [Google Scholar]
  37. , , . Application of CFD techniques for prediction of NH3 transport through porous membranes. Orient. J. Chem.. 2012;28(1):67-72.
    [Google Scholar]
  38. , , . Mathematical modeling and CFD simulation of hydrocarbon purification using membrane technology. Orient. J. Chem.. 2012;28(1):123-129.
    [Google Scholar]
  39. , , , . Vapor pressure prediction using group contribution method. Orient. J. Chem.. 2011;27(4):1331-1335.
    [Google Scholar]
  40. , , , . Investigation on the best conditions for purification of multiwall carbon nanotubes. Asian J. Chem.. 2011;23(7):3205-3207.
    [Google Scholar]
  41. , , , . Preparation and characterization of poly (vinyl alcohol) membrane for pervaporation separation of water–organic mixtures. Orient. J. Chem.. 2012;28(1):97-102.
    [Google Scholar]
  42. , , , . Simulation of methanol production process and determination of optimum conditions. Orient. J. Chem.. 2012;28(1):145-151.
    [Google Scholar]
  43. , . Mathematical modeling of gas separation in flat-sheet membrane contactors. Orient. J. Chem.. 2012;28(1):13-18.
    [Google Scholar]
  44. , , , , , . CFD simulation of acetone separation from an aqueous solution using supercritical fluid in a hollow-fiber membrane contactor. Chem. Eng. Process.: Process Intensif.. 2013;72:130-136.
    [CrossRef] [Google Scholar]
  45. , . Gas separation properties of hollow-fiber membranes of polypropylene and polycarbonate by melt-spinning method. Asian J. Chem.. 2011;23(5):1922-1924.
    [Google Scholar]
  46. , . Separation of greenhouse gases from gas mixtures using nanoporous polymeric membranes. Polym. Eng. Sci.. 2015;55(5):975-980.
    [Google Scholar]
  47. , . 3 Dimensional hydrodynamic analysis of concentric draft tube airlift reactors with different tube diameters. Math. Comput. Modell.. 2013;57(5–6):1184-1189.
    [Google Scholar]
  48. , , , . Preparation and characterization of nanoporous ceramic membranes for separation of water from ethanol. Desalination Water Treat.. 2015;54(6):1550-1555.
    [Google Scholar]
  49. , . Mathematical modeling and numerical simulation of wastewater treatment unit using CFD. Orient. J. Chem.. 2012;28(1):51-58.
    [Google Scholar]
  50. , , , . Carbon dioxide absorption kinetics in potassium threonate. Chem. Eng. Sci.. 2008;63(13):3493-3503.
    [Google Scholar]
  51. , . Computational fluid dynamics simulation of mass transfer in the separation of fermentation products using nanoporous membranes. Chem. Eng. Technol.. 2013;36(5):728-732.
    [Google Scholar]
  52. , . CFD simulation of CO2 capture from gas mixtures in nanoporous membranes by solution of 2-amino-2-methyl-1-propanol and piperazine. Int. J. Greenhouse Gas Control. 2013;15:142-149.
    [Google Scholar]
  53. , , , . CO2 capture from gas mixtures by alkanol amine solutions in porous membranes. Transp. Porous Media. 2014;106(2):323-338.
    [Google Scholar]
  54. , , , . Investigations on the ability of Di-isopropanol amine solution for removal of CO2 from natural gas in porous polymeric membranes. Polym. Eng. Sci.. 2015;55(3):598-603.
    [Google Scholar]
  55. , . Effect of PVDF dope rheology on the structure of hollow fiber membranes used for CO2 capture. J. Membr. Sci.. 2006;281(1–2):334-344.
    [Google Scholar]
  56. , . CFD simulation of natural gas sweetening in a gas–liquid hollow-fiber membrane contactor. Chem. Eng. J.. 2011;168(3):1217-1226.
    [Google Scholar]
  57. , . CFD simulation of water removal from water/ethylene glycol mixtures by pervaporation. Chem. Eng. J.. 2011;168(1):60-67.
    [Google Scholar]
  58. , , , . Simulation of ammonia removal from industrial wastewater streams by means of a hollow-fiber membrane contactor. Desalination. 2012;285:383-392.
    [Google Scholar]
  59. , . Numerical modeling and optimization of wastewater treatment using porous polymeric membranes. Polym. Eng. Sci.. 2013;53(6):1272-1278.
    [Google Scholar]
  60. , . Transient computational fluid dynamics modeling of pervaporation separation of aromatic/aliphatic hydrocarbon mixtures using polymer composite membrane. Polym. Eng. Sci.. 2013;53(7):1494-1501.
    [Google Scholar]
  61. , , , . Development of a group contribution method based on UNIFAC groups for the estimation of vapor pressures of pure hydrocarbon compounds. Chem. Eng. Technol.. 2013;36(3):483-491.
    [Google Scholar]
  62. , , . Mass transfer simulation of caffeine extraction by subcritical CO2 in a hollow-fiber membrane contactor. Solvent Extr. Ion Exch.. 2010;28(2):267-286.
    [Google Scholar]
  63. , , . Mass transfer simulation of carbon dioxide absorption in a hollow-fiber membrane contactor. Sep. Sci. Technol.. 2010;45(4):515-524.
    [Google Scholar]
  64. , , . Near-critical extraction of the fermentation products by membrane contactors: a mass transfer simulation. Ind. Eng. Chem. Res.. 2011;50(4):2245-2253.
    [Google Scholar]
  65. , , . 3D modeling and simulation of mass transfer in vapor transport through porous membranes. Chem. Eng. Technol.. 2013;36(1):177-185.
    [Google Scholar]
  66. , , . Optimum conditions for the synthesis of CHA-type zeolite membranes applicable to the purification of natural gas. Ind. Eng. Chem. Res.. 2014;53(31):12435-12444.
    [Google Scholar]
  67. , , . Synthesis of substrate-modified LTA zeolite membranes for dehydration of natural gas. Fuel. 2015;148:112-119.
    [Google Scholar]
  68. , , . Investigations on permeation of water vapor through synthesized nanoporous zeolite membranes. A mass transfer model. RSC Adv.. 2015;5(39):30719-30726.
    [Google Scholar]
  69. , , . LTA and ion-exchanged LTA zeolite membranes for dehydration of natural gas. J. Ind. Eng. Chem.. 2015;22:132-137.
    [Google Scholar]
  70. , , , . Numerical simulation of mass transfer in gas–liquid hollow fiber membrane contactors for laminar flow conditions. Simul. Model. Pract. Theory. 2009;17(4):708-718.
    [Google Scholar]
  71. , , , . Supercritical extraction of organic solutes from aqueous solutions by means of membrane contactors: CFD simulation. Desalination. 2011;277(1–3):135-140.
    [Google Scholar]
  72. , , , . Prediction of SO2 transport across ceramic membranes using finite element method (FEM) Orient. J. Chem.. 2011;27(2):485-490.
    [Google Scholar]
  73. , , , . Separation of CO2 by single and mixed aqueous amine solvents in membrane contactors: fluid flow and mass transfer modeling. Eng. Comput.. 2012;28(2):189-198.
    [Google Scholar]
  74. , . Development of a mass transfer model for simulation of sulfur dioxide removal in ceramic membrane contactors. Asia-Pac. J. Chem. Eng.. 2012;7(6):828-834.
    [Google Scholar]
  75. , , , . Modeling of thallium extraction in a hollow-fiber membrane contactor. Solvent Extr. Ion Exch.. 2012;30(5):490-506.
    [Google Scholar]
  76. , . Implementation of the finite element method for simulation of mass transfer in membrane contactors. Chem. Eng. Technol.. 2012;35(6):1077-1084.
    [Google Scholar]
  77. , . Hydrodynamics and mass transfer simulation of wastewater treatment in membrane reactors. Desalination. 2012;286:290-295.
    [Google Scholar]
  78. , , , . Effect of water content of synthetic hydrogel on dehydration performance of nanoporous LTA zeolite membranes. Int. J. Appl. Ceram. Technol.. 2014;11(5):793-803.
    [Google Scholar]
  79. , . Theoretical studies on membrane-based gas separation using computational fluid dynamics (CFD) of mass transfer. J. Chem. Soc. Pak.. 2011;33(4):464-473.
    [Google Scholar]
  80. , . Preparation and simulation of polycarbonate hollow-fiber membrane for gas separation. Asian J. Chem.. 2011;23(1):302-304.
    [Google Scholar]
  81. , . Mathematical modeling and numerical simulation of CO2 transport through hollow-fiber membranes. Appl. Math. Model.. 2011;35(1):174-188.
    [Google Scholar]
  82. , . Simulation studies on H2S absorption in potassium carbonate aqueous solution using a membrane module. Asian J. Chem.. 2011;23(9):4227-4228.
    [Google Scholar]
  83. , . Simulation of ethanol and acetone extraction from aqueous solutions in membrane contactors. Asian J. Chem.. 2011;23(9):4229-4230.
    [Google Scholar]
  84. , . Chapter 13 economics of gas separation membrane processes. In: , , eds. Membrane Science and Technology. Elsevier; . p. :589-667.
    [Google Scholar]
  85. , , , , , . Modeling and simulation of membrane separation process using computational fluid dynamics. Arabian J. Chem.. 2016;9(1):72-78.
    [Google Scholar]
  86. , . Post combustion CO2 capture by carbon fibre monolithic adsorbents. Prog. Energy Combust. Sci.. 2009;35(5):438-455.
    [Google Scholar]
  87. , . Calculation of the density and activity of water in ATPS systems for separation of biomolecules. J. Solut. Chem.. 2013;42(7):1423-1437.
    [Google Scholar]
  88. , . Conventional processes and membrane technology for carbon dioxide removal from natural gas: a review. J. Nat. Gas Chem.. 2012;21(3):282-298.
    [Google Scholar]
  89. , . Current status and development of membranes for CO2/CH4 separation: a review. Int. J. Greenhouse Gas Control. 2013;12:84-107.
    [Google Scholar]
Show Sections
