Preparation of highly dispersed W/Al₂O₃ hydrodesulfurization catalysts via a microwave hydrothermal method: Effect of oxalic acid

Hao Wang^⁎, Zhenwei Liu, Yan Wu, Zhenyu Yao, Wanying Zhao, Weizhuo Duan, Ke Guo

School of Chemistry and Chemical Engineering, Southwest Petroleum University, Chengdu 610500, Sichuan Province, People’s Republic of China

⁎Corresponding author at: School of Chemistry and Chemical Engineering, South West Petroleum University, Xindu Avenue 8#, Xindu District, Chengdu City 610500, Sichuan Province, People’s Republic of China. Tel.: +86 28 83037338; fax: +86 28 83037305. wanghaoswpu@hotmail.com (Hao Wang)

Received: 2014-1-19, Accepted: 2014-11-3, Published: 2014-01-01

Disclaimer:
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.

Peer review under responsibility of King Saud University.

Abstract

A novel microwave hydrothermal method was developed to prepare highly dispersed W/Al₂O₃ catalysts, in which WO₃ was deposited on alumina via precipitation between tungstate and nitric acid under microwave hydrothermal environment and oxalic acid was used as an additive. Moreover, the role of oxalic acid was investigated by varying its amount and the addition method. It is found that the catalysts show higher WO₃ dispersion and weaker W–Al interaction than that prepared by the conventional impregnation method. The hydrothermal period can be extremely reduced to a few minutes, and highly dispersed WO₃ can be achieved even without oxalic acid. When oxalic acid was added after the formation of H₂WO₄, it mainly acts as a modifier for reacting with the hydroxyl groups on alumina and has little effect on WO₃ dispersion. When oxalic acid was divided into two parts, one for pretreating alumina and the remains for preventing the aggregation of H₂WO₄, it may effectively act as both dispersant and modifier, leading to further increased WO₃ dispersion and weakened W–Al interaction. The catalysts prepared by the microwave hydrothermal method show superior dibenzothiophene hydrodesulfurization activity. This method provides rapidity, convenience and cost effectiveness for preparing active hydrotreating catalysts.

Keywords

Hydrodesulfurization catalyst

Microwave hydrothermal

Oxalic acid

Dispersion

Metal–support interaction

Show Related Articles from PubMed

1 Introduction

In recent years, the demand of clean diesel with low sulfur content is growing rapidly because of more stringent environmental regulations. Hydrodesulfurization (HDS) is the main industrial process to reduce sulfides in fuel (Klimova et al., 2013). Compared with upgrading hydrotreating equipment or increasing the severity of HDS conditions, the development of highly active hydrotreating catalysts is a more effective and economical way to achieve deep HDS (Babich and Moulijn, 2003).

Alumina-supported sulfided Ni(Co)–W(Mo) catalysts are extensively used for hydrotreating of diesel. Intensive efforts are underway to enhance the activity of the catalysts. Many researchers have focused on new mesoporous supports with ordered pore structure, larger pore size and higher surface area than the conventional alumina, such as MCM-41 (Hussain et al., 2013), SBA-15 (Li et al., 2012), SBA-16 (Huirache et al., 2012), and HMS (Zepeda et al., 2014). Another approach receiving considerable attention is the introduction of chelating agents, such as citric acid (Rinaldi et al., 2010), nitriloacetic acid (Lélias et al., 2009), 1,2-cyclohexanediamine-tetraacetic acid (Koizumi et al., 2010) and ethylenediaminetetraacetic acid (Rana et al., 2007). These chelating agents can form stable complexes with Ni or Co promoters to retard their sulfidation and produce more Ni(Co)–W(Mo)-S type II active phases. Moreover, the combination of mesoporous support and chelating agents has also attracted increasing attention in the latest years (Badoga et al., 2012; Klimova et al., 2013; Peňa et al., 2014; Wu et al., 2014 ). However, most of the studies are based on the conventional impregnation method; less attention has been paid on developing novel catalyst preparation methods to improve the performance of alumina-supported hydrotreating catalysts without adding expensive chelating agents.

It is accepted that an effective way to prepare highly active HDS catalysts is improving the dispersion of active metal and weakening the metal–alumina interaction (Olivas and Zepeda, 2009; Vissenberg et al., 2001). Nevertheless, due to the aggregation of active species, the conventional impregnation method generally leads to poor metal dispersion, and hence the limited loading of active metal (Liu et al., 2007). Moreover, the strong metal–alumina interaction readily forms due to the reaction between the aluminum hydroxyl groups and metal precursors (Sun et al., 2003). Recently, an oxalic acid (Wang et al., 2008) or hexadecyltrimethyl ammonium bromide (CTAB) (Fan et al., 2007; Wang et al., 2007) assisted hydrothermal deposition method (HD) was introduced to prepare W/Al₂O₃ and NiW/Al₂O₃ hydrotreating catalysts with both highly dispersed WO₃ and weak tungsten–alumina interaction, in which oxalic acid or CTAB can prevent the aggregation of WO₃ and modify the surface of alumina, and the hydrothermal environment may promote the distribution of WO₃ on alumina. The HD method increases the HDS and HDN activity significantly, but it suffers from the long hydrothermal treatment period (12 h), especially at high tungsten loadings, inevitably leading to serious breakage of catalyst and large energy expenditure.

Microwave hydrothermal method is a genuine low temperature and high reacting rate method due to direct interaction of radiation with molecular (Moreira et al., 2008). During the past decade, the microwave hydrothermal method has been successfully used to synthesize various nano-sized materials (Huang et al., 2010; Su et al., 2010; Zhu and Hang, 2013 ). This method is superior to the conventional hydrothermal method in fast and uniform heating as well as rapid kinetics of crystallization (Komarneni et al., 1999). However, to our knowledge, the microwave hydrothermal method is seldom used to deposit active metal oxide on pre-synthesized support for preparing hydrotreating catalysts. In the present work, a microwave hydrothermal method (MWH) was developed to prepare W/Al₂O₃ hydrotreating catalyst with both high WO₃ dispersion and weak tungsten–alumina interaction, which requires significantly less time and energy than the previous HD method. In addition, the role of oxalic acid was also investigated through varying its amount and the addition method.

2 Experimental

2.1

2.1 Catalyst preparation

A series of W/Al₂O₃ catalysts with the same WO₃ loading were prepared by MWH. Firstly, 1.5 g γ-alumina (Sasol GmbH, Germany, 20–40 mesh) and 19.3 ml of 0.1 M ammonium metatungstate (AMT) solution were mixed in a microwave digestion vessel (volume of 80 ml and diameter of 35 mm), and then diluted HNO₃ was added to produce H₂WO₄ precipitation. Secondly, various amounts of 0.8 M oxalic acid solution were added into the suspension under stirring. Thirdly, the digestion vessel was sealed and irradiated in a microwave oven at 600 W (2.45 GHz) for 5 min. Finally, the product was cooled, filtered and dried at 110 °C for 2 h followed by calcination at 550 °C for 4 h. The corresponding catalysts were named as MWH-X, where X represents the molar ratio of oxalic acid to W. The WO₃ contents of the catalysts determined by X-ray fluorescence spectroscopy (XRF) (AXIOS, PANalytical, The Netherlands) are listed in Table 1.

Table 1 WO₃ content, specific surface area, pore volume and surface W/Al ratio of the W/Al₂O₃ catalysts.

Sample	WO₃ content (wt%)	Specific surface area (m² g⁻¹)	Pore volume (cm³ g⁻¹)	Surface atom ratio of W/Al
Al₂O₃	–	214.6	0.54	–
IM	23.1	153.5	0.35	0.052
MWH-0	22.9	171.9	0.43	0.071
MWH-0.25	23.1	176.7	0.44	0.070
MWH-0.5^⁎	23.0	178.6	0.44	0.073
MWH-A	22.9	165.1	0.40	0.063
MWH-B	22.8	189.4	0.47	0.087

⁎ MWH-0.5 is identical to MWH-C.

To further investigate the role of oxalic acid, the same amount of oxalic acid with a mole ratio of oxalic acid to W = 0.5 was introduced by three methods. For method A, all oxalic acid was used to pretreat alumina through impregnating alumina under microwave irradiation for 2 min. For method B, half of oxalic acid was used to pretreat alumina and half of oxalic acid was added after the formation of H₂WO₄ as described above. For method C, all oxalic acid was added after the formation of H₂WO₄. The resulting catalysts were named as MWH-A, MWH-B and MWH-C, respectively. Their WO₃ contents were also measured by XRF and are listed in Table 1.

The WO₃ content of the catalysts prepared by MWH are controlled at nearly 23 wt%. Therefore, for comparison, a W/Al₂O₃ catalyst with the same WO₃ content (Table 1) referred as catalyst IM was prepared by a conventional impregnation method. The alumina support was impregnated with AMT solution at room temperature for 12 h, and then dried at 110 °C for 2 h and calcined at 550 °C for 4 h.

2.2

2.2 Catalyst characterization

X-ray diffraction (XRD) patterns were recorded on an X’Pert Pro diffractometer (Panalytical, Netherlands) equipped with an X’Celerator detector, using Cu Kα radiation and operating at 40 kV and 40 mA. The scanning was made from 10° to 80° (2θ) with a step size of 0.02° and a step time of 12 s.

X-ray photoelectron spectroscopy (XPS) measurement was carried out on a Thermo Fisher K-Alpha spectrometer (Thermo Fisher, USA) using Kα Al radiation. Peak shifts due to charging of the samples were corrected by taking the Al2p line of Al₂O₃ at 74.0 eV as a reference (Zuo et al., 2004).

The surface area and pore volume of the catalysts were measured with a Quadrasorb SI analyzer (Quantachrome, USA) at −195 °C using liquid N₂. All samples were degassed at 300 °C for 6 h in vacuum before analysis.

The temperature programmed reduction (TPR) analyses of the catalysts were performed on an AutoChem II 2920 chemisorption analyzer (Micromeritics, USA) equipped with a thermal conductivity detector (TCD). The sample was pretreated in an Ar flow at 300 °C for 1 h and then cooled down to room temperature. Subsequently, the sample was heated to 1000 °C at a rate of 10 °C /min in a 10 v% H₂/Ar flow.

Fourier transform infrared (FT-IR) spectra of the catalysts were recorded on a WQ 520 spectrophotometer (Beifen, China) using the KBr pellet technique at room temperature. A total of 32 scans were taken with a resolution of 2 cm⁻¹.

2.3

2.3 Catalyst test

HDS experiments were performed on a KLJH-4010 fixed-bed microreactor (KLC, China). Prior to reaction, 1 ml catalyst (0.92 g) was sulfided using 3 wt% CS₂ in cyclohexane at 300 °C, total pressure of 4.0 MPa, liquid volume hourly space velocity (LHSV) of 10.0 h⁻¹ and H₂/hydrocarbon volumetric ratio of 400 for 4 h. Then, the feed was switched to 1 wt% DBT in cyclohexane and the HDS reaction was carried out under 300 °C, 4 MPa, LHSV 10 h⁻¹ and H₂/hydrocarbon 400. After reaching a steady state, the liquid product was collected and analyzed by a 9790II gas chromatography (Fuli, China) equipped with FID detector and KB-5 capillary column (30 m × 0.32 mm × 0.25 μm, Kromat, USA). The rate constant of DBT HDS and turnover frequency (TOF) of catalysts were calculated according to the reference (Wang et al., 2008).

3 Results and discussion

3.1

3.1 Effect of oxalic acid amount

The XRD patterns of catalysts IM, MWH-0, MWH-0.25 and MWH-0.5 are presented in Fig. 1. The peaks at 23.6° and 33.6° attributed to orthorhombic WO₃ (ICDD PDF 00-020-1324) are observed on the XRD pattern of catalyst IM, whereas only peaks at 45.8° and 66.7°ascribed to cubic γ-alumina (ICDD PDF 01-075-0921) are present on the XRD patterns of MWH-0, MWH-0.25 and MWH-0.5. This indicates that WO₃ species are highly dispersed on the catalysts prepared by MWH while poorly dispersed on the catalyst prepared by IM.

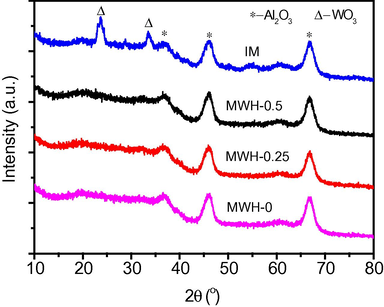

XRD patterns of the W/Al2O3 catalysts with different oxalic acid amounts.

To further study the dispersion of WO₃, the four catalysts were characterized by XPS. Their surface atom ratios of tungsten to aluminum are listed in Table 1. As expected, the W/Al ratios of catalysts MWH are higher than that of catalyst IM. Nevertheless, it seems that the amount of oxalic acid gives little effect on the WO₃ dispersion of catalysts MWH, since the differences in their W/Al ratios are less than 5%. The XRD and XPS results demonstrate that the high WO₃ dispersion of catalysts MWH can be predominantly attributed to the microwave hydrothermal environment instead of oxalic acid. As reported previously (Wang et al., 2008), the increased WO₃ dispersion in conventional HD method is attributed to both high mass transfer ability of hydrothermal solution and anti-aggregation effect of oxalic acid that can act as a dispersant by adsorbing on tungstic acid colloids via H-bonding between the carboxyl group of oxalic acid and negative charged tungstic acid. If the oxalic acid or other dispersant is absent, the HD method can hardly disperse WO₃ uniformly and the bulk WO₃ are present on alumina. However, the microwave hydrothermal environment can highly disperse WO₃ on alumina without the assistance of oxalic acid, which is related to at least two reasons. First, microwave hydrothermal treatment allows for rapid heating and localized high temperature, and thus accelerates the nucleation and recrystallization of tungstic acid and extremely inhibits the crystallite growth, resulting in small nano-sized species (Komarneni et al., 1999; Glaspell et al., 2005). Second, the mobility of tungsten species under the hydrothermal condition can be further promoted by the increase in the effective collision rate of tungstic acid that acts as a strong microwave absorber at 2.45 GHz (Sun et al., 2008), which is helpful to disperse tungsten on alumina homogeneously and quickly. On the contrary, the conventional heating in hydrothermal process relies on thermal conduction and results in the long heating period, inhomogeneous temperature profiles within the autoclave and slow reaction and crystallization kinetics, leading to slow nucleation and excess growth of the products (Zhu and Hang, 2013), as well as the less enhanced mobility of tungsten species. As a result, a large amount of oxalic acid is required to prevent H₂WO₄ from aggregation for the HD method.

The surface area and pore volume of the four catalysts are also listed in Table 1. Among them, catalyst IM shows the lowest surface area and pore volume, due to the serious pore blockage by agglomerated WO₃ crystallites (Calderón et al., 2014). MWH-0.5 shows a little higher surface area than MWH-0, because the formation of oxalate bridges between oxalic acid and alumina may suppress the reduction of alumina surface area caused by hydrothermal treatment (Absi-Halabi et al., 1993).

The TPR profiles of the W/Al₂O₃ catalysts are shown in Fig. 2. An apparent peak in 900–1000 °C present on the profiles of all catalysts is ascribed to the reduction of supported WO₃ (Fan et al., 2007). The peak at 755 °C is only observed on the profile of catalyst IM, owing to the reduction of bulk WO₃ (Reyes et al., 1994). Compared to catalyst IM, the reduction peaks of catalysts MWH shift to lower temperatures. It is known that the reaction between the carboxyl groups of oxalic acid and the hydroxyl groups of alumina can weaken the tungsten–alumina interaction (Wang et al., 2008). Therefore, the reduction peak temperature decreases with the increasing amount of oxalic acid. However, when oxalic acid is absent, MWH-0 also shows weaker tungsten–alumina interaction than catalyst IM, which may be attributed to the lower pH of precursor solution in the former, because the higher impregnation pH may slightly increase the relative amount of less reducible dispersed isolated WO_x species (Cruz et al., 2002).

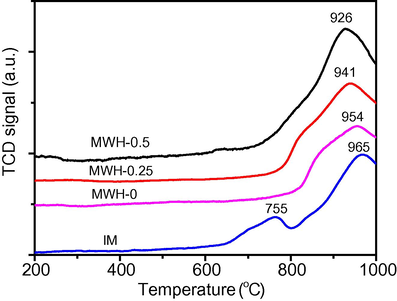

TPR profiles of the W/Al2O3 catalysts with different oxalic acid amounts.

The above characterization results clearly reveal that the MWH method can increase the dispersion of WO₃ and weaken the tungsten–alumina interaction in comparison with the conventional IM method. Moreover, this method differs from the previous HD method in the role of oxalic acid: in the former, oxalic acid mainly acts as a modifier to weaken the strong tungsten–alumina interaction, whereas in the latter, besides modifying alumina support, oxalic acid also acts as a dispersant to prevent the aggregation of WO₃ and increase the dispersion. As a result, to attain the similar promotion effect on WO₃ dispersion and tungsten–alumina interaction, HD may require more oxalic acid than MWH, which can be confirmed by the fact that if the mole ratio of oxalic acid to W is less than 1, bulk WO₃ crystallites are formed on W/Al₂O₃ at the WO₃ content of 23 wt%.

The HDS activity of the W/Al₂O₃ is listed in Table 2. Catalysts MWH show higher activity and TOF than catalyst IM, due to the higher WO₃ dispersion and weaker tungsten–alumina interaction, which often lead to the more exposed or shorter metal sulfide active phase and the higher sulfidation degree (Wang et al., 2007). Moreover, the larger WO₃ crystallites on catalyst IM promote the blocking of even filling of pores, making difficult diffusion of reactants (Montesinos-Castellanos et al., 2007). Even without oxalic acid, the rate constant and TOF of MWH-0 are increased by 36.7% and 32.5%, respectively, as compared with catalyst IM. For catalysts MWH, although the dispersion of WO₃ was nearly unchanged, the increased oxalic acid further weakens the tungsten–alumina interaction, which facilitates the sulfidation of WO₃ and thus enhances the HDS activity.

Table 2 The DBT HDS activity of catalysts.

Sample	Rate constant (10⁻⁴ × mol g⁻¹ h⁻¹)	TOF (10⁻¹ × h⁻¹)
IM	0.98	0.89
MWH-0	1.34	1.18
MWH-0.25	1.40	1.22
MWH-0.5^⁎	1.48	1.28
MWH-A	1.55	1.32
MWH-B	1.81	1.51
NiW-MWH-B	3.19	2.32
Commercial NiW catalyst	2.35	1.81

⁎ MWH-0.5 is identical to MWH-C.

3.2

3.2 Effect of oxalic acid addition method

As discussed above, when oxalic acid was added after the formation of H₂WO₄, the increase in oxalic acid amount has a small promotion effect on WO₃ dispersion. Therefore, three different oxalic acid addition methods were attempted to further modify the dispersion and tungsten–alumina interaction of W/Al₂O₃ at the same oxalic acid amount (mole ratio of oxalic acid to W = 0.5).

The XRD patterns of MWH-A, MWH-B and MWH-C are given in Fig. 3. In all patterns, only diffraction peaks ascribed to alumina are observed, indicating highly dispersed WO₃.

XRD patterns of the W/Al2O3 catalysts with different oxalic acid addition methods.

The surface atom ratios of tungsten to aluminum determined by XPS are also listed in Table 1. It is interesting to find that MWH-B shows 19.2% higher W/Al ratio than MWH-C, while MWH-A shows 13.7% lower W/Al ratio than MWH-C.

The surface area and pore volume of MWH-A, MWH-B and MWH-C are listed in Table 1. The surface area and pore volume follow the order of MWH-B > MWH-C > MWH-A, due to the variation of WO₃ dispersion.

The TPR profiles of MWH-A, MWH-B and MWH-C are shown in Fig. 4. It is clear that the temperature of reduction peak is in the order of MWH-C > MWH-B > MWH-A.

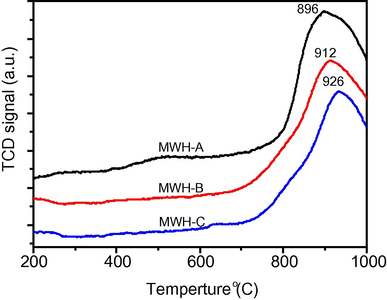

TPR profiles of the W/Al2O3 catalysts with different oxalic acid addition methods.

Despite the identical oxalic acid amount, the different addition methods of oxalic acid impose different modification effects on both WO₃ dispersion and tungsten–alumina interaction. During the catalyst preparation process, oxalic acid could exert two roles: reacting with the aluminum hydroxyl groups and adsorbing on tungstic acid. For method A, all oxalic acid was used to pretreat alumina and hence greatly reduce the amount of aluminum hydroxyl groups, causing the remarkable decreased tungsten–alumina interaction, however, this also results in no excess oxalic acid adsorbing on H₂WO₄ colloids to prevent their aggregation. Moreover, at high oxalic acid loading, the corrosion of acid on alumina is increased, leading to the decrease in surface area (Atanasova et al., 1997) (Table 1). Therefore, MWH-A has the lowest tungsten dispersion and weakest tungsten–alumina interaction among the three catalysts. For method B, the oxalic acid could be departed into two parts, one for pretreating alumina to react with the hydroxyl groups on alumina, the other for interacting with H₂WO₄ colloids. As an acidic molecular, oxalic acid will preferentially react with the basic hydroxyl groups on alumina (Sun et al., 2003). Herein, the total amount of hydroxyl groups on alumina is 1.71 mmol g⁻¹(Al₂O₃) determined by thermogravimetry according to Jiang’s (1994) method. The oxalic acid for pretreating alumina is 0.32 mmol g⁻¹(Al₂O₃), accounting for 18.7% of the total amount of hydroxyl groups on alumina, which is close to the percentage of basic hydroxyl groups (15%) on alumina reported by Sun et al. (2003). It indicates that the oxalic acid used for pretreatment may selectively react with the basic hydroxyl groups that most readily react with tungsten species to form strong tungsten–alumina interaction. Furthermore, the pretreated alumina surface could reduce the adsorption of the oxalic acid added after the formation of H₂WO₄, allowing oxalic acid to prevent the aggregation of H₂WO₄ more effectively (Li et al., 2011). For method C, all oxalic acid was introduced after the formation of H₂WO₄. On the one hand, tungsten species and oxalic acid will adsorb competitively on the surface of alumina, which inevitably leads to the formation of strong interaction between tungsten and alumina (Li et al., 2011), therefore, MWH-C shows stronger tungsten–alumina interaction than MWH-B and MWH-A. On the other hand, oxalic acid will adsorb on alumina and H₂WO₄ randomly, which may cause a relatively small amount of oxalic acid to form hydrogen bonding with H₂WO₄, therefore, the WO₃ dispersion of MWH-C lies between MWH-B and MWH-A.

The FT-IR spectra of the W/Al₂O₃ catalysts prepared by MWH before calcination are shown in Fig. 5. For MWH-0, the only evident peak at 1635 cm⁻¹ corresponding to vibration of O–H is observed (Abadleh and Grassian, 2002). For MWH-A, MWH-B and MWH-C, the peak at 1697 cm⁻¹ ascribed to stretching vibration of C⚌O of carboxylic acid and the peak at 1423 cm⁻¹ ascribed to symmetric vibrations of carboxylate ions are present (Wang et al., 2008), indicating that oxalic acid can form carboxylate with the hydroxyl groups on alumina surface. This proves that the reaction between oxalic acid and hydroxyl groups on alumina can be achieved within the short time of microwave hydrothermal treatment. To verify the interaction of oxalic acid with H₂WO₄, pure alumina impregnated with oxalic acid (named as OA-Al) was also prepared and characterized by FT-IR, and the pattern is given in Fig. 5. It is noted that, the peak ascribed to oxalic acid at 1715 cm⁻¹ in the spectrum of OA-Al, shifts to lower wavenumber in catalysts MWH, suggesting the formation of H-bond between oxalic acid and H₂WO₄. For MWH-B, the peak assigned to carboxylic acid is stronger than MWH-C and MWH-A, which suggests more oxalic acid can interact with H₂WO₄ to provide anti-aggregation effect. Moreover, the peak intensity of carboxylate in MWH-A is much higher than that of MWH-B and MWH-C, suggesting the formation of more carboxylate, which leads to the weaker tungsten–alumina interaction.

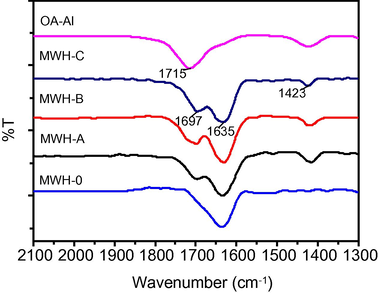

FT-IR spectra of the W/Al2O3 catalysts before calcination.

The HDS activity is listed in Table 2. MWH-B shows much higher activity than MWH-A and MWH-C, which can be attributed to both the further increased WO₃ dispersion and weakened tungsten–alumina interaction. It is worthy to note that MWH-A shows a little higher activity than MWH-C, although the latter has better WO₃ dispersion, since the weak tungsten–alumina interaction can not only increase the sulfidation degree of WO₃ but also may increase the stacking degree of tungsten sulfides, which is favorable in planar adsorption of DBT on the active sites (Hensen et al., 2001).

From Table 2, it reveals that when the MWH method is used and only oxalic acid amount is increased to 0.5 (mole ratio of oxalic acid to W), the HDS rate constant and TOF are 51.0% and 43.8% higher than those of catalyst IM, however, when the oxalic acid addition method B is used, the data are increased by 84.7% and 69.7%, respectively. This is due to the fact that method B can offer much more positive modification effects.

After HDS reaction, catalysts MWH-B and IM were collected and named as MWH-B-R and IM-R, respectively. Their XRD patterns are shown in Fig. 6. Besides the diffraction peaks of alumina support, the peaks at about 33.2° and 59.1° ascribed to hexagonal WS₂ phase (ICDD PDF 00-008-0237) appear on both catalysts, indicating the sulfidation of WO₃. However, the peaks at 23.6° and 54.5° ascribed to orthorhombic WO₃ (ICDD PDF 00-020-1324) are only present on IM-R, similar to its oxidic precursor, suggesting the incomplete sulfidation of WO₃. The presence of (1 1 0) reflection at 2θ = 59.1° is representative of WS₂ slab layer (Yi et al., 2011), therefore, the slab size can be calculated by the Scherrer relation. The size is 4.2 nm for MWH-B-R and 5.6 nm for IM-R, respectively, indicating better WS₂ dispersion on the former, in line with the XRD and XPS results of their oxidic precursors. The XRD result of catalysts after reaction confirms that the HDS activity enhancement over MWH-B could be attributed to both higher dispersion of WS₂ and sulfidation degree of WO₃.

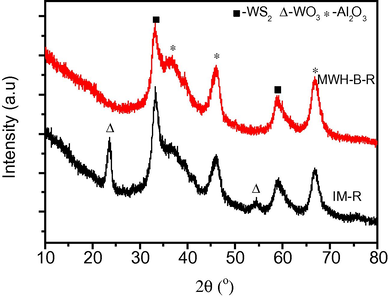

XRD patterns of catalysts MWH-B-R and IM-R.

The industrial HDS catalysts are composed of W and Ni, therefore, a NiW/Al₂O₃ catalyst named as NiW-MWH-B was prepared, wherein WO₃ was deposited on alumina by the MWH method (like MWH-B) and then NiO was introduced by impregnating nickel nitrate on W/Al₂O₃. The NiO and WO₃ contents were controlled at 2.7 wt% and 23 wt%, respectively, close to a reference commercial NiW/Al₂O₃ hydrotreating catalyst containing 2.9 wt% NiO and 23.6 wt% WO₃. The HDS activity for DBT over the two NiW catalysts is listed in Table 2. It is clear that NiW-MWH-B shows the much higher activity and efficiency of active sites than the commercial one. Moreover, the stability of NiW-MWH-B was tested by prolonging the HDS reaction time to 100 h, and no obvious deactivation is observed.

4 Conclusions

A novel MWH method was developed to prepare highly dispersed W/Al₂O₃ catalysts and the effect of oxalic acid amount and the addition method on property of catalyst was investigated. Compared to the conventional IM method, the MWH method can increase the dispersion of WO₃ and weaken the tungsten–alumina interaction. Compared to the previously reported HD method, the catalyst preparation period can be reduced dramatically from 12 h to 5 min, moreover, the highly dispersed WO₃ can be achieved in the absence of oxalic acid. This is attributed to the rapid nucleation and greatly inhibited growth of tungstic acid colloids as well as the enhanced mobility of tungsten species, induced by the microwave hydrothermal environment.

When oxalic acid is added after the formation of tungstic acid, due to its completive adsorption on both alumina and tungstic acid, it mainly plays a role in reacting with the hydroxyl groups on alumina to weaken the tungsten–alumina interaction, therefore, the increased amount of oxalic acid has a slight effect on WO₃ dispersion. At the same oxalic acid amount, the addition method of oxalic acid has a significant influence on the catalyst. By using a part of oxalic acid to pretreat alumina and the remaining to adsorb on tungstic acid colloids, oxalic acid can effectively act as both a modifier to interact with alumina and a dispersant to prevent tungstic acid colloids from aggregation. As a result, the corresponding catalyst shows further increased WO₃ dispersion and weakened tungsten–alumina interaction. The catalyst prepared by the MWH method has superior HDS activity than the catalyst prepared by the IM method. It is hoped that this method may provide a rapid and efficient way to prepare highly active hydrotreating catalysts with low energy costs.

Acknowledgments

The authors acknowledge the financial support from the National Natural Science Foundation of China (20906075) and Foundation of State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation (PLN1127).
