Removal of Cu(II), Cd(II) and Cr(III) ions from aqueous solution by dam silt

Fatima Ouadjenia-Marouf^a, Reda Marouf^a,*, Jacques Schott^b, Ahmed Yahiaoui^a

a Laboratoire de Chimie, Département des Sciences de la Matière, Université de Mascara, Algeria

b Laboratoire des Mécanismes de Transferts en Géochimie, CNRS (UMR 5563)-OMP-Université Paul-Sabatier, Toulouse, France

*Corresponding author. Tel.: +213 5 54 17 53 28 reda_marouf@yahoo.fr (Reda Marouf)

Received: 2010-4-16, Accepted: 2010-10-18, Published: 2010-10-01

Disclaimer:
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.

Peer-review under responsibility of King Saud University.

Available online 25 October 2010

Abstract

The removal of heavy metals, such as Cu(II), Cd(II) and Cr(III) from aqueous solution was studied using Chorfa silt material (Mascara, Algeria). The main constituents of silt sediment are quartz, calcite and mixture of clays. The experimental data were described using Freundlich, Langmuir, Dubinin–Radushkevich (D–R) and Langmuir–Freundlich models. The adsorbed amounts of chromium and copper ions were very high (95% and 94% of the total concentration of the metal ions), whereas cadmium ion was adsorbed in smaller (55%) amounts. The Langmuir–Freundlich isotherm model was the best to describe the experimental data. The maximum sorption capacity was found to be 26.30, 11.76 and 0.35 mg/g for Cr³⁺, Cu²⁺ and Cd²⁺, respectively. The results of mean sorption energy, E (kJ/mol) calculated from D–R equation, confirmed that the adsorption of copper, chromium and cadmium on silt is physical in nature.

Keywords

Heavy metals

Silt

Adsorption

Isotherms models

Show Related Articles from PubMed

1 Introduction

Pollution from heavy metals has become a serious problem for human health and for environment. The heavy metals are not biodegradable and tend to accumulate in organisms causing various diseases (Inglezakis et al., 2003). The existence of heavy metals, such as copper (Cu), nickel (Ni), zinc (Zn), lead (Pb), mercury (Hg), chromium (Cr) and cadmium (Cd) in wastewater, is the consequence of several activities like chemical manufacturing, paint pigments, plastics, metallurgy and nuclear industry (Quintelas et al., 2009). Among various diseases associated to the presence of these toxic elements in the human body, there are neurotoxicity, severe gastro-intestinal irritation, and lung cancer (Jiang et al., 2009; Agouborde and Navia, 2009; Chakravarty et al., 2008 ).

For the removal of these metals from wastewater, there are a series of processes currently used for this object: chemical precipitation (Matlock et al., 2001), membrane filtration (Molinari et al., 2004), electrolytic reduction (Beauchesne et al., 2005), solvent extraction (Silva et al., 2005), ionic exchange (Pehlivan and Altun, 2007) and adsorption (Ajmal et al., 1998). Most of these methods may not be suitable at industrial scale, due to low efficiency or expensive applicability to a wide range of pollutants, generation of residues, difficulty to locate optimal operating conditions when different heavy metals are present in a solution and need a pre-treatment (Jiang et al., 2009; Agouborde and Navia, 2009). Adsorption on various materials, such as activated carbon (Chen and Wu, 2004), biomaterials (Han et al., 2006) and clay minerals (Sharma, 2008) is now recognized as an efficient and economic method to remove metal ions from aqueous solution (Crini, 2005).

In recent years, many porous mineral materials found increasing interest as adsorbents due to their abundance in nature, low cost, good cation adsorptive properties and large surface area (Brigatti et al., 1996; Bhattacharyya and Gupta, 2008a). Mineral materials used to remove heavy metals include kaolinite (Bhattacharyya and Gupta, 2008b), zeolite (Sljivic et al., 2009), montmorillonite (Ijagbemi et al., 2009) and bentonite (Xu et al., 2008). Among the microporous materials most abundant in nature, one finds the silt, which can be used as adsorbent for metal ions. This material is the sediment of the dam, which contains generally quartz, calcium carbonates and a mixture of clays.

The aim of the present work is to examine the possibility of using the silt to remove the heavy metals from aqueous solutions. The silt was obtained from Chorfa dam (Mascara, western Algeria). Three studied heavy metals are chromium(III), copper(II) and cadmium(II). The applicability of theoretical models, such as Langmuir, Freundlich, Dubinin–Radushkevich (D–R) and Langmuir–Freundlich for the equilibrium data fitting was tested. The value of mean sorption energy, E (kJ/mol), was calculated from D–R equation.

2 Materials and methods

2.1

2.1 Silt sampling and characterization

The silt used in this investigation was obtained from Chorfa dam in Sig region (Mascara, Algeria). The chemical composition of the raw silt was determined by a Cameca SX-50 electronic microprobe. The grain size of this material was 75 μm.

Sample of raw silt was washed with deionized water Milli-Q, dried at 95 °C for 24 h and sieved. X-ray analyses were performed using INEL CPS 120 diffractometer employing Co Kα radiation. The specific surface area of solid was measured, at 77 K, using the BET N₂ method via an ASAP 2010 instrument (Micromeritics, Norcross, GA, USA). Elemental analyses of heavy metals were conducted using an atomic absorption flame spectrometer (FAAS, Perkin Elmer).

2.2

2.2 Metal solutions

Standard stock salt solutions of cadmium(II), copper(II) and chromium(III) were used to prepare appropriate concentrations of each metal for the sorption studies. A stock of Cd(II), Cu(II) and Cr(III) solutions of 1000 ppm, were prepared by dissolving 2.368 g of C₄H₆CdO₄·2H₂O (Prolabo), 3.8 g of Cu(NO₃)₂·3H₂O (Fluka) and 5.124 g of CrCl₃·6H₂O (Prolabo), respectively, in 1 L of deionized water Milli-Q.

2.3

2.3 Adsorption studies

For each experiment, 20 mL of metal solution was added to 0.2 g of the raw silt. The initial concentrations of metal ions were: 1, 2, 4, 6 and 10 mg/L. The silt suspensions were shaken at room temperature (22 ± 2 °C) for 4 h. The pH was adjusted at 5–6 by the addition of 0.1 N NaOH or 0.1 N HCl solutions. When adsorption procedure completed in such time, the solutions were filtered through a 0.22 μm membrane filter. The equilibrium concentrations were then analysed for residual metal ion concentrations of Cd(II), Cu(II) and Cr(III) by using an atomic absorption spectrometer with an air–acetylene flame.

The amount of metal ions adsorbed was determined by difference between the initial and final concentrations. The sorption efficiency (%) and amounts of adsorbed metal (q_e) by silt were calculated using Eqs. (1) and (2), respectively:

(1)

Sorption efficiency (%) = \frac{C_{0} - C_{e}}{C_{0}} \times 100

(2)

q_{e} = \frac{(C_{0} - C_{e}) V}{m}

where C₀ and C_e (mg/L) are the liquid-phase concentrations of metal initially and at equilibrium, respectively. V is the volume of the solution (L), m is the mass of adsorbent (g) and q_e (mg/g) is the amount of adsorbed metal at equilibrium.

2.4

2.4 Construction of isotherms and model fitting

Sorption isotherms were constructed by plotting the amount of metal sorbed (mg/g) against the equilibrium concentration of metal in solution (mg/L).

Four models have been adopted in this paper, namely, the Langmuir, Freundlich, Langmuir–Freundlich and Dubinin–Radushkevich (D–R) equilibrium isotherm models. The Langmuir and Freundlich isotherms are used most commonly to describe the adsorption characteristics of metal ions in water and wastewater treatment (Metcalf, 1991). The Langmuir–Freundlich isotherm is the combination of both equation, and is an empirical model that incorporates the features of both isotherms (Chena et al., 2008).

The linear forms of the Langmuir, Freundlich and D–R isotherm equations are represented by the following equations:

2.4.1

2.4.1 Langmuir isotherm

The Langmuir isotherm applies to adsorption on completely homogenous surfaces with negligible interaction between adsorbed molecules. The form of Langmuir isotherm can be represented by the following equation (Wang et al., 2003; Chegrouche et al., 1997):

(3)

q_{e} = \frac{Q_{0} K_{L} C_{e}}{1 + K_{L} C_{e}}

Eq. (3) can be expressed in linear form:

(4)

\frac{C_{e}}{q_{e}} = \frac{C_{e}}{Q_{0}} + \frac{1}{K_{L} Q_{0}}

where Q_0, the maximum adsorption capacity, is the amount of metal ion at complete monolayer coverage (mg/g), and K_L (L/mg) is a constant that relates to the heat of adsorption.

2.4.2

2.4.2 Freundlich isotherm

Freundlich isotherm (Freundlich, 1906) can be applied for heterogeneous surfaces and multilayer sorption. The Freundlich equation is expressed as:

(5)

q_{e} = K_{F} C_{e}^{\frac{1}{n}}

Eq. (5) can be expressed in linear form:

(6)

\log q_{e} = \log K_{F} + \frac{1}{n} C_{e}

where K_F and n are Freundlich constants with K_F (mg/g (L/mg)^1/ⁿ) being the sorption capacity of the adsorbent. Index n is the heterogeneity factor which has a lower value for more heterogeneous surfaces, and it gives an indication for the favourability of the sorption process. When the values of 1/n are higher than the unit, adsorption is favourable (Xu et al., 2008; Hameed et al., 2009).

2.4.3

2.4.3 Dubinin–Radushkevich (D–R)

The D–R isotherm model is valid at low concentration ranges and can be used to describe adsorption on both homogeneous and heterogeneous surfaces (Zheng et al., 2008a; Shahwan and Erten, 2004). The D–R equation has the general expression:

(7)

q_{e} = q_{max} \exp (- β ε^{2})

Eq. (7) can be expressed in linear form:

(8)

\ln q_{e} = \ln q_{max} - β ε^{2}

where the saturation adsorption q_max represents the total specific micropore volume of the sorbent. The value of β is related to the adsorption free energy, E (kJ/mol), which is defined as the free energy change required to transfer 1 mol of ions from solution to the solid surfaces (Dubinin et al., 1947; Saltalı et al., 2007) and ε is Polanyi potential, which is described as:

(9)

ε = RT \ln (1 + \frac{1}{C_{e}})

where R is the ideal gas constant (8.31 J/mol K), and T is the solution temperature (K). The value of mean sorption energy, E (J/mol), can be calculated from D–R parameter β as follows:

(10)

E = \frac{1}{\sqrt{2 β}}

The value of E (kJ/mol) gives information about the type of adsorption mechanism as chemical ion-exchange or physical adsorption. A value of E between 8 and 16 kJ/mol corresponds to chemical ion-exchange processes. In the case of E < 8 kJ/mol, adsorption mechanism is governed by physical sorption and it may be dominated by particle diffusion if E > 16 kJ/mol (Dubinin et al., 1947; Saltalı et al., 2007; Zheng et al., 2008b; Erdem et al., 2009; Özcan et al., 2006 ).

2.4.4

2.4.4 Langmuir–Freundlich

The Langmuir–Freundlich model was used for the mathematical description of the adsorption equilibrium of heavy metals onto sediment sorbent. This isotherm equation includes three adjustable empirical parameters and cannot be fitted to the experimental data by linear regression. In this case, it is necessary to apply nonlinear least-squares (NLLS) analysis. The Langmuir–Freundlich isotherm as given in the following equation:

(11)

q_{e} = \frac{q_{LF} K_{LF} {(C_{e})}^{1 / n}}{1 + q_{LF} K_{LF} {(C_{e})}^{1 / n}}

where K_LF ((L/mg)^1/ⁿ) is the equilibrium constant, q_LF (mg/g) is the maximum amount adsorbed and n is the heterogeneity factor.

3 Results and discussion

3.1

3.1 Characterization of the composite adsorbent

The chemical composition of natural silt is given in Table 1. This result indicates the presence of silica, lime and alumina as major constituents along with traces of iron, magnesium, potassium, titanium, sodium and manganese oxides in the form of impurities.

Table 1 Chemical composition of raw silt.

	SiO₂	CaO	Al₂O₃	Fe₂O₃	MgO	K₂O	TiO₂	Na₂O	MnO₂
Percentage (%)	29.37	18.22	9.12	3.84	1.33	0.89	0.53	0.20	0.04

The XRD patterns of natural silt were recorded on Fig. 1 and the most intense peaks were observed at d = 3.03 and 3.34 Å. This material consisted of calcite and illite as main components, with kaolinite, quartz, montmorillonite and dolomite as accessory minerals. The specific surface area calculated by the BET equation was estimated as 65.57 m²/g.

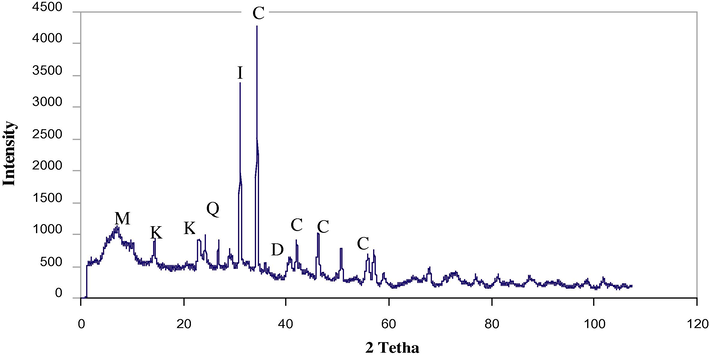

XRD patterns for raw silt. Montmorillonite (M), illite (I), kaolinite (K), quartz (Q), calcite (C) and dolomite (D).

3.2

3.2 Adsorption isotherms

According to the adsorption procedure described in Section 2, the dependency of the adsorbed amounts of metals on their equilibrium concentrations in the solution was depicted in Fig. 2. Adsorption isotherms have been classified by Giles et al. (1960) into four principal classes. Using this classification, the experimental isotherms obtained in the present study were of type S.

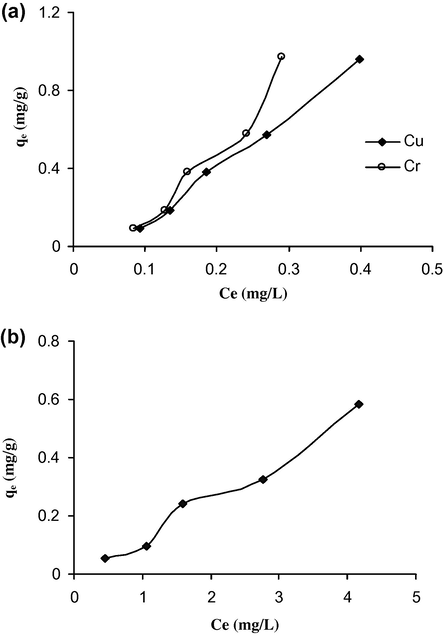

(a) Chromium and copper adsorption isotherms on raw silt. (b) Cadmium adsorption isotherm on raw silt.

The adsorption capacities were 0.97, 0.96 and 0.58 mg/g for Cr³⁺, Cu²⁺ and Cd²⁺, respectively. The comparison between previously reported adsorption capacities of investigated materials and the presented results is difficult due to different experimental conditions (pH, metal concentration range, solid to solution ratio, contact time, etc.) and the properties of the adsorbents (Sljivic et al., 2009). Chromium and copper are sorbed by the silt with the best efficiency 95% and 94%, respectively, whereas the corresponding value for cadmium is estimated as 55%.

3.3

3.3 Fitting the models to the experimental data

The experimental data are well fitted by three adsorption models. Some earlier studies also showed that the Langmuir, Freundlich and D–R isotherms simulated the adsorption of some heavy metal ions well (Zheng et al., 2008a; Erdem et al., 2009; Pathak and Choppin, 2006 ).

The linear plot of C_e/q_e versus C_e (Langmuir) gives the intercept value 1/K_LQ₀ and the slope 1/Q₀, by plotting log Q_e versus log C_e (Freundlich) to generate the intercept value of log K_F and the slope value 1/n. By tracing ln q_e according to ε² (D–R), we obtain the value of q_max from the intercept, and the value of β from the slope.

The linearization parameters of Langmuir, Freundlich and D–R models are summarized in Table 2. It is common to describe the goodness of fit in terms of R², which is the square of the correlation coefficient (Walpole and Myers, 1972). As seen from Table 2, the Langmuir isotherm shows an inadequate fit of experimental data in the whole range of concentrations generally giving the very low R² value. The fits of all the isotherms by the Langmuir model were insufficient to explain the data, although this model has been successfully applied to describe the sorption of cadmium, chromium and copper onto activated carbon (Demirbas et al., 2009), zeolite (Sljivic et al., 2009), clay (Sharma, 2008), montmorillonite (Ijagbemi et al., 2009) and peat (Batista et al., 2009). The poor ability of this model to represent the experimental data could have been due to the fact that the Langmuir isotherm does not take into account adsorbate–adsorbate interactions, as expected from our S-type isotherms.

Table 2 Isotherm constants estimated from linear regression.

Ion	Langmuir isotherm			Freundlich isotherm			D–R isotherm
Ion	Q₀	K_L	R²	1/n	K_F	R²	q_max	β	E	R²
Cu²⁺	2.502	0.859	0.665	1.605	4.646	0.982	2.104	0.084	2.432	0.995
Cr³⁺	3.321	0.873	0.788	1.843	9.117	0.977	2.771	0.087	2.403	0.975
Cd²⁺	2.635	0.072	0.209	1.099	0.115	0.963	0.376	0.265	1.375	0.794

Note: Q₀ in (mg/g), K_L in (L/mg), K_F in (mg/g (L/mg)^1/ⁿ), q_max in (mg/g), β in (mol²/kJ²), E in (kJ/mol).

From Freundlich model results, it can be see that 1/n is above one, indicating the cooperative adsorption. The high R² value for Cu(II) and Cr(III) shows that it is appropriate to use the Freundlich isotherm. Freundlich isotherm applies to adsorption on non-specific and heterogeneous sites on solid surfaces, so the isotherm is valid for weak van der Waals type adsorption as well as for strong chemisorptions (Shahwan and Erten, 2002; Zhu et al., 2008).

The D–R isotherm fits quite well with the experimental data of copper and chromium adsorption (correlation coefficient R² > 0.97). This indicates that the D–R model was very suitable for describing the sorption equilibrium of copper on silt.

The calculated E value was found to be 2.40, 2.43 and 1.37 kJ/mol for Cr(III), Cu(II) and Cd(II) metal ions, respectively. It is evident from the results that E value is less than 8 kJ/mol, which indicates that the adsorption process of Cu(II), Cr(III) and Cd(II) on the silt adsorbent follows physical adsorption (Hasany and Chaudhary, 1996).

It is obvious that the regression coefficient of fitting by the Langmuir–Freundlich equation, listed in Table 3, are higher than the individual Langmuir equation. The adsorption capacity of the silt adsorbent at saturation from Langmuir–Freundlich isotherm was 26.31, 11.76 and 0.35 mg/g for Cr³⁺, Cu²⁺ and Cd²⁺, respectively. As seen the Langmuir–Freundlich equation provides a very satisfactory description of heavy metals on silt.

Table 3 Isotherm constants estimated from NLLS method.

Ion	Langmuir–Freundlich isotherm
Ion	q_LF	K_LF	1/n	R²
Cu²⁺	11.759	10.124	3.172	0.966
Cr³⁺	26.304	14.889	3.572	0.915
Cd²⁺	0.350	0.324	1.677	0.962

Note: q_LF in (mg/g), K_LF in (L/mg)^1/ⁿ.

4 Conclusion

The present study is focused on the adsorption of chromium(III), copper(II) and cadmium(II) onto raw silt from aqueous solution. The experimental isotherms obtained were of the S type according to the classification of Giles et al. The best efficiency sorption was recorded by chromium and copper, while that of cadmium was estimated as 55%. The maximum sorption capacities (from Langmuir–Freundlich isotherm data) were 26.31, 11.76 and 0.35 mg/g for Cr³⁺, Cu²⁺ and Cd²⁺, respectively. This result indicated that the metals adsorption capacity was in the sequence: Cr(III) > Cu(II) > Cd(II).

The fits of the isotherms by the Langmuir model were insufficient to explain the adsorption equilibrium, due to the fact that the Langmuir isotherm does not take into account adsorbate–adsorbate interactions and heterogeneous surface of the solid. For Freundlich and D–R isotherms provide the best correlation of the experiment data of Cu(II) and Cr(III) adsorbed by silt adsorbent. The regression coefficient of fitting to the Langmuir–Freundlich equation is higher than the individual Langmuir equation, demonstrating the suitability of the combined equation. The magnitude of adsorption free energy (E) is less than 8 kJ/mol, which indicates that the adsorption process of Cu(II), Cr(III) and Cd(II) on the silt adsorbent follows physical adsorption.

The present study concludes that silt sediment can be used as a low-cost adsorbent for the removal of metal ions from aqueous solution.
