Stability and thermophysical properties of azithromycin dihydrate

2.1 Samples preparation

Three types of samples were used in this study. The first type (AZC) was the commercial (supposed to be dihydrate) azithromycin (maximal total impurities content of 1.43%) provided by the ERCROS Company (Spain). The second (AZ50) was the commercial product heated during 48 h in a batch oven at 50 °C. The third (AZ80) was the commercial product heated during 48 h in a batch oven at 80 °C. In order to prevent the rehydration, the samples were stored and transported from oven to apparatus in hermetically sealed recipients.

2.2 Polarized light microscopy (PLM)

AZC, AZ50 and AZ80 samples were viewed by polarized light microscopy (Leica DML) for a magnification = 100×.

2.3 Apparent density

The density of a powder depends on its compaction degree. The apparent density is defined as the average of the aerated and tapped densities. The aerated density was obtained by simply filling a cylinder of 100 ml with the powder. For the tapped density, the cylinder filled with the powder was tapped 10 times on a flat wood plate and the final volume occupied by the powder was measured. Analyses were repeated 10 times.

2.4 Specific heat capacity

Heat capacity measurements were carried out on a DSC apparatus (2920, TA instruments Inc., New Castle). A typical calibration run in modulated mode was performed with 20 mg of sapphire. Ten milligrams AZ samples were placed in sealed aluminium pans. The scan for commercial and heated samples (AZC, AZ50 and AZ80) was run 6 times between 0 °C and 100 °C at a heating rate of 5 °C/min under nitrogen purge (40 ml/min).The modulation amplitude and period were respectively set to ±1 °C and 60 s.

2.5 Solubility

The solubility of AZC in four solvent mixtures with different acetone–water volume fractions (0–100, 25–75, 50–50 and 75–25) was measured as a function of temperature. For each solubility point, around 20 ml of solvent was kept at a given temperature in a 250 ml jacketed vessel equipped with a thermostat and a magnetic mixer. The vessel was also equipped with a condenser to recover the evaporated solvent. When the temperature was stable, AZC powder was added step by step as far as dissolution was observed. The added mass was recorded. Each step could take several hours for the dissolution to be completed. The last step was identified when few particles remained in suspension. The suspension was then maintained under agitation for one day in order to be sure that the particles would no longer dissolve and to detect an eventual phase transition.

2.6 Rehydration curves

Rehydration experiments were carried out in the ambient air (20 °C at 50% of relative humidity). Immediately after being removed from the oven the dehydrated samples (AZ50 and AZ80) were placed in a desiccator until they reached the room temperature. Then they were exposed to the ambient air and their weight was measured at regular time intervals. The relative sample mass M/M₀ (where M and M₀ are the sample’s weight at time t and zero, respectively) was plotted as function of time.

2.7 Differential scanning calorimetry – thermogravimetric analysis

The heat flow versus temperature curves were recorded using the DSC apparatus (see Section 2.4). The temperature axis and cell constant of DSC were calibrated with indium. A heating rate of 2 °C/min was employed over a temperature range of 0–250 °C after a 5 min stabilization period under nitrogen purging. The samples (10–15 mg) were analysed in sealed and open aluminium pans, respectively. An empty pan was used as reference.

The mass versus temperature curves were recorded using the TGA (Mettler, LMI JM Switzerland) apparatus. The samples (1–5 mg) were placed in aluminium pans and heated up to 250 °C at a rate of 1 °C/min under nitrogen purge (40 ml/min).

2.8 X-ray powder diffractometry

Powder X-ray diffractograms of azithromycin samples were acquired at room temperature (20 °C) at a relative humidity of about 50% with an X-ray diffractometer (PANalytical, Xpert pro MPM) using Cu Kα radiation (tube operated at 45 kV, 40 mA). Data were collected over an angular range from 5° 2θ to 50° 2θ.

3.1 Polarized light microscopy

By means of PLM, it was found that the three samples (AZC, AZ50 and AZ80) had different crystal habits (Fig. 1). The AZC and AZ50 samples were quite similar, although more fine particles could be seen in the AZ50 sample. The AZ80 sample was found to contain smaller and more irregular particles. Moreover, the particles of AZ80 had the tendency to stick to each other. It was clear from these observations that the sample dried at 80 °C had undergone a dehydration, which had affected the particle shape and size.

Close

Figure 1

(a) PLM image of AZC crystals; (b) PLM image of AZ50 crystals and (c) PLM image of AZ80 crystals.

Export to PPT

3.2 Density and specific heat capacity

Table 1 gives the results of the density measurement of the commercial sample.

Experimental heat capacities of AZC over the temperature range from 0 °C to 100 °C are plotted in Fig. 2.

Close

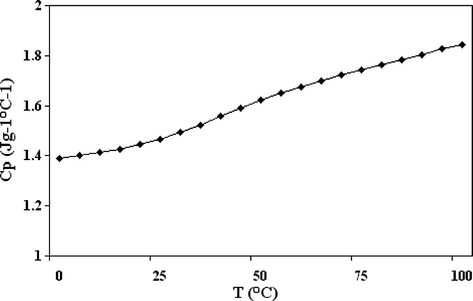

Figure 2

Specific heat capacity of AZC versus temperature.

Export to PPT

It can be seen from Fig. 2 that the heat capacity of the commercial sample increased in a smooth and continuous manner over the whole temperature range. The average heat capacity, between 0 °C and 100 °C was equal to 1611 J kg⁻¹ with a standard error of 65 J kg⁻¹.

No thermal anomaly could be observed in this range of temperature. These measurements did not exhibit any phase transition below 100 °C. This should be confirmed by the DSC analysis performed in sealed pan.

3.3 Solubility

The solubility of AZC is plotted versus acetone volume fraction for different temperatures in Fig. 3. The AZ solubility increased with increasing temperature and acetone fraction.

Close

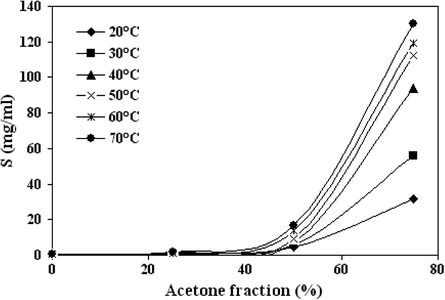

Figure 3

Solubility of AZC as function of water/acetone mixture composition at different temperatures.

Export to PPT

The solubilities given in Fig. 3 were expressed in mg of AZC per ml of initial solvent mixture. In reality the dissolution of one mole of AZC liberates 2 molecules of water, since AZC is dihydrated. The acetone water volume ratio in the solvent mixture is thus modified. However, owing to the high solubility levels and the large difference between the molar masses of AZ and water, this modification of the solvent mixture composition can be neglected.

If the enthalpy of solution, $\mathrm{\Delta }{H}_{\text{sol}}$ , is considered constant over a given temperature range, a plot of $\ln (S)$ versus 1/T is a straight line with a slope equalling, $\frac{\mathrm{\Delta }{H}_{\text{sol}}}{R}$ , from which $\mathrm{\Delta }{H}_{\text{sol}}$ can be calculated. The plot of $\ln (S)$ versus 1/T curves of AZC in different water acetone mixtures is given in Fig. 4. The straight lines obtained for all studied water/acetone mixtures allowed the estimation of the heats of solution (Table 2). $\mathrm{\Delta }{H}_{\text{sol}}$ increased with the acetone content. $\mathrm{\Delta }{H}_{\text{sol}}$ is the sum of the enthalpy of fusion, $\mathrm{\Delta }{H}_{\text{f}}$ (endothermic) and of the enthalpy of mixing, $\mathrm{\Delta }{H}_{\text{mix}}$ (exothermic). Using absolute values, this gives: $$|\mathrm{\Delta }{H}_{\text{sol}}|=|\mathrm{\Delta }{H}_{\text{f}}|-|\mathrm{\Delta }{H}_{\text{mix}}|$$ The different solubility curves obtained between 20 °C and 70 °C were probably relative to the same crystalline phase, i.e. the dihydrate. This imply that the value of $\mathrm{\Delta }{H}_{\text{f}}$ is the same, whatever the solvent mixture composition is. The values of $\mathrm{\Delta }{H}_{\text{sol}}$ given in Table 2 seemed then to indicate that $\mathrm{\Delta }{H}_{\text{mix}}$ decreased when the acetone content increases.

Close

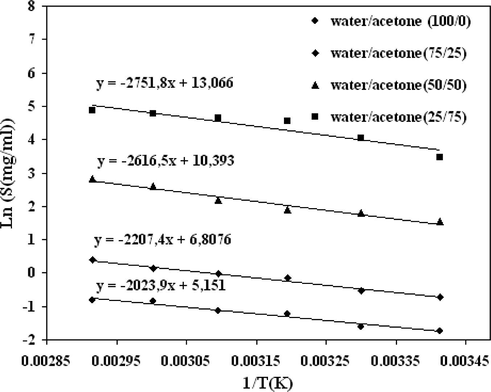

Figure 4

Solubility of AZC as function of temperature for different water/acetone mixtures.

Export to PPT

For each solubility point and especially at high temperature and high solubility, the suspension of few crystals obtained after the last powder addition was maintained under agitation for one day in order to detect any phase transition towards a less hydrated or an anhydrous crystalline more stable phase. Indeed, it is rather common that a dihydrate is no more thermodynamically stable at high temperature. If a more stable crystalline phase exists, a phase transition may occur by nucleation and growth of this more stable phase. Such transitions are facilitated in solution and are more likely to occur at high solubility. However, no phase transition had been observed. The amount and the habits of the crystals in suspension remained unchanged. This indicated that the dihydrate was still the most stable phase at 70 °C. But it was not an absolute proof, since the phase transition towards a more stable form did not necessarily occur if the supersaturation relative to this more stable phase remained too low.

3.4 Thermogravimetric analysis (TGA) and rehydration experiments

These experiments allowed the determination of the hydration degree of the tested samples. The TGA thermogram obtained with the AZC sample is given in Fig. 5. This thermogram exhibited the transition from the dihydrate to the anhydrous form of azithromycin. The observed weight loss of 4.38% corresponded to the stoichiometric weight loss of two water molecules. This result correlated with those obtained by Ghandi et al. (2002). The dehydration started as soon as the sample was placed under the nitrogen flow at 25 °C, proceeded progressively, and was completed at 120 °C. This behaviour is consistent with a dehydration process leading to an isomorphic desolvate.

Close

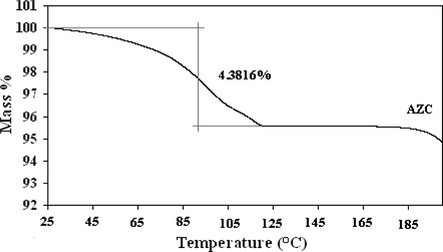

Figure 5

TGA thermogram of AZC.

Export to PPT

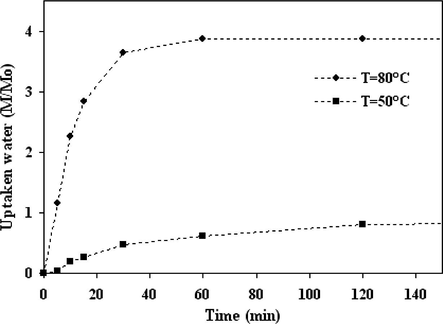

A rehydration test was carried out for the AZ50 and AZ80 samples. The two samples were exposed to the ambient air just after being removed from the oven. The corresponding curves are shown in Fig. 6. The AZ80’s relative water uptake was nearly 4%. This corresponds approximately to two water molecules per molecule of azithromycin. The AZ80 was then the anhydrous form. The AZ50’s relative water uptake was nearly 1%, which corresponds to a gain of less than one water molecule. In both cases, the rehydration rate was high. The AZ80 sample was rehydrated within 30 min. This behaviour suggested that AZ80 was the isomorphic desolvate of the dihydrate and that the crystalline lattice was not significantly altered by the dehydration in the oven. AZ50 corresponded to the dihydrate partially dehydrated.

Close

Figure 6

The rehydration curves of AZ50 and AZ80 in ambient conditions.

Export to PPT

3.5 Differential scanning calorimetry (DSC)

AZC was subjected to DSC with two pan types: sealed pan and open pan (Fig. 7).

Close

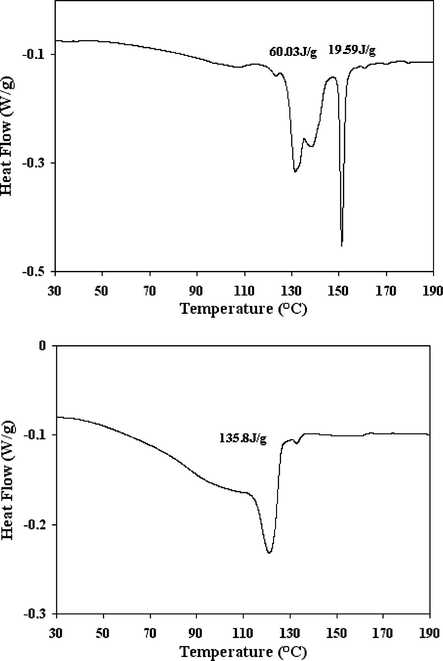

Figure 7

DSC thermograms of AZC for different pan types: sealed pan (top) and open pan (bottom).

Export to PPT

In the case of a sealed pan, it was reported in the literature that AZ samples from different manufacturers exhibit variable thermal behaviour with either single or two DSC endotherms. Most of them exhibited two DSC endotherms while the USP (United States Pharmacopoeia) reference standard showed a single DSC endotherm. The DSC profile obtained in this study with the AZC sample consisted of two endotherms. The first endotherm in the temperature range 130–140 °C had an enthalpy of 62.03 J/g, which was in good agreement with the value reported by Ghandi et al. (2002). This endotherm corresponded to a dehydration step and could also involve a recrystallization step in case of a peritectic transition. A peritectic transition corresponds to the fusion of the dihydrate and the recrystallization of the anhydrous phase in a new crystalline lattice. No exotherm of recrystallisation could be detected between the two endotherms in Fig. 7. But its existence is not systematic. Thus, the DSC profile with sealed pan did not allow to distinguish between a peritectic transition and a dehydration leading to an isomorphic desolvate. The second endotherm was indicative of melting of an anhydrous crystalline form at 151 °C (i.e. the isomorphic desolvate or a new crystalline anhydrate) and the enthalpy of fusion was 19.59 J/g. The pressure inside the sealed pan increased and the water evaporation could not occur. The desorbed/eliminated water was still in liquid state inside the pan. The heat of fusion of the dihydrate was the sum of the two enthalpies and was then equal to 81.62 J/g. It could be noted that this value was higher than the heats of solution obtained from the different solubility curves. However, the two enthalpies did not correspond to the same phenomena since the heat of solution also involved the heat of mixing.

In the case of the open pan, the thermogram (Fig. 7) exhibited a single endotherm of 135.8 J/g. This enthalpy was higher than that obtained with the sealed pan. In addition to the enthalpy of dehydration of water ( $\mathrm{\Delta }{H}_{\text{d}}$ ) and the enthalpy of fusion of the anhydrate ( $\mathrm{\Delta }{H}_{\text{f}}$ ), this enthalpy included the enthalpy of vaporization ( $\mathrm{\Delta }{H}_{\text{v}}$ ) of water. $\mathrm{\Delta }{H}_{\text{d}}\text{,}\mathrm{\Delta }{H}_{\text{v}}$ and $\mathrm{\Delta }{H}_{\text{f}}$ could not be measured separately because the three steps (dehydration, vaporization and fusion) could not be separated. It should be also mentioned that the fusion occured at 120 °C in the open pan, while the temperature of fusion was equal to 151 °C in the sealed pan. This was surprising since the temperature of fusion of a solid is very lightly affected by the pressure but similar behaviour had already been reported in literature (Ghandi et al., 2002). Besides, the sealed pan curves were not reproducible. Because of the high pressure reached inside the pan, the pan could undergo a deformation and could leak. The open pan curves were reproducible.

AZ50 and AZ80 were subjected to DSC in open pans only (Fig. 8). In this case (open pan) the desorption and evaporation of water were progressive until 110 °C. The remaining water was completely evaporated in the temperature range of 120 °C and 130 °C. All DSC thermograms presented one singular endotherm at 120 °C corresponding probably to the melting of the dehydrated crystals. The endotherm and its corresponding enthalpy decreased from AZC to AZ80 because the product contained less water. For AZ80, the pan was filled directly in the oven, which was used to prepare the AZ80 sample. However, the AZ80 sample tested in the DSC was probably not completely anhydrous because of its high hygroscopicity. Besides, the different DSC profiles were all consistent with a dehydration process leading to an isomorphic desolvate.

Close

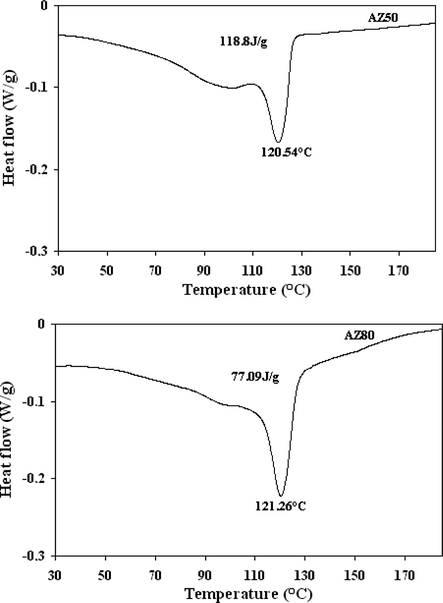

Figure 8

DSC thermograms of AZ50 (top) and AZ80 (bottom) in open pan.

Export to PPT

3.6 X-ray diffractometry (XRD)

The X-ray diffractograms for AZC, AZ50 and AZ80 samples are shown in Fig. 9. On all diffractograms the same positions of the peaks were found out (even for low θ values, no significant gaps were observed) with noticeable intensity differences. The same peak positions in the three diffractograms revealed that they corresponded to the same crystalline lattice. The rehydration curve had showed that AZ50 and AZ80 were highly hygroscopic. Thus, they probably uptook some water during the preparation of the sample and the XRD measurement. However, the partially rehydrated solid presented the same diffractogram as that of the dihydrate. This means that the successive dehydration and rehydration steps did not alter the crystalline skeleton of azithromycin. The dihydrate and the anhydrous had the same crystalline structure. Thus, azithromycin was a typical example for isomorphic desolvation.

Close

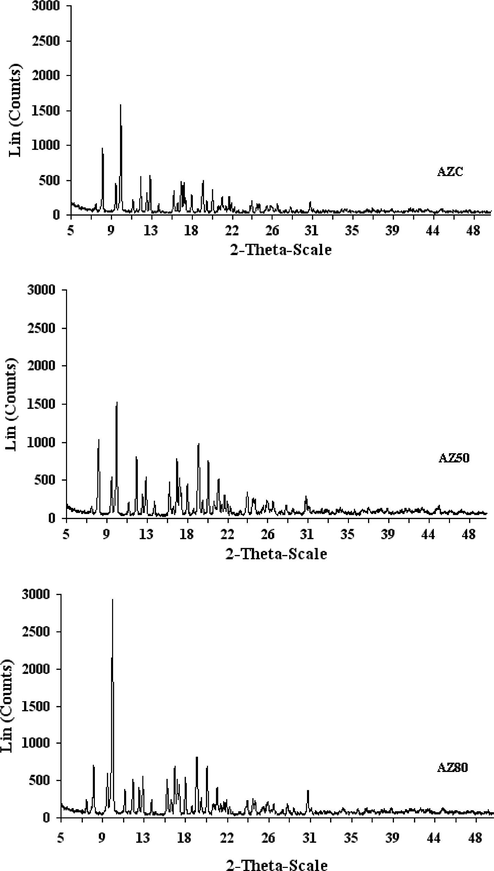

Figure 9

X-ray diffractograms of AZC, AZ50 and AZ80.

Export to PPT

The differences in peak intensities from AZC to AZ80 could be attributed to a change in particle sizes or to preferred orientations of the crystals in the samples. Indeed, photos in Fig. 1 showed that the size and the habits of the crystals were modified by the dehydration. Thus, the dehydration/re-hydration cycle was not completely reversible.
