Structural and optical properties of pure PVA/PPY and cobalt chloride doped PVA/PPY films

1 Introduction

In the recent years, the field of conjugated polymers has attracted the attention of many scientists due to the interesting electrical and optical properties of these compounds (Deronzier and Moutet, 1989). There has been increasing interest in soluble conducting polymers because of their potential applications, such as soluble ion-exchangers, energy-storage materials, corrosion-resistant coatings and catalysts (Eisazadeh et al., 1993; Eisazadeh et al., 1994; Armes and Aldiss, 1999).

Nowadays, conducting polymers also known as conductive plastics are being developed for many uses such as compact capacitors, ant statistic coating, electromagnetic shielding and smart windows which capable to vary the amount of light to pass (Benget and Krutmeijer, 2000). Polypyrrole, (PPY) is one of these new generations of polymeric materials. It has been the main focus due to the advantages such as environmentally stable, ease to synthesis and relatively high conductivity as compared to the other derivatives (Hamzah et al., 2004; Hamzah et al., 2003; Benseddik et al., 1995). However, limitation such as insolubility and poor mechanical strength are barriers for mass production. Improvement of these properties can be achieved either by forming copolymers of pyrrole or by forming PPY composites or blends with commercially available polymers or inorganic materials which offer better mechanical and optical properties, stability and process ability (Paoli et al., 1984; Lindsey and Street, 1984), so polypyrrole combines with an insulating polymer has superior mechanical properties (Niwa and Tamamura, 1984; Otero and Sansinena, 1996). The polymer composites can be prepared either by electrochemical or chemical polymerization. In this work, the polyvinyl alcohol was used as insulating polymer and combined with PPY by using chemical polymerization to improve the properties of PPY. Inorganic additives such as transition metal salts have considerable effect on the optical and electrical properties of PVA polymer (Khaled and Basha, 1989; Baha et al., 1988; Barakat et al., 1989; Noguchi et al., 1998). In the present study PVA is incorporated that acts as host material in the conducting composite polymer containing composite polymer containing PPY. The concentration of the doping namely hydrous cobalt chloride was varied in order to investigate the influence of doping compositions on structure, optical and electrical properties of the composite polymer.

2 Experimental

3 Results and discussion

Fig. 1 shows the XRD patterns of pure PVA/PPY and that doped with CoCl₂·6H₂O salt range from 0.0, 0.2, 0.4, 0.6, 0.8 and 1.0 g. The XRD pattern of PVA/PPY composite film reveals an intense peak at scattering angle (18 < 2θ < 20) corresponding to a spacing of 4.57 (PVA) indicating semi-crystalline nature, (El-Tantawy et al., 2004; Hung et al., 2005; Bhargav et al., 2007). The semi-crystalline nature of PVA results from the strong intermolecular interaction of PVA chains through intermolecular hydrogen bonding. The intensity of the diffraction peak of PVA is determined by the number of PVA chains packed together. It was noticed that there is no any characteristic peak observed for PPY, because the PPY films have been reported to be highly disordered and non-crystalline (Kassim et al., 1994). After complexation with fillers, the patterns of the composite films show amorphous structure where, the intensity of PVA diffraction peak gradually decreased with further increasing of cobalt due to the interactions between PVA/PPY and the mixed fillers leads to a decrease in the intermolecular interaction between PVA/PPY chains and thus the crystalline degree (Yu et al., 2003).

Close

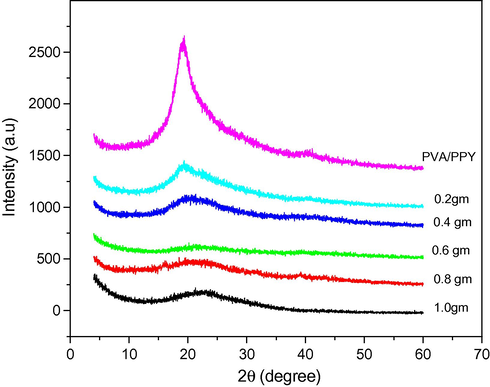

Figure 1

XRD patterns of PVA/PPY composite and that doped with filler (0.2, 0.4, 0.6, 0.8 and 1.0 g of CoCl₂ 6H₂O).

Export to PPT

Fig. 2 exhibits the IR spectra of PVA–PPY composites films and that doped with CoCl₂·6H₂O filler. For all spectra, strong bands were occurred at 3800–3200 cm⁻¹ which arises from O–H and N–H stretching frequency of PVA and PPY (Ege, 1989). Several bands were observed at 2940–2820 cm⁻¹due to CH₂ group vibration (Sweeting, 1968). The absorption at 1630 cm⁻¹ was assigned to the C⚌C ring stretching of pyrrol (Sun et al., 1996). The characteristic absorption bands of PVA which are 1763, 1420, 1128, 917 and 820 cm⁻¹were observed for all spectra with some shifts due to the formation of PVA–PPY composite and doping with Co⁺³. These bands are assigned to C⚌O, C–H band of CH₂ group, (CH–OH), C–O and CH rocking of PVA respectively (Rajendan et al., 2003). The absorption band at 917 cm⁻¹was found to be characteristic of syndiotatctic structure of the prepared film (Rajendran et al., 2004) and can be also for C–H (out of plane deformation) (Eisazadeh, 2007). The appearance of band at 1560 cm⁻¹ is indicative of the formation of small conjugated polyene sequence which is presumably responsible for the color of doping with PVA–PPY (Chakraborty et al., 1999). The absorption band at 640 cm⁻¹ indicates the presence of hydroxyl group (Sweeting, 1968). At 690 cm⁻¹, an absorption band was observed may be due to C–C or C–H vibration for PPY, while the absorption bands occurred at 1084 and 1260 cm⁻¹ were attributed to C–O and C–H of PVA respectively (Tawansi et al., 1998). Further, the vibration peaks found in the range 1000–600 and 2300 cm⁻¹ can be attributed to (C–Cl) and (M–O) where M⚌Co⁺³ which indicated that the doping was complexes with polymer matrix (El-Zahhar et al., 2003).

Close

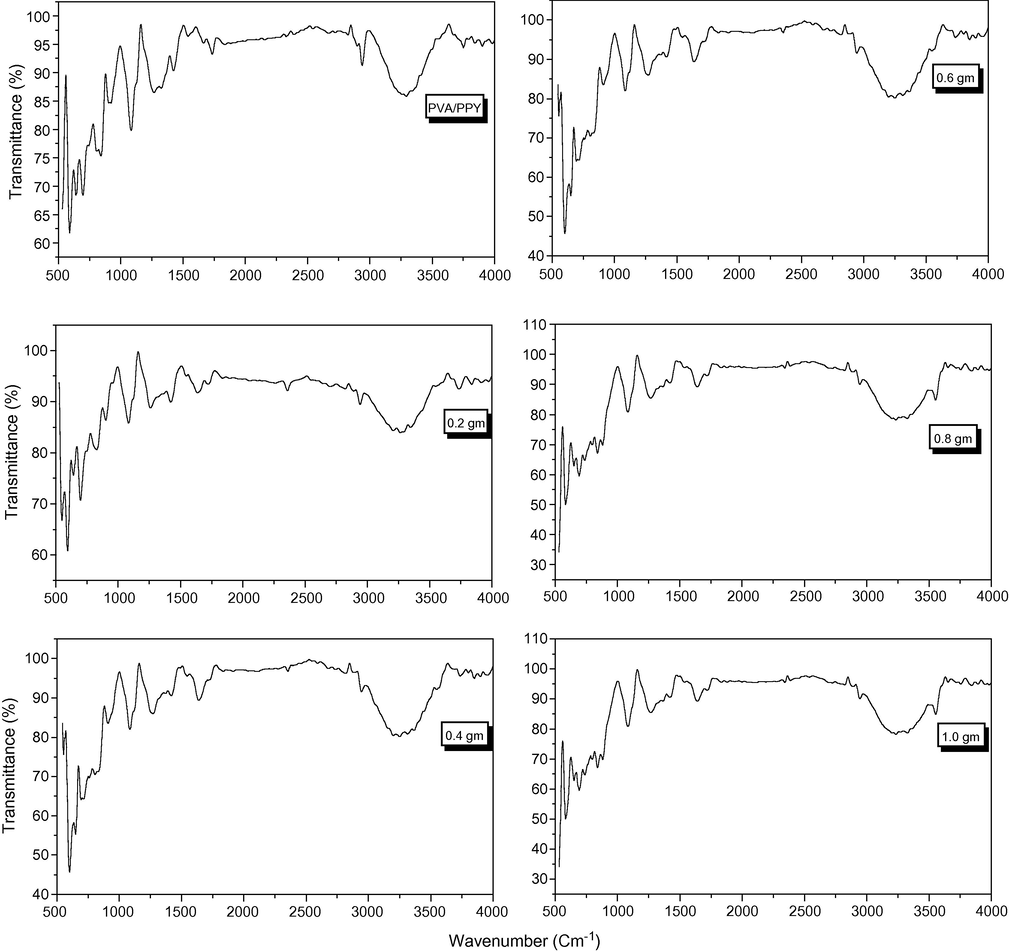

Figure 2

FTIR spectra of PVA/PPY composite and that doped with filler (0.2, 0.4, 0.6, 0.8 and 1.0 g of CoCl₂ 6H₂O).

Export to PPT

Fig. 3 represents the TEM images of PVA/PPY composite and that treated with cobalt fillers. For pure PVA/PPY, it can be seen that, the morphology of the composite reveals an agglomeration in nano-spherical particle like shaped in the range from 50 to 60 nm. By complexation with filler ratios x = 0.2, 0.4 and 0.6 g (Fig. 3b, d), the particle size decreased to 4 nm this due to that the addition of the fillers restrict the growth of the polymerization process of PVA/PPY composite. Further increase of the filler (x = 0.8 and 1.0 g), the nanoparticles tend to form High agglomeration.

Close

Figure 3

TEM photographs of PVA/PPy and that doped with filler 0.0, 0.2, 0.4, 0.6, 0.8 and 1.0 g CoCl₂ 6H₂O).

Export to PPT

The UV–VIS spectra of the sample under investigation were recorded, the spectra of pure PVA/PPY and that doped with different cobalt chloride salt concentrations (x = 0.2, 0.4, 0.6, 0.8 and 1.0 g) is shown in Fig. 4. The optical absorption of the prepared films decreases with increasing the x value of CoCl₂·6H₂O in both VIS (500–700 nm) and UV (200–400 nm) regions, where the PVA has one spectral bands at 340 nm (Abdelazeez and Abdelrazek, 2006). The intensity of the bands increases with increasing the CoCl₂·6H₂O contents providing an evidence for the incorporation of Co²⁺ into PVA/PPY matrix where as their positions are slightly shifted to higher wave length (red shift). Two absorption bands observed near 500 and 625 nm are characteristic to the presence of octahedral structure around the Co(II) ion. The presence of Co²⁺ ions entirely as six coordinated. The asymmetry of these bands can be attributed to the Jahn–Teller effect. This distortion is found to decrease gradually with increasing the CoCl₂·6H₂O content which may indicate a tendency to local ordering in the amorphous polymer structure by cobalt chloride addition (El-Shahawy, 1993). This local ordering may be played by the role of intra- and inter-molecular interactions between the polymer chains. Thus, the octahedron is expected to become more symmetric due to the contraction effect brought about by such interactions. Another band observed at 666 nm indicates the presence of Co(II) in a tetrahedral coordination. The presence of Co(II) in mixed coordination has been reported in Nassar and Abbas (1981) and Gray et al. (1984).

Close

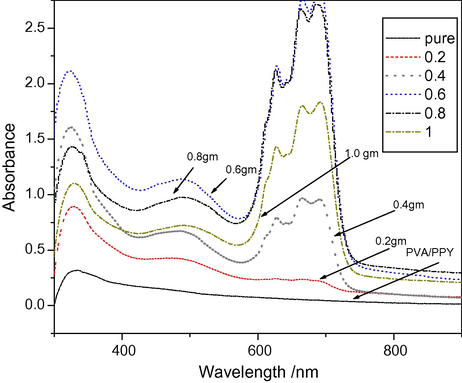

Figure 4

The absorption spectra in the UV–VIS region for films of PVA/PPY and that doped with (0.2, 0.4, 0.6, 0.8 and 1.0 g of CoCl₂ 6H₂O).

Export to PPT

The absorption coefficient α can be determined as a function of frequency using the formula

The energy gap is calculated in the range near the absorption edge (300–800 nm) as indicated in Table 1 and Figs. 5 and 6 illustrates the plots between (αhν)^1/2 and hν for pure PVA/PPY and that treated with CoCl₂·6H₂O near the absorption edge produce a linear fit over a wider range of hν. This linearity indicates the existence of indirect allowed transitions. The extrapolation of linear dependence to the abscissa yields the corresponding forbidden band width E_g. It is observed from the figure that a linear dependence for pure PVA/PPY in one region representing one optical absorption edge as mentioned before in the previous work (Zidan et al., 2003), while PVA/PPY doped with CoCl₂·6H₂O give two regions representing three optical absorption edges. These absorption edges are characterized by higher optical energy gap, E_g1 and two lower energy gaps E_g2 and E_g3, the three energy gaps are attributed to the optical transitions from the valence sub-bands to the conduction band minimum (El-Sayed and Sakr, 2003). It is clear that E_g1 and E_g2 decreases as the CoCl₂·6H₂O increases to 0.6 g then saturated while E_g3 nearly unchanged with increasing CoCl₂·6H₂O content as shown in Fig. 6. The variation of the calculated values of both higher and lower optical energy gaps may reflect the role of the doping in modifying the electronic structure of the PVA/PPY matrix due to appearance of various Polaroid and defect levels. The density of localized states was found to be proportional to the concentration of these defects and consequently, to CoCl₂·6H₂O content. Increasing CoCl₂·6H₂O content may cause the localized states of different color centers to overlap and extend in the mobility gap (Murri et al., 1992). This overlap may give us an evidence for decreasing energy gap when CoCl₂·6H₂O content is increased in the polymeric matrix. The higher optical energy gap, E_g1 seems to be related to the PVA/PPY matrix and its width changes due to the induced energy states from the symmetrical field of cobalt ions. It is argued that the lower absorption edge E_g2 and E_g3 evidences the presence of another type of induced states depending on the doping level of CoCl₂·6H₂O.

Close

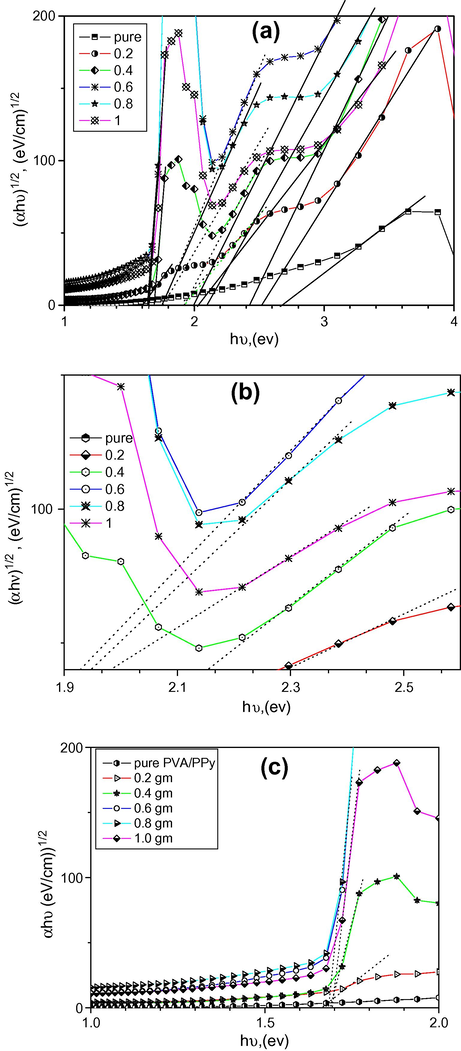

Figure 5

The plots of (αhν)^1/2 versus hν for films of pure PVA/PPY and that doped with different CoCl₂·6H₂O; (a)E_g1, (b) E_g2 and (c) E_g3.

Export to PPT

Close

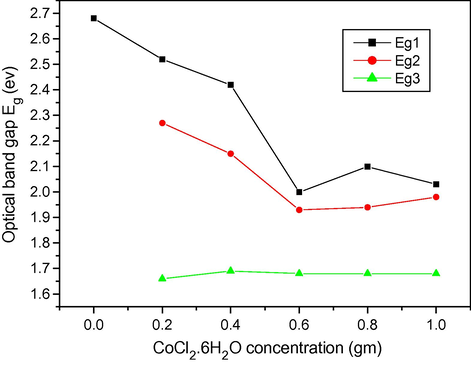

Figure 6

The dependence of optical band gap on doping concentration.

Export to PPT

4 Conclusion

The X-ray analysis showed an amorphous structure of the produced films after complexation of PVA/PPY with CoCl₂·6H₂O as filler. The IR spectra showed vibration peaks in the range 1000–600 cm⁻¹ and at 2300 cm⁻¹ which indicated that the doping was complexed with polymer matrix. The TEM images showed that the particle size decreased by complexation with filler at (x = 0.0–0.6) where excess addition of filler restricted the growth of polymerization process of PVA/PPY and high agglomeration was observed for the rest samples (x = 0.8 and 1.0 g) with high content of filler due to the formation of very fine nanoparticles. The UV–VIS spectra provide evidence for the formation of metal–polymer complex. Also, the optical properties showed that the pure PVA/PPY has one optical absorption edge, while PVA/PPY doped with CoCl₂·6H₂O have three optical absorption edges.
