Structural characterization and immune-enhancing activity of a novel acid proteoglycan from Black soybean
⁎Corresponding authors. zhaojz@sxau.edu.cn (Jinzhong Zhao), lip@sxau.edu.cn (Peng Li)
-
Received: ,
Accepted: ,
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.
Abstract
Black soybean (Glycine max (L.) merr), as an edible seed of the leguminous plant, possesses a high amount of proteins and carbohydrates. However, few studies have been conducted on the protein-polysaccharide polymer (proteoglycan) in Black soybean. Here, we aim to characterize the proteoglycan in Black soybean. Firstly, a crude extract from Black soybean was obtained by water extraction and alcohol precipitation. Then, DEAE-52 cellulose and Sephadex G-100 column chromatography were used to isolate proteoglycans in the crude extract, and a novel proteoglycan named BBWPS2 was obtained. Moreover, the chemical analysis showed that BBWPS2 was a proteoglycan of 2.02 × 105 Da, and composed of 7 kinds of monosaccharides and 16 kinds of amino acids. β-elimination reaction identified the carbohydrate chain was connected to peptide chain with O-glycosidic bonds. Finally, the immunomodulatory tests indicated that BBWPS2 can significantly promote the primary splenocyte proliferation and activate mouse peritoneal macrophages to produce TNF-α. Subsequent pathway studies revealed that BBWPS2 activated macrophages through the mannose receptor-mediated NF-κB/MAPK signaling pathway. Our work indicated that BBWPS2 from Black soybean could be explored as a promising natural immunopotentiator in food and pharmaceutical industries.
Keywords
Black soybean
Proteoglycan
Immunoregulatory activity
Mannose receptor
NF-κB
1 Introduction
Black soybean (Glycine max (L.) merr) was a plant of medicine food homology around East Asia, and riches in nutrients including protein, fatty acids, carbohydrates and vitamins (Jakab, 2016). Pharmacological studies have demonstrated that Black soybean possesses a variety of activities, including antioxidant activity, anti-diabetic activity (Hsieh-Lo and Castillo-Herrera, 2020), and anti-inflammatory activity (Reverri et al., 2015) and immune-enhancing activity (Hayat et al., 2014). However, the chemical basis of these biological activities remains unknown. At present, there have been reports of confirmation, that soybean-fragmented proteoglycans may fight skin aging with an improvement in skin roughness (Barba et al., 2017). Proteoglycan isolated from Phellinus linteus activates murine B lymphocytes (Kim et al., 2003). Here, inspired by the fact that Black soybean contains plentiful proteins and polysaccharides, we consider that there may be protein-polysaccharide polymers in the Black soybean. This work aimed to isolate proteoglycans from Black soybean and identified their immune activities.
In this study, we intend to obtain proteoglycans from Black soybean by water extraction and alcohol precipitation, and column chromatography. Its structure was characterized by monosaccharide compositions, amino acid analysis, β-elimination reaction, Infrared spectra (IR) and Scanning Electron Microscopy (SEM) analysis. Then, the immunomodulatory function of BBWPS2 was examined at molecular and cellular levels.
2 Materials and methods
2.1 Materials and chemicals
Black soybean was produced in Taigu District, Shanxi Province, China. 1-phenyl-3-methyl-5-pyrazolone (PMP), bovine serum albumin, concanavalin A (ConA), lipopolysaccharide (LPS), mannose (Man), rhamnose (Rha), galacturonic acid (GalA), glucose (Glc), galactose (Gal), xylose (Xyl), arabinose (Ara) and fucose (Fuc) were purchased from Solarbio Science & Technology Co., Ltd. (Beijing, China). 3-(4-methylphenylsulfonyl)-2-propenenitrile (BAY 11–7082), Antibody NF-κB p65, FITC labeled Goat Anti-Rabbit IgG (H + L) and nuclear dye (DAPI) were purchased from Beyotime (Shanghai, China). All other chemicals were of analytical grade as available.
2.2 Cells
Mouse peritoneal macrophages (RAW264.7 cell line) were previously preserved in our laboratory. RAW264.7 cells were cultured with RPMI-1640 medium containing 10% fetal bovine serum. Primary spleen cells were obtained by lysis with Red Blood Cell Lysis Buffer, and cultured with RPMI-1640 medium containing 10% fetal bovine serum (Zhang et al., 2015a).
2.3 Extraction and purification of crude extract
Black soybean was peeled and pulverized. The dried Black soybean powder was pre-extracted with 95% ethanol to remove lipids. The residue powder was extracted 3 times with distilled water at 80 °C for 2 h. The supernatants were concentrated and collected with alcohol sedimentation. The precipitate was dissolved, dialyzed and lyophilized to obtain Black soybean crude extract named BBWP. BBWP was dissolved in distilled water and the mixture was centrifuged. The supernatant was loaded on DEAE-52 cellulose (5 × 50 cm, Cl- form), and eluted with distilled water and different concentrations of gradient NaCl solution (0.1, 0.2, 0.5 mol/L) at a flow rate of 0.5 mL/min consecutively. Finally, 0.2 mol/L NaCl elution components were collected and further purified on Sephadex G-100 (Packing particle size: 40 ∼ 120 μm) and eluted with distilled water at a flow rate of 0.2 mL/min. Proteoglycan BBWPS2 was obtained. The isolation and purification steps are shown in Fig. 1.
Extraction and purification scheme of the proteoglycan BBWPS2 from Black soybean.
2.4 Molecular weight determination
High-performance gel permeation chromatography (HPGPC) was used to determine the molecular weight (Zhang et al., 2015b). Series Dextrans (5.2, 11.6, 23.8, 48.6, 148, 668 kDa) and BBWPS2 were eluted by 3 mmol/L sodium acetate solution at 0.5 mL/min. The calibration curve of log (Mw) vs. elution time (T) is log (Mw) = −0.1719 T + 11.58.
2.5 Chemical and amino acid analysis
Neutral carbohydrate, protein and uronic acid content of BBWPS2 were determined by the phenol–sulphuric acid method (Zhang et al., 2020), Bradford's method (Hayes 2020) and m-hydroxydiphenyl–sulphuric acid method (Blumenkrantz and Asboe-Hansen 1973), respectively.
The amino acids of BBWPS2 were analyzed by an amino acid analyzer (S-433D, Sykam, Germany). Briefly, 2 mg BBWPS2 was completely hydrolyzed at 110 °C for 22 h with 6 mol/L HCl (solid–liquid ratio: 1:1) under the protection of nitrogen. The hydrolysate was filtered and adjusted to 10 mL. Then 1 mL filtrate was collected and dryness with the addition of 2 mL sample diluent water to redissolve. The solution was shaken, filtered with a 0.22 µm filter membrane and determined by Amino Acid Analyzer (Zeng et al., 2015). The free amino acids of BBWPS2 monomers were analyzed by using acidic buffer as mobile phase, cation exchange resin as stationary phase and a dual-wavelength detector. The column temperature was 58˚C. After reacting with ninhydrin, the derivatives of amino acids were detected by ultraviolet detection at 570 nm and 440 nm.
2.6 Monosaccharide composition analysis
Monosaccharide compositions were analyzed by high-performance liquid chromatography (HPLC) after precolumn-derivatization of the hydrolysate with PMP (Honda et al., 1989). Briefly, the BBWPS2 solution was hydrolyzed by TFA at 110 °C for 4 h and the sample was completely hydrolyzed. After the hydrolysate is cooled, the residual TFA is removed by rotary evaporation, and the hydrolysate is redissolved by distilled water. After fully mixing the polysaccharide hydrolysate or the standard solutions (Man, Rha, GalA, Glc, Gal, Ara, Fuc) with 0.6 mol/L sodium hydroxide solution, 100 μL 0.5 mol/L PMP-methanol solutions were added and mixed. The derivatization reaction was performed at 70 °C for 100 min. Neutralize the reaction solution with the hydrochloric acid and remove residual PMP with chloroform. The prepared sample solution was filtered by a 0.22 μm filter and analyzed by high performance liquid chromatography analyzer (1260, AGILENT, America). The ZORBAX Eclipse XDB-C18 column (4.6 mm × 250 mm, internal diam.5 µm) analytical column was used at 20 °C. Mobile phase A consisted of 15% acetonitrile and 85% phosphate-buffered saline, and mobile phase B consisted of 40% acetonitrile and 60% phosphate-buffered saline. The mobile phases were gradient eluted at a rate of 1 mL/min. The calibration factor was calculated by the ratio of the peak area of the standard monosaccharide, and then the ratio of the peak area of the monosaccharide in the sample was multiplied by the calibration factor to calculate the molar ratio of each monosaccharide in the sample.
2.7 Infrared spectra and scanning Electron microscopy analysis
Dried BBWPS2 was mixed with KBr at a volume ratio of 1:100, and pressed into thin slices for Fourier transform infrared spectrophotometer (BRUKER TENSOR 27, BRUCK, Germany) measurement between 400 cm−1 and 4000 cm−1 (Liu et al., 2020).
BBWPS2 dried powder sample was glued to the sample table with the conductive adhesive. After gold spraying, the surface structure of BBWPS2 was observed by scanning electron microscopy (Sun et al., 2017).
2.8 β-elimination reaction and ultraviolet spectrum analysis
3 mg BBWPS2 was dissolved in distilled water or 5 mL 0.2 mol/L NaOH. After incubation at 45˚C for 30 min, ultraviolet spectrum full wavelength scanning was performed (Downs et al., 1977).
2.9 Determination of immune activity
2.9.1 Splenocyte proliferation assay
MTT (methyl thiazolyl tetrazolium) assay is a test for cell survival and growth (Kumar et al., 2018). The splenocyte proliferation assay was evaluated in vitro by the MTT method. The cells (1 × 107/mL) were incubated with different concentrations BBWPS2 (50, 100, 200 μg/mL) with or without ConA (5 μg/mL) and LPS (2.5 μg/mL) for 48 h. 0.5 mg/mL MTT was added and the samples were further incubated for 4 h at 37 °C. The optical density was measured at 570 nm.
2.9.2 Effects of BBWPS2 on cytotoxicity and TNF-α production in macrophages
1 × 105/mL RAW264.7 cells were cultured in a 96-well plate. The cells were treated with various concentrations of BBWPS2 (50, 100, 200 μg/mL) or LPS (2.5 mg/mL) for 24 h. The cell culture liquid was collected for TNF-α production determination using the enzyme-linked immunosorbent assay (ELISA) kits (R&D) according to the instructions. The optical density was measured at 450 nm. Meanwhile, 90 μL new culture medium and 10 μL MTT (0.5 mg/mL) was added to the 96-well plates, and further incubated for 4 h at 37˚C. After the cell culture medium was removed as much as possible, 100 μL dimethyl sulfoxide (DMSO) was added to dissolve formazan, and the absorbance was measured at 570 nm with a microplate reader.
2.9.3 Mannose receptor inhibitor assay
We determined the effect of mannose receptor inhibitor on BBWPS2 activation of RAW264.7 cells. After pretreatment with mannose solution (0.5 mg/mL) for 1 h, RAW264.7 cells were incubated with 200 μg/mL BBWPS2 or 2.5 μg/mL LPS for 24 h. As described in 2.9.2, the content of TNF-α in the culture medium was determined.
2.9.4 NF-κB inhibitor and translocation kit assay
We tested whether BBWPS2 activated macrophages through the NF-κB signaling pathway using NF-κB inhibitor BAY 11–7082 (2 µmol/L). The specific experimental steps are the same as 2.9.3.
In addition, the nuclear translocation of the p65 subunit in BBWPS2-treated RAW264.7 cells was tracked by a confocal laser-scanning microscope (Leica TCS SP, LEICA, Germany). RAW264.7 cells were inoculated in 24-well plates, treated with PBS, 200 μg/mL BBWPS2, or 2.5 μg/mL LPS for 3 h. Then, the cells were washed, fixed and sealed for 1 h. NF-κB p65 antibody or secondary antibody FITC labeled goat anti-rabbit IgG (H + L) were respectively added and incubated for 1 h. After treatment with DAPI for 5 min, the blue fluorescent nucleus and green fluorescent p65 subunits were observed under the microscope.
2.9.5 Real-time quantitative polymerase chain reaction
RAW264.7 cells were inoculated into 24-well plates and treated with 800 μg/mL BBWPS2 for 6 h, then total RNA was extracted using total RNA Kit I according to the instructions. PrimeScriptTM RT Master Mix was used to reverse transcribe the total RNA into cDNA, and the TB Green Premix Ex TaqTM II system was used for quantitative analysis. The reaction conditions of RT-qPCR were 95 °C for 30 s, 95 °C denaturations for 5 s, 60 °C annealing for 30 s, and 40 cycles. The relative mRNA expression was calculated by the 2-ΔΔCt method. Actin-β gene was used as an internal reference gene, and the RT-qPCR data were normalized. Oligonucleotide sequences of primers were designed by Primer Premier 5.0 software or determined by literature (Xia et al., 2012, Wang et al., 2019). Primer sequences were shown in Table 1.
Gene
Primer sequences (5′−3′)
actin-β
F: TCACCCACACTGTGCCCATCTACGA; R: GGATGCCACAGGATTCCATACCCA
TNF-α
F: ATAGCTCCCAGAAAAGCAAGC; R: CACCCCGAAGTTCAGTAGACA
TLR4
F: TCAGCAAAGTCCCTGATGACATTCC; R: AGAGGTGGTGTAAGCCATGCCA
JNK
F: ATTGAACAGCTCGGAACACC; R: GAGTCAGCTGGGAAAAGCAC
ERK
F: TGACCTCAAGCCTTCCAACC; R: ATCTGGATCTGCAACACGGG
2.10 Statistical analysis
Results were expressed as mean ± standard deviation (SD). Data were analyzed by One-Way and Two-Way ANOVA with the Prism software for Windows (version 8.00; GraphPad Software).
3 Results
3.1 Preparation of Black soybean proteoglycan
We extracted protein-polysaccharide polymers through water extraction and alcohol precipitation (Fig. 1). Firstly, crude extract was isolated from Black soybean with a yield of 17.2%. Then, the proteoglycan BBWPS2 was collected with a yield of 2.1% from the crude extract by column chromatography.
3.2 Molecular weight and chemical compositions determination
The molecular weight is an important index to study the properties of proteoglycan (Hundschell et al., 2020). As determined by detecting the sample signal and calculating the retention time, the molecular weight of BBWPS2 was 2.02 × 105 Da. The chemical composition results showed that the carbohydrate, protein and uronic acid contents of BBWPS2 were 42.30 ± 2.43%, 22.48 ± 1.38% and 21.78 ± 0.63%, respectively. These results showed that BBWPS2 was an acid proteoglycan.
3.3 Amino acids and monosaccharide composition analysis
The amino acid analysis results were shown in Table 2, BBWPS2 contained 16 kinds of amino acids, and the total content is 10.4%. It includes 8 kinds of essential amino acids (total content: 4.5%) and 8 kinds of non-essential amino acids (total content: 5.9%).
Amino acid classification
Amino acid name
Content/%
essential amino acid
Thr
0.6
Val
0.5
Met
0.2
Ile
0.3
Leu
0.7
Phe
0.3
His
0.8
Lys
1.1
nonessential amino acid
Asp
1.2
Ser
0.8
Glu
1.5
Gly
0.5
Tyr
0.2
Arg
0.5
Ala
0.7
Pro
0.5
Cys
0.0

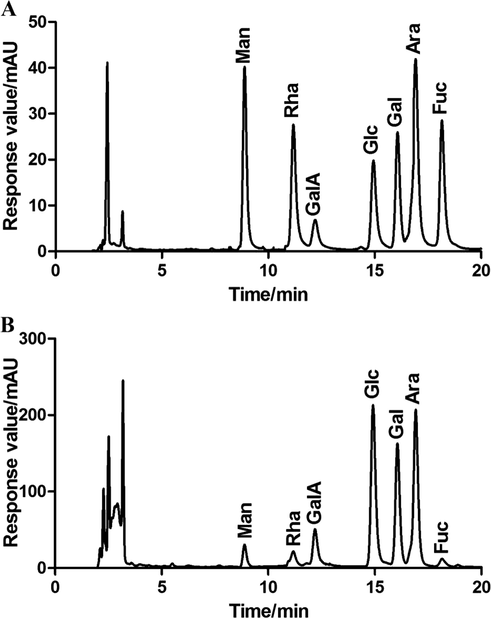

To determine the monosaccharide composition, BBWPS2 was hydrolyzed with trifluoroacetic acid, the hydrolysates were further precolumn-derivatization with PMP for HPLC analysis (Zhang et al., 2021). As shown in Fig. 2, the monosaccharide composition analysis indicated that BBWPS2 was composed of Man, Rha, GalA, Glc, Gal, Ara and Fuc in a molar ratio of 2.35: 2.40: 24.48: 32.89: 21.13: 28.45: 1.37.
The monosaccharide compositions of mixed monosaccharide standards (A) and BBWPS2 (B).
3.4 IR and ultraviolet spectrum analysis

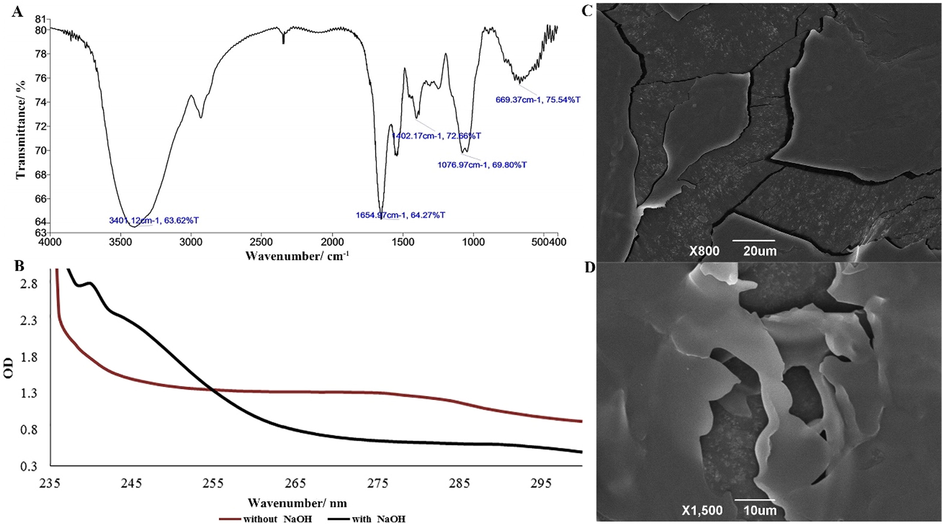

As shown in Fig. 3A, there was a wide absorption peak at 3401.12 cm−1, indicating that the structure of BBWPS2 contained hydroxyl functional groups. Combined with the chemical composition analysis, the absorption peak of C = O stretching vibration near 1654 cm−1 may be caused by the stretching vibration of the amide bond in the protein structure, and it may also be caused by the C = O bond in the uronic acid structure. The absorption peaks between 950 cm−1 and 1200 cm−1 were caused by the stretching vibration of C-O-C and C-O (Biao et al., 2020).
Infrared spectra (A), Uv scan (B) and Electron microscopy images (C, D) of BBWPS2.
Under alkaline conditions, the O-glycosidic bond undergoes the β-removal reaction, and the absorbance value at 240 nm increased significantly, while the N-glycosidic bond does not undergo the β-elimination reaction (Kishimoto et al., 1999). The ultraviolet scanning result of BBWPS2 was shown in Fig. 3B. After NaOH treatment, the absorbance value at 240 nm increased obviously, and the spectral shape changed. It indicated that the glycosidic bond type of BBWPS2 was O-type.
In addition, the SEM images of BBWPS2 at 800-fold and 2000-fold were presented in Fig. 3C, 3D. As observed, BBWPS2 had a smooth surface and has irregular lamellar structure. It may indicate powerful intermolecular forces in BBWPS2.
3.5 BBWPS2 promoted splenocyte proliferation

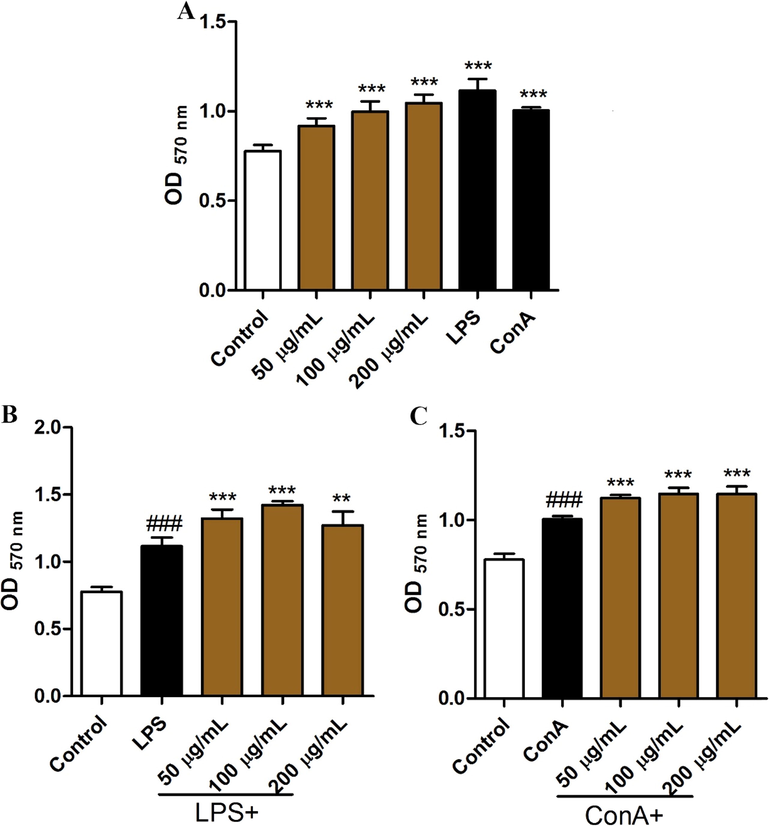

Splenic lymphocytes are transformed from stationary lymphocytes to lymphoblastic cells by mitogen stimulation, resulting in mitosis. Therefore, splenocyte proliferation is an important indicator of immune cell level. Mitogen ConA and LPS stimulate T and B cell proliferation, respectively. (Chen et al., 2003). As shown in Fig. 4A, BBWPS2 had the potential to promote the proliferation of splenic lymphocytes. BBWPS2 also promoted LPS-stimulated B cells proliferation and ConA-stimulated T cells proliferation in a concentration-dependent manner (Fig. 4B, 4C). The results indicated that BBWPS2 promoted the proliferation of T/B cells.
Effects of BBWPS2 on the splenocyte proliferation. The mice spleen cells were incubated with BBWPS2 at different concentrations (50, 100, 200 μg/mL) alone (A), in the presence of mitogens ConA (5 μg/mL). (B) or LPS (2.5 μg/mL) (C) for 48 h. MTT was added and incubated. The optical density was measured. Data shown were mean ± SD of 3 independent experiments. (###) p < 0.001 compared with the control group, (***) p < 0.001, (**) p < 0.01, and (*) p < 0.05 compared with the control (A), LPS (B) or ConA (C) group.
3.6 BBWPS2 promoted TNF-α production

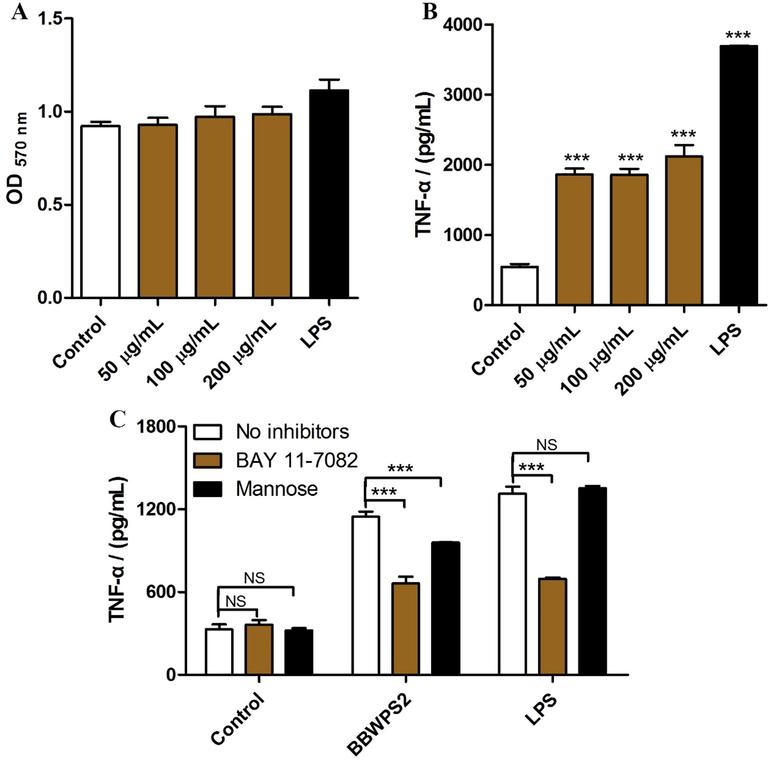

MTT assay showed that BBWPS2 had no cell cytotoxicity to RAW264.7 macrophages at different concentrations (Fig. 5A). TNF-α is a kind of small molecular peptide synthesized and excreted by immune cells, which plays an important role in immune regulation (Liu et al., 2017). Here, we measured the secretion amount of TNF-α to determine whether BBWPS2 could activate macrophages. Our results found that BBWPS2 promoted the production of TNF-α and significantly increased the accumulation of TNF-α (p < 0.01). There was a positive correlation between TNF-α production and BBWPS2 concentration (Fig. 5B). The result indicated that BBWPS2 significantly activated the immune response of macrophages.
Effects of BBWPS2 on the secretion of TNF-α in RAW264.7 cells. (A, B) RAW264.7 cells were treated with BBWPS2 or LPS for 24 h. (C) RAW264.7 cells was pretreated with BAY 11–7082 (2 µmol/L) or mannose (500 µg/mL) for 1 h before incubation with 200 μg/mL BBWPS2 or 2.5 μg/mL LPS for 24 h. The content of TNF-α in the culture medium was determined by ELISA kit.
3.7 BBWPS2 activated macrophages via the mannose receptor
The mannose receptors (MR) are antigenic proteins on the surface of macrophages that recognize and bind mannose or fucose residues to activate macrophages (Gordon 2002). Based on the monosaccharide composition analysis results, BBWPS2 contained mannose and fucose. Thus, we used mannose inhibitors to detect whether BBWPS2 activated macrophages through mannose receptors. As expected, mannose inhibitors have no impact on the control group and the LPS-treated group (p > 0.05), but the TNF-α content in the culture supernatant was significantly decreased in the BBWPS2-treated group (p < 0.001) (Fig. 5C). These data suggested that BBWPS2 activated RAW264.7 cells through the MR-mediated signaling pathway to promote TNF-α secretion.
3.8 BBWPS2 activated macrophages via the NF-κB signaling pathway
The NF-κB signaling pathway is one of the classical pathways in macrophage activation by exogenous antigens. NF-κB, a “fast-acting” primary transcription factor, is an important hub of this pathway (Dresselhaus and Meffert 2019). LPS stimulates macrophages to release cytokines through NF-κB. BAY 11-7082 is a specific inhibitor of NF-κB. As shown in Fig. 5C, BAY 11-7082 did not affect the control group (p > 0.05), and TNF-α contents in the culture supernatant of the BBWPS2-treated group and the LPS-treated group were significantly decreased (p < 0.001). These results indicated that BBWPS2 could promote the production of TNF-α by activating the nuclear transcription factor NF-κB in RAW264.7 cells.

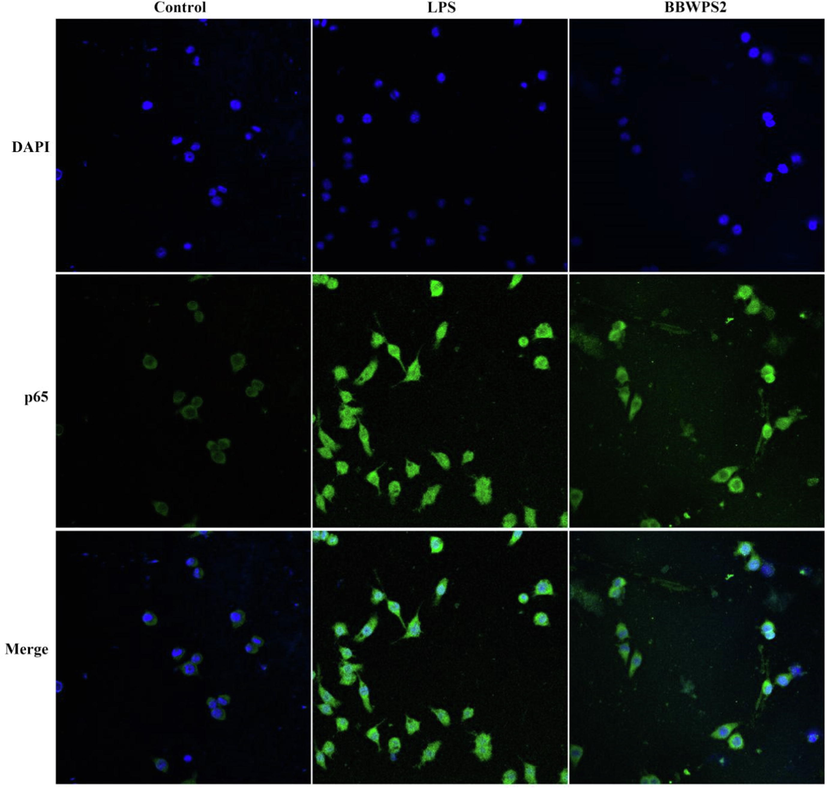

To further demonstrate whether BBWPS2 could activate NF-κB, we used the immune fluorescence labeling to trace the translocation of the p65 subunit (Kim et al., 2019). After LPS or BBWPS2-treated RAW264.7 cells, the p65 subunit (green fluorescence) in RAW264.7 cells was translocated to the nucleus (blue fluorescence) under the fluorescence microscope (Fig. 6). Thus, it further confirmed that the NF-κB signaling pathway was involved in the BBWPS2-induced activation of RAW264.7 cells. These results indicated that BBWPS2 was an effective NF-κB activator and could participate in the inflammatory response and immune response of cells.
BBWPS2 activated the NF-κB signaling in RAW264.7 cells. RAW264.7 cells were treated with BBWPS2 (200 μg/mL) or LPS (2.5 μg/mL) for 3 h. p65 subunit translocated into nuclei (DAPI) was obtained by confocal laser microscopy.
3.9 BBWPS2 activated macrophages via the MAPK signaling pathway

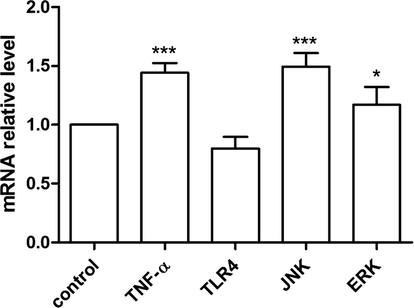

As shown in Fig. 7, compared with the control group, the TNF-α was significantly up-regulated after BBWPS2 treatment (p < 0.001). The RT-qPCR results also indicated that BBWPS2 can activate TNF-α mRNA expression level of macrophages. The mitogen-activated protein kinase (MAPK) signaling pathway is the core pathway of cell exogenous signal transmission, and the c-Jun N-terminal kinase (JNK) and the extracellular regulated protein kinases (ERK) signaling pathways are the main branch routes of the MAPK signaling pathway that are responsible for cell inflammation, growth and differentiation, and JNK and ERK are the key factors in these two branch routes (Ko et al., 2019). Compared with the control group, JNK and ERK genes were significantly upregulated (p < 0.05). These results suggest that BBWPS2 may also activate macrophages through MAPK signaling to trigger cellular immune responses.
The effects of BBWPS2 on the mRNA expression level of pathway-related genes in RAW264.7 cell. The expression of genes was investigated after treatment with BBWPS2 for 6 h. Compared to the control group, (***) p < 0.001, (*) p < 0.05.
4 Discussion
In the present work, we identified a novel proteoglycan with immunomodulatory activity from Black soybean. The structural analysis displayed that BBWPS2 is a proteoglycan linked by an O-glycosidic bond, containing various monosaccharides, amino acids and 21.78 ± 0.63% uronic acid. The immunological activity analysis indicated BBWPS2 significantly promotes splenocyte proliferation and activates macrophages to secrete cellular messengers TNF-α.
Moreover, we try to confirm the underlying molecular actions of BBWPS2 for enhancing the immune system. It has been known that bioactivities of protein-polysaccharide are closely related to their chemical structures such as compositional monosaccharides and amino acids, types of chemical linkages, and molecular weight distributions (Tabarsa et al., 2015, Kelly and Pearce 2020). Exogenous protein-polysaccharide polymers usually activate macrophages through receptor-mediated activation, which in turn triggers a cascade of signals within the cell to initiate an immune response (Zong et al., 2012, Han et al., 2018). The results of monosaccharide composition showed that BBWPS2 contained mannose and fucose. These two monosaccharides are classical ligands for the mannose receptor, which is the surface recognition receptors of macrophages, participates in antigen presentation and acquired immune response and play an important role in natural immune defense against pathogen infection (Taylor et al., 2005, Liu et al., 2008). Here, the mannose receptor-specific inhibitor block assay showed that BBWPS2 can recognize and bind to mannose receptors and activate macrophage. However, surface receptor binding is only the first step in macrophage activation. Cell surface signals are transmitted into the cell and trigger intracellular signaling pathways that activate macrophages to produce an immune response (Yang et al., 2019; Feng et al., 2021). NF-κB specific inhibitor blocking assay and p65 protein subunit translocation observation showed that BBWPS2 could regulate macrophage immune response by activating NF-κB (Fig. 5 and Fig. 6). In addition, the RT-qPCR assay revealed that BBWPS2 also triggered macrophage immune response via the MAPK signaling pathway (Fig. 7). In brief, BBWPS2 was recognized by mannose receptors of macrophage surface, further triggering NF-κB/MAPK signaling pathway to regulate macrophage immune response and induce macrophages to secrete TNF-α.
In addition, it can be seen from Fig. 2 that mannose and fructose in the sample are minor components, while other sugars are dominant in the sample. We suspect that other receptors may be involved in BBWPS2 activating macrophage immune responses. Therefore, the immune activity and related molecular mechanism of BBWPS2 will be further explored in animal models in the next stage.
5 Conclusion
In summary, a novel acid proteoglycan BBWPS2 with the molecular weight of 2.02 × 105 Da was successfully isolated from the water extract of the Black soybean. Its immune activity and the underlying mechanism were explored. Our data demonstrated that BBWPS2 promoted splenocyte proliferation, and activated macrophages through the classical MR-mediated NF-κB/MAPK signaling pathway. Thus, the current study demonstrates that BBWPS2 has the potential for becoming a novel natural immunopotentiator and also provides strong evidence for the immunomodulatory activity of Black soybean proteoglycan.
Acknowledgements
This work was supported by the National Natural Science Foundation of China (No.31800678), The National Key Research and Development Program of China (2021YFD1600601-2), Science and Technology Innovation Project of Colleges and Universities in Shanxi Province (No. 2021L146), Key Research and Development Project Key Program of Shanxi Province (201903D211006-1), and Breeding Project of Shanxi Agricultural University (YZGC096).
Declaration of Competing Interest
The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
