Synthesis and study of the trypanocidal activity of catechol-containing 3-arylcoumarins, inclusion in β-cyclodextrin complexes and combination with benznidazole

2.1 Chemistry

2.2 Synthetic methodology

Synthetic methodology for the acetoxylated precursors. Acetoxy-3-arylcoumarins were synthesized under anhydrous conditions, using material previously dried at 60 °C for at least 12 h and at 300 °C during few minutes immediately before use. A solution containing anhydrous CH₃CO₂K (2.94 mmol), arylacetic or heteroarylacetic acid (1.67 mmol), and the corresponding hydroxysalicylaldehyde (1.67 mmol), in Ac₂O (1.2 mL), was refluxed for 16 h. The reaction mixture was cooled, neutralized with 10% aqueous NaHCO₃, and extracted with EtOAc (3 × 30 mL). The organic layers were combined, washed with distilled water, dried (anhydrous Na₂SO₄), and evaporated under reduced pressure. The product was purified by recrystallization in EtOH and dried to afford the desired compound.

Synthetic methodology for the hydroxyl derivatives 1–11. Compounds 1–11 were obtained by hydrolysis of their acetoxylated counterparts, respectively. The appropriate acetoxylated coumarin, mixed with 2 N aqueous HCl and MeOH, was refluxed during 3 h. The resulting reaction mixture was cooled in an ice-bath and the reaction product, obtained as solid, was filtered, washed with cold distilled water, and dried under vacuum to afford the desired compound.

3-(3′,4′-Dihydroxyphenyl)coumarin (1). (Erk, Bulut, & Göçen, 2000)

3-(3′,4′-Dihydroxyphenyl)-6-hydroxycoumarin (2). (Fais et al., 2018)

3-(3′,4′-Dihydroxyphenyl)-6-methylcoumarin (3). (Matos et al., 2013)

3-(3′,4′-Dihydroxyphenyl)-8-methylcoumarin (4). (Matos et al., 2013)

6,7-Dihydroxy-3-(2′-hydroxyphenyl)coumarin (5). Yield: 80%. Rf (Hexane/Ethyl Acetate 5:5): 0.05. Mp: 265–267 °C. ¹H NMR (DMSO‑_d6) δ (ppm), J (Hz): 6.76–6.88 (m, 3H, H-5, H-8, H-5′), 6.97–7.03 (m, 1H, H-4′), 7.18–7.22 (m, 2H, H-2′, H-3′), 7.82 (s, 1H, H-4), 9.40 (s, 1H, OH), 9.46 (s, 1H, OH). ¹³C NMR (DMSO‑_d6) δ (ppm): 102.43, 111.41, 112.41, 115.75, 118.77, 123.03, 129.32, 131.07, 142.54, 143.00, 148.15, 150.14, 155.20, 155.55, 166.67. MS m/z (%): 392.1 (16), 391.1 (29), 390.0 (1 0 0).

6,7-Dihydroxy-3-(3′-hydroxyphenyl)coumarin (6). (Juvonen et al., 2020)

3-(2′-Bromophenyl)-6,7-dihydroxycoumarin (7). Yield: 86 Rf (Hexane/Ethyl Acetate 5:5): 0.08. Mp: 248–250 °C. ¹H NMR (DMSO‑_d6) δ (ppm), J (Hz): 6.67 (s, 1H, H-8), 7.33 (s, 1H, H-5), 7.38–7.42 (m, 3H, H-4′, H-5′, H-6′), 7.65–7.68 (m, 1H, H-3′), 7.86 (s, 1H, H-4), 9.46 (s, 1H, OH), 10.29 (s, 1H, OH). ¹³C NMR (DMSO‑_d6) δ (ppm): 102.58, 110.90, 112.60, 123.56, 123.66, 127.82, 130.19, 130.74, 132.00, 136.88, 143.22, 150.83, 153.87, 156.70, 164.60. MS m/z (%): 385.1 (12), 384.2 (30), 383.1 (1 0 0).

3-(3′-Bromophenyl)-6,7-dihydroxycoumarin (8). Yield: 86%. Rf (Hexane/Ethyl Acetate 5:5): 0.06. Mp: 255–257 °C. ¹H NMR (DMSO‑_d6) δ (ppm), J (Hz): 6.73–6.76 (m, 1H, H-8), 7.02–7.05 (m, 1H, H-5), 7.31–7.49 (m, 1H, H-6′), 7.50 (d, 1H, H-5′, J = 8.5), 7.66 (d, 1H, H-4′, J = 8.5), 7.86–7.89 (m, 1H, H-2′), 8.16 (s, 1H, H-4), 9.50 (s, 1H, OH), 10.31 (s, 1H, OH). ¹³C NMR (DMSO‑_d6) δ (ppm): 102.34, 111.48, 121.51, 127.36, 130.36, 130.65, 130.81, 130.85, 137.77, 139.82, 142.12, 143.24, 148.38, 151.07, 165.97. MS m/z (%): 335.0 (16), 333.9 (99), 332.9 (14), 332.0 (1 0 0).

3-(4′-Bromothiophen-2′-yl)-6,7-dihydroxycoumarin (9). Yield: 74%. Rf (Hexane/Ethyl Acetate 8:2): 0.07. Mp: 286–288 °C. ¹H NMR (DMSO‑_d6) δ (ppm), J (Hz): 6.78 (s, 2H, H-5, H-7), 7.01 (s, 1H, H-4′), 7.73 (s, 1H, H-2′), 8.60 (s, 1H, H-4), 9.66 (s, 1H, OH), 10.46 (s, 1H, OH). ¹³C NMR (DMSO‑_d6) δ (ppm): 103.6, 109.8, 114.2, 116.8, 123.1, 126.8, 129.1, 137.9, 145.8, 146.1, 150.1, 162.3. MS m/z (%): 341.0 (14), 339.9 (89), 339.3 (9), 337.9 (89).

6,7-Dihydroxy-3-(thiophen-2′-yl)coumarin (10). Yield: 86%. Rf (Hexane/Ethyl Acetate 5:5): 0.06. Mp: 238–239 °C. ¹H NMR (DMSO‑_d6) δ (ppm), J (Hz): 6.77 (s, 1H, H-5), 7.04 (s, 1H, H-8), 7.09 (t, 1H, H-4′, J = 4.0), 7.54 (dd, 1H, H-3′, J = 4.0, 1.0), 7.72 (dd, 1H, H-5′, J = 4.0, 1.0), 8.40 (s, 1H, H-4), 9.48 (s, 1H, OH), 10.28 (s, 1H, OH). ¹³C NMR (DMSO‑_d6) δ (ppm): 102.42, 111.39, 112.24, 125.27, 127.26, 127.55, 128.84, 136.24, 137.16, 142.08, 143.51, 150.73, 163.74. MS m/z (%): 261.1 (16), 260.1 (1 0 0).

6,7-Dihydroxy-3-(thiophen-3′-yl)coumarin (11). Yield: 84%. Rf (Hexane/Ethyl Acetate 5:5): 0.06. Mp: 235–236 °C. ¹H NMR (DMSO‑_d6) δ (ppm), J (Hz): 6.74 (s, 1H, H-5), 7.01 (s, 1H, H-8), 7.58–7.64 (m, 2H, H-3′, H-4′), 8.10 (s, 1H, H-2′), 8.31 (s, 1H, H-4), 9.48 (s, 1H, OH), 10.24 (s, 1H, OH). ¹³C NMR (DMSO‑_d6) δ (ppm): 102.34, 111.42, 112.25, 112.27, 124.10, 126.08, 126.85, 135.33, 135.86, 139.12, 143.28, 150.52, 160.04. MS m/z (%): 261.1 (16), 260.1 (1 0 0).

2.3 Oxygen radical antioxidant Capacity-fluorescein (ORAC-FL)

Antioxidant capacity was determined using the ORAC-fluorescence methodology (ORAC-FL) (Moncada-Basualto et al., 2018; K. Pérez-Cruz et al., 2018; Robledo-O’Ryan et al., 2017). The analysis was performed using a 96-well white polystyrene plate reader (EnSpire multimode PerkinElmer, Waltham, MA, USA). The reaction was carried out in phosphate buffer (75 mM, pH 7.4). The compound solutions were prepared in dimethyl sulfoxide (DMSO, 0.1 to 2.3 μM), homogenized and incubated at 37 °C, for 5 min, with 150 mL of fluorescein solution (40 nM, final concentration). Then, 25 mL of 2,2́-azobis(2-methylpropionamidine) dihydrochloride (Sigma-Aldrich 97%, St. Louis, MO, USA) 18 mmol L^-1 were added, and the fluorescence was registered (excitation wavelength of 485/20 nm and emission filter of 528/20 nm) at a constant temperature of 37 °C, in a Synergy HT multi-detection microplate reader (Bio-Tek Instruments, Winooski, VT, USA), every minute for 2 h. A blank with FL and AAPH, using dimethyl sulfoxide instead of the antioxidant solution, was used in each assay. Five calibration solutions using Trolox (0.1 to 10 μM) were also used in each assay. The inhibitor capacity was expressed as ORAC-FL values, and it was quantified by the integration of area under the curve (AUC_NET). All reaction mixtures were prepared in triplicate, and at least three independent assays were performed for each sample. The area under the fluorescence decay curve (AUC) was calculated integrating the fluorescence decay where F₀ is the initial fluorescence read at 0 min, and F is the fluorescence read at time. The AUC_NET corresponding to the sample was calculated by subtracting the AUC corresponding to the blank. Data processing was performed using Origin Pro 8.5 SR2 (Origin Lab Corporation, USA). The ORAC-FL indices were calculated according to the following equation (1):

2.4 Determination of the Fukui index

All Fukui-related calculations were performed whit TURBOMOLE v7.5.0 (Balasubramani et al., 2020). The optimization of the structures of the neutral compounds was carried out at the B97-3c GGA density-functional level (Brandenburg et al., 2018) which includes the triple-zeta def2-mTZVP basis set and the D3 dispersion correction (Grimme et al., 2010) with Becke-Jonhson damping (Grimme et al., 2011). The RI approximation (Eichkorn et al., 1997) was used to speed up calculations. The descriptors were evaluated through the condensed orbital approximation based on natural population analysis (NPA) charges (Reed et al., 1985). The radical Fukui is the average corresponding to nucleophilic ( ${\mathrm{f}}_{\mathrm{k}}^{-}$ ) and electrophilic ( ${\mathrm{f}}_{\mathrm{k}}^{+}$ ) attack reactions (equations (2)):

2.5 Inclusion complex formation

The complex was prepared by mixing a solution of the 3-arylcoumarins in DMSO with β-CD (Sigma-Aldrich, Inc., St. Louis, MO) solution, in water, in a 1:3 M ratio. The concentration of DMSO in the mixture did not exceed 10% by volume (Folch-Cano et al., 2011).

2.6 Determination of the association constant of the inclusion complex

The determination of the constant was carried out through fluorescence or absorbance intensity measurements of the 3-arylcoumarins. The spectra absorbance was recorded between 280 and 600 nm, and for the fluorescence, the spectra emission was recorded between 380 and 600 nm, at a fixed excitation wavelength between 300 and 350 nm. Association constant was obtained by the linear equation of Benesi-Hildebrand (3) (Ackermann, 1987; Tablet et al., 2012):

F_∞ is the fluorescence of 3-arylcoumarin included in β-CDs, and F₀ represents the fluorescence of the free 3-arylcoumarin.

2.7 Determination of the inclusion geometry of the complexes by molecular modeling

Inclusion geometries were determined at the quantum-chemistry level by employing the modern GFN2-xTB (Bannwarth et al., 2019) semiempirical method and a dielectric continuum for modeling the water solvation. The xtb program v6.3.3 (Bannwarth et al., 2021) was employed for all calculations. The β-CD structure, each ligand, and two complexes per ligand (each in one of the two possible orientations) were optimized. A 3 ns Born-Oppenheimer molecular dynamics simulation was then performed on each optimized structure. From the last 500 ps of each simulation, snapshots were sampled every 0.1 ps. Each frame was taken to its nearest minimum by geometry optimization, and Gibbs free energies were obtained from Hessian matrix calculations, except for those with imaginary modes after optimization.

2.8 Determination of the inclusion complex of the complexes by nuclear magnetic resonance

Inclusion geometry was determined by ¹H NMR and COSY (correlated spectroscopy) in a Bruker Advance 400 equipment (Billerica, MA, USA), equipped with a 5 mm diameter wide band inverse probe of z gradient, operated at an operating frequency of 400.13 MHz (¹H). The samples were prepared using deuterated methanol (for BZN) and deuterated water (for β-CDs and inclusion complex) as solvents.

2.9 Biological studies

2.10 Parallel artificial membrane permeability assays

Determination of permeability in the artificial membrane of coumarin derivates was carried out according to the methodology described by Sierpe et al. (Sierpe et al., 2017). Donor plates contained 300 µL of the sample with a concentration of 0.5 mM (solubilized in 30% DMSO: 70% phosphate buffer pH 7.4). Compounds were quantified using spectrophotometry in a microplate spectrophotometer (Multiskan Spectrum, Thermo Electron Co.). PAMPA assay was performed in triplicated (n = 3), and experiments were carried out at least three times, data reported as means and their standard deviations from triplicate.

2.11 Statistical analysis

Statistical analysis was performed using Graph Pad Prism 4.03 (GraphPad Software, San Diego, California, USA). The date is expressed as mean ± SD of three independent experiments. Statistical analysis was performed using one–way ANOVA with Dunnett post-test. The date is considered statistically significant when p < 0.05.

3.1 Synthesis of 3-arylcoumarins

The described derivatives 1–11 were efficiently synthesized according to the protocol outlined in Scheme 1. 3-Arylcoumarins were obtained via Perkin − Oglialoro, a well-known two-steps condensation reaction. Firstly, ortho-hydroxybenzaldehydes and arylacetic acids react for 16 h, at reflux temperature, in the presence of potassium acetate (CH₃CO₂K) and acetic anhydride (Ac₂O). Under these mild conditions, concomitant acetylation of the hydroxyl groups and closure of the pyrone ring occur, to afford the acetoxylated compounds in very high yields (90–95%). The appearance of the H-4 in the ¹H NMR of the final product corroborates the success of the reaction. The chemical shift of H-4 is between 7.8 and 8.6 ppm.

Close

Scheme 1

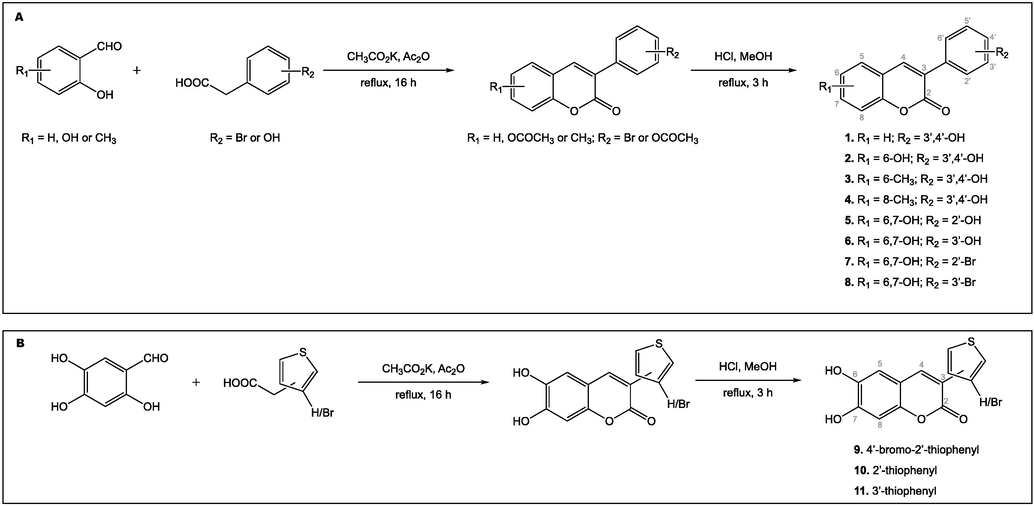

Synthetic methodology for obtaining compounds 1–11 via Perkin-Oglialoro reaction. A. Synthesis of 3-homoarylcoumarins 1–8. B. Synthesis of 3-heteroarylcoumarins 9–11.

Export to PPT

Secondly, the acetoxy derivatives are hydrolyzed in the presence of hydrochloric acid (HCl, 2 N) and methanol (MeOH), at reflux temperature, for 3 h, to yield the hydroxyl derivatives in very good yields (85–90%). The appearance of the peaks corresponding to the hydroxyl (broad singlets), and the disappearance of the peaks corresponding to the methyl group from the acetoxy substituent (big peak integrating for three protons) in the ¹H NMR of the final product, corroborate the success of the reaction. The chemical shift of the hydroxyl is between 9.40 and 10.35 ppm, and the chemical shift of the methyl is around 2.30 ppm.

3.2 Antioxidant capacity

The antioxidant capacity of the series of catechol-containing 3-arylcoumarins was determined by the ORAC-FL methodology, using a fluorescent probe to scavenge oxygen-centered radicals (Table 1). Compounds 1, 2, 5, 6, and 11 presented higher antioxidant capacity than trolox, used as control. The high antioxidant capacity of the 3-(3′,4′-dihydroxyphenyl)-6-hydroxycoumarin (2) is in concordance with our previous studies (Robledo-O'Ryan et al., 2017), which determined that the presence of a hydroxyl group at position 6 of the 3-phenylcoumarin increases the antioxidant capacity, since it is in the para position to the carbonyl of the cyclic lactone, facilitating the transfer of the hydrogen atom to the oxygen-centered radical. Likewise, the presence of a catechol in the phenyl ring at position 3 of the coumarin increases the antioxidant capacity, while electron donor groups as methyl, or the absence of substituents in the coumarin, decrease the antioxidant capacity.

To corroborate the results of the antioxidant capacity, the radical Fukui indices ( $f_k^0$ ), related to the attack mediated by radicals, were determined.

3.3 Fukui indices

The Fukui indices allow evaluating the local reactivity of the oxygen atoms that participate in the reactions of the catechol groups from the studied series of compounds. The Fukui indices (Table 2) indicate that the catechol group has the highest reactivity, when included in the 3-aryl ring.

Table 2 Fukui indices ( $f_k^0$ ) of the studied 3-arylcoumarins 1–11.

Compound	1	2	3	4	5	6	7	8	9	10	11
${\mathit{f}}_{\mathit{k}}^0$ Index
O4́	—0.060	—0.052	—0.058	—0.059
O3́	—0.046	—0.040	—0.044	—0.049		—0.029
O2́					—0.050
O6		—0.060			—0.039	—0.040	—0.055	—0.047	—0.037	—0.038	—0.036
O7					—0.051	—0.054	—0.066	—0.061	—0.050	—0.057	—0.050
C4	—0.111	—0.102	—0.109	—0.113	—0.102	—0.096	—0.094	—0.093	—0.094	—0.101	—0.102

The $f_k^0$ values for all the compounds with the catechol group in the 3-aryl ring (O_3́ and O_4́) are similar. The radical attack occurs first in O_4́, since it is the most reactive atom (≈ −0.060). In compound 2, the presence of the hydroxyl group at position 6 of the coumarin leads to a decrease in the reactivity of the catechol group, being this hydroxyl group more prone to the radical attack, in accordance with what was previously described (Robledo-O'Ryan et al., 2017). Compounds 5 and 6 present a decrease in the reactivity of their catechol groups, similar to compound 2. Wherein, the reactivity of the hydroxyl groups (O₆ and O₇) is lower than compound 2, since both oxygens may interact with the oxygen of the carbonyl of the pyrone ring. Furthermore, the presence of halogens in compounds 7–9 does not affect the reactivity of the catechol groups, while the presence of a thiophenyl ring (compounds 9–11) decreases the reactivity of the catechol groups. The most probable site for a radical attack is carbon 4 (C₄), since the presence of a double bond would stabilize the free radical (Durand-Niconoff et al., 2016; Guíñez et al., 2013).

Based on the above, the antioxidant capacity of the coumarins under study depends significantly on the position of the isolated hydroxyl groups (and not the catechol), influenced by the substituent linked to the coumarin scaffold, having a direct relationship with the ORAC-FL values.

3.4 Trypanocidal activity and cytotoxicity in mammalian cells

The determination of the trypanocidal activity was carried out using the yellow tetrazolium salt (3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide) reduction methodology (MTT, Table 3). 3-(3′,4′-Dihydroxyphenyl)-6-hydroxycoumarin (2), 6,7-dihydroxy-3-(3′-hydroxyphenyl)coumarin (6) and 3-(3′-bromophenyl)-6,7-dihydroxycoumarin (8) showed the highest trypanocidal activities against T. cruzi trypomastigote within the studied series. These moderate activities may be influenced by the solubility, temperature, pH, among others (Hotez et al., 2012). Furthermore, the antioxidant capacity of the hydroxylated coumarins could also decrease the activity against this protozoan parasite.

The cytotoxicity of the compounds was also determined, using mammalian Vero cells (Table 3), proving 3-(3′,4′-dihydroxyphenyl)-8-methylcoumarin (4) and 6,7-dihydroxy-3-(2′-hydroxyphenyl)coumarin (5) to be non-toxic at all. Compounds 2, 6, and 8, that showed the best trypanocidal activities, displayed the highest levels of toxicity as well.

Based on the experimental evidence, a possible trend between the antioxidant capacities and trypanocidal activities, was determined (Fig. 1). As observed in the chart, the increase in the antioxidant capacity is positively related with an increase in the trypanocidal effect (red circle and line). Compounds 3, 4 and 8 do not follow the observed trend, which could be due to the high lipophilicity comparing to the other compounds. In addition, a possible explanation is the difference in the mechanism of action of these compounds, i.e. involving the generation of oxidative stress, as described in previous studies (Moncada-Basualto et al., 2018).

Close

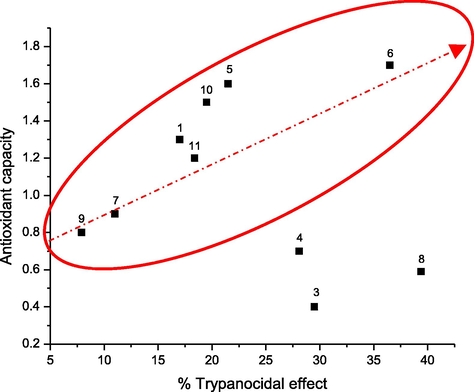

Fig. 1

Interaction between the antioxidant capacity and the trypanocidal effect on the trypomastigotes of T. cruzi of 3-arylcoumarins 1–11.

Export to PPT

3.5 Passive diffusion using the parallel permeability in the artificial membrane (PAMPA)

The determination of passive diffusion of the studied 3-arylcoumarins was carried out using the parallel artificial membrane permeability (PAMPA) assay. For this, a lipid monolayer formed by phosphatidylcholine in n-dodecane was used (Bujard et al., 2017). Table 4 shows the percentages of compounds retained and diffused on the artificial membrane.

The results show that most of the compounds were retained in a high percentage in the membrane. BZN has a lower percentage of retention, with a higher percentage of diffusion, comparing to the studied series. Compounds 6 and 8, that showed significant trypanocidal activities, were highly retained in the membrane, comparing to the other compounds, while compound 2 diffused in a higher proportion. This may indicate that the mechanism of action of 6 and 8 is different from 2. It is important to highlight that the PAMPA methodology is a preliminary test with short analysis times that allows identifying a possible passive diffusion of the compound through an artificial membrane, thus determining its physicochemical properties. Therefore, to complement these results, it is necessary to work directly with the parasite and mammalian cells, since active transporters would help the diffusion of the compounds through the membrane (Miller and Dahan, 2012; Salgado et al., 2021). Therefore, the IC₅₀ values on T. cruzi trypomastigotes and Vero cells were determined for the compounds that showed the highest trypanocidal activities (Table 5).

Compound 8 has a lower IC₅₀ value than compounds 2 and 6. On the other hand, it is the most toxic in mammalian cells, presenting a selectivity index (SI) of 4.8, less than BZN. When performing a structural analysis of compounds 2, 6, and 8, all the three compounds have a catechol group in their structure, but in different positions. They also have an extra hydroxyl (compound 2 and 6) or a bromine (compound 8). In compound 2, the catechol is found in the aryl substituent, while there is a hydroxyl group at position 6 of the coumarin scaffold. In the case of compounds 6 and 8, the catechol is found at positions 6/7 of the coumarin, while in the aryl group for compound 6, there is a hydroxyl group, and for compound 8, a bromine. These two substituents are in meta position to the coumarin scaffold. For the future synthesis of compounds with higher trypanocidal activity, it is suggested to maintain the basic structure of compound 8 and modify the halogen by functional groups or hydrocarbon chains with different lipophilicity.

3.6 Trypanocidal activity of compound 8 combined with BZN

A strategy used in the search for new treatments for diseases caused by protozoan parasites is combining traditional drugs with new bioactive compounds to enhance the therapeutic activity and reduce the adverse effects of conventional drugs (Castanheira et al., 2018; Seguel et al., 2016). The combination of antioxidants with BZN has been studied. During the acute phase of Chagas disease, there is a high proliferation of parasites and intense tissue inflammation, which exacerbates the generation of ROS/RNS (Goes et al., 2016; Hall et al., 2011). Furthermore, conventional drugs, BZN and NFX, being nitroheterocyclic compounds, also increase nitrosative and oxidative stress. This oxidative environment, associated with the intracellular multiplication of T. cruzi, leads to the destruction of host tissues, thus contributing to the etiopathogenesis of the disease.

The combination was carried out using the most active compound of the series under study –compound 8– with BZN. Considering that the trypanocidal mechanism of BZN involves: 1) the covalent modification of macromolecules by the formation of cytotoxic metabolites such as glyoxal; 2) the increase in phagocytosis of T. cruzi by the host cells with the consequent production of cytokines, and 3) the inhibition of NADH-fumarate reductase in the parasite (Providello et al., 2018; Wilkinson et al., 2008). These mechanisms are also responsible for adverse effects in the host. Therefore, the possibility of reducing the dose of BZN, in combination with antioxidant compounds, such as the one proposed here, seems to be an attractive strategy in the search for the treatment of chronic patients.

To determine the trypanocidal activity of the combination of 8-BZN, a dose-matrix analysis of the combination of 7 different concentrations was performed. Data analysis was carried out using the free Combenefit software, selecting the Bliss independence statistical approach, assuming that both drugs have a different mechanism of action (Di Veroli et al., 2016). The dose-matrix combination shows the pattern of the combination between 8 and BZN (Fig. 2). Synergy heat maps were obtained by comparing the data recorded for each combination point, showing a synergistic effect at low concentrations of 8 and high concentrations of BZN. Likewise, an antagonistic effect at high concentrations of BZN and 8, was observed. The IC₅₀ value for compound 8 is 34 µM, and for BZN, 20 µM. Therefore, it was determined that the best combination is obtained for a concentration of 10 µM of both compounds (red circle), since the IC₅₀ concentration of each compound was reduced almost 50%, being ideal for minimizing the dose and the consequent side effects.

Close

Fig. 2

a) Combination matrix of the actual data obtained for BZN and compound 8 using the independent Bliss model. b) Synergy heat map showing synergy for each combination. Combinations with statistical significance (*p ≤ 0.05) are colored, and non-significant values are shown green. Data expressed as the mean of three independent experiments.

Export to PPT

Additionally, the activity on Vero cells of the best combination was evaluated, finding no cytotoxic activity at the concentration used. In addition, the trypanocidal activity of the best combination was 23%, which is still less than ideally expected. This can be related to the low solubility of compound 8 in aqueous medium, or structural changes mediated by pH or even enzyme.

3.7 β-cyclodextrin inclusion complexes and inclusion constant

A strategy used to increase the solubility of the organic compounds, as well as increase their bioavailability, is the formation of inclusion complexes with cyclodextrins (CD). Compound 8 was selected to form the inclusion complex since it had the best trypanocidal activity within the studied series. Likewise, the drug BZN was included in a CD as well. The inclusion complexes were prepared by adding increasing amounts of β-CDs, keeping the concentration of the compounds constant, in an aqueous medium (Folch-Cano et al., 2011). Fig. 3 shows the variation of the fluorescence intensity as a function of the CD concentration. Increasing in the intensity of fluorescence as the CD concentration increases, indicates the compound's inclusion in the complex.

Close

Fig. 3

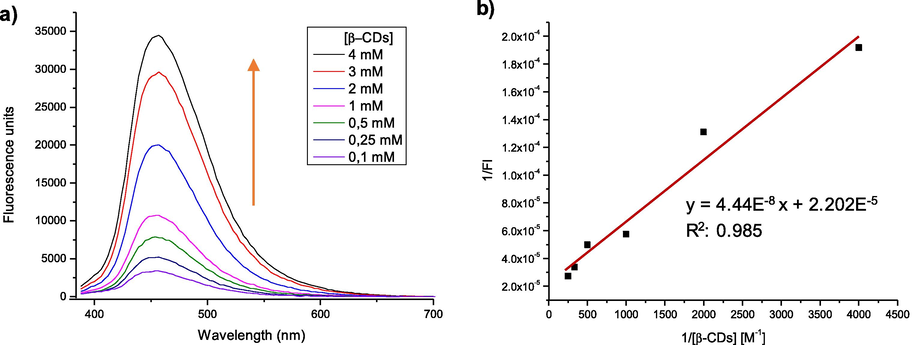

a) Fluorescence spectrum of compound 8 with different concentrations of β-CDs, at 25 °C. b) Graphical representation of the Benessi–Hildebrand equation for the inclusion complex of compound 8 with β-CDs (8-β-CDs), at 25 °C.

Export to PPT

In Table 6 are represented the constant inclusion values of the complexes, determined by the Benessi-Hildebrand equation (Abdel-Shafi and Al-Shihry, 2009; Benesi and Hildebrand, 1949). The percentages of compound included were obtained by the Lucas-Abellan equation (Lucas-Abellán et al., 2014). The inclusion constant of 8 proved to be higher than BZN. This may be due to the high solubility of BZN in the polar environment, avoiding the migration towards the interior of the CD, which agrees with Leonardi et al. published data (Leonardi et al., 2013). The presence of hydroxyl groups in compound 8 accentuates polar characteristics. So, when using a derivative of β-CDs with polar characteristics such as hydroxypropyl β-CD (HP-β-CDs), the inclusion constant increased (Table 6), since the modification of the CD expands the cavity, which the hydroxypropyl groups generate. Therefore, it could keep the molecule included more effectively (C. Folch-Cano et al., 2010).

3.8 Inclusion geometry by NMR and molecular modeling

The determination of the inclusion geometry of BZN-β-CDs was carried out by 1D and 2D nuclear magnetic resonance (NMR). Fig. 4 shows the ¹H NMR spectrum of BZN, β-CDs, and the inclusion complex, as well as the characteristic signals for each. To corroborate the characteristic signals of the β-CDs, the two-dimensional COSY spectrum was recorded (Fig. 4). The signals from the BZN protons in the inclusion complex are shifted towards higher frequencies, probably due to interaction with CD. Table 7 shows that the difference in the chemical shifts of most signals is ∼ 0.05–0.12 ppm, except for the aromatic protons multiplet of the benzyl fragment of BZN, which moved 0.02 ppm towards a higher frequency, which can be explained by the inclusion of the benzene ring in the β-CDs, generating interactions with the internal oxygen atoms of the

Close

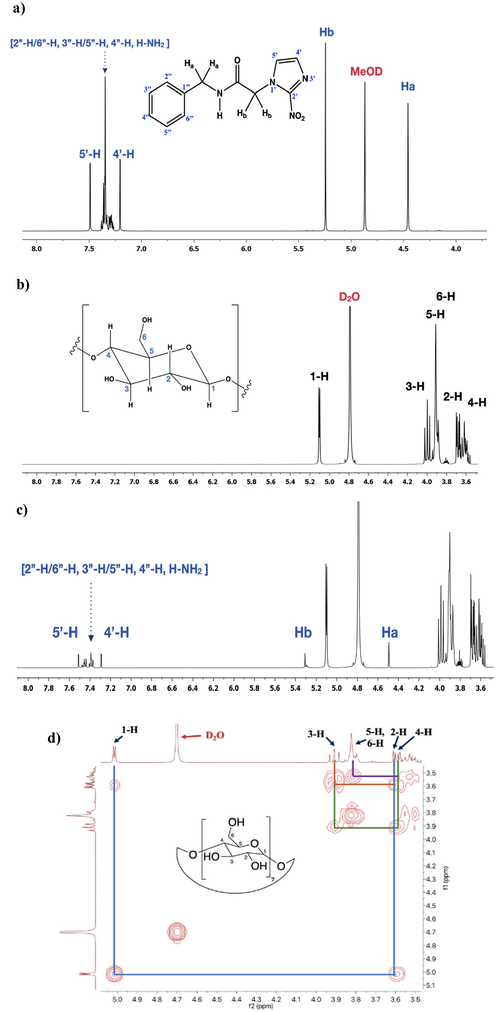

Fig. 4

NMR spectra of a) 1D ¹H of BZN, b) 1D ¹H of β-CDs, c) 1D ¹H of inclusion complex and d) 2D ¹H–¹H COSY of β-CDs.

Export to PPT

macrocycle, which confers an anisotropic protection region. On the other hand, the chemical shifts of greater magnitude can be explained by the interaction of the remaining protons of the BZN with the eternal oxygen atoms of the CDs, which exert a magnetic deprotection field that results in the displacement of the signals towards a lower field of the spectrum (Chadha et al., 2007).

For compound 8 (Fig. 5), the signals of the protons corresponding to the aryl group up to the proton of carbon 4 of the coumarin scaffold are found inside the cavity of the CD, since they have lower displacements that the protons 5 and 8 of coumarin, which are unprotected (Table 7).

Close

Fig. 5

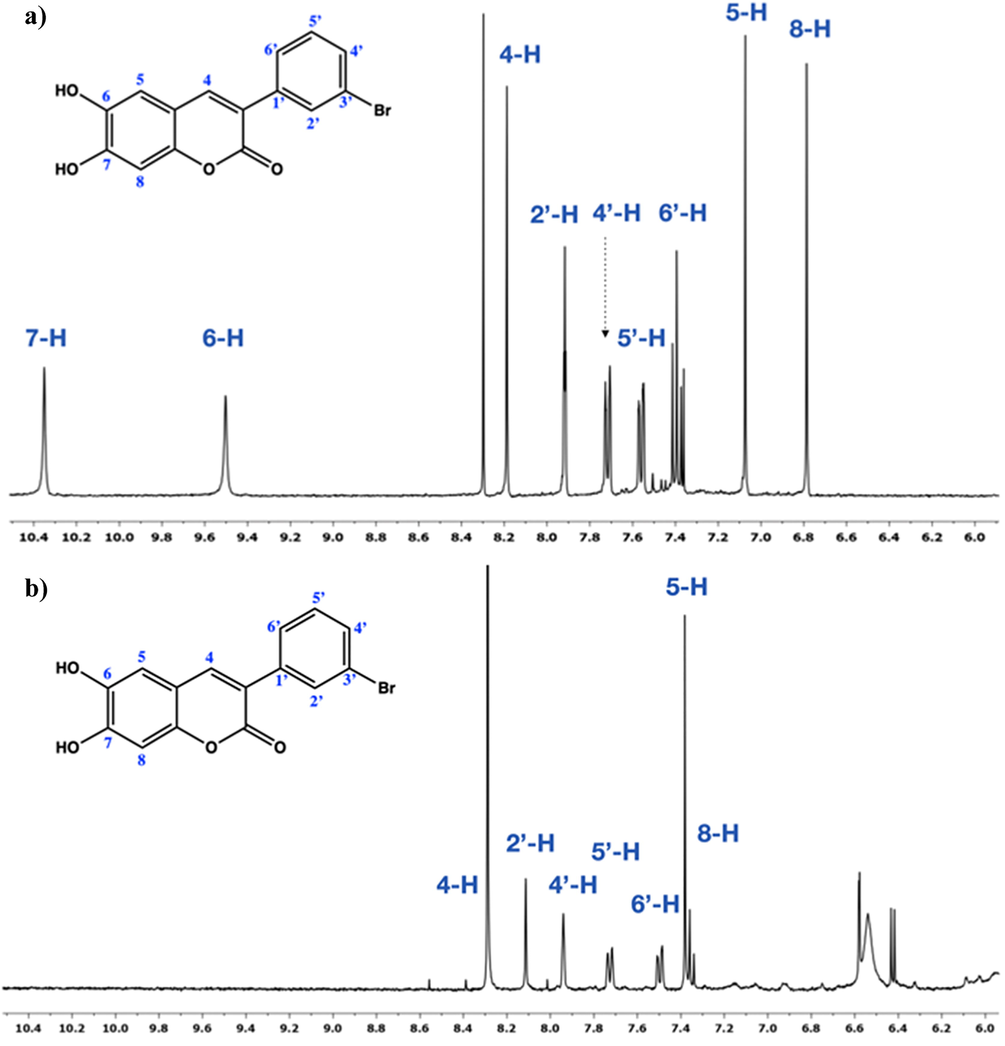

NMR spectra of a) 1D ¹H of compound 8, b) 1D ¹H of inclusion complex (8-β-CD).

Export to PPT

The inclusion geometry was obtained by molecular modeling. The β-CD structure optimized for 8 indicates that the compound is within the CD cavity. Fig. 6 shows the minimum energy structure obtained for the inclusion complex by the modern GFN2-xTB semiempirical method (Bannwarth et al., 2019). The bromine substituent of the aryl ring is directed towards the primary hydroxyls of the CD cavity generating Van der Waals interactions type, the oxygen of the pyrone of the coumarin interacts with the secondary hydroxyls through hydrogen bonding interactions, while the catechol group is partly external to the CD, which is corroborated by ¹H NMR. In addition, studies of inclusion complexes in HP-β-CD of coumarin derivates such as: quercetin and silibinin determined that the main interactions of the compounds within the cyclodextrin are Van der Waals interactions type, confirming what was previously proposed (Kellici et al., 2015; Kellici, et al., 2016). In conclusion, molecular modeling is an optimal tool for determining the inclusion geometry of this type of coumarins, without the need for advanced and high-cost instruments.

Close

Fig. 6

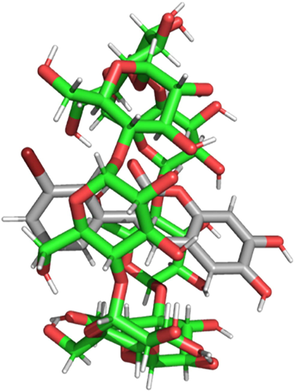

The geometry of the inclusion complex of compound 8 in β-CDs, generating by molecular modeling.

Export to PPT

Subsequently, the trypanocidal activity of the inclusion complex of compound 8 in the β-CD was evaluated against the trypomastigote form of T. cruzi. The cytotoxicity activity against Vero cells was evaluated as well. The obtained values were 18.0 ± 6.1% and 18.2 ± 3.3%, respectively. Thus, the decrease in trypanocidal activity could be due to the inclusion of the active fraction of the molecule in the CDs, which reaffirms that the active fraction of the molecule is the substituent. Likewise, studies determined that the decrease in the cytotoxic activity of the inclusion complexes could be explained by the controlled release, which allows the cell to generate some defense mechanism (Lyra et al., 2012). The β-CD did not show trypanocidal activity.

Additionally, the passive diffusion of the inclusion complex was determined, finding that the percentage of compound retained in the membrane increased to 78.8%, and there were no changes in the percentage of diffusion. The increase in the retention percentage may be related to the increase in the compound's bioavailability (Moncada-Basualto et al., 2019; Paczkowska et al., 2018).

Several mechanisms have been described that can explain the increased permeability of coumarins when they form inclusion complexes, such as endocytosis, through transporters located in cell membranes and increased solubility (Moncada-Basualto et al., 2019; Réti-Nagy et al., 2015), the last one being a possible mechanism for compound 8 entrance into the cell when included in a β-CD. Being inside the cavity of the CD, it can be transported through the water layers that surround the cell unit to reach the cell membrane. Wherein, the complex dissociates, and the free compound penetrates through the membrane.

The trypanocidal activity of the best combination (10:10 µM) was evaluated on the trypomastigote form of the parasite. The trypanocidal activity (23 ± 2%) increased comparing to the isolated compounds at the same concentration (8: 7 ± 1% and BZN: 1 ± 1%), corroborating the synergism between the two compounds. In addition, the combination of compound 8 included in the CDs with BZN (8-β-CD-BZN) was evaluated, concluding that the trypanocidal effect (25 ± 4%) is higher than the non-included combination (8-BZN). This could be due to an increase in the solubility and bioavailability of the compound 8 when included in the CD. It should be highlighted that the combinations with the inclusion of BZN in CD were not evaluated, since having a low inclusion constant (k: 52 ± 10 µM⁻¹), a displacement of compound 8 towards the included BZN, generating the inclusion of 8, may occur.

In addition, the cytotoxicity in mammalian cells of the combination of the compound 8 and 8 included in the CD with BZN, was evaluated, finding an increase in toxicity (8-BZN: 31 ± 8% and 8-β-CD-BZN: 27 ± 6%). This may be explained by a decrease in the defense mechanisms of the cells, counteracting the effects caused by the compound, being vulnerable to the other in the combination.

3.9 Intracellular trypanocidal activity of compound 8 and 8-BZN

The trypanocidal effects of the free compounds and in combination on the intracellular amastigote form of T. cruzi, were evaluated. The Vero cells were previously infected with the parasite and incubated in the presence of the most active compound, the inclusion complex, and BZN, at the IC₅₀ concentration. The combination with the drug BZN has a proportion of 10:10 µM, as described before.

Fig. 7 shows the images of the trypanocidal activities on the intracellular form of the T. cruzi, generated by the free compound 8, included in the β-CD (8-β-CD) and in combination with BZN, obtained by fluorescence spectroscopy. Analyzing the data in Table 8, it is observed that the synergistic combination of BZN with compound 8 leads to a higher effect on Vero cells infection, than compound 8 and BZN alone, observing a decrease in the number of infected cells, but a slightly increase in the number of parasites per cell.

Close

Fig. 7

Trypanocidal effect of 8 alone or combined with BZN on the amastigote forms of T. cruzi. Vero cells were exposed to a 1:3 ratio for 24 h, after which the supernatant was removed, and the cells were exposed to the compounds at the IC₅₀ concentration, or the combination concentration, for 24 h. Each image is representative of a) Vero cells infected (control), b) BZN, c) compound 8, d) 8-β-CD, e) 8-BZN and f) 8-β-CD-BZN. Arrows indicate the intracellular form of the parasite inside the Vero cell. The rows indicate the intracellular forms of T. cruzi.

Export to PPT

For 8-β-CD, a decrease in the number of infected cells comparing to the free compound was observed, which may be attributed to the increase in the compound's bioavailability. Likewise, when comparing the combination of BZN with the inclusion complex of compound 8 (8-β-CD-BZN), a decrease in infected cells similar to that determined for the combination of free 8, is observed, evidencing that there is no relevant difference between both combinations, attributable to the fact that the increase in the bioavailability of compound 8 does not imply an increase in the bioavailability of BZN, which seems to exert a higher effect on the infection of Vero cells, since it presents similar values as the drug per se.

However, it should be considered that the test considers the number of infected cells and the number of parasites per cell, and not the activity of the compounds on the intracellular amastigotes. Therefore, this test involves only the rate of infectivity in mammalian cells after the treatment with the compound. In conclusion, all the compounds show an effect on the infection at the IC₅₀ concentrations. In addition, the combination presents trypanocidal activity with a concentration lower than the free compounds. Therefore, the combined therapy becomes very important to reduce the dose of drug (Veas et al., 2020).

Based on the above, a study of the trypanocidal activity at 96 h of treatment was carried out, to evaluate the effect on the replication of the intracellular form (amastigote) and its differentiation to the trypomastigote form, in the presence of the compounds and the combinations of 8 and BZN, with or without CD inclusion. For this, the parasite DNA concentration was recorded using the real-time PCR (qPCR) technique. Furthermore, the same protocol of the intracellular study was followed, with the difference that at 96 h, the supernatant was removed and centrifuged at the precipitation rate of the trypomastigote form of T. cruzi, to quantify the parasite DNA.

Table 8 shows the number of parasites the managed to replicate, differentiate, and lyse the cells. BZN is the compound that presented the lowest number of parasites (750 ± 45), corroborating the result obtained in the intracellular trypanocidal activity study. This could be explained by the BZN damage to the amastigotes, preventing replication and subsequent differentiation. The same pattern was observed in the study of the intracellular trypanocidal effect, since the combination of 8 and the inclusion complex with BZN is better than compound 8 and BZN per se, corroborating the previous data. Based on the above, a study of the trypanocidal activity at 96 h of treatment was carried out, to evaluate the effect on the replication of the intracellular form (amastigote) and its differentiation to the trypomastigote form, in the presence of the compounds and the combinations of 8 and BZN, with or without CD inclusion. For this, the parasite DNA concentration was recorded using the real-time PCR (qPCR) technique. Furthermore, the same protocol of the intracellular study was followed, with the difference that at 96 h, the supernatant was removed and centrifuged at the precipitation rate of the trypomastigote form of T. cruzi, to quantify the parasite DNA.

3.10 Generation of radical species in a parasitic medium by electron spin resonance spectroscopy

Some coumarins have been reported to inhibit the enzyme GAPDH, an essential protein in the glycolytic pathway of trypanosomatids (Freitas et al., 2009). They can generate oxidative stress in the parasite, and deficit in the antioxidant mechanism (enzymatic and non-enzymatic) (Maria Aravena et al., 2011). Therefore, to understand the possible mechanism of action of the compound, the inclusion complex and the combination, the formation of radical species on the trypomastigote form of T. cruzi was studied by electron spin resonance (ESR) spectroscopy. The generation of radical species in cultures of trypomastigote from T. cruzi was determined, using DMPO as a spin trap, since it does not generate radical species in a parasitic medium, it penetrates the cell membrane and reacts with free carbon and oxygen radicals (Barriga-González et al., 2015; Robledo-O'Ryan et al., 2017; Salgado et al., 2021). In Fig. 8a, hyperfine coupling patterns are observed. Compound 8, 8-β-CD and in combination with BZN, showed the same pattern, while BZN per se did not show any pattern. The hyperfine patterns represent the generation of a strong triplet signal with hyperfine coupling constants (aN ∼ 14.62 G), corresponding to the paramagnetic compound DMPOX (5,5-dimethyl-2-oxo-pyrrolin-1-oxyl), generated by the oxidation of the DMPO-OH adduct (Fig. 9). The calculation of the areas’ ratio, comparing to the blank, allows determining that compound 8 and 8-β-CD have area relations, like 8-β-CD-BZN, while the BZN alone does not show any variation, which may indicate that it acts by a different mechanism of action.

Close

Fig. 8

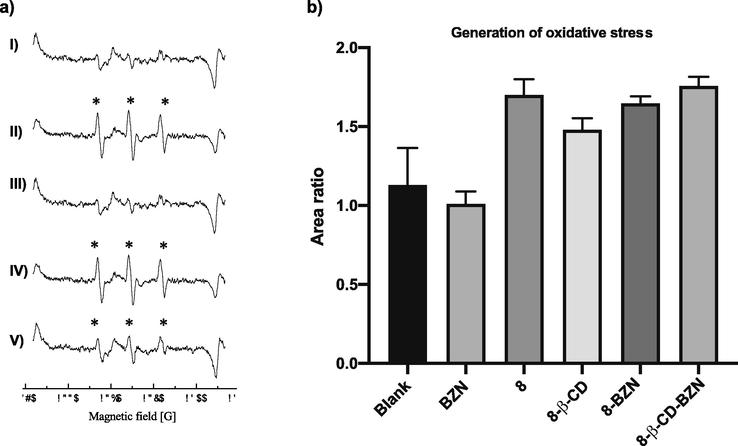

a) EPR spectra of spin adducts generated on the trypomastigote form of T. cruzi at room temperature. I) Spectrum recorded for the control, II) Spectrum recorded for compound 8, III) Spectrum recorded for BZN, IV) Spectrum recorded for 8-BZN and V) Spectrum recorded for compound 8-β-CD, all incubated with trypomastigotes. The DMPOX hyperfine pattern is represented by (*). b) Determination of the areas’ ratios, for the compounds comparing to the blank.

Export to PPT

Close

Fig. 9

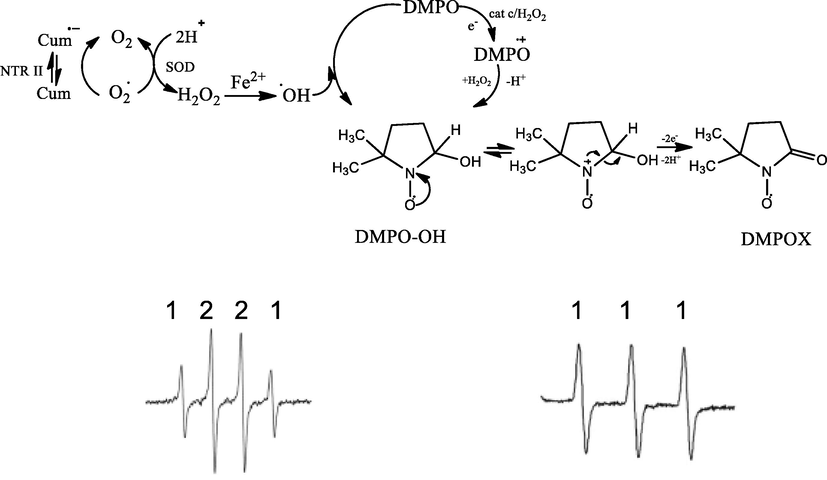

Generation of radical species on the trypomastigote form of T. cruzi, generation of metabolites and their interaction with the spin trapping DMPO.

Export to PPT

The mitochondria of the T. cruzi parasite use oxidizable substrates to produce an electrochemical proton gradient across the mitochondrial membrane to produce ATP. Therefore, it would be very interesting to evaluate if the compounds may affect the mitochondrial membrane potential (ΔΨm). The T. cruzi parasite has only one mitochondrion, which is essential for survival, and regulates energy balance and apoptosis (Moncada-Basualto et al., 2019).

The mitochondrial metabolism has been assessed by varying the mitochondrial membrane potential. For this, the fluorescent tetramethylrhodamine methyl ester (TMRM) probe was used as an indicator of the potential variation. For the compound 8, 8-β-CDs, and 8-BZN, no variations in the membrane potential were observed. Similarly, the BZN had no effect on the membrane potential, corroborating previous data (Hall et al., 2011). The decoupling agent carbonylcyanide-3-chlorophenylhydrazone (CCCP) was used as a control (Fig. 10).

Close

Fig. 10

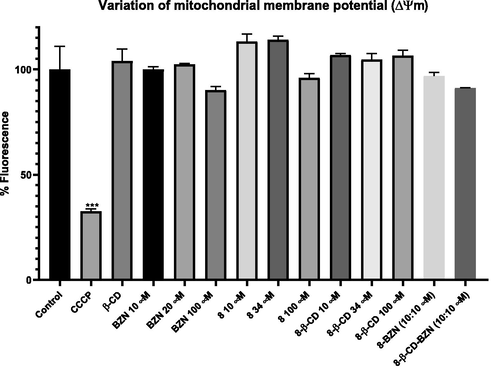

Percentage of TMRM probe incorporation by variation of the mitochondrial membrane potential on trypomastigote of T. cruzi. The significant difference compared to control (one-way ANOVA with Dunnett́s post-test, ***p < 0.0001).

Export to PPT

Based on the results, it is postulated that the mechanism of action of compound 8 does not affect the mitochondrial membrane potential of the parasite. It can be associated with the generation of oxidative stress in T. cruzi, as previously demonstrated.
