Synthesis, characterization and biological activities of some azo derivatives of aminothiadiazole derived from nicotinic and isonicotinic acids
*Corresponding author. Tel.: +964 7901965123 ivanhrtomy@yahoo.com (Ivan Hameed R. Tomi)
-
Received: ,
Accepted: ,
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.
Available online 13 December 2010
Peer review under responsibility of King Saud University.
Abstract
In this study we synthesized the new compounds containing bis-1,3,4-thiadiazole 3(A–D)n from many reaction steps (cyclization, diazotization and etherification respectively). The compounds have been characterized by melting point, FT-IR and 1H NMR data. All the synthesized compounds have been evaluated in vitro for their antimicrobial activities against several microbes like: Escherichia coli, Klebsiellia pneumonia, Pseudomonas aeruginosa, Serratia marscens and Staphylococcus aureus and show that some of these compounds have very good antibacterial activity.
Keywords
Antibacterial
Aminothiadiazole
13,4-Thiadiazole
Azo compounds
Cyclization
Microbial activity
1 Introduction
The aminothiadiazoles have occupied an important place in drug industry. 1,3,4-Thiadiazole has wide applications in many fields. The earliest uses were in the pharmaceutical area as antibacterial drugs (Vasoya et al., 2005).
The 1,3,4-thiadiazole ring system has incorporated many substances with antibacterial, ameobicide, parasiticide and antifungal activities (Farzin and Rahil, 2008; Mohd et al., 2009). In addition, it was reported that 1,3,4-thiadiazole exhibit various biological activities possibly due to the presence of the N⚌C–S moiety (Holla et al., 2002).
It was also know that 3- and 4-substituted pyridines recorded pronounced antimicrobial activity such as isonicotinic acid hydrazide, which remains one of the most effective antibiotics against tuberculosis. Also, sulphanilamides effectiveness extends to acute chronic Gram negative and Gram positive infections. For example, sulfa pyridine is a chemotherapeutic agent for the treatment of pneumococcal and other bacterial infections (Osama and Salwa, 2005). There are many interesting studies on the biological activity of 2-amino-1,3,4-thiadiazole. Mohammad et al. (2009) found some derivatives of aminothiadiazole (I) having good anticonvulsant activity in the range of 33–100% in comparison to phenytoin, which completely inhibited the convulsions produced by an electroconvulsometer in albino mice.

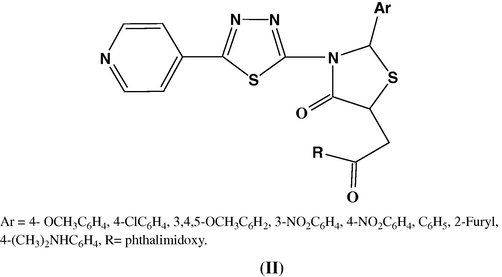

Ranjina et al. (2006) synthesized a number of derivatives of aminothiadiazole containing 4-pyridyl and oxothiazolidin moieties in the same molecules (II).
He found that all the compounds have good antimicrobial activity but the compounds in which a nitro group is present at the Meta and Para position of the aryl ring, respectively, possess stronger antibacterial activity than others.
In this study, we designed new azo compounds containing bis-1,3,4-thiadiazole ring derived from nicotinic and isonicotinic acids in the same molecules. This type of combination and rebuilding of these heterocyclic compounds are expected to have high biological activity largely as antimicrobial agents and we compared the biological activity results of these compounds with the analogous containing the same structural units except replacing of the nicotinic and isonicotinic moieties with phenyl and cyclohexyl rings.
2 Experimental
2.1 Materials and physical measurements
All starting materials and solvents were purchased from Aldrich and Fluka and used without further purification. Melting points were determined on Electro-thermal capillary apparatus and are uncorrected. The FT-IR spectra were obtained using SHIMADZU model FT-IR-8400S. 1H NMR spectra were obtained on BRUKER model Ultra shield 300 MHz spectrophotometer in DMSO-d6 solution with the TMS as the internal standard. Note: in some 1H NMR spectra, the peaks at δ 2.5 and 3.35 are for the solvent (DMSO-d6) and dissolved water in (DMSO-d6), respectively.
2.2 Preparation methods and physical data of synthesized compounds 1(A–D)–3(A–D)
2.2.1 General procedure for preparation of 2-amino-5-(substituted)-1,3,4-thiadiazole 1(A–D)
A mixture of the corresponding carboxylic acid (10 mmol), thiosemicarbazide (0.91 g, 10 mmol) and phosphorous oxychloride (5 mL) was gently refluxed for 3 h. After cooling, water (25 mL) was added slowly and the reaction mixture was refluxed for 3 h and filtered. The solution was neutralized with concentrated potassium hydroxide solution and the precipitate was filtered and recrystallized from ethanol.
2.2.1.1 2-Amino-5-(3-pyridyl)-1,3,4-thiadiazole (1A)
This compound was obtained as a pale yellow powder, yield (69%), mp > 300 °C; FT-IR (KBr disk, cm−1) 3308 and 3168 (NH2), 1645 (C⚌N) cm−1; 1H NMR (DMSO-d6, 300 MHz, δ) 9.19 (s, 1H, a-H, pyridine), 8.95 (d, 1H, d-H, pyridine), 8.62 (t, 1H, c-H, pyridine), 8.12 (d, 1H, b-H, pyridine), 7.55 (s, 2H, NH2).
2.2.1.2 2-Amino-5-(4-pyridyl)-1,3,4-thiadiazole (1B)
This compound was obtained as a yellow powder, yield (74%), mp 239–240 °C; FT-IR (KBr disk, cm−1) 3297 and 3123 (NH2), 1641 (C⚌N) cm−1; 1H NMR (DMSO-d6, 300 MHz, δ) 8.70 (d, 2H, HC⚌N, pyridine), 7.85 (d, 2H, HC⚌C, pyridine), 7.75 (s, 2H, NH2).
2.2.1.3 2-Amino-5-(4-phenyl)-1,3,4-thiadiazole (1C)
This compound was obtained as an off white powder, yield (82%), mp 220–222 °C; FT-IR (KBr disk, cm−1) 3320 and 3156 (NH2), 1631 (C⚌N) cm−1; 1H NMR (DMSO-d6, 300 MHz, δ) 7.78–7.47 (m, 5H, Ar–H), 7.43 (s, 2H, NH2).
2.2.1.4 2-Amino-5-(4-cyclohexyl)-1,3,4-thiadiazole (1D)
This compound was obtained as a white powder, yield (91%), mp 238–240 °C; FT-IR (KBr disk, cm−1) 3302 and 3117 (NH2), 1633 (C⚌N) cm−1; 1H NMR (DMSO-d6, 300 MHz, δ) 6.99 (s, 2H, NH2), 1.99–1.15 (m, 11H, cyclohexyl).
2.2.2 General procedure for preparation of 2-(p-hydroxyphenyl-azo)-5-(substituted)-1,3,4-thiadiazole 2(A–D)
Compounds 1(A–D) (1.78 mmol) were dissolved by heating and stirring in (8 mL) of 85% phosphoric acid. The solution was cooled to 0 °C in an ice bath, and then concentrated nitric acid (4 mL) and a solution of sodium nitrite (0.13 g, 1.87 mmol) in (2 mL) of water was added. The mixture was stirred vigorously and maintained at below 5 °C during 10 min. Afterwards a solution of phenol (0.17 g, 1.78 mmol) in (0.5 mL) water was added dropwise with stirring. The mixture was poured into cold water (100 mL). The precipitate solid was filtered, washed several times with water and recrystallized from ethanol.
2.2.2.1 2-(p-Hydroxyphenyl-azo)-5-(3-pyridyl)-1,3,4-thiadiazole 2(A)
This compound was obtained as a dark red powder, yield (71%), mp 246–248 °C; FT-IR (KBr disk, cm−1) 3450–3095 (broad O–H group), 1432 (N⚌N) cm−1; 1H NMR (DMSO-d6, 300 MHz, δ) 9.29 (s, 1H, a-H, pyridine), 8.83 (d, 1H, d-H, pyridine), 8.57 (t, 1H, c-H, pyridine), 8.51 (s, 1H, OH), 8.20 (d, 1H, b-H, pyridine), 7.71 (d, 2H, Ar–H), 7.35 (d, 2H, Ar–H).
2.2.2.2 2-(p-Hydroxyphenyl-azo)-5-(4-pyridyl)-1,3,4-thiadiazole 2(B)
This compound was obtained as a dark brown powder, yield (77%), mp > 300 °C; FT-IR (KBr disk, cm−1) 3431–3083 (broad O–H group), 1425 (N⚌N) cm−1; 1H NMR (DMSO-d6, 300 MHz, δ) 8.55 (s, 1H, OH), 8.35 (d, 2H, HC⚌N, pyridine), 7.93 (d, 2H, HC⚌C, pyridine), 7.46 (d, 2H, Ar–H), 6.97 (d, 2H, Ar–H).
2.2.2.3 2-(p-Hydroxyphenyl-azo)-5-(phenyl)-1,3,4-thiadiazole 2(C)
This compound was obtained as a brown powder, yield (86%), mp 196–198 °C; FT-IR (KBr disk, cm−1) 3553-3112 (broad O–H group), 1417 (N⚌N) cm−1; 1H NMR (DMSO-d6, 300 MHz, δ) 8.59 (s, 1H, OH), 7.98–8.12 (m, 5H, Ar–H), 7.39 (d, 2H, Ar–H), 7.05 (d, 2H, Ar–H).
2.2.2.4 2-(p-Hydroxyphenyl-azo)-5-(cyclohexyl)-1,3,4-thiadiazole 2(D)
This compound was obtained as a deep orange powder, yield (71%), mp 118–121 °C; FT-IR (KBr disk, cm−1) 3439-3097 (broad O–H group), 1397 (N⚌N) cm−1; 1H NMR (DMSO-d6, 300 MHz, δ) 8.49 (s, 1H, OH), 8.27 (d, 2H, Ar–H), 7.30 (d, 2H, Ar–H), 2.08–1.13 (m, 11H, cyclohexyl).
2.2.3 General procedure for preparation of alkane-bis-α-ω-[2-(p-alkoxyphenyl-azo-)-5-(substituted)]-1,3,4-thiadiazole 3(A–D)n
These compounds were synthesized by alkylation’s of dyes 2(A–D) using the described method by Vyas and Shah (1963). 2-(p-Hydroxyphenyl-azo)-5-(substituted)-1,3,4-thiadiazole 2(A–D) (10 mmol), appropriate 1,n-dibromo or iodo alkane (6 mmol) and anhydrous potassium carbonate (15 mmol) were added to dry acetone (10 mL). The reaction mixture was refluxed on a water bath for 24 h. Then it was added to ice-cold water. The crude solid product thus obtained was triturated with cold 5% aqueous sodium hydroxide solution for 30 min so as to remove unreacted azo dyes and was washed with water several times. The products obtained after flirtation were finally crystallized using ethanol. The physical properties and FT-IR spectral data of all compounds 3(A–D)n are listed in Table 1.
Comp. No.
Color
Mp °C
Yield %
υC–H Aliph.
υC–O–C asym. and sym.
3(A)1
Red
>300
43
2920, 2877
1255, 1051
3(A)2
Dark red
>300
56
2929, 2871
1261, 1044
3(A)3
Dark red
289–291
41
2919, 2866
1266, 1053
3(A)4
Red
275–277
39
2932, 2880
1257, 1047
3(A)5
Dark red
281–285
57
2927, 2858
1247, 1049
3(B)1
Brown
>300
33
2937, 2870
1247, 1046
3(B)2
Brown
>300
42
2941, 2866
1251, 1061
3(B)3
Dark brown
>300
52
2936, 2858
1259, 1043
3(B)4
Brown
>300
56
2932, 2867
1244, 1045
3(B)5
Dark brown
285–288
57
2928, 2856
1263, 1074
3(C)1
Brown
>300
37
2921, 2868
1266, 1081
3(C)2
Brown
>300
48
2935, 2855
1259, 1077
3(C)3
Light brown
290–292
33
2924, 2854
1248, 1070
3(C)4
Dark brown
277–280
32
2937, 2862
1242, 1060
3(C)5
Brown
269–271
48
2943, 2871
1249, 1071
3(D)1
Deep orange
>300
42
2929, 2854
1253, 1049
3(D)2
Deep orange
288–289
46
2934, 2859
1261, 1039
3(D)3
Orange
238–242
59
2941, 2844
1267, 1050
3(D)4
Orange
200–202
33
2929, 2852
1257, 1024
3(D)5
Brown
194–197
57
2931, 2857
1263, 1033
2.2.3.1 Methane-bis-α-ω-[2-(p-alkoxyphenyl)-azo-)-5-(3-pyridyl)]-1,3,4-thiadiazole 3(A)1
1H NMR (DMSO-d6, 300 MHz, δ) 9.18 (s, 2H, a-H, pyridine), 8.72 (d, 2H, d-H, pyridine), 8.37 (t, 2H, c-H, pyridine), 8.25 (d, 2H, b-H, pyridine), 7.76 (d, 4H, Ar–H), 7.58 (d, 4H, Ar–H), 6.46 (s, 2H, CH2).
2.2.3.2 Ethane-bis-α-ω-[2-(p-alkoxyphenyl)-azo-)-5-(4-pyridyl)]-1,3,4-thiadiazole 3(B)2
1H NMR (DMSO-d6, 300 MHz, δ) 8.58 (d, 4H, HC⚌N, pyridine), 7.97 (d, 4H, HC⚌C, pyridine), 7.39 (d, 4H, Ar–H), 7.01 (d, 4H, Ar–H), 4.19 (t, 4H, CH2).
2.2.3.3 Butane-bis-α-ω-[2-(p-alkoxyphenyl)-azo-)-5-(phenyl)]-1,3,4-thiadiazole 3(C)4
1H NMR (DMSO-d6, 300 MHz, δ) 7.81–8.23 (m, 10H, Ar–H), 7.22 (d, 4H, Ar–H), 7.02 (d, 4H, Ar–H), 4.07 (t, 4H, OC H 2CH2), 2.12 (m, 4H, OCH2C H 2).
2.2.3.4 Propane-bis-α-ω-[2-(p-alkoxyphenyl)-azo-)-5-(cyclohexyl)]-1,3,4-thiadiazole 3(D)3
1H NMR (DMSO-d6, 300 MHz, δ) 8.21 (d, 4H, Ar–H), 7.34 (d, 4H, Ar–H), 4.21 (t, 4H, OC H 2) 2.32–1.09 (m, 24H, cyclohexyl and OCH2C H 2CH2O).
3 Results and discussion
3.1 Synthesis

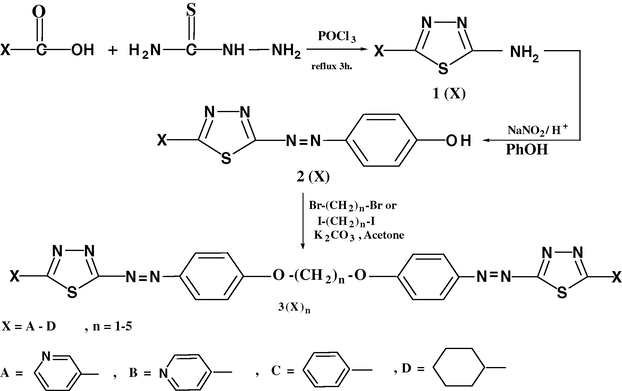

Scheme 1 outlines the synthetic sequences employed in our laboratories for the preparation of series 3(A–D)n.
Synthetic route for preparation of compounds 3(A–D)n.
2-Amino-5-(substituted)-1,3,4-thiadiazole 1(A–D) were prepared in good yields by the reaction of the corresponding carboxylic acids with thiosemicarbazide in the presence of phosphorous oxychloride. The proposed mechanism of this reaction was described by Emad et al. (2009) and was shown in Scheme 2.

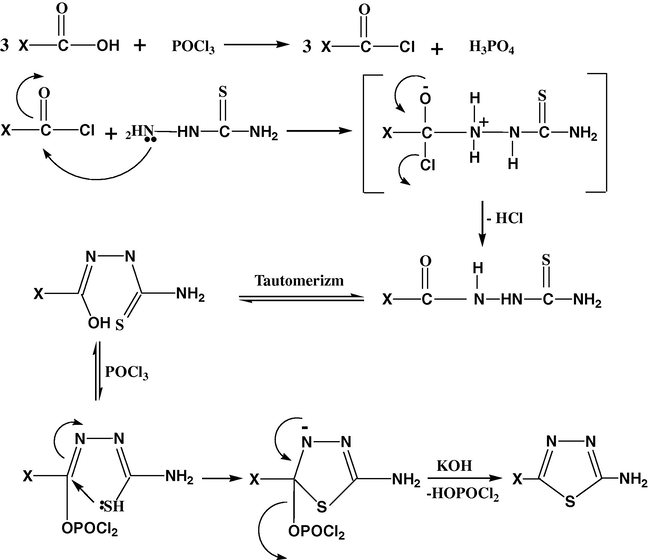

The mechanism steps of formation of aminothiadiazole 1(A–D).
The FT-IR spectra of compounds 1(A–D) indicated the presence of a C⚌N function (1631–1645 cm−1) and two bands at (3320–3297 cm−1) and (3168–3117 cm−1), which could be attributed to asymmetric and symmetric stretching vibrations of NH2 group. The 1H NMR spectra of these compounds showed a singlet at δ (6.9–7.7) ppm due to the NH2 protons. Fig. 1 showed the 1H NMR spectra of compounds 1(A), 1(C) and 1(D).

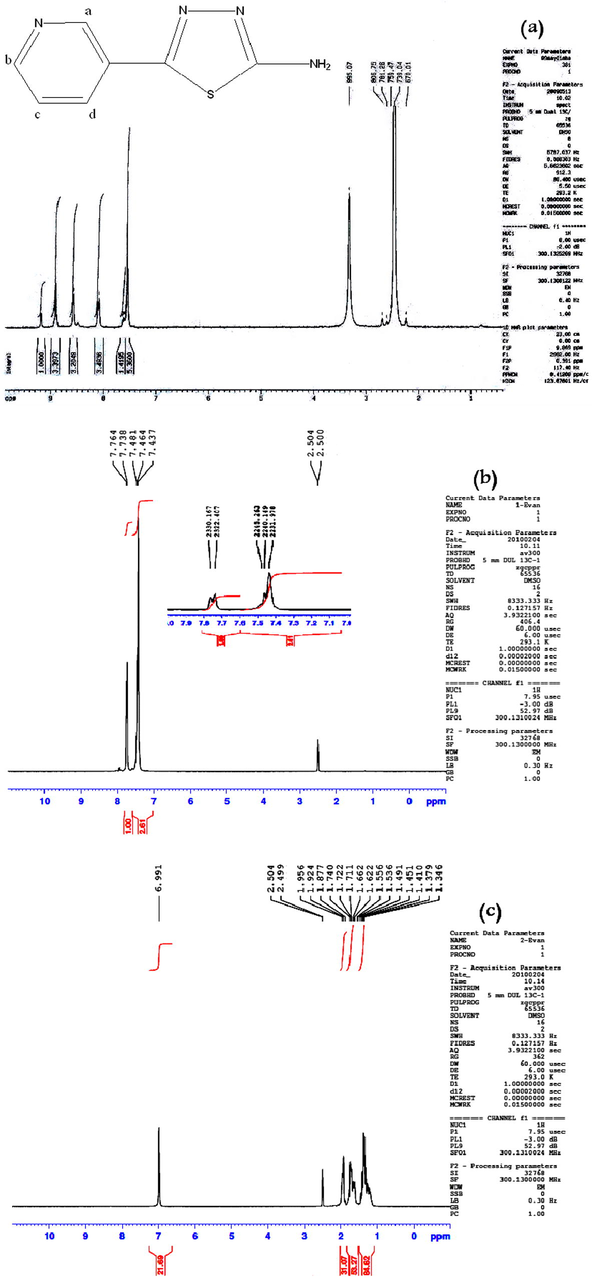

1H NMR spectra of compounds 1(A) (a), 1(C) (b) and 1(D) (c).
The azo compounds 2(A–D) were synthesized by diazotization of compounds 1(A–D) and coupling with phenol by following the method reported by Erlenmeyer and Ueberwasser (1942). This reaction may be outlined as follows in Scheme 3 (John, 2004).

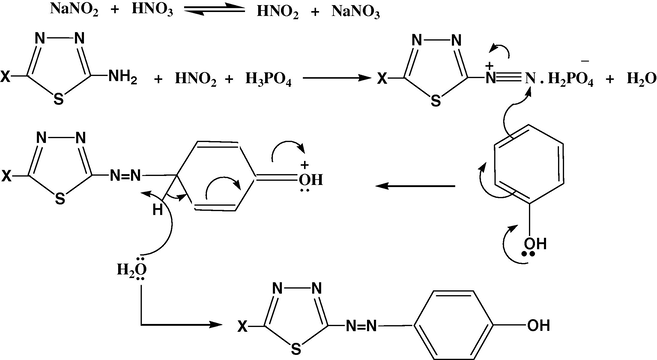

The mechanism steps of formation of azo compounds 2(A–D).
The characteristic FT-IR absorption bands of azo compounds 2(A–D) showed the disappearance of two absorption bands due to NH2 group together with the appearance of a broad peak between 3550 and 3085 cm−1 due to the intermolecular hydrogen bonding of phenolic O–H bond for compounds 2(A–D) (Prajapati and Bonde, 2006). It also shows a band at 1432–1397 cm−1 which is due to the N⚌N bond (Silverstein and Webster, 1996). The 1H NMR results of azo compounds 2(A–D) showed a singlet peak at δ (8.49–8.59) that could be assigned to the protons of the phenolic hydroxyl group. Fig. 2 showed the 1H NMR spectra of compounds 2(A–D).

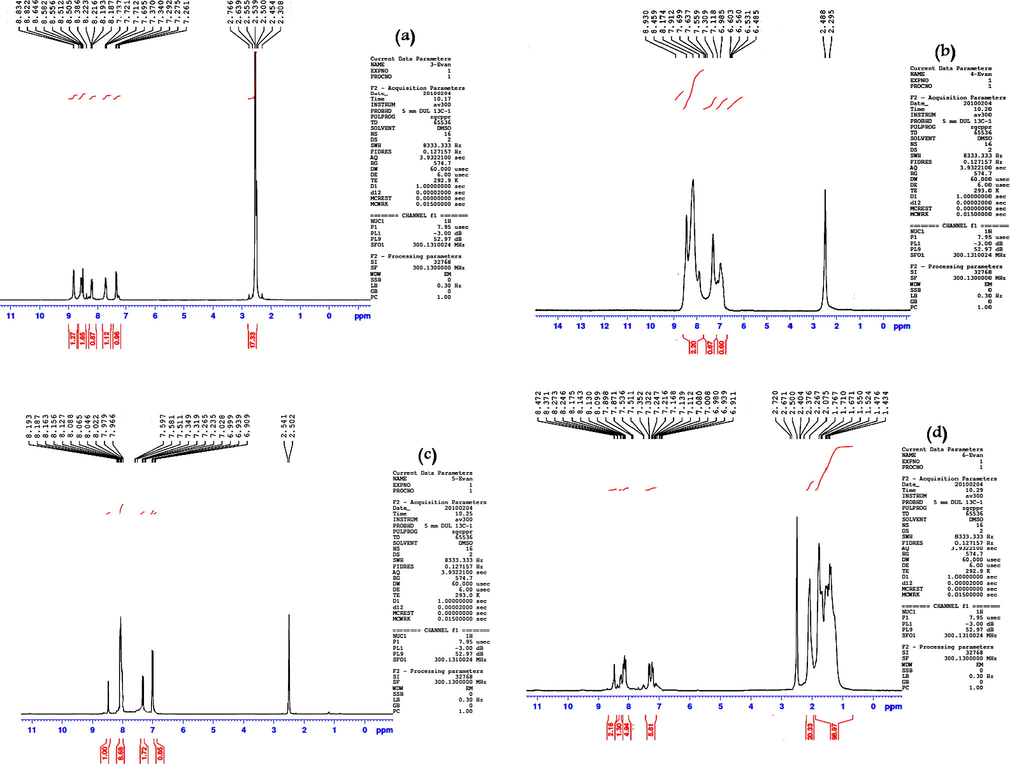

1H NMR spectra of compounds 2(A) (a), 2(B) (b), 2(C) (c) and 2(D) (d).
Condensation of azo compounds 2(A–D) with α-ω dibromo or iodo alkane in dry acetone in the presence of anhydrous K2CO3 gave di ethers, series 3(A–D)n. The FT-IR spectra of compounds 3(A–D)n showed the C–H stretching absorption band near (2919 and 2880 cm−1) and C–O–C stretching band, asymmetrical and symmetrical near 1267 cm−1 and 1024 cm−1, respectively. Fig. 3 shows the 1H NMR spectrum of compound 3(A)1, for example, of all compounds 3(A–D)n. The physical properties and FT-IR spectral data of all compounds 3(A–D)n are listed in Table 1.

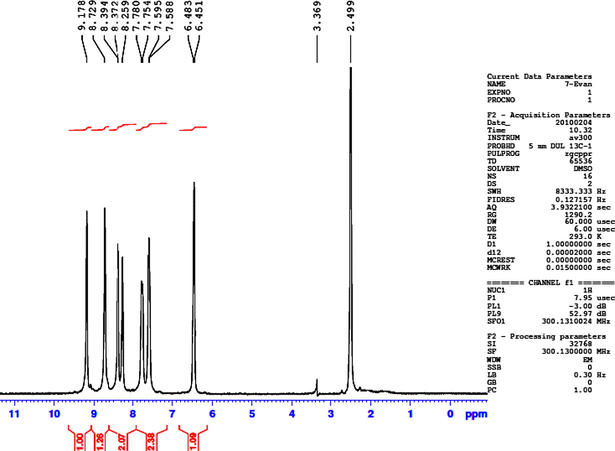

1H NMR spectrum of compound 3(A)1.
3.2 Biological evaluation
All the synthesized compounds 3(A–D)n have been screened for antibacterial activities using cup-plate agar diffusion method (Barry, 1976) by measuring the inhibition zone in mm. Azithromycin (300 μg/μL) was used as a standard drug for antibacterial activity. The compounds were screened for antibacterial activity against Escherichia coli, Klebsiellia pneumonia, Pseudomonas aeruginosa, Serratia marscens and Staphylococcus aureus in Muller Hinton agar. These sterilized agar media were poured into Petri-dishes and allowed to solidify. On the surface of the media microbial suspensions were spread with the help of a sterilized triangular loop. A stainless steel cylinder of 12 mm diameter (pre-sterilized) was used to bore cavities. All the synthesized compounds (300 μg/μL) were placed serially in cavities with the help of a micropipette and allowed to diffuse for one hr. DMF was used as a solvent for all compounds (as a stock) then the concentration (300 μg/μL) was prepared using sterile distilled water. These plates were incubated at 37 °C for 48 hr. The zone of inhibition observed around the cups after respective incubation was measured and percent inhibition of the compounds was calculated. The results are presented in Table 2. St., standard (Azithromycin).
Comp. No.
Escherichia coli
Klebsiellia pneumonia
Pseudomonas aeruginosa
Serratia marscens
Staphylococcus aureus
Zone of inhibition (mm)
% Inhibition
Zone of inhibition (mm)
% Inhibition
Zone of inhibition (mm)
% Inhibition
Zone of inhibition (mm)
% Inhibition
Zone of inhibition (mm)
% Inhibition
3(A)1
0
0
35
159.09
0
0
0
0
34
113.33
3(A)2
0
0
35
159.09
0
0
0
0
35
116.67
3(A)3
0
0
35
159.09
0
0
0
0
0
0
3(A)4
0
0
35
159.09
0
0
0
0
0
0
3(A)5
0
0
35
159.09
0
0
0
0
0
0
3(B)1
27
135.00
0
0
0
0
0
0
35
116.67
3(B)2
30
150.00
0
0
0
0
0
0
0
0
3(B)3
35
175.00
0
0
0
0
0
0
0
0
3(B)4
34
170.00
0
0
0
0
0
0
14
46.67
3(B)5
50
250.00
0
0
0
0
0
0
0
0
3(C)1
10
50.00
0
0
0
0
0
0
0
0
3(C)2
15
75.00
0
0
0
0
0
0
35
116.67
3(C)3
20
100.00
0
0
0
0
0
0
0
0
3(C)4
30
150.00
0
0
0
0
0
0
0
0
3(C)5
35
175.00
0
0
0
0
0
0
36
120.00
3(D)1
30
150.00
0
0
0
0
0
0
0
0
3(D)2
25
125.00
0
0
0
0
0
0
0
0
3(D)3
25
125.00
0
0
0
0
0
0
0
0
3(D)4
25
125.00
0
0
0
0
0
0
30
100.00
3(D)5
25
125.00
0
0
0
0
0
0
35
116.67
St.
20
100
22
100
28
100
35
100
30
100
When we show the data of (inhibition zone %) of all compounds 3(A–D)n in Table 2 we observe some important results: the first that the compounds 3(B)n, 3(C)n and 3(D)n showed good activity against E. coli, while only the compounds 3(A)n showed good activity against K. pneumonia. Also we showed that some of the compounds 3(A–D)n have good activity against S. aureus, while all compounds 3(A–D)n did not show any antibacterial activity against P. aeruginosa and S. marscens. When we show the percentage of inhibition zone of compounds 3(C)n against E. coli, we observe that the antibacterial activity of these compounds increase when the chain of the alkyl group (CH2)n in the central part of the molecules increase. The derivative 3(B)5 showed potent activity against E. coli (250.00%), whereas compounds 3(A)1–5 showed the same inhibition and good activity (159.09%) against K. pneumonia. Thus, it is concluded from the screening results that the most of bis-1,3,4-thiadiazole derivatives 3(A–D)n have good antibacterial activity more than the standard (Azthromycin) against E. coli and some of them against K. pneumonia and S. aureus also, all compounds 3(A–D)n did not show any antibacterial activities against P. aeruginosa and S. marscens at a concentration of 300 μg/μL.
4 Conclusion
Bis-1,3,4-thiadiazole compounds containing the azo moiety was prepared and structurally characterized using spectroscopic techniques. The synthetic route started from the cyclization reaction between thiosemicarbazide and appropriate carboxylic acids (nicotinic, isonicotinic, benzoic and cyclohexan carboxylic acid) in presence of POCl3 followed by the diazotization reaction between the aminothiadiazole and phenol. The di azo compounds were prepared by etherification of azo compounds with dibromo or iodo alkane in alkali media. Bis-1,3,4-thiadiazole compounds containing azo moiety have been evaluated in vitro for their antimicrobial activities against several microbes like: E. coli, K. pneumonia, P. aeruginosa, S. marscens and S. aureus and show that the compounds 3(B)n, 3(C)n and 3(D)n showed good activity against E. coli, while only the compounds 3(A)n showed good activity against K. pneumonia. Also we showed that some of the compounds 3(A–D)n have good activity against S. aureus, while all compounds 3(A–D)n did not show any antibacterial against P. aeruginosa and S. marscens.
Acknowledgments
We thank Mr. Mohanad H.M. Masad (Al al-Bayt university, Jordan) for being helpful in performing the 1H NMR spectra, and Mrs. Zainab K. Mohammed Jawad (Al-Mustansiriya University, Chem. Dept.) in performing the FT-IR spectra.
References
- The antibacterial susceptibility test: principle and practices, Le a Febiger, Philadelphia, USA, P. 180. Biol. Abstr.. 1976;64:25183.
- [Google Scholar]
- Synthesis of new polymers derived from poly (vinyl chloride) and study their biological evaluation. Aust. J. Basic Appl. Sci.. 2009;3(3):1786.
- [Google Scholar]
- Über isostere und strukturähnliche Verbindungen XVI. Zur Kenntnis des 4-oxy-benzthiazols. Helv. Chim. Acta. 1942;25:515.
- [Google Scholar]
- Synthesis α-[5-(5-amino-1,3,4-thiadiazol-2-yl)-2-imidazolylthio]acetic acids. J. Heterocyclic Chem.. 2008;45:1.
- [Google Scholar]
- New bis-aminomercaptotriazoles and bis-triazolothiadiazoles as possible anticancer agents. Eur. J. Med.. 2002;37:511.
- [Google Scholar]
- Organic Chemistry. USA: Thomson; 2004. pp. 920–921
- Synthesis and anticonvulsant activity of substituted oxadiazole and thiadiazole derivatives. Acta Pol. Pham. – Drug Res.. 2009;66(4):393.
- [Google Scholar]
- Synthesis of pharmaceutically important 1,3,4-thiadiazole and imidazolinone derivatives as antimicrobials. Indian J. Chem.. 2009;48B:1288.
- [Google Scholar]
- Synthesis and preliminary anti-bacterial activity of some 4-substituted-N-1-2-pyridylsulfanilamide derivatives. J. Chin. Chem. Soc.. 2005;52(6):1157.
- [Google Scholar]
- Mesogenic benzothiazole derivatives with methoxy substituents. J. Chem. Sci.. 2006;118(2):203.
- [Google Scholar]
- Synthesis of various isoniazidothiazolidinones and their imidoxy derivatives of potential biological interest. Arkivoc. 2006;I:1.
- [Google Scholar]
- Spectroscopic Identification of Organic Compounds. New York: John Wiley & Sons Inc.; 1996. p. 104
- Synthesis of some new thiosemicarbazide and 1,3,4-thiadiazole heterocycles bearing benzo[b]thiophene nucleus as a potent antitubercular and antimicrobial agents. J. Sci. I. R. Iran.. 2005;16(1):33.
- [Google Scholar]
- Vyas, G.M., Shah, N.M. 1963. Quinacetophnone monomethyl ether. Organic synthesis collected, vol. IV, 30–39, p. 836.
