Synthesis of new derivatized pyrazole based ligands and their catecholase activity studies
*Corresponding author at: Laboratoire de Chimie Appliquée et Environnement – URAC 18, Département de Chimie, Faculté des Sciences, Université Mohamed Premier, BP: 524, 60 000 Oujda, Morocco. Tel.: +212 677 968 240 touzanir@yahoo.fr (Rachid Touzani),
**Corresponding author elkadiri_sghir@yahoo.fr (Sghir El Kadiri)
-
Received: ,
Accepted: ,
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.
Peer-review under responsibility of King Saud University.
Available online 17 July 2010
Abstract
A synthesis of three new tripodal ligands: 3-[bis-(3,5-dimethyl-pyrazol-1-ylmethyl)-amino]-propan-1-ol L1, 3-[bis-(5-methyl-3-carbomethoxy-pyrazol-1-ylmethyl)-amino]-propan-1-ol, L2 and 3-[bis-(5-methyl-3-carboethoxy-pyrazol-1-ylmethyl)-amino]-propan-1-ol L3 is reported. The in situ-generated copper(II) complexes of three new compounds (L1–L3) were examined for their catalytic activities and were found to catalyse the oxidation reaction of catechol to o-quinone with the atmospheric dioxygen. These activities depend on the nature of the ligand and the copper salts.
Keywords
Nitrogen ligand
Pyrazole
Oxidation reaction
Catecholase activity and copper(II) salts
1 Introduction
It is now well-documented that copper containing metalloproteins play a very important role in transport, activation, and metabolism of dioxygen in living organisms (Albada et al., 2007; Chen and Solomon, 2004; Decker and Tuczek, 2000; Holm et al., 1996). A notable advance in the understanding of the properties of these proteins has been achieved through the comparison of synthetic models to the naturally occurring molecules (Decker et al., 2000; Kitajima and Moro-oka, 1994; Van Gelder et al., 1997). Several catechol derivative substrates were used in the literature to understand the mechanisms of oxidase enzyme research (Gerdemann et al., 2002; Rompel et al., 1999). It was observed that the catalytic activities of the complexes are not only dependent on the organic ligand but also on the type of inorganic anion coordinated to the copper center (Koval et al., 2006). In this paper, we report the synthesis of three new pyrazolyl ligands. The copper(II) in situ-generated complexes of these new products, were examined as catalysts toward atmospheric dioxygen oxidation reaction of catechol to o-quinone.
2 Results and discussion
2.1 Synthesis

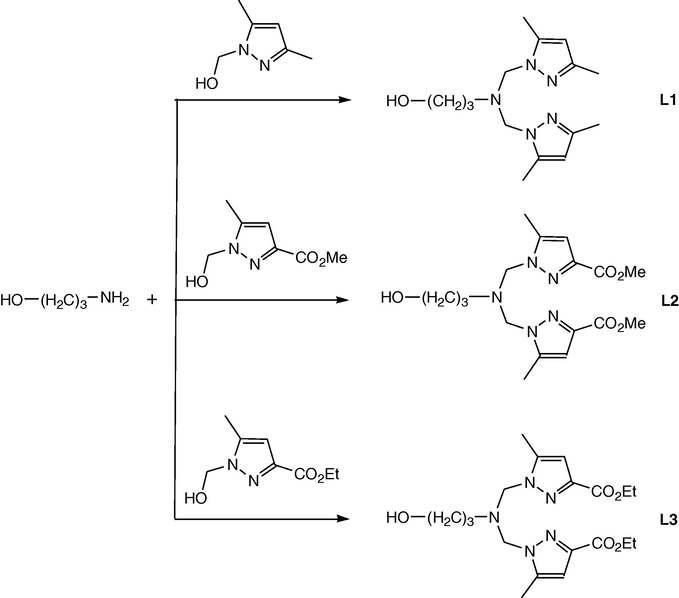

Pyrazolyl and triazolyl derivatives N–C–N junction ligands L1–L3 (Scheme 1) were prepared using two different methods. The first one consists of condensation of 1-(hydroxymethyl)-3,5-dimethylpyrazole (Dvoretzky and Richter, 1950), 1-hydroxymethyl-5-methyl-1H-pyrazole-3-carboxylic acid methyl ester (Touzani et al., 2000), 1-hydroxymethyl-5-methyl-1H-pyrazole-3-carboxylic acid ethyl ester (Touzani et al., 1999) with a series of alcohol amines such as aminopropanol in 2:1 ratio at room temperature during four days in acetonitrile (Touzani et al., 2001). In the second method, the similar reactions were carried out with some drops of solvent at 60 °C for 4 h. The target products were isolated with good yields in the two methods from 75% to 89% (Table 1).
Products
Method 1 (%)
Method 2 (%)
L1
80
87
L2
78
88
L3
75
89
All the new compounds were characterized by 1H NMR, 13C NMR and mass spectrometry. The proton NMR spectra of L1 product, show two signals at 4.90 and 4.36 ppm corresponding to methylene protons (N–CH2–N). When the pyrazolic rings are linked to the ester (–CO2R) moieties (L2, L3), these proton signals appears between 5.06 and 5.29 ppm.
2.2 Catecholase studies

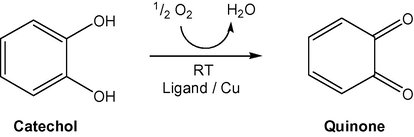

The progress of the catechol oxidation reaction is conveniently followed monitoring the strong absorbance peak of quinone in the UV/Vis spectrophotometer (Scheme 2).
The metal complex solution and catechol reductant were added together in the spectrophotometric cell at 25 °C (El Kodadi et al., 2008; Bouabdallah et al., 2007; Boussalah et al., 2009a,b). Formation of o-quinone was monitored by the increase in absorbance at 390 nm as a function of time. Figs. 1–6 show the absorbance versus time spectrum for the first 60 min of the oxidation reaction, while the rates are shown in Table 2. In all cases, catecholase activity was noted.

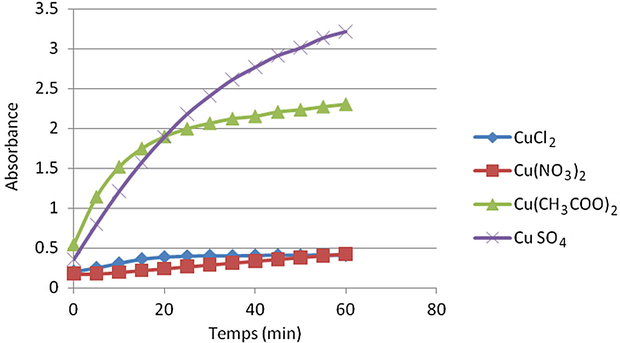

Oxidation of catechol by complexes of ligand L1.
Oxidation of catechol by complexes of ligand L2.

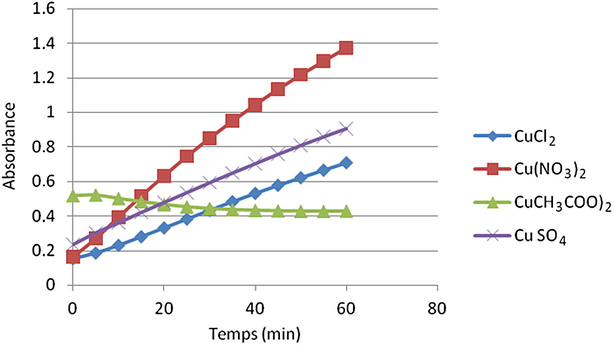

Oxidation of catechol by complexes of ligand L3.

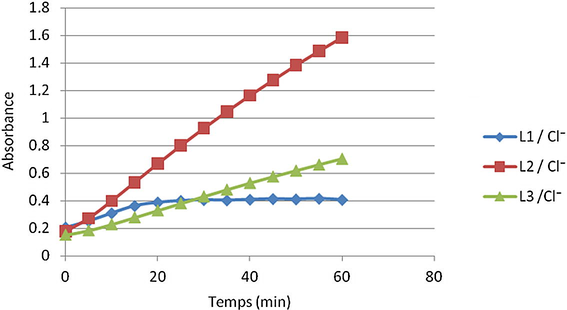

Oxidation of the catechol in presence of Cu(Cl)2.

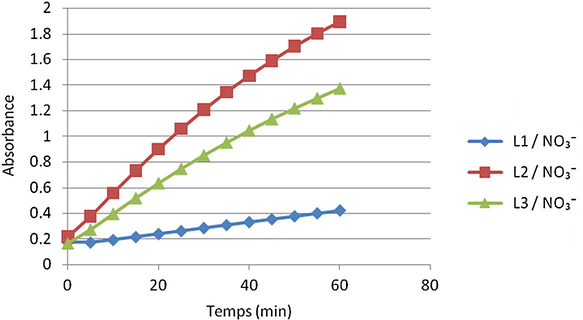

Oxidation of the catechol in presence of Cu(NO3)2.

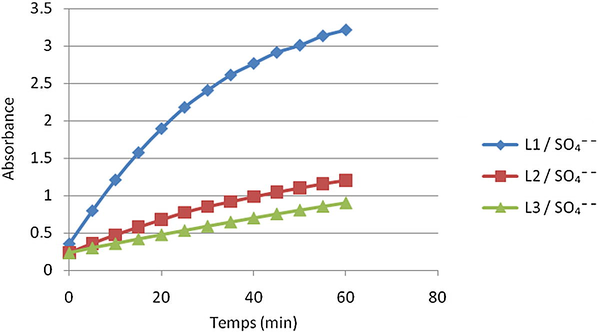

Oxidation of the catechol in presence of CuSO4.
Ligands
Copper salt (2 × 10−3 M)
V (mol L−1 min−1)
L1
CuCl2
1.80 × 10−6
Cu(NO3)2
2.77 × 10−6
Cu(CH3COO)2
14.44 × 10−6
CuSO4
28.99 × 10−6
L2
CuCl2
15.03 × 10−6
Cu(NO3)2
17.70 × 10−6
Cu(CH3COO)2
–
CuSO4
9.9 × 10−6
L3
CuCl2
5.96 × 10−6
Cu(NO3)2
12.75 × 10−6
Cu(CH3COO)2
–
CuSO4
7.01 × 10−6
As can be seen from Table 2, all of the complexes with pyrazolyl ligands catalyze the oxidation reaction of catechol to o-quinone with the rate varying from a high of 0.0289 μmol substrate per mg catalyst per min for the L1[CuSO4] complex to a low of 0.0018 μmol substrate per mg catalyst per min for L1[CuCl2]. These rates are comparable to the values reported by (Malachowski et al., 1996) from 0.018 to 0.186 μmol substrate per mg catalyst per minute, for the similar tripodal ligands. The catalytic activity depends strongly on both the R substituent and the type of inorganic anion. The copper complexes of ligand L1 were observed to be the lowest active, except in the case when we have used anion. The order of reactivity for the oxidation of catechol by CuCl2 and Cu(NO3)2 complexes is L2 > L3 > L1. The order of reactivity for the oxidation of catechol by Cu(CH3COO)2 complexes is L1 with the other ligands the rate of activity decreases strongly. The order of reactivity for the oxidation of catechol by CuSO4 complexes is L1 > L2 > L3.
3 Conclusion
We report the synthesis of amino acid functional tridentate ligands with good and excellent yields. The oxidation of catechol is very efficient to give quinone by complexes of copper(II) with four functional tripodal pyrazole ligands. The complexes of copper(II) were generated in situ. We have demonstrated that the nature of the ester side chain has a large effect on the oxidation reaction rate. The study of various copper(II) salts shows that the catalytic activities are most controlled by the nature of the anion, too.
4 Experimental section
4.1 Apparatus
NMR spectra (1H, 13C) were recorded on a BRUKER 300 (operating at 300.13 MHz for 1H, 75.47 MHz for 13C) spectrometer. Chemical shifts are listed in ppm and are reported relative to tetramethylsilane (1H, 13C). Residual solvent peaks being used as internal standard. The mass spectra have been obtained on a Micromass LCT spectrometer.
4.2 General procedure
4.2.1 Method 1
A mixture of 1-(hydroxymethyl)-3,5-dimethylpyrazole; 1-hydroxymethyl-5-methyl-1H-pyrazole-3-carboxylic acid methyl ester and 1-hydroxymethyl-5-methyl-1H-pyrazole-3-carboxylic acid ethyl ester with an alcohol amine in 2:1 ratio was stirred for four days in acetonitrile.
4.2.2 Method 2
A mixture of one equivalent of the appropriate amines (10 mmol) and two equivalents (20 mmol) of hydroxymethyl-derivatives in acetonitrile (1 mL), was heated in a water bath at 65 °C for 4 h. The residual reactions were extracted with dichloromethane and washed with water. The organic solutions were concentrated under reduced pressure to give the yellow oils.
4.3 Characteristic data of new compounds
4.3.1 3-(Bis(3,5-dimethyl-1H-pyrazol-1-yl)methyl)amino)propane-1-ol: L1
Yield: 80%; 1H NMR (CDCl3) δ ppm: 5.78 (s, 2 H, PzH); 4.90 (s, 2 H, N–CH2–N); 4.36 (s, 2 H, N–CH2–N); 3.81 (t, 2 H, CH2–CH2–OH, J = 5.37 Hz); 2.96 (t, 2 H, CH2–CH2–N, J = 5.63 Hz); 2.23 (s, 6 H, 2CH3); 2.23 (s, 6 H, 2 CH3); 1.65 (m, 2 H, –CH2–CH2–CH2–, J = 5.46 Hz); 13C NMR (CDCl3) δ ppm: 147.68 (CPz–CH3); 139.71 (CH3–CPz); 105.75 (CPzH); 67.79 (N–CH2–N); 64.89 (CH2–OH); 47.21 (CH2–N); 22.61 (CH2–CH2–CH2); 12.09 (CH3Pz); 0.97 (CH3Pz); MS (ES) m/z: 291.73 (65%); 195.93 (100); 180.93 (5%); 97.20 (45%).
4.3.2 1-[((3-Hydroxypropyl)[3-(methoxycarbonyl)-5-methyl-1H-pyrazol-1-yl]methylamino)methyl]-5-méthyl-1H-pyrazole-3-carboxylate de méthyle: L2
Yield: 78%; 1H NMR (CDCl3) δ ppm: 6.56 (s, 2 H, PzH); 5.29 (s, 2 H, N–CH2–N); 5.08 (s, 2 H, N–CH2–N); 3.89 (s, 6 H, OCH3); 3.82 (t, 2 H, CH2–CH2–OH, J = 5.37 Hz); 2.97 (t, 2 H, CH2–CH2–N, J = 5.62 Hz); 2.35 (s, 6 H, 2 CH3); 1.65 (m, 2 H, –CH2–CH2–CH2–, J = 5.55 Hz); 13C NMR (CDCl3) δ ppm: 163.09 (CO); 142.19 (CPz⚌N); 140.70 (CPz⚌C); 108.96 (CPzH); 67.79 (N–CH2–N); 66.93 (CH2–OH); 51.90 (CH3–O); 47.10 (CH2–N); 22.63 (CH2–CH2–CH2); 11.20 (CH3Pz); MS (ES) m/z (%): 379.64 (10); 337.60 (25); 294.80 (50); 280.87 (100); 239.93 (25); 184.20 (30); 141.07 (45); 100.07 (20).
4.3.3 1-[((3-Hydroxypropyl)[3-(ethoxycarbonyl)-5-methyl-1H-pyrazol-1-yl]methylamino)methyl]-5-methyl-1H-pyrazole-3-carboxylate d’ethyle: L3
Yield: 75%; 1H NMR (CDCl3) δ ppm: 6.55 (s, 2 H, CPzH); 5.29 (s, 2 H, N–CH2–N); 5.06 (s, 2 H, N–CH2–N); 4.30 (q, 4 H, O–CH2–CH3, J = 7.1 Hz); 3.62 (t, 2 H, CH2–CH2–OH, J = 5.03 Hz); 2.99 (t, 2 H, CH2–CH2–N, J = 5.00 Hz); 2.27 (s, 6 H, 2CH3); 1.33 (t, 6 H, –CH2–CH3, J = 7.1 Hz); 1.65 (m, 2 H, –CH2–CH2–CH2–, J = 5.55 Hz); 13C NMR (CDCl3) δ ppm: 162.67 (CO); 142.51 (CPz⚌N); 140.59 (CPz⚌C); 108.85 (CPzH); 67.76 (N–CH2–N); 66.82 (CH2–OH); 60.78 (CH2–O); 47.10 (CH2–N); 22.62 (CH2–CH2–CH2); 14.24 (–CH2–CH3); 11.16 (CH3Pz); MS (ES) m/z (%): 407.47 (5); 308.8 (100); 294.93 (15); 250.93 (15); 155.07 (15); 97.20 (5).
4.4 Catecholase activity measurements
Kinetic measurements were made spectrophotometrically on a UV–Visible spectrophotometer (In the COSTE: Centre de l’Oriental des Sciences et Technologies de l’Eau), following the appearance of o-quinone over time at 25 °C (390 nm absorbance maximum, ɛ = 1600 M−1 cm−1 in methanol). The metal complex (prepared in situ from copper(II) salt and the ligand, 0.3 mL of 10−3 M methanol solution) and a 2 mL solution (10−1 M methanol solution) of catechol were added together in the spectrophotometric cell.
