The effect of polyoxyethylene (40) stearate surfactant on novel synthesis of mesoporous γ-alumina from Kano kaolin
⁎Corresponding author at: Department of Chemistry, Faculty of Science, University of Technology Malaysia, UTM Skudai, 81310 Johor, Malaysia. Tel.: +60 149142616. muhbaf70@yahoo.com (Abdu Muhammad Bello)
-
Received: ,
Accepted: ,
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.
Peer review under responsibility of King Saud University.
Abstract
Mesoporous γ-alumina was synthesized by acid extraction of alumina from Kano kaolin using polyoxyethylene (40) stearate (PS) as a surfactant. The synthesized alumina was characterized using X-ray diffraction (XRD), N2 adsorption–desorption, Fourier transform infra-red spectroscopy (FTIR), field emission scanning electron microscopy attached with energy-dispersive X-ray (FESEM–EDX), and thermogravimetric analysis (TG–DTA). High-purity mesoporous γ-Al2O3 with relatively large surface area and narrow pore size distribution was obtained. For comparison the preparation in the absence of surfactant was also carried out. In this study mesoporous alumina was also obtained even in the absence of the surfactant, however, the addition of PS resulted in modification on physical properties and morphology. The surface area increased from 169.0 m2/g to 222.7 m2/g, pore size from 4.4 nm to 5.6 nm and pore volume from 0.32 cm3/g to 0.45 cm3/g. Crystallite size was also found to increase from 2.68 nm to 3.33 nm after the addition of the surfactant.
Keywords
Kano kaolin
Mesoporous γ-alumina
Polyoxyethylene (40) stearate (PS)
Surfactant
1 Introduction
The discovery of M41S type molecular sieves by Mobil Oil Corp in 1990 has open the door for material scientist for synthesis of silica and alumina based mesoporous materials (Ghosh et al., 2015). Mesoporous alumina (Jiang et al., 2012), titania (Oveisi et al., 2010) and zirconia were the first few materials to be synthesized. The synthesis of mesoporous alumina however is not direct as compared to silicates in the M41S family. Different chemical behaviour of alumina leads to the failure of the synthesis in organized mesoporous alumina. By the end of twentieth century, organized mesoporous aluminas was synthesized following several modifications of the procedures for silica materials (Márquez-Alvarez et al., 2008). Alumina exists in various meta-stable states including the γ-, η-, σ-, θ-, κ- and χ-phase, and the stable α- Al2O3 phase (Yang et al., 2010). Due to its physical, textural, thermal, and chemical properties, mesoporous γ-alumina is the most extensively used in a wide range of catalytic processes, separation process, host guest chemistry, adsorbents host for quantum structures, separation of large biological molecules, and environmental pollution control. The pore structural properties of mesoporous γ-alumina, high surface area and large pore volume, allow for higher loading of active catalytic phases.
The synthesis of mesoporous alumina has been reported through various chemical routes viz.: hydrolysis (Jiao et al., 2012; Khalil, 2008), sol–gel (Awual and Hasan, 2014; Sapniwat et al., 2013; Feng et al., 2011), hydrothermal process (Shi et al., 2014; Yue et al., 2011 and Zhu et al., 2009b) in the presence of aluminium salts, alkoxides and metal powders as precursor. The mentioned precursors are however, expensive and corrosive making the preparation both unsafe and uneconomical.
Kaolin is an abundant, cheap and environmentally friendly mineral as compared to the aluminium alkoxides or inorganic salts as precursor for the synthesis of mesoporous γ-Al2O3. Alumina can be synthesized from kaolin by either direct conversion of kaolin into γ-alumina using concentrated base solution, or by extraction of the alumina phase from the kaolin crystal structure with acidic solution (Samadhi et al., 2011). Several authors have described the synthesis of alumina from kaolin; Du and Yang (2012) reported the synthesis of aluminium containing hexagonal ordered mesoporous silica Al-MCM-41 through hydrothermal treatment of leached products produced by pre-grinding and subsequent acid leaching of natural kaolin, without the addition of silica or aluminium reagents. Pan et al. (2013) synthesized mesoporous γ-Al2O3 from coal-series kaolin in the presence of cetyltrimethylammonium bromide (CTAB). Synthesis of mesoporous γ-alumina from kaolin using precipitation method in the presence of ammonia and PEG-4500 as surfactant was reported by Darban et al. (2013).
In this study polyoxyethylene (40) stearate (PS) was used for the first time in the synthesis of high-purity mesoporous alumina from Kano kaolin. PS is a non-ionic surfactant and is considered not hazardous according to OSHA Hazard Communication Standard (HCS) under the toxic and hazardous substances (29 CFR 1910.1200). This will allow for an environmentally benign synthesis of alumina as both the surfactant and kaolin are non-toxic. PS is used as emulsifier and solubilizer, and due to its non-toxic nature is also used in pharmacy as carrier of solid dispersion to improve the dissolution of griseofulvin and also as excipient (Zhu et al., 2009a). The study is aimed at investigating the effect of PS on the synthesis of mesoporous alumina as compared in the absence of the surfactant. To the best of our knowledge there was no report on the synthesis of mesoporous alumina in the presence of this surfactant.
2 Experimental
2.1 Materials
The kaolin was obtained from Getso town in Kano state, Nigeria. Henceforth the kaolin will be known as Kano kaolin. Hydrochloric acid and sodium hydroxide were obtained from QRëC™, while polyoxyethylene (40) stearate [poly(oxy-1,2-ethanediyl), alpha-hydro-omega-hydroxy-, octadecanoate] was obtained from Sigma. All the reagents were of analytical grade and used without further purification. The polyoxyethylene (40) stearate henceforth will be referred to as PS.
2.2 Synthesis of mesoporous alumina
The Kano kaolin was calcined into metakaolin in a programmable furnace at 750 °C for 3 h with heating rate of 5 °C/min. The metakaolin was leached with 6 M hydrochloric acid at 90 °C for 2.5 h under stirring at 836 rpm (solid/liquid ratio 1:5 g/mL), the suspension was filtered followed by the addition of excess solution of 5 M NaOH, alumina was converted into NaAlO2 and impurities such as Fe3+, Mg2+ presence were precipitated. After filtration 6 M HCl was added to the NaAlO2 solution with stirring to adjust the pH to 7, and the precipitate formed was filtered and washed with deionized water. The solid obtained was mixed vigorously with a solution of PS containing 1.8 g in 100 mL of water for 19 h, and the suspension aged for 2 days at room temperature. It was then filtered, washed with deionized water, dried at 120 °C, followed by calcination at 500 °C for 4 h. The obtained alumina is named Al2O3-PS-500. Another alumina was prepared using the same procedure but without the addition of surfactant and is denoted as Al2O3-500. The PS concentration was above the critical micelle concentration (CMC) which was reported to be >97.8 μM (Zhu et al., 2009a).
2.2.1 Characterization
The ignition loss was determined by calcination of the kaolin sample at 600 °C for 3 h. The chemical composition was determined using energy dispersive X-ray fluorescence spectrometer NEXCG (USA). Structural phase analysis was carried out on a Bruker D8 having Siemens Diffractometer D5000 with Cu Kα radiation (40 kV, 40 mA, λ = 1.5406 Å) (USA). The morphology and the chemical composition of the samples were obtained by field emission electron microscopy/energy dispersive X-ray analysis (FESEM–EDX) (Supra™ 35 VP operating at 10 kV) (Germany). The TG–DTA analysis was carried out using Perkin Elmer Simultaneous Thermal Analyzer (STA 8000) (USA) in the temperature range of 50–1200 °C at heating rate of 10 °C/min. N2 adsorption–desorption was used to determine the surface area, pore size distribution and pore volume at −196 °C using Fisher Thermo Scientific SURFER (USA), prior to analysis all samples were dehydrated and degassed by evacuation at 300 °C for 3 h. Perkin Elmer 1650 Infra-Red Spectrometer (USA) was used for FTIR analysis of samples in the range of 4000–400 cm−1.
3 Results and discussion
3.1 Chemical composition
The XRF analysis was carried out to estimate the chemical composition of the kaolin and that of mesoporous alumina. The kaolin consists mainly of silica and alumina, with other metal oxides such as Fe2O3 and MnO2 occurring as minor. The percentage composition by mass of the elements present in the kaolin sample was found to be as follows: SiO2, 58.2; Al2O3, 39.2; Fe2O3, 1.44; K2O, 0.841; MnO2, 0.0679; TiO2, 0.0589; CaO, 0.0525 and ignition loss, 13.13%. The loss on ignition may be a result of organic matter lost and/or some non-metals like sulphur which could have been removed in the form of SO2 (Eze et al., 2012; Mohsen and El-maghraby, 2010). The Kano kaolin has high content of aluminium making it a good candidate for synthesis of alumina. The composition of Al2O3 in the mesoporous gamma alumina was found to be 98% indicating very high purity of the synthesized alumina and demonstrating the advantage of using the procedure for the synthesis of pure alumina from kaolin.
3.2 TG–DTA analysis
From the TGA curve of the boehmite precursor synthesized in the presence of PS presented in Fig. 1, two major weight losses can be observed; the first one is around 13.3% that occurred in the region between 50 and 190 °C corresponding to an endothermic peak at 89.43 °C in the DTA curve, this can be attributed to the desorption of physically adsorbed water and removal of template, as the boiling point of PS is above 100 °C. The second mass loss amounting to 17.9% took place between 230 and 590 °C equivalent to the second endothermic peak at 354.4 °C in the DTA curve could be due to the release of chemically adsorbed water molecules leading to the conversion of AlOOH to Al2O3. For the precursor synthesized without surfactant, two mass losses were also observed, the first mass loss due to the removal of physically adsorbed water is 11.8% and the second one is 18.0%. The observed decrease in the weight loss due to the removal of physically adsorbed water for the precursor synthesized in the absence of surfactant compared with the one in the presence of PS confirmed the assumption that the first mass loss in the later is due to both removal of physically adsorbed water plus template. Above 600 °C the weight loss process stabilized, this indicates the beginning of various alumina phase transformation, and it also suggest good thermal stability of the synthesized γ-Al2O3. The exothermic peak around 500 °C will be assigned to the initial formation of γ-Al2O3 by dehydroxylation of boehmite (Khalil, 2008). From the dehydroxylation reaction of boehmite shown below:

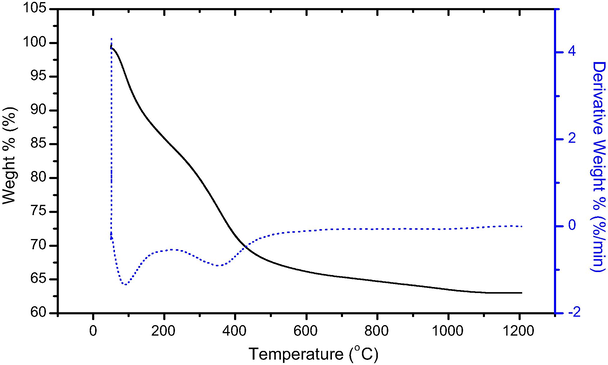

TG–DTA curve of the precursor with PS.
The expected weight loss would be about 15% against 35% in the case of aluminium hydroxide. The agreement between the observed weight loss and the stoichiometric value strongly supports that the precursor is aluminium oxyhydroxide not aluminium hydroxide.
The differential scanning calorimetry DSC presented in Fig. 2 concurs with the TG–DTA result. Three endothermic peaks can be observed for the precursor synthesized with PS at 91.55, 365.67 and 656.28 °C, respectively. The first peak could be attributed to desorption of physically adsorbed water molecules, the second due to the release of chemically desorbed water molecules and decomposition and/or combustion of the surfactant template and the last may be associated with the phase transition process of the alumina (Rangel-Porras et al., 2015; Zhu et al., 2009b).

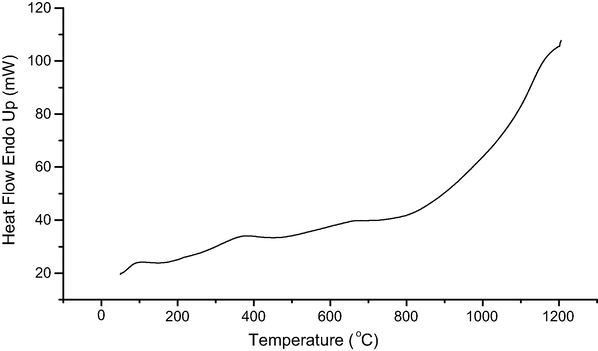

DSC curve of the precursor synthesized with PS.
3.3 XRD analysis
The wide-angle X-ray diffraction pattern presented in Fig. 3, depicts the spectra obtained for the precursor, Al2O3-PS-500 and Al2O3-500. The characteristic diffraction peaks of the precursor are those of Al(hydr)oxide (AlOOH) (JCPDS Card no. 21-1307) that points to the orthorhombic structure of the precursor, and five diffraction peaks were observed at 2θ = 12°, 28°, 38°, 49° and 65° corresponding to [0 2 0], [1 2 0], [0 3 1], [2 0 0] and [0 0 2] crystal planes respectively. This finding corroborates the assertion from the TG–DTA result that the precursor is aluminium oxyhydroxide.

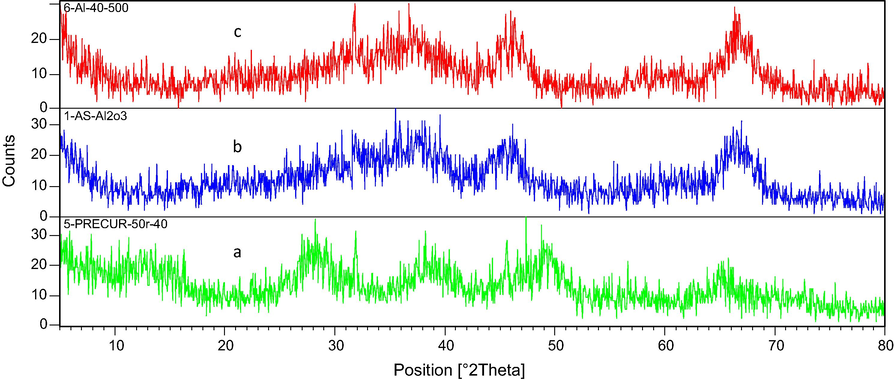

XRD pattern of; (a) precursor, (b) Al2O3-500 and (c) Al2O3-PS-500.
The calcined samples showed characteristic peaks at 2θ = 32°, 38°, 46°, and 67° that correspond respectively to [2 2 0], [3 1 1], [4 0 0] and [4 4 0] crystal planes (JCPDS Card no 10-0425) which is that of a face-centred cubic lattice. The absence of [0 0 2] peak, which is characteristic of boehmite indicates the formation of γ-alumina. The broadening of the XRD peaks clearly indicates the mesoporous nature of the crystallites (Afruz and Tafreshi, 2014).
The crystallite size of the alumina was calculated using Scherer’s formula from the three most intense peaks: 38°, 46° and 67° and the results obtained are 3.04, 3.31 and 3.62 nm with an average of 3.33 nm for Al2O3-PS-500 and 1.76, 3.11 and 3.18 nm with an average of 2.68 nm for Al2O3-500. The result indicates that the addition of the surfactant resulted in an increase of the crystallite size, as well as making it more regular. For the precursor the average crystallite size was found to be 3.21 nm.
3.4 FTIR analysis
The FTIR spectra of the precursor, Al2O3-PS-500 and Al2O3-500 are presented in Fig. 4. All samples showed broad bands around 3480 cm−1 assigned to the stretching vibration of structural OH attached to Al2O3 indicating the presence of molecular water and around 1635 cm−1 due to δOH bending vibration mode of adsorbed water (Xue et al., 2009). The band around 1075 cm−1 is attributed to symmetrical Al–OH bending modes which confirmed the formation of boehmite (Liu et al., 2008; Yang et al., 2010). Band around 1386 cm−1 is caused by adsorbed non-structural CO32− during sample preparation process (Zhu et al., 2009b).

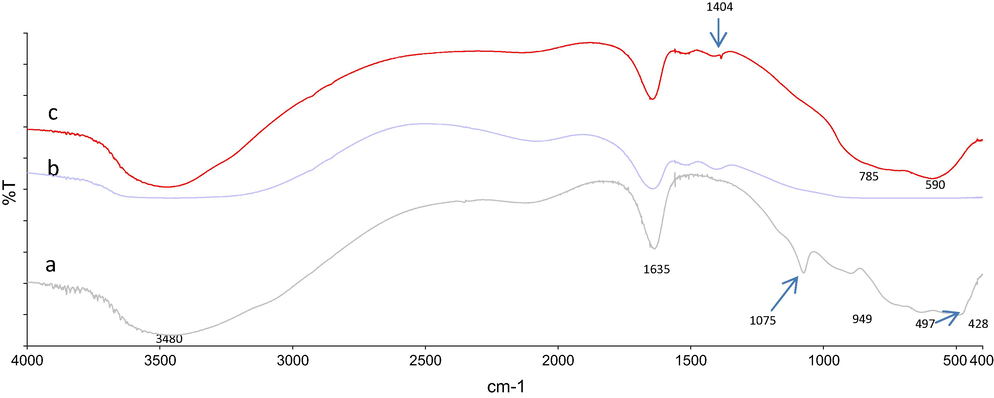

FTIR spectra of; (a) precursor, (b) Al2O3-500 and (c) Al2O3-PS-500.
Bands around 945 and 498 cm−1 can be assigned to C–O–C and vibration that originates from the surfactant, and their absence after calcination indicates that the alumina is free from surfactant. The band around 785 cm−1 is attributed to the stretching mode of AlO4 (tetrahedral Al–O) and that around 590 cm−1 is associated with stretching vibration mode of AlO6 (octahedral Al–O). The formation of alumina is confirmed by the absence of band around 1075 cm−1 (Pan et al., 2013; Yang et al., 2010).
3.5 Porosity measurement
The N2 adsorption–desorption isotherm of the aluminas are presented in Figs. 5 and 6, while pore size distribution curve presented in Figs. 7 and 8. Both samples showed type IV isotherm with H2 hysteresis loops at high pressure indicating the existence of mesoporous materials. Similar observation was made by other researchers for the synthesis of mesoporous alumina without surfactant, this was attributed to inter particles pores formed by the close stacking of primary and secondary particles, and the formation of inter particle pores cannot be controlled since it only depends on the shape, the uniformity and the arrangement of the primary and secondary particles in the precursor (Lesaint et al., 2009; Liu et al., 2006).

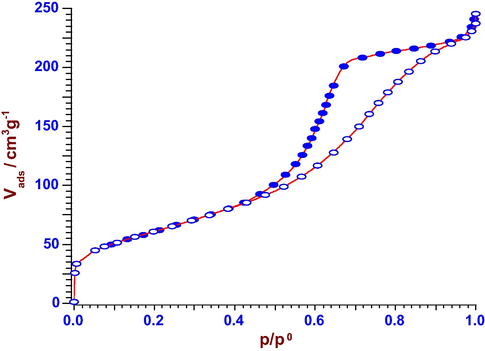

N2-adsorption–desorption isotherm of Al2O3-PS-500.

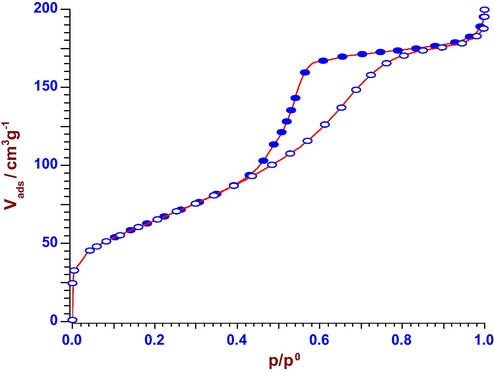

N2-adsorption–desorption isotherm of Al2O3-500.
Pore distribution (B.J.H.) of Al2O3-PS-500.
Pore distribution (B.J.H.) of Al2O3-500.
Type H2 hysteresis loop usually results from closely packed spherical particles with uniform size or from complex, interconnected pore network. The H2 hysteresis observed for the sample indicates relatively non-uniform pores are present in the alumina, consistent with the isotherm which shows both microporous and mesoporous structures. The observed steep increase at low P/P0 is probably due to monolayer adsorption and additional micro-porosity of the sample which further supports the observation from BJH analysis (Polarz, 2004). The adsorption and desorption branches of the hysteresis loop do not close until P/P0 approaches 0.8–0.9 indicating that the pores are formed by the interstices between plate-like aggregates. The broad hysteresis loop centring at higher P/P0 is an indication of larger mesopores (Jiao et al., 2012).
The pore size distribution of Al2O3-PS-500 and Al2O3-500 showed narrow distributions centred at 5.6 nm and 4.4 nm and pore volumes of 0.45 cm3/g and 0.32 cm3/g, respectively. According to IUPAC classification, mesoporous solids contain pores with pore diameter between 2 and 50 nm (Naik and Ghosh 2009). The steeper curve in the capillary condensation initiated the narrow pore size distribution and the saturation of the isotherms at large relative vapour pressure values caused the observed limiting porous volume (Kang et al., 2004).
From the BET result, the surface area of the Al2O3-PS-500 was found to be 222.7 m2/g and that of Al2O3-500 is 169.0 m2/g. Although mesoporous alumina is formed even in the absence of surfactant, its addition played an important role in obtaining mesoporous alumina with large surface area and distribution centred at higher relative pressure (Lesaint et al., 2009). Enhancement of catalytic activity can be contributed by large surface area, narrow pore-size and excellent thermal stability (Zhu et al., 2009b).
3.6 FESEM–EDX analysis
As can be seen from Fig. 9, the morphology of the boehmite precursor comprised mainly of wormhole-like structure without significant order of pore arrangement, which supports the observation in the BJH analysis. Addition of surfactant has little effect on the morphology of the synthesized mesoporous γ-alumina, the FESEM images of Al2O3-PS-500 and Al2O3-500 indicate that the γ-alumina retained the wormhole-like structure of the boehmite, however, there is an agglomeration of the particles in the Al2O3-PS-500, and the particles became flaky-like and appeared smaller than in the precursor and Al2O3-500, in agreement with the observation from the hysteresis loop. It is well known that the transformation from boehmite to γ-alumina is topotactic and, therefore, γ-alumina is likely to maintain the original morphology of the boehmite precursors (Liu et al., 2006). The inability of the addition of surfactant to change the morphology of the precursor can be connected to the fact that the interaction between the surfactant and boehmite is weak and cannot destroy the hydrogen bonding interaction between boehmite layers that are formed by O2− and OH− of the Al3+ octahedral structure of the boehmite (Liu et al., 2008).
FESEM images of (a) precursor, (b) Al2O3-PS-500 and (c) Al2O3-500.
From the EDX spectra, only peaks of aluminium and oxygen can be observed. The EDX results showed that 100% alumina was obtained indicating very high purity of the synthesized alumina.
4 Conclusion
Mesoporous γ-alumina with relatively large surface area of 222.7 m2/g, narrow pore size distribution centred at 5.6 nm and pore volume of 0.45 cm3/g has been successfully synthesized from Kano kaolin in the presence of polyoxyethylene (40) stearate. Although mesoporous alumina was also obtained even in the absence of surfactant, the addition of the surfactant improved both the textural properties and the morphology of the synthesized mesoporous gamma alumina. The surface area, pore size distribution and pore volume were found to be higher in the alumina synthesized in the presence of PS. Furthermore, the average crystallite size was calculated to be 3.33 nm for Al2O3-PS-500 as against 2.68 nm for Al2O3-500. The interaction between PS and precursor was found to be weak as a result it can easily be removed from the precursor after calcination, and the result showed a clear advantage of using PS as a surfactant as it would lead to a synthesis of mesoporous alumina with high thermal stability as indicated by the TG–DTA result. Mesoporous alumina with high thermal stability and narrow pore-size distribution is a potential material in adsorptive and catalytic applications.
