Theoretical study of fMet-tRNA and fAla-tRNA structures by using quantum calculation

M. Noei^{^a}, A. A. Salari^{^b}, Mohammad T. Baei^{^c,⁎}, F. Hajizadeh^{^b}, Jamal Kazemi Asl^{^d}, Mohammad Ramezani Taghartapeh^{^e}

a Department of Chemistry, Mahshahr Branch, Islamic Azad University, Mahshahr, Iran

b Department of Chemistry, Shahre Rey Branch, Islamic Azad University, Tehran, Iran

c Department of Chemistry, Azadshahr Branch, Islamic Azad University, Azadshahr, Golestan, Iran

d Faculty of Science, Payame Noor University (PNU), Bandar Imam Khomeini, Iran

e Young Researchers Club, Gorgan Branch, Islamic Azad University, Gorgan, Iran

⁎Corresponding author. Tel.: +98 9111751399. Baei52@yahoo.com (Mohammad T. Baei)

Received: 2011-9-5, Accepted: 2011-11-22, Published: 2011-11-01

Disclaimer:
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.

Peer review under responsibility of King Saud University.

Abstract

In the prokaryotes, protein synthesis always starts with N-formylmethionine amino acid. Comparison of this amino acid with other amino acids is attempted and that is why formylmethionine is always the first amino acid to begin protein synthesis, in this paper we added a formyl group to alanine amino acid and then studied it when attached to the tRNA molecule and compared this structure with formylmethionine-tRNA structure. The quantum chemical calculations have performed using Gaussian 03 suite of programs. The fAla-tRNA and fMet-tRNA structures have fully optimized at the HF and B3LYP levels with 3–21G^∗ and 6–31G^∗ basis sets as well as MP2/3–21G^∗ level and theoretically solvent effects on the structures were investigated. Then we studied electronic structures of the compounds using Natural Bond Orbital (NBO) analysis and calculated NMR parameters at the gas-phase. Frequency analysis was also calculated at the HF and B3LYP/3-21G^∗ levels in the different solvents in 298.15 K, 310.15 K temperatures and 1.00 atmosphere pressure.

Keywords

fMet-tRNA

fAla-tRNA

DFT

NBO

NMR

Show Related Articles from PubMed

1 Introduction

In the prokaryotes, proteins are synthesized starting with N-formylmethionine amino acid. The initiation codon is most often 5′-AUG-3′ (Less often, the initiation codon is 5′-GUG-3′ or 5′-UUG-3′) (Chamieh et al., 2008; Chalut and Egly, 1995). N-formylmethionine and methionine are coded by the same AUG codon. When the AUG codon is used for initiation, initiator tRNA only recognizes N-formylmethionine instead of methionine. The N-terminal methionine residue of bacterial proteins is post-translationally modified to N-methyl-methionine (Yu Wang et al., 2002). Before formyl group attached to amino group of methionine, it first attached to tRNA molecule. Formylmethionine is brought to the ribosomal P site by an initiator tRNA to start protein synthesis. Once translation is complete, peptide deformylase removes the formyl group from fMet (Spector et al., 2003; Tang et al., 2004).

The bacterial ribosome is composed of two subunits. Together the large and small subunits form a 70S ribosome (Laursen et al., 2005; Selmer et al., 2006; Yusupov et al., 2001; Baouz et al., 2009; Agirrezabala and Frank, 2009 ). The larger 50S ribosomal subunit and the smaller 30S subunit create the peptidyl (P) site, aminoacyl (A) site, and exit (E) site Feinberg and Joseph, 2006; Trabuco et al., 2010; Munro et al., 2009; Carter et al., 2000 . Bacterial protein synthesis starts through the pre-initiation complex that is composed of the 30S subunit, mRNA, initiator transfer RNA charged with formylmethionine (fMet-tRNA), GTP and three protein initiation factors: IF1, IF2 and IF3. This complex then binds to the 50S subunit, forming the 70S ribosome (Pavlov et al., 2008; Wienk et al., 2005). During the first elongation step, fMet- tRNA is already positioned in the ribosomal P site. After initiation, once an aa-tRNA is delivered to the ribosomal A site with elongation factor-Tu (EF-Tu) and GTP, a peptide bond forms between fMet and the A-site amino acid (Trabuco et al., 2010; Carter et al., 2000). tRNA is a small RNA molecule containing about 70–90 nucleotides. Each tRNA molecule is able to recognize the codons triplet from mRNA, and then tRNA carries out the respective amino acid to the protein-building machinery. In order to add amino acid successfully, the tRNA has to read the coded segment accurately from mRNA (Chuang et al., 2010). If a 50S subunit docks to a 30S subunit in complex with an elongator, rather than with the initiator tRNA, this may lead to the synthesis of a protein with an aberrant N-terminal amino acid sequence or to out-of-frame mRNA reading. It is therefore essential that the initiator tRNA, rather than an elongator tRNA, binds to the mRNA-programmed 30S subunit and eventually becomes P site bound in the 70S initiation complex (Antoun et al., 2006). The issue addressed in this study that is what is the difference between the initiator tRNA (fMet-tRNA) and other aa-tRNAs that makes it only be reasonable for initiation of protein synthesis. In this paper we selected alanine amino acid that is coded by GCU, GCC, GCA, and GCG. Alanine is a non-Polar compound as methionine that has simplest structure of methionine. We added a formyl group to alanine using Gaussian 03 suite of programs and then studied when attached to the proper tRNA molecule (Fig. 2) and compared this structure with formylmethionine-tRNA structure (Fig. 1). tRNA molecule by 3'-CCA end of acceptor stem is linked to an amino acid. For simplifying the computations, we only worked with adenine nucleotide as tRNA.

2 Computational details

The quantum chemical calculations were performed using Gaussian 03 suite of programs (Frisch and et al., 2003). The structures of fAla-tRNA and fMet-tRNA have been fully optimized at the HF and B3LYP levels with 3-21G^∗, 6-31G^∗ basis sets and MP2/3-21G^∗ level and theoretically were investigated solvent effects using the Onsager reaction field model. In the Onsager model, solute whose charge distribution is represented by a simple dipole, is embedded in a typically fixed spherical cavity (LaPlante and Stidham, 2009) and interacts with the solvent (Szarecka et al., 1998). In this model, Gas-phase geometry is first optimized with a level of theory then the recommended cavity radius for the SCRF calculation is obtained from single point calculations using a Volume keyword (Nekoei et al., 2009; Blicharska and Kupka, 2002; Giese and McNaughton, 2002 ) finally, the self consistent reaction field (SCRF) calculations with SCRF = Dipole keyword (Blicharska and Kupka, 2002; Giese and McNaughton, 2002) are performed at the same level of theory. In the SCRF theory, the solvent is considered as a uniform field of dielectric constant ε. The solute is assumed to occupy a spherical cavity of radius (a₀) in the solvent Nandini and Sathyanarayana, 2004.

We also studied electronic structures of compounds using Natural Bond Orbital (NBO) analysis at the same levels that were mentioned above in the different solvents and calculated NMR parameters at the gas-phase. So frequency at the HF/3-21G^∗ and B3LYP/3-21G^∗ levels in the various solvents in 298.15 K, 310.15 K temperatures and 1.00 atmosphere pressure was calculated.

A generally applied tool for the quantification of hyperconjugative interactions is the natural bond orbital method (NBO) (Wedel et al., 2008). NBO analysis is based on a method for optimal trans- formation of a given wavefunction into a localized form, corresponding to the one-center (“lone pair”) and two-center (“bond”) elements of the Lewis structure picture (Scholtzová et al., 2009). The NBOs are one of a sequence of natural localized orbital sets that include natural atomic (NAO), hybrid (NHO), and (semi-)localized molecular orbital (NLMO) sets, intermediate between basis Aos and canonical molecular orbitals (Mos). Each of these localized sets is complete and orthonormal (Weinhold and Landis, 2001; Alabugin et al., 2003). Energies of the corresponding orbitals are the expectation values (diagonal matrix elements) of the Fock or Kohn-Sham operator (Alabugin et al., 2003).

3 Results and discussion

3.1

3.1 Geometry optimization

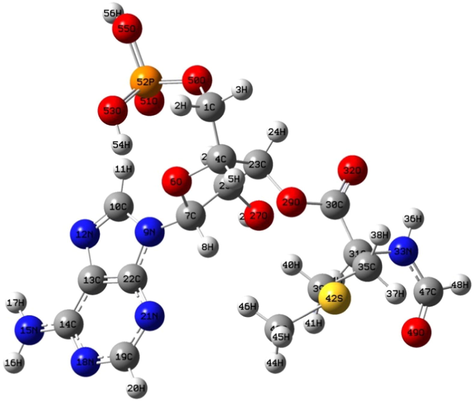

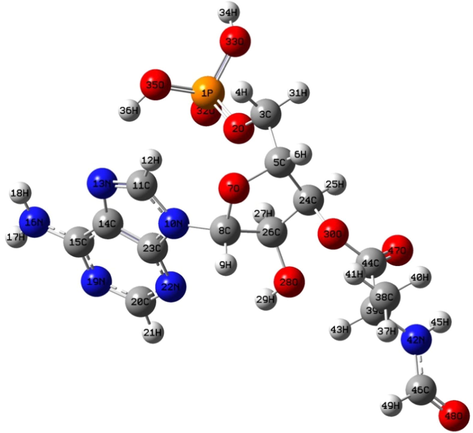

Structures of fAla-tRNA and fMet-tRNA in gas phase, DMSO, CHCL₃, and H₂O solvents, with relative dielectric constants Æ = 46.7, 4.9 and 78.39 respectively (Aquino et al., 2002), optimized at the HF, B3LYP and MP2 levels of theory. Relative energies have been presented in Table 1.

Table 1 Relative energy (kcal/mol) of the fMet-tRNA and fAla-tRNA structures.

Method	fMet-tRNA				fAla-tRNA
Method	Gas	CHCL₃	DMSO	H₂O	Gas	CHCL₃	DMSO	H₂O
HF/3-21G^∗	0.00	0.00	0.00	0.00	0.00	0.00	0.00	0.00
HF/6-31G^∗	−12.42	−12.42	−12.42	−12.42	−10.15	−10.15	−10.15	−10.15
B3LYP/3-21G^∗	−15.62	−15.62	−15.62	−15.62	−14.38	−14.38	−14.38	−14.38
B3LYP/6-31G^∗	−23.02	−23.02	−23.02	−23.02	−19.51	−19.51	−19.51	−19.51
MP2/3-21G^∗	−28.35	−28.35	−28.35	−28.35	−28.04	−28.04	−28.04	−28.04

The calculated results in Table 1 showed that the relative energy for fMet-tRNA in the methods is more than that of fAla-tRNA that represents fMet-tRNA structure that is more stable.

3.2

3.2 NBO analysis

Natural bond orbital analysis provides the accurate possible natural Lewis structure picture of ψ, because all orbital details are mathematically chosen to include the highest possible percentage of the electron density (Weinhold and Landis, 2001; Subashchandrabose et al., 2010). The result of interaction is a loss of occupancy from the concentration of electron NBO of the idealized Lewis structure into an empty non-Lewis orbital. A careful examination of all possible interactions between “filled” (donor) Lewis-type NBOs and “empty” (acceptor) non-Lewis NBOs, allows us to get an estimate of their energetic importance by second-order perturbation theory. For each donor (i) and acceptor (j), the stabilization energy E⁽²⁾ associates with the delocalization i → j is estimated as:

(1)

E^{(2)} = ¥ E_{ij} = q_{i} (F {(i, j)}^{2}) / (∊_{j} - ∊_{i})

where q_i is the donor orbital occupancy, ε_j and ε_i are diagonal elements and F(i, j) is the off diagonal NBO Fock matrix element (Subashchandrabose et al., 2010; Jayabharathia et al., 2010a,b; Krishnan et al., 2010 ). According to the simple bond orbital picture, each bonding NBO is defined as an orbital formed from two directed valence hybrids (NHOs) h_A, h_B on atoms A and B, with corresponding polarization coefficients c_A, c_B:

(2)

σ_{AB} = c_{A} h_{A} + c_{B} h_{B}

To complete the span of the valence space, each valence bonding NBO must in turn be paired with a corresponding valence antibonding NBO (Weinhold and Landis, 2001)

(3)

σ_{AB} * = c_{B} h_{A} - c_{A} h_{B}

We noted results of natural atomic hybrids (NHOs) on three atoms in link area with the polarization coefficient c_A, c_B for each method in the corresponding NBO. Tables 2 and 3 show these studies for fMet-tRNA and fAla-tRNA using the selected methods.

Table 2 Calculated NHOs and the polarization coefficient for each hybrid in the corresponding NBO (in parentheses) for fMet-tRNA.

Phase	Method	C₃₀–O₂₉		C₃₀–O₃₂		C₃₀⚌O₃₂
Phase	Method	C₃₀	O₂₉	C₃₀	O₃₂	C₃₀	O₃₂
Gas	HF/3-21G^∗	sp^2.66(0.5472)	sp^1.93(0.8370)	sp^2.07(0.5732)	sp^1.26(0.8194)	sp^1.00(0.5433)	sp^1.00(0.8396)
	B3LYP/3-21G^∗	sp^2.64(0.5602)	sp^2.19(0.8283)	sp^2.12(0.5811)	sp^1.56(0.8138)	sp^99.99(0.5660)	sp^99.99(0.8244)
	MP2/3-21G^∗	sp^2.68(0.5546)	sp^2.27(0.8321)	sp^2.06(0.5794)	sp^1.53(0.8151)	sp^99.99(0.5290)	sp^99.99(0.8487)
	HF/6-31G^∗	sp^2.48(0.5462)	sp^1.83(0.8377)	sp^1.98(0.5751)	sp^1.19(0.8181)	sp^99.99(0.5054)	sp^99.99(0.8629)
	B3LYP/6-31G^∗	sp^2.52(0.5538)	sp^2.00(0.8327)	sp^2.02(0.5811)	sp^1.38(0.8138)	sp^99.99(0.5401)	sp^99.99(0.8416)

CHCL₃	HF/3-21G^∗	sp^2.65(0.5477)	sp^1.94(0.8367)	sp^2.07(0.5731)	sp^1.26(0.8195)	sp^1.00(0.5445)	sp^1.00(0.8387)
	B3LYP/3-21G^∗	sp^2.64(0.5605)	sp^2.20(0.8281)	sp^2.12(0.5813)	sp^1.57(0.8137)	sp^99.99(0.5665)	sp^99.9(0.8241)
	MP2/3-21G^∗	sp^2.68(0.5563)	sp^2.39(0.8310)	sp^2.09(0.5775)	sp^1.58(0.8164)	sp^1.00(0.5797)	sp^99.99(0.8148)
	HF/6-31G^∗	sp^2.48(0.5463)	sp^1.83(0.8376)	sp^1.98(0.5752)	sp^1.19(0.8180)	sp^99.99(0.5058)	sp^99.99(0.8626)
	B3LYP/6-31G^∗	sp^2.52(0.5539)	sp^2.00(0.8326)	sp^2.02(0.5812)	sp^1.38(0.8138)	sp^99.99(0.5405)	sp^99.99(0.8414)

DMSO	HF/3-21G^∗	sp^2.66(0.5479)	sp^1.94(0.8365)	sp^2.07(0.5731)	sp^1.26(0.8195)	sp^1.00(0.5448)	sp^1.00(0.8386)
	B3LYP/3-21G^∗	sp^2.63(0.5608)	sp^2.20(0.8280)	sp^2.12(0.5814)	sp^1.57(0.8136)	sp^99.99(0.5669)	sp^99.99(0.8238)
	MP2/3-21G^∗	sp^2.67(0.5565)	sp^2.39(0.8308)	sp^2.08(0.5777)	sp^1.58(0.8163)	sp^1.00(0.5802)	sp^99.99(0.8145)
	HF/6-31G^∗	sp^2.48(0.5463)	sp^1.83(0.8376)	sp^1.98(0.5752)	sp^1.20(0.8180)	sp^99.99(0.5060)	sp^99.99(0.8625)
	B3LYP/6-31G^∗	sp^2.52(0.5540)	sp^2.00(0.8325)	sp^2.02(0.5812)	sp^1.38(0.8137)	sp^99.99(0.5407)	sp^99.99(0.8412)

H₂O	HF/3-21G^∗	sp^2.64(0.5481)	sp^1.94(0.8364)	sp^2.07(0.5732)	sp^1.26(0.8194)	sp^1.00(0.5450)	sp^1.00(0.8385)
	B3LYP/3-21G^∗	sp^2.63(0.5608)	sp^2.20(0.8279)	sp^2.12(0.5814)	sp^1.57(0.8136)	sp^99.99(0.5669)	sp^99.99(0.8238)
	MP2/3-21G^∗	sp^2.67(0.5566)	sp^2.39(0.8308)	sp^2.08(0.5777)	sp^1.58(0.8163)	sp^1.00(0.5802)	sp^99.99(0.8145)
	HF/6-31G^∗	sp^2.48(0.5463)	sp^1.83(0.8376)	sp^1.98(0.5752)	sp^1.20(0.8180)	sp^99.99(0.5060)	sp^99.99(0.8625)
	B3LYP/6-31G^∗	sp^2.51(0.5541)	sp^2.00(0.8324)	sp^2.01(0.5813)	sp^1.38(0.8137)	sp^99.99(0.5408)	sp^99.99(0.8411)

Table 3 Calculated NHOs and the polarization coefficient for each hybrid in the corresponding NBO (in parentheses) for fAla-tRNA.

Phase	Method	O₃₀–C₄₄		C₄₄–O₄₇		C₄₄⚌O₄₇
Phase	Method	O₃₀	C₄₄	C₄₄	O₄₇	O₃₀	C₄₄
Gas	HF/3-21G^∗	sp^1.99(0.8363)	sp^2.67(0.5482)	sp^2.04(0.5730)	sp^1.24(0.8196)	sp^1.00(0.5506)	sp^1.00(0.8348)
	B3LYP/3-21G^∗	sp^2.40(0.8277)	sp^2.70(0.5611)	sp^2.05(0.5794)	sp^1.46(0.8151)	sp^99.99(0.5821)	sp^99.99(0.8131)
	MP2/3-21G^∗	sp^2.48(0.8315)	sp^2.74(0.5555)	sp^2.00(0.5779)	sp^1.45(0.8161)	sp^99.99(0.5474)	sp^1.00(0.8369)
	HF/6-31G^∗	sp^1.94(0.8354)	sp^2.61(0.5496)	sp^1.99(0.5823)	sp^1.39(0.8130)	sp^99.99(0.5305)	sp^99.99(0.8477)
	B3LYP/6-31G^∗	sp^2.20(0.8304)	sp^2.65(0.5571)	sp^2.01(0.5861)	sp^1.57(0.8102)	sp^1.00(0.5630)	sp^1.00(0.8264)

CHCL₃	HF/3-21G^∗	sp^2.02(0.8351)	sp^2.64(0.5501)	sp^2.04(0.5728)	sp^1.24(0.8197)	sp^1.00(0.5489)	sp^1.00(0.8359)
	B3LYP/3-21G^∗	sp^2.44(0.8262)	sp^2.67(0.5634)	sp^2.05(0.5792)	sp^1.45(0.8152)	sp^99.99(0.5806)	sp^99.99(0.8142)
	MP2/3-21G^∗	sp^2.64(0.8303)	sp^2.75(0.5573)	sp^2.04(0.5759)	sp^1.51(0.8175)	sp^99.99(0.5897)	sp^1.00(0.8076)
	HF/6-31G^∗	sp^1.88(0.8385)	sp^2.49(0.5449)	sp^1.94(0.5752)	sp^1.17(0.8180)	sp^99.99(0.5187)	sp^99.99(0.8550)
	B3LYP/6-31G^∗	sp^2.06(0.8329)	sp^2.53(0.5534)	sp^1.95(0.5816)	sp^1.34(0.8135)	sp^1.00(0.5517)	sp^99.99(0.8340)

DMSO	HF/3-21G^∗	sp^2.03(0.8343)	sp^2.63(0.5514)	sp^2.04(0.5726)	sp^1.23(0.8198)	sp^1.00(0.5478)	sp^1.00(0.8366)
	B3LYP/3-21G^∗	sp^2.45(0.8259)	sp^2.66(0.5638)	sp^2.05(0.5791)	sp^1.45(0.8152)	sp^99.99(0.5804)	sp^99.99(0.8144)
	MP2/3-21G^∗	sp^2.67(0.8290)	sp^2.72(0.5593)	sp^2.04(0.5757)	sp^1.51(0.8176)	sp^99.99(0.5886)	sp^1.00(0.8084)
	HF/6-31G^∗	sp^1.89(0.8379)	sp^2.48(0.5458)	sp^1.94(0.5750)	sp^1.17(0.8181)	sp^99.99(0.5170)	sp^99.99(0.8560)
	B3LYP/6-31G^∗	sp^2.08(0.8321)	sp^2.51(0.5546)	sp^1.95(0.5815)	sp^1.34(0.8136)	sp^1.00(0.5509)	sp^99.99(0.8346)

H₂O	HF/3-21G^∗	sp^2.03(0.8346)	sp^2.63(0.5508)	sp^2.04(0.5727)	sp^1.24(0.8198)	sp^1.00(0.5483)	sp^1.00(0.8363)
	B3LYP/3-21G^∗	sp^2.44(0.8263)	sp^2.67(0.5633)	sp^2.05(0.5792)	sp^1.45(0.8152)	sp^99.99(0.5807)	sp^99.99(0.8141)
	MP2/3-21G^∗	sp^2.64(0.8303)	sp^2.75(0.5573)	sp^2.04(0.5759)	sp^1.51(0.8175)	sp^99.99(0.5897)	sp^1.00(0.8076)
	HF/6-31G^∗	sp^1.89(0.8381)	sp^2.48(0.5455)	sp^1.94(0.5751)	sp^1.17(0.8181)	sp^99.99(0.5181)	sp^99.99(0.8553)
	B3LYP/6-31G^∗	sp^2.07(0.8322)	sp^2.51(0.5545)	sp^1.95(0.5815)	sp^1.34(0.8136)	sp^1.00(0.5510)	sp^99.99(0.8345)

The next section shows some of the donor–acceptor interactions and their second order perturbation energies (E⁽²⁾) for two compounds. The results of the NBO analysis in Tables 4 and 5 show that in fMet-Adenine link from fMet-tRNA structure, LP(2)O₃₂ participates as donor and the σ^∗(O₂₉–C₃₀) interactions as acceptor in hyperconjugative interactions and in fAla-Adenine link from fAla-tRNA structure, LP(2)O₄₇ participates as donor and the σ^∗(O₃₀–C₄₄) interactions as acceptor in hyperconjugative interactions. Electron density is transferred from Chojnacki (2008) one pair LP(2) O32 to the anti-bonding σ^∗(O₂₉–C₃₀) orbital's in fMet-tRNA and LP(2)O₄₇ to the anti-bonding σ^∗(O₃₀–C₄₄) orbital's in fAla-tRNA.

Table 4 Second order perturbation theory analysis of Fock matrix in NBO basis threshold for printing: 0.50 kcal/mol for fMet-tRNA and fAla-tRNA.

Phase	Method	fMet-tRNA			fAla-tRNA
Phase	Method	Donor NBO (i)	Acceptor NBO (j)	E⁽²⁾	Donor NBO (i)	Acceptor NBO (j)	E⁽²⁾
Gas	HF/3-21G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	51.40	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	53.18
	B3LYP/3-21G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	37.09	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	41.29
	MP2/3-21G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	47.23	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	51.93
	HF/6-31G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	43.20	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	45.70
	B3LYP/6-31G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	31.77	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	33.54

CHCL₃	HF/3-21G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	51.15	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	52.58
	B3LYP/3-21G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	37.05	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	40.68
	MP2/3-21G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	–	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	–
	HF/6-31G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	43.21	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	45.35
	B3LYP/6-31G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	31.74	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	33.29

DMSO	HF/3-21G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	51.41	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	52.18
	B3LYP/3-21G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	37.01	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	40.57
	MP2/3-21G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	–	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	–
	HF/6-31G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	43.21	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	45.94
	B3LYP/6-31G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	31.73	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	33.34

H₂O	HF/3-21G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	51.39	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	52.35
	B3LYP/3-21G^∗	LP(2)O₃₂	σ^∗(O₂₉–C₃₀)	37.01	LP(2)LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	40.70
	MP2/3-21G^∗	LP(2)O₃₂	σ^∗ (O₂₉–C₃₀)	–	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	–
	HF/6-31G^∗	LP(2)O₃₂	σ^∗ (O₂₉–C₃₀)	43.21	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	45.19
	B3LYP/6-31G^∗	LP(2)O₃₂	σ^∗ (O₂₉–C₃₀)	31.73	LP(2)O₄₇	σ^∗(O₃₀–C₄₄)	33.36

Table 5 The atomic charge distribution in terms of NPA for fMet-tRNA and fAla-tRNA.

Phase	Method	fMet-tRNA			fAla-tRNA
Phase	Method	O₂₉	C₃₀	O₃₂	O₃₀	C₄₄	O₄₇
Gas	HF/3-21G^∗	−0.6361	0.9439	−0.6402	−0.6403	0.9405	−0.6223
	B3LYP/3-21G^∗	−0.4909	0.7566	−0.5520	−0.5174	0.7556	−0.5073
	MP2/3-21G^∗	−0.6170	0.9303	−0.6598	−0.6287	0.9229	−0.6145
	HF/6-31G^∗	−0.6487	1.0145	−0.7284	−0.6635	1.0043	−0.6884
	B3LYP/6-31G^∗	−0.5476	0.8491	−0.6289	−0.5641	0.8450	−0.5892

CHCL₃	HF/3-21G^∗	−0.6367	0.9428	−0.6381	−0.6386	0.9420	−0.6277
	B3LYP/3-21G^∗	−0.4912	0.7557	−0.5506	−0.5137	0.7551	−0.5139
	MP2/3-21G^∗	−0.4936	0.72401	−0.4992	−0.5189	0.7280	−0.4593
	HF/6-31G^∗	−0.6491	1.0141	−0.7273	−0.6616	1.0058	−0.6926
	B3LYP/6-31G^∗	−0.5478	0.8486	−0.6279	−0.5614	0.8451	−0.5930

DMSO	HF/3-21G^∗	−0.6370	0.9425	−0.6373	−0.6375	0.9429	−0.6311
	B3LYP/3-21G^∗	−0.49142	0.7549	−0.5494	−0.5132	0.7549	−0.5150
	MP2/3-21G^∗	−0.4936	0.7240	−0.4992	−0.5189	0.7280	−0.4599
	HF/6-31G^∗	−0.6493	1.0138	−0.7267	−0.6589	1.0091	−0.6985
	B3LYP/6-31G^∗	−0.5479	0.8483	−0.6274	−0.5581	0.8455	−0.5980

H₂O	HF/3-21G^∗	−0.6371	0.9423	−0.6369	−0.6380	0.9425	−0.6296
	B3LYP/3-21G^∗	−0.4914	0.7548	−0.5493	−0.5140	0.7551	−0.5136
	MP2/3-21G^∗	−0.4936	0.7240	−0.4992	−0.5189	0.7280	−0.4593
	HF/6-31G^∗	−0.6492	1.0139	−0.7268	−0.6607	1.0064	−0.6946
	B3LYP/6-31G^∗	−0.5480	0.8481	−0.6270	−0.5583	0.8455	−0.5970

The resonance energy (E⁽²⁾) indicates amount of Participation of electrons in the resonance here, its value in the gas phase is more than that in the solvent that indicates more electrons’ participation in the resonance of the connection area in this phase and among the solvents for fMet-tRNA, in DMSO, and for fAla-tRNA, in CHCL₃, more electrons are involved in the resonance.

The population analysis represents determination of the distribution of electrons in a molecule, creating orbital shapes and derivation of atomic charges and dipole moments. The Natural Population Analysis (NPA) is a more refined wave function-based method that solves most of the problems of the Mulliken scheme by construction of a more appropriate set of (natural) atomic basis functions (Martin and Zipse, 2005). Table 5 shows the atomic charge distribution in terms of NPA charges for the selected compounds.

Natural Population Analysis (NPA) seems to exhibit improved numerical stability and gives a better description of the electron distribution in compounds of high ionic character (Srinivasa Rao et al., 2008).

The last section allows to quickly identify the principal delocalizing acceptor orbitals associated with each donor NBO, and their topological relationship to this NBO (see Table 6).

Table 6 Occupancy and energy (kcal/mol) for σ(O₂₉–C₃₀) atoms from fMet-tRNA structure and σ(O₃₀–C₄₄) atoms from fAla-tRNA structure.

Phase	Method	fMet-tRNA			fAla-tRNA
Phase	Method	NBO	Occupancy	Energy	NBO	Occupancy	Energy
Gas	HF/3-21G^∗	σ(O₂₉–C₃₀)	1.9940	−773.7255	σ(O₃₀–C₄₄)	1.9934	−760.8992
	B3LYP/3-21G^∗	σ(O₂₉–C₃₀)	1.9930	−605.5906	σ(O₃₀–C₄₄)	1.9909	−568.1534
	MP2/3-21G^∗	σ(O₂₉–C₃₀)	1.9931	−747.9600	σ(O₃₀–C₄₄)	1.9913	−708.1758
	HF/6-31G^∗	σ(O₂₉–C₃₀)	1.9921	−796.5668	σ(O₃₀–C₄₄)	1.9920	−776.7438
	B3LYP/6-31G^∗	σ(O₂₉–C₃₀)	1.9918	−606.8519	σ(O₃₀–C₄₄)	1.9913	−588.2086

CHCL₃	HF/3-21G^∗	σ(O₂₉–C₃₀)	1.9940	−773.8447	σ(O₃₀–C₄₄)	1.9934	−764.6517
	B3LYP/3-21G^∗	σ(O₂₉–C₃₀)	1.9931	−605.9985	σ(O₃₀–C₄₄)	1.9910	−574.0708
	MP2/3-21G^∗	σ(O₂₉–C₃₀)	1.9659	–	σ(O₃₀–C₄₄)	1.9629	–
	HF/6-31G^∗	σ(O₂₉–C₃₀)	1.9921	−796.6045	σ(O₃₀–C₄₄)	1.9782	−519.4649
	B3LYP/6-31G^∗	σ(O₂₉–C₃₀)	1.9918	−607.2033	σ(O₃₀–C₄₄)	1.9913	−591.4214

DMSO	HF/3-21G^∗	σ(O₂₉–C₃₀)	1.9940	−774.0643	σ(O₃₀–C₄₄)	1.9934	−767.2245
	B3LYP/3-21G^∗	σ(O₂₉–C₃₀)	1.9931	−606.3248	σ(O₃₀–C₄₄)	1.9910	−575.2003
	MP2/3-21G^∗	σ(O₂₉–C₃₀)	1.9658	–	σ(O₃₀–C₄₄)	1.9629	–
	HF/6-31G^∗	σ(O₂₉–C₃₀)	1.9921	−796.6170	σ(O₃₀–C₄₄)	1.9917	−780.3269
	B3LYP/6-31G^∗	σ(O₂₉–C₃₀)	1.9918	−607.3853	σ(O₃₀–C₄₄)	1.9911	−593.8562

H₂O	HF/3-21G^∗	σ(O₂₉–C₃₀)	1.9940	−774.1773	σ(O₃₀–C₄₄)	1.9934	−766.1012
	B3LYP/3-21G^∗	σ(O₂₉–C₃₀)	1.9931	−606.3562	σ(O₃₀–C₄₄)	1.9910	−573.8449
	MP2/3-21G^∗	σ(O₂₉–C₃₀)	1.9658	–	σ(O₃₀–C₄₄)	1.9628	–
	HF/6-31G^∗	σ(O₂₉–C₃₀)	1.9921	−796.6170	σ(O₃₀–C₄₄)	1.9919	−780.6657
	B3LYP/6-31G^∗	σ(O₂₉–C₃₀)	1.9918	−607.5233	σ(O₃₀–C₄₄)	1.9911	−593.5299

3.3

3.3 NMR parameters

Nuclear magnetic resonance (NMR) spectroscopy is a powerful tool for the structure determination of large molecules, particularly proteins in solution. The NMR technique is based on the sensitivity of magnetic properties (Czinki et al., 2007). The calculation of NMR parameters using ab initio (Alam, 2002) methods has important role in the molecular structure investigation.

The quantitative knowledge of chemical shielding anisotropy (CSA) tensors is important in the context of bimolecular applications of nuclear magnetic resonance (NMR). CSA tensors provide important information on the orientation of molecular fragments and on the electronic environment of the nuclei, which depends on the molecular geometry (Scheurer et al., 1999).

The isotropic chemical shielding, σ_iso, is defined as:

(4)

σ_{iso} = (σ_{xx} + σ_{yy} + σ_{zz}) / 3

The chemical shielding anisotropy, ¥σ, and asymmetry parameter of the chemical shielding, É, are given by:

When σ_{zz} - σ_{iso} > σ_{xx} - σ_{iso}

(5)

¥ σ = σ_{zz} - 1 / 2 (σ_{yy} + σ_{xx})

(6)

\overset{́}{E} = σ_{yy} - σ_{xx} / σ_{zz} - σ_{iso}

When σ_{zz} - σ_{iso} < σ_{xx} - σ_{iso}

(7)

¥ σ = σ_{xx} - 1 / 2 (σ_{yy} + σ_{zz})

(8)

\overset{́}{E} = σ_{yy} - σ_{zz} / σ_{xx} - σ_{iso}

The calculations of NMR shielding tensors were done (Infante-Castillo and Hernandez-Rivera, 2010) at the HF and B3LYP levels of theory using input of the optimized structure at every method in gas phase. Tables 7 and 8 show the σ_xx, σ_yy, σ_zz, σ_iso, É, and ¥σ values for atoms in the area link in the fMet-tRNA and fAla-tRNA structures.

Table 7 NMR parameters for fMet-tRNA.

Method	Atom	σ_iso (ppm)	σ₃₃ (ppm)	σ₂₂ (ppm)	σ₁₁ (ppm)	¥σ (ppm)	É (ppm)
HF/3-21G^∗	O₂₉	221.10	284.18	135.05	244.06	94.63	−1.73
	C₃₀	44.28	50.38	85.56	−3.0947	9.15	14.54
	O₃₂	−50.78	−62.69	−34.75	−54.88	−6.16	−6.80

B3LYP/3-21G^∗	O₂₉	137.08	155.57	120.48	135.18	27.73	−0.80
	C₃₀	36.13	38.44	54.52	15.44	3.45	16.97
	O₃₂	−46.02	−259.11	118.82	2.24	72.38	7.83

HF/6-31G^∗	O₂₉	198.67	199.38	208.30	188.32	1.07	28.03
	C₃₀	33.34	26.94	72.58	0.48	−9.59	−11.28
	O₃₂	−8.50	−235.39	231.81	−21.90	−20.11	−34.84

B3LYP/6-31G^∗	O₂₉	125.34	107.72	144.77	123.54	−2.70	−20.56
	C₃₀	21.72	28.22	39.75	−2.81	9.75	6.55
	O₃₂	−36.57	−256.90	157.35	−10.15	39.62	15.68

Table 8 NMR parameters for fAla-tRNA.

Method	atom	σ_iso (ppm)	σ₃₃ (ppm)	σ₂₂ (ppm)	σ₁₁ (ppm)	¥σ (ppm)	É (ppm)
HF/3-21G^∗	O₃₀	225.45	170.47	244.56	261.32	53.80	2.07
	C₄₄	46.39	80.76	79.98	−21.59	51.59	2.95
	O₄₇	−63.70	−274.28	210.89	−127.70	−96.01	−7.58

B3LYP/3-21G^∗	O₃₀	159.09	93.22	195.71	188.34	43.87	3.50
	C₄₄	39.83	74.22	62.23	−16.954	51.58	2.30
	O₄₇	−69.40	−294.37	199.03	−112.85	−65.18	−11.35

HF/6-31G^∗	O₃₀	206.44	144.76	245.60	228.98	33.80	4.48
	C₄₄	37.61	66.60	88.63	−42.39	43.48	4.52
	O₄₇	−22.87	−223.21	304.69	−150.09	−190.83	−4.15

B3LYP/6-31G^∗	O₃₀	141.60	72.08	199.55	153.18	17.37	11.01
	C₄₄	26.31	58.38	72.50	−51.94	48.10	3.88
	O₄₇	−46.18	−258.27	292.96	−173.24	−190.58	−4.34

In the Tables 10 and 11 the numbers of ¥σ and É that are not bold follow the rule of σ_zz – σ_iso > σ_xx – σ_iso and other numbers that are bold follow the rule of σ_zz − σ_iso < σ_xx – σ_iso.

The asymmetry parameter of the chemical shielding, É, and the chemical shielding anisotropy, ¥σ, of electrons of the connection area, in several methods, are obtained differently. This is due to σ_xx, σ_yy, σ_zz, σ_iso values for both structures that have been obtained differently.

3.4

3.4 Frequency calculations

The vibrational frequencies of fMet-tRNA and fAla-tRNA were calculated at the Hartree–Fock (HF), DFT (B3LYP) levels of theory using the 3-21G^∗ basis set (Jensen, 2003). The entropies and heat capacities were calculated using statistical mechanics based on the vibrational frequencies (Zheng et al., 2005). The nature of all stationary point structures were determined by analytical frequency analysis, which also provided zero–point vibrational energies (ZPEs) Cherkaoui and Boutalib, 2006. Electronic energies, enthalpies, Gibbs free energies and zero point vibrational energies for both the compounds using frequency calculation at 298.15 K and 310.15 K temperatures are presented in Tables 9–12 . Thermochemistry analysis follows the frequency and normal mode data. $E_{tot} = E_{t} + E_{r} + E_{v} + E_{e}$ $H_{corr} = E_{tot} + k_{B} T$ $G_{corr} = H_{corr} - T_{stot}$ $S_{tot} = S_{t} + S_{r} + S_{v} + S_{e}$

Table 9 Thermochemistry values for fMet-tRNA at 298.15 K and 1.00 atmosphere pressure.

Phase	Methods	E_ZPE	E_tot	H_corr	G_corr	ε₀ + E_ZPE	ε₀ + E_tot	ε₀ + H_corr	ε₀ + G_corr
Gas	HF/3-21G^∗	290.71	310.06	310.65	248.82	−1471662.49	−1471643.15	−1471642.55	−1471704.39
Gas	B3lyp/3-21G^∗	269.36	289.57	290.16	226.96	−1478347.44	−1478327.22	−1478326.63	−1478389.84

CHCL₃	HF/3-21G^∗	290.63	309.99	310.59	248.73	−1471663.08	−1471643.71	−1471643.12	−1471704.98
CHCL₃	B3lyp/3-21G^∗	269.29	289.52	290.11	226.83	−1478347.91	−1478327.67	−1478327.08	−1478390.36

DMSO	HF/3-21G^∗	290.60	309.96	310.56	248.68	−1471663.34	−1471643.97	−1471643.37	−1471705.25
DMSO	B3lyp/3-21G^∗	269.23	289.47	290.06	226.70	−1478348.29	−1478328.04	−1478327.45	−1478390.81

H₂O	HF/3-21G^∗	290.58	309.95	310.54	248.66	−1471663.47	−1471644.10	−1471643.50	−1471705.40
H₂O	B3lyp/3-21G^∗	269.28	289.50	290.09	226.99	−1478348.27	−1478328.05	−1478327.46	−1478390.56

		E_tot(Thermal)	(C_v) _tot	S_tot	Q_tot BOT	Q_tot V = 0	LN(Q)_tot BOT	LN(Q)_tot V = 0
Gas	HF/3-21G^∗	310.06	112.75	207.39	0.41E−182	0.51E+31	−419.95	70.71
Gas	B3lyp/3-21G^∗	289.57	120.06	212.00	0.43E−166	0.12E+32	_−383.06	71.56

CHCL₃	HF/3-21G^∗	309.99	112.79	207.45	0.47E−182	0.51E+31	−419.82	70.71
CHCL₃	B3lyp/3-21G^∗	289.52	120.11	212.23	0.53E−166	0.13E+32	−382.85	71.65

DMSO	HF/3-21G^∗	309.96	112.82	207.52	0.51E−182	0.52E+31	−419.73	70.73
DMSO	B3lyp/3-21G^∗	289.47	120.15	212.51	0.66E−166	0.14E+32	−382.63	71.76

H₂O	HF/3-21G^∗	309.95	112.83	207.56	0.53E−182	0.53E+31	−419.68	70.75
H₂O	B3lyp/3-21G^∗	289.50	120.11	211.62	0.40E−166	0.99E+31	−383.13	71.37

Table 10 Thermochemistry values for fMet-tRNA at 310.15 K and 1.00 atmosphere pressure.

Phase	Methods	E_ZPE	E_tot	H_corr	G_corr	ε₀ + E_ZPE	ε₀ + E_tot	ε₀ + H_corr	ε₀ + G_corr
Gas	HF/3-21G^∗	290.63	311.37	311.98	246.22	−1471663.08	−1471642.34	−1471641.73	−1471707.49
Gas	B3lyp/3-21G^∗	269.42	291.07	291.68	224.68	−1478347.31	−1478325.67	−1478325.05	−1478392.05

CHCL₃	HF/3-21G^∗	290.63	311.37	311.98	246.22	−1471663.08	−1471642.34	−1471641.73	−1471707.49
CHCL₃	B3lyp/3-21G^∗	269.28	290.96	291.58	224.43	−1478348.27	−1478326.59	−1478325.97	−1478393.13

DMSO	HF/3-21G^∗	290.60	311.34	311.96	246.17	−1471663.34	−1471642.6	−1471641.98	−1471707.77
DMSO	B3lyp/3-21G^∗	269.28	290.96	291.58	224.43	−1478348.27	−1478326.59	−1478325.97	−1478393.13

H₂O	HF/3-21G^∗	290.58	311.32	311.94	246.14	−1471663.47	−1471642.73	−1471642.11	−1471707.91
H₂O	B3lyp/3-21G^∗	269.28	290.96	291.58	224.43	−1478348.27	−1478326.59	−1478325.97	−1478393.13

		E_tot(Thermal)	(C_v)_tot	S_tot	Q_tot BOT	Q_tot V = 0	LN(Q)_tot BOT	LN(Q)_tot V = 0
Gas	HF/3-21G^∗	311.37	116.48	212.05	0.31E−173	0.19E+32	−399.49	72.06
Gas	B3lyp/3-21G^∗	291.07	124.02	216.01	0.47E−158	0.33E+32	−364.55	72.57

CHCL₃	HF/3-21G^∗	311.37	116.48	212.05	0.31E−173	0.19E+32	−399.49	72.06
CHCL₃	B3lyp/3-21G^∗	290.96	124.12	216.51	0.71E−158	0.40E+32	−364.13	72.77

DMSO	HF/3-21G^∗	311.34	116.50	212.12	0.34E−173	0.20E+32	−399.40	72.08
DMSO	B3lyp/3-21G^∗	290.96	124.12	216.51	0.71E−158	0.40E+32	−364.13	72.77

H₂O	HF/3-21G^∗	311.33	116.52	212.17	0.36E−173	0.20E+32	−399.36	72.10
H₂O	B3lyp/3-21G^∗	290.96	124.12	216.51	0.71E−158	0.40E+32	−364.13	72.77

Table 11 Thermochemistry values for fAla-tRNA at 298.15 K and 1.00 atmosphere pressure.

Phase	Methods	E_ZPE	E_tot	H_corr	G_corr	ε₀ + E_ZPE	ε₀ + E_tot	ε₀ + H_corr	ε₀ + G_corr
Gas	HF/3-21G^∗	251.53	268.06	268.65	214.25	−1174696.01	−1174680.99	−1174679.24	−1174734.98
Gas	B3lyp/3-21G^∗	232.25	249.74	250.33	194.14	−1180604.11	−1180587.34	−1180586.00	−1180643.51

CHCL₃	HF/3-21G^∗	251.48	268.01	268.60	214.28	−1174699.05	−1174683.21	−1174682.56	−1174736.33
CHCL₃	B3lyp/3-21G^∗	232.25	249.70	250.30	194.40	−1180607.45	−1180590.11	−1180589.34	−1180645.10

DMSO	HF/3-21G^∗	251.46	267.99	268.58	214.24	−1174700.46	−1174684.12	−1174683.25	−1174737.09
DMSO	B3lyp/3-21G^∗	232.25	249.69	250.28	194.40	−1180608.22	−1180591.68	−1180590.66	−1180646.01

H₂O	HF/3-21G^∗	251.46	267.99	268.58	214.24	−1174700.13	−1174684.16	−1174683.14	−1174737.67
H₂O	B3lyp/3-21G^∗	232.26	249.70	250.30	194.40	−1180607.23	−1180590.46	−1180589.18	−1180645.44

		E_tot(Thermal)	(C_v)_tot	S_tot	Q_tot BOT	Q_tot V = 0	LN(Q)_tot BOT	LN(Q)_tot V = 0
Gas	HF/3-21G^∗	268.06	98.13	182.45	0.88E−157	0.21E+28	361.62−	62.91
Gas	B3lyp/3-21G^∗	249.74	104.91	188.47	0.49E−142	0.87E+28	327.67−	64.33

CHCL₃	HF/3-21G^∗	268.01	98.14	182.19	0.84E−157	0.18E+28	−361.67	62.78
CHCL₃	B3lyp/3-21G^∗	249.70	104.89	187.46	0.31E−142	0.55E+28	−328.11	63.88

DMSO	HF/3-21G^∗	267.99	98.15	182.25	0.90E−157	0.19E+28	−361.60	62.81
DMSO	B3lyp/3-21G^∗	249.69	104.89	187.43	0.31E−142	0.55E+28	−328.11	63.87

H₂O	HF/3-21G^∗	267.99	98.15	182.26	0.91E−157	0.19E+28	−361.59	62.81
H₂O	B3lyp/3-21G^∗	249.70	104.89	187.48	0.31E−142	0.56E+28	−328.11	63.89

Table 12 Thermochemistry values for fAla-tRNA at 310.15 K 1.00 atmosphere pressure.

Phase	Methods	E_ZPE	E_tot	H_corr	G_corr	ε₀ + E_ZPE	ε₀ + E_tot	ε₀ + H_corr	ε₀ + G_corr
Gas	HF/3-21G^∗	251.53	269.26	269.87	212.04	−1174696.46	−1174678.73	−1174678.11	−1174735.94
Gas	B3lyp/3-21G^∗	232.25	251.02	251.63	191.85	−1180603.91	−1180585.14	−1180584.53	−1180644.31

CHCL₃	HF/3-21G^∗	251.48	269.21	269.82	212.07	−1174699.10	−1174681.38	−1174680.76	−1174738.51
CHCL₃	B3lyp/3-21G^∗	232.25	250.98	251.60	192.13	−1180607.37	−1180588.64	−1180588.02	−1180647.5

DMSO	HF/3-21G^∗	251.46	269.19	269.80	212.03	−1174700.17	−1174682.44	−1174681.82	−1174739.59
DMSO	B3lyp/3-21G^∗	232.25	250.97	251.59	192.13	−1180608.02	−1180589.29	−1180588.68	−1180648.14

H₂O	HF/3-21G^∗	251.46	269.18	269.80	212.03	−1174700.22	−1174682.49	−1174681.88	−1174739.65
H₂O	B3lyp/3-21G^∗	232.26	250.98	251.60	192.12	−1180607.24	−1180588.51	−1180587.89	−1180647.37

		E_tot(Thermal)	(C_v)_tot	S_tot	Q_tot BOT	Q_tot V = 0	LN(Q)_tot BOT	LN(Q)_tot V = 0
Gas	HF/3-21G^∗	269.26	101.45	186.47	0.38E−149	0.66E+28	−344.04	64.07
Gas	B3lyp/3-21G^∗	251.02	108.48	192.76	0.648E−135	0.29E+29	−311.28	65.55

CHCL₃	HF/3-21G^∗	269.21	101.47	186.21	0.365E−149	0.59E+28	−344.09	63.94
CHCL₃	B3lyp/3-21G^∗	250.98	108.47	191.75	0.41E−135	0.18E+29	−311.73	65.10

DMSO	HF/3-21G^∗	269.19	101.48	186.27	0.39E−149	0.60E+28	−344.02	63.97
DMSO	B3lyp/3-21G^∗	250.97	108.47	191.71	0.41E−135	0.18E+29	−311.73	65.09

H₂O	HF/3-21G^∗	269.18	101.48	186.28	0.39E−149	0.60E+28	−344.01	63.97
H₂O	B3lyp/3-21G^∗	250.98	108.47	191.76	0.41E−135	0.18E+29	−311.72	65.11

Sum of electronic and zero-point energies = Æ₀ + E_ZPE
Sum of electronic and thermal energies = Æ₀ + E_tot
Sum of electronic and thermal enthalpies = Æ₀ + H_corr
Sum of electronic and thermal free energies = Æ₀ + G_corr

where Æ₀ is the total electronic energy at T = 0 K, G_corr and H_corr represent the thermal correction to Gibbs free energy and enthalpy, respectively. The internal thermal energy E_tot is contributed from translational (E_t), rotational (E_r), vibrational (E_v), and electronic (E_e) energies, and S_tot, S_t, S_r, S_v, S_e are the corresponding entropies (An et al., 2005). The next section is the individual contribution to the internal thermal energy (E_tot), constant volume molar heat capacity (C_v)_tot, entropy (S_tot) and Partition function (Q) Ochterski, 2000.

The partition functions are also computed, with both the bottom of the vibrational well and the lowest (zero-point) vibrational state as reference.

The comparison of thermochemistry values were calculated for two structures, which show that with increasing temperature, these values increase in both structures and also these values for fMet-tRNA at two temperatures are more than fAla-tRNA which shows the greater stability of fMet-tRNA than fAla-tRNA.

4 Conclusion

In the present study, we used a combination of theoretical tools to compare fMet-tRNA structure (the first amino acid required for protein synthesis) and fAla-tRNA structure (artificial amino acid). The following conclusions are obtained from the current study:

The most stable structure, according to the optimization energy is fMet-tRNA. Probably for this reason, it is chosen for the initiation of protein synthesis. Desired structures have their most stable state in water solvent and then in DMSO solvent that is stable which represents a direct relation of the structure stability and solvent dielectric constant.
NBO analysis indicated the presence of donor-acceptor centers in the investigated structures. In both the structures, the resonance energy in the gas phase is more than that in the solvent that indicates more electrons participate in the resonance of the connection area in this phase. Among the solvents for fMet-tRNA, in DMSO, and for fAla-tRNA, in CHCL₃, more electrons are involved in the resonance. The comparison between the NBO analysis of two Compounds in gas Phase and CHCL₃, DMSO and H₂O solvents shows that values of E⁽²⁾ for fMet-tRNA are lower than fAla-tRNA which means that in the fMet-tRNA structure lesser electrons are involved in the resonance.
By increasing method accuracy, occupancy of orbitals of the connection area atoms in fMet-tRNA decrease but in fAla-tRNA, there is no regular trend.
O₂₉ in the fMet-tRNA structure and O₃₀ in the fAla-tRNA structure have maximum values of the σ_iso. This means that electron density around these atoms is further. This is maximum in the HF/3-21G^∗ method.
¥σ for carbon atoms (C₃₀, C₄₄) is almost positive value that represents shielding effect on these atoms is high. This effect on C₄₄ atom of fAla-tRNA structure is more than that of fMet-tRNA.
The Comparison of thermochemistry parameters of two structures that are expressed in Tables 9–12 show that with increasing temperature, the thermal correction to Gibbs free energy and enthalpy (G_corr, H_corr), the internal thermal energy (E_tot), constant volume molar heat capacity (C_v)_tot, entropy (S_tot) and the individual contributions to the internal thermal energy (E_tot) increase in both structures and these parameters values for fMet-tRNA at two temperatures are more than those of fAla-tRNA which again indicates the greater stability of fMet-tRNA.
Finally, our studies on the structures showed that fMet-tRNA structure is more stable than fAla-tRNA structure and fAla-tRNA cannot be used instead of fMet-tRNA for the initiation of protein synthesis.

References

Agirrezabala X., Frank J., . Elongation in translation as a dynamic interaction among the ribosome, tRNA, and elongation factors EF-G and EF-Tu. Q. Rev. Biophys.. 2009;42(3):159-200.
[Google Scholar]
Alabugin I.V., Manoharan M., Zeidan T.A., . Homoanomeric effects in six-membered heterocycles. J. Am. Chem. Soc.. 2003;125:14014-14031.
[Google Scholar]
Alam Todd M., . Ab initio calculations of 31P NMR chemical shielding anisotropy tensors in phosphates: variations due to ring formation. Int. J. Mol. Sci.. 2002;3:888-906.
[Google Scholar]
An W., Gao Y., Bulusu S., Zeng X.C., . Ab initio calculation of bowl, cage, and ring isomers of C20 and C20-. J. Chem. Phys.. 2005;122:204109.
[Google Scholar]
Antoun A., Pavlov M.Y., Lovmar M., Ehrenberg M., . How initiation factors maximize the accuracy of tRNA selection in initiation of bacterial protein synthesis. Mol. Cell. 2006;23:183-193.
[Google Scholar]
Aquino A.J.A., Tunega D., Haberhauer G., Gerzabek M.H., Lischka H., . Solvent effects on hydrogen BondssA theoretical study. J. Phys. Chem. A. 2002;106:1862-1871.
[Google Scholar]
Baouz S., Woisard A., Chenoune L., Aguié G., Keith G., Schmitter J.M., Le Caer J.P., Hountondji C., . Recent advances in the characterization of peptidyl transferase center: zero-distance labeling of proteins at or near the catalytic site of human 80S or Escherichiacoli 70S ribosomes by means of periodate oxidized tRNA. Afr. J. Biochem. Res.. 2009;3:302-311.
[Google Scholar]
Blicharska B., Kupka T., . Theoretical DFT and experimental NMR studies on uracil and 5-fluorouracil. J. Mol. Struct.. 2002;613:153-166.
[Google Scholar]
Carter A.P., Clemons W.M., Brodersen D.E., Morgan-Warren R.J., Wimberly B.T., Ramakrishnan V., . Functional insights from the structure of the 30S ribosomal subunit and its interactions with antibiotics. Nature. 2000;407:340-348.
[Google Scholar]
Chalut C., Egly J.M., . AUC is used as a start codon in Escherichia coli. Gene. 1995;156:43-45.
[Google Scholar]
Chamieh H., Guetta D., Franzetti B., . The two PAN ATPases from Halobacterium display N-terminal heterogeneity and form labile complexes with the 20S proteasome. Biochem. J.. 2008;411:387-397.
[Google Scholar]
Cherkaoui M., Boutalib A., . Ab initio investigation of the substituant effect of the alane complexes. Internet Electron. J. Mol. Des.. 2006;5:471-478.
[Google Scholar]
Chojnacki J., . DFT and NBO theoretical study of protonation of tri-tert- butoxysilanethiol and its anion. Polyhedron. 2008;27:969-976.
[Google Scholar]
Chuang Li-Yeh., Lin Yu-Da., Yang C-H., . PtRNASS: prediction of tRNA secondary structure from nucleotide sequences. IAENG Int. J. Comput. Sci.. 2010;37 IJCS_37_3_02
[Google Scholar]
Czinki E., Császár A.G., Magyarfalvi G., Schreiner P.R., Allen W.D., . Predicting secondary structures of peptides and proteins via NMR chemical shielding anisotropy (CSA) parameters. J. Am. Chem. Soc.. 2007;129:1568-1577.
[Google Scholar]
Feinberg J.S., Joseph S., . A conserved base-pair between tRNA and 23 S rRNA in the peptidyl transferase center is important for peptide release. J. Mol. Biol.. 2006;364:1010-1020.
[Google Scholar]
Frisch M.J., . Gaussian 03, revision B03. Pittsburgh, PA: Gaussian Inc.; 2003.
Giese B., McNaughton D., . Surface-enhanced Raman spectroscopic study of uracil. The influence of the surface substrate, surface potential, and pH. J. Phys. Chem. B. 2002;106:1461-1470.
[Google Scholar]
Infante-Castillo R., Hernandez-Rivera S.P., . On the choice of optimal protocol for calculation of 13C and 15N NMR isotropic chemical shifts in nitramine systems. J. Mol. Struct. (Theochem). 2010;940:124-128.
[Google Scholar]
Jayabharathia J., Thanikachalam V., Vijayan N., Srinivasan N., Venkatesh Perumal M., . Optical properties of organic nonlinear optical crystal – a combined experimental and theoretical study. Struct. Chem. Commun.. 2010;1:46-52.
[Google Scholar]
Jayabharathia J., Padmavathya M., Srinivasana N., . DFT based characterization of some heterocyclic compounds and their biological studies. Struct. Chem. Commun.. 2010;1:15-24.
[Google Scholar]
Jensen James O., . Quantum chemical analysis of the vibrational frequencies and structure of tetrachlorodiborane. J. Mol. Struct. (Theochem). 2003;635:211-219.
[Google Scholar]
Krishnan A.R., Subashchandrabose S., Saleem H., Sundaraganesan N., Erdogdu Y., . Theoretical investigations on the molecular structure, vibrational spectra, infrared, Raman, UV and NMR spectral analysis of 4-nitrothioanisole. Struct. Chem. Commun.. 2010;1:56-62.
[Google Scholar]
LaPlante A.J., Stidham H.D., . Vibrational spectrum, ab initio calculations, conformational stabilities and assignment of fundamentals of 1,2-dibromopropane. Spectrochim. Acta A. 2009;74:808-818.
[Google Scholar]
Laursen B.S., Sørensen H.P., Mortensen K.K., Sperling-Petersen H.U., . Initiation of protein synthesis in bacteria. Microbiol. Mol. Biol. Rev. 2005;69:101-123.
[Google Scholar]
Martin F., Zipse H., . Charge distribution in the water molecule – a comparison of methods. J. Comput. Chem.. 2005;26:97-105.
[Google Scholar]
Munro J.B., Sanbonmatsu K.Y., Spahn C.M.T., Blanchard S.C., . Navigating the ribosome's metastable energy landscape. Trends Biochem. Sci.. 2009;34:390-400.
[Google Scholar]
Nandini G., Sathyanarayana D.N., . Ab initio studies of solvent effect on molecular conformation and vibrational spectra of diacetamide. Spectrochim. Acta A. 2004;60:1115-1126.
[Google Scholar]
Nekoei A.R., Tayyari S.F., Vakili M., Holakoei S., Hamidian A.H., Sammelson R.E., . Conformation and vibrational spectra and assignment of 2-thenoyltrifluoroacetone. J. Mol. Struct.. 2009;932:112-122.
[Google Scholar]
Ochterski, J.W., 2000. Ph.D., Thermochemistry in Gaussian; June 2.
Pavlov M.Y., Antoun A., Lovmar M., Ehrenberg M., . Complementary roles of initiation factor 1and ribosome recycling factor in 70S ribosome splitting. EMBO J.. 2008;27:1706-1717.
[Google Scholar]
Scheurer C., Skrynnikov N.R., Lienin S.F., Straus S.K., Bru1schweiler R., Ernst R.R., . Effects of dynamics and environment on 15N chemical shielding anisotropy in proteins. A combination of density functional theory, molecular dynamics simulation, and NMR relaxation. J. Am. Chem. Soc.. 1999;121:4242-4251.
[Google Scholar]
Scholtzová E., Mach P., Langer V., . NBO analysis – a useful tool on interpretation of results of crystal structure determination. Acta Cryst.. 2009;A65:s270.
[Google Scholar]
Selmer M., Dunham C.M., Murphy IV F.V., Weixlbaumer A., Petry S., Kelley A.C., Weir J.R., Ramakrishnan V., . Structure of the 70S ribosome complexed with mRNA and tRNA. Science. 2006;313:1935-1942.
[Google Scholar]
Spector S., Flynn J.M., Tidor B., Baker T.A., Sauer R.T., . Expression of N-formylated proteins in Escherichia coli. Protein Expr. Purif.. 2003;32:317-322.
[Google Scholar]
Srinivasa Rao J., Dinadayalane T.C., Leszczynski Jerzy, Narahari Sastry G., . Comprehensive study on the solvation of monoand divalent metal cations:Li+, Na+, K+, Be2+, Mg2+ and Ca. J. Phys. Chem. A. 2008;112(50):12944-12953.
[Google Scholar]
Subashchandrabose S., Krishnan A.R., Saleem H., Thanikachalam V., Manikandan G., Erdogdu Y., . FT-IR, FT-Raman, NMR spectral analysis and theoretical NBO, HOMO-LUMO analysis of bis (4-amino-5-mercapto-1,2,4-triazol-3-yl)ethane by ab initio HF and DFT methods. J. Mol. Struct.. 2010;981:59-70.
[Google Scholar]
Szarecka A., Rychlewski J., Rychlewska U., . The oretical salvation models:Ab initio study of molecular aggregation. Comput. Meth. Sci. Technol.. 1998;4:25-33.
[Google Scholar]
Tang J., Hernandez G., LeMaster D.M., . Increased peptide deformylase activity for N-formylmethionine processing of proteins overexpressed in Escherichia coli: application to homogeneous rubredoxin production. Protein Expr. Purif.. 2004;36:100-105.
[Google Scholar]
Trabuco L.G., Schreiner E., Eargle J., Cornish P., Ha Taekjip, Luthey-Schulten Z., Schulten K., . The role of L1 Stalk-tRNA interaction in the ribosome elongation cycle. J. Mol. Biol.. 2010;402:741-760.
[Google Scholar]
Wedel T., Gehring T., Podlech J., Kordel E., Bihlmeier A., Klopper W., . Nucleophilic additions to alkylidenebissulfoxides – stereoelectronic effects in vinylsulfoxides. Chem. A Eur. J.. 2008;14:4631-4639.
[Google Scholar]
Weinhold F., Landis C.R., . Natural bond orbitals and extensions of localized bonding concepts. Chemistry. 2001;2:91-104.
[Google Scholar]
Wienk B.H., Tomaselli S., Bernard C., Spurio R., Picone D., Gualerzi C.O., Rolf B., . Solution structure of the C1-subdomain of Bacillus stearothermophilus translation initiation factor IF2. Protein Sci.. 2005;14:2461-2468.
[Google Scholar]
Yu Wang Zh., Shimonaga M., Kobayashi M., Nozawa T., . N-terminal methylation of the core light-harvesting complex in purple photosynthetic bacteria. FEBS Lett.. 2002;519:164-168.
[Google Scholar]
Yusupov M.M., Yusupova G.Zh., Baucom A., Lieberman K., Earnest T.N., Cate J.H.D., Noller H.F., . Crystal structure of the ribosome at 5.5 Å resolution. Science. 2001;292:883-896.
[Google Scholar]
Zheng X.L., Sun H.Y., Law C.K., . Thermochemical and kinetic analysis on oxidation of isobutenyl radical and 2-hydroperoxymethyl-2-propenyl radical. J. Phys. Chem. A. 2005;109:9044-9053.
[Google Scholar]

Introduction

Computational details

Results and discussion

Geometry optimization
NBO analysis
NMR parameters
Frequency calculations

Conclusion

Fulltext Views
17

PDF downloads
3

View/Download PDF
Download Citations

BibTeX
RIS

Show Sections

[1] Agirrezabala X., Frank J., . Elongation in translation as a dynamic interaction among the ribosome, tRNA, and elongation factors EF-G and EF-Tu. Q. Rev. Biophys.. 2009;42(3):159-200.
[Google Scholar]

[2] Alabugin I.V., Manoharan M., Zeidan T.A., . Homoanomeric effects in six-membered heterocycles. J. Am. Chem. Soc.. 2003;125:14014-14031.
[Google Scholar]

[3] Alam Todd M., . Ab initio calculations of 31P NMR chemical shielding anisotropy tensors in phosphates: variations due to ring formation. Int. J. Mol. Sci.. 2002;3:888-906.
[Google Scholar]

[4] An W., Gao Y., Bulusu S., Zeng X.C., . Ab initio calculation of bowl, cage, and ring isomers of C20 and C20-. J. Chem. Phys.. 2005;122:204109.
[Google Scholar]

[5] Antoun A., Pavlov M.Y., Lovmar M., Ehrenberg M., . How initiation factors maximize the accuracy of tRNA selection in initiation of bacterial protein synthesis. Mol. Cell. 2006;23:183-193.
[Google Scholar]

[6] Aquino A.J.A., Tunega D., Haberhauer G., Gerzabek M.H., Lischka H., . Solvent effects on hydrogen BondssA theoretical study. J. Phys. Chem. A. 2002;106:1862-1871.
[Google Scholar]

[7] Baouz S., Woisard A., Chenoune L., Aguié G., Keith G., Schmitter J.M., Le Caer J.P., Hountondji C., . Recent advances in the characterization of peptidyl transferase center: zero-distance labeling of proteins at or near the catalytic site of human 80S or Escherichiacoli 70S ribosomes by means of periodate oxidized tRNA. Afr. J. Biochem. Res.. 2009;3:302-311.
[Google Scholar]

[8] Blicharska B., Kupka T., . Theoretical DFT and experimental NMR studies on uracil and 5-fluorouracil. J. Mol. Struct.. 2002;613:153-166.
[Google Scholar]

[9] Carter A.P., Clemons W.M., Brodersen D.E., Morgan-Warren R.J., Wimberly B.T., Ramakrishnan V., . Functional insights from the structure of the 30S ribosomal subunit and its interactions with antibiotics. Nature. 2000;407:340-348.
[Google Scholar]

[10] Chalut C., Egly J.M., . AUC is used as a start codon in Escherichia coli. Gene. 1995;156:43-45.
[Google Scholar]

[11] Chamieh H., Guetta D., Franzetti B., . The two PAN ATPases from Halobacterium display N-terminal heterogeneity and form labile complexes with the 20S proteasome. Biochem. J.. 2008;411:387-397.
[Google Scholar]

[12] Cherkaoui M., Boutalib A., . Ab initio investigation of the substituant effect of the alane complexes. Internet Electron. J. Mol. Des.. 2006;5:471-478.
[Google Scholar]

[13] Chojnacki J., . DFT and NBO theoretical study of protonation of tri-tert- butoxysilanethiol and its anion. Polyhedron. 2008;27:969-976.
[Google Scholar]

[14] Chuang Li-Yeh., Lin Yu-Da., Yang C-H., . PtRNASS: prediction of tRNA secondary structure from nucleotide sequences. IAENG Int. J. Comput. Sci.. 2010;37 IJCS_37_3_02
[Google Scholar]

[15] Czinki E., Császár A.G., Magyarfalvi G., Schreiner P.R., Allen W.D., . Predicting secondary structures of peptides and proteins via NMR chemical shielding anisotropy (CSA) parameters. J. Am. Chem. Soc.. 2007;129:1568-1577.
[Google Scholar]

[16] Feinberg J.S., Joseph S., . A conserved base-pair between tRNA and 23 S rRNA in the peptidyl transferase center is important for peptide release. J. Mol. Biol.. 2006;364:1010-1020.
[Google Scholar]

[17] Frisch M.J., . Gaussian 03, revision B03. Pittsburgh, PA: Gaussian Inc.; 2003.

[18] Giese B., McNaughton D., . Surface-enhanced Raman spectroscopic study of uracil. The influence of the surface substrate, surface potential, and pH. J. Phys. Chem. B. 2002;106:1461-1470.
[Google Scholar]

[19] Infante-Castillo R., Hernandez-Rivera S.P., . On the choice of optimal protocol for calculation of 13C and 15N NMR isotropic chemical shifts in nitramine systems. J. Mol. Struct. (Theochem). 2010;940:124-128.
[Google Scholar]

[20] Jayabharathia J., Thanikachalam V., Vijayan N., Srinivasan N., Venkatesh Perumal M., . Optical properties of organic nonlinear optical crystal – a combined experimental and theoretical study. Struct. Chem. Commun.. 2010;1:46-52.
[Google Scholar]

[21] Jayabharathia J., Padmavathya M., Srinivasana N., . DFT based characterization of some heterocyclic compounds and their biological studies. Struct. Chem. Commun.. 2010;1:15-24.
[Google Scholar]

[22] Jensen James O., . Quantum chemical analysis of the vibrational frequencies and structure of tetrachlorodiborane. J. Mol. Struct. (Theochem). 2003;635:211-219.
[Google Scholar]

[23] Krishnan A.R., Subashchandrabose S., Saleem H., Sundaraganesan N., Erdogdu Y., . Theoretical investigations on the molecular structure, vibrational spectra, infrared, Raman, UV and NMR spectral analysis of 4-nitrothioanisole. Struct. Chem. Commun.. 2010;1:56-62.
[Google Scholar]

[24] LaPlante A.J., Stidham H.D., . Vibrational spectrum, ab initio calculations, conformational stabilities and assignment of fundamentals of 1,2-dibromopropane. Spectrochim. Acta A. 2009;74:808-818.
[Google Scholar]

[25] Laursen B.S., Sørensen H.P., Mortensen K.K., Sperling-Petersen H.U., . Initiation of protein synthesis in bacteria. Microbiol. Mol. Biol. Rev. 2005;69:101-123.
[Google Scholar]

[26] Martin F., Zipse H., . Charge distribution in the water molecule – a comparison of methods. J. Comput. Chem.. 2005;26:97-105.
[Google Scholar]

[27] Munro J.B., Sanbonmatsu K.Y., Spahn C.M.T., Blanchard S.C., . Navigating the ribosome's metastable energy landscape. Trends Biochem. Sci.. 2009;34:390-400.
[Google Scholar]

[28] Nandini G., Sathyanarayana D.N., . Ab initio studies of solvent effect on molecular conformation and vibrational spectra of diacetamide. Spectrochim. Acta A. 2004;60:1115-1126.
[Google Scholar]

[29] Nekoei A.R., Tayyari S.F., Vakili M., Holakoei S., Hamidian A.H., Sammelson R.E., . Conformation and vibrational spectra and assignment of 2-thenoyltrifluoroacetone. J. Mol. Struct.. 2009;932:112-122.
[Google Scholar]

[30] Ochterski, J.W., 2000. Ph.D., Thermochemistry in Gaussian; June 2.

[31] Pavlov M.Y., Antoun A., Lovmar M., Ehrenberg M., . Complementary roles of initiation factor 1and ribosome recycling factor in 70S ribosome splitting. EMBO J.. 2008;27:1706-1717.
[Google Scholar]

[32] Scheurer C., Skrynnikov N.R., Lienin S.F., Straus S.K., Bru1schweiler R., Ernst R.R., . Effects of dynamics and environment on 15N chemical shielding anisotropy in proteins. A combination of density functional theory, molecular dynamics simulation, and NMR relaxation. J. Am. Chem. Soc.. 1999;121:4242-4251.
[Google Scholar]

[33] Scholtzová E., Mach P., Langer V., . NBO analysis – a useful tool on interpretation of results of crystal structure determination. Acta Cryst.. 2009;A65:s270.
[Google Scholar]

[34] Selmer M., Dunham C.M., Murphy IV F.V., Weixlbaumer A., Petry S., Kelley A.C., Weir J.R., Ramakrishnan V., . Structure of the 70S ribosome complexed with mRNA and tRNA. Science. 2006;313:1935-1942.
[Google Scholar]

[35] Spector S., Flynn J.M., Tidor B., Baker T.A., Sauer R.T., . Expression of N-formylated proteins in Escherichia coli. Protein Expr. Purif.. 2003;32:317-322.
[Google Scholar]

[36] Srinivasa Rao J., Dinadayalane T.C., Leszczynski Jerzy, Narahari Sastry G., . Comprehensive study on the solvation of monoand divalent metal cations:Li+, Na+, K+, Be2+, Mg2+ and Ca. J. Phys. Chem. A. 2008;112(50):12944-12953.
[Google Scholar]

[37] Subashchandrabose S., Krishnan A.R., Saleem H., Thanikachalam V., Manikandan G., Erdogdu Y., . FT-IR, FT-Raman, NMR spectral analysis and theoretical NBO, HOMO-LUMO analysis of bis (4-amino-5-mercapto-1,2,4-triazol-3-yl)ethane by ab initio HF and DFT methods. J. Mol. Struct.. 2010;981:59-70.
[Google Scholar]

[38] Szarecka A., Rychlewski J., Rychlewska U., . The oretical salvation models:Ab initio study of molecular aggregation. Comput. Meth. Sci. Technol.. 1998;4:25-33.
[Google Scholar]

[39] Tang J., Hernandez G., LeMaster D.M., . Increased peptide deformylase activity for N-formylmethionine processing of proteins overexpressed in Escherichia coli: application to homogeneous rubredoxin production. Protein Expr. Purif.. 2004;36:100-105.
[Google Scholar]

[40] Trabuco L.G., Schreiner E., Eargle J., Cornish P., Ha Taekjip, Luthey-Schulten Z., Schulten K., . The role of L1 Stalk-tRNA interaction in the ribosome elongation cycle. J. Mol. Biol.. 2010;402:741-760.
[Google Scholar]

[41] Wedel T., Gehring T., Podlech J., Kordel E., Bihlmeier A., Klopper W., . Nucleophilic additions to alkylidenebissulfoxides – stereoelectronic effects in vinylsulfoxides. Chem. A Eur. J.. 2008;14:4631-4639.
[Google Scholar]

[42] Weinhold F., Landis C.R., . Natural bond orbitals and extensions of localized bonding concepts. Chemistry. 2001;2:91-104.
[Google Scholar]

[43] Wienk B.H., Tomaselli S., Bernard C., Spurio R., Picone D., Gualerzi C.O., Rolf B., . Solution structure of the C1-subdomain of Bacillus stearothermophilus translation initiation factor IF2. Protein Sci.. 2005;14:2461-2468.
[Google Scholar]

[44] Yu Wang Zh., Shimonaga M., Kobayashi M., Nozawa T., . N-terminal methylation of the core light-harvesting complex in purple photosynthetic bacteria. FEBS Lett.. 2002;519:164-168.
[Google Scholar]

[45] Yusupov M.M., Yusupova G.Zh., Baucom A., Lieberman K., Earnest T.N., Cate J.H.D., Noller H.F., . Crystal structure of the ribosome at 5.5 Å resolution. Science. 2001;292:883-896.
[Google Scholar]

[46] Zheng X.L., Sun H.Y., Law C.K., . Thermochemical and kinetic analysis on oxidation of isobutenyl radical and 2-hydroperoxymethyl-2-propenyl radical. J. Phys. Chem. A. 2005;109:9044-9053.
[Google Scholar]

Theoretical study of fMet-tRNA and fAla-tRNA structures by using quantum calculation

Abstract

Keywords

fMet-tRNA

fAla-tRNA

DFT

NBO

NMR

1 Introduction

2 Computational details

3 Results and discussion

3.1 Geometry optimization

3.2 NBO analysis

3.3 NMR parameters

3.4 Frequency calculations

4 Conclusion

References

Suggested read for related articles:
