Using partial least squares and principal component regression in simultaneous spectrophotometric analysis of pyrimidine bases

1 Introduction

Pyrimidine bases are the building blocks in both DNA and RNA which in turn play important roles in cell metabolism. Base changes in DNA may seriously affect the structure and function of products of gene expression protein, which is considered the main cause of inherited diseases and most human cancers (Vnencak-Jones, 1999; Lane, 1999; Lindblom and Nordenskjold, 1999). Among the pyrimidine bases, uracil (URA), cytosine (CYT) and thymine (THY) can be mentioned.

URA, a common and naturally occurring pyrimidine derivative (Garrett and Grisham, 1997), originally was discovered in 1900 and was isolated by hydrolysis of yeast nuclein that was found in bovine thymus and spleen, herring, sperm, and wheat germ (Brown, 1994). URA can be used for drug delivery and also as a pharmaceutical drug. URA is used in the body to help carry out the synthesis of many enzymes necessary for cell functions through bonding with riboses and phosphates (Garrett and Grisham, 1997). It serves as an allosteric regulator and coenzyme for reactions in the human body and in plants. URA is also involved in the biosynthesis of polysaccharides and the transportation of sugars containing aldehydes (Brown, 1998). It can also increase the risk for cancer in cases where the body is deficient in folate (Mashiyama et al., 2004). URA derivatives containing a diazine ring are used in pesticides (Pozharskii et al., 1997).

CYT is one of the five main bases found in DNA and RNA. It is a pyrimidine derivative with a heterocyclic ring and two substituents attached (an amine group at position 4 and a keto group at position 2) (Kossel and Steudel, 1903). Recently, CYT has been used in quantum computation. CYT can be found as a part of DNA, RNA, or a nucleotide.

THY is one of the four bases in the nucleic acid of DNA and it is also known as 5-methyluracil. THY may be derived by methylation of URA at the 5th carbon. THY could also be a target for actions of 5-fluorouracil (5-FU) in cancer treatment. 5-FU can be a metabolic analog of THY (in DNA synthesis) or URA (in RNA synthesis). THY bases are often oxidized to hydantoins over time after the death of an organism (Hofreiter et al., 2001).

Many areas such as pharmacological studies, clinical diagnosis and DNA damage assay need a quick, inexpensive and accurate method for the determination of pyrimidine bases (Cadet and Weinfeld, 1993; Tseng et al., 1994; Lin et al., 1997; Ames, 1998; Atamna et al., 2000; Ames and Acad, 1999). Because of the central biological significance of nucleic acids, it is important to know as much as possible about their function, their structure, and their chemical composition.

High performance liquid chromatography (HPLC) is a commonly used method for the analysis of pyrimidine bases (Perrett and Simmonds, 1990; Grune et al., 1993; Minniti et al., 1998). Capillary electrophoresis (CE) is a powerful alternative to HPLC for the separation of charged and polar compounds (Yang et al., 1997; Altria, 1999; Fritz, 2000; Krylov and Dovichi, 2000). CE has been successfully used for the analysis of nucleic acids and nucleotides because they are negatively charged in neutral pH buffer (Boyce, 2001; Cohen et al., 1987; Deforce et al., 1996; Geldart and Brown, 1998). A spectrophotometric technique is always an acceptable alternative chemical analysis method, because of its acceptable precision and accuracy, associated with its lower cost compared to other techniques.

Multivariate spectral calibrations are also new standard methods for performing quantitative spectral analysis. Among the different regression methods existing for multivariate calibration, the factor analysis based methods including partial least squares (PLS) regression and principal component regression (PCR) have received considerable attention in chemometrics (Martens and Naes, 1989). PLS and PCR perform data decomposition into spectral loadings and scores before model building with the aid of these new variables. In PCR, the data decomposition is done using only spectral information, while PLS employs spectral and concentration data. These techniques are powerful multivariate statistical tools that have been successfully and widely used in the quantitative analysis of spectroscopic data. They are strong enough to overcome common statistical problems such as co linearity, band overlaps and interactions (Martens and Naes, 1989; Boyce, 2001; Cohen et al., 1987; Deforce et al., 1996; Geldart and Brown, 1998).

This study aims to use PCR and PLS to develop a suitable method for simultaneous spectrophotometric determination of CYT, THY and URA.

2 Experimental

3 Results and discussion

3.1

3.1 Spectral characteristics

The electronic absorption spectra of URA, CYT and THY are shown in Fig. 1. As it can be seen, the spectrum of each component is overlapped with each other. Thus, these compounds cannot be analyzed in the presence of each other by a simple calibration procedure without prior separation. Therefore multivariate calibration was used to resolve the spectra and to determine each component in the mixtures. The composition data of the solutions are listed in Table 1. On spectral data, it was recorded in the region between 220 and 320 nm (1.00 nm steps). The same method was performed for validation, artificial and unknown samples.

Close

Figure 1

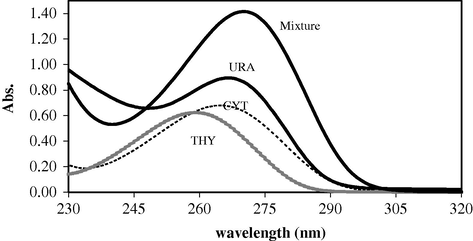

Absorption spectra of URA (6.5 μg ml⁻¹), CYT (6.5 μg ml⁻¹), THY (6.5 μg ml⁻¹), mixture (URA (19.4 μg ml⁻¹), CYT (7.8 μg ml⁻¹), THY (1.3 μg ml⁻¹)) at pH 7.0 and T = 273 K.

Export to PPT

3.2

3.2 Univariate calibration

Individual calibration curves were constructed with several points (Fig. 2), as absorbance versus pyrimidine bases concentration in the range 1.12–22.42, 1.11–27.78 and 1.26–25.22 μg mL⁻¹ for URA, CYT and THY, respectively. The maximum wavelength of URA is 259, that of CYT is 267 and that of THY is 265. The wavelengths used to make calibration curves were 220–320 nm. Linear regression results, line equations and R² are shown in Fig. 2.

Close

Figure 2

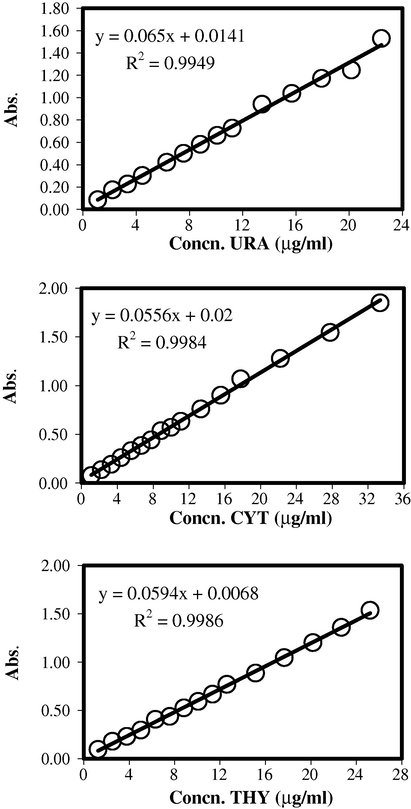

Analytical curves for univariate determination of URA, CYT and THY.

Export to PPT

3.3

3.3 Multivariate calibration and prediction

Multivariate calibration methods such as PCR and PLS require a suitable experimental design of the standard that belongs to the calibration set to provide good prediction. In this study, the mixture design was used for experimental design. It is important to use a method of selection that does not create an underlying correlation among the concentrations of the components.

3.3.1

3.3.1 Selection of the optimum number of factors

The optimum number of factors (latent variables) to be included in the calibration model was determined by computing the prediction error sum of squares (PRESS) for cross validation models using a high number of factors (half the number of total standard + 1), which is defined as follows:

(1)

$$\text{PRESS}={\displaystyle \sum _{i=1}^n}{({\widehat{c}}_i-c_i)}^2$$ where c_i is the reference concentration for the i th sample and ${\widehat{c}}_i$ represents the estimated concentration (Stone, 1974; Despagne and Massart, 1997). The cross-validation method is employed to eliminate only one sample at a time and then PLS calibrates the remaining standard spectra. By using this calibration the concentration of the sample left out was predicted, this process was repeated until each standard left out once.

One reasonable choice for the optimum number of factors would be the number that yielded the minimum PRESS. Since there are a finite number of samples in the training set, in many cases the minimum PRESS value causes over-fitting for unknown samples that were not included in the model. A solution to this problem has been suggested by Haaland et al. in which the PRESS values for all previous factors are compared with the PRESS value at the minimum (Haaland and Thomas, 1988). The F-statistical test can be used to determine the significance of PRESS values greater than the minimum. The maximum number of factors used to calculate the optimum PRESS was selected and the optimum number of factors obtained by PCR and PLS model is summarized in Table 3. PLS and its relation to PCR and heuristic arguments are presented to explain that PLS needs fewer factors to give optimal prediction (Helland, 1988). In all cases, the number of factors for the first PRESS values whose F-ratio probability drops below 0.75 was selected as the optimum. Plots of PRESS vs. number of factors by PCR and PLS are shown in Fig. 3.

Table 3 Statistical parameters of the optimized matrix using the PLS and PCR.

Method	Component	NPC	PRESS	RMSEP	RSEP (%)
PLS
	URA	4	2.9915	0.5469	5.1480
	CYT	5	0.7292	0.2700	1.7663
	THY	3	2.5876	0.5087	3.7312
PCR
	URA	6	2.7902	0.7067	6.6715
	CYT	8	2.4827	0.5093	3.2528
	THY	5	4.0570	0.6371	4.7094

Close

Figure 3

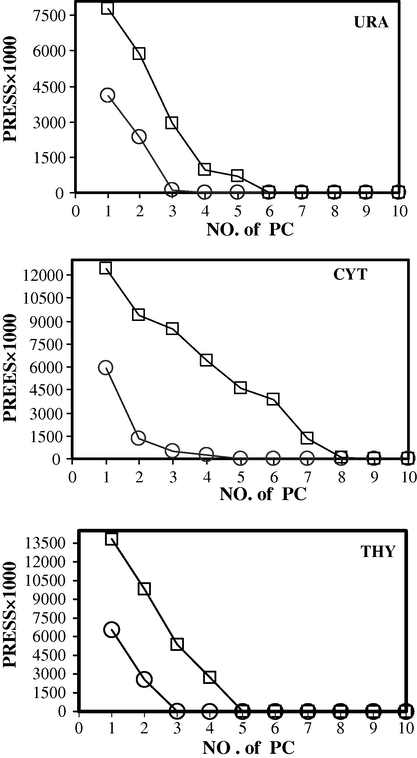

Plots of PRESS vs. number of factors by PCR (□) and PLS (○).

Export to PPT

3.3.2

3.3.2 Statistical parameters

To evaluate the predictive ability of a multivariate calibration model, the root mean square error of prediction (RMSEP) and relative standard error of prediction (RSEP) can be used Lin et al., 1997:

(2)

$$\text{RMSEP}={\left[\frac{1}{n}{\displaystyle \sum _{i=1}^n}{(c_{\text{pred}}-c_{\text{obs}})}^2\right]}^{0.5}$$

(3)

$$\text{RSEP}(\%)=100{\left[\frac{{\displaystyle \sum _{i=1}^n}{(c_{\text{pred}}-c_{\text{obs}})}^2}{\sum {(c_{\text{obs}})}^2}\right]}^{0.5}$$ where c_pred and c_obs are the predicted concentration and the observed value of the concentration in the sample, respectively, and n is the number of samples in the validation set. The values of RMSEP and RSEP for URA, CYT and THY are summarized in Table 3. In all instances, the values of R² obtained are excellent (>0.99).

3.3.3

3.3.3 Resolution of synthetic mixtures

The predictive ability of the method was determined using 10 three-component mixtures (their compositions are given in Table 2). The results obtained by applying PCR and PLS algorithm to 10 synthetic samples are listed in Table 2 which also shows the recovery for the synthetic series of URA, CYT and THY mixtures. As it can be seen, the recovery was also acceptable. The plots of the prediction concentration versus actual values by PLS are shown in Fig. 4 for URA, CYT and THY (line equations R² values are also shown).

Close

Figure 4

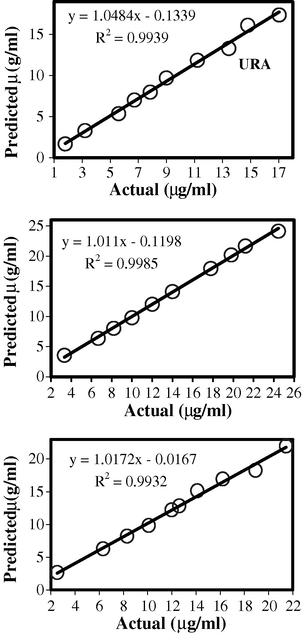

Plots of predicted concentration vs. actual concentration of URA, CYT and THY by PLS.

Export to PPT

3.3.4

3.3.4 Determination of URA, CYT and THY in spiked real samples

To assess the reliability of the method, 6 real sample preparations were analyzed. Table 4 shows the results as well as the composition of the real samples. The validation of the method has been carried out by comparing with the labeled amounts. As it is clear, the recovery was quantitative and there were no significant differences between the amounts obtained from this method and the labeled amounts.

Table 4 Recoveries of CYT, THY and URA in spiked real samples by PLS.

Mixtures	Added (μg/ml)			Found (μg/ml)			Recovery (%)
	URA	CYT	THY	URA	CYT	THY	URA	CYT	THY
Serum samples
S1	7.85	15.56	6.31	7.96	16.59	6.13	101.40	106.62	97.15
S2	13.45	7.78	11.35	13.26	7.45	12.11	98.59	95.76	106.70
S3	4.48	11.11	17.66	4.26	11.39	17.34	95.09	102.52	98.19
S4	6.72	12.22	11.35	11.97	8.90	4.80	97.08	100.11	95.24
S5	12.33	8.89	5.04	8.18	13.12	12.51	97.27	98.42	99.21
S6	8.41	13.33	12.61	7.96	16.59	6.13	101.40	106.62	97.15
Plasma samples
P1	7.85	15.56	6.31	7.53	15.35	6.24	95.92	98.65	98.89
P2	13.45	7.78	11.35	13.74	7.64	11.30	102.16	98.20	99.56
P3	4.48	11.11	17.66	4.32	10.66	18.34	96.43	95.95	103.85
P4	6.72	12.22	11.35	13.05	9.50	5.01	105.84	106.86	99.40
P5	12.33	8.89	5.04	8.35	13.92	11.83	99.29	104.43	93.81
P6	8.41	13.33	12.61	7.53	15.35	6.24	95.92	98.65	98.89
Urine samples
U1	7.85	15.56	6.31	7.63	15.79	6.46	97.20	101.48	102.38
U2	13.45	7.78	11.35	13.18	7.61	11.04	97.99	97.81	97.27
U3	4.48	11.11	17.66	4.34	11.48	18.49	96.88	103.33	104.70
U4	6.72	12.22	11.35	11.64	8.52	5.06	94.40	95.84	100.40
U5	12.33	8.89	5.04	8.70	13.97	12.42	103.45	104.80	98.49
U6	8.41	13.33	12.61	7.63	15.79	6.46	97.20	101.48	102.38

4 Conclusions

This study aimed to determine the amount of pyrimidine bases (i.e., uracil, cytosine and thymine) while they are mixed together. The overlapping of signals corresponding to the mixture made it necessary to use multivariate analysis tools including principal component regression or partial least squares to determine each pyrimidine base separately in their mixture. PLS seems to get its optimal prediction with fewer factors than PCR. Besides, PLS reaches better values of the PRESS, RMSEP and relative RSEP. Also unlike PCR, the PLS method gives a unique way of choosing which factor to include next. The results on data sets of URA, CYT and THY mixtures demonstrate that the predictive ability of the models obtained was very good and satisfactory. It can be concluded that the spectrophotometric method which was used in this study is more simple and inexpensive. The good agreement clearly shows the utility of this procedure in simultaneous spectrophotometric determination of URA, CYT and THY in human serum, human urine and plasma samples.
