Excellent protection of mild steel in sodium chloride solution for a substantial period of time using a hybrid nanocoating of poly vinyl alcohol and Titania
⁎Corresponding author. abrahamjoseph@uoc.ac.in (Abraham Joseph)
-
Received: ,
Accepted: ,
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.
Peer review under responsibility of King Saud University.
Abstract
The production of eco-friendly hybrid sol–gel coatings for long term protection of metallic substrates from aggressive environments was one of the emerging areas, competing with conventional chromate and phosphate coatings. Herein, a nanocomposite has been synthesized from TiO2 and PVA through a novel sol-gel route and the structure and morphology of the same was characterized using X-ray diffraction, FTIR, UV–Vis spectroscopy, FESEM with EDAX, and AFM studies. The flower-like structured composite offers excellent corrosion protection properties in NaCl solution of sea water salinity. Impedance and polarization studies were carried out to monitor the anticorrosion performance of the materials coating. This coating on mild steel offers 98% inhibition efficiency in NaCl. The influence of loading PVA on TiO2 and its effect on corrosion efficiency have also been investigated. It is found that an optimum weight of 20 wt% PVA is required in the composite for beneficial corrosion resistance. 92% inhibition efficiency is registered by the coated MS in NaCl solution after 40 days of exposure and is quite encouraging compared to many of the recent reports. The Ti–O–Ti, and Fe-Ti-O linkage along with compactness and adherence of the material together contribute to better blocking of steel corrosion.
Keywords
Nanocomposite
Hybrid material
TiO2
PVA
Corrosion inhibition
1 Introduction
The design and fabrication of flexible nontoxic hybrid materials in simple and viable methods are needed to meet the demands of industry for various purposes including the protection of metals/materials from aggressive environments. Mild steel is a common material used in industries due to low cost, high tensile strength and availability. But its corrosion prone nature is a fundamental concern of industrialists and scientists which needs to be addressed using new materials and methods. Many disasters have reported from industrial sectors due to metallic corrosion through the interaction of materials and medium/electrolyte. The medium encountered in corrosion are usually electrolyte containing dissolved ionic species (Ramya et al., 2015; Anupama et al., 2015). The presence of chloride ions promotes rapid attack of metallic substrate and also localized attack depending on the concentration of electrolytic solutions/medium of corrosion. The pH of 3.5 wt% NaCl is normally near 5.8 at room temperature, which is more or less close to the salinity of sea water (Vignesh et al., 2017). For many decades corrosion prone metals were managed by using hexavalent chromate species, an eco-toxic material which is being replaced widely with more environmentally benign materials (Tsapakos et al., 1983; Liu et al., 2005; Chou et al., 2001). TiO2 is widely accepted as an ideal candidate in the field of energy and environmental crisis. Its self-assembled 2D nanomaterials has been attracted scientists on account of the capability of achieving excellent properties upon modification as functional materials such as pollutant degradation, catalysis, water-purifications, biomedical materials, solar cells and protective materials such as coated layers on metals (Geng et al., 2020; Zhao et al., 2019; Ge et al., 2020; Wang et al., 2020; He et al., 2020; Zhang et al., 2017; Zhang et al., 2018). The use of sol–gel based Titania coatings is a very simple and most promising method (Luo et al., 2012; Sinapi et al., 2002) to protect different metals/materials in aggressive environments. The issue with simple TiO2 coating on metals is the development of surface defects/cracks on prolonged exposure which adversely affect the efficiency of protection (Palomino et al., 2006). The development of a corrosion resistant hybrid material with both organic and inorganic moiety is an alternative way in which the organic part offers improvement in the adhesion characteristics of the coating while inorganic part enhances the hardness and the scratch resistance of the coating (Lakshmi et al., 2013). The sol–gel process allows the introduction of organic groups including polymers into the TiO2 matrix easily and thus the method forms a promising strategy of developing a super protective coating with increased physical properties (Cohen, 1995; Van Ooij and Child, 1998; Zhu and van Ooij, 2003; Ning et al., 2012; Van Ooij et al., 2000; Donley et al., 2003; Zheludkevich et al., 2007; Wang and Bierwagen, 2009). M. Catauro et al. synthesized OIH materials by sol–gel method using TiO2 for the inorganic matrix and poly(ε-caprolactone) as organic component. The material produced was used to improve the performance of Ti6Al4V implants (Catauro et al., 2017). Recently Hongjun Kan et al. was fabricated a novel nanostructured TiO2 mesh membrane by a simple electrochemical anodization and heating process which showed anticorrosive ability (Kang et al., 2018). Xiaokun Cui et al. investigated the anticorrosion ability of the PDMS/TiO2 composite coating on the AA 2024 (one of the aluminium alloy). The long term immersion experiments of coating were performed and the results demonstrated that the coating still had a protective effect on aluminum after 40 days of immersion (Cui et al., 2018). Balaji et al. have been made attempts to form smart/intelligent, corrosion resistant nanocomposite coatings through sol–gel process by self-assembly method. Chitosan-doped-hybrid/TiO2 nanocomposite based sol–gel coating for the corrosion resistance of aluminum metal in 3.5% NaCl medium coating exhibited better protection from corrosion (Balaji and Sethuraman, 2017). Most of the data available in the literature suggest that OIH sol – gel materials have an enormous potential in the field of anticorrosion coatings. Recently many studies have focussed on eco-friendly TiO2 based organic/inorganic nanocomposite films (Zheludkevich et al., 2007). Researchers applied various methods to improve the barrier properties and corrosion protection efficiency TiO2 using inorganic- organic hybrid materials, however, these methods are cumbersome and economically non-viable. Utilizing the epoxy resin modified coating of Titania and PVA hybrid through in situ poly-condensation can obviously improve the corrosion protection properties of the material through better adhesion and high chemical and electrical resistances. There are a few experiments available in literature which deal with the an corrosion protection properties of PVA with TiO2 on the steel surface (Ramezanzadeh et al., 2015; Jaseela and Joseph, 2018). In this paper we focus on (1) the preparation of multifunctional hybrid TiO2- PVA nanocomposite with very good anticorrosion properties (2) an in-expensive green modifier PVA is used for the development of corrosion resistant flower like nanocomposite coatings (3) characterization XRD, absorption spectra, FTIR, FESEM with EDAX, and AFM (4) evaluation and investigation of anticorrosion performance of hybrid coating on mild steel in NaCl solution.
2 Experimental part
2.1 Materials and methods
The reagents titanium ethoxide and poly vinyl alcohol are from Spectrochem Pvt. Ltd India and triethanolamine and sodium chloride Merck (India) Ltd. The pre and post treatment of mild steel specimens were done as per the ASTM recommendation.
2.2 Coating strategy
TiO2- PVA sol was synthesized by the hydrolysis ethanolic solution of titanium ethoxide and triethanolamine. Ethanolic solution (50 mL) of titanium tetra ethoxide (6 mL) was mixed with triethanolamine (6 mL) and stirred using a magnetic stirrer for 15 min. 8 mL of distilled water was then added to this mixture dropwise and stirred for about 3 h at room temperature. A homogeneous TiO2 sol was obtained on keeping the reaction mixture under stirrer for 2.5 h. A solution of PVA (0.2 g) dissolved in 25 mL water maintained at 70 ˚C was then added drop wise into TiO2 sol with vigorous stirring for 3 h to obtain TiO2-PVA nanocomposite. TiO2-PVA sol with different weight percentage (10–30 wt%) of PVA was then prepare by similar method. The coatings modified with PVA at 10, 20, 30 wt% were named as TPVA1, TPVA and TPVA2 respectively. The surface preparation of mild steel coupons of composition (atom %): Fe(98.75%), C(0.2%), Mn (1%), S(0.02%), and P(0.03%) was carried out as per ASTM specifications. The dried metal coupon was then dip-coated by using a dip coater with a withdrawal speed of 10 mm/min. After air – drying, the coupons were dried in an oven at 130 °C for 1 h (gel densification step) and finally heat-treated in a muffle from 28° C to 200 °C (5 °C /min) for 2 h.
2.3 Material characterization
The functional groups present on the coated metal surface was studied by using the scraped TPVA coating from the mild steel surface and made pellet with KBr and analysed using FTIR 4100 spectrometer (JASCO, Japan) in the range 400–4000 cm−1. The UV–visible spectra of samples were recorded in 550 UV–Vis spectrophotometer (JASCO, Japan) in the range of 200–800 nm. The morphology and elemental composition of coated and bare mild steel were studied by FESEM and EDAX (FESEM, Zeiss, Germany). AFM studies of the samples were carried out by using APER-A-100 SPM (Germany) in contact mode. X-ray diffraction pattern was recorded using MINIFLEX-600 diffractometer (RIGAKU, Japan) with Cu Kα (λ = 1.5406 Å) scanned in the range at 2θ 10° to 90°.
2.4 Corrosion tests
Corrosion protection properties of PVA loaded TiO2 coating on mild steel were evaluated using impedance (EIS) and polarization (PDS) methods by exposing the metal coupon in 3.5 wt% NaCl solution using Gill AC potentiostat (model number 1475). A cell setup with three electrodes was used for electrochemical studies, in which a platinum foil as a counter electrode, SCE as the reference electrode and the mild steel coupon as working electrode. Nyquist and Tafel data were recorded for both non-coated and coated metal specimens. Alternating Current impedance measurements were carried out at Ecorr in the range from 0.1 Hz to 10 kHz with amplitude of 10 mV.The protection efficiency was calculated using charge transfer resistance using Eq. (1),
where and RCt represents the charge transfer resistance for the coated and bare mild steel coupons.
The polarization behaviour of the material was studied at a scan rate of 60 mVs−1 and a scan range of − 250 mV to + 250 mV and protection efficiency was calculated using corrosion current density using Eq. (2)
where represents the corrosion current density of the coated and bare mild steel coupons.
3 Results and discussion
3.1 Fourier transform infrared spectroscopy
The FTIR spectra of TPVA coating is shown in Fig. 1 A. Typically the Ti-O, Ti-O-Ti stretching and bending modes was in the range of 500–900 cm−1 which was slightly shifted to 400–700 cm−1 due to the introduction of PVA in the TiO2, confirmed the cross-linked structure of the hybrid nanocomposite. The band at 570 cm−1 could be assigned to the stretching mode of Fe-O-Ti bond (Kim et al., 2013). The presence of this bond further confirms the good adhesion of this sol–gel on metal surface through Fe-O-Ti bond. The band at 1079 cm−1 was assigned for Ti-O-C stretching mode. The peak registered at 1,474 cm−1 was assigned to be the C-H bending vibration. The symmetric and anti-symmetric C–H stretching of methylene groups are registered at 2860 cm−1 2931 cm−1 respectively (Vignesh et al., 2017; Karthik and Sethuraman, 2015; Das et al., 2008). The IR results clearly indicates the presence of a substantial amount of organic groups on the metal surface.
(A) FTIR spectra (B) XRD (C) UV spectra (D) Tauc plot of TPVA composite coating on mild steel.
3.2 X-ray diffraction (XRD) studies
The X-ray diffraction patterns of TPVA coating is shown in Fig. 1B and this XRD pattern confirming that the amorphous TiO2 particles present in the coating on mild steel are nanosized (Zhang and Banfield, 2002). The major peaks obtained in the range 2θ equal to 25.35°, 48.63°, 62.58° from the planes (1 0 1), (2 0 0), and (2 1 3) respectively. The results are in accordance with the data base (JCPDS No 75–1537) showing the presence of complete anatase phase of titania in the coating on mild steel.
3.3 Absorbance spectra
The reflectance spectra (DRS) and Tauc plot of the material are shown in Fig. 1C and D. The peak in the region of 200–400 nm, corresponds the strong absorption in that region, is the characteristic peak of TiO2 which confirms the presence of TiO2 in the coating. The band gap energy calculated from Tauc plot is 2.1 eV. The lower band gap energy of the material would be a clear indication of its good inhibition efficiency by lowering the energy required to remove the most loosely bound electron from the HOMO (Anupama et al., 2016).
3.4 FESEM/EDAX analysis
Fig. 2 depict the field emission SEM image of bare and coated mild steel. Generally, pure TiO2 coating results coating with cracks and enable localized attack of the material on prolonged use and PVA loading minimizes this tendency of the coating. The TiO2-PVA nanocomposite exhibit flower-like distribution on the metal surface and get uniformly coated on metal surface without any cracks. This stable coating will not allow the passage of solvents or other ions responsible for the material deterioration. It can be seen from Fig. 3 that after 40 days of exposure of the coated material in NaCl, the metal surface has uniform coating and good barrier properties. The EDAX spectrum given in Fig. 3 C which obtained from the surface scrap after 40 days of immersion in NaCl solution shows peaks corresponding to TiO2 and C and N which could be due to the presence of organic part in the coating.
FESEM image of (a) bare mild steel (b) TPVA1 (c) and (d) TPVA2 (e) and (f) TPVA coated on mild steel at different magnification.
FESEM image of (A) The damaged mild steel surface (B) TPVA coating (C) corresponding EDAX spectra on mild steel immersed in 3.5 wt% NaCl medium after 40 days. (D) and (E) AFM image showing the surface topography bare mild steel and TPVA coated mild steel respectively.
3.5 AFM analysis
The topography of coated and bare mild steel generated using 3D AFM technique are given in Fig. 3E and D. The surface roughness (RMS) value obtained for bare and coated mild steel samples are 0.23 µm, 0.28 µm respectively. This value discloses that the addition of PVA into the Titania matrix leads to increase in roughness. The presence of nanoparticles into mild steel matrix is further understood by the hindrance of free movement of the AFM tip (Radwan et al., 2015).
3.6 Monitoring of corrosion inhibition
3.6.1 Impedance spectroscopic studies
EIS is a powerful tool usually employed for the monitoring and prediction of the corrosion and subsidiary processes when coatings are involved (Brassard et al., 2012). The data generated through the EIS studies could be simulated by numerical fitting with Zip Win software (Gill AC) using the best fit equivalent circuits as shown in Fig. 4A and B. Impedance parameters like solution resistance (Rs), charge transfer resistance (Rct), electric double layer capacitance at the metal/electrolyte interface (Qdl), coating capacitance (Q2) and double layer capacitance (Q1)at the metal-coating interface are obtained from impedance studies and data manipulations. In these circuits, CPEdl have been used instead of pure double layer capacitance (Cdl) because of the non-ideal character of the impedance responses (Vignesh et al., 2017). The Rct is used to predict the degree of easiness of the corrosion process. As the charge transfer impedance increases the more difficult it is to react. The Rct was inversely proportional to the defects in the coating on the metal surface. The double layer capacitance, Qdl, was generated by two dissimilar charge layers on the material surface (Cui et al., 2018). Nyquist plots are shown in Fig. 5A and B. The resistance against corrosion in this aggressive medium can be evidenced from the large Rct values. Herein throughout the studies the Rct value of coated sample was higher than bare metal which accounts for the extended barrier property of coating and better resistance towards corrosion in this aggressive saline environment.
Proposed Equivalent circuit model and corrosion mechanisms for (a) and (c) bare (b) and (d) modified samples.
Nyquist plots for (A) (a) bare mild steel (b) TPVA1 (c) TPVA (d) TPVA2 coated on mild steel dried at 200 ˚C in 3.5 wt% NaCl medium (inset: bare mild steel). (B) TPVA immersed in 3.5 wt% NaCl medium (a) after 15 days (b) 30 days (c) 40 days (C) Frequency vs phase angle plots for (a) (a) bare mild steel (b) TPVA1 (c) TPVA (d) TPVA2 coated on mild steel.
It is evident from Fig. 5A and B and table 1 that the coating resistance, as well as charge transfer resistance of coated mild steel, gradually increased with increasing concentration of PVA. A high Rct (3.2 × 104 Ω cm2) and low coating capacitance (112 μF/cm2) value was obtained by TPVA coating in comparison to other coated samples and register an inhibition efficiency of 98.6%. The results further support the view that the increased loading of PVA from 10 to 20 wt% in the TiO2 matrix led to higher corrosion inhibition performance with impedance modulus of 2.15 × 104 to 3.26 × 104 Ω cm2 .But with 30 wt% PVA (1.45 × 104 Ω cm2) the inhibition efficiency showed a reverse tendency and based on these results the order of the corrosion inhibition efficiency is suggested as follows: TPVA1 < TPVA > TPVA2. It can be concluded well that there is an optimum PVA load is required for improving the corrosion protection properties of the of the material, while higher loading leads to the formation of a breakable film with poor barrier properties may be due to the development of increased defects on the formed sol– gel layer (El-Lateef and Khalaf, 2015). So, here in this study an optimum of 20 wt% of PVA is fixed in TiO2 which gives higher protection efficiency.
Sample code
Rs(Ω cm2)
Q (μF/cm2)
Rc(Ωcm2)
Qdl (μF/cm2)
Rct(Ωcm2)
I E %
Bare mild steel
1.25
458
–
–
447
TPVA 1
24.8
198
339.7
3.86
21,548
97.9
TPVA
2.26
112
190.2
2.28
32,600
98.6
TPVA 2
5.46
134
145.2
4.4 4
14,587
96.9
Blank 15 days
3.89
576
–
–
259
TVA 15 days
33.68
188
616.4
2.8 7
6937
96.3
Blank 30 days
14.65
619
–
–
188
TVA 30 days
6.96
221
196.3
3.92
3044
93.8
Blank 40 days
8.95
654
–
–
102
TPVA 40 days
10.94
275
244.9
4.88
1431
92.8
Bode plots of TiO2- PVA composite are given in Fig. 5C and D, for all coated samples unlike bare mild steel, one-time constant was not observed. Corrosion inhibition efficiency of TPVA coating on mild steel in 3.5 wt% NaCl for 10, 20, 30 and 40 days were investigated and the obtained impedance parameters were displayed in Fig. 5 and table 1. As evidenced from these, during the 1 h – 15 days of immersion, the impedance modulus value was reduced significantly from 3.26 × 104 to 6.97 × 103 Ω cm2. During 15–40 days of immersion, very small amount of corrosion products occurred. As the immersion time extended beyond 40 days, the electrolyte penetrated into the coating, and the protection barrier of the coating reduced little and the corresponding impedance modulus value shifted to lower values. Despite this, it has been found that after 40 days of immersion the protection efficiency remained as 92.8% suggesting better performance of the coated specimen and the corresponding morphology (FESEM) and element distribution (EDAX) pattern were given in Fig. 4.
3.6.2 Dynamic polarization studies
Potentiodynamic polarization studies have been widely used to follow the ability of the metallic substrates in aggressive corrosion environments (Balaji and Sethuraman, 2016). Tafel curves of coated and uncoated mild steel recorded after 1 h of immersion in NaCl solution are given in Fig. 6. Both cathodic and anodic Tafel n curves show significant shift to lower current densities for these coated samples compared to bare mild steel. Tafel parameters such as corrosion potential (Ecorr), corrosion current density (Icorr), inhibition capacity (IE%), Tafel slopes like βa and βc obtained by extrapolation are listed in Table 2. From these results, it can be concluded that Icorr decreased with increase in the concentration of PVA which is strong evidence for the extended protective nature of the coated steel surface. The Icorr of the TPVA was 0.0056 mA/cm2 much lower than the corresponding value of bare mild steel (0.2164 mA/cm2). The IE (%) obtained for TPVA1, TPVA, and TPVA2 are 95.1, 97.4, and 96.2% respectively. These results are more or less similar to that generated from impedance studies, a totally different approach in which the chance for error is more.

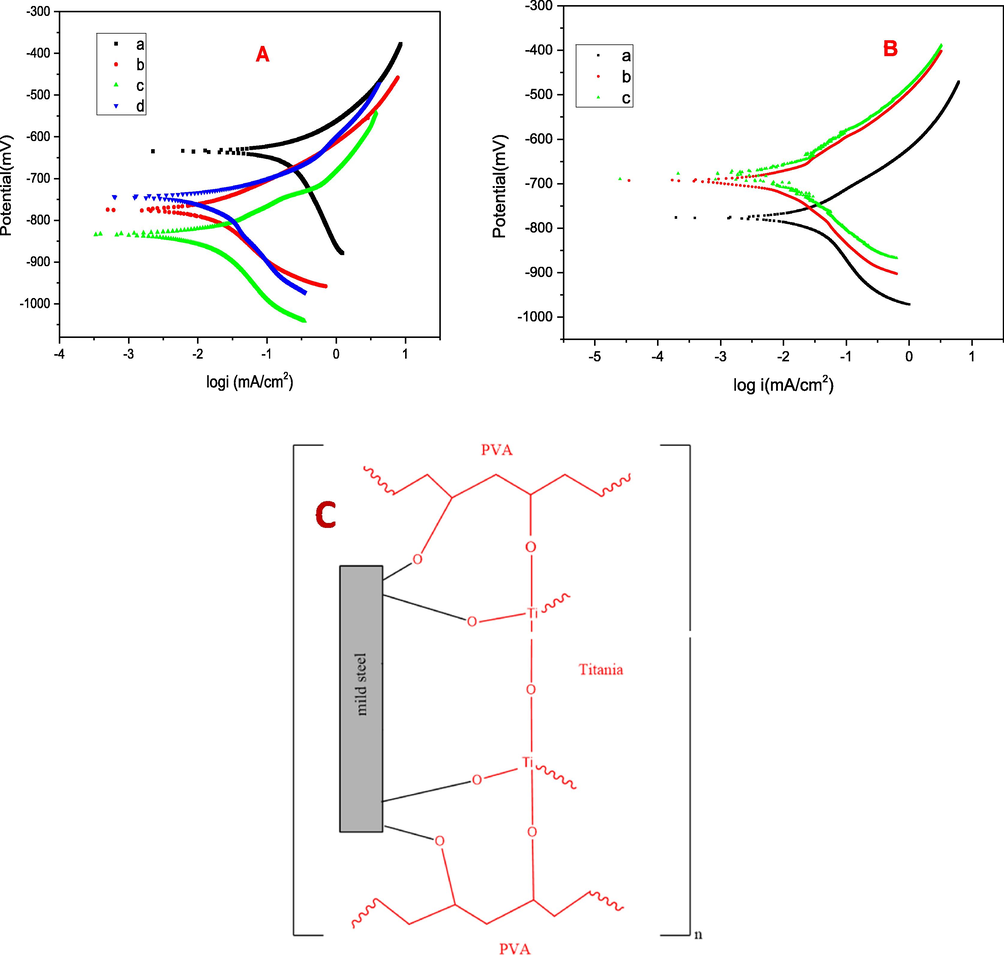

Tafel plots for (A) (a) bare mild steel (b) TPVA1 (c) TPVA (d) TPVA2 coated on mild steel dried at 200 ˚C in 3.5 wt% NaCl medium. (B) TPVA immersed in 3.5 wt% NaCl medium (a) after 15 days (b) 30 days (c) 40 days (C) Pictorial representation of proposedcoating mechanism on mild steel substrate.
Sample code
−ECorr(mV)
ICorr(mA/cm2)
βa(mV/dec)
βc(mV/dec)
I E %
Bare mild steel
652
0.2164
119.9
65.3
TPVA1
727
0.0105
140.8
31.9
95.1
TPVA
774
0.0056
101.6
56.7
97.4
TPVA2
832
0.0081
129.2
41.9
96.2
Blank 15 days
648
0.3054
115.5
79.2
TVA 15 days
769
0.0096
98.5
85.7
96.8
Blank 30 days
702
0.3998
100.8
95.9
TVA 30 days
696
0.0234
118.5
78.5
94.1
Blank 40 days
664
0.4959
148
106.2
TVA 40 days
691
0.03118
108.2
69.7
93.7
3.6.3 Mechanism of corrosion inhibition
The most probable mechanism is pictorially represented in Fig. 6C. Hydrolysis and condensation reactions of titanium ethoxide results in the formation of Ti-O-Ti sol–gel network. As the surface of TiO2 possesses large number of –OH groups which enables bond formation with PVA through the condensation type reaction. These weak bonds were transformed into stable covalent bond during the sintering process. TiO2-PVA hybrid material possess reasonable adhesion to the metal surface via chemical bonding. The Ti–O–Ti, linkage and Fe-Ti-O bond and compactness of the coated surface, could be attributed to the effective blocking of corrosion.
4 Conclusions
-
An eco-friendly and economically viable method has been developed for the synthesis of TiO2 - PVA coating on mild steel, by dip-coating technique and the material was characterized by advanced spectroscopic and microscopic techniques like FTIR, FESEM, EDX, AFM, UV and XRD.
-
The corrosion protection behaviour of the hybrid coating on mild steel in NaCl medium was evaluated by using EIS and Tafel methods.
-
Effects of PVA loading on corrosion efficiency have also investigated. The results show that an optimum loading of PVA(20 wt%) is required for the corrosion resistance and protection efficiency.
-
TPVA coating offers excellent protection to mild steel in 3.5 wt% NaCl for 40 days, which is much greater than the efficiency of conventional coatings in this period of time.
-
Without the incorporation of epoxy resins like adhesive materials into the metallic surface TiO2-TPVA hybrid material can coated with excellent barrier performance.
