Investigation of catalytic pyrolysis of spirulina for bio-oil production

2.1 Preparation of biomass

Spirulina microalgae were purchased from the Iranian Genetic Resources Research Center. This strain was cultured in Zarouk culture medium in several stages to prepare a sufficient amount of dry biomass for testing. Spirulina microalgae, after being separated from the culture medium, were first washed twice with deionized distilled water and then dried in the sun for 48  $\mathrm{h}$ and then in an oven at 55 ℃, the biomasses were ground to obtain a homogenous powder (particle size: 500–1000 $\mathrm{\mu }\mathrm{m}$ ). The results of elemental and approximate analysis along with the thermal value are given in Table 1.

2.2 Preparation of catalysts

The zeolite base used in the study was HZSM-5 zeolite procured from Iran Zeolite with a Si/Al ratio of 40. According to the producer, the specific surface of zeolite was 370 ${\mathrm{m}}^2{\mathrm{g}}^{-1}$ , with pore size equal to 5.5 $\mathrm{\AA }$ and crystallinity equal to 98 %. Cobalt (II) chloride hexahydrate $\mathrm{C}\mathrm{O}{\mathrm{C}\mathrm{l}}_2.6{\mathrm{H}}_2\mathrm{O}$  ≥ 97 % was purchased from Sigma-Aldrich. Cobalt metal catalyst was prepared using a moist incubation method (Pourkarimi et al., 2020). To this end, adequate amounts of the cobalt (II) chloride hexahydrate was mixed with the HZSM-5 base solution (Okoye-Chine et al., 2019), and then the sample was stirred on a magnetic plate (40 $\mathrm{r}\mathrm{p}\mathrm{m}$ , 25 ℃, and 4  $\mathrm{h}$ ) to make sure that the active metal is adsorbed to the base. Afterward, the samples were dried in an oven (80 ℃, 18  $\mathrm{h}$ ) and then calcinated in a furnace with a heating rate of 3℃ ${\mathrm{m}\mathrm{i}\mathrm{n}}^{-1}$ at 400 ℃. The catalyst powder was formed as a tablet using a hydraulic press device (60 $\mathrm{b}\mathrm{a}\mathrm{r}$ ) and then grounded with a mesh number of 60 and catalyst powder particle sizes 250–420 µm were selected for reactor experiments.

2.3 Catalyst analysis

Using X-ray (XRD, PHILIPS PW1730, Netherlands), the structural information of the catalysts was obtained. X-ray light source was CU/Ka with wavelength of 1.54056 $\mathrm{\AA }$ with 2θ values range from 10° to 90°, which was used to detect crystalline structure of Co/HZSM-5 catalyst. The surface morphology of the catalysts was studied by scanning electron microscope imaging (SEM, TESCAN MIRA III, Czech Republic). The functional groups of the catalyst were investigated and compared using the Fourier Transform Infrared Spectrometer (FTIR, THERMO AVATAR, USA). The specific surface of the catalysts, total volume of pores in the mass unit, and mean diameter of pores were obtained by Brunauer-Emmett-Teller theory (BET, BELSORP MINI II, Japan).

2.4 Experiment device

The experiment device was comprised of three major sections reformer (Sekar et al., 2021), pyrolysis reactor (Ayub et al., 2022), and condenser (Perego and Bosetti, 2011), which is illustrated in Fig. 1. Stainless steel 316 was used to build the reformer and pyrolysis reactor with electrical heat coat (Kumar et al., 2022). The system is comprised of three main parts, including pyrolysis reactor (4), reformer (10), and condenser (11). A pyrolysis reactor with a diameter of 7.8 cm, a height of 23 m, a capacity of 1 $\mathrm{L}$ , and a reformer reactor with a diameter of 5.4 cm, a height of 20 cm, and a capacity of 0.45 L were used. The reformer section used a quartz cylinder (1 cm in diameter and 20 cm in height) as the catalyst container so that for each experiment, the catalyst would be placed inside and stabilized between the input and output (connected to the condenser). ${\mathrm{N}}_2$ was used as the condenser gas at 140 atm pressure, which was converted into 1 atm using a regulator (2). As a cooling system, water and ice circulation was used as the condenser to cool down and alter the pyrolysis vapors phase (Mohamed et al., 2013). Direct pyrolysis experiments were done using the same setting without the catalyst container of the reformer section (Kabir and Hameed, 2017).

Close

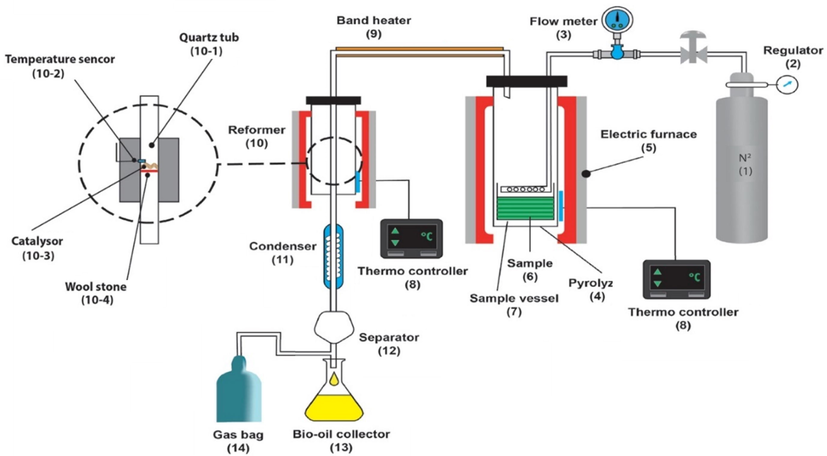

Fig. 1

The pyrolysis device schematic.

Export to PPT

2.5 Methodology

Similar to the method of Wu et al. (Wu et al., 2021): for each experiment, a 14 g dried biomass sample was placed in the reactor. Before beginning the pyrolysis experiments, nitrogen gas was passed through the system with a flow rate of 100 $\mathrm{m}\mathrm{l}{\mathrm{m}\mathrm{i}\mathrm{n}}^{-1}$ for 30 min to eliminate oxygen. The samples were heated from room temperature to different targets (425–625 ℃, 50 ℃) according to the designed heating rates (10–20 ℃ ${\mathrm{m}\mathrm{i}\mathrm{n}}^{-1}$ ) and nitrogen gas flow rates of 0.2–0.8 $\mathrm{L}{\mathrm{m}\mathrm{i}\mathrm{n}}^{-1}$ . The reactor was kept at the desired temperature for 30 min. At the end of each run, the system was turned off and allowed to cool to room temperature and the solid fraction (bio-char) was collected from the reactor. The liquid phase (bio-oil) generated from the cooling down of condensable gases was collected in a falcon (13), weighed, and stored for further analysis. The non-condensable gases were stored in a gasbag. All experiments were performed in duplicates and the average values are reported.

The optimum conditions for the highest bio-oil production efficiencies were temperature 468 ℃, carrier gas discharge rate equal to 0.31 $\mathrm{L}{\mathrm{m}\mathrm{i}\mathrm{n}}^{-1}$ , and heating rate equal to 14.4 ℃ ${\mathrm{m}\mathrm{i}\mathrm{n}}^{-1}$ . The reformer reactor was empty, but in catalytic pyrolysis, which is performed under optimal direct pyrolysis conditions, the catalyst is placed in the reformer reactor. The $\mathrm{C}\mathrm{o}$ /HZSM-5 catalyst with a loading ratio of 5 % (catalyst/feed ratio 1:10) was used. To this end, the catalyst container was prepared beforehand so that a metal mesh with a diameter of 1 cm would be fitted to the longitudinal center of the reformer cylinder and then an asbestos layer was used as coverage. Having bio-oil and biochar weighed, bio-oil, biochar, and biogas yield were obtained using Eqs. (1)–(3) (Biswas et al., 2017):

2.6 Analysis of the obtained bio-oil

To assess the quality of the bio-oil sample by detecting the compounds, the sample analysis was done using GC–MS 5975C (Agilent Technologies- American company). The qualitative parameters of the obtained fuel using CG-Mass and Biodiesel Analyzer (v.2.2), including iodine number, density, cetane number, and viscosity were determined. To perform elemental analysis, Flash EA1112 was used (Thermo Finnigan- American company) and the results yielded the highest heat value (HHV) using Eq. (4) (Pourkarimi et al., 2019b):

Where H, C, O, and S refer to hydrogen, carbon, oxygen, and sulfur weight percentage, which were measured using elemental analysis. Using Eq. (5), energy recovery for the two biomass type were examined (Song et al., 2014):

Where ${\mathrm{m}}_{\mathrm{b}\mathrm{i}\mathrm{o}\mathrm{m}\mathrm{a}\mathrm{s}\mathrm{s}}$ and ${\mathrm{m}}_{\mathrm{b}\mathrm{i}\mathrm{o}-\mathrm{o}\mathrm{i}\mathrm{l}}$ are weight of biomass and bio-oil.

3.1 Characterization

Fig. 2 illustrates XRD results for the catalyst used in the study. The pattern for HZSM-5 zeolite has a pointy and sharp peak at 2θ equal to 23.9 ° and two smaller peaks of the same size at 25.7 ° and 46 °. These peaks indicate the single-phase crystalline structure of the solid. As to $\mathrm{C}\mathrm{o}$ /HZSM-5 catalyst, it appears that the process of the metal deposit does not have any effect on the morphology and size of nanoparticles (Xiu and Shahbazi, 2012). As to Co catalyst based on zeolite base, adding the metal nanoparticles to the zeolite did not have a notable effect on the number and form of metallic catalyst peak compared to HZSM-5 catalyst. This can be due to the small size of metal nanoparticles and the low volume of loading on zeolite.

Close

Fig. 2

XRD analysis of the catalysts.

Export to PPT

The SEM analysis results for cobalt catalyst based on zeolite are shown in Fig. 3. Clearly, HZSM-5 catalyst has particles with polyhedron and smooth surface smaller than 5 µm. In addition, as shown for metal catalysts based on zeolite, they have a structure similar to HZSM-5 (Hao et al., 2021). Apparently, the process of metal deposition does not have a notable effect on the morphology and size of the nanoparticles (Sahoo et al., 2022).

Close

Fig. 3

SEM catalyst analysis of HZSM-5 (a) Co/HZSM-5 (b).

Export to PPT

According to Fig. 4 the FTIR spectrum of HZSM-5 is featured with two peaks at 454 ${\mathrm{c}\mathrm{m}}^{-1}$ and 548 ${\mathrm{c}\mathrm{m}}^{-1}$ which are because of $\mathrm{S}\mathrm{i}{\mathrm{O}}_4$ molecule vibration in zeolite (Behera et al., 2022). In addition, three peaks are observed at 796, 1089, and 1223 ${\mathrm{c}\mathrm{m}}^{-1}$ , which represent strain vibration of $\mathrm{S}\mathrm{i}-\mathrm{O}-\mathrm{A}\mathrm{l}$ structure (Hou et al., 2022). The next peak is at 1640 ${\mathrm{c}\mathrm{m}}^{-1}$ , which refer to vibration bond of water molecules. The last peak is at 3426 ${\mathrm{c}\mathrm{m}}^{-1}$ , which refers to $\mathrm{O}-\mathrm{H}$ bond strain bond caused by the adsorbed water (Shen and Zhang, 2003). The FTIR spectrum for metal catalyst based on zeolite (Co/HZSM-5) is similar to HZSM-5. Therefore, adding extra compounds such as $\mathrm{C}\mathrm{o}$ , does not cause notable changes in HZSM-5 so that zeolite keeps its molecular structure (Sahoo et al., 2022).

Close

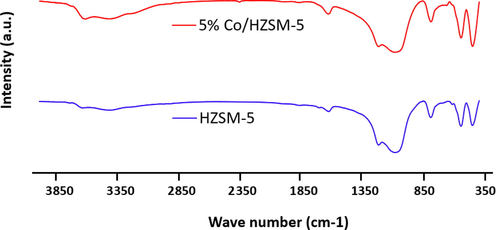

Fig. 4

FTIR analysis of the catalysts.

Export to PPT

The BET analysis including specific surface ( ${\mathrm{S}}_{\mathrm{B}\mathrm{E}\mathrm{T}}$ ), total pores volume ( ${\mathrm{V}}_{\mathrm{P}}$ ), and mean diameter of pores ( $\mathrm{A}\mathrm{P}\mathrm{D}$ ) is presented in Table 2. The specific surface and total pores volume of the Co/HZSM-5 catalyst is lower than that of the HZSM-5 catalyst, while the mean diameter of pores of the Co/HZSM-5 catalyst is greater than that of the HZSM-5 catalyst. The reason for this difference is metal nanoparticle residue on the base surface that might block smaller micro-pores on the surface. Moreover, the smaller zeolite pore blockage increases the mean pore size (Ren et al., 2018). The ICP analysis were conducted to determine metal nanoparticle volume on HZSM-5 in a more accurate way compared to the theoretical value (5 %) (Table 3). Taking into account the findings, the actual value of cobalt is acceptably near the expected values (Qian et al., 2021).

3.2 Quantitative assessment of the pyrolysis products

Catalyst pyrolysis experiments and direct pyrolysis of spirulina are listed in Table 3. The highest yield of bio-oil for spirulina was 48.51 %, from direct pyrolysis process. The primary comparison between bio-oil yield from direct pyrolysis and catalyst pyrolysis indicates that bio-oil yield decreased by 14.46 % after adding the catalyst. With the catalyst, the performance of catalytic cracking reactions was improved and with an increase in the light products (gasses) yield, bio-oil and biochar yield decreased. Advantage of spirulina microalgae as a feedstock for biochar is its fast growth rate ranging from 10 to 27 $\mathrm{g}{\mathrm{m}}^{-2}$  day; which directly impacts the rate at which biochar can sequester carbon (Sekar et al., 2021). Miao et al. (Miao and Wu, 2004) studied fast pyrolysis of cultivated microalgae species. They obtained oil yields of 17.5 % and 23.7 % from autotropic microalgae like Chlorella protothecoides and Chlorella aeruginosa, respectively, whereas the yield of bio-oil was 57.9 % from heterotrophic Chlorella protothecoides. Thangalazhy- Gopakumar et al. (Thangalazhy-Gopakumar et al., 2012) reported 25 wt% (carbon yield) of aromatics from chlorella species via catalytic fast pyrolysis using HZSM-5 catalyst at high catalyst:algae mass ratio (9:1). Importantly, the aro- matic fraction contained more monoaromatics like BTX (benzene, toluene, xylene), and the aromatic yield was significantly higher than that derived from red oak (Thangalazhy-Gopakumar et al., 2012). In another study, Rizzo et al. (Rizzo et al., 2013) reported that the organic phase of bio-oil from pyrolysis of chlorella was superior to that from lignocellulosic biomass in terms of low oxygen content, high heating value, low acidity and low density.

3.3 Elemental analysis

The outcomes of bio-oil elemental analysis from direct pyrolysis and catalytic pyrolysis experiment, maximum heat value, and calculated energy recovery for spirulina is indicated in Table 3. As shown in Table 4, the HHV is 34.43 $\mathrm{M}\mathrm{J}{\mathrm{k}\mathrm{g}}^{-1}$ and the highest energy yield (48.37 %) belongs to bio-oil with catalytic pyrolysis. The reason for this can be carbon/oxygen ratio based on elemental analysis; so that the maximum carbon content (60.5 %) and the lowest oxygen content (14.32 %) was observed in bio-oil sample obtained through catalytic pyrolysis. The carbon content increase and oxygen content decrease can increase HHV. This shows that while production yield of bio-oil decreases with catalyst, there is a considerable growth in HHV and energy yield of the fuel. Among the advantages of catalytic pyrolysis, the H/C ratio increase and O/C ratio decrease in bio-oil yield can increase heat value and energy yield of the fuel. Vankrolen introduced a diagram to compare optimum performance of different fuels based on H/C and O/C ratio in fuels (Ben et al., 2019). Fig. 5 illustrates Vankrolen’s diagram. The areas marked on the diagram indicate the optimum H/C and O/C ratios for different types of fuels for which the HHV and energy yield are obtained. The optimum range determined for H/C pyrolysis oil is in 1.3–1.6 range and for O/C it is in 0.2–0.4 range. The H/C ratio for bio-oil is not in the optimum range of Vankrolen diagram; while in the case of O/C ratio, the direct pyrolysis O/C ratio is in 0.43 range, which is beyond the optimum range in Vankrolen’s diagram. In the case of bio-oil generated through catalytic pyrolysis, this range is 0.2–0.3, which is the optimum range. Therefore, the bio-oil generated through catalytic pyrolysis of bio-oil has an optimum performance in terms of Vankrolen’s diagram, while the bio-oil of direct pyrolysis does not have an optimum performance because of O/C ratio.

Close

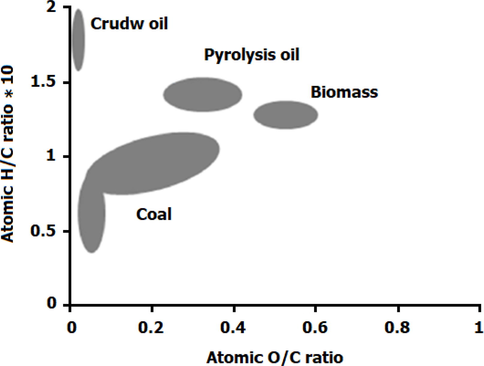

Fig. 5

Vankrolen diagram.

Export to PPT

3.4 Combinational analysis

The qualitative characteristics of biomass samples obtained from direct pyrolysis and catalytic pyrolysis can be studied through GC-Mass analysis. The GC-Mass analysis results for the samples are given in Table 5. Given the results of GC-mass analysis, the key compound groups in bio-oil samples include aromatic compounds, nitrogenated compounds, oxygenated compounds, Alkanes/Alkenes, and phenolic compounds. Using the catalyst, alkene/alkane content was increased. While the higher content of alkane/alkene can increase heat value of fuel, to some extent, presence of more efficient compounds like aromatics and oxygenated compounds overshadow their effect. Aromatic compound content increased due to using catalysts, which increased the HHV in comparison to the bio-oil collected from direct pyrolysis. It is notable that using catalysts can cause more complicated reactions and increase aromatic products yield. As to oxygenated compounds, catalytic pyrolysis decreased oxygenate compound ratio in a notable way with a positive impact on heat value of the fuel and burning quality. The protein content is decomposed by catalytic pyrolysis. The decomposed hydrogen compounds are converted into gas products, so that nitrogenated compounds content is lower in bio-oil obtained through catalytic pyrolysis compared to direct pyrolysis (Li et al., 2021). Eventually, using the catalyst decreased phenolic compounds. The increase in aromatic compounds due to the use of catalyst increases heat value of fuel, while it also increases the pollution caused by the burning the fuel when the increase in heat value is more than 25 % (Sun et al., 2014). In the case of the catalyst used in this study, aromatic content in bio-oil was 15.56 %. On the other hand, phenolic compound decreased notably due to the use of catalyst, which indicates a decrease in pollution load of bio-oil obtained from catalytic pyrolysis compared to the bio-oil obtained through direct pyrolysis.

Some of the qualitative specifications of the produced fuels including iodine number, cetane number, cinematic viscosity, density, and cloud point were determined using GC-Mass analysis results in Biodiesel Analyzer v.2.2. Table 6 indicates the qualitative parameters of the produced bio-oil and the standard values (EN14214-2012) (Pourkarimi et al., 2019b). With the catalyst, cetane number of bio-oil increased by 12.9 % and iodine number decreased by 9.1 %, which improved performance quality of the fuels. In addition, density and viscosity of the biofuels did not change notably after using the catalyst. However, the cloud point decreased to some extent, which makes the fuels suitable for lower temperatures. Using the catalyst had a positive impact on the quality of fuel (cetane and iodine numbers in particular) and the application range.
