Review
12 (
7
); 1234-1246
doi:
10.1016/j.arabjc.2014.10.049

Mini-review: Ferrite nanoparticles in the catalysis

, ,
a Universidad Autónoma de Nuevo León, Ciudad Universitaria, Monterrey 66450, Mexico
b Department of Chemistry & Biochemistry, The University of Texas at Arlington, 700 Planetarium Place, Arlington 76019, Texas, USA

⁎Corresponding author. bkhariss@hotmail.com (Boris I. Kharisov),

Received: , Accepted: ,
© The Author(s) 2014
Disclaimer:
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.

Peer review under responsibility of King Saud University.

Abstract

Recent applications of ferrite nanoparticles as catalysts in organic processes are reviewed. Catalytic applications include the use of mainly cobalt, nickel, copper, and zinc ferrites, as well as their mixed-metal combinations with Cr, Cd, Mn and sometimes some lanthanides. Core–shell nanostructures with silica and titania are also used without loss of magnetic properties. The ferrite nanomaterials are obtained mainly by wet-chemical sol-gel or co-precipitation methods, more rarely by the sonochemical technique, mechanical high-energy ball milling, spark plasma sintering, microwave heating or hydrothermal route. Catalytic processes with application of ferrite nanoparticles include decomposition (in particular photocatalytic), reactions of dehydrogenation, oxidation, alkylation, C–C coupling, among other processes. Ferrite nano catalysts can be easily recovered from reaction systems and reused up to several runs almost without loss of catalytic activity.

Keywords

Ferrites
Nanoparticles
Catalysis
Methanol decomposition
Alkene oxidation
1

1 Introduction

Ferrites are chemical compounds obtained as powder or ceramic bodies with ferrimagnetic properties formed by iron oxides as their main component, Fe2O3 and FeO, which can be partly changed by other transition metal oxides (Santina Mohallem, 2012). Among iron oxides and ferrites, magnetite (Fe3O4) and maghemite (γ-Fe2O3) are of particular interest. Magnetite is an inverse spinel ferrite. The oxygen ions form a close-packed cubic lattice with the iron ions located at two different interstices between them, tetrahedral (A) sites and octahedral (B) sites. Chemically, magnetite/maghemite can be represented by the formula: Fe3+ [Fe2+1−y Fe3+1−y Fe3+1.67y□0.33y]O4, (□ indicates vacancies) where y = 0 stays for pure magnetite and y = 1 for pure maghemite (fully oxidized magnetite). In the temperature range from room to Curie temperature (Tc = 860 K) the A sites are populated by Fe3+ ions and the B sites are populated equally by Fe3+ and Fe2+ ions. That way, twice as many sites are populated with Fe3+ than with Fe2+ ions. These and other iron oxide nanoparticles are discussed in our previous review (Kharisov et al., 2012) and are omitted here.

The ferrites can be classified according to their crystalline structure: hexagonal (MFe12O19), garnet (M3Fe5O12) and spinel (MFe2O4), where M represents one or more bivalent transition metals (Mn, Fe, Co, Ni, Cu, and Zn). Transition metal ferrites, both doped and undoped, are attractive candidates in a wide range of applications including catalysis (Lu et al., 2011), sustainable hydrogen production application (Gaikwad et al., 2011) and electronic and magnetic devices, among others. Their great advantages for catalytic purposes are that they are generally magnetic and can be easily recovered after completion of reactions using a magnet (Lim and Lee, 2010). For the case of ferrite nanoparticles, up to this moment, only copper, cobalt, nickel, zinc and several mixed-metal and core–shell ferrites are being applied in the catalytic reactions, mainly in processes of the synthesis and destruction of organic compounds. Methods for their preparation are described elsewhere (Kasi Viswanath and Murthy, 2013; Pinheiro Braga et al., 2011; Koferstein, 2013; Gatelite et al., 2011). The synthesis conditions have strongly influenced the crystal structure, crystallite size, microstructure, magnetic and photocatalytic properties.

Ferrite magnetic nanoparticles (MNPs) and their composites seem to be in near future promising materials for catalytic purposes. In this mini-review, we generalize recent achievements on applications of ferrite nanoparticles in various catalytic reactions.

2

2 Cobalt ferrites

Cobalt ferrites having different sizes, from ultrasmall 2 nm to 50 nm, can be fabricated by distinct techniques (Goodarz Naseri et al., 2010), mainly the co-precipitation method (CPM), sometimes without using any capping agents/surfactants. Thus, the CPM was used to synthesize ultrasmall CoFe2O4 superparamagnetic nanoparticles (SPMNPs, 2–8 nm of an average size and high surface area of 140.9 m2/g) without any surfactant (Kaur Rajput, 2013). Their catalytic activity was verified in the synthesis of arylidene barbituric acid derivatives (Figs. 1 and 2) using CoFe2O4 SPMNPs as a magnetically separable and reusable catalyst in aqueous ethanol. The advantages of this protocol were very short reaction time, high yields, high turnover frequency, simple work-up procedure, economy, a clean reaction methodology, and chemoselectivity, as well as provision of an ecofriendly and green synthesis. More large-size CoFe2O4 magnetic nanoparticles (25 nm) were used as a catalyst for the oxidation of various alkenes in the presence of tert-butylhydroperoxide (t-BuOOH) with almost quantitative yields (Fig. 3) (Kooti and Afshari, 2012). It seemed that this heterogeneous catalysis system proceeds by coordination of t-BuOOH to the metal (Fe3+ cations) on the surface of the catalyst. The separation of the catalyst from the reaction media was easily achieved with the aid of an external magnet, and the catalyst can be reused several times with no loss of activity. As an example, effect of solvent on oxidation of styrene catalyzed by CoFe2O4 is shown in Table 1. In addition, combination of synthesis techniques can also be used for cobalt ferrite preparation. Thus, synthesis of spinel CoFe2O4 MNPs (average sizes 40–50 nm) was achieved by the combined sonochemical and co-precipitation technique in aqueous medium, also without any surfactant or organic capping agent (Kamal Senapati and Phukan, 2011). These uncapped NPs (nanoparticles) were utilized directly for aldol reaction in ethanol (Fig. 4). After the reaction was over, the nanoparticles were compartmented by using an external magnet.

Optimization of reaction conditions using CoFe2O4 nanocatalyst. Yields 40–95%, best yields were observed in EtOH.
Figure 1
Optimization of reaction conditions using CoFe2O4 nanocatalyst. Yields 40–95%, best yields were observed in EtOH.

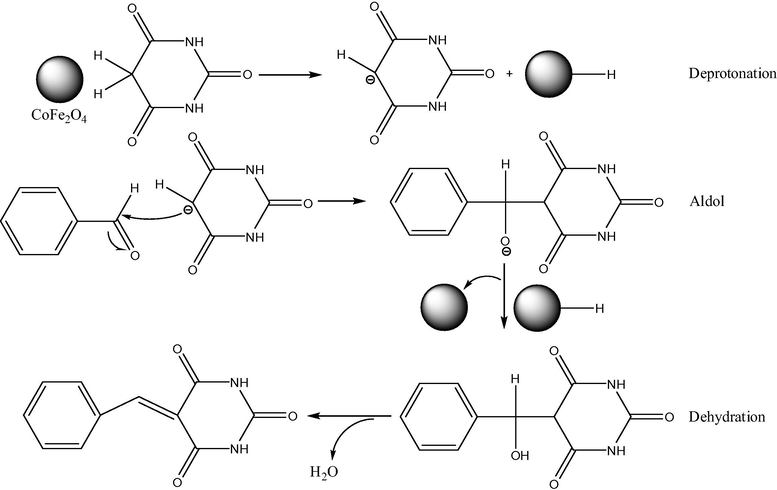

Proposed mechanism for synthesis of arylidene barbituric acid using CoFe2O4 nanocatalyst.
Figure 2
Proposed mechanism for synthesis of arylidene barbituric acid using CoFe2O4 nanocatalyst.

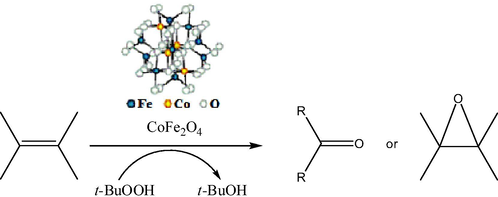

Oxidation of alkenes using CoFe2O4 catalyst.
Figure 3
Oxidation of alkenes using CoFe2O4 catalyst.
Table 1 Effect of solvent on oxidation of styrene catalyzed by CoFe2O4.a
Solvent Styrene conversion (%)b Selectivity of benzaldehyde (%)
Acetonitrile 10 88
Chloroform 65 55
1,2-Dichloroethane 70 85
Methanol 45 53
1,2-Dichloroethane/Methanol (1:1) 55 68
a Reaction conditions: alkene (1 mmol), t-BuOOH (3 mmol), catalyst (40 mg), solvent (5 mL), t = 12 h, T = 70 °C.
b GC yields based on starting alkenes.

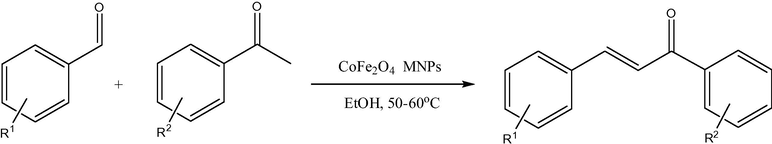

Aldol condensation reaction in the presence of CoFe2O4 MNPs.
Figure 4
Aldol condensation reaction in the presence of CoFe2O4 MNPs.

3

3 Nickel ferrites

Pure or doped nickel ferrites out of the nano-range size are common and frequently used in several catalytic processes. For instance, high reactivity of NiFe2O4 (1 1 1) surfaces (higher that in Fe3O4) is well-known; NiFe2O4 is an effective metal-doped ferrite catalyst in a typical industrial process such as the water–gas shift (WGS) reaction (Kumar et al., 2013). Similarly, NiFe2O4 was examined as a catalyst in photocatalytic water oxidation using [Ru(bpy)3]2+ as a photosensitizer and S2O82− as a sacrificial oxidant (Hong et al., 2012). The catalytic activity of NiFe2O4 is comparable to that of a catalyst containing Ir, Ru, or Co in terms of O2 yield and O2 evolution rate under ambient reaction conditions. As an example of non-nano-sized doped ferrites, their catalysts (granules of ∼1 mm diameter) of nickel, cobalt and copper, prepared by co-precipitation hydrothermal route and impregnated with palladium, cerium and lanthanum as promoters (Radhakrishnan Nair and Aniz, 2013), were tested for carbon monoxide oxidation activities.

At the same time, nanosize-range pure nickel ferrites are not yet widely applied for catalytic purposes. As a unique example, ultrasmall spinel oxide NiFe2O4 particles (3–8 nm in size) were prepared by the combination of chemical precipitation and subsequent mechanical high-energy ball milling from metal nitrates as precursors (Manova et al., 2007). These procedures resulted in the formation of nanocrystalline nickel ferrite, where the particle size can be controlled by the treatment time. Their catalytic behavior in methanol decomposition to CO and methane was tested, showing differences in the phase composition and catalytic behavior depending on the preparation method used. In addition, an interesting observation was made for non-stoichiometric nickel ferrites: the electrocatalytic activity of nickel ferrite NPs for hydrogen evolution reaction was found to increase in the order of Fe3O4 ⩽ Ni0.6Fe2.4O4 < Ni0.2Fe2.8O4 ⩽ Ni0.8Fe2.8O4 < Ni0.4Fe2.6O4 (Abbaspour and Mirahmadi, 2013).

4

4 Copper ferrites

Non-nanosized range copper ferrites have certain catalytic applications, such as, for example, for CO conversion to CO2 (Lou, 2006). In a difference of pure nickel ferrites, copper ferrite NPs are applied in organic catalysis in more uniform particle size (mainly about 20 nm). Thus, copper ferrite nano material (20 nm) was used as reusable heterogeneous initiator in the synthesis of 1,4-dihydropyridines. The reaction of substituted aromatic aldehydes, ethyl acetoacetate and ammonium acetate (Fig. 5) was achieved in the presence of copper ferrite nano powders at r.t. (room temperature) in ethanol. The nano catalyst was easily recovered and its reusability was confirmed (Kasi Viswanath and Murthy, 2013). The same 20 nm size copper ferrite nano material also was reported as reusable heterogeneous initiator in the synthesis of β,γ-unsaturated ketones and allylation to acid chlorides in THF at r.t. without any additive/co-catalyst (Figs. 6 and 7) (Murthy et al., 2012). The notable advantages are less expensive, heterogeneous reusable catalyst; mild reaction conditions, high yields of products, shorter reaction times, no isomerization during the reaction and easy workup. In addition, 20 nm CuFe2O4 was applied as reusable heterogeneous initiator in the synthesis of α-aminonitriles by one-pot reaction of different aldehydes with amines and trimethylsilyl cyanides at r.t. in water as a solvent (Figs. 8 and 9) (Gharib, 2014). α-Aminonitriles are important in preparing a wide variety of amino acids, amides, diamines, and nitrogen containing heterocycles. Also, spherical cubic spinel CuFe2O4 “oversized” nanostructures (size 116 nm; band-gap energy 1.69 eV) revealed enhanced photocatalytic activity in the conversion of benzene under Xe lamp irradiation (Shen et al., 2013).

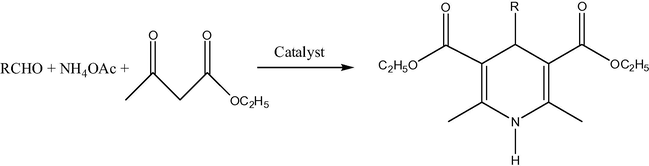

Reaction of substituted aromatic aldehydes, ethyl acetoacetate and ammonium acetate in the presence of CuFe2O4 (1 mol.%), R⚌ (a) Ph, (b) 4-Me-o-C6H4, (c) 4-ClC6H4, (d) 4-NO2-C6H4, (e) 4-MeC6H4, (f) 3-NO2-C6H4, (g) n-C9H9, (h) 2-NO2-C6H4, (i) 2-furyl, (j) 2-Me-o-C6H4.
Figure 5
Reaction of substituted aromatic aldehydes, ethyl acetoacetate and ammonium acetate in the presence of CuFe2O4 (1 mol.%), R⚌ (a) Ph, (b) 4-Me-o-C6H4, (c) 4-ClC6H4, (d) 4-NO2-C6H4, (e) 4-MeC6H4, (f) 3-NO2-C6H4, (g) n-C9H9, (h) 2-NO2-C6H4, (i) 2-furyl, (j) 2-Me-o-C6H4.

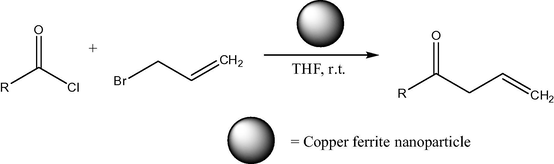

Synthesis of β,γ-unsaturated ketone using allyl bromide. R = (a) C6H5, (b) 2-ClC6H4, (c) 2-Br, 5-F, C6H3, (d) 2-Br, 5-F, C6H3, (e) furanyl, (f) 5-phenyl, 3-Methyl, 4-Isoxazolyl, (g) 5-(2,5-dichloro)phenyl, 3-methyl, 4-isoxazolyl, (h) (CH3)3C-, (i) C11H23-, (j) C15H31−.
Figure 6
Synthesis of β,γ-unsaturated ketone using allyl bromide. R = (a) C6H5, (b) 2-ClC6H4, (c) 2-Br, 5-F, C6H3, (d) 2-Br, 5-F, C6H3, (e) furanyl, (f) 5-phenyl, 3-Methyl, 4-Isoxazolyl, (g) 5-(2,5-dichloro)phenyl, 3-methyl, 4-isoxazolyl, (h) (CH3)3C-, (i) C11H23-, (j) C15H31−.

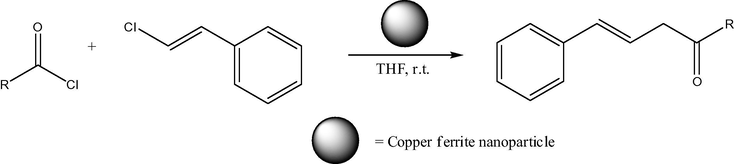

Synthesis of β,γ-unsaturated ketone using cinnamyl chloride. Synthesis of β,γ-unsaturated ketone using cinnamyl chlorides. R⚌ (a) C6H5, (b) 2-ClC6H4, (c) furanyl, (d)-CH(CH3)2.
Figure 7
Synthesis of β,γ-unsaturated ketone using cinnamyl chloride. Synthesis of β,γ-unsaturated ketone using cinnamyl chlorides. R⚌ (a) C6H5, (b) 2-ClC6H4, (c) furanyl, (d)-CH(CH3)2.
The synthesis of α-aminonitriles in the presence of nano CuFe2O4 in water as green solvent at r.t.
Figure 8
The synthesis of α-aminonitriles in the presence of nano CuFe2O4 in water as green solvent at r.t.

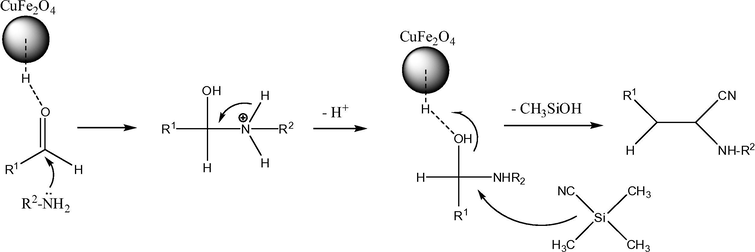

Suggested mechanism for the synthesis of α-aminonitriles derivatives in the presence of acidic nano copper ferrite.
Figure 9
Suggested mechanism for the synthesis of α-aminonitriles derivatives in the presence of acidic nano copper ferrite.

Larger-size cubic copper ferrite CuFe2O4 nanopowders (24–51 nm in size) were synthesized via a hydrothermal route using industrial wastes (ferrous sulfate containing free sulfuric acid ≈10%, 0.01% Zn2+ and 2% silica; copper waste 12.5% Cu, 8.7% Cl− with minor Ni 0.001%) (Rashad et al., 2012). It was revealed that a single phase of cubic copper ferrite powders can be obtained at different temperatures from 100 to 200 °C for times from 12 to 36 h with pH values 8–12. The microstructures of the produced powders were affected with the synthesis conditions. The particles appeared as nanospheres at hydrothermal temperature 150 °C, hydrothermal time 12 h and pH 8 which changed to the pseudo-cubic-like structure at hydrothermal temperature 200 °C, hydrothermal time 12 h and pH 8. Study of photocatalytic degradation of the methylene blue (MB, C16H18ClN3S) dye using copper ferrite powders showed a good catalytic efficiency (95.9%) at hydrothermal temperature 200 °C for hydrothermal time 24 h at pH = 12 due to the high surface area (118.4 m2/g).

5

5 Zinc ferrites

Non-nano-sized zinc ferrites (ZnFe2O4) have been used in oxidative organic reactions. Thus, the catalytic behavior for oxidative conversion of methane and oxidative coupling of methane was investigated over pure and neodymium substituted zinc ferrites (Fig. 10) prepared by the combustion method (Papa et al., 2010). The catalytic activity proved to be strongly related to the oxide structure as well as to the specific defects created by substitution. The pure zinc ferrite (ZnFe2O4) and ZnNd2O4 exhibited high activity for the coupling reaction whereas the neodymium substituted ferrites (ZnFe1.75Nd0.25O4, ZnFe1.5Nd0.5O4 and ZnFeNdO4) were low active in this reaction. The order of the catalytic activities expressed as yields to C2+ were ZnNd2O4 > ZnFe2O4 > ZnFe1.75Nd0.25O4 > ZnFeNdO4 > ZnFe1.5Nd0.5O4.

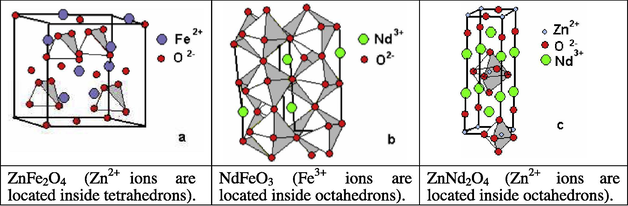

The crystalline structures of ZnFe2O4 (spinel type), NdFeO3 (perovskite type) and ZnNd2O4 (K2NiF4 type).
Figure 10
The crystalline structures of ZnFe2O4 (spinel type), NdFeO3 (perovskite type) and ZnNd2O4 (K2NiF4 type).

Analyzing pure zinc ferrite nanocatalysts, we note that mainly ultrasmall particles are currently applied in catalytic purposes. Thus, a nanosized highly ordered mesoporous zinc ferrite (ZF, 7–10 nm in size) was synthesized via the co-precipitation method, further sulfated with ammonium sulfate solution to obtain sulfated ZF (SZF) and was used for the synthesis of nopol by Prins condensation of β-pinene and paraformaldehyde (Figs. 11 and 12) (Jadhav et al., 2012). 70% conversion of β-pinene with 88% selectivity to nopol was observed; the spent catalyst was regenerated and reused successfully up to four cycles with a slight loss in catalytic activity. The influence of various reaction parameters such as solvent, reaction temperature, effect of substrate stoichiometry and catalyst loading was investigated. In particular, very low conversion (9%) of β-pinene was observed in protic solvents such as methanol (solvent effect); in the case of apolar–aprotic solvents such as hexane, ethyl acetate and toluene, increase in the β-pinene conversion as well as nopol selectivity was observed. In the case of reaction temperature, as the temperature increased to 110 °C β-pinene conversion increased to 72% with slight drop in selectivity for nopol (57%). 95 °C was identified as the optimal reaction temperature for further studies. At a molar ratio of β-pinene to paraformaldehyde 1:3 M ratio, maximum conversion was observed. The β-pinene conversion increased with an increase in the catalyst loading (0.12–0.16 g) without affecting the nopol selectivity.

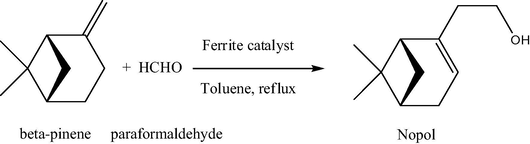

Prins condensation reaction of β-pinene and paraformaldehyde.
Figure 11
Prins condensation reaction of β-pinene and paraformaldehyde.

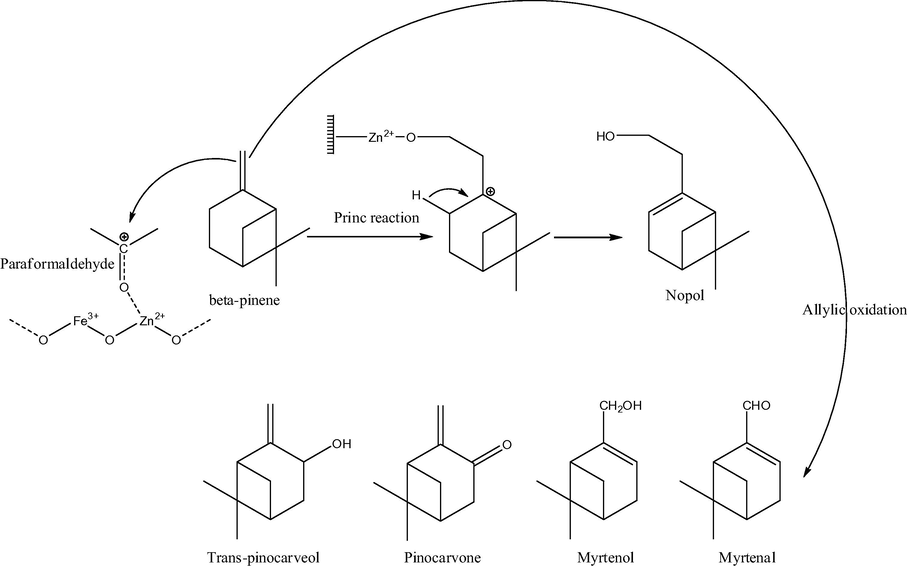

Proposed reaction mechanism of Prins condensation reaction for nopol production over SZF-470 catalyst.
Figure 12
Proposed reaction mechanism of Prins condensation reaction for nopol production over SZF-470 catalyst.

Zinc ferrite nanopowders in a broader-size range (5–45 nm in size, depending on the annealing temperature) were prepared by the co-precipitation method from the corresponding nitrate pre cursors and thermal treating of the obtained precursor at different temperatures (Koleva et al., 2013). The obtained ferrites were tested as catalysts in methanol decomposition to CO and hydrogen (see also Co/Cu mixed ferrites below, applied for the same purpose). It is known that methanol, which is considered as ideal alternative green fuel for fuel cells because of its liquid state at ambient conditions and high volumetric energy density, can be decomposed to CO and H2 at relatively low temperatures in the presence of suitable catalysts of high efficiency. The analyses of the samples after the catalytic test reveal a significant phase transformation of the ferrite phase by the influence of the reaction medium.

6

6 Mixed-metal or core–shell ferrites

Ferrites containing 2 metal ions, in addition to iron, are much more widespread in the nano-catalysis; their nanoparticle size can vary in a broad range, from ultrasmall particles (5–8 nm) up to 100 nm or more (in case of supported NPs). Both nano-sized and out-of-nano-sized mixed-metal ferrite NPs can be synthesized by a variety of methods, in particular the classic sol-gel and co-precipitation methods or microwave heating (MnZnFe2O4) (Zhenyu et al., 2007).

6.1

6.1 Cobalt-based ferrite nanoparticles

For cobalt-containing ferrite NPs, as well as for zinc ferrite above, one of the important applications is the methanol decomposition to CO and hydrogen. Thus, Cu1−xCoxFe2O4 (0 < x < 1, 8–40 nm in size), was applied as a nanodimensional powder for this purpose (Velinov, 2013). The stabilization of the cubic structure with the substitution of copper ions by cobalt in mixed Cu–Co ferrites was observed. Cobalt containing ferrites exhibited higher and more stable catalytic activity and selectivity in methanol decomposition to CO and hydrogen in comparison with the CuFe2O4 one. Photocatalytic properties of the cobalt zinc ferrite Co1−xZnxFe2O4 (0 < x < 1) nanoparticles (10.5–14.8 nm in size), prepared by the hydrothermal method, were studied on the example of degradation of methyl blue in aqueous solution (Wang, 2014). It was elucidated that the oxidation–reduction potential of methyl blue in aqueous solution in the presence of the ferrite nano-particles at pH = 7 under natural sunlight irradiation was negative and increased with an increase in Zn content. The degradation rate of methyl blue also decreases with an increase in Zn content in sunlight.

For the same purpose, CoFe2O4@SiO2@TiO2 core–shell magnetic nanostructures (40–100 nm in size) were prepared (Fig. 13) by coating of cobalt ferrite nanoparticles with the double SiO2/TiO2 layer using metal salts and titanium butoxide as precursors (Greene et al., 2014) and the presence of both the silica and very thin TiO2 layers was confirmed. These core–shell nanoparticles were used as a catalyst in photo-oxidation reactions of methylene blue under UV light. Despite the additional non-magnetic coatings resulting in a lower value of the magnetic moment, the particles can still easily be retrieved from reaction mixtures by magnetic separation (Fig. 14). Similar (but without SiO2 shell) CoFe2O4/TiO2 (150 nm in size), as well as pure cobalt ferrite CoFe2O4 (50 nm in size), nanocatalysts were prepared by the co-precipitation method, in which CoFe2O4 induced the formation of a thermodynamically more stable rutile phase of TiO2 (Sathishkumar et al., 2013). The presence of Co2+ and Fe3+ cations on the surface of TiO2 led to visible light absorption in the wavelength range 550–650 nm. The photocatalytic degradation of Reactive Red 120 (RR120) was studied by varying its concentration and the amount of nanocatalyst in order to attain a maximum degradation. Further, to enhance the photocatalytic degradation of RR120, electron acceptors such as peroxomonosulfate (PMS), peroxodisulfate (PDS) (Fig. 15) and hydrogen peroxide (H2O2) were individually added to the photocatalytic suspension at the optimized concentration of RR120 and CoFe2O4/TiO2 nanocatalyst and their enhancing effects were studied.

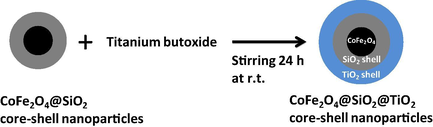

Reaction scheme for the coating of SiO2 coated cobalt ferrite nanoparticles with a second TiO2 coating.
Figure 13
Reaction scheme for the coating of SiO2 coated cobalt ferrite nanoparticles with a second TiO2 coating.
Images of suspended CoFe2O4@SiO2@TiO2 in methylene blue solution in water (left) and in the presence of a permanent magnet (right).
Figure 14
Images of suspended CoFe2O4@SiO2@TiO2 in methylene blue solution in water (left) and in the presence of a permanent magnet (right).

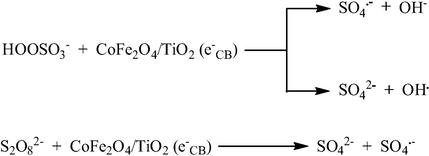

PMS and PDS as a source of free radicals.
Figure 15
PMS and PDS as a source of free radicals.

6.2

6.2 Nickel-based ferrite nanoparticles

Similar to cobalt ferrites, several nickel-containing mixed or core–shell ferrites have been reported as nanocatalysts, but in a more narrow size range (18–50 nm). Thus, a magnetically separable catalyst consisting of ferric hydrogen sulfate (FHS) supported on silica-coated nickel ferrite nanoparticles (50 nm) was prepared (Fig. 16) (Khojastehnezhad et al., 2014). This catalyst was shown to be an efficient heterogeneous catalyst for the synthesis of 1,8-dioxodecahydroacridines (Fig. 17) under solvent-free conditions. The catalyst can be recycled several times with no significant loss of catalytic activity.

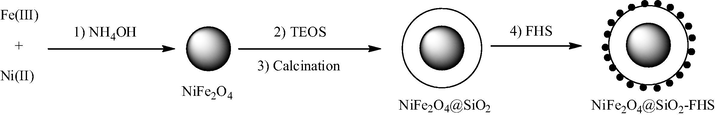

Preparation of NiFe2O4@SiO2-FHS.
Figure 16
Preparation of NiFe2O4@SiO2-FHS.

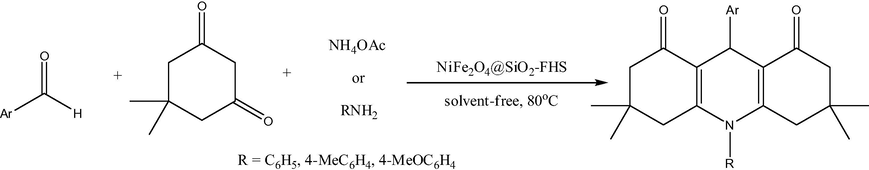

Synthesis of 1,8-dioxodecahydroacridines in the presence of NiFe2O4@SiO2-FHS.
Figure 17
Synthesis of 1,8-dioxodecahydroacridines in the presence of NiFe2O4@SiO2-FHS.

Nickel–zinc ferrite nanoparticles (18–28 nm), Ni1−xZnxFe2O4 (x = 0, 0.2, 0.5, 0.8, 1.0) were prepared by a combination of chemical precipitation and spark plasma sintering (SPS) techniques and conventional thermal treatment of the obtained precursors (Velinov et al., 2012). A strong effect of reaction medium leading to the transformation of ferrites to a complex mixture of different iron containing phases was detected. A tendency of formation of iron carbide Fe3C was found for the samples prepared by SPS, while predominantly iron-nickel alloys were detected in TS (thermal synthesis) obtained samples. The catalytic activity and selectivity in methanol decomposition to CO and methane (as well as for pure nickel ferrite described above, synthesized by chemical precipitation and subsequent mechanical high-energy ball milling) in a flow reactor depended on the current phase composition of the obtained ferrites, which was formed by the influence of the reaction medium. The highest activity and selectivity to CO formation was observed for mono-component ferrites obtained by the SPS technique. Similar compound, Ni0.5Zn0.5Fe ferrite (crystallite size of 29 nm) doped with 0.1 and 0.4 mol.% of Cu2+, was used as a catalyst for the transesterification of soybean oil to biodiesel, using methanol (Dantas, 2013). The best conversion result was obtained with nanoferrite doped with 0.4 mol.% of Cu2+.

6.3

6.3 Other mixed-metal ferrite nanoparticles

Ferrite nanoparticles, containing other metals and applied in the catalysis, are represented more chaotically in the available literature. Thus, the spinel ferrites Cu1−xCdx[Fe1−xAlxCr1−xMnx]O4, where 0 < x < 1, having an unknown particle size, were prepared by the coprecipitation technique (Kumar et al., 2010). Catalytic studies using decomposition of H2O2 as a model reaction between 303 and 343 K for 1–5 h using first order rate law suggested higher catalytic power for the composition x = 0 and then it decreases gradually. For the mixed spinel ferrite system Mn1−xCuxFe2O4 (x = 0, 0.25, 0.5, 0.75, 1.0), the formation of phase pure spinels with FCC cubic structure with a particle size ranging from 5.21 nm to 20 nm was observed at 333 K applying the co-precipitation method with MnCl2, Fe(NO3)3·9H2O and Cu(NO)3·3H2O as precursors (Dixit et al., 2013). These ferrites were used as catalysts in the alkylation of aniline, showing a maximum conversion of 80.5% of aniline with selectivity of 98.6% toward N-methylaniline at 673 K, methanol: aniline molar ratio of 5:1 and weight hour space velocity of 0.2 h−1. It was found that the yield was maximum for CuFe2O4. In addition, the catalytic performance of the ferrites was found to be proportional to surface area as well as acidity.

Three ferrite nanocatalysts (25–70 nm), copper ferrite (CuFe2O4), ferrite where cobalt was substituted by nickel (NixCo1−xFe2O4, with x = 0, 0.2, 0.4, 0.6), and ferrite where nickel was substituted by zinc (ZnyNi1−yFe2O4 with y = 1, 0.7, 0.5, 0.3), were prepared by the sol-gel method (Hosseini Akbarnejad et al., 2013). Carbon nanotubes (CNTs) were grown on these nanocatalysts by the catalytic chemical vapor deposition method. It was revealed that the catalytic activity of these nanocrystals on the CNTs growth depend on cation distributions in the octahedral and tetrahedral sites, structural isotropy, and catalytic activity due to cations. The yield of fabrication of carbon nanotubes can be considered as an indirect tool to study catalytic activity of ferrites, which has the following order: Ni0.6Co0.4Fe2O4 > Ni0.4Co0.6Fe2O4 > Ni0.2Co0.8Fe2O4 > CoFe2O4 > CuFe2O4 > Zn0.5Ni0.5Fe2O4 > ZnFe2O4 > Ni0.7Zn0.3Fe2O4 > Ni0.3Zn0.7Fe2O4. Hence, the catalytic activity of the Ni/Co ferrites increases with the increase in the Ni content due to higher catalytic activity of Ni compared to Co. In the Ni/Zn ferrites, the structural isotropy is an effective factor for their catalytic activity. The catalytic activity of Cu ferrite is higher than the Ni/Zn ferrites since it is inverse spinel, and less than Ni/Co ferrites as a result of the catalytic activity due to cations.

Selected examples of main applications of ferrites in catalysis are shown in Table 2.

Table 2 Selected examples of main applications of ferrites in catalytic processes.
Catalyst composition Process description Process peculiarities or advantages References
Copper ferrites
CuFe2O4 One pot synthesis of 9-substituted aryl-1,8-dioxo-octahydroxanthenes Excellent yields, mild reaction conditions and short reaction times Murthy et al., 2014
CuFe2O4 Direct C–H amination of benzothiazoles Access to a wide range of 2-N-substituted benzothiazoles in good to excellent yields Satish, 2014
Nickel ferrites
NiFe2O4 Cyanation of aryl and heteroaryl halides Good to excellent yields Matloubi et al., 2014
NiFe2O4 Chemoselective oxidation of thiols to disulfides and sulfides to sulfoxides Reusable for five consecutive runs without appreciable change in the activity Kulkarni et al., 2014
Zinc ferrites
ZnFe2O4 Wet peroxide oxidation of 4-chlorophenol Only a small amount of the oxidant (1 mL) is required for the complete degradation of 4-chlorophenol. 100% of the target pollutant was removed at catalyst concentrations of 300 mg Kurian et al., 2014
ZnFe2O4 Photocatalytic dye {Reactive Red 198 (RR198) and Reactive Red 120 (RR120)} degradation ability from colored wastewater Inorganic anions (nitrate and sulfate anions) were detected as dye mineralization products Mahmoodi et al., 2013
Cobalt ferrites
MFe2O4 (M = Mn, Co) Degradation of Methylene Blue Maximum MB removal achieved 99.7%, among which >46.8% were completely degraded Liu et al., 2014
CoFe2O4/carbon Methanol decomposition After catalysis, a complex mixture of nonchanged ferrite, magnetite, Co-Fe alloy and/or Fe3C was formed Genova et al., 2014
Other stoichiometric ferrites
MnFe2O4 Synthesis of spirooxindoles One-pot and three-component reaction of isatins, malononitrile, and anilinolactones Ghahremanzadeh, 2014
MnFe2O4 nanotubes, nanospheres and hausmannite nanorods Potential application in peroxidase-like catalytic activity Magnetic hollow nanotubes Liao et al., 2011
BiFeO3 Degradation of phenolic compounds Degradation of 4-chlorophenol (4-CP), 2,4,6-trichlorophenol (2,4,6-TCP), biphenyl (BP), 4-nitrophenol (4-NP), 2,4-dinitrophenol (2,4 DNP) and 2,4,6-trinitrophenol (2,4,6-TNP) Soltani et al., 2014
CaFe2O4 Electrocatalyst for Oxygen Evolution Reaction (OER). Nanoparticles with irregular crystal morphology ranging from 8 to 30 nm. Berchmans et al., 2011
MgFe2O4 (as a part of Fe2O3/MgO systems) H2O2 decomposition. Catalysts prepared by the hydrothermal method were most active in H2O2 decomposition El-Molla et al., 2013
Mixed/doped/coated ferrites and their nanocomposites
CoMn0.2Fe1.8O4 Reduction of nitroaromatic compounds Almost 100% selectivity and 100% conversions for various amino, bromo, chloro and Me derivatives of nitroarenes Goyal et al., 2014
(Co0.6Zn0.4MnxFe2−xO4, x = 0.2, 0.4, 0.6, 0.8 and 1.0 Photo-catalytic degradation of methyl orange azo dye Degradation of methyl orange dye was enhanced with increase in Mn3+ ions concentration from 0.2 to 1.0 Bhukal et al., 2014
ZnFe2O4/SnO2 Bactericidal activity Saturation magnetization of hydrothermally prepared nanocomposite is less than that of sonochemically obtained one Karunakaran et al., 2013
Metal (M)-modified ferrite catalysts (M = Cr, Al, Mn, Ce, Ni, Co and Cu) High temperature water gas shift reaction Fe–Al–Cu catalyst with Fe/Al = 10 and Fe/Cu = 5 wt. ratios showed the highest catalytic activity Meshkani et al., 2015
NiLaxFe2−xO4 (0.00 ⩽ x ⩽ 2.00) H2O2 decomposition at 35–55° A synergic effect was observed for the catalysts having x-value of 1.00 and 1.50 Abu-Zied et al., 2012
Ru(0)/SiO2-CoFe2O4 Hydrolysis of ammonia-borane Ru(0)/SiO2-CoFe2O4 provides the highest catalytic activity after the tenth use in hydrolysis of AB as compared to the other ruthenium catalysts. Akbayrak et al., 2014
Nickel hydroxide coated nanocobalt ferrite Alcohol oxidation Oxidation of primary and secondary alcohols efficiently (87%) to corresponding carbonyls in good yields Bhat et al., 2014
BiFeO3/Ag (BFO/Ag) Photocatalytic degradation of Methylene Blue Ag NPs-decorated BFO particulates and fibers significantly shortened the degradation by 2 h as compared to their parent BFO nanostructures Mohan et al., 2014

7

7 Structure/property/particle size studies

A lot of efforts of researchers have been dedicated to establish relationships between particle size, structure, surface area, and shape of ferrite nanoparticles, as well as nature and ratio of main and doping metal atoms, and their catalytic activity. On their basis, several interesting observations have been made. Thus, 3–10 nm Co, Cu, and Ni spinel ferrites evaluated by the decomposition of H2O2 and by the oxidation of methylene blue, were monitored via UV–Vis spectrophotometry (Albuquerque et al., 2012). The presence of Co2+ is a crucial factor required to achieve a systematic efficiency of the catalyst in the H2O2 decomposition. In contrast, Cu ferrites presented the better performance in methylene blue oxidation, which can be attributed to the different redox properties of Cu and the easier availability of electrons to participate in the oxidation of organic compounds. The same dye, as a classic model compound to evaluate activities of novel catalysts, was decomposed by a series of stoichiometric and non-stoichiometric cobalt and other metal ferrites. Thus, monodisperse cubic spinel structure CoFe2O4 nanoparticles (2–6 nm) showed catalytic activity in the oxidation of methylene blue with H2O2 as an oxidizing agent (Feng et al., 2013). 3D flower-like Co3−xFexO4 ferrite hollow spheres (specific surface area 163 m2/g, providing which provided more active sites) were found to be efficient for the catalytic degradation of methylene blue in the presence of H2O2 at 80 °C (Hao et al., 2013). In addition, in case of spinel MgFe2O4, ZnFe2O4 and orthorhombic CaFe2O4, photocatalytic performance was found to be affected by surface area and crystallinity of the photocatalyst (Dom et al., 2011). The density functional theory (DFT) calculations of MFe2O4 (M = Mg, Ca, Zn) lattices revealed that M-ion controllably affects the density of states of the Fe-d orbitals near Fermi level. Consequently they play an important role in determining the band-energetics and thus the visible light photocatalytic activity for methylene blue degradation.

Other dyes are also studied as model compounds in the elucidation of influence of ferrite compositions on their catalytic activity. Thus, replacement of Fe3+ ions by the Mn3+ ions in Co–Zn ferrites (Co0.6Zn0.4MnxFe2−xO4, x = 0.2, 0.4, 0.6, 0.8 and 1.0), possessing cubic spinel structure with Fd-3 m space groups, resulted that the degradation of methyl orange dye was enhanced with an increase in Mn3+ ions concentration from 0.2 to 1.0 (Bhukal et al., 2014a,b). This might be due to the octahedral site preference and higher redox potential of manganese ion as compared those of Fe. For related cobalt–zinc ferrites having chemical formula Co0.6Zn0.4Cu0.2CdxFe1.8−xO4 (x = 0.2, 0.4, 0.6 and 0.8), the photocatalytic degradation of methyl orange was enhanced as the concentration of cadmium ion increased from 0.2 to 0.8 which may be due to a decrease in band gap with an increase in Cd2+ ion concentration (Bhukal et al., 2014a,b, pp.150–158). Also, comparing with pure BFO (BiFeO3) nanoparticles, the BFO/γ-Fe2O3 samples exhibited significantly increased visible-light photocatalytic ability toward Rhodamine B (Guo et al., 2011). The formation of a heterojunction structure between the BFO and γ-Fe2O3 phases was proposed to be responsible for the enhanced photocatalytic activity.

Mixed-metal ferrites have been studied also in classic reactions of oxidation and combustion of organic compounds. Thus, for Ni-doped spherical 4–6 nm CoFe2O4 nanoparticles, the Co0.4Ni0.6Fe2O4 with highest surface area (154.02 m2 g−1) showed the best catalytic activity for reduction of 4-nitrophenol to 4-aminophenol in the presence of NaBH4 as reducing agent, whereas stoichiometric CoFe2O4 was found to be catalytically inactive (Singh et al., 2014). Related nanocrystalline Ni0.5Cu0.5Fe2O4 was synthesized by the sol-gel method with varying calcination temperature over the range of 500–1000 °C (Tan et al., 2011). Its single cubic spinel was gained when the precursor was decomposed at 800–1000 °C, whereas separated crystal CuO formed when calcination temperature was <800 °C. The increase of calcination temperature favored the appearance of FeB3+, CuA2+ and O on the spinel surface. The hydroxylation activity is relative to the amount of CuB2+ species on the spinel surface. The lattice oxygen species on the spinel surface are favorable for the deep oxidation of phenol. For nanograined Ni0.5Co0.5ScxFe2−xO4 (x = 0, 0.05, 0.1 and 0.2) spinel ferrites, already mentioned above, the partial substitution of Fe3+ by Sc3+ ions on the octahedral sites of spinel structure of Ni0.5Co0.5Fe2O4 ferrite has a favorable effect on its activity in the catalytic combustion of acetone, propane and benzene (Rezlescu et al., 2014a; Rezlescu et al., 2014b). The enhancement of the catalytic activity of the Sc doped Ni–Co ferrites may be ascribed to smaller crystallite sizes (35–39 nm), larger specific surface areas (29–32 m2/g) and the presence of Sc cations in spinel structure. The same authors compared Mg spinel ferrite and La–Pb–Mg–Mn–O perovskite in flameless combustion reaction of acetone, benzene and propane at atmosphere pressure and revealed that a higher catalytic activity of the perovskite catalyst may be ascribed to smaller crystallite size (26 nm), larger surface specific area (8.6 m2/g) and the presence of manganese cations with variable valence (Mn3+–Mn4+) (Rezlescu et al., 2014a; Rezlescu et al., 2014b).

8

8 Conclusions

Transition metal ferrite nanoparticles, utilized in catalytic reactions, possess different sizes, from ultrasmall 2 nm to 100 nm. They are obtained mainly by wet-chemical sol-gel (Rezlescu et al., 2014a,b) or co-precipitation (Mahmoodi et al., 2011) methods, sometimes combined with simple calcination at high temperatures (Deng et al., 2013), the sonochemical technique (Karaoglu and Baykal, 2014), mechanical (mechanochemical) high-energy ball milling (Manova et al., 2011a,b), or spark plasma sintering (Manova et al., 2011a,b). Microwave heating (Liu and Lin, 2012) or hydrothermal route (Zhang et al., 2014) are also frequently used. Sometimes, self-combustion techniques are applied (Sutka and Mezinskis, 2012; Xue et al., 2007; Rezlescu et al., 2013; Kurian and Nair, 2014; Tong et al., 2014). Due to magnetic properties, ferrite nano catalysts can be easily recovered from reaction systems and reused up to several runs almost without loss of catalytic activity. Standard transition metal salts (usually nitrates) are used as precursors, although some industrial wastes (Rashad et al., 2012) can also serve as a source of initial substances. Particle sizes of resulted spinel ferrites are dependent on the nature of transition metal and the synthesis method. A series of distinct shapes for ferrite nanoparticles have been observed, from spherical to nanorods and nanotubes. Forms/shapes of nanoparticles, ratios of doping atoms, impurities, specific surface area, etc., can considerably influence on the catalytic activity of ferrites.

Catalytic processes with the application of ferrite nanoparticles are in a wide range. Growth of carbon nanotubes is the only example of allotrope formation (Tsujino et al., 2013; Hosseini Akbarnejad et al., 2013). Notable attention is paid to methanol decomposition to CO and methane or to CO and hydrogen. Other catalyzed organic reactions consist of oxidation of various alkenes, aldol, alkylation and dehydrogenation reactions, synthesis of various organic compounds such as, quinoxaline derivatives (Dandia, 2013), β,γ-unsaturated ketones, arylidene barbituric acid derivatives, α-aminonitriles, nopol, 1,4-dihydropyridines, and 1,8-dioxodecahydro-acridines. Degradation/decomposition processes are also reported, for instance decomposition of H2O2 or photocatalytic degradation of Reactive Red 120 or methylene blue. Some of catalyzed reactions might have great practical applications, for instance transesterification of soybean oil to biodiesel.

We note that the total number of nano-ferrite applications for catalytic purposes is still relatively low, so it could be a perfect research niche for further applications of ferrite nanomaterials in a variety of organic processes.

Acknowledgment

OVK and BIK are grateful to the CONACYT-Mexico for financial support.
