Synthesis of NaKCO₃@(Mn-Na₂ WO₄/SiO₂) core-shell catalyst for oxidative coupling of methane

2.1 Materials

The amorphous $\mathrm{S}\mathrm{i}{\mathrm{O}}_2$ (35/60 mesh size, Davisil grade 646), manganese (II) nitrate hexahydrate (Mn(NO₃)₂ 6H₂O), sodium tungstate (VI) dehydrate (Na₂WO₄ 2H₂O) , potassium carbonate ( ${\mathrm{K}}_2\mathrm{C}{\mathrm{O}}_3$ ) and sodium carbonate ( ${\mathit{Na}}_{2}C{O}_3$ ) were purchased from Sigma-Aldrich.

2.2 Preparation of $\mathrm{M}\mathrm{n}-{\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4/\mathrm{S}\mathrm{i}{\mathrm{O}}_2$

The amorphous $\mathrm{S}\mathrm{i}{\mathrm{O}}_2$ was used as support for all samples. An aqueous solution comprising an 50 ml of $\mathrm{M}\mathrm{n}{(\mathrm{N}{\mathrm{O}}_3)}_2.4{\mathrm{H}}_2\mathrm{O}$ (20 M) was prepared by impregnating a 20 g of silica gel ( $\mathrm{S}\mathrm{i}{\mathrm{O}}_2$ ) particles. The granules were air-dried at a temperature of 130 °C for 5 h. Then 50 ml of 10 M ${\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4.2{\mathrm{H}}_2\mathrm{O}$ solution was added to the granules. Next, the samples were dehydrated for 8 h at 130 °C. The end, all samples was calcined at 800 °C (Ortiz-Bravo et al., 2021), for 8 h with the heating rate set at 10 °C min^(-1) (Table 1).

2.3 Preparation of $\mathrm{N}\mathrm{a}\mathrm{K}\mathrm{C}{\mathrm{O}}_3$ @( $\mathrm{M}\mathrm{n}-{\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4/\mathrm{S}\mathrm{i}{\mathrm{O}}_2$ ) core-shell structures

The core–shell catalyst $\mathrm{N}\mathrm{a}\mathrm{K}\mathrm{C}{\mathrm{O}}_3$ @( $\mathrm{M}\mathrm{n}-{\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4/\mathrm{S}\mathrm{i}{\mathrm{O}}_2$ ) was synthesized by combining different percentages of K and Na using wet impregnation method. $2\mathrm{M}\mathrm{n}-5{\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4/\mathrm{S}\mathrm{i}{\mathrm{O}}_2$ was used as the core for this catalyst with the new method. Certain amount of $\mathrm{M}\mathrm{n}-{\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4/\mathrm{S}\mathrm{i}{\mathrm{O}}_2$ was slowly added to a 250 ml deionized water containing 50 ml of ${\mathrm{N}\mathrm{a}}_2\mathrm{C}{\mathrm{O}}_3$ solution while being stirred at 500 rpm at 80 °C. After complete dissolution of the material, it was placed in an oven at 100 °C for 12 h until water evaporated and, a porous solid remained. The dried solid was separated and powdered. Then, it was added to a 250 ml solution containing the second layer including an aqueous solution of ${\mathrm{K}}_2\mathrm{C}{\mathrm{O}}_3$ , similar to the previous step. The mixture was placed in an oven at 100 °C for 12 h and after complete drying, for the calcination step and removal of excess material from the catalyst structure, the resulting powder was placed in a furnace and exposed to a flow of synthetic air gas at a temperature of 800 °C (Ortiz-Bravo et al., 2021) with a ramp of 10 °C min^(-1) for 8 h (Table 1).

2.4 Characterization of catalyst

The crystal constructions of the arranged catalysts were established through measuring the powder X-ray diffraction (XRD) through an X’pert-Pro diffractometer (Philips, Model: PW1730, Netherlands) by $\mathrm{C}\mathrm{u}{\mathrm{K}}_{\mathrm{\alpha }}$ radiation (Step size = 0.05 deg, Time Per Step = 1 s, Wavelength of copper X-ray lamp = 1.54056 Ã…, Voltage = 40 kV, Current = 30 mA, Software XPert HighScore Plus v3.0e). The BET test was carried out with Quanta chrome Chem BET 3000 instruments, for measuring the surface area (The temperature of liquid nitrogen 77 K, Dehydration temperature of 120 °C for 2 h). A scanning electron microscope with an energy dispersive X-ray spectrometer (FE-SEM/EDS, Tescan, Czech) was used to image the surface morphology of the catalysts. Transmission electron microscope (TEM, HT7800 Hitachi, Japan) was used to investigate the core–shell structure of catalysts. Thermal Gravimetric Analysis test was performed using PL-TGA device for measuring the amount of carbon deposition on the catalysts.

2.5 Catalyst activity and stability

In order to perform the activity test, the reactor temperature and pressure were fixed at 850 °C and 1 atm, respectively. A quartz tube reactor with an inner diameter of 5 mm at atmospheric pressure was applied to measure the catalytic activity in the OCM reaction. (1) g of synthesized catalysts were diluted by 3 g sieved quartz powder (30/60 mesh size). The bed of the catalyst was placed at the midpoint of the reactor. To avoid the catalyst from spilling to the base of the reactor, the mixture of catalyst and quartz was poured into the quartz reactor. To mix and preheat the gases, some quartz powder was present on top of the catalyst. For the next step, the reactor was placed inside a furnace and gas transmission lines were joined. ${\mathrm{N}}_2$ was applied to dilute the $\mathrm{C}{\mathrm{H}}_4$ and ${\mathrm{O}}_2$ with different ratio ( $\mathrm{C}{\mathrm{H}}_4$ / ${\mathrm{O}}_2$  = 2, 4 and 6) of reactants. This mixture of preheated gases was then poured onto the catalyst bed.

A mass flow controller (MFC, Brooks Instrument) controlled each gas flow. The mass flow controller contributed to set the nitrogen gas flow rate to a definite amount. To flow oxygen, methane and nitrogen gases in certain proportions, the reactor furnace was turned on and temperature was increased from 775 °C with a gradient of 10 °C min^(-1). To analyze output gases from the reactor, the flame ionization detector (FID) and thermal conductivity detector (TCD) were equipped with online gas chromatography (RGA, Agilent 7890B, PerkinElmer). The entire schematic design of the OCM process is presented in Fig. 1.

Close

Fig. 1

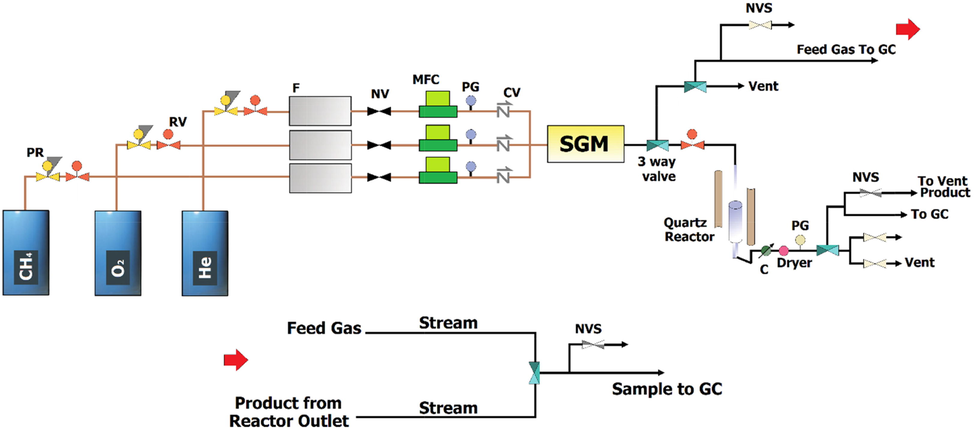

Schematic Design of the OCM Process.

Export to PPT

To study the stability of the catalyst, the test temperature was adjusted at 850 °C and the ratio of $\mathrm{C}{\mathrm{H}}_4$ / ${\mathrm{O}}_2$ in the feed 2; the stability tests were performed in 50 h.

Conversion ( $\%{\mathrm{X}}_{{\mathrm{C}\mathrm{H}}_4}$ ), selectivity ( $\%{\mathrm{S}}_{{\mathrm{C}}_2^{+}}$ ) and yield ( $\%{\mathrm{Y}}_{{\mathrm{C}}_2^{+}}$ ) of each catalyst were calculated according to Eq. 5–7:

3.1 Catalyst characterization

The XRD test results for $\mathrm{M}\mathrm{n}-{\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4/\mathrm{S}\mathrm{i}{\mathrm{O}}_2$ samples show in Fig. 2, In the $\mathrm{M}\mathrm{n}-{\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4/\mathrm{S}\mathrm{i}{\mathrm{O}}_2$ samples, α-cristobalite $\mathrm{S}\mathrm{i}{\mathrm{O}}_2$ (JCPDS 00–003-0271) was identified to improve the catalyst activity (Almana et al., 2016). In both phase samples, ${\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4$ (JCPDS 12–772) and $\mathrm{M}\mathrm{n}{\mathrm{O}}_2$ (JCPDS 01–073-2509) were also observed (Kaviani et al., 2022).

Close

Fig. 2

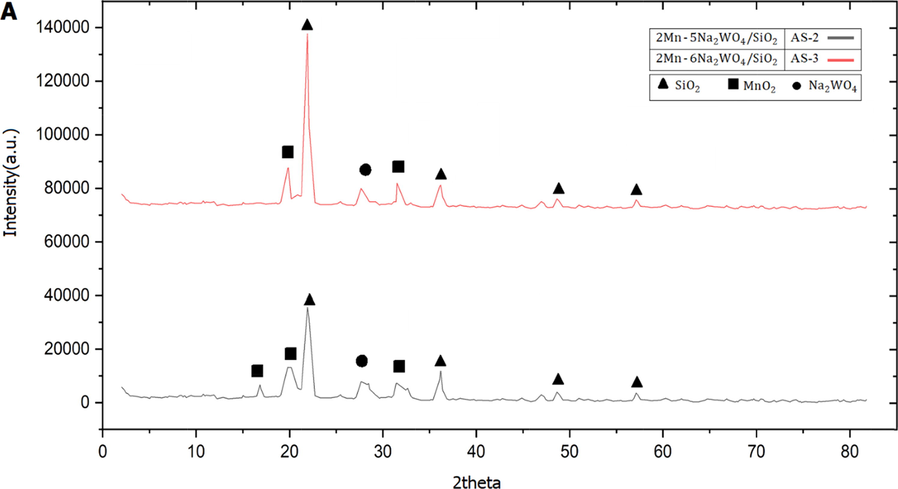

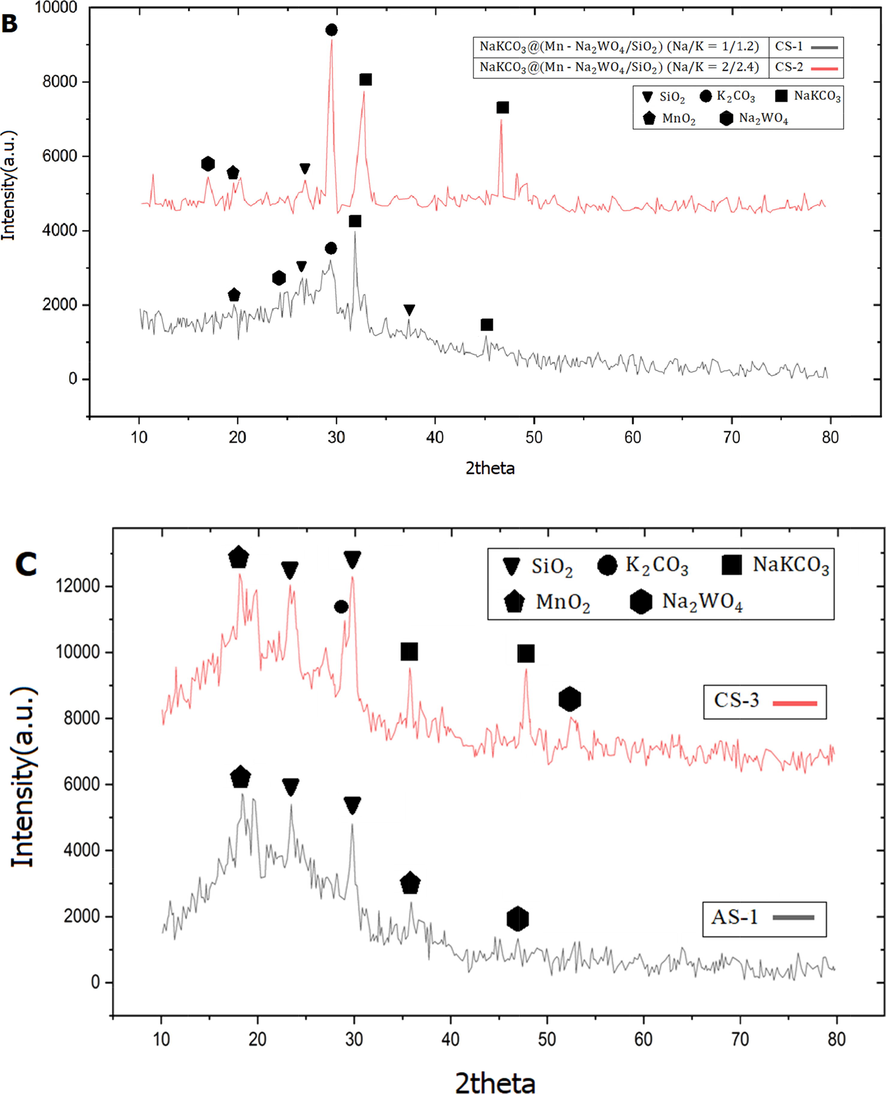

XRD patterns of catalysts samples: a) AS-2 and AS-3, b) CS-1 and CS-2, and c) CS-3 and AS-1.

Export to PPT

Close

Fig. 2

XRD patterns of catalysts samples: a) AS-2 and AS-3, b) CS-1 and CS-2, and c) CS-3 and AS-1.

Export to PPT

Using Scherer equation and based on the maximum peak, the crystalline size of AS-2 and AS-3 catalyst was calculated, 28 and 48 nm, respectively. Therefore, as the ${\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4/\mathrm{M}\mathrm{n}$ ratio decreased from 3 to 2.5, the particle size decreased. In $\mathrm{N}\mathrm{a}\mathrm{K}\mathrm{C}{\mathrm{O}}_3$ @( $\mathrm{M}\mathrm{n}-{\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4/\mathrm{S}\mathrm{i}{\mathrm{O}}_2$ ) samples, it was found that by increasing the amount of $\mathrm{N}\mathrm{a}$ and $\mathrm{K}$ from 0.010 and 0.012 to 0.02 and 0.024, respectively, the catalyst got a more regular structure; Also, the side phase of ${\mathrm{K}}_2\mathrm{C}{\mathrm{O}}_3$ (JCPDS 00–16-820) (Lee et al., 2022) was removed from the catalyst structure. The reason for the presence of this phase in the catalyst structure of CS-1 is related to the fact that some initial amount of ${\mathrm{K}}_2\mathrm{C}{\mathrm{O}}_3$ did not enter the shell structure, and presented in the free phase, which will reduce the efficiency and activity of the catalyst. About the CS-2 sample, no additional peaks related to the side phases of ${\mathrm{K}}_2\mathrm{C}{\mathrm{O}}_3$ (JCPDS 00–16-820) or ${\mathrm{N}\mathrm{a}}_2\mathrm{C}{\mathrm{O}}_3$ (JCPDS 08–0448) are observed (Ziyadi et al., 2021). In the all of samples, the peak of α-cristobalite $\mathrm{S}\mathrm{i}{\mathrm{O}}_2$ was observed. Using the Scherer equation (Y. Gao et al., 2022), the crystalline size calculated for the catalyst samples CS-1 and CS-2 is 60 nm and 51 nm, respectively.

The BET surface area and pore volume of all catalysts as determined by ${\mathrm{N}}_2$ adsorption are presented in Table 2. CS-2 had the highest BET (89.25 ${\mathrm{m}}^2{\mathrm{g}}^{-1}$ ). According to the FE-SEM images for AS-2 and AS-3 as shown in Fig. 3a-b, the particle size increased with increase the ${\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4/\mathrm{M}\mathrm{n}$ ratio from 2.5 to 3, the homogeneity and uniformity of the particles decreased, and the particles size of AS-3 sample was reported to be larger and more heterogeneous, the particle size of the AS-2 sample was observed from 29 to 48 nm and with increasing the ${\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4/\mathrm{M}\mathrm{n}$ ratio from 2.5 to 3, the particle size in AS-3 catalyst varied between 30 and 56 nm. According to Fig. 3c-d, the core–shell samples CS-1 and CS-2, it is found that the catalyst structure becomes more regular, and the growth of the catalyst core–shell structure is increased with increasing Na and K. According to the FE-SEM analysis, the catalysts are amorphous, but according to the TEM images, it can be concluded that the catalysts are almost like spheres. Also, the size of the molecules is reduced due to the growth of the molecular network because of the improvement in the core–shell structure. The first sample, CS-1, contains 0.012 of K and 0.01 of Na had a particle with a size in the range of 54 to 96 nm and the second sample, CS-2, contains 0.024 of K and 0.02 of Na had a particle in the range of 41 to 71 nm, which is the reason for this decrease in size and is related to the growth of the core–shell structure network using increasing values of K and Na. The images related to the EDX analysis of the samples also reveal the absence of impurities in the structure of the catalysts. According to Fig. 4, the TEM image results show that the core–shell structure is formed.

Close

Fig. 3

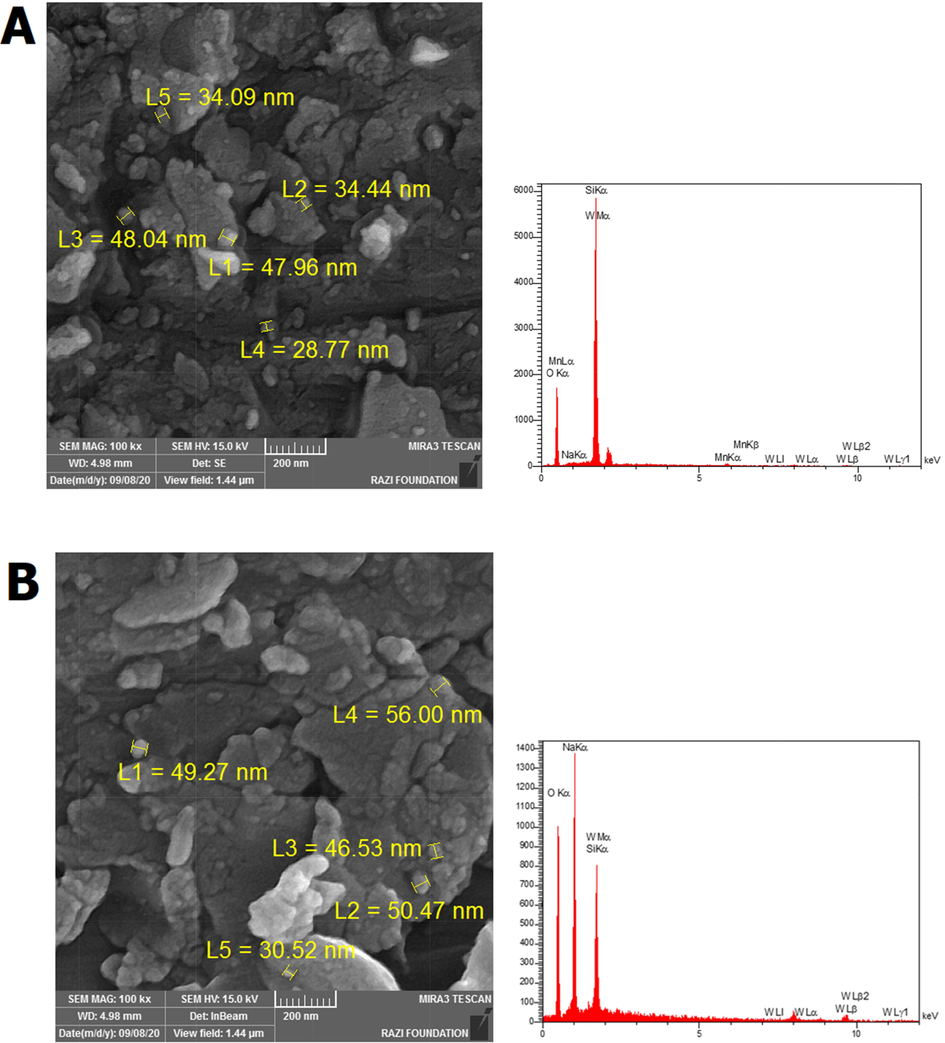

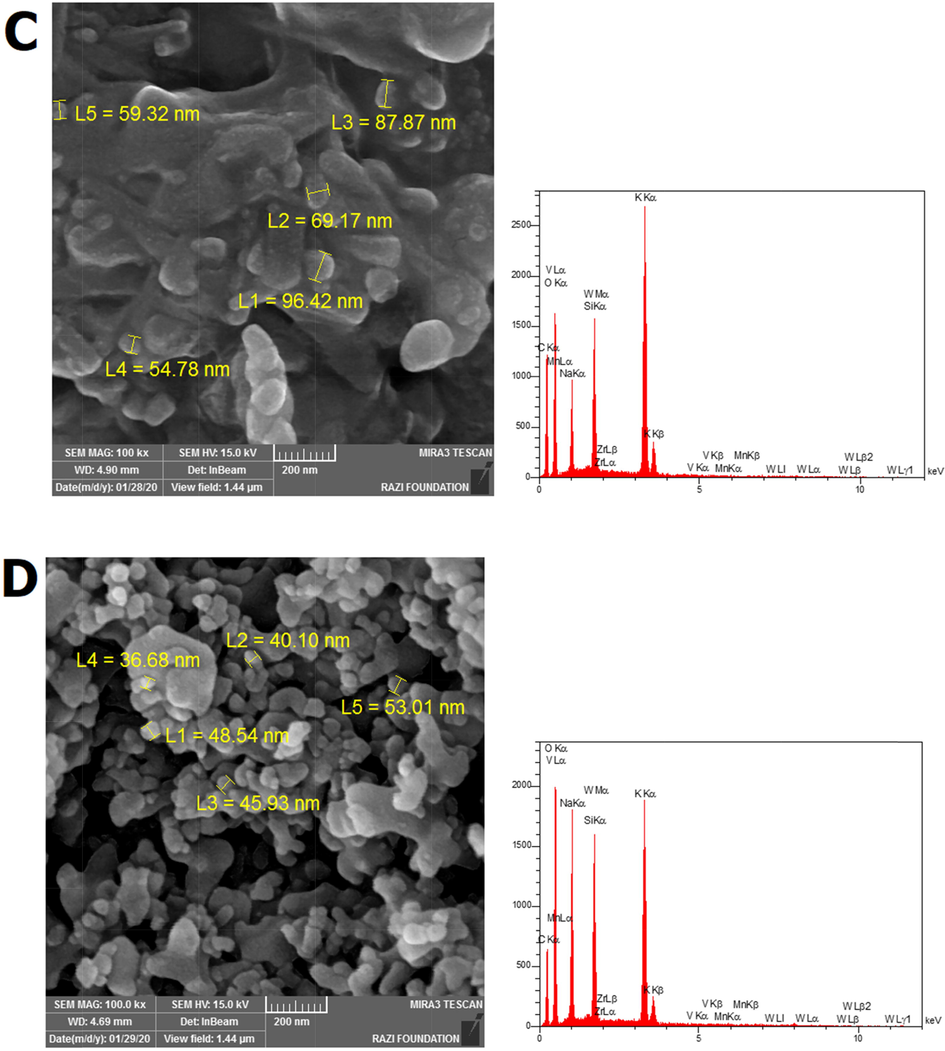

FE-SEM images and EDX graphs for all samples AS-2 (a), AS-3 (b), CS-1 (c), and CS-2 (d).

Export to PPT

Close

Fig. 3

FE-SEM images and EDX graphs for all samples AS-2 (a), AS-3 (b), CS-1 (c), and CS-2 (d).

Export to PPT

Close

Fig. 4

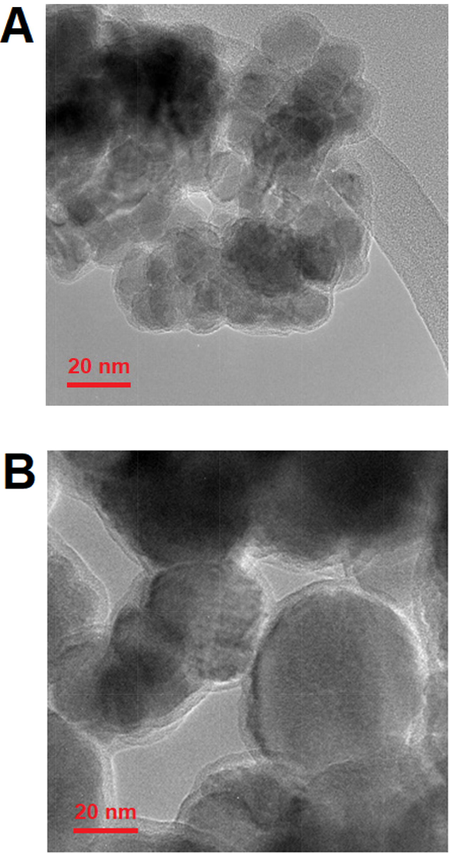

TEM images for samples AS-2 (a) and CS-2 (d).

Export to PPT

According to Fig. 7, for the two catalysts CS-2 and AS-2, it is determined that the amount of carbon deposition is 0.71 % and 0.81 %, respectively, which shows the high resistance of these two catalysts against carbon sediment. The catalyst has lesser carbon sediment on its structure, which can be attributed to the presence of oxygen on its surface structure. The oxygen prevents the formation and deposition of carbon on it in the sense that by separating methane, the carbon reacts immediately with oxygen and reduces the amount of carbon deposition on the catalyst. However, it increases the amounts of CO and ${\mathrm{C}\mathrm{O}}_2$ as by-products. Less carbon deposition on the core–shell catalyst than a conventional AS-2 catalyst indicates better resistance of the core–shell structure because of the higher oxygen content in the CS-2 which thus increases catalyst activity and makes it more stable.

3.2 Catalyst activity

The results of the $\mathrm{M}\mathrm{n}-{\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4/\mathrm{S}\mathrm{i}{\mathrm{O}}_2$ and $\mathrm{N}\mathrm{a}\mathrm{K}\mathrm{C}{\mathrm{O}}_3$ @( $\mathrm{M}\mathrm{n}-{\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4/\mathrm{S}\mathrm{i}{\mathrm{O}}_2$ ) catalyst activity test with different ratios of Mn and Na2WO4 are presented in Table 3. The effect of the methane/oxygen ratio on conversion, selectivity, and yield are shown in Table 2, these experiments were performed inside the reactor. According to Table 2, as the ratio of methane to oxygen increases, the percentage of conversion decreases; The highest conversion percentage related to the ratio of methane/oxygen = 2 was reported. However, the selectivity of ethylene alone had an increase–decrease trend and the highest percentage of selectivity was recorded in the ratio of methane/oxygen equal to 4. Since achieving the highest conversion with the highest yield of ${\mathrm{C}}_2^{+}$ was the goal of optimization, the ratio of methane/oxygen = 2 was chosen (Nematollahi and Neyts, 2020).

Oxygen concentration is considered one of the main variables controlling the progress of reactions. The results showed that in the presence of oxygen, the formed ${\mathrm{C}}_2^{+}$ hydrocarbons can be easily converted into ${\mathrm{C}\mathrm{O}}_{\mathrm{x}}$ . By increasing the oxygen concentration in the feed gas and producing ${\mathrm{C}\mathrm{O}}_{\mathrm{x}}$ , methane was consumed at a higher rate through oxidation reactions (Fig. 5a). The yield of ${\mathrm{C}}_2^{+}$ is the product of methane conversion percentage and the selectivity of ${\mathrm{C}}_2^{+}$ (Fig. 5c). Therefore, the efficacy of ${\mathrm{C}}_2^{+}$ decreases as the molar ratio of methane to oxygen increases. If the amount of oxygen in the feed gas is reduced, the ${\mathrm{C}\mathrm{O}}_{\mathrm{x}}$ production rate will always be lower than the ${\mathrm{C}}_2$ production rate. Therefore, as the methane to oxygen ratio increases from 2 to 6, methane conversion reduces, while the selectivity of ${\mathrm{C}}_2^{+}$ enhances (Fig. 5b). Therefore, higher methane conversion and ${\mathrm{C}}_2$ yield was obtained with a higher oxygen ratio (lower $\mathrm{C}{\mathrm{H}}_4/{\mathrm{O}}_2$ ratio), and the hydrocarbons in the process are oxidized less to carbon dioxide for a $\mathrm{C}{\mathrm{H}}_4/{\mathrm{O}}_2$ feed ratio (less than 2) (Liu et al., 2022).

Close

Fig. 5

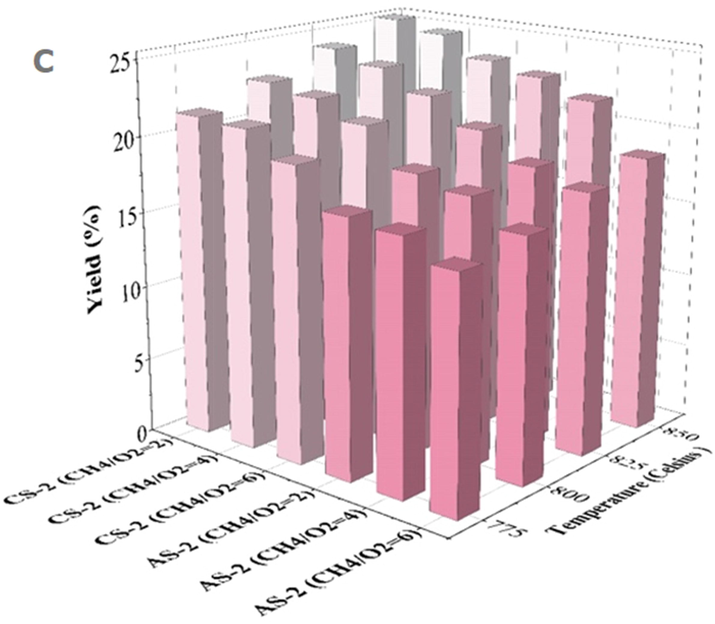

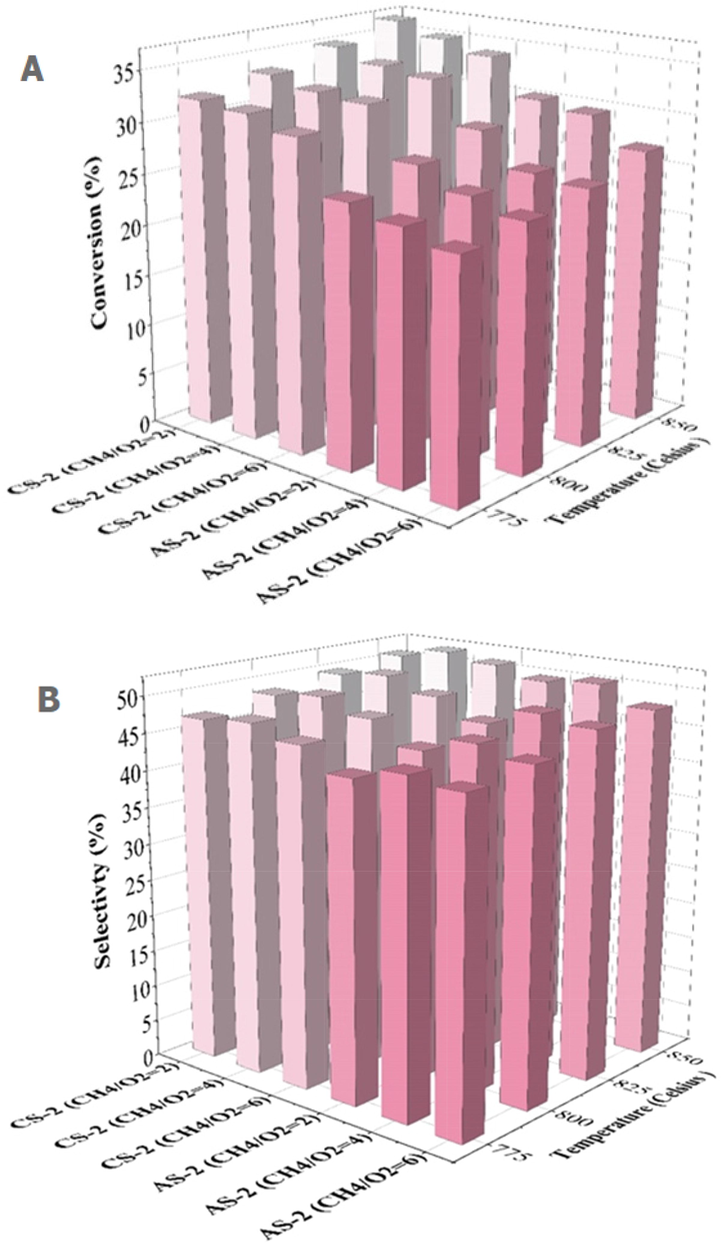

Methane conversion (a), selectivity (b) and ${\mathrm{C}}_2^{+}$ yield (c) curves in performance of AS-2 and CS-2 catalyst.

Export to PPT

Close

Fig. 5

Methane conversion (a), selectivity (b) and ${\mathrm{C}}_2^{+}$ yield (c) curves in performance of AS-2 and CS-2 catalyst.

Export to PPT

According to Fig. 5, the reactor tests for nano-catalytic activity suggest the reactor temperature range of 775–850 °C, the methane conversion, selectivity, and yield of ${\mathrm{C}}_2$ compounds have presented the highest results. The optimum temperature was 850 °C. Methane conversion was insignificantly affected at high $\mathrm{C}{\mathrm{H}}_4/{\mathrm{O}}_2$ feed ratios for temperatures above 850 °C. The selectivity and the yield of ${\mathrm{C}}_2$ compounds at the reactor output were enhanced by increasing the reaction temperature to 850 °C.

At both temperatures, below 775 °C and above 850 °C, the gas phase reaction controls the OCM reactions. Selectivity and performance both benefit from successive reactions resulting from the gas phase reaction and reach their highest values. Above 850 °C the oxidation of ${\mathrm{C}}_2$ compounds was the main reaction causing low ethylene selectivity. As a result, ${\mathrm{C}}_2$ product performance was diminished. Maximum performance for the catalytic activity was achieved when the whole oxygen in the reactor was consumed (Rosli et al., 2022). The best performance for these two families of catalysts in similar operating conditions is mentioned below:

I) AS-2 catalyst in the feed ratio $\mathrm{C}{\mathrm{H}}_4/{\mathrm{O}}_2$  = 2 and temperature of 850 °C resulting in methane conversion percentage of 30.5 % and ${\mathrm{C}}_2$ yield of 22.79 %, selectivity of 74.71 % for ${\mathrm{C}}_2^{+}$ and selectivity of 49.89 % for ethylene.

II) CS-2 which in the same operating conditions results in, the percentage of methane conversion of 36.52 %, ${\mathrm{C}}_2$ yield of 25.42 %, selectivity of 69.59 % for ${\mathrm{C}}_2^{+}$ , and selectivity of 50.75 % for ethylene.

Another distinguishing result was the difference in the amount of ethane produced as one of the by-products, which for the core–shell catalyst was lesser than the conventional AS-2 catalyst. Ethane reduces the selectivity and yield of the ${\mathrm{C}}_2$ product for the core–shell catalyst.

The ethylene produced by the core–shell catalyst was about 21 % more in comparison with the amount of ethylene produced by the conventional catalyst. And the ethane produced as a by-product was approximately 10 % lower for the core–shell catalyst resulting in a higher ratio of ethylene to ethane that was produced (Yang et al., 2022).

Regarding the AS-2 catalyst as well as its core–shell catalyst, it can be noted that the higher activity of these two catalysts in comparison with other catalysts can be related to the proper distribution of ${\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4$ on the catalyst structure. The active phase of these catalysts consists of quadrilateral $\mathrm{W}{\mathrm{O}}_4^{2-}$ . This structure was changed during the catalytic cycle between ${\mathrm{W}}^{6+}$ and ${\mathrm{W}}^{5+/4+}$ structures during the chemical separation of methane and subsequent methane oxidation. The main role of Na in the catalyst was to stabilize the $\mathrm{W}{\mathrm{O}}_4^{-}$ quadrilateral structure versus the octahedral structure. The Mn in ${\mathrm{M}\mathrm{n}}_2{\mathrm{O}}_3$ was a mediator that contributes to the use of the oxygen produced in the recovery of ${\mathrm{W}}^{6+}$ . The cooperation of two cycles of reduction of W and Mn leads to the development of OCM. The second role of sodium in the structure of this catalyst was to facilitate the formation of the cristobalite phase at low temperatures such as 800 °C, which was lower than the calcination temperature of ${\mathrm{S}\mathrm{i}\mathrm{O}}_2$ . The presence of the cristobalite phase in ${\mathrm{S}\mathrm{i}\mathrm{O}}_2$ stabilizes $\mathrm{W}{\mathrm{O}}_4^{-}$ , sodium plays a dual role as a chemical and structural enhancer (Park et al., 2020).

One of the concerns is that at high temperatures of the OCM process, the core–shell structure breaks down to form a composite mixture composed of $\mathrm{M}\mathrm{n}\mathrm{O}$ , $\mathrm{N}\mathrm{a}\mathrm{K}\mathrm{C}{\mathrm{O}}_3$ , ${\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4$ , and ${\mathrm{S}\mathrm{i}\mathrm{O}}_2$ . In this research, a solution was found to solve this problem; the presence of excess sodium in the nano-catalytic structure of $\mathrm{N}\mathrm{a}\mathrm{K}\mathrm{C}{\mathrm{O}}_3$ caused a very good distribution of ${\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4$ on ${\mathrm{S}\mathrm{i}\mathrm{O}}_2$ containing Mn. This proper distribution makes it easy to form $\mathrm{W}{\mathrm{O}}_4^{-}$ . This prevents $\mathrm{W}{\mathrm{O}}_4^{-}$ from being converted to ${\mathrm{W}}^{6+}$ due to the high amount of sodium and oxygen in the system, and improves the performance of the core–shell catalyst in comparison with a conventional catalyst. Therefore, the core–shell structure and the proper distribution of the ${\mathrm{N}\mathrm{a}}_2\mathrm{W}{\mathrm{O}}_4$ phase in its structure improve the performance of the catalyst in the production of ${\mathrm{C}}_2$ compounds (Zhou et al., 2021).

Based on the results of the tests and the comparison of the data obtained from the conversion percentage and the yield of ethylene production, the best performance is related to the two catalysts AS-2 and CS-2. So, a stability test at 850 °C for 50 h with a feed-to-oxygen ratio of 2 was performed on these two catalysts to test their stability in addition to being superior in yield and selectivity. The results of the stability test indicated that both catalysts have high stability in ethylene production (Fig. 6).

Close

Fig. 6

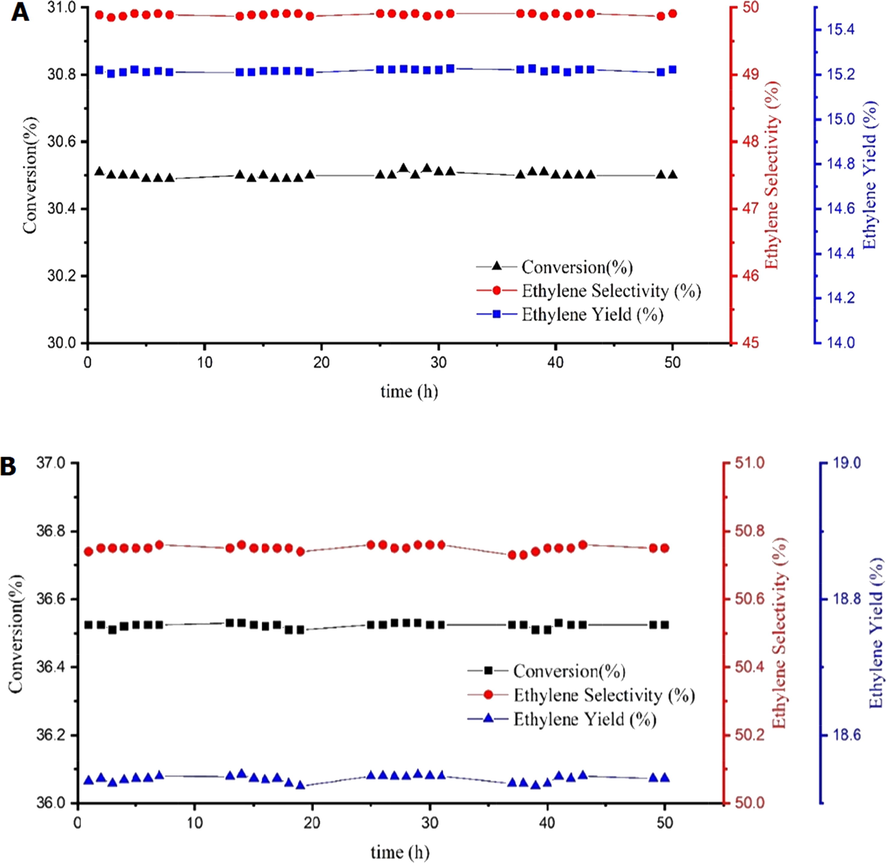

Conversion, ethylene selectivity, and ethylene yield for AS-2 (a) and CS-2 (b) catalyst over 50 h with feed containing methane, oxygen, and nitrogen at a ratio of 2:1:7 at 850 °C.

Export to PPT

Close

Fig. 7

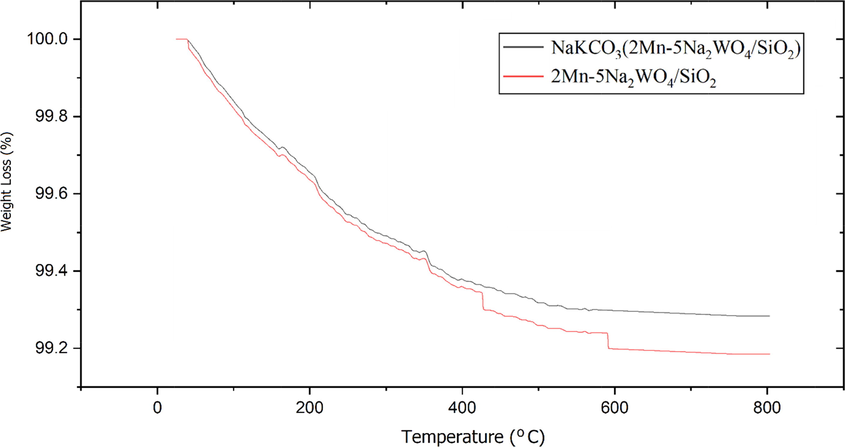

TGA test results for AS-2 and CS-2 catalysts.

Export to PPT
