Synthesis of new pyrazine-thiazole analogs: Molecular modeling, anticancer activity, and pharmacokinetic properties

2.1. Materials and instruments

The solvents dioxane, tetrahydrofuran (THF), and acetic acid were selected based on their compatibility with the reaction components and their capacity to promote efficient reactions under mild conditions. Dioxane was used due to its superior solvating properties and its ability to stabilize intermediates during reactions, particularly those involving halogenated reagents. THF (as a polar aprotic solvent) was selected to enhance nucleophilic substitution or cyclization reactions while minimizing side products. Acetic acid was utilized for its dual functionality as both a solvent and a catalyst, especially in condensation reactions. Chloroacetic acid and phenacyl bromide were handled in a well ventilated fume hood, with researchers wearing appropriate personal protective equipment including gloves, goggles, and lab coats.

Melting points were assigned using the Gallenkamp-electric device. The infra-red spectra (KBr discs) were obtained from Thermo-Scientific Nicolet iS10 FTIR spectrophotometer. A JEOL spectrometer was employed to record the 1H- and 13C-Nuclear Magnetic Resonance (NMR) spectra at 500 MHz and 125 MHz, correspondingly, using DMSO-d6 as the solvent. A Quadrupole Gas Chromatography-Mass Spectra (GC-MS) (DSQII) instrument operating at 70 eV was utilized to acquire mass spectra. For elemental analysis of carbon, hydrogen, and nitrogen elements, a Perkin-Elmer 2400 analyzer was used.

2.2. 2-(1-(4-(Pyrazin-2-ylamino)phenyl)ethylidene)hydrazine-1-carbothioamide (2)

2-(4-Acetylphenyl)amino-pyrazine (1, 1.70 g, 8 mmol) and thiosemicarbazide (0.73 g, 8 mmol) were refluxed for three hrs in a solution of 35 mL ethanol and 1 mL acetic acid using a 100 mL round bottom flask (RBF). The resulting suspension was left to stand for a night, and a solid was precipitated. This solid was subsequently isolated, yielding the pyrazine-thiosemicarbazone compound 2.

Yield = 1.86 g (81.3%), m.p. = 187-188°C. Retention factor (R_f) = 0.44 (petroleum ether : AcOEt = 3:1). IR (ν/cm^-1): 3340, 3228, 3196 (NH₂ and N-H), 1634 (C=N). ¹H NMR (δ/ppm): 2.36 (s, 3H, CH₃), 7.31 (d, J = 8.50 Hz, 2H), 7.67 (d, J = 8.50 Hz, 2H), 7.91 (s, 2H, NH₂), 8.47 (d, J = 2.00 Hz, 1H, pyrazine-H), 8.53 (d, J = 2.00 Hz, 1H, pyrazine-H), 8.61 (s, 1H, pyrazine-H), 9.26 (s, 1H, N-H), 11.34 (s, 1H, N-H). MS m/z (%): 286 (M⁺, 17.03). Anal. Calcd. for C₁₃H₁₄N₆S (286.10): C, 54.53; H, 4.93; N, 29.35%. Found: C, 54.67; H, 4.98; N, 29.26%.

2.3. 2-(2-(1-(4-(Pyrazin-2-ylamino)phenyl)ethylidene)hydrazineyl)thiazolin-4-one (3)

A mixture of pyrazine-thiosemicarbazone compound 2 (1.43 g, 5 mmol), chloroacetic acid (0.47 g, 5 mmol), and sodium acetate (0.50 g) in 25 mL acetic acid were heated with stirring for four hrs. The mixture was diluted with ice-water (25 mL) and the formed product was collected and crystallized from ethanol (30 mL) to yield the corresponding pyrazine-thiazolin-4-one analog 3 after cooling at 18-20°C for a duration of 12 hr.

Yield = 1.23 g (75.5%), m.p. = 231-232°C. R_f = 0.38 (petroleum ether : AcOEt = 2:1). IR (ν/cm^-1): 3332, 3225 (N-H), 1705 (C=O). ¹H NMR (δ/ppm): 2.35 (s, 3H, CH₃), 3.93 (s, 2H, CH₂), 7.27 (d, J = 8.50 Hz, 2H), 7.65 (d, J = 8.50 Hz, 2H), 8.45 (d, J = 2.00 Hz, 1H, pyrazine-H), 8.51 (d, J = 2.00 Hz, 1H, pyrazine-H), 8.60 (s, 1H, pyrazine-H), 9.33 (s, 1H, N-H), 11.76 (s, 1H, N-H). ¹³C NMR (δ/ppm): 16.29, 36.17, 113.36 (2C), 128.74 (2C), 129.97, 135.08, 136.52, 142.65, 144.13, 147.88, 152.91, 163.56, 177.61. MS m/z (%): 326 (M⁺, 67.11). Anal. Calcd. for C₁₅H₁₄N₆OS (326.09): C, 55.20; H, 4.32; N, 25.75%. Found: C, 55.08; H, 4.37; N, 25.83%.

2.4. Synthesis of 5-arylidene-2-(2-(1-(4-(pyrazin-2-ylamino)phenyl)ethylidene)hydrazineyl)-thiazolin-4-one compounds 4a-c

A pyrazine-thiazolin-4-one hybrid 3 (0.65 g, 2 mmol) was combined with 30 mL of ethanoic acid in a 100 mL RBF. The resulting mixture was supplemented with 0.50 g of fused sodium ethanoate and 2 mmol of one of the following aldehydes: 4-methoxybenzaldehyde, 4-nitrobenzaldehyde, or 4-chlorobenzaldehyde. This solution underwent reflux for four hrs. Upon cooling to 20°C, a solid precipitate formed, which was subsequently isolated and crystallized using acetic acid (25 mL) after cooling at 20-22°C for a duration of 24 hrs. This process yielded the corresponding pyrazine-5-arylidine-thiazolin-4-ones, labeled as compounds 4a-c.

2.5. Synthesis of 4-aryl-2-(2-(1-(4-(pyrazin-2-ylamino)phenyl)ethylidene)hydrazineyl)-thiazole derivatives 6a-c

A pyrazine-thiosemicarbazone analog 2 (0.57 g, 2 mmol) was solubilized in 25 mL of dioxane within a 100 mL RBF. Subsequently, a phenacyl bromide derivative (2 mmol) - either p-methoxyphenacyl bromide, p-nitrophenacyl bromide, or p-chlorophenacyl bromide was introduced along with 0.2 mL of triethylamine. The mixture underwent reflux for four hrs, followed by cooling to 25°C to induce precipitation. The product was then filtered and crystallized from dioxane (30 mL), yielding the corresponding pyrazine-thiazole analogs 6a, 6b, and 6c, after cooling at 20°C for a duration of 12 hrs.

2.6. Synthesis of pyrazine-thiazole compounds 8a, 8b, and 9

A solution of pyrazine-thiosemicarbazone compound 2 (0.57 g, 2 mmol) in 25 mL dioxane, chloroacetone, 3-chloroacetyl acetone, and/or ethyl 4-chloroacetoacetate (2 mmol) and 0.2 mL triethylamine were combined. The mixture was refluxed for 4 hrs and then chilled to 25°C. The obtained solid was filtered upon cooling to produce the conforming pyrazine-thiazole analogs 8a, 8b, and 9.

2.7 Synthesis of 5-arylazo-4-methyl-2-(2-(1-(4-(pyrazin-2-ylamino)phenyl)ethylidene)-hydrazineyl)thiazole compounds 11a-c

A 100 mL RBF was occupied by a solution of the pyrazine-thiosemicarbazone analog 2 (0.57 g, 2 mmol) in 25 mL THF and 0.4 mL triethylamine. To this solution, the corresponding N-aryl-2-oxo-propanehydrazonoyl chloride 10a, 10b, and/or 10c (2 mmol) was poured and then let to reflux for four hrs. Finally, the precipitate was collected and crystallized with ethanol (35 mL) to produce the corresponding pyrazine-thiazole analogs 11a, 11b and 11c, after cooling at 25°C for a duration of 8 hrs.

2.8. DFT modeling

Utilizing the Becke’s three-parameter exchange functional with the Lee-Yang-Parr correlation functional (B3LYP) and 6-311++G(d,p) basis set of the Gaussian 09W (version 9.5) [36-39], the derivatives were geometrically optimized, and their electronic and frontier molecular orbitals (FMOs) were analyzed via GaussView (version 6.0) [40]. The convergent criteria used was the default SCF convergence (10⁸) with maximum displacement 1.8×10^-3. The DMol3 module of the Materials Studio’s was used in Fukui indices [41] assessment at B3LYP/DNP 3.5 level [42].

2.9. Cytotoxic assay

A diverse assortment of cell lines, which encompass Panc-1, HepG2, MCF-7, along with WI-38, a representative normal cell line, was employed to conduct an in vitro anti-cancer assay aimed at evaluating the efficacy of the synthetic benzothiazole-thiadiazole hybrids, utilizing the well-established MTT assay methodology for accurate measurement of cell viability and proliferation [43]. The cells were cultured in RPMI-1640 medium supplemented with 10% fetal bovine serum (FBS). During the incubation phase at 37°C in a 5% CO₂ environment, antibiotics inclusive of 100 U/mL penicillin and 100 μg/mL streptomycin were introduced to the cells. In the next phase, the cells were seeded in a 96-well plate at a density of 1.0×10⁴ cells/well, which was maintained at 37°C for 48 hrs in the same CO₂-enriched environment. Following this incubation period, the cells were subjected to varying concentrations of the compounds for 24 hrs. The serum was then ousted, and 150 μL of 10% w/v trichloroacetic acid was added in each well and the mixture was then incubated at 4°C for 1 hr. Once this step was complete, the cells were washed with TCA alongside water three times to reduce SRB protein binding. In the well, 70 μL of SRB was added alongside 0.4% of the compound, and this mixture was then incubated at room temperature for 10 mins. The bromide dye was removed alongside utilizing the 1% acetic acid compound. This mixture was left to dry out for 24 hrs, and finally, the wells were solubilized utilizing 50 μL of 10 mM tris base (pH 7.4) for 5 mins, while being shaken at 1600 rpm.

2.10. Carbonic anhydrase assay

The various compounds that were carefully synthesized in the laboratory were subsequently evaluated through a series of assays to determine their efficacy as inhibitors against four specific carbonic anhydrase isoforms that are physiologically significant, which include the trans-membrane tumor-associated isoforms hCA IX and hCA XII, alongside the targeted cytosolic isoforms hCA IX and hCA XII, and this evaluation was conducted utilizing the CO₂ hydrase methodology [44]. The carbonic anhydrase-mediated hydration of CO₂ described in this report was evaluated using an Applied Photo-physics stopped-flow instrument. The enzymes utilized are recombinant proteins synthesized in our laboratory. Phenol red was employed as an indicator at a concentration of 0.2 mM, operating at the absorbance peak of 557 nm, with a buffer solution of 20 mM Hepes (pH 7.5) and 20 mM Na₂SO₄ to maintain a consistent ionic strength. The initial rates of the CA-catalyzed CO₂ hydration reaction were monitored over 10 to 100 seconds, with CO₂ concentrations varying from 1.7 to 17 mM to ascertain the kinetic parameters and inhibition constants. For each inhibitor, a minimum of six traces corresponding to the initial 5-10% of the reaction were analyzed to determine the initial velocity. The rates of the uncatalyzed reactions were measured in a similar manner and subsequently subtracted from the total observed rates. Stock solutions of the inhibitor at 0.1 mM were prepared in distilled-deionized water, followed by dilutions down to 0.01 mM using the assay buffer. Prior to the assay, the inhibitor and enzyme solutions were preincubated together for 15 mins at room temperature to facilitate compound formation. The inhibition constants were calculated using non-linear least-squares methods with PRISM 3 and the Cheng-Prusoff equation, representing the average from at least three separate determinations.

2.11. Molecular docking

The process of molecular docking was meticulously conducted employing the advanced software M.O.E.2019., which facilitated the exploration and analysis of the ligand structures corresponding to a variety of pyrazine-thiazole analogs, specifically the compounds numbered 2, 3, 4a-c, 6a-c, 8a, 8b, 9, and 11a-c. In the selection process, the protein of interest was judiciously chosen in its .pdb format, which was derived from the intricately detailed co-crystalized structure of focal adhesion kinase (FAK), precisely represented by the entry identified as 6CB0 within the comprehensive Protein Data Bank [33]. FAK is a non-receptor tyrosine kinase that is essential in the processes of tumor progression, metastasis, and angiogenesis. Elevated levels of FAK have been detected in various cancer types, such as breast, pancreatic, and liver cancers, which are the focus of this study. Its participation in numerous signaling pathways that govern cell adhesion, migration, and survival positions it as a promising target for therapeutic intervention.

3.1. Synthesis of pyrazine-thiazole hybrids 3, 4, 6, 8, 9, and 11

The preparation of our pyrazine-based thiosemicarbazone precursor 2 has been achieved by condensation of 2-(4-acetylphenyl)amino-pyrazine (1) [45] with thiosemicarbazide in boiling ethanol and acetic acid (1 mL). The pyrazine-thiosemicarbazone derivative 2 undergoes a cyclization reaction involving its thioamide portion when combined with chloroacetic acid in boiling acetic acid containing sodium acetate, leading to the formation of the corresponding pyrazine-thiazolin-4-one compound 3 (Scheme 1). The thiazolin-4-one ring structure in compound 3 has a methylene group with sufficient reactivity toward Knoevenagel condensation with aromatic aldehydes (p-methoxy-, p-nitro-, and p-chlorobenzaldehyde). The reaction proceeds by heating in a mixture of acetic acid and sodium acetate, where the target compounds 4a-c, 5-arylidene-2-(2-(1-(4-(pyrazin-2-ylamino)phenyl)ethylidene)hydrazineyl)-thiazolin-4-ones, were successfully synthesized. The molecular structures of pyrazine-thiazoles 3 and 4a-c were determined through a comprehensive analysis of their IR, ¹H NMR, ¹³C NMR, and MS data.

Close

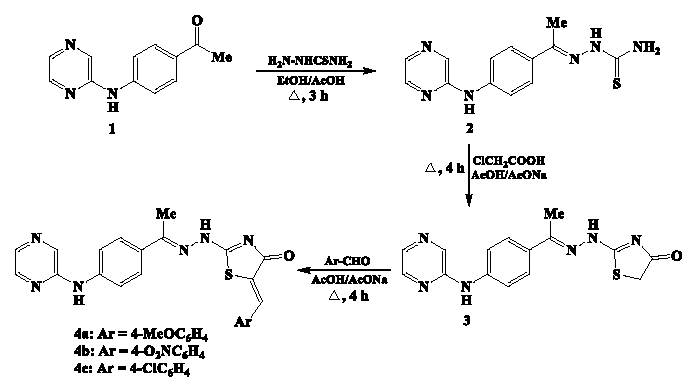

Scheme 1.

Synthesis of pyrazine-thiazolin-4-one analogs 3 and 4a-c.

Export to PPT

The absorption frequencies were correlated with the chemical environment of the carbonyl group in the synthesized pyrazine-thiazole analogs 3 and 4a-c. The cyclic carbonyl group in thiazolin-4-one compound 3 was observed at the expected absorption frequency of 1705 cm^-1. The suggested conjugation, as a result of the introduction of the arylidene system at the fifth position of thiazolin-4-one compounds 4a-c, lowers the frequency of the carbonyl group to 1678, 1692, and 1683 cm^-1, respectively. In addition, the nature of the substituent at the para-position of the benzylidene group affected the absorption frequency of the carbonyl group in compounds 4a-c. The electron-donating methoxy group in compound 4a promoted a sharp decrease in the carbonyl frequency to 1678 cm^-1. The electron-withdrawing nitro group in compound 4b somewhat compensated for the effect of conjugation; the carbonyl frequency was recorded at 1692 cm^-1.

The ¹H NMR spectrum of 4a revealed distinct singlet signals for the protons of the methyl (N=C-CH₃) and methoxy (-OCH₃) groups at δ 2.36 and 3.81 ppm, individually. The doublet signals at δ 7.03, 7.30, 7.54, and 7.67 ppm were attributed to the phenylene group protons. A singlet at δ 7.78 ppm indicated the presence of the olefinic proton. The three protons of pyrazine-ring were assigned as two doublet (δ 8.46 and 8.50 ppm) and singlet (δ 8.58 ppm) signals. The singlet signals that were detected at δ 9.25 and 11.42 ppm indicated the protons of two N-H groups. When scanning chemical shift values for the olefinic proton in compounds 4a-c, it was found that they were directly influenced by the electronic nature of the substituted group at the benzylidene group. The olefinic proton in compound 4a was observed at a lower chemical shift of δ 7.78 ppm due to the presence of an electron-donating methoxy group. The electron-withdrawing nitro group in compound 4c promoted a de-shielding effect on the olefinic proton to a higher chemical shift of δ 7.92 ppm.

The cyclization reaction caused due to exposure of pyrazine-thiosemicarbazone 2 to chloroacetic acid involves several steps (Scheme 2). Initially, the thiol group undergoes alkylation with chloroacetic acid, resulting in the release of an HCl molecule and the formation of an intermediate (A). This intermediate then quickly undergoes cyclization, during which a water molecule is eliminated. The resulting intermediate (B) rapidly tautomerizes, ultimately producing the desired pyrazine-thiazolin-4-one hybrid 3.

Close

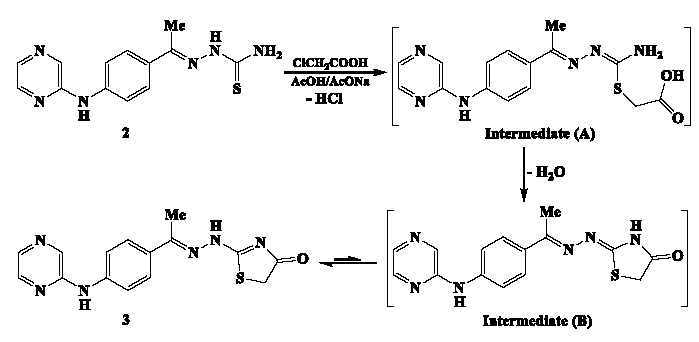

Scheme 2.

The mechanism for cyclization of pyrazine-thiosemicarbazone 4 with chloroacetic acid.

Export to PPT

Also, thiosemicarbazone 2 has been employed as a starting material for generating the second set of pyrazine-thiazole analogs 6a-c. These analogs, characterized by an aryl substituent at the thiazole ring’s fourth position, were synthesized through Hantzsch-type reactions. The process involved reacting compound 2 with various phenacyl bromides, specifically 4-methoxy-, 4-nitro-, and 4-chlorophenacyl bromide, as outlined in Scheme 3. The production of the third set of pyrazine-thiazole conjugates, 8a and 8b, featuring a methyl substituent at the fourth position of the newly formed thiazole ring, was achieved through a similar process that involved reacting the pyrazine-thiosemicarbazone 2 with either chloroacetone or 4-chloroacetylacetone in a mixture of boiling dioxane and triethylamine, respectively. The structures of pyrazine-thiazoles 6a-c and 8a-b were suggested based on their compatible data of IR, ¹H NMR, ¹³C NMR, and MS analyses. The IR spectrum of pyrazine-thiazole analog 6b showed the absorptions of the N-H groups at 3334 and 3221 cm^-1, while the imine group (C=N) was detected at the frequency of 1629 cm^-1. The ¹H NMR scale clearly showed the four-protons of methyl group and thiazole-C5 as singlet signals at δ 2.67 and 7.19 ppm. The aromatic protons of phenylene groups were recoded as doublet signals at δ 7.35, 7.67, 7.96, and 8.30 ppm. The pyrazine-ring`s protons of were resonated at δ 8.48 (doublet), 8.55 (doublet), and 8.64 ppm (singlet). The two-protons of N-H groups were identified at δ 9.13 and 11.83 ppm.

Close

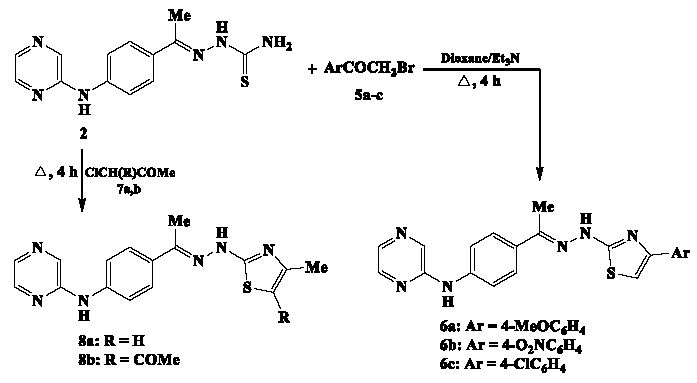

Scheme 3.

Synthesis of pyrazine-thiazole analogs 6a-c and 8a-b.

Export to PPT

The proposed Hantzsch-type reaction pathway (Scheme 4) for generating pyrazine-thiazole hybrid compounds 6a-c, begins with the alkylation of the nucleophilic sulfur atom, resulting in the formation of intermediate (C). The subsequent cyclization step is driven by the nucleophilic addition of the amino group to the carbonyl group in intermediate (C), producing intermediate (D). The final products, compounds 6a-c, are obtained through the elimination of water from intermediate (D).

Close

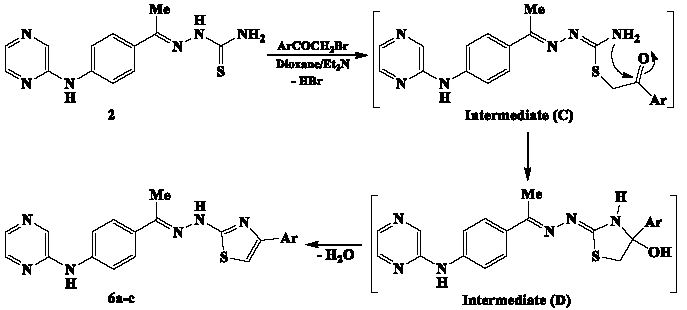

Scheme 4.

Mechanism of Hantzsch-type reaction between thiosemicarbazone 2 and phenacyl bromides.

Export to PPT

To pick up the fourth series of pyrazine-thiazole analogs 9 and 11a-c, the pyrazine-thiosemicarbazone 2 was subjected to the reactions with ethyl 4-chloroacetoacetate and N-aryl-2-oxo-propanehydrazonoyl chlorides 10a-c, respectively. The reaction of thiosemicarbazone compound 2 with ethyl 4-chloroacetoacetate was performed in boiling dioxane and triethylamine to furnish the agreeing pyrazine-thiazole conjugate 9 having ethyl acetate moiety at the position-4 of the thiazole ring (Scheme 5). Finally, treatment of thiosemicarbazone 2 with three different N-aryl-2-oxo-propanehydrazonoyl chlorides 10a-c proceeded in boiling THF and triethylamine to produce the corresponding pyrazine-thiazole analogs 11a-c substituted with arylazo group at position-5 of the thiazole skeleton. Spectral analyses were used to define the structure of the newly created pyrazine-thiazole analogs 9 and 11a-c. The IR spectrum of 11c indicated the absorption frequencies of N-H groups at 3328 and 3217 cm^-1, while the stretched band of the imine group (C=N) was detected at 1634 cm^-1. The ¹H NMR spectrum displayed two-singlet signals (δ 2.43 and 2.65 ppm), each integrated for three-protons, for the two methyl substituents. The phenylene protons were observed as doublet peaks at δ 7.26, 7.38, 7.67, and 7.75 ppm. The pyrazine ring’s protons were identified as a doublet-peak at δ 8.38 ppm, another doublet-peak at δ 8.46 ppm, and a singlet-peak at δ 8.60 ppm. The two-protons of the two N-H groups exhibited more de-shielded peaks at δ 9.08 and 11.16 ppm.

Close

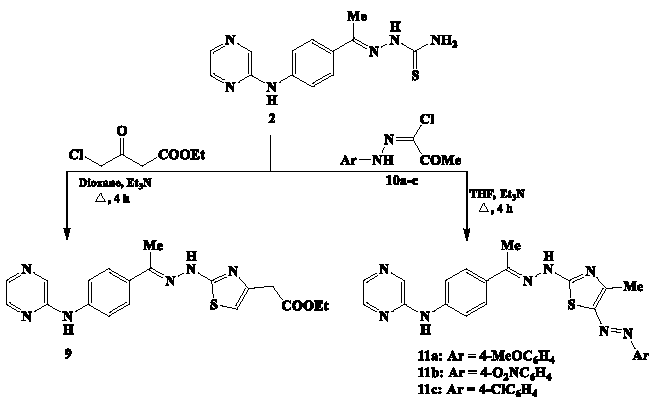

Scheme 5.

Synthesis of pyrazine-thiazole analogs 9 and 11a-c.

Export to PPT

The protons of azo-linked phenylene group in compounds 11a-c were correlated with the electronic nature of the substituent on the phenylene group. The two protons that occupy the ortho positions of the electron-donating methoxy group (compound 11a) resonated at a higher chemical shift (δ 7.01 ppm) when compared to the similar protons in compound 11b that were affected by the electron-withdrawing nitro group and resonated more de-shielded to higher chemical shift of δ 8.24 ppm.

The yields across the different pyrazine-thiazole series 4a-c, 6a-c, and 11a-c were compared to indicate the following conclusion, the pyrazine-thiazole series 4a (66.4%), 4b (71.8%), and 4c (68.1%) were obtained in showed higher yields compared to the pyrazine-thiazole series 6a (64.9%), 6b (68.4%), and 6c (61.9%) likely due to the lack of side reactions during the Knoevenagel condensation. The pyrazine-thiazole series 11a-c had relatively lower yields for 11a (55.6%), 11b (62.3%), and 11c (57.3%) attributed to steric hindrance from bulky arylazo substituent at position-5 of the thiazole ring.

3.2. Molecular modeling

The chlorobenzylidene 4c, chlorophenyl 6c, and azo-chlorophenyl 11c hybrids, as representative examples of the synthesized derivatives, were submitted to DFT quantum calculations, where the suggested optimized structures have twisted configurations (Figure 2). For instance, their dihedral angles indicated that the phenylpyrazin-2-amine moiety was planar, whereas the hydrazonyl group was shifted from the phenyl’s plane, e.g., C²_(Ph)-C¹_(Ph)-C_(Hz)-N_(Hz) = 8.5-10.2° and C²_(Ph)-C¹_(Ph)-C_(Hz)-Me_(Hz) = 10.8-12.4°. Also, the hydrazonyl carbon and nitrogen were strongly deviated from planarity with the thiazole ring, as C_(Hz)-N_(Hz)-NH_(Hz)-C²_(Thz) = 70.3-74.7° and N_(Hz)-NH_(Hz)-C²_(Thz)-N³_(Thz) = 20.1-23.5°, respectively (Table S1-S3). Otherwise, the DFT bond lengths and angles in comparison to single crystal X-ray of analogs [46,47] revealed a valuable agreement as the discrepancies were <0.12 Å and <11.2° (RMSD = 0.03-0.04 and 3.9-4.6), respectively. The disparity could be ascribed to that the DFT computations investigated a sole gaseous molecule with no columbic interactions [48] (Table S2-3).

Close

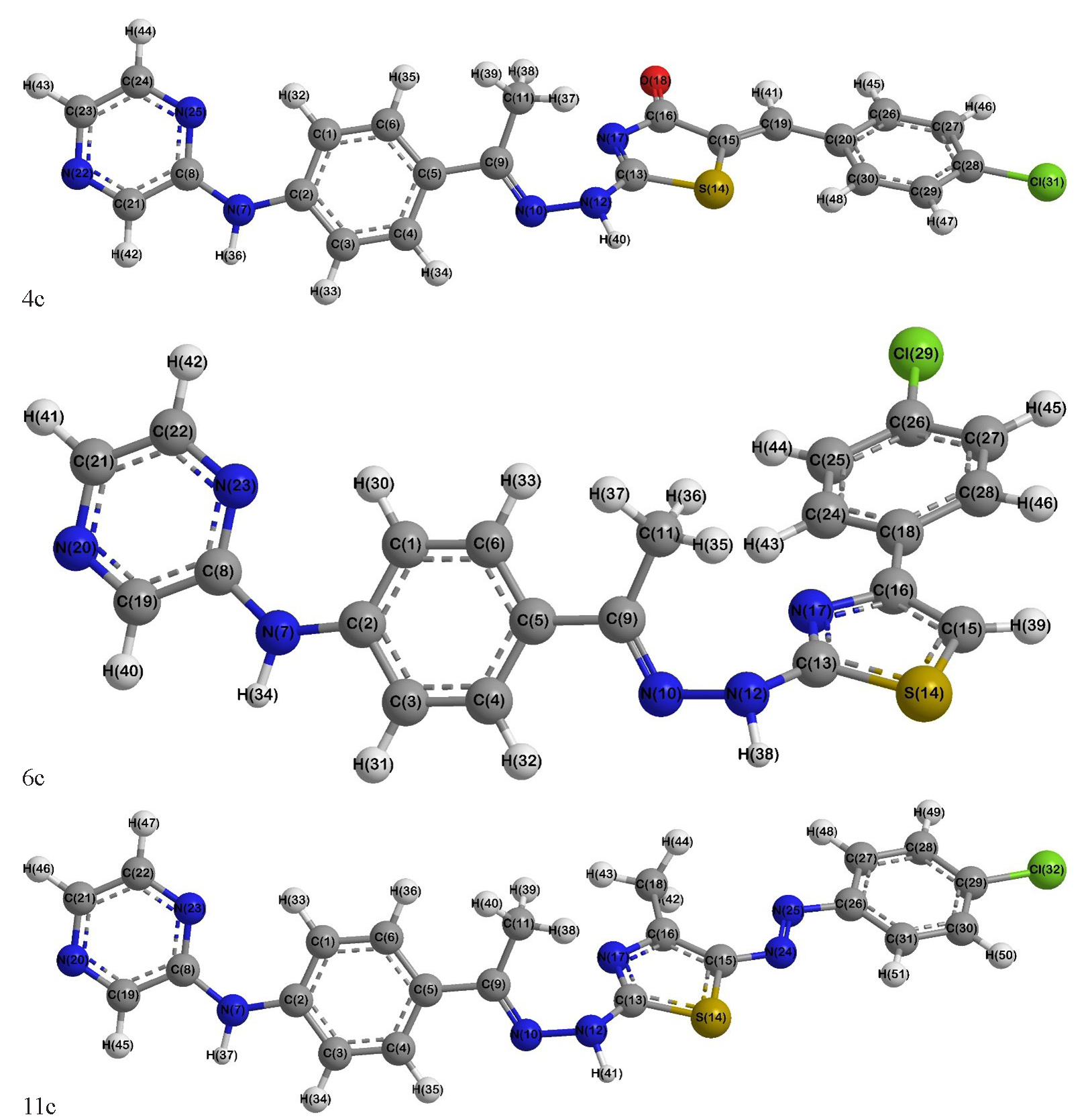

Figure 2.

DFT-optimized structures of compounds 4c, 6c, and 11c, showing their electronic properties and configurations. DFT: Density functional theory.

Export to PPT

As they significantly impact the molecule’s attitude to afford or receive electrons [49-52], the energies of highest occupied molecular orbital (HOMO) and lowest unoccupied molecular oribital (LUMO), FMOs, have gained noteworthy prominence. The 3D depiction of the hybrids FMOs divulged that the HOMO of 6c and 11c was spread over the complete molecule (π-orbital), while that of 4c had mainly confined on the hydrazonyl aminophenyl pyrazine nucleus. Likewise, the LUMO configurations revealed that 4c has been made up of the π*-orbital of hydrazonyl chlorobenzylidene thiazolone, while 6c presents an alternative configuration, built from the hydrazonyl aminophenyl pyrazine π*-orbital. The derivative 11c exhibited LUMO composed of the π*-orbital of the azochlorophenylthiazole hydrazonyl part (Figure 3). Therefore, the studied hybrids HOMO’s energy (E_H) displayed related evaluates, -5.98 (4c), -5.60 (6c), and -5.57 (11c) eV, while the LUMO (E_L) values have been more diverse as the smallest value was observed for 6c (-1.81 eV), whereas 4c and 11c exhibited the close and higher energies, -2.42 and -2.54 eV, respectively. Correspondingly, the HOMO-LUMO gap (ΔE_H-L) fluctuated from 3.03 to 3.79 eV following the order 11c < 4c < 6c (azo < chlorobenzylidene < chlorophenyl) (Table 1). Additionally, the chemical reactivity factors were assessed using the FMO’s energies, namely, electronegativity (χ), global hardness (η), softness (δ), electrophilicity (ω), electron donating, and accepting powers (ω^- and ω⁺) (Eqs. 1 and 2) [50].

Close

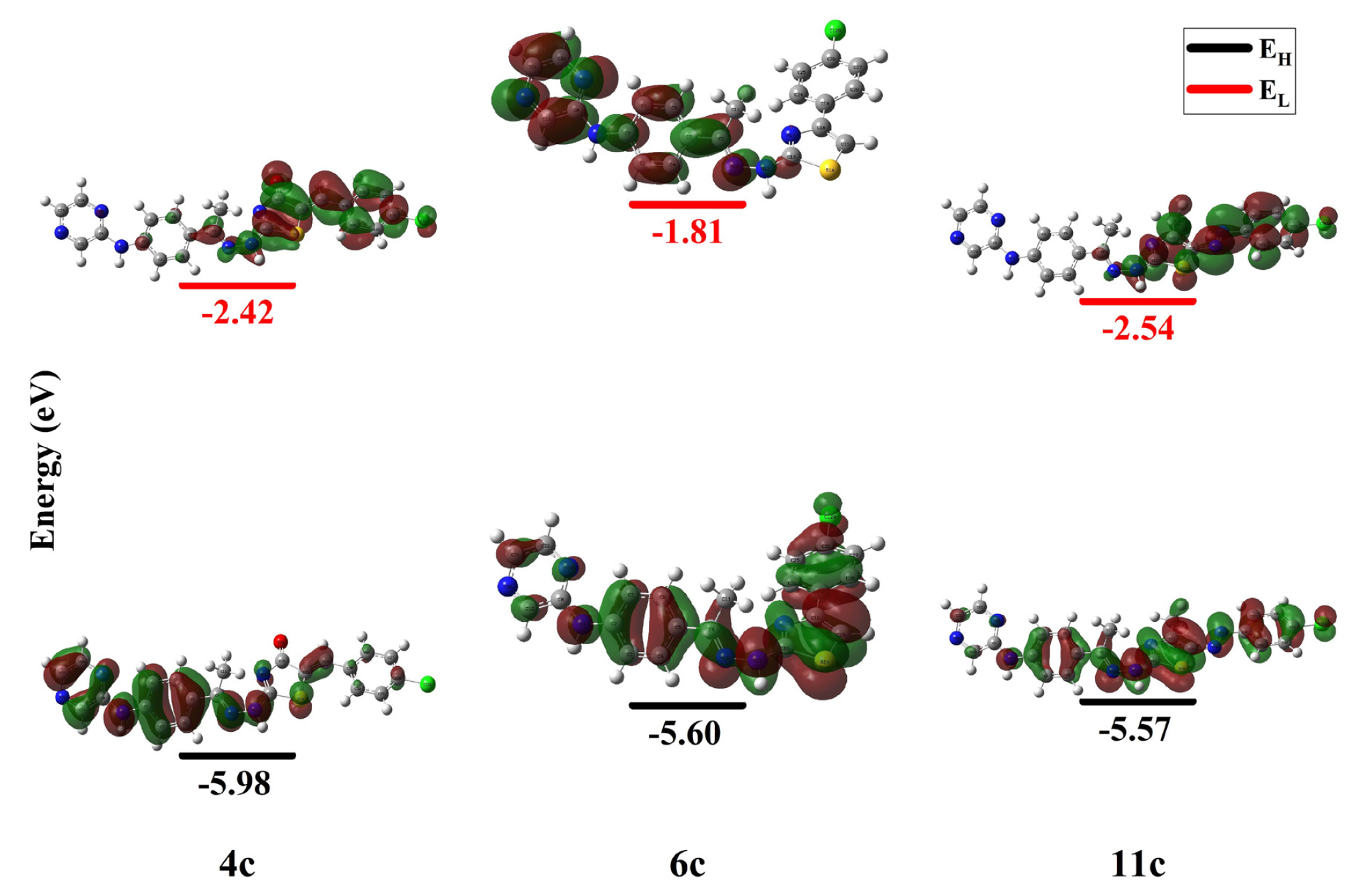

Figure 3.

The 3D-plot of FMO’s for compounds 4c, 6c, and 11c. FMO: Frontier molecular orbitals.

Export to PPT

The derivative 4c exhibited the utmost electronegativity (χ) (4.20 eV), and 11c was the softest (δ), 0.66 eV. However, 6c presented the utmost hardness (η) (1.89 eV). The electrophilicity index (ω) has been prolonged over the 3.62-5.42 eV range. Hence, all conjugates displayed respectable electrophilicity, ω > 1.5 eV [53,54], following the 6c < 4c < 11c arrangement. The electron-donating (ω⁺) and acceptance (ω^-) merits unveiled more affinity to deliver than gaining electrons [53,54] (Table 1).

The examined derivatives’ intramolecular charge-transfer and electronegativity have been empathized by considering Mulliken’s atomic charges [55]. In all derivatives, the pyrazinyl nitrogen atoms N¹_(Prz) and N⁴_(Prz) have gained almost matched negative charges, -0.253 - -0.254 and -0.152 – -0.153. Likewise, the phenylamine nitrogen atom -NH displayed a higher negative charge (-0.546), whereas the hydrazonyl nitrogen’s N_(Hz) and NH_(Hz) exhibited lesser amounts, -0.221 - -0.229, and -0.416 - -0.435, respectively (Table 2). Otherwise, the thiazolyl sulfur S¹_(Thz) and nitrogen N³_(Thz) had been positively and negatively charged, respectively, where 4c presented the lowest values (0.085 and -0.229) and 6c had the highest (0.167 and -0.269). Further, the thiazolyl carbon C⁴_(Thz) possessed a higher positive charge in 4c (0.296) than in other derivatives (0.292 and 0.241), which could be ascribed to the electron-withdrawing effect of the attached oxo-group. Contrarily, the thiazolyl carbon C⁵_(Thz) had a negative charge and the lowest merit was observed in the azophenyl derivative 11c (-0.158).

The sites liable for nucleophilic and electrophilic attacks have been anticipated from Fukui’s indices ($f_k^{+}$ and $f_k^{-}$) [56-59]. However, Fukui’s indices occasionally presented inappropriate estimates of the dynamic places. Thus, the local relative electrophilicity ($s_k^{-}/s_k^{+}$) and nucleophilicity ($s_k^{+}/s_k^{-}$) parameters were resolved and matched with the corresponding Fukui’s indices [60-62]. The electrophilic attack indices ($f_k^{-}$) of 4c, 6c, and 11c presented the thiazolyl sulfur S¹_(Thz) as the utmost active atom followed by either the chloro (Cl) or aminophenyl nitrogen (NH). In contrast, the relative electrophilicity descriptors ($s_k^{-}/s_k^{+}$) implied, totally altered arrangements from those gained from Fukui’s indices. For instance, the aminophenyl nitrogen caught the principal site in 4c, while the thiazolyl carbon C⁴_(Thz) and hydrazonyl nitrogen N_(Hz) were the highest energetic sites in 6c and 11c, respectively (Table S4). Else, the Fukui’s indices ($f_k^{+}$) suggested completely different patterns, in which the chloro (Cl), pyrazinyl nitrogen (N⁴_(Prz)), and azo nitrogen (N¹_(Azo)) seized the top site in 4c, 6c, and 11c conjugates, respectively. The relative nucleophilicity descriptors ($s_k^{+}/s_k^{-}$) donated differed fashions of the significantly liable locations. For example, the thiazolyl (C⁴_(Thz)), pyrazinyl (C²_(Prz)), and phenyl (C¹_(Ph)) carbon atoms occupied the topmost location in hybrids 4c, 6c, and 11c, respectively (Table S4).

Additionally, the molecular polarizability (α_total), hyperpolarizabilities (β_total), and dipole moment (μ) of the inspected hybrids have been figured [63-65] to discover more about the molecule’s electronic density, distribution, and softness, which fundamentally influence the intermolecular interactions (Eq. 3) [66].

The studied hybrids exhibited a dipole moment (μ) range from 2.88 to 4.70 D, for 6c and 11c, which was 2.10-3.43 times more than urea’s dipole [67] (Table 3). Moreover, the derivatives 6c and 11c presented the minimum and maximum polarizability (α_total = 2.65 and 3.01×10^-23 esu), respectively. However, the first-order hyperpolarizability designated that analog 4c disclosed the smallest merit, β_total = 0.75×10^-30 esu, while the hybrid 11c revealed the utmost, β_total = 2.21×10^-30 esu. Referring to the value of urea [67], the investigated analogs presented greater hyperpolarizability (2.01-5.91 times) (Table 3).

3.3. Cytotoxic assay

The cytotoxic effectiveness on cancer and normal cells showed diverse activities of the isolated pyrazine-thiazole analogs (Figure 4 and Table S5). Analog 2 demonstrated moderate cytotoxicity toward various cancer cell lines, IC₅₀ (μM): 33.02±0.42 for Panc-1, 27.67±0.21 for HepG2, and 24.03±0.18 for MCF-7, suggesting lower potency than the standard drug erlotinib. Conjugate 3 showed enhanced potency against Panc-1 cells and MCF-7 (IC₅₀ = 15.49±0.09 and 20.69±0.19 μM), with very poor effectiveness towards HepG2 (IC₅₀ = 30.48±0.30 μM). Meanwhile, the 4-series analogs showed significantly increased cytotoxicity. For instance, compound 4a displayed moderate inhibition against cancer cell lines, where the most significant impact was observed in MCF-7 (IC₅₀ = 15.60 ± 0.07 μM). Analog 4b presented further enhancement, as its IC₅₀ (μM) were ranged from 11.57 ± 0.02 (MCF-7) to 15.23 ± 0.42 (HepG2). Remarkably, the derivative 4c demonstrated outstanding effectiveness towards all tumor cell lines, showing an IC₅₀ of 9.41 ± 0.33 μM for Panc-1, 10.92 ± 0.36 μM for HepG2, and 8.27 ± 0.40 μM for MCF-7. Moreover, its low activity toward WI-38 cells (IC₅₀ = 83.72 ± 0.24 μM) demonstrates high selectivity and a positive therapeutic index. The 6-series hybrids also showed alternative cytotoxic effects, where their activity increased in the order of 6a < 6b < 6c, which had outstanding IC₅₀ against Panc-1 (12.73 ± 0.18), HepG2 (12.80 ± 0.01), and MCF-7 (5.51 ± 0.09 μM). The conjugate 8a showed average cytotoxic effects against Panc-1 (IC₅₀=14.68±0.26) and MCF-7 (IC₅₀=18.06±0.27 μM), and lower effectiveness against HepG2 (IC₅₀ = 26.49 ±0.02 μM), along with minimal impairment for WI-38 cell (IC₅₀ = 88.16±0.56 μM). However, analog 8b demonstrated comparable outcomes with marginally improved specificity (Figure 4 and Table S5). In addition, compound 9 displayed significant inhibition towards Panc-1 (IC₅₀ = 8.01 ± 0.23), MCF-7 (IC₅₀=17.36 ± 0.28), and HepG2 (IC₅₀=22.67 ± 0.82 μM), with moderate specificity for healthy cells. In the 11-series, 11a demonstrated moderate effectiveness against various cancer cell lines, while 11b exhibited increased effectiveness. Conversely, the hybrid 11c presented the most powerful effectiveness in this group, especially towards HepG2 (IC₅₀ = 8.01 ± 0.35 μM) and MCF-7 (IC₅₀=6.62 ± 0.13 μM), indicating potential as a potent cancer-fighting agent with better selectivity than erlotinib, which displayed IC₅₀ = 7.18± 0.06, 9.22±0.13, 5.43±0.25 μM, against Panc-1, HepG2, and MCF-7, respectively.

Close

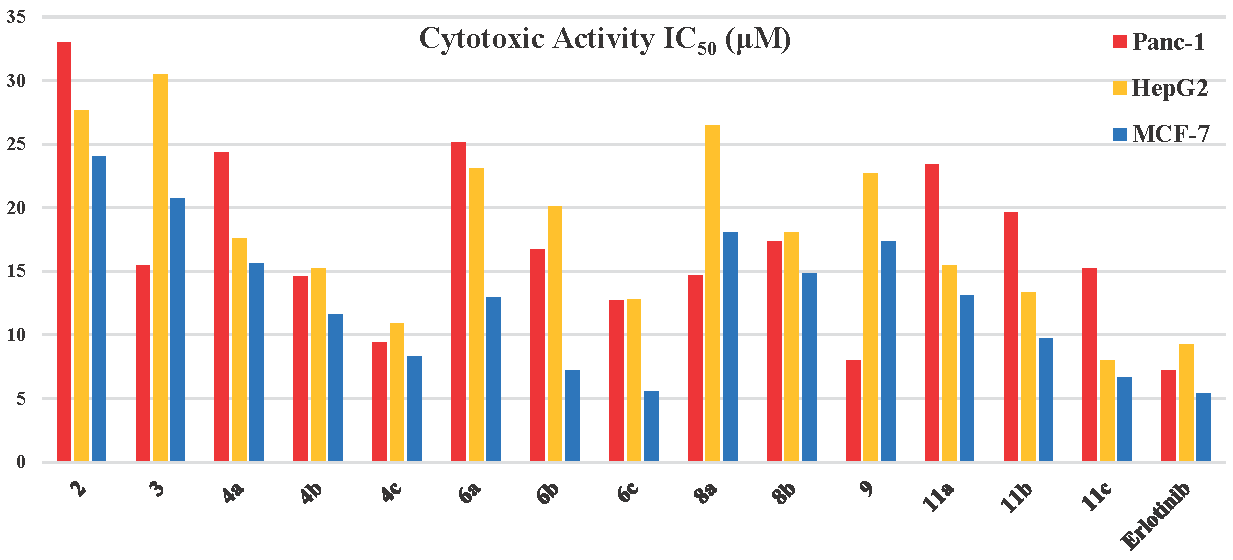

Figure 4.

Cytotoxic activity of the synthesized analogs against the cancer cell lines.

Export to PPT

3.4. Structure-activity relationship (SAR)

The SAR presented significant insights into how chemical modifications can distinctly influence the cytotoxic effectiveness of the synthesized hybrids. Based on the chemical structures, The presence of electron-withdrawing groups, such as nitro (–NO₂) and chloro (–Cl), in the chemical structures significantly boosts cytotoxic activity. This enhancement is likely attributed to increased lipophilicity and improved interactions with cellular targets. Compounds featuring methoxy (–OCH₃) groups indicate a balance between hydrophilicity and lipophilicity, influencing cellular uptake and binding interactions. Besides, the hydrazone moiety found in all synthesized compounds plays a crucial role in facilitating hydrogen bonding and electronic interactions with biological targets, thereby enhancing their activity. Among these analogs, analog 2, which contains a carbothioamide group that is intricately attached to the pyrazine-thiazole framework, exhibited a level of moderate cytotoxicity across evaluated cancer cell lines, which recommends that the existence of the carbothioamide group offers a modest contribution to the overall cytotoxic activity. In contrast, derivative 3, which incorporates a thiazol-4-one moiety as part of its chemical structure, displayed a notable improvement in cytotoxicity, particularly against the Panc-1 cell line, thereby indicating that the thiazol-4-one group significantly enhances the anti-cancer efficacy when compared to the earlier mentioned carbothioamide. However, within the 4-series, the presence of various benzylidene substitutions had a considerable impact on the potency of the analogs, demonstrating that even slight variations in chemical structure can lead to substantial differences in the cytotoxic effectiveness. For instance, compound 4a, which possessed a methoxy-benzylidene substitution, exhibited a moderate level of efficacy in its cytotoxic effects, thereby highlighting how particular modifications can influence the effectiveness of these analogs in targeting cancer cells. Characterized by the presence of a nitro-benzylidene substitution, 4b exhibited a significantly enhanced level of potency across a diversity of tumor cell lines, thereby suggesting that the incorporation of the electron-withdrawing moiety such as nitro group may indeed have a positive effect on the overall cytotoxicity of the analog. In contrast, the 4c, with chloro-benzylidene group, demonstrated the highest level of efficacy within this series of analogs, thereby highlighting the notion that the presence of the chloro group likely bestows superior cytotoxic effectiveness, which can be attributed to its increased lipophilicity coupled with its electron-donating properties that enhance the compound’s interaction with cellular targets. Meanwhile, the 6-series analogs feature a thiazole ring modified with diverse substituents, thus creating a diverse array of analogs for evaluation. For example, hybrid 6a, having a methoxyphenyl group, exhibited a moderate level of potency, particularly notable against the MCF-7 cell line, reflecting its potential therapeutic relevance. However, analog 6b, incorporating a nitrophenyl substitution, presented a stronger level of efficacy against MCF-7, further reinforcing the hypothesis that electron-withdrawing groups play a critical role in enhancing cytotoxic effects. Lastly, 6c, characterized by its chlorophenyl substitution, achieved the highest potency within this specific series of analogs, which once again emphasizes the beneficial influence of the chloro-group on the overall cytotoxic performance. The 8-series incorporate methyl-thiazole substitutions, where the derivative 8a exhibited moderate activity across cancer cell lines, while the 8b, featured by an acetyl-thiazole group, demonstrated comparable potency, suggesting that acetyl-thiazole substitutions confer moderate, balanced cytotoxicity. Moreover, analog 9, ethyl-thiazole-acetate ester, showed strong potency against Panc-1, indicating that the ester group improves cytotoxicity, possibly by enhancing cellular uptake. Furthermore, the 11-series conjugates contained diazinyl linked to variously substituted thiazole, wherein the hybrid 11a, with a methoxyphenyl-diazenyl group, demonstrated moderate efficacy for MCF-7. Further, 11b with a nitrophenyl-diazenyl group, showed increased potency for MCF-7, suggesting that the nitro group enhances activity, whereas 11c, incorporating a chlorophenyl-diazenyl group, exhibited the strongest cytotoxicity in this series, particularly against MCF-7, confirming that chlorinated substitutions are highly beneficial for improving anti-cancer efficacy. Overall, the SAR analysis highlights that electron-withdrawing groups like nitro and chloro, particularly on the benzylidene and diazenyl-linked thiazole rings, significantly enhance cytotoxicity. The thiazole ring substitutions and ester functionality also contribute to improved activity, while methoxy groups confer moderate efficacy. These results suggest structural modifications that can be optimized to enhance the anti-cancer potential of pyrazine-thiazole analogs.

3.5. Carbonic anhydrase assay

The differences in potency and selectivity were emphasized by the inhibition results of the pyrazine-thiazole analogs against CA IX and CAXII due to structural variations (Table 4). Analogu 2 demonstrated moderate inhibition towards both CAIX (IC₅₀= 0.22 ± 0.0333) and CAXII (IC₅₀ = 0.208 ± 0.007 μM), exhibiting similar effectiveness but less strength over AZA. Alternatively, derivative 3, which includes a thiazol-4-one moiety as part of its chemical structure, showed remarkable specificity for CAIX (IC₅₀ = 0.014 ± 0.045 μM), which is the strongest inhibition seen among all analogs toward CAIX. Nevertheless, its effect against CAXII enzyme was found to be moderate (IC₅₀ = 0.372 ± 0.065 μM), suggesting that this analog could be a specific blocker for the CAIX enzyme. However, the 4-series conjugates demonstrated significant activity on both isoforms. Although the hybrid 4a (IC₅₀=0.078 ± 0.053) had a balanced inhibition profile, 4b displayed enhanced inhibition even more (IC₅₀=0.089 ± 0.061 μM) comparable with the AZA. However, derivative 4c stood out as a highly effective inhibitor within the series, IC₅₀ = 0.052 ± 0.014 (for CAIX) and 0.091 ± 0.018 μM (for CA XII). The 6-series analogs showed moderate inhibition profiles, where 6a exhibited IC₅₀ values 0.096 ± 0.038 and 0.568 ± 0.042 μM towards CAIX and CAXII, respectively, indicating its superior effectiveness for CAIX. Similarly, hybrids 6b-c displayed very weak effectiveness against CAXII and moderate against CAIX, indicating limited inhibition for both isoforms. Within the 8-series, compound 8a exhibited equal suppression, while 8b demonstrated comparable effectiveness (IC₅₀ =0.081 ± 0.062 and 0.090 ± 0.033 μM for CA IX and CA XII, correspondingly). Moreover, compound 9 presented moderate effectiveness, indicating decent inhibition but slightly weaker strength compared to other analogs. The derivative 11a, in 11-series, had an IC₅₀ = 0.075 ± 0.006 μM for CAIX and 0.159 ± 0.002 μM for CAXII, whereas analog 11b displayed strong inhibition, especially against CAIX over an IC₅₀ = 0.068 ± 0.023 μM. The hybrid 11c disclosed moderate effectiveness (IC₅₀ = 0.098 ± 0.036 μM for CAIX and 0.101 ± 0.029 μM for CAXII), indicating a good balance. Finally, conjugates 4c, 4b, and 11b showed comparable CAIX and CAXII inhibition compared to AZA (IC₅₀ = 0.062 ± 0.014 and 0.080 ± 0.013 μM).

3.6. Molecular docking

The molecular docking showed a variety of interaction affinities and patterns for the pyrazine-thiazole derivatives with the 6CB0 receptor (Table S6). Derivative 2 had the lowest affinity (-6.1099 kcal/mol), interacting through hydrogen donor and acceptor bonds with Glu123 and Lys152, in addition to a π-H interaction with Trp52 (Figure S1). However, compound 3 had a slightly higher affinity (-7.0020 kcal/mol), forming a hydrogen bond with Arg205 (Figure S1). Meanwhile, the 4-series derivatives had higher affinities, where 4b presented affinity of -8.1523 kcal/mol, via multiple hydrogen donor bonds with Arg205 and Glu44, while 4a exhibited stabilizing π-cation interactions (Figure 5). Derivative 4c showed a moderate affinity (-7.9394 kcal/mol), which may be attributed to the phenyl substitution affecting its interaction profile. All derivatives of the 6-series interacted with Arg205 (Figure S1), and 6b had the highest affinity (-8.2382 kcal/mol) by creating a stable hydrogen donor bond with Arg205, while 6a and 6c displayed scores -7.8517 and -7.9533 kcal/mol, respectively (Figure 5). Moreover, in the 8-series, the conjugates 8a and 8b formed multiple hydrogen bonds with Arg 20 through their thiazole rings (Figure S1). However, derivative 9 had a unique interaction pattern, engaging with Ser179 and Lys152 through hydrogen bonds and π-cation interactions, achieving a score = -7.7557 kcal/mol. Furthermore, the derivatives of 11-series showed strong binding abilities, where 11b exhibited the highest score (-8.5010 kcal/mol), by forming hydrogen donor and acceptor bonds with Arg205 and Lys121, respectively. Analogs 11a and 11c also had high docking scores through stabilizing hydrogen and π-cation interactions with Arg205 and other residues. Besides, the reference drug (erlotinib) presented a score of -7.0792 kcal/mol, by hydrogen bonding with Lys152, but several synthesized derivatives, such as 11b, 4b, and 6b, surpassed its binding strength (Figure S1).

Close

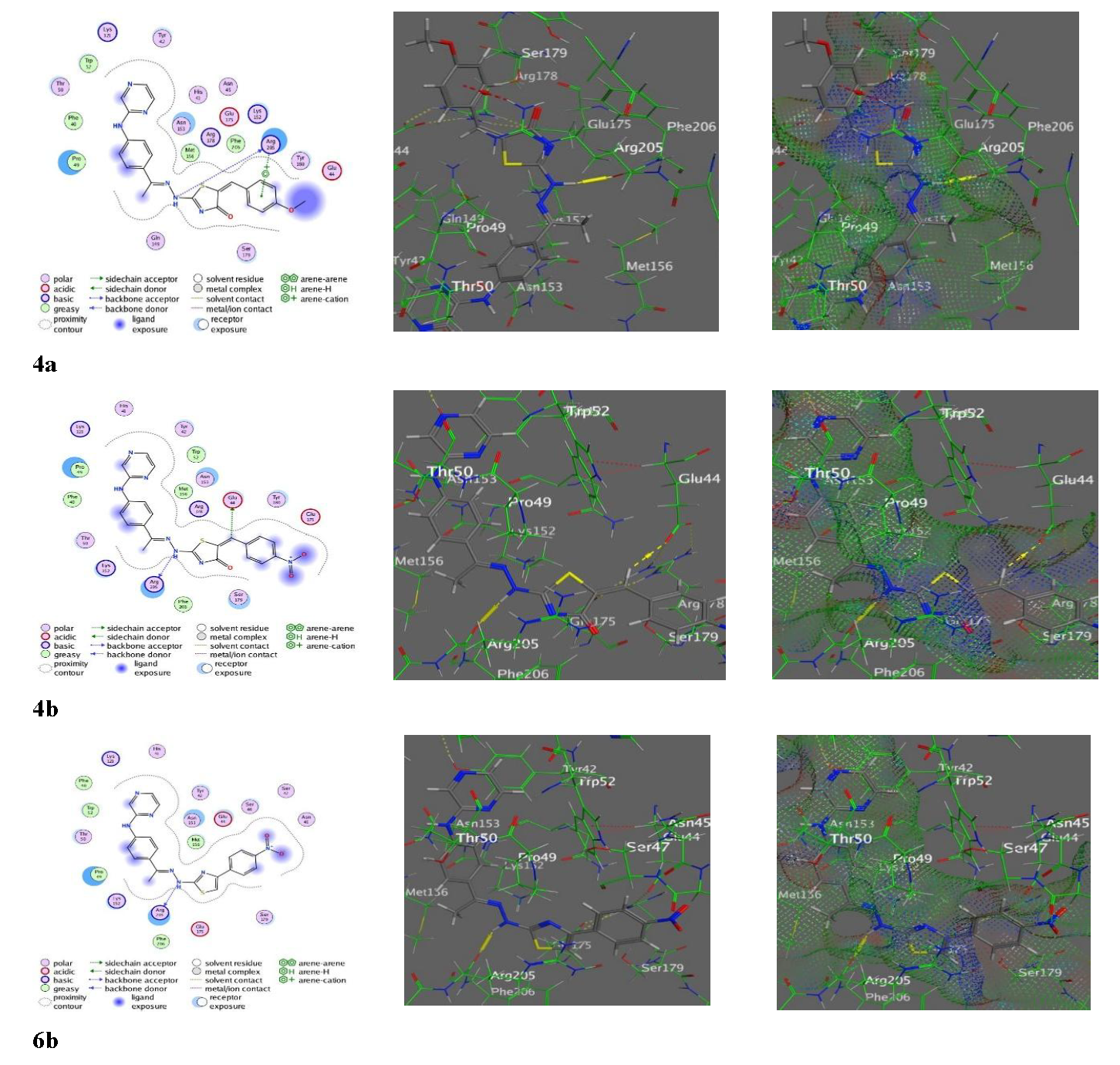

Figure 5.

Docking images of 4a-b and 6b with the PDB: 6CB0 amino acid.

Export to PPT

3.7. Pharmacokinetic properties

The SwissADME analyses demonstrated different characteristics for the analogs under study (Figure S2 and Table S7). Analog 2 had a molecular weight (M. Wt.) of 286.36 which has three hydrogen-donors (H-BD) and three hydrogen-acceptors (H-BA), with good GI absorption, good solubility, and a bioavailability score of 0.55. There was a significant increase in the MW of analog 3 (326.38), but the absorption and solubility properties were comparable, and it had a good drug-likeness score and no Lipinski violations. In the 4-series analogs, 4a-c possessed better pharmacometrics profiles, while analog 4a (M. Wt. = 444.51) exhibited good GI absorption and solubility. However, 4b registered high TPSA (162.75 Ų) among the series, which might affect permeability, but absorption and solubility were good. In addition, analog 4c had a TPSA of 116.93 Ų which is beneficial, as it possibly increases the drug’s bioavailability and paves the way for further development. Meanwhile, the 6-series analogs, such as 6a, 6b, and 6c were of moderate solubility and had other M. Wt. values in the range of 416.5 and 431.47. Analog 6a on the other hand, displayed superb GI absorption and relatively higher iLOGP (3.08) values indicating high lipophilicity. However, 6b and 6c have shown lower GI absorption, indicating that a modification in the structure may be necessary to increase their permeability and bioavailability. However, the 8-series analogs exhibited moderate solubility and were highly GI-absorbed. Analog 8a (M. Wt. = 324.4) obtained a TPSA of 103.33 Ų, which implies good oral bioavailability. Likewise, 8b continued to show high level of absorption showing that the drug kinetics are consistent in this series. In the 9-series analog, a molecular weight of 396.47 and several rotatable bonds (9) were noticed, which might affect its pharmacokinetics. Despite these features, the analog had high and efficient absorption and moderate solubility with a bioavailability score equal to 0.55. The various analogs within the 11-series displayed a range of unique and distinct characteristics, with 11a and 11c specifically demonstrating notably poor solubility coupled with low GI absorption, which strongly implies a pressing need for further optimization and refinement to enhance their overall efficacy and performance. In contrast, analog 11b, which possesses a molecular weight of 473.51 and boasts the highest total polar surface area of 173.87 Ų among all the examined analogs, exhibited a certain level of promise despite its classification as poorly soluble, suggesting that there may be potential for its application in pharmaceutical contexts. Additionally, the bio-availability score (0.55) indicates a favorable rank of drug-likeness, which is a positive attribute for any compound intended for therapeutic use, although it is worth noting that one violation of Lipinski’s rules was recorded, thereby indicating that there remains considerable opportunity for structural refinement and optimization to improve its viability as a drug candidate. Overall, the findings surrounding these analogs highlight the challenges and opportunities that lie ahead in the quest for developing effective pharmaceutical agents that can overcome existing limitations in solubility and absorption characteristics.
