Synthesis of UiO-66 with addition of HKUST-1 for enhanced adsorption of RBBR dye

2.1 Materials

The materials used in this research were zirconium tetrachloride (ZrCl₄) (Sigma-Aldrich, 99 %), copper nitrate trihydrate (Cu(NO₃)₂·3H₂O, 99 %), benzene-1,4-dicarboxylic acid (H₂BDC) (Sigma-Aldrich, 99 %), benzene-1,3,5-tricarboxylic acid (H₃BTC) (Sigma-Aldrich, 99 %), N,N-dimethylformamide (DMF) (Sigma-Aldrich, 99 %), chloroform (CH₃Cl, Merck, 99.9 %), methanol (Merck, 99.9 %), demineralised water, and Remazol Brilliant Blue R (C₂₂H₁₆N₂Na₂O₁₁S₃).

2.2 Synthesis of UiO-66 and HKUST-1/UiO-66

UiO-66 was synthesized using the methods that have been previously reported (Ediati et al., 2019). The synthesis was started by dissolving 0.0045 mol of ZrCl₄ into 45 mL DMF. In the other container, 0.0045 mol of H₂BDC was dissolved in 45 mL DMF. Both solutions were then mixed together in a sealed reaction bottle, stirred for 30 min, and placed in an oven at 120 °C for 24 h. After the solvothermal process, the reaction mixture was cooled at room temperature for 24 h. The solids formed were washed a couple of times using DMF and chloroform, before being dried at 90 °C for 3 h. The solids obtained were then notated as UiO-66.

The HKUST-1/UiO-66 composites were synthesized using the solvothermal method, where the HKUST-1 was synthesized using the method which have been previously reported (Ediati et al., 2019). HKUST-1 was added into the reaction mixture of ZrCl₄ and H₂BDC in DMF, prior to performing solvothermal process. The next step was washing the solids using the same step as with the UiO-66 synthesis. The addition of HKUST-1 was varied by 0.008, 0.167 and 0.333 g, and the solids formed were notated as HK(5)/UiO-66, HK(10)/UiO-66 and HK(20)/UiO-66, respectively.

2.3 Characterization

X-ray characterisation (PANanalytical X’pert Pro) was performed to investigate the crystal structure. The ray source used for measurement was Cu Kα radiation (λ = 1,5406 Å), with a voltage of 40 kV and current of 30 mA. The analysis was performed at low angles at a range of 2θ of 5 to 50°. The functional group identification was carried out using FTIR characterization (SHIMADZU 96500). FTIR spectra were detected at wavenumbers of 400 to 4000 cm⁻¹. SEM-EDX characterization was performed to investigate the structure of the crystal morphology, particle size, and the element spread of the synthesized material (SEM, JEOL 6360 LA). The N₂ adsorption desorption was carried out to identify the surface area of the material, and pore volume and diameter of the synthesized materials using Nova 1200 e Quantachrome instrument. Prior to analyzing, the samples were evacuated at 130 °C for 24 h.

2.4 Adsorption performance of UiO-66 and composites

Before proceeding to adsorption tests, all the materials were activated at 60 °C for 24 h. The adsorption experiments were performed using batch method at varied contact time of 10 to 70 min with 10 min intervals and varied RBBR concentrations of 100, 150, 200, 250, 300 dan 350 mg/L. The adsorbent doses used were 10 mg in 30 mL solution of RBBR. In order to determine the remaining RBBR in the solution after the process of adsorption, UV–vis instrument was used at wavelength of 591 nm. The data obtained were plotted between Qe (equilibrium adsorption capacity) with time (minutes). The adsorption capacity was calculated using Eq. (1).

Where C_o and C_e are the initial and final concentrations of the adsorbate (mg/L), respectively, when at equilibrium condition, W is the adsorbent mass (g) and V is the adsorbate volume (L).

2.5 Adsorption kinetic

The adsorption results towards the synthesized materials were analyzed using the pseudo first and second order equations to determine the kinetic adsorption and the Weber Morris plot in order to obtain the rate constants. The pseudo first order equation is shown in Eq. (2).

The results from the equations were plotted in a graph of time t in minutes as x-axis and ln (Qe – Qt) as y-axis. Thus the K₁ values (the pseudo first order adsorption rate constant) were obtained from the slope of the linear equations and from the calculated Qe (Qe_cal) based on the 2.303 log intercept. The pseudo second order equation is shown in Eq. (3).

By plotting the data on a graph of time t (in minutes) as the x-axis and t/Qt as the y-axis, the value of calculated Qe (Qe_cal) can be obtained from 1/gradient of the slope of the linear equation. Simultaneously, K₂ (pseudo second order adsorption rate constant) can also be obtained from slope²/intercept. The correlation coefficient value (R²) acquired can be used to determine the suitability of the kinetic adsorption. The Weber Moris equation (intraparticle diffusion) is stated in Eq. (4).

By plotting the graph of t^1/2 (in minutes) as x-axis and Qt as y-axis, the rate constant value can be found from the $k_{\mathit{id}}$ slope and the intercept acquired was used to identify the thickness of the boundary layer.

2.6 Adsorption isotherm

The results of adsorption at different concentrations of RBBR were analyzed using the isothermal adsorption equation of Langmuir and Freundlich. The Langmuir isothermal equation is based on Eq. (5).

Subsequently a graph plot was made where 1/Ce was used as the x-axis and 1/Qe was sued as the y-axis. Thus the value of Qm (maximum adsorption capacity) was gathered from 1/intercept, whereas the value of K_L (Langmuir constant) was obtained from the intercept/slope. The Freundlich isothermal equation is shown in Eq. (6).

The data were plotted on a graph of ln Ce as the x-axis and ln Qe as the y-axis, thus the value of K_F (Freundlich constant) was obtained from 2.303 log intercept. The coefficient correlation value of R² obtained was used to determine the suitability of kinetic adsorption.

2.7 Adsorption thermodynamic

The adsorption process can be understood from the thermodynamic aspect by determining the Gibbs free energy, enthalpy, and entropy of a system. The temperatures used in this research were varied at 30, 40, and 50 °C with an RBBR concentration of 300 mg/L for 50 min with an adsorbent dose of 10 mg. The value of Gibbs free energy ( $\mathrm{\Delta }$ G), which is calculated using Eqs. (7) (Dimian et al., 2014).

Where $\mathrm{\Delta }$ G, $\mathrm{\Delta }$ H dan $\mathrm{\Delta }$ S are the change in Gibbs free energy (kJ/mol), the change in enthalpy (kJ/ mol) and the change in entropy (J/mol K), respectively. Based onVan’t Hoff Equation, the value of $\mathrm{\Delta }$ G could be calculated using Eq. (8) (Santoso et al., 2021):

Where T is the absolute temperature (K) and R is the universal gas constant (8.314 J/mol K), K_d is Qe/Ce × 1000.

By substituting and merging Eqs. (7) and (8), this results in Eq. (9).

The values of $\mathrm{\Delta }$ S dan $\mathrm{\Delta }$ H were obtained from the intercept and the slope of the regression equation, respectively.

3.1 Synthesis and characterization

Characterization using X-ray Diffraction (XRD) was performed to investigate the crystal structure and crystallinity of the synthesized materials and the obtained diffraction patterns are shown in Fig. 1. The UiO-66 diffractograms of the synthesized materials show the main peaks at 2θ of 7.31° with a high intensity and 8.40° with moderate intensity which similiar with previous reported (Ediati et al., 2019). As a comparison, Fig. 1 also shows HKUST-1 diffractograms which also have main characteristic peaks at 2θ of 11.65° with a high intensity, while the next characteristic peaks were identified at 2θ of 6.7, 9.5 and 13.5° (Ediati et al., 2019). The characteritic peak intensity of UiO-66 in composites HKUST-1/UiO-66 decreased with increasing HKUST-1 contents. Meanwhile, the XRD patterns of composites HKUST-1/UiO-66 possesses similar XRD patterns with the pristine UiO-66, which points out that the addition of HKUST-1 did not affect the crystal structure of UiO-66 and it is in accordance with the previous result that was reported by Ediati, et al (Ediati et al., 2021). Furthermore, even when the content of HKUST-1 increased up to 20 %, the characteristic peaks of HKUST-1 could not be found in the XRD pattern of HK(20)/UiO-66. It suggests that the presence of well dispersed of HKUST-1 (Yang et al., 2018).

Close

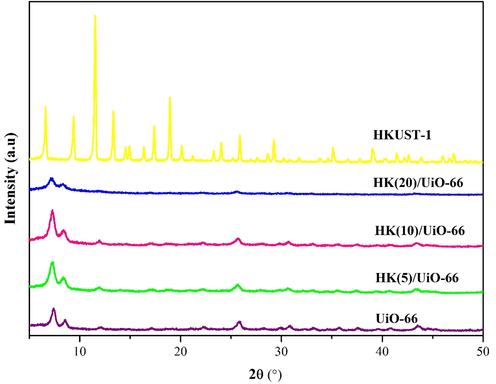

Fig. 1

Diffractogram of the synthesized materials.

Export to PPT

The FTIR spectra of the synthesized solids are displayed in Fig. 2. The aromatic C⚌C vibration from the benzene structure on the organic ligands was observed from the absorption band of UiO-66 on the wavenumber of approximately 1577–1581 cm⁻¹. The absorption band on the wavenumber of 1400 cm⁻¹ is a stretching vibration of C—O from C-OH carboxylate acid. The absorption band in the wavenumbers of 3421–3446 cm⁻¹ is a region of a stretching vibration of O—H of the carboxylate. The region of approximately 1630–1660 cm⁻¹ shows a vibration of C⚌O from the carboxylate. The absorption band of O—H appeared simultaneously with the adsorption band of C⚌O at approximately 1630–1660 cm⁻¹. The absorption band that appeared at approximately 663–673 cm⁻¹ is a stretching vibration of Zr-O (Hidayat et al., 2021). The successful synthesis of HKUST-1 is signified by the appearance of the characteristic absorption peak of HKUST-1, which is Cu–O on the wavenumber of 731.05 cm⁻¹ (Ediati et al., 2021). This indicates that a bond was formed between the Cu²⁺ with the oxygen atom which originated from the ligands. In reference to the FTIR spectra, it was discovered that the addition of HKUST-1 did not cause any new absorption band. However, this caused the peaks to shift insignificantly, as shown in Table 1. The addition of HKUST-1 also did not change the crystal structure UiO-66, as shown by the XRD patterns (Ediati et al., 2019).

Close

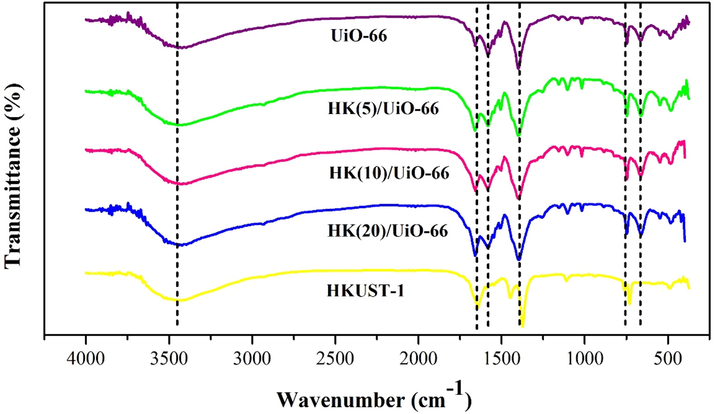

Fig. 2

FTIR spectra of the synthesized materials.

Export to PPT

The surface morphology and distribution of elements in UiO-66 and the composites have been characterized using SEM-EDX, which was also used to investigate the effects of adding HKUST-1 on the surface morphology of the composites (Fig. 3). The obtained UiO-66 has surface morphology in the form of clustered circles, similar to the previous research reported (Fig. 3a) (Ediati et al., 2018; Ediati et al., 2021). The addition of HKUST-1 to the synthesis of UiO-66 resulted in an irregular morphology of HK(5)/UiO-66 and HK(10)/UiO-66. The surprising result of 5 % HKUST-1 on the synthesis of UiO-66 appeared (Fig. 3b). Two morphologies appeared, one is clustered circles referring to UiO-66 and the second is irregular octahedral refers to HKUST-1, it is confirmed by EDX results. The morphology of HK(10)/UiO-66 (Fig. 3c) is drastically different from pristine UiO-66 (Fig. 3a). It shows a dominant irregular octahedral morphology than clustered circles morphology which is designed by increasing the amount of HKUST-1 up to 10 %. As can be clearly shown, the more HKUST-1 amount in composites caused reducing of clustered circles from pristine UiO-66 but enhancing the irregular octahedral morphology from HKUST-1 (Butova et al., 2020; Ediati et al., 2020). Fig. 4 and Table 2 show the distribution and quantity of the elements contained in UiO-66 and the composites. The EDX results show that UiO-66 comprises carbon (C), oxygen (O), and zirconium (Zr) elements which originated from the precursor used. In addition, no other elements were found which proved that UiO-66 was freed from the impurities. The addition of HKUST-1 led to the occurrence of the addition of copper (Cu) contents in the composites developed. Furthermore, the presence of Cu element on the composites obtained proves that the impregnation process of HKUST-1 on UiO-66 has been successfully carried out in addition to proving the success of Cu element to enter into the frameworks of HKUST-1/UiO-66 composite.

Close

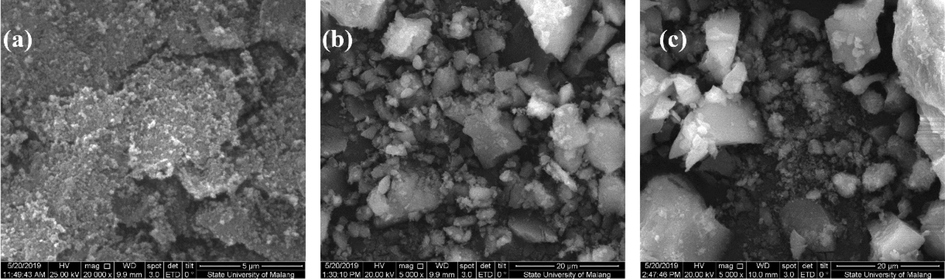

Fig. 3

SEM images of (a) UiO-66 (b) HK(5)/UiO-66 (c) HK(10)/UiO-66.

Export to PPT

Close

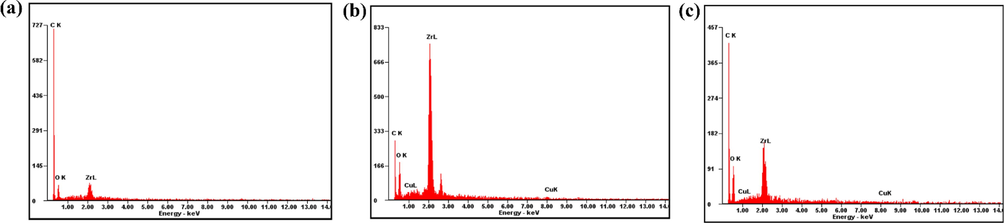

Fig. 4

EDX spectra of (a) UiO-66 (b) HK(5)/UiO-66 (c) HK(10)/UiO-66.

Export to PPT

Fig. 5 signifies that all the synthesized materials followed the type I adsorption–desorption pattern with a type H1 and H3 loop hysteresis, as stated by IUPAC (Sing, 1982; J. Zhang et al., 2020). The type I isotherm indicates that the material produced was a microporous material, with type I isotherm indicated by the presence of a fast rate of nitrogen gas adsorption at a low P/P₀ (Ediati et al., 2021). UiO-66 has a type H3 hysteresis loop which shows that there was a presence of mesoporous structure. However, during the addition of HKUST-1, the hysteresis loop changed into type H1 which expressed that there was a late occurrence of nitrogen capillary condensation in the mesopores. The change in loop hysteresis from H3 into H1 was possible due to the addition of HKUST-1 which covered the mesopores of UiO-66 (Janus et al., 2020; Vo et al., 2019). As listed in Table 3, it can be seen that the addition of 5 % HKUST-1 during the synthesis of UiO-66 produced a composite with a larger surface area, mesopore volume and pore diameter than that of the ordinary UiO-66. However, the addition of HKUST-1 by more than 5 % resulted in a decrease in the surface area, mesopore volume and diameter of the obtained composites. It is believed that the addition of HKUST-1 for greater than 5 % may cause the plugging of the active site, reducing surface area, mesoporous volume and pore diameter (Subagyo et al., 2022).

Close

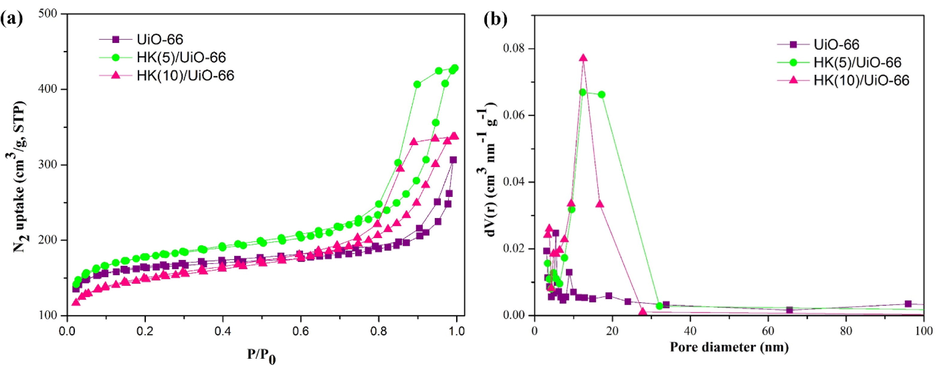

Fig. 5

(a) N₂ adsorption–desorption isotherm (b) Pore size distribution.

Export to PPT

3.2 Adsorption, kinetic and thermodinamic behavior on RBBR adsorption

3.2.1

3.2.1 Effect of pH

The pH is an important parameter in the adsorption process of RBBR, because the pH solution determines the degree of ionization, adsorbate speciation, and the charges on the surface of the adsorbent (Guo et al., 2015). To investigate the effect of the solution's initial pH on the adsorbent's ability to absorb RBBR, the pH of the solution was adjusted to a range of values between 3 and 11. The adsorption results at various pH of RBBR solutions are presented in Fig. 6. As shown in Fig. 6, the maximum adsorption capacity of RBBR was achieved at pH 3 for all adsorbents. In the acidic solution, the protonation of adsorbent occurs which causes an increase in the surface positive charge. The increase in electrostatic attraction between the surface of the adsorbent and the SO₃⁻ functional group on RBBR increases the adsorption capacity of RBBR (Al-Degs et al., 2008; Embaby et al., 2018). In the alkaline solution, the deprotonation of the adsorbent occurs, which causes a decrease in the surface positive charge. The behavior of adsorption due to the repulsive of electrostatic between SO₃^- on RBBR with adsorbent decreased the adsorption capacity of RBBR. In addition, the decrease in adsorption capacity is also caused by the number of OH^– ions that are dominant and compete with the SO₃⁻ functional group on RBBR to bind to the surface of the adsorbent (Hidayat et al., 2021). Hence, electrostatic attraction forces have a substantial role in the adsorption of RBBR onto adsorbent in addition to hydrogen bonding and π-π interaction.

Close

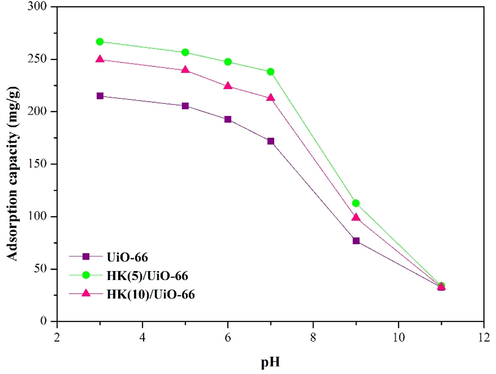

Fig. 6

Effect of initial pH (C₀ = 100 mg/L; t = 50 min; dosage = 10 mg).

Export to PPT

3.2.2

3.2.2 Effect of contact time

As exhibited in Fig. 7, it is seen that all the materials adsorbed the RBBR dye, where the rate of adsorption increased during the initial stage of the process. At the initial stage of the adsorption, the adsorption sites of the material surface are provided by the active functional groups of the adsorbents that have not yet interacted optimally with the RBBR. After passing the 50 min contact time, the adsorption rate reached a constant stage, which indicated that the adsorbents were in a saturated condition (Ediati et al., 2021). The contact time observed for all the materials was 50 min. HK(5)/UiO-66 demonstrated the best adsorption performance with an adsorption capacity of 269.8 mg/g, which was higher than that of a pure UiO-66 with an adsorption capacity of 228.87 mg/g. The addition of HKUST-1 by larger than 5 % resulted in a decrease of adsorption capacity due to the pores being closed and a decrease in surface area, which have been confirmed by the results of N₂ adsorption–desorption analysis (R. Ediati et al., 2021; Subagyo et al., 2022). The adsorption capacity at different contact times was then used to determine the adsorption kinetics using pseudo-first order and pseudo-second order models and intraparticle diffusion to identify the adsorption process and rate-determining step. The kinetic parameters are listed in Table 4. Based on the first and second pseudo-order graph plots, both exhibits that the RBBR adsorption by each of the adsorbents followed the second pseudo order kinetic adsorption since the correlation coefficient (R²) is approaching 1. The pseudo second order kinetics indicated that the adsorption process chemically went through the electrostatic interaction mechanisms (Subagyo et al., 2022). The pseudo second order kinetic adsorption also demonstrated that the adsorption was determined by two variables, which are the RBBR concentration and the concentration of the active sites on the surface of the RBBR (Santoso et al., 2021).

Close

Fig. 7

(a) Effect of contact time (C₀ = 100 mg/L; pH = 3; dosage = 10 mg) (b) Plot pseudo-first order (c) Plot pseudo second order (D) Plot intraparticle diffusion.

Export to PPT

Table 4 Parameters of pseudo first order and pseudo second order kinetic parameters of the adsorption RBBR.

Adsorbent	Qe(exp) (mg/g)	PFO			PSO
		Qe(cal) (mg/g)	k1	R2	Qe(cal) (mg/g)	k2 × 10-3	R2
UiO-66	228.87	95.12	0.060	0.8126	238.09	0.93	0.9894
HK(5)/UiO-66	269.80	224.64	0.081	0.8154	277.78	1.1	0.9907
HK(10)/UiO-66	249.62	27.78	0.043	0.2682	263.16	0.84	0.9895
HK(20)/UiO-66	171.59	37.89	0.069	0.7614	181.81	1.77	0.9941

Adsorption is a process of removal through a step-by-step mechanism from the interaction of the adsorbate in solution with the adsorbent to the penetration of the adsorbate into the pores of the adsorbent. Therefore, it is important to understand the diffusion process that takes place at the surface or pores through the Weber Moris model (intra-particle diffusion) and to determine the rate-determining step. As displayed in Fig. 7(d) and listed in Table 5, adsorption takes place in two phases namely mass diffusion and intraparticle diffusion. In the beginning, there were many active sites on the surface of the adsorbent, so that the adsorbate could be easily adsorbed on the surface of the adsorbent, which was characterized by a high value of Kp₁. Further, the adsorbate adsorbed on the surface of the adsorbent penetrated the pores of the adsorbent, followed by binding of the active site in the pores of the adsorbent. However, at this stage, it caused diffusion resistance resulting in a decrease in the amount of adsorbate in the solution which is characterized by a low Kp₂ value (Cui et al., 2019; Subagyo et al., 2022). The decrease of the constant value in the second stage correlated with the C value which specified the boundary thickness. C₁ has a smaller value on all the adsorbents compared to the values of C₂. The intercept value (C) increased with the decrease in the HKUST-1 addition, which implied that the composite with the least addition of HKUST-1 had the largest adsorption capacity (Wu et al., 2009).

Table 5 Parameters of intraparticle difussion model for the adsorption of RBBR onto synthesized materials.

Adsorbent	Intraparticle diffusion
	C1 (mg/g)	k1 (mg g−1 min0.5)	C1 (mg/g)	k1 (mg g−1 min0.5)
UiO-66	8.31	36.68	195.78	3.88
HK(5)/UiO-66	16.70	44.90	224.88	6.08
HK(10)/UiO-66	11.26	39.78	207.37	5.32
HK(20)/UiO-66	4.60	31.26	146.96	3.85

3.2.3

3.2.3 Effect of initial concentrations of RBBR

The adsorption process with varying concentrations of RBBR aims to determine the concentration of RBBR required to achieve optimal adsorption, as shown in Fig. 8a. It can be seen in Fig. 8a, all the materials experienced a significant increase in adsorption capacity up to an RBBR concentration of 300 mg/L, and remain unchanged at RBBR concentrations of higher than 300 mg/L, which indicated that adsorbents have reached its saturation point. The increase in adsorption capacity along with the increase in the concentration of RBBR indicates that the high concentration of RBBR in the solution causes the active site of the adsorbent to be surrounded by more RBBR. When compared to a pure UiO-66, the HK(5)/UiO-66 composite has an adsorption capacity of 400 mg/L or 1.53 times higher. The increase in adsorption capacity of the HK(5)/UiO-66 composite was due to the addition of the active site of HKUST-1 and the reduction in particle aggregation which could reduce the active site of the material (Subagyo et al., 2022). This result also correlates with the results of the N₂ adsorption–desorption analysis which states that HK(5)/UiO-66 has a larger surface area and meso-volume than UiO-66, which is beneficial for the adsorption process. Moreover, the increase in adsorption capacity was also caused by the addition of the intercalation of the pi bond of the HKUST-1 carboxylate ring with RBBR (R. Ediati et al., 2021). The electrostatic attraction and the increased hydrogen bonding due to the addition of HKUST-1 may be the cause of the increase in adsorption capacity (Hidayat et al., 2021). Table 6 shows the high adsorption capacity of the HK(5)/UiO-66 composite compared to other adsorbents. Some beneficial interactions that can occur between HK(5)/UiO-66 and RBBR include: hydrogen bonds interactions, π-π bond interactions between the adsorbent and the RBBR, electrostatic attraction, and acid-base interactions.

Close

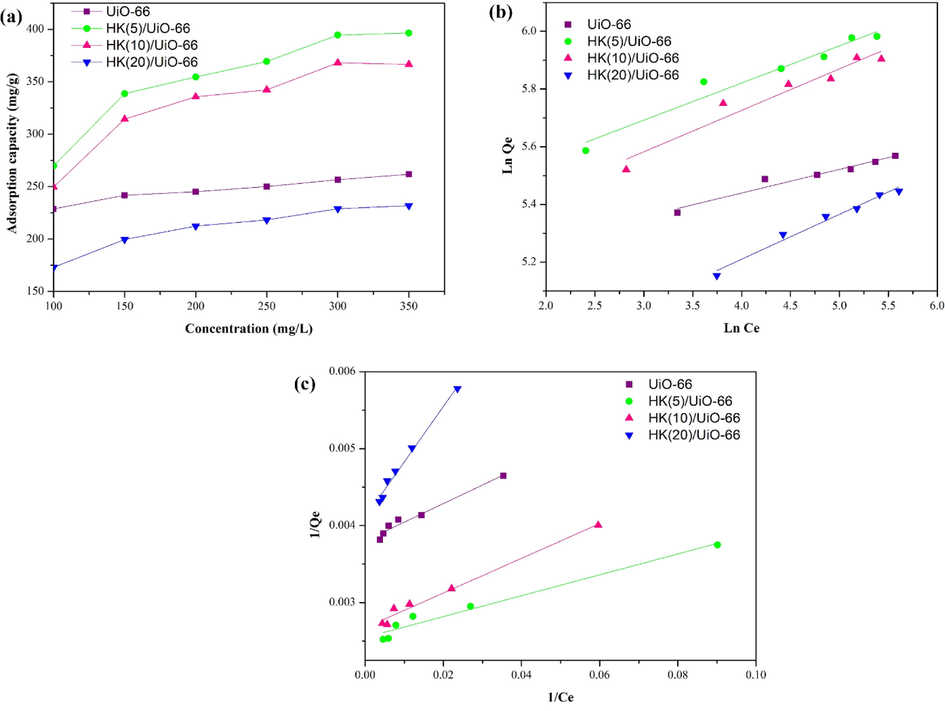

Fig. 8

(a) Effect of initial concentration (C₀ = 100 mg/L; pH = 3; t = 50 min; dosage = 10 mg) (b) Ploti isotherm Freundlich (c) Plot isotherm Langmuir.

Export to PPT

Table 6 Adsorption capacity of RBBR adsorption using different adsorbent.

Adsorben	Langmuir			Freundlich
	Qmax (mg/g)	KL (L/mg)	R2	1/n	KF (mg/g)	R2
UiO-66	263.16	0.16	0.9676	0.0818	166.05	0.953
HK(5)/UiO-66	400	0.18	0.9687	0.1334	198.40	0.9542
HK(10)/UiO-66	370.37	0.12	0.984	0.1432	172.67	0.9444
HK(20)/UiO-66	243.90	0.06	0.9891	0.1554	98.35	0.9798

The value of the adsorption capacity of the synthesized adsorbents at different initial concentrations of RBBR was then used to determine the isothermal adsorption of Langmuir and Freundlich, as. shown in Fig. 8b and c, respectively. The suitable choice of isotherm was based on three references, which are the isotherm produced must be linear, the maximum concentration must have an adsorption capacity limit and the gradient obtained must be positive on all the varied concentrations (Bachmann et al., 2021). As listed in Table 7, the gradient obtained on all the variations, on both the Langmuir and Freundlich plot, produced positive outcomes, thus the gradient was determined based on the correlation coefficient value. The correlation coefficient value (R²) of the Langmuir plot was found to be higher when compared to the correlation coefficient value (R²) of Freundlich plot, which applied to all the adsorbent types. Therefore it can be deduced that all the adsorbents followed the Langmuir isothermal, which implies that the adsorption occurred in monolayer, chemisorption, and has a uniform energy. The chemisorption process led to the adsorbate to being quickly saturated as although the concentration and contact time were increased, the amount of adsorbate that was adsorbed by the adsorbent stayed constant (R. Ediati et al., 2021; Hidayat et al., 2021). The constant which states the deviation of the linearity and was used to verify the adsorption type is notated by n. A value of 1/n = 1 implies a linear adsorption, 1/n greater than 1 implies the adsorption occurred chemically, and 1/n less than 1 implies that the adsorption process occurred physically (Wen et al., 2020). As stated in Table 8, it was found that the obtained value of 1/n on all of the adsorbents was less than 1, implementing that the Freundlich isothermal plot correlated with Langmuir isothermal, which further confirms that the adsorption process took place chemically and was fitted more to following Langmuir isothermal.

Table 7 Adsorption isotherm model Langmuir and Freundlich.

Adsorbent	Temperature (K)	Time (min)	Concentration (mg/L)	pH	Qmax (mg/g)	Ref
HK(5)/UiO-66	303	50	350	3	400	This research
Bone char	298	240	500	6.54	20.6	(Bedin et al., 2017)
Biochar	303	60	100	10	87.03	(Raj et al., 2021)
HSNMIL88(Fe)	303	480	200	4.5	213.2	(Zhang et al., 2021)
Poly(NOPMA)	293	59.91	100	7	60.85	(Torgut et al., 2017)
Activated carbon	303	1440	500	3	204	(Ahmad et al., 2014)
Chitosan Coated Montmorillonite	298	120	400	2	322.58	(Altıntıg et al., 2022)
Chi/Sep/Alg	303	17.5	250	4	292.4	(Zain et al., 2022)
Yarrowia lipolitica	298	180	150	2	119.6	(Aracagök, 2022)
Jhingan hydrogel	298	420	100	6	9.88	(Mate and Mishra, 2020)

Table 8 Thermodynamic parameters for the adsorption of RBBR onto HK(5)/UiO-66 and HK(10)/UiO-66.

Adsorben	$\mathrm{\Delta }$ H° (kJ/mol)	$\mathrm{\Delta }$ S° (J/mol K)	$\mathrm{\Delta }$ G° (kJ/mol)
			303 K	313 K	323 K
HK(5)/UiO-66	−92.27	209.22	−29.29	−25.90	−25.16
HK(10)/UiO-66	−65.29	126.94	−27.19	−24.80	−24.70

3.2.4

3.2.4 Effect of adsorption temperature

The effects of temperature towards adsorption is related to the thermodynamic parameters, which are Gibbs free energy (to determine the spontaneity of a system), enthalpy change (to determine the reactions that took place, endothermic or exothermic), and entropy (to determine the randomness of a system and the change in the structure on the adsorbent), all of which are given in Fig. 9 and Table 8. As presented in Fig. 9, it can be seen that as the temperature increased, the adsorption capacity decreased. The decrease in adsorption capacity was a consequence of the equilibrium condition which was reached at high temperatures, thus the adsorption system produced became saturated (Zhang et al., 2012).

Close

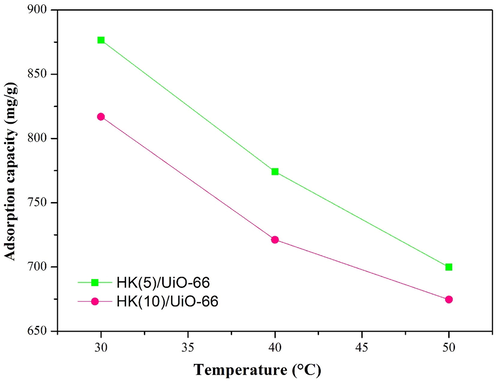

Fig. 9

Effect of initial temperature.

Export to PPT

If the enthalpy value of the system is less than 40 kJ/mol, it indicates that the adsorption mechanism occurred physically. Whereas if the enthalpy value of the system is more than 40 kJ/mol, it indicates that the adsorption mechanism occurred physically (Wang et al., 2022). The enthalpy change value for HK(5)/UiO-66 and HK(10)/UiO-66 composites are −92.27 and −65.29 kJ/mol, which implied that the reaction occurred exothermically (Hidayat et al., 2021). The results correlated with the adsorption capacity values where they decrease with increasing temperature. In an exothermic process, the optimum adsorption performance is obtained at low temperatures (Horsfall and Spiff, 2005). A positive entropy value signified that there was an increase in the randomness that occurred throughout the adsorption process (Hidayat et al., 2021). This circumstance took place due to the RBBR molecules that were being damaged throughout the adsorption process as a result of a variety of interactions between the RBBR and the material (Rehman et al., 2021). A negative Gibbs free energy value hinted that the reaction took place spontaneously which benefited in terms of energy. While a positive Gibbs value specified that the reaction did not occur spontaneously, which did not benefit energetically since the reaction needed more energy from the surroundings in order for the reaction to take place spontaneously (González-López et al., 2021). The negative Gibbs free energy value on both materials of the RBBR adsorption was caused by the spontaneous reaction, which revealed that the reaction was beneficial (Hidayat et al., 2021).

3.3 Reusability of HK(5)/UiO-66

To investigate the regenerability and recyclability of HK(5)/UiO-66, the three successive recycling processes were carried out by adding restored of HK(5)/UiO-66 to fresh RBBR solutions. As shown in Fig. 10, the adsorption capacity of HK(5)/UiO-66 toward RBBR after three successive cycle of adsorption still maintained above 300 mg/g and the ability of HK(5)/UiO-66 to regeneration was reached to 75 %. It can be seen that HK(5)/UiO-66 is a promising adsorbent to removal of RBBR from aqueous solutions.

Close

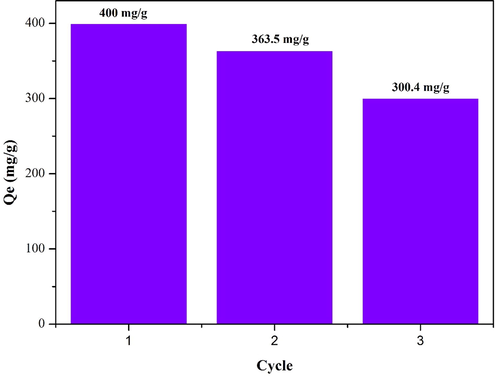

Fig. 10

Reusability of HK(5)/UiO-66.

Export to PPT

3.4 Adsorption mechanism

To study the interaction mechanism between HK(5)/UiO-66 and RBBR dyes, FTIR spectra of RBBR dye, HK(5)/UiO-66 before and after adsorption were showed in Fig. 11. The intensity of the absorption band at 1579.5 cm⁻¹ is significantly increased, which was corresponded to the strengthening due to the presence of π-π stacking between adsorbent and adsorbate. Besides, a small adsorption band at a wavenumber of 1273 cm⁻¹ was observed, which is a region of -S⚌O- stretching vibration of the sulfonate (-SO₃^-) at the region of 1200–1365 cm⁻¹. This was possibly due to the new formation of electrostatic force between metal ion with the active -SO₃^- group that contained within RBBR (Wang et al., 2015). However, simultaneously, The characteristic peaks in the 1105.25 cm⁻¹ (C—O vibration) and 1660.77 cm⁻¹ (C⚌O group) regions were disappeared, indicating that the adsorption process had been occured. The adsorption mechanism was intended to explain the adsorption process that took place. The first stage of the adsorbent was adsorbing the RBBR before interacting through π-π stacking, hydrogen bonds and electrostatic force between the adsorbent with the RBBR, as shown in Fig. 12. The hydrogen bonds were formed when the adsorbent was dissolved and interacted with H₂O, which was continued to forming a bond between the H₂O with the RBBR molecules (Hasan et al., 2014). The π-π interactions were a consequence of the interactions between π aromatic groups on the MOF with the aromatic groups in RBBR (Azhar et al., 2017; Yoon et al., 2019). The electrostatic force occurred between the SO₃^- groups in RBBR with the composite metal cluster in the composite, which are Zr⁴⁺ and Cu²⁺. Zr⁴⁺ and Cu²⁺ acted as the Lewis acid which supplied the empty orbitals and the SO₃^- groups in RBBR acted as the Lewis acid which has a pair of free electrons (Hidayat et al., 2021; Tran Ba Luan, 2020). In this circumstance, the presence of HKUST-1 provided a vital role in increasing the interactions that occurred. From the calculations using Avogrado’s equation, the RBBR size was found to be 1.30 × 1.03 × 1.30 nm (Fig. 13). The RBBR molecules were found to be smaller compared to the resulted pores diameter, which are 3.774, 4.752 and 4.43 nm for UiO-66, HK(5)/UiO-66 and HK(10)/UiO-66 materials, respectively, consequently allowing RBBR to diffuse into the adsorbent pores. This process continued until the active sites of the adsorbent became saturated to interact with the RBBR molecules.

Close

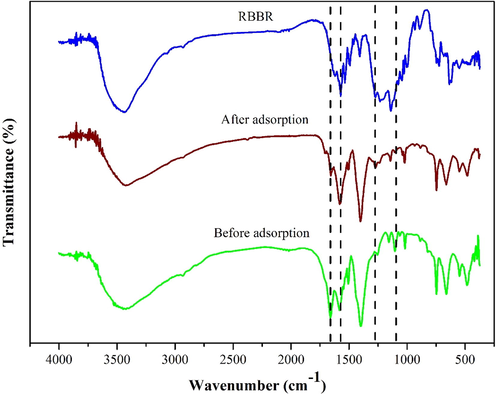

Fig. 11

Comparison between after and before adsorption.

Export to PPT

Close

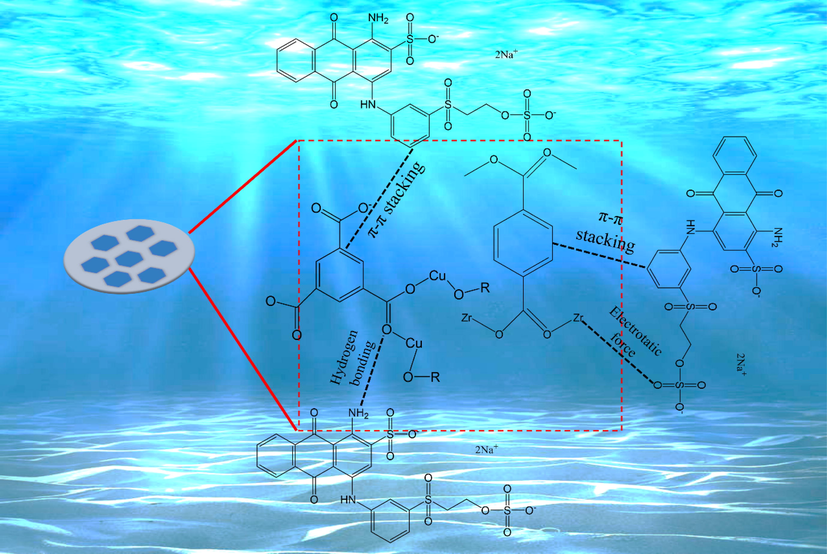

Fig. 12

Possible mechanism of adsorption RBBR.

Export to PPT

Close

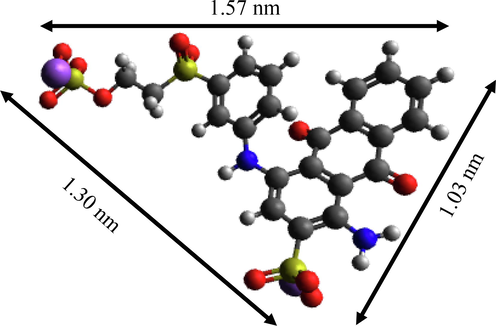

Fig. 13

Structure of RBBR using avogadro.

Export to PPT

3.5 Adsorbent cost analysis

Cost analysis of HKUST-1/UiO-66 preparation from their raw materials is crucial analysis for economic viability of adsorbent production (Li et al., 2022). During the synthesis, the preparation cost of HKUST-1/UiO-66 comes from the chemical precursor (cost A). Cost B and C could be formed from the solution exchange and electricity. The estimation of cost A, B and C US $0.32/kg, US $26.53/kg and US $0,42/kg, respectively. Taking into account the total cost estimation from each component was about US $27.27/kg. The maximum adsorption capacity for RBBR using HKUST-1/UiO-66 in this research is 400 mg/g. Based on the estimated adsorbent cost per gram of adsorbate removed, The adsorption cost of HKUST-1/UiO-66 is US $0.069/g.
