Abstract
Aromatic nucleophilic substitution (SNAr) reactions have been known to be regioselective to the para position on a variety of substituted perfluorobenzenes. In the current study, a series of fluoroaryl 1, 3, 4-oxadiazole derivatives substituted with different para terminal ethers were synthesized using SNAr chemistry to afford fluorescent and thermally reversible low molecular weight organogelators (LMWOs). SNAr was used to synthesize these highly fluorinated organogelators in high purity and good yields starting from pentafluorobenzoic acid and 4′-hydroxy-4-biphenylcarbonitrile. These fluorinated 1, 3, 4-oxadiazole derivatives were characterized by elemental analysis, FTIR, and 1H, 13C, and 19F NMR spectroscopy. The photophysical properties of those organogelators were described. Both UV–visible absorption and fluorescence spectral profiles displayed a solvatochromic and solvatofluorochromic properties. The absorption maxima for the developed organogelators were monitored in the range of 260–289 nm, whereas the emission maxima were monitored in the range of 278–305 nm. The best gelation properties were monitored for the hexyloxy-substituted 2-(biphenylyl)-5-(perflurophenyl)-1, 3, 4-oxadiazole gelator in different solvents with critical gel concentrations in the range of 1.86–5.07 mM. The self-assembly process was monitored to occur via van der Waals forces and π-π stacks to result in gelation of solvents. Scanning electron microscope (SEM) demonstrated nanofiber-like structures (350–550 nm). The thermal stability of the hexyloxy-substituted organogel was monitored at 48 °C. Both cytotoxicity and antimicrobial activity of the produced fluoroaryl 1, 3, 4-oxadiazole derivatives were explored to verify their potential use for biomedical applications, such as drug delivery and bioimaging.
Keywords
Aromatic nucleophilic substitution
Decarboxylation cross-coupling
1, 3, 4-Oxadiazole
Fluorescence
Organogelator
1 Introduction
LMWOs have been attractive materials owing to their thermal reversibility, diversity of their micro(nano) scaffolds and chemical sensitivity (Aykent et al., 2019; Peveler et al., 2018; Sasaki et al., 2018). Gelators were typically used in a variety of applications, like cosmetics, foodstuff and pharmaceutical purposes. They have been able to generate non-covalent self-assembled physical texture of unique features (Kim et al., 2020; Zhang et al., 2019). Fluorine-containing substances have received substantial interest in numerous fields, such as polymers, pesticides, pharmaceuticals and liquid crystals. Moreover, the perfluorinated compounds typically establish a rough surface with the ability to introduce superhydrophobic and self-cleanable surfaces (Fan et al., 2019; Guerre et al., 2018; Zhang et al., 2018). The presence of fluorine atoms in molecular structures can stimulate liquid crystalline performance better than their non-fluorinated counterparts, which can be ascribed to the bigger size of fluorine in comparison to hydrogen to result in substantial steric effects. Fluorine-substituted liquid crystals usually exhibit a variety of nematic mesogenic phases (Yamada et al., 2017; Zhang et al., 2017). Perfluoroaromatics are highly reactive for cross-couple reactions. The synthesis of perfluoroaryls from the corresponding aromatic tetrazoles and pentafluorobenzoic acid has been recently achieved. This synthetic approach employed cheap and less sensitive compounds. Therefore, this synthetic strategy can substitute the costly and highly sensitive organometallic compounds, like PdCl2 (Feng et al., 2012). An extensive research has been reported on the application of transition metals as catalytic agents in the common synthetic methods of fluorine-containing compounds. Nonetheless, those approaches suffer some difficulties, including low yield and poor selectivity. Furthermore, extensive amounts of by-products are usually monitored due side reactions causing extra purification cost (Altoom et al., 2021).
SNAr has been an essential synthetic procedure, in which a nucleophile compound replaces a high-quality leaving group on an aryl moiety. SNAr of fluorine-containing aromatic compounds by a diversity of nucleophilic compounds has been explored for aromatic moieties with strong electron withdrawing groups, like nitro, sulphonyl, cyano and polyhalogen to result in high yield and fast reaction rate (Bidusenko et al., 2020; Tominaga et al., 2020). SNAr typically occurs in an aprotic solvent, such as dimethylacetamide, hexamethylphosphoramide, dimethyl sulfoxide and dimethylformamide in the temperature range of 25–100 °C, which typically relies on the activation energy required by the aromatic moiety. For instance, spiropyrrolidone-3, 3′-oxoindole has been the key skeleton for many natural materials with optical activity. Organocatalyzed (enantio-)regio-selective SNAr chemistry was efficiently carried out between 1, 3-dicarbonyls and reactive aromatic moiety (Hicks et al., 2020). The phase transfer catalysis has been applied to provide the optically active spiropyrrolidone-3,3′-oxoindoles in good yield under mild conditions. Unexpectedly, no studies have been reported on the development of LMWO based on fluorine-containing 1, 3, 4-oxadiazoles despite their significant role in a variety of recent optoelectronic advances. Oxadiazoles are heterocyclic substances comprising five membered ring with two nitrogen atoms and one oxygen atom (Marti et al., 2003; Vaidya et al., 2021). They have been used for a variety of valuable biological purposes and drug systems, such as antiviral raltegravir, analgesic, anti-depressive, antimicrobial furamizole, anti-diabetic, anti-inflammatory and anticancer zibotentan (Glomb et al., 2021; Patel et al., 2014; Salahuddin et al., 2017; Verma et al., 2019).
Herein, we describe the first fluorescent organogelator with a rigid perfluoroaryl 1, 3, 4-oxadiazole core and flexible terminal alkyl tails. The preparation and photophysical performance were studied. The reaction between penetafluorobenzoic and the appropriate tetrazole-substituted aryl introduced an extended conjugation of rigid 1, 3, 4-oxadiazole core with a strong fluorescence, solvatochromism and solvatofluorochromism properties. A suitable synthesis of perfluoroaryl 1, 3, 4-oxadiazole bearing ethers were carried out via SNAr. The chemical structures of the prepared alkoxy-substituted perfluoroaryl 1, 3, 4-oxadiazoles were investigated by 1H/13C/19F NMR, elemental analysis and FT-IR spectra. The prepared oxadiazole derivatives exhibited fluorescence in the ultraviolet spectrum range (10–400 nm); thus, they can be reported as appropriate materials with lower energy consumption, such as handy and flexible electronic displays (Lin et al., 2017; Ragni et al., 2018). The gelation properties and supramolecular assembly of the current oxadiazole derivatives were inspected in some organic solvents. Such assembly could be attributed to physical bond formation leading to formation of intertwined fibrillar textures able to immobilize solvents. Both cytotoxic and antimicrobial behaviors of the prepared oxadiazole derivatives were explored. SEM analysis showed novel fluorescent nanofibrous entanglements self-assembled from the organogelators. Thus, the current oxadiazole organogelators can be considered as appropriate candidates for a variety of biomedical applications, such as bioimaging and drug delivery systems.
2 Experimental
2.1 Materials
Chemicals were supplied from Merck and Frontier-Scientific (Egypt). Solvents (spectroscopic grade) were purchased from Merck and Fluka. Silia Flash F60 silica gel was employed for column chromatography. TLC plates of silica gel were employed for naked-eye monitoring of reaction progress. The intermediates 1–3 were prepared according to preceding procedures (Jedlovská et al., 1994; Radwan et al., 2021; Tandon et al., 2001) from commercial compounds; 4-Hydroxy-4′-cyanobiphenyl and pentafluorobenzoic acid (Merck; Egypt).
2.2 Methods
Melting points were measured by differential scanning calorimetry (TA2920). NMR spectra were studied by BRUKER AVANCE 400 MHz. Infrared spectra were studied by JASCO-4700. The elemental analysis was evaluated by Norwalk Perkin-Elmer 2400 (United States). UV–visible absorption spectral curves were evaluated by HP-8453. VARIAN CARY ECLIPSE was employed to evaluate both fluorescence spectral curves (sol and gel), and quantum yield (Ф). In order to report the emission spectra of gel, the generated gel was stirred on a shaker for 5 min. Ethanolic solutions of rhodamines, including 6G (Фr = 0.95) and 101 (Фr = 0.96) were utilized as standards to determine the quantum yields. SEM images were taken by Quanta FEG250 (Czech) as the organogel in n-propanol was subjected to casting on a glass substrate and left to dry under ambient conditions to give xerogel that was annealed overnight at 45 °C, and covered with a thin layer of gold (∼10 nm).
2.3 Gel formation
The gel formation tests were carried out by dissolving the prepared oxadiazole derivatives 4a-c in different solvents by exposure to heat toward the boiling point followed by cooling. The solutions were then left to settle down as the organogel was generated in 25–45 min relying on the gelator total content. The reversibility between sol-to-gel and gel-to-sol was investigated by keeping the vial containing the gel reverted in an oil bath. The vial was subjected to heating, and the temperature at which the gel was observed to collapse was recorded as the gel melt temperature. This procedure was repeated some cycles to verify excellent reversibility.
2.4 Cytotoxic assay
The cytotoxic assay of the alkoxy-substituted 2-(biphenylyl)-5-(perflurophenyl)-1, 3, 4-oxadiazole derivatives was evaluated in vitro utilizing immortalized normal skin fibroblasting cells (BJ1) using previous proliferating MTT method (Plastina et al., 2012).
2.5 Antimicrobial properties
The antimicrobial performance of the alkoxy-substituted 2-(biphenylyl)-5-(perflurophenyl)-1, 3, 4-oxadiazole derivatives was examined under standard procedures against S. aureus (ATCC 25923), and E. coli (ATCC 25922) (Ghasemi et al., 2018).
2.6 Synthetic approaches
2.6.1 Synthesis of 4′-hyxyloxy-4-biphenylcarbonitrile (1)
An admixture of 4′-hydroxy-4-biphenylcarbonitrile (10 mmol), potassium carbonate (20 mmol), and a bit of potassium iodide was added to dimethylformamide (20 mL). Then, 1-iodohexane (10 mmol) was added and the admixture was exposed to heat over 12hrs at 70 °C. The cold admixture was decanted into water; the precipitate was filtered and rinsed with hexane. White powder was obtained (74%); 1H NMR (400 MHz, CDCl3): 7.98 (d, 4H; aromatic CH), 7.83 (d, 2H; aromatic CH), 7.05 (d, 2H; aromatic CH), 4.08 (t, 2H; aliphatic CH), 1.81 (q, 2H; aliphatic CH), 1.44–1.52 (m, 2H; aliphatic CH), 1.29–1.33 (m, 2H; aliphatic CH), 1.27 (t, 2H; aliphatic CH), 0.91 (t, 3H; aliphatic CH).
2.6.2 Synthesis of 4-hexyloxy-4′-(tetrazolyl)biphenyl (2)
A mixture of 4-hexyloxy-4′-cyanobiphenyl (10 mmol), NaN3 (20 mmol), and lithium chloride (0.03 mol) was added to N-methyl-2-pyrrolidone (15 mL). The admixture was stirred at 130 °C for 3 days, cooled and decanted into water, acidified to pH 2–3, filtered and rinsed with excess of hexane. The resultant material was recrystallized from propyl alcohol to provide a white residue (86%); 1H NMR (400 MHz, CDCl3): 10.45 (s, 1H; tetrazole NH), 8.25 (d, 2H; aromatic CH), 8.02 (d, 2H; aromatic CH), 7.88 (d, 2H; aromatic CH), 6.98 (d, 2H; aromatic CH), 4.05 (t, 2H; aliphatic CH), 1.82 (q, 2H; aliphatic CH), 1.40–1.47 (m, 2H; aliphatic CH), 1.30–1.34 (m, 2H; aliphatic CH), 1.21 (t, 2H; aliphatic CH), 0.93 (t, 3H; aliphatic CH).
2.6.3 Synthesis of 2-[4′-(hexyloxy)[1,1′-biphenyl]-4-yl]-5-[2,3,4,5,6-pentaflurophenyl]-1, 3, 4-oxadiazole (3)
A mixture of 4-hexyloxy-4′-(tetrazolyl)biphenyl (10 mmol), pentafluorobenzoic acid (10 mmol), and N, N′-dicyclohexylcarbodiimide (0.05 mol) was added to N-methyl-2-pyrrolidone (15 mL). The admixture was stirred at 130 °C for 3hrs, cooled and decanted into water, acidified to pH 2–3, filtered and rinsed with excess of hexane. The product was re-crystallized from a mixture of ethanol and chloroform (1:1) to give a white residue (72%); 1H NMR (400 MHz, CDCl3): 8.20 (d, 2H; aromatic CH), 7.76 (d, 2H; aromatic CH), 7.62 (d, 2H; aromatic CH), 7.02 (d, 2H; aromatic CH), 4.05 (t, 2H; aliphatic CH), 1.81–1.87 (m, 2H; aliphatic CH), 1.57–1.62 (m, 2H; aliphatic CH), 1.39 (m, 4H; aliphatic CH), 0.96 (t, 3H; aliphatic CH); IR (neat, ν/cm−1): 3071 (aryl stretch vibrations of CH), 2921 and 2853 (aliphatic asymmetric stretch vibrations of CH), 1555 (C⚌N), 1488 (aryl bend vibrations of C⚌C), 1382 (C-O), 1206 (bend vibrations of CH2), 1069 (bend vibrations of CH3), 840 (aryl bend vibrations of CH), 761 (bend rock vibrations of CH2).
2.6.4 General procedure for the preparation of 2-[4′-(hexyloxy)[1,1′-biphenyl]-4-yl]-5-[2,3,5,6-tetrafluro-(4-alkyloxy)phenyl]-1, 3, 4-oxadiazole (4)
An admixture of 2-[4′-(hexyloxy)[1,1′-biphenyl]-4-yl]-5-[2,3,4,5,6-pentafluorophenyl]-1, 3, 4-oxadiazole (1 mmol) and anhydrous DMF was heated till complete dissolution. The corresponding alcohol (1 mmol) was added. After cooling, t-BuOK was added to the admixture. Upon reaction completion, the mixture was subjected to rotary evaporator, and the solid residue was re-crystallized.
2.6.5 Synthesis of 2-[4′-(hexyloxy)[1,1′-biphenyl]-4-yl]-5-[2,3,5,6-tetrafluro-(4-ethoxy)phenyl]-1, 3, 4-oxadiazole (4a)
Prepared from 2-[4′-(hexyloxy)[1,1′-biphenyl]-4-yl]-5-[2,3,4,5,6-pentafluorophenyl]-1, 3, 4-oxadiazole (215 mg, 0.45 mmol), dimethylformamide (10 mL), excessive amount of ethanol (5 mL), and t-BuOK (65 mg). The solid residue was subjected to re-crystallization from propyl alcohol to provide a white residue (53%); mp 125–127 °C; 1H NMR (400 MHz, CDCl3): 8.15 (d, 2H; aromatic CH), 7.74 (d, 2H; aromatic CH), 7.60 (d, 2H; aromatic CH), 7.01 (d, 2H; aromatic CH), 4.49 (q, 2H; aliphatic CH), 4.03 (t, 3H; aliphatic CH), 1.80–1.86 (m, 2H; aliphatic CH), 1.49–1.53 (m, 2H; aliphatic CH), 1.34–1.38 (m, 6H; aliphatic CH), 0.94 (t, 3H; aliphatic CH); 13C NMR (400 MHz, CDCl3): 165.39, 159.56, 155.52, 146.69, 144.63, 143.98, 142.52, 139.91, 131.81, 128.83, 128.22, 127.64, 127.16, 121.22, 115.01, 78.18, 68.17, 31.60, 29.22, 25.73, 22.62, 15.50, 14.05; 19F NMR (CDCl3): −146 (q, 2F), −157 (q,2F); IR (neat, ν/cm−1): 3078 (aryl stretch vibrations of CH), 2924 and 2865 (aliphatic asymmetric stretch vibrations of CH), 1596 (C = N), 1512 (aryl bend vibrations of C = C), 1337 (C-O), 1190 (bend vibrations of CH2), 1121 (bend vibrations of CH3), 864 (aryl bend vibrations of CH), 723 (bend rock vibrations of CH2); Elemental analysis (514.19; C28H26F4N2O3): calculated: C 65.36, H 5.09, N 5.44; Detected: C 65.27, H 5.18, N 5.32.
2.6.6 Synthesis of 2-[4′-(hexyloxy)[1,1′-biphenyl]-4-yl]-5-[2,3,5,6-tetrafluro-(4-hexyloxy)phenyl]-1, 3, 4-oxadiazole (4b)
Prepared from 2-[4′-(hexyloxy)[1,1′-biphenyl]-4-yl]-5-[2,3,4,5,6-pentaflurophenyl]-1, 3, 4-oxadiazole (120 mg, 0.25 mmol), dimethylformamide (5 mL), hexanol (2 mL; excess), and t-BuOK (35 mg). The solid residue was subjected to re-crystallization from propyl alcohol to provide a white residue (48%); mp 121–123 °C; 1H NMR (400 MHz, CDCl3): 8.18 (d, 2H; aromatic CH), 7.71 (d, 2H; aromatic CH), 7.66 (d, 2H; aromatic CH), 7.01 (d, 2H; aromatic CH), 4.51 (q, 2H; aliphatic CH), 4.05 (q, 2H; aliphatic CH), 1.79–1.84 (m, 2H; aliphatic CH), 1.52–1.56 (m, 2H; aliphatic CH), 1.33–1.39 (m, 12H; aliphatic CH), 0.92 (t, 6H; aliphatic CH); 13C NMR (400 MHz, CDCl3): 164.88, 158.47, 154.55, 147.70, 145.03, 142.99, 141.63, 138.84, 130.99, 129.75, 128.31, 127.55, 126.06, 120.04, 115.00, 77.27, 69.20, 30.48, 28.47, 25.65, 24.83, 22.00, 21.71, 16.31, 15.28, 14.26; 19F NMR (CDCl3): −146 (q, 2 F), −157 (q, 2 F); IR (neat, ν/cm−1): 3071 (aryl stretch vibrations of CH), 2925 and 2869 (aliphatic asymmetric stretch vibrations of CH), 1590 (C = N), 1511 (aryl bend vibrations of C = C), 1344 (C-O), 1185 (bend vibrations of CH2), 1117 (bend vibrations of CH3), 858 (aryl bend vibrations of CH), 731 (bend rock vibrations of CH2); Elemental analysis (570.25; C32H34F4N2O3): calculated: C 67.36, H 6.01, N 4.91; Detected: C 67.21, H 5.92, N 5.03.
2.6.7 Synthesis of 2-[4′-(hexyloxy)[1,1′-biphenyl]-4-yl]-5-[2,3,5,6-tetrafluro-(4-decyloxy)phenyl]-1, 3, 4-oxadiazole (4c)
Prepared from 2-[4′-(hexyloxy)[1,1′-biphenyl]-4-yl]-5-[2,3,4,5,6-pentaflurophenyl]-1, 3, 4-oxadiazole (120 mg, 0.25 mmol), dimethylformamide (5 mL), decanol (2 mL; excess), and t-BuOK (35 mg). The solid residue was subjected to re-crystallization from propyl alcohol to provide a white powder (43%); mp 115–117 °C; 1H NMR (400 MHz, CDCl3): 8.21 (d, 2H; aromatic CH), 7.68 (d, 2H; aromatic CH), 7.61 (d, 2H; aromatic CH), 7.00 (d, 2H; aromatic CH), 4.48 (q, 2H; aliphatic CH), 4.07 (q, 2H; aliphatic CH), 1.81–1.87 (m, 2H; aliphatic CH), 1.51–1.57 (m, 2H; aliphatic CH), 1.35–1.41 (m, 24H; aliphatic CH), 0.92 (t, 3H; aliphatic CH), 0.89 (t, 3H; aliphatic CH); 13C NMR (400 MHz, CDCl3): 164.27, 157.00, 154.37, 148.08, 146.00, 142.65, 140.73, 138.58, 131.72, 129.13, 128.25, 127.51, 126.55, 121.38, 116.18, 78.22, 68.47, 30.51, 28.33, 28.00, 25.34, 24.92, 24.46, 22.35, 21.00, 20.89, 18.47, 18.05, 16.00, 15.39, 14.02; 19F NMR (CDCl3): −146 (q, 2F), −157 (q, 2F); IR (neat, ν/cm−1): 3069 (aryl stretch vibrations of CH), 2927 and 2875 (aliphatic asymmetric stretch vibrations of CH), 1586 (C = N), 1507 (aryl bend vibrations of C = C), 1332 (C-O), 1178 (bend vibrations of CH2), 1122 (bend vibrations of CH3), 863 (aryl bend vibrations of CH), 725 (bend rock vibrations of CH2); Elemental analysis (654.34; C38H46F4N2O3): calculated: C 69.70, H 7.08, N 4.28; Detected: C 69.81, H 6.89, N 4.39.
3 Results and discussion
3.1 Chemistry and analysis
Both 4-hydroxy-4′-cyanobiphenyl and pentafluorobenzoic acid are commercially available. 4′-Hydroxy-4-biphenylcarbonitrile dissolved in DMF was subjected to treatment with 1-iodohexane and K2CO3 under ambient circumstances to give 4-alkoxy-4′-cyanobiphenyl in high yield as illustrated in Scheme 1 (Fouad et al., 2018; Jedlovská et al., 1994; Radwan et al., 2021; Tandon et al., 2001). The alkoxy-substituted 2-(biphenylyl)-5-(perflurophenyl)-1, 3, 4-oxadiazole derivatives were prepared in high yields from pentafluorobenzoic acid and aryl cyanide. The 2-biphenyl-substituted 1, 3, 4-oxadiazole can be prepared by adding the oxadiazole ring into the biphenyl moiety with the fitting terminal functional group. The molecular structures of the prepared alkoxy-substituted 2-(biphenylyl)-5-(perflurophenyl)-1, 3, 4-oxadiazoles were proved with elemental, FT-IR, 1H/13C/19F NMR spectral analyses.

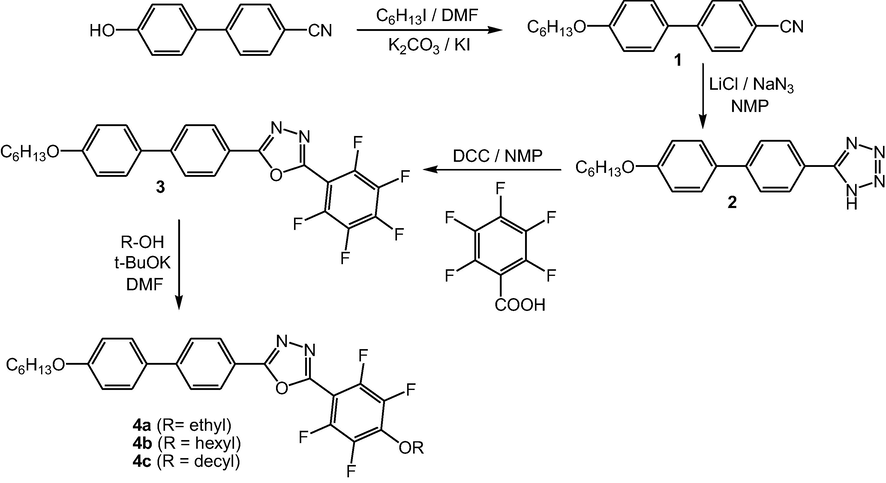

Synthesis of alkoxy-substituted 2-(biphenylyl)-5-(perflurophenyl)-1, 3, 4-oxadiazole derivatives.
SNAr reaction of an aryl moiety activated with perfluorination and alcoholates were assessed under non-forcing conditions. Those perfluorinated aromatic materials are stable and commercially available. Additionally, they have shown excellent reactivity toward SNAr reaction under mild conditions (Altoom et al., 2021). In the current research study, alkoxy tails were inserted into the terminal positions of the aromatic moieties to allow a better self-assembly process via van der Waals forces (Table 1). SNAr reactions have been reported as para specific on a variety of perfluoroaryls.
Gelator
R
R’
Yield (%)
4a
Hexyl
Ethyl
53
4b
Hexyl
Hexyl
48
4c
Hexyl
Decyl
43
The produced 2-(biphenylyl)-5-(perflurophenyl)-1, 3, 4-oxadiazole derivatives were treated under SNAr with different alcohols using DMF as a solvent and t-BuOK as a base. The reactivity of fluorine located at the para carbon atom of the benzene ring as a good leaving group in SNAr arises from the existence of several fluorine substituents at both ortho and meta carbon atoms of benzene moiety. Therefore, a regio-selective SNAr could be accomplished only at the para carbon atom by replacing the active para fluorine to provide perfluoroaryls bearing para-substituted alkyl ether group.
3.2 Photophysical measurements
Stimuli-responsive materials can be applied to introduce smart materials and products able to switch their absorbance and/or emissive properties in responding to external stimuli, like solvent polarity and temperature (Khattab et al., 2020). Thus, both UV–visible absorption and emission spectral properties of the prepared oxadiazole derivatives were inspected in some selected solvents (Fig. 1). The maximum absorption wavelength was reported to display strong Stoke’s shift as summarized in Table 2. The photophysical spectra (UV–Vis absorption and emission spcetra) were measured in various solvents, including tetrahydrofuran, hexane, dichloromethane, dimethyl sulfoxide and ethanol in diluted solutions to assure a complete dissolution. All oxadiazole derivatives absorb in the ultraviolet range. These absorbance bands can be attributed to π-π* transition. The absorption wavelength of the oxadiazole derivatives with lower length of alkoxy tails displayed slightly lower values compared to oxadiazoles with higher length of alkoxy tails. Thus, a bathochromic shift was monitored with extending the alkyl tail length. All oxadiazoles emit in the near ultraviolet-blue range. Nonetheless, a minor hypsochromic shifting was monitored in the fluorescent spectra with extending the alkyl tail length. This could be attributed to the energy of the excited state which decreases with extending the alkyl tail length leading to high emission character. Thus, the oxadiazole derivatives with lower length of alkoxy tails exhibit good charge transfer/conformational repose in the excited form. The lower radiation of oxadiazole derivatives with higher length of alkoxy tails can be ascribed to the strong twist ability of the peripheral fluorine-containing phenyl ring owing to the fluoro-atoms at the bay locations amid the fluorine-containing benzene and oxadiazole moieties. On the other hand, the oxadiazole derivatives with lower length of alkoxy tails displayed a higher radiation/emission property owing to expanded planar conjugate molecular system of oxadiazole core and peripheral aryl moieties. Additionally, fluorine substitution should considerably improve the intramolecular charge transfer (ICT) compared to non-fluorinated derivatives (Radwan et al., 2021).

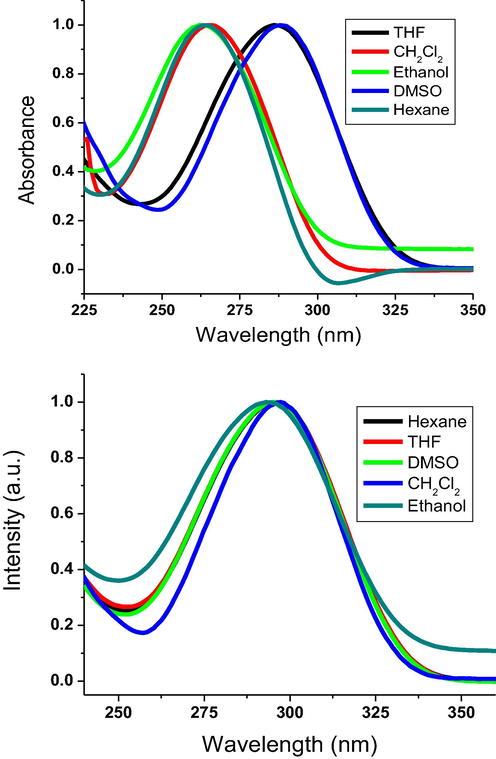

Normalized UV–visible absorbance (a) and fluorescence (b) spectral analysis of 4b under ambient conditions.
Solvent
4a
4b
4c
Hexane
A
262
264
268
F
286
295
304
DMSO
A
284
287
289
F
289
295
299
EtOH
A
260
262
266
F
278
293
301
THF
A
280
285
288
F
296
295
300
CH2Cl2
A
263
265
272
F
285
297
305
The current alkoxy-substituted 2-(biphenylyl)-5-(perflurophenyl)-1,3,4-oxadiazole derivatives composed of electron-donating terminal alkoxy tails bonded to a conjugate core of electron-accepting fluorine-containing aromatic moiety. Such molecular systems with push–pull ICT character are susceptible to solvatochromism and solvatofluorochromism properties monitored in various solvents of different polarity. Both UV–visible absorbance and fluorescence spectral profiles showed an increment in the maximum wavelength with the increase of the solvents polarities demonstrating positive solvatochromic and solvatofluorochromic properties. This bathochromic shifting reflects that the excited form is more polar than the ground form as the perfluorinated molecular systems are more stable in polar solvents. Inserting fluorine substituents can stimulate extraordinary features in comparison to the nonfluorinated counterparts. This could be ascribed to the large diameter of fluoro-atom compared to hydrogen causing substantial steric effects leading to higher quantum yield [12]. Hence, the oxadiazole derivatives, including 4a, 4b and 4c demonstrated better quantum yields in comparison to those of the nonfluorinated oxadiazole counterparts (Gong et al., 2019). However, the quantum yield values were monitored to decrease with the increase of the alkyl tail length.
3.3 Organogel study
Nanofibrous entanglements were formed by self-assembled of alkoxy-substituted π-conjugated 2-(biphenylyl)-5-(perflurophenyl)-1, 3, 4-oxadiazole derivatives. Fluorescence has been a critical property with the ability to show a responsive emission change to an external stimulus. Fluorescent architectures display remarkable reversible changes in both intensity and color due to self-assembly. Therefore, fluorescence architectures have been reported as useful sensors for the detection of various analytes (Ma et al., 2018). No organogel was formed for the prepared perfluorinated intermediate; 2-[4′-(hexyloxy)[1,1′-biphenyl]-4-yl]-5-[2,3,4,5,6-pentaflurophenyl]-1, 3, 4-oxadiazole 3. The synthesized alkoxy-substituted 2-(biphenylyl)-5-(perflurophenyl)-1,3,4-oxadiazole organogelators consisted of two ether tails isolated by 2-(biphenylyl)-5-(perflurophenyl)-1, 3, 4-oxadiazole core. The rigid aromatic core was accountable for π-π stack, whereas the terminal alkyl chains were accountable for van der Waals forces. Concerning the self-assembly process of those fluorinated organogelators, the molecular aggregation provides three dimensional nanofibrous entanglements, which can be subjected to control by the opposed parameters occuring from their dissolution and crystal creation. The oxadiazole derivatives, including 4a, 4b and 4c can be dissolved in a number of solvents only upon heating to elevated temperatures. Upon dissolving organogelator under gentle heating, and then cooling back, a solid-like oganogel was generated as demonstrated in Fig. 2. The formation of organogels was studied in different solvents. The values of the critical gel concentrations for 4b were monitored at 1.86–5.07 mM. The organogelator 4b demonstrated a considerable gelation of solvents, such as n-butanol (1.86 mM), n-octanol (2.61 mM), toluene (3.14 mM) and 1, 2-dichloroethane (5.07 mM). However, compound 4b demonstrated partial gelation in tetrahydrofuran, acetonitrile and dimethylsulfoxide. Additionally, it displayed no gelation in dichloromethane, n-propanol, ethylacetate and chloroform due to its high solubility. The gelation properties of the different oxadiazole derivatives are displayed in Table 3. The generated organogels exhibited colorless appearance. The sol-to-gel switch course is thermally reversible. All organogels exhibited photophysical properties comparable to those in dilute solutions. Additionally, the gels produced from 4b in n-butanol and n-octanol displayed high stability for a few weeks, whereas the gels produced from 4b in toluene and 1, 2-dichloroethane were stable only for a few days. S: solution; PG: partial gel; G: gel; P: precipitate. The critical gel concentration (mM) displayed between parentheses.

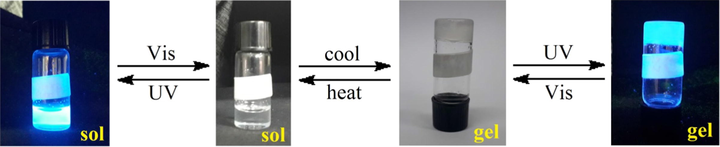

Thermally reversible fluorescent organogel 4b in n-butanol as described by the ‘‘stable to inversion’’ practice; the solution of 4b in n-butanol (1.86 mM) was heated to ∼ 117 °C and then cooled to room temperature; Vis represents visible light and UV represent ultraviolet light; both solution and organogel states were represented by Sol and Gel, respectively.
Solvent
4a
4b
4c
n-Propanol
P
S
S
n-Butanol
PG
G (1.86)
PG
n-Octanol
PG
G (2.61)
G (2.42)
Ethylacetate
S
S
S
Chloroform
S
S
S
Dichloromethane
S
S
S
Toluene
P
G (3.14)
PG
1,2-Dichloroethane
PG
G (5.07)
G (7.33)
CH3CN
P
PG
PG
Dimethylsulfoxide
PG
PG
PG
THF
P
PG
PG
Increasing the alkyl chain length improved the formation ability of organogel. However, the hexloxy-substituted oxadiazole 4b demonstrated a better gel formation in comparison to the decyloxy-substituted oxadiazole 4c. This can be ascribed to the high dissolution ability of 4c in organic solvent directed by the long decyloxy chain. The type of self-assembly was studied to designate H-aggregates (Altoom et al., 2021) as proved by hypsochromic shifting monitored for the fluorescence band upon switching from gel to the corresponding sol phase of 4b in n-butanol as illustrated in Fig. 3. In supramolecular H-aggregation, each molecule interacts with the neighboring molecules via π stacks of aryl groups in cooperation with van der Waals attraction of ether tails to designate the tendency of molecular aggregation to 2D nanofibrous scaffolds (Radwan et al., 2021).

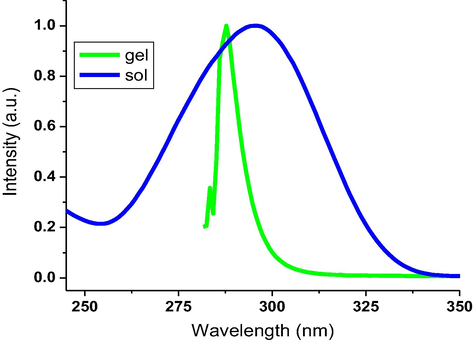

Normalized emisson of 4b in the gel and sol (2.44 × 10-5 mol/L) in n-butanol.
Quantum yields and fluorescence wavelengths of 4b and 4c in both gel and sol phases in different solvents are summarized in Table 4. The formed organogels showed different emissions in comparison to the sol phases. In n-butanol, the fluorescence intensity of 4b was monitored at 295 nm in sol, which shifted to 287 nm in gel. However, the incomplete gels showed lower shifting in fluorescence wavelength in comparison the complete gelation. The quantum yields of 4b and 4c were generally observed to improve in gel phases higher than sol phases.
Solvent
4b
4c
solution
organogel
solution
organogel
λem (nm)
ФF
λem (nm)
ФF
λem (nm)
ФF
λem (nm)
ФF
n-Propanol
297
0.33
290
0.55
306
0.40
294
0.65
n-Butanol
295
0.41
285
0.66
306
0.36
289
0.62
n-Octanol
299
0.40
288
0.78
305
0.24
295
0.52
Acetonitrile
297
0.29
284
0.24
298
0.17
293
0.24
1,2-Dichloroethane
294
0.35
282
0.57
302
0.25
294
0.31
Tetrahydrofuran
295
0.22
285
0.26
300
0.12
292
0.16
Toluene
291
0.30
280
0.45
295
0.22
288
0.46
Dimethylsulfoxide
295
0.49
282
0.53
299
0.41
290
0.50
3.4 Morphological studies
The aggregation morphologies of the dried xerogel from gelator 4b in n-butanol were examined by SEM images to illustrate three dimensional nanofibrous bundles with diameters of 350–550 nm (Fig. 4). The assembly process of compound 4b introduced nanofibrous entanglements. The insertion of ether tails in the skeleton of the organogelator is vital for higher stability of organogelator. Additionally, the fluoro-atoms existing on the rigid aromatic core could also increase the stability of the produced scaffolds (Abdelrahman et al., 2021; Alsoliemy et al., 2021). The generated xerogel showed strong and porous scaffolds due to immobilization of the solvent molecules.

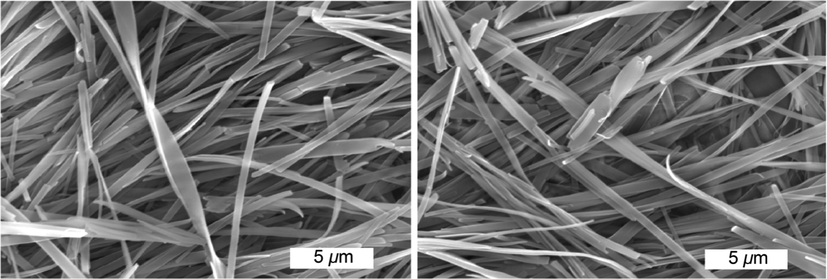

SEM studies of the xerogel generated from the organogel of 4b in n-butanol (1.86 mM).
3.5 Thermal stability
The thermal stability was explored by investigating MGC as illustrated in Fig. 5. The melting point of the gel increases in the range of 35–48 °C with increasing the gelator content in the range of 1.86–9.62 mmol/L. The improved thermal stability can be ascribed to the increased density of gelator molecules in the nanofibrous bulk (Khattab et al., 2018). However, the melt point of the gel decreased with increasing the gelator concentration > 9.62 mmol L-1. Increasing the gel-to-sol temperature could be attributed to extending the one-dimensional nanofibrous aggregates leading to better flexibility and higher nanofibrous entanglements, which result in higher transition temperature (Abualnaja et al., 2021).

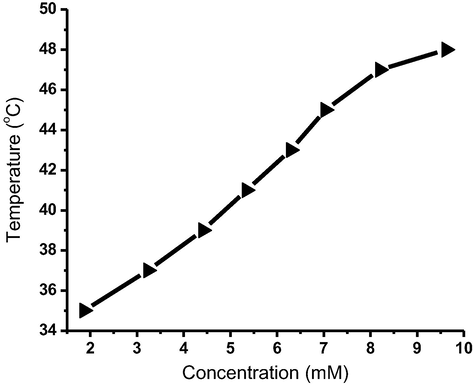

Gel-to-sol temperatures versus organogelator content for 4b in n-butanol.
To examine the thermal reversibility, the solid-like gel was heated to boil point (∼117 °C for n-butanol) till a transparent solution is monitored. Upon collapsing the gel, the temperature was then reported. The transparent fluid was left to settle down at room temperature to regenerate organogel as verified by the “stable to inversion” approach. The above procedure was repeated to designate no variations in gel → sol temperatures proving good reversibility cycles without fatigue (Fig. 6).

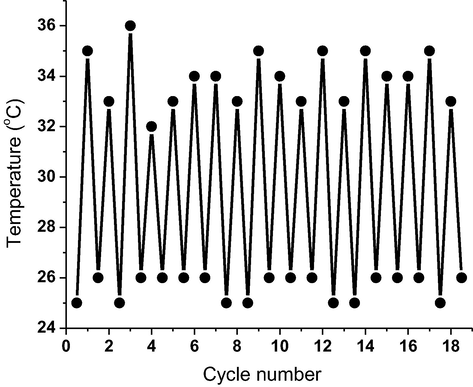

Temperature-dependent reversibility of 4b between gel → sol cycles.
3.6 Biological properties
To study the potential utility of the currently synthesized oxadiazole-based gelators for biomedical applications, the cytotoxic properties and antibacterial activity were evaluated (Khattab et al., 2021). The cytotoxic activity (in vitro) was studied by monitoring the growing of normal human fibroblast skin cells (BJ1) in the presence of the alkoxy-substituted 2-(biphenylyl)-5-(perflurophenyl)-1, 3, 4-oxadiazole derivatives. No change was detected in cell growth for the oxadiazole derivatives with alkoxy chains with highest length, including 4b and 4c. However, the viability started to decrease for the oxadiazole derivative 4a providing 89.37% viable cells, which was found to further decrease to 85.61 % for the oxadiazole derivative 4a with the lowest length of alkoxy chain. This relative decrement in the cellular number is not interrelated to cellular death, but may be assigned to the precipitation affinity of oxadiazole derivative leading to reduced spaces for cell growing (Al-Qahtani et al., 2022). Hence, it can be concluded that the current alkoxy-substituted 2-(biphenylyl)-5-(perflurophenyl)-1, 3, 4-oxadiazoles are nontoxic materials. Table 5 displays the antibacterial activity of the oxadiazole gelators 4a-c. The antibacterial activity of compound 4b with the best gelation properties was also examined versus E. coli and S. aureus using the plate agar count technique to display improved antibacterial activities demonstrating antibacterial reduction (%) of 18 ± 1.3 for S. aureus and 22 ± 1.5 for E. coli. The antibacterial activity was found to improve with increasing the aliphatic chain length. This can be attributed to the increased solubility of the gelator with increasing the aliphatic chain length. The current oxadiazole organogelators verified to be effective noncytotoxic compounds for potential bioimaging and antibacterial purposes.
Sample
Bacterial Reduction %
E. coli
S. aureus
4a
19 ± 1.0
16 ± 1.4
4b
22 ± 1.5
18 ± 1.3
4c
24 ± 1.3
21 ± 1.1
4 Conclusion
In conclusion, we described the first example of alkoxy-substituted fluorescent LMWO derived from 2-(biphenylyl)-5-(perflurophenyl)-1, 3, 4-oxadiazole as rod-like aromatic segment with the capability to immobilize a diversity of organic solvents. New 1, 3, 4-oxadiazole derivatives with fluorinated aryl moieties bearing different alkoxy chains were synthesized and characterized. Both photophysical and gelation properties were explored. The 2-biphenyl-substituted 1, 3, 4-oxadiazole skeleton was prepared by adding the oxadiazole ring into the biphenyl moiety with the fitting terminal functional group. A suitable synthesis of the perfluorinated phenyl ring bearing ether group was accomplished in high yield via SNAr chemistry. The chemical structures of the alkoxy-substituted oxadiazole derivatives were proved with 1H/13C/19F NMR, elemental analysis and FT-IR spectral analysis. The absorbance and emission spectra showed positive solvatochromic properties. The absorption and emission maxima of the prepared organogelators were detected in the ranges of 260–289 nm and 278–305 nm, respectively. The hexyloxy-substituted 2-(biphenylyl)-5-(perflurophenyl)-1, 3, 4-oxadiazole gelator displayed the best gelation properties in different solvents with critical gel concentrations of 1.86–5.07 mM. Both of π-π stack of rigid aromatic core in cooperation with van der Waals attraction of terminal ether units were able to form stable nanofiber-like supramolecular architectures (350–550 nm) as proved by SEM images and emission spectra of sol–gel phases.
