The removal of COD, TSS and colour of black liquor by coagulation–flocculation process at optimized pH, settling and dosing rate

1 Introduction

At present, in Pakistan there are about 100 units in the organized and unorganized sectors. Collectively, all of these units have a set up capacity of 650 thousand tons per annum (Hassan et al., 2012). These units are producing writing and printing papers, wrapping and packing paper, white duplex coated, un-coated boards and chip boards. There have been number of techniques involved in making pulp and paper. Main types involve mechanical, thermal and chemical (Burger, 2007; Pokhrel and Viraraghavan, 2004). Chemical pulping may be involved in sulphate or Sulphite process whereas mechanical pulping involves grinding of desecrated wooden chips. Kraft process involves boiling of wood chips in the solution of sodium hydroxide and sodium sulphate while in the sulphite process sodium sulphite is used. In thermal pulping, steam is provided to wooden chips for softening (Holmberg and Gustavsson, 2007). The entire process of paper and pulp industry consumes lot of energy and water (Pokhrel and Viraraghavan, 2004). During pulping process water consumption may get as high as 60 m³/ton paper produced (Thompson et al., 2001). This wastewater is treated and recycled to conserve energy and raw materials. Industrial effluent is treated by various wastewater treatment technologies including lagoons systems (Bajpai, 2001), activated sludge process (Chandra, 2001), anaerobic treatment process (Bajpai, 2001) and fungal treatment process (Sakurai et al., 2001) to remove most of the suspended solids and soluble organic materials.

Paper mill effluent contains dissolved inorganic and organic chemicals like dyes, heavy metals, detergents, starch etc. which results in high COD, turbidity, temperature, toxic substances/elements, organic compound, inconsistent pH and intense colour (Monte et al., 2009). The colour of the wastewater generating from pulp and paper mill is mainly due to organic compounds and is comprised of extractives, tannin resins, synthetic dyes, lignin and their degradation products formed by the action of chlorine on lignin during the bleaching process (Sakam, 1987; Bajpai, 2001. Lignin is a complex heterogeneous phenyl propanoid biopolymer containing a diverse array of stable carbon–carbon bonds with aryl/alkyl ether linkages and may be cross-linked to hemicelluloses (Sjostrom, 1993). The dark brown colour of black liquor is formed during the degradation processing of lignocelluloses and is an indirect measurement of the amount of lignin compounds present in the effluent stream. The greater the amount of lignin compounds, the darker the effluents and greater the tendency to produce foam. The poisonous properties of these by-products in the effluents on environment have been studied and reported that pulp and paper industries wastewater have fatal effects on the daphnia, fish, planktons and other bioata in the receiving water bodies (Kovacs et al., 2002). If this wastewater is discharged into water bodies without any particular treatment system it can cause adverse effects on aquatic life even at very low concentrations (Miège et al., 2008).

Wastewater is treated and recycled in pulp and paper mills to conserve energy and raw materials. Excess effluent is treated by wastewater treatment plant which often consists of reception tank, clarifier (primary), biological (secondary) treatment and secondary clarifier to remove most of the suspended solids and soluble organic materials. Several physical and chemical processes including combination of ultra filtration and reverse osmosis techniques, ion-exchange, chromatography, lime precipitation and modified bleaching sequences, activated carbon and allophonic compounds have been used for paper’s effluent treatment. (Koyuncu et al., 1999; Thompson et al., 2001; Chakradhar and Shrivastava, 2004; Herath et al., 2011; Freire et al., 2000; Shawwa et al., 2001). Biological treatment is also widely used for the treatment of industrial effluents (Schnell et al., 2000) and for the degradation of lignin to reduce the load of pulping wastewater (Bajpai, 2001; Oeller et al., 1997; Franta and Wilderer, 1997). Biological treatment method is not much impressive in reducing colour (Cecen et al., 1992) but reduction in BOD and COD has been found to be much satisfactory. However, this treatment involves high energy consumption, the production of large amounts of sludge (Sreekanth et al., 2009) and operational problems including colour, foaming and bulking in secondary clarifiers that are associated with activated sludge plants (Oz et al., 2004). The effect of membrane technologies was also studied by using inorganic MF and organic UF membranes to reduce the COD of black liquor (Liu et al., 2004). Membrane based technologies, including ultra filtration (Jönsson and Wallberg, 2009) electrochemical membrane reactor (Chanworrawoot and Hunsom, 2012) have also been tried with limited success for the separation of valuable constitutes from black liquor. Electro-coagulation (EC) technique for treatment of pulping wastewater has been used with different combinations of aluminium (Al) and iron (Fe) electrodes (Katal and Pahlavanzadeh, 2011).

Coagulation and flocculation process is one of the best options to treat pulping wastewater using alum, ferric chloride, lime, ferrous sulphate and poly aluminium chloride (PAC) and can be considered as an efficient treatment method to reduce COD, TSS and colour of pulping effluent (Rahbar et al., 2006; Deegan et al., 2011; Wong et al., 2006; Garg et al., 2005). The major advantage of chemical treatment is that most of the COD and TSS are being reduced during this process therefore it can lead to make it more cost effective before secondary treatment as well as removal of colour for effluent.

2 Experimental

3 Results and discussion

The sample collected from packages paper mills was characterized and following results were observed.

Table 1 shows very high values of COD, TSS and colour. Coagulation flocculation process was used to treat this collected sample which involves destabilization of colloidal particles by neutralizing the forces that remain away from each other. Cationic coagulants impart positive electric charges to reduce the negative charge of the colloids. Consequently particles collide to form macro particles called as flocs. Usually coagulants form hydroxide when dissolved in water. These metal hydroxide polymers have amorphous structure as well as large surface area and possess positive charge. These hydroxides are hydrophobic, causing them to adsorb into the organic anionic particle surface and become insoluble (Licsko, 1997). Generally precipitation is enhanced as the pH is lowered in the presence of multivalent cations (See Fig. 1).

Close

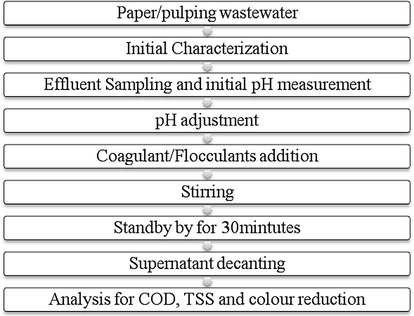

Figure 1

Steps involved during Chemical treatment by coagulation/flocculation process.

Export to PPT

Effect of pH on the COD, TSS and colour reduction from wastewater was found to be remarkable. The dosing rate of all coagulants was kept uniform as 0.8 g/L (40 ml stock solution/litre of sample). All trials were taken at different initial pH values, i.e., 1, 2, 3, 4, 5, 7, 9, 11. Coagulants were added and rapidly mixed for one minute by a stirrer at 150 rpm and thereafter slowly mixed for two minutes at 50 rpm and sample was left over for 30mintutes. The supernatant was decanted off and its value for COD, TSS and colour was measured. For Alum and ferrous sulphate, COD reduction was reduced up to 11% and 12%, respectively at pH 5. Aluminium chloride and ferric chloride showed more COD reduction of 13% and 16%, respectively at pH ⩽ 3. Treatment by PAC provides COD reduction of 14% at pH 4 as shown by Fig. 2.

Close

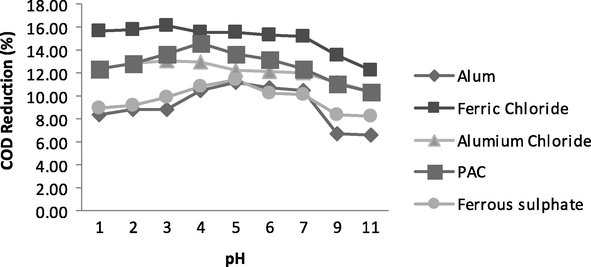

Figure 2

Variation in COD at various pH values.

Export to PPT

The variation in TSS was also studied and it was found to be 46%, 50%, 48%, 47% and 42% for Alum, Ferric Chloride, Aluminium Chloride, PAC and Ferrous sulphate, respectively at optimum pH 4 for Alum and Ferrous Sulpahte, pH 3 for Aluminium Chloride and PAC and pH 2 for Ferric Chloride as shown in Fig. 3. In case of TSS the optimum value of pH is slightly lower than optimum value of pH for COD which might be due to strong precipitation at acidic pH. As the precipitation increased, solution will more clear give very low value of TSS.

Close

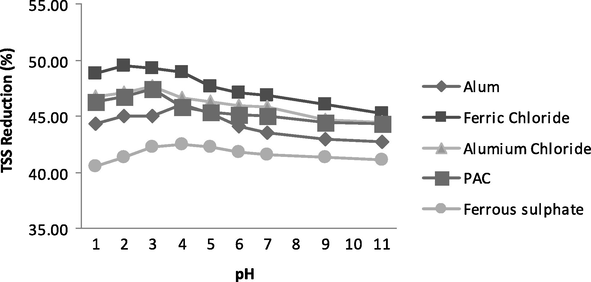

Figure 3

Variation in TSS at various pH values.

Export to PPT

In case of colour reduction, the pH behaviour was very similar as in TSS reduction for all of these coagulants. The optimum colour reduction is found to be 38%, 46%, 52%, 52% and 37% for Alum, Ferric Chloride, Aluminium Chloride, PAC and Ferrous Sulphate, respectively as shown in Fig. 4. Ferric chloride was found to be much better in COD as well as TSS reduction but good in colour reduction at very low concentration. At higher concentration it imparts its own brownish colour. Aluminium chloride and PAC were excellent in colour reduction. Sludge formed by Aluminium chloride was whitish and brownish with PAC. These observations showed that treatment of paper effluents is highly dependent on initial pH value of the effluent sample. Various groups present in wastewater interact with metal cations at alternated pH. Carboxylic and phenolic groups bring together metal cations at low pH while hydroxyl and aliphatic hydroxyl groups interact at elevated value of pH. The removal of dissolved organics during coagulation process at different pH values follows two distinct mechanisms. At low pH, anionic organic molecules interacted with metal cations and form insoluble metal complexes while high pH and elevated coagulant doses lead the organics adsorb onto pre-formed flocs of metal hydroxides and get precipitated (Kumar et al., 2011).

Close

Figure 4

Variation in TSS at various pH values.

Export to PPT

Each coagulant showed a different behaviour from other coagulants; ferric chloride and PAC were good in COD reduction while aluminium chloride and PAC were excellent in colour reduction. Therefore combinations of different coagulants were tried for selectivity of one of the best pairs which can be used for effluent treatment of paper industries. All trials were taken at an initial pH value of 3. Total dosing rate remained constant as 0.8 g/L (40 ml/litre) but it includes 50% conc. of each coagulant. The results shown by each of the pair are shown in Fig. 5. A combination of Ferric chloride and PAC was found to be the best for COD and TSS reduction and it reduced 19% COD and 49% TSS followed by the combination of ferric chloride and aluminium chloride which reduced 18% COD along with attractive 49% reduction in TSS and 52% reduction in colour in comparison to prior combination which reduced 48% colour. It is interesting that although the combination of Alum and Ferric chloride reduced COD up to 16% and TSS 48% it can be a good option for effluent treatment due to low price of Alum in Pakistan.

Close

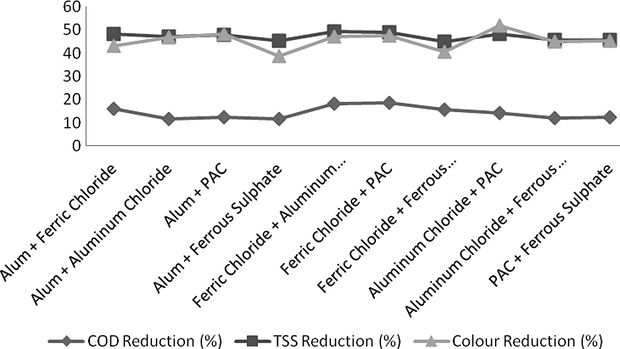

Figure 5

COD, TSS and Colour Reduction by different combinations of coagulants.

Export to PPT

In addition to these coagulants, workings of flocculants such as cationic as well as anionic polyacrylamide (PAM) were also investigated. In flocculation process, usually destabilized particles produced by various coagulants actually stiff into heavy particles which can be easily separated from the wastewater. Therefore these flocculants can be used individually as well as used after dosing of any coagulant. Dosing rate for these flocculants stock solution was kept as 0.004 g/L (4 ml of stock solution/litre of sample). These flocculants were found to be outstanding in reduction of COD, TSS and colour. The effect of pH on working of these flocculants was very noticeable. The workings of these flocculants were found to be very limited in alkaline conditions as well as in neutral pH. When the value of pH was moved below to 7, reduction of the COD, TSS and colour was remarkable and it was found to be the best below pH < 3 and was maximum around pH 2. The reduction in COD, TSS and Colour by PAM cationic and PAM anionic was measured in order of 74%, 93%, 77% and 72%, 93%, 78%, respectively as shown by Figs. 6–8. It was very interesting that pH adjustment by sulphuric acid was excellent and it provides more clear solution and compact sludge as compared to hydrochloric acid. It might be due to strong oxidizing behaviour of sulphuric acid.

Close

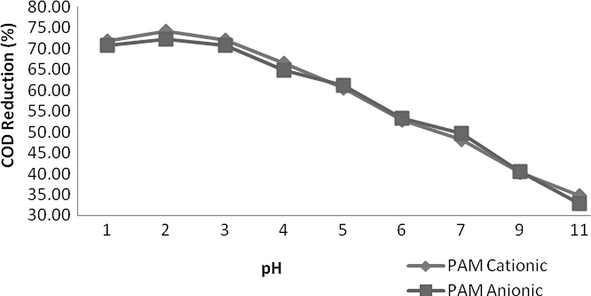

Figure 6

Variation in COD at various pH values.

Export to PPT

Close

Figure 7

Variation in TSS at various pH values.

Export to PPT

Close

Figure 8

Variation in colour at various pH values.

Export to PPT

Flocculants were also used after coagulant addition and results are observed to be more effective. In this case an excellent reduction was observed in all of the parameters i.e., COD, TSS and colour. Naturally, suspended particles are not easily sedimented by conventional settling therefore addition of coagulants combine these particles into colossal particles while flocculants further enhance the destabilization of dispersed particles making more health flocs improving the settling capability. As in this study, combinations of Ferric chloride and PAC and Aluminium chloride and PAC were found to be excellent for reduction of COD, TSS and colour therefore only these combinations were used along with these polyelectrolytes. The dosing rate of each coagulant was 0.2 g/L and 0.004 g/L for flocculants. The results were excellent and a tremendous reduction was observed in all aforementioned parameters as shown in Figs. 9–11. Combination of Ferric chloride, PAC and cationic polymer was excellent in COD reduction and reduced more than 81% of COD as well as 95% TSS. This combination was not found to be good in case of colour reduction which might be due to the presence of ferric chloride that induces its own colour at little higher dosing rate. For significant colour reduction, combination of Aluminium chloride, PAC and Anionic PAM was good and it reduced more than 88% colour as well as 96% TSS and 78% COD.

Close

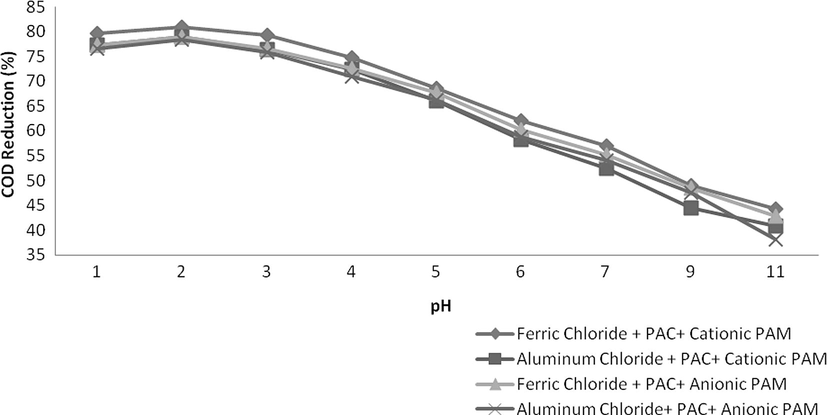

Figure 9

Variation in COD at various pH values.

Export to PPT

Close

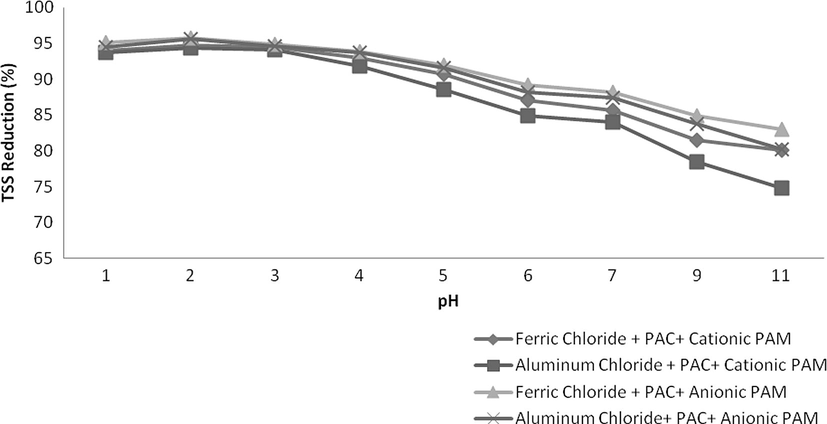

Figure 10

Variation in TSS at various pH values.

Export to PPT

Close

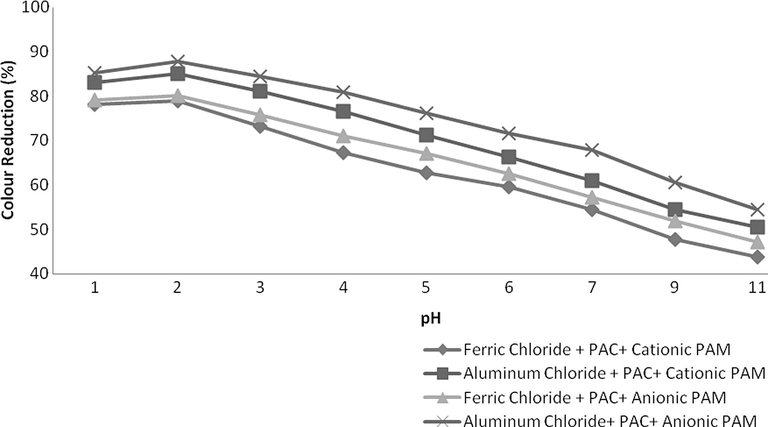

Figure 11

Variation in Colour at various pH values.

Export to PPT

Effect of dosing rates for all these coagulants and flocculants were also studied for maximum reduction of COD, TSS and colour for cost feasibility of the treatment process. Dosing of various coagulants in the effluent along with rapid mixing initiates appropriate coagulation conditions. Moderate mixing thereafter starts floc development and adsorption of the organic particles ensured the precipitation results by settling of the insoluble solids.

The effect of dosing rate on the COD reduction was examined at their optimum pH as shown by Fig. 12. The dosing rates of all coagulants were varied from 0.2–1.2 g/L. In case of Alum and ferrous sulpahte it was observed that as dosing quantity is increased up to 0.8 g/L, reduction in COD is very quantifiable and then slope of graph is very minute. Therefore the optimum dose for both Alum and Ferrous sulphate is taken as 0.8 g/L resulting in 11% reduction in COD. For Aluminium chloride and ferric chloride, a rapid reduction in COD was observed till 0.6 g/L providing 13% and 16% COD reduction, respectively and hereafter, increase in dosing quantity does not reduced COD marginably. For PAC, COD reduction is increased if dosing rate is increased up to 1 g/L coagulant dose, and then reduction was almost unchanged. Therefore dosing rate of 1 g/L is considered as optimum dose of PAC and providing 17% COD reduction. Ferric chloride was found to be excellent at very low dosing rate with remarkable reduction in COD therefore it could be beneficial with minimum chemical cost at industrial scale.

Close

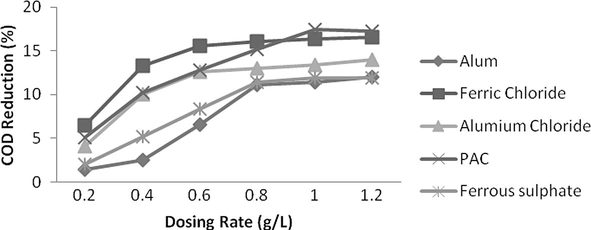

Figure 12

Effect of dosing rate for various coagulants on COD reduction.

Export to PPT

The effect of dosing rate on TSS removal was also observed at their optimum pH (pH = 3 for aluminium and PAC, pH = 4 for ferrous sulphate and alum, pH = 2 for ferric chloride). Reduction in TSS at their corresponding optimum pH for various coagulants is illustrated in Fig. 13. Ferric Chloride showed maximum TSS reduction of 57% at dosing rate of 1.2 g/L. Aluminium chloride and PAC showed reduction of 52% and 50%, respectively at a dosing rate of 1 g/L. Hereafter increase in dosing rate was not much effective. Hence 1 g/L was the optimum dosing rate for both of these coagulants. Ferrous sulphate remarkably reduced TSS up to 0.8 g/L but was no more effective at a higher dosing rate.

Close

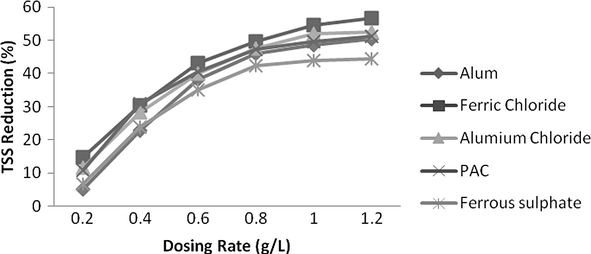

Figure 13

Effect of dosing rate for various coagulants on TSS reduction.

Export to PPT

Effect of dosing rate for colour reduction was observed at same pH level as was in TSS measurement. Aluminium chloride and PAC were both excellent in colour reduction and these showed up to 60% colour reduction with dosing rate of 1.2 g/L. Ferric chloride provides 44% colour reduction at 0.8 g/L and after an increase in dosing quantity colour reduction was not more and decrease up to 28% at a dosing rate of 1.2 g/L as shown by Fig. 14.

Close

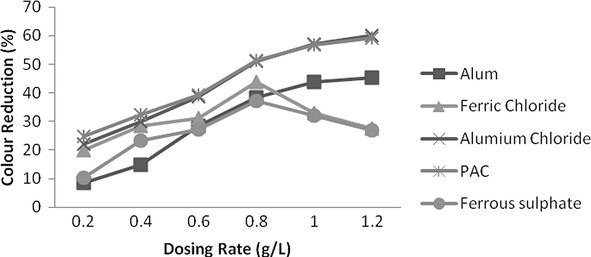

Figure 14

Effect of dosing rate for various coagulants on colour reduction.

Export to PPT

The addition of flocculants was used and an excellent reduction of 93% reduction was measured at a dosing rate of 0.004 g/L at pH 2. Both of anionic and cationic polymer reduced COD up to a dosing rate of 0.004 g/L and then COD increased. This might be due to organic nature of these polymers which increase COD level at higher quantity. In case of TSS, reduction was instantly reduced up to 0.003 g/L and curve becomes less sloppy and almost straight at a dosing rate of 0.005 g/L or above. Anionic PAM was more effective in colour reduction as compared to cationic PAM but was less effective in case of COD reduction. In case of colour, both of these flocculants reduced colour with increasing a dosing rate of polymers but reduction was very remarkable up to 0.005 g/L and after then this change was insignificant and curve becomes almost horizontal to x-axis. Results are shown in Figs. 15–17.

Close

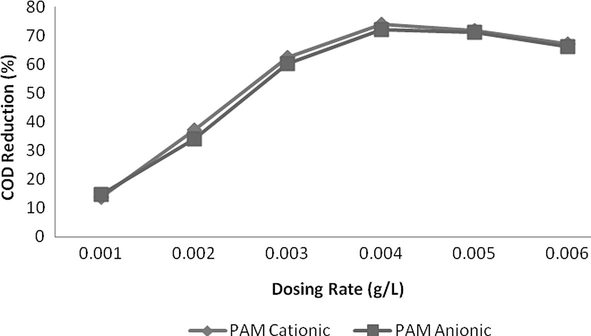

Figure 15

Effect of dosing rate for Flocculants on COD reduction.

Export to PPT

Close

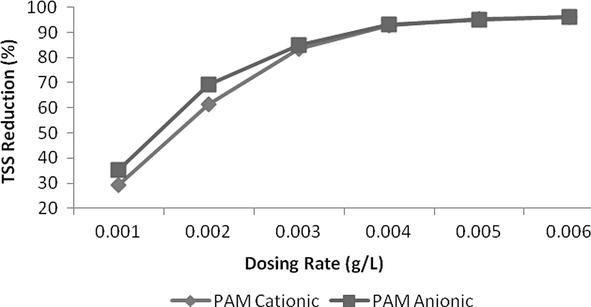

Figure 16

Effect of dosing rate for Flocculants on TSS reduction.

Export to PPT

Close

Figure 17

Effect of dosing rate for Flocculants on Colour reduction.

Export to PPT

The effect of change in concentration of both flocculent and coagulant is studied. If concentration of flocculent is kept constant and rate of coagulant is increased consistently than it was observed not a huge reduction in COD, TSS and colour was found. For keeping dosing rate of flocculent as 0.004 g/L but changing the coagulant concentration from 0.2 g/L up to 1 g/L the increase in COD, TSS and colour reduction was only 2%, 3% and 6%, respectively. On contrary, if concentration of flocculent was changed from 0.001 g/L up to 0.005 g/L with constant concentration of coagulant as 0.4 g/L, the change in reduction in COD, TSS and colour was increased from 57%, 67% and 49% as shown in Figs. 18–23. It means that change in concentration of flocculants has played more vital role as compared to coagulant.

Close

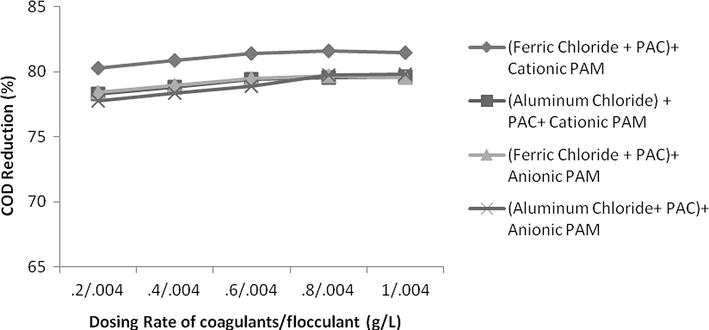

Figure 18

Effect of dosing rate by keeping constant flocculants conc. and variable coagulant conc. on COD reduction.

Export to PPT

Close

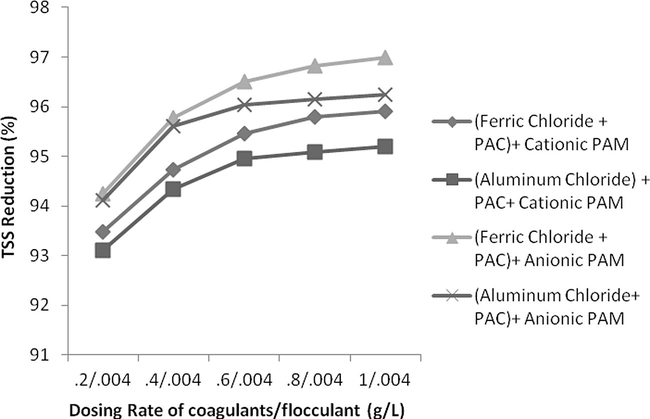

Figure 19

Effect of dosing rate by keeping constant flocculants conc. and variable coagulant conc. on TSS reduction.

Export to PPT

Close

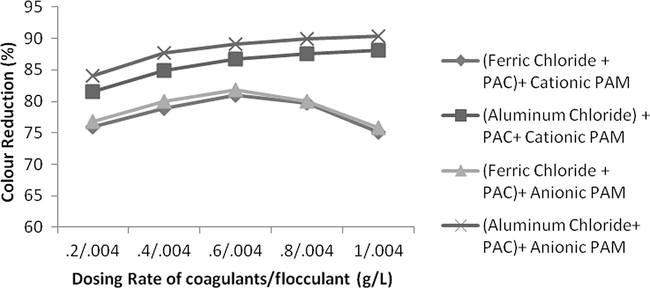

Figure 20

Effect of dosing rate by keeping constant flocculants conc. and variable coagulant conc. on colour reduction.

Export to PPT

Close

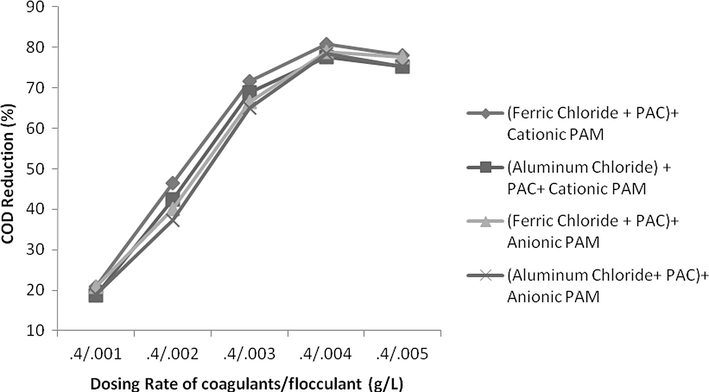

Figure 21

Effect of dosing rate by keeping constant coagulants conc. and variable flocculants conc. on COD reduction.

Export to PPT

Close

Figure 22

Effect of dosing rate by keeping constant coagulants conc. and variable flocculants conc. on TSS reduction.

Export to PPT

Close

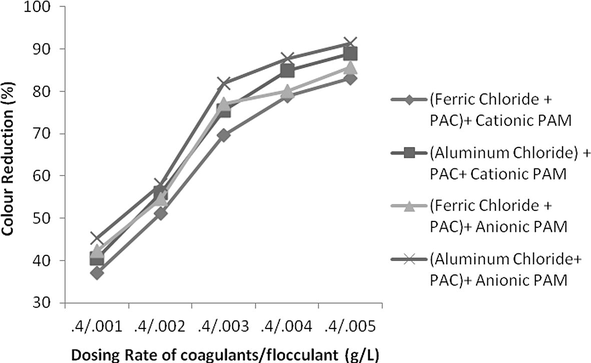

Figure 23

Effect of dosing rate by keeping constant coagulants conc. and variable flocculants conc. on colour reduction.

Export to PPT

4 Conclusion

Present experimental studies of black liquor treatment by various coagulant and flocculants indicate that ferric chloride and aluminium chloride showed good reduction in COD as compared to Alum, PAC and ferrous sulphate. Aluminium chloride was exceptionally good in reducing colour of pulping wastewater. It was also noted that selection of appropriate pH was necessary as it plays a major role in the reduction of all parameters i.e., COD, TSS and colour while dosing of these coagulants. The optimum pH 3, 4, and 5 were optimum values for Aluminium chloride and Ferric chloride, PAC and Alum and ferrous sulphate, respectively. Maximum COD, TSS and colour reduction of 16%, 50%, 46% and 13%, 48%, 52% was achieved by using Ferric chloride and Aluminium chloride at their optimum pH. The addition of cationic PAM and anionic PAM was found to be excellent for reduction of COD, TSS and colour at optimum pH value of 2. The reduction in COD, TSS and Colour by PAM cationic and PAM anionic was measured in order of 74%, 93%, 77% and 72%, 93%, 78%, respectively. The combination of anion and cationic flocculants with ferric chloride, aluminium chloride and PAC was found to be even better in COD, TSS and colour reduction. Combination of Ferric chloride, PAC and cationic polymer was excellent for reduction of 81% COD and 95% TSS while combination of Aluminium chloride, PAC and Anionic PAM was good in 88% colour reduction. On using a combination of flocculants and coagulants, concentration of anionic and cationic PAM plays a more dominant role as compared to concentration of all coagulants.
