Biosynthesis effect of Moringa oleifera leaf extract on structural and magnetic properties of Zn doped Ca-Mg nano-spinel ferrites

M.A. Almessiere^{^a,^b,⁎}, Y. Slimani^{^b,⁎}, I.A. Auwal^{^c}, S.E. Shirsath^{^d}, M.A. Gondal^{^e,^f}, M. Sertkol^{^g}, A. Baykal^{^h}

a Department of Physics, College of Science, Imam Abdulrahman Bin Faisal University, P.O. Box 1982, Dammam 31441, Saudi Arabia

b Department of Biophysics, Institute for Research and Medical Consultations (IRMC), Imam Abdulrahman Bin Faisal University, P.O. Box 1982, Dammam 31441, Saudi Arabia

c Department of Chemistry, Sule Lamido University, Kafin Hausa 731, Nigeria

d School of Materials Science and Engineering, University of NewSouth Wales, Kensington, Sydney, NSW 2052, Australia

e Laser Research Group, Physics Department & IRC-Hydrogen and Energy Storage, King Fahd University of Petroleum and Minerals Dhahran 31261 Saudi Arabia

f K.A.CARE Energy, Research and Innovation Center, King Fahd University of Petroleum & Minerals, Dhahran, 31261, Saudi Arabia

g Deanship of Preparatory Year, Imam Abdulrahman Bin Faisal University, P.O. Box 1982, Dammam 31441, Saudi Arabia

h Department of Nanomedicine Research, Institute for Research and Medical Consultations (IRMC), Imam Abdulrahman Bin Faisal University, P.O. Box 1982, Dammam 31441, Saudi Arabia

⁎Corresponding authors. malmessiere@iau.edu.sa (M.A. Almessiere), yaslimani@iau.edu.sa (Y. Slimani),

Received: 2021-4-29, Accepted: 2021-6-9,

Disclaimer:
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.

Abstract

Zn_xCa_0.5-x/2Mg_0.5-x/2Fe₂O₄ (x = 0.0–0.6) nano-spinel ferrite (NSFs) were prepared by ultrasonic irradiation with Moringa oleifera leaf extract (group A) and without Moringa oleifera leaf extract (group B). The synthesis done with Moringa oleifera leaf extract is green synthesis. The structure and morphologies of both group A and B NSFs were investigated by XRD, SEM, TEM, and FT-IR in details. The crystallite sizes of group A and B products were calculated as within the range of 11–17 nm and 16–28 nm, respectively. The magnetic features of different nanoparticles of group A and B NSFs have been investigated at room (T = 300 K) and low (T = 10 K) temperatures by means of a vibrating sample magnetometer (VSM). All samples displayed superparamagnetic (SPM) behavior at room temperature, with no or negligible coercivity and retentivity. Nevertheless, the different samples revealed opened M−H hysteresis loops at a temperature of 10 K, which indicates their ferromagnetic (FM) behavior at very low temperatures. The various magnetic parameters including the saturation magnetization (M_s), remanent magnetization (M_r), squareness ratio (M_r/M_s), magneton number ( $n_{B}$ ), coercive field (H_c), etc. were extracted. The Zn_xCa_0.5-_x_/2Mg_0.5-_x_/2Fe₂O₄ (x = 0.0 – 0.6) NSFs prepared using Moringa oleifera extract (Group A samples) displayed lower M_s values in comparison to NSFs prepared without using Moringa oleifera extract (Group B samples). Whereas, the coercivity is found to be larger in Group B samples than in Group A samples. These is mainly ascribed to the variations in particles size upon the use of Moringa oleifera extract. Compared to non-substituted Ca_0.5Mg_0.5Fe₂O₄ NSFs, it is noticed that the M_s value increases with Zn²⁺ ions substitution. The increase of M_s value is ascribed to the strengthening of exchange interactions and redistribution of cations (particularly Fe³⁺ ions) within the spinel lattice. At T = 10 K, the H_c value decreases with the rise of the Zn²⁺ content, which is attributed to the larger crystallites/particles that lead to the lower volume fraction of grains boundaries, which in turn conduce to less pinning of domain walls. The SQR values at 10 K for all NSFs of group A and B are between 0.2 and 0.3, which is below the theoretical limit of 0.5, reflecting the NPs consist of multi-magnetic domains. The obtained magnetic properties of group A NSFs are interesting, suggesting that this method could be considered as an alternative and effective green synthesis route with appropriate control of size, morphology, and physical features of magnetic nanoparticles.

Keywords

Magnetic nanoparticles

Moringa oleifera

Green synthesis

Ultrasonic irradiation

Magnetic properties

Show Related Articles from PubMed

1 Introduction

Nanoparticles are a submicron-sized matter of dimension 1–100 nm. On account of their high surface area to volume ratio, they exhibit novel properties compared to their bulk counterpart and hence formed the basis of nanotechnology (Vergaro et al., 2011; Aisida et al., 2020). In particular, magnetic nanoparticles exhibit superparamagnetism and the ability to become excited and produce heat when induced by a high-frequency magnetic field. However, the high surface area to volume ratio tends to promote surface disorder effects, which results in a lower magnetic moment compared to the bulk magnets (Alves et al., 2006; Yao et al., 2007). In this regard, the synthesis of nanoscale while retaining the magnetic character as found in bulk will be increasingly important. Typically, magnetic nanoparticles display size-dependent magnetic behaviors which are exploited in diverse applications such as catalysis, drug delivery, hyperthermia, sensing, water purification, data storage, microwave absorption, etc. (Amiri et al., 2019; Pastucha et al., 2019; Mapossa et al., 2020; Wang et al., 2017; Bektar et al., 2020 ). The nano-spinel ferrites (NSP) are complex oxides of the chemical formula MFe₂O₄. NSP belongs to the face-centered cubic crystal structure of space group Fd3m (Asiri et al., 2018; Chavarriaga et al., 2020). The optical, magnetic, and electrical property of NSP solids is directly linked to the distribution of metal ions in the crystallographic sites of the crystal, this crystallographic site occupancy takes place at the atomic level during the synthesis process. The rational control of the physicochemical properties of the material for specific supplication is desired but remains a tricky task.

A pure bulk zinc ferrites ZnFe₂O₄ is classified as normal spinel ferrites where Zn²⁺ and Fe³⁺ occupation the (A) and (B) sites respectively in the crystal lattice. Due to antiferromagnetic and superparamagnetic behavior. ZnFe₂O₄ found a variety of advanced applications (Won et al., 2014; Liang et al., 2020; dos Santos et al., 2019 ). In particular, the excessive application of lithium batteries in electric vehicles and electric grids compelled the design of batteries with unconventional electrodes that have a longer life cycle with enough power density, high energy at a low price. Interestingly ZnFe₂O₄ has a large value of theoretical specific capacity of 1000.5 mAh/g, which is 7.44% higher than that of Fe₃O₄ (Jiang et al., 2016). Thus, become a winning anode material for higher energy density applications (Xing et al., 2012; Zhang et al., 2020; Martinez-Julian et al., 2014; Zhou et al., 2015 ).

The parameters that affect the crystallinity, morphology, and magnetism of zinc ferrites can be the source of initial reactants and composition, pH, thermal treatments, and synthetic techniques. So far, several methods for the synthesis of Zn ferrite have been reported such as solid-state (Li et al., 2007), spray drying (Won et al., 2014), hydrothermal (Xing et al., 2012), ball milling (Fella et al., 2013), thermal decomposition (Srivastava et al., 2018), and electrochemical growth (Rivero et al., 2016). Metal substitutions also play a crucial role in physicochemical properties. Hussain et al. reported the CoGd substituted ZnFe₂O₄ via co-precipitation approach (Hussain et al., 2018). The addition of CoGd increases both saturation magnetization and coercivity while decreases the grain size (from 0.76 to 0.18 µm). Although the samples show agglomerated morphology with GdFe₂O₃ co-crystallized as secondary phase, the product could be a candidate for microwave absorption. On the other hand, Almessiere et al introduced Dy³⁺ in Mn_0.5Zn_0.5Fe₂O₄ powder (Almessiere et al., 2020). Pure single-phase crystals with cubic morphology were obtained. The addition of more Dy increases the particle size (from 11.0 to 18.2 nm), saturation magnetization (from 54.77 to 59.55 emu/g) while the value of coercivity falls drastically. It was decided that the particle size is relative to the magnetic domain, as size increases due to Dy³⁺ insertion, a multidomain is produced, consequently, decreasing the coercivity and magnetocrystalline anisotropy. More studies on cations substitution in ZnFe₂O₄ are worthy to explore, to tune its physicochemical properties for advanced applications.

Although the synthesis of magnetic NPs is well established, some of the chemicals involved are hazardous and expensive. However, from a green chemistry perspective, chemical hazards should be avoided or minimized during synthesis or other chemical processes (Anastas and Eghbali, 2010). Biological systems such as bacteria, fungi, actinomycetes, yeasts, viruses, and plant have been reported to synthesize various metal and metal oxide nanoparticles. Among these, biosynthesis of nanoparticles from plant seems to be a very effective method in developing a rapid, clean, nontoxic, and eco-friendly technology (Akhtar et al., 2013). Biogenic synthesis of NPs is a facile emerging technology that is not only eco-friendly but can potentially boost sustainable agriculture (Tovar et al., 2020). Materials produced biogenically are non-toxic, biocompatible, and environmentally benign (Aisida et al., 2020). Moringa oleifera is an important medicinal plant. The leaf extract contains polyphenol which serves as a natural reducing and capping agent. Therefore, providing an alternative method to the chemical synthesis of magnetic NPs (Venkateswarlu et al., 2015; Madubuonu et al., 2019; Kgatitsoe, 2018; Smaranika et al., 2013 ). Many magnetic NPs have been synthesized biogenically such as Ni/Fe₃O₄ (Prasad et al., 2017), ZnFe₂O₄ (Matinise et al., 2018) and Fe₃O₄ (Sharma et al., 2019).

Reports on the biogenic synthesis of substituted zinc ferrites are rarely found in the literature. In this regard, the current paper is aimed to investigate the influence of Zn insertion into Ca-Mg spinel ferrite (as Zn_xCa_0.5-x/2Mg_0.5-x/2Fe₂O₄) on the chemical structure and physical property of the products. Initially, the precursor gel is obtained biogenically using Moringa oleifera leaf extracts and crystallizes via two different methods viz: so-gel and ultrasonic methods. The physicochemical properties of the two sets of the products are compared and investigated systematically.

2 Experimental details

2.1

2.1 Moringa oleifera leaf collection and extraction

Dried Moringa oleifera leaf (originally imported from India) was collected from local markets as seen in Fig. 1. 10 mg of leaf was crushed and mixed with 100 ml of deionized water under stirring at 60 °C for 1 h until getting the brown solution. The resulting solution was filtered by filtered papers to remove any small particles to obtain a clear brown solution.

Moringa oleifera leaf before and after crushing.

2.2

2.2 Chemicals and instrumentation

All materials (Zn(NO₃)₂, Mg(NO₃)₂, Ca(NO₃)_2, and Fe(NO₃)₃·9H₂O) were analytical grade received from Merck and used without further purification.

The phase analyses of both group A and B NSFs proceeded with X-ray diffraction (Benchtop Rigaku Miniflex with Cu Kα line). The surface analysis was analyzed by scanning and transmission electron microscope (FEI Titan ST equipped with an EDX spectrometer). An FT-IR spectrophotometer (Bruker, α-II) with an attenuated total reflectance (ATR) mode for spectral analysis. Quantum Design PPMS DynaCool-9 coupled with vibrating sample magnetometer (VSM) head was utilized for magnetic measurements.

2.3

2.3 Synthesis Zn_xCa_0.5-x/2Mg_0.5-x/2Fe₂O₄ (x = 0.0 – 0.6) NSFs

The Zn_xCa_0.5-x/2Mg_0.5-x/2Fe₂O₄ (x = 0.0–0.6) NSFs were fabricated by Ultrasound approach with (group A) and without (group B) Moringa oleifera leaf extract. The first patch was prepared by mixing a specific weight of Zn(NO₃)₂, Mg(NO₃)₂, Ca(NO₃)₂ and Fe(NO₃)₃·9H₂O in 50 ml of Moringa oleifera leaf extraction with stirring at 80 °C for 30 min. The solution was exposed to Ultrasonic Homogenizer for 40 min and 20 kHz, after that the mixture was heated up at 350 °C until burn and turn to black powder. The second patch was synthesized with the stoichiometric mixture of Zn(NO₃)₂, Mg(NO₃)₂, Ca(NO₃)₂ and Fe(NO₃)₃·9H₂O in 50 ml deionized water with stirring without adding Moringa oleifera leaf extract, subsequently, there pH was attuned at 11 via 2 M NaOH solution then undergoes to ultrasonic homogenizer for 40 min and 20 kHz. The powder was washed on deionized water 3–5 times until reach neutral pH, then dried in an open oven at 60 °C overnight to achieved NSFs. Finally, both group A and B NSFs were calcinated at 600 °C for 4 h.

3 Results and discussion

3.1

3.1 Microstructure

XRD powder patterns of Zn_xCa_0.5-x/2Mg_0.5-x/2Fe₂O₄ (x = 0.0 – 0.6) NSFs for group A and B are presented in Fig. 2. All characteristic peaks in both diffraction patterns are matched with cubic spinel structure without detecting any type of impurity confirming the efficiency of the synthesized method. The broad peaks in the XRD powder patterns indicated the small crystallite size. The structure parameters were extracted by Rietveld refinement (Match3! and full proof) using XRD powder pattern experimental data as listed in Table 1. It was found that the lattice parameters (a₀) were increased when increased the ratio Zn in both compositions due to the expansion into the spinel lattice. Likewise, the crystal size was increased with increasing Zn content, but the crystal size of group A is smaller than the group B NSFs.

XRD powder patterns of ZnxCa0.5-x/2Mg0.5-x/2Fe2O4 (x = 0.0–0.6) NSFs for groups A and B.

Table 1 The refined cell parameters of Zn_xCa_0.5-x/2Mg_0.5-x/2Fe₂O₄ (x = 0.0 – 0.6) NSFs for group A and B.

Group A
X	a (Å)	V (Å)³	D_XRD (nm) ± 0.06	χ²(chi²)	R_Bragg	Cation distribution
X	a (Å)	V (Å)³	D_XRD (nm) ± 0.06	χ²(chi²)	R_Bragg	A-site	B-site
0.0	8.3973	592.141	10.6	1.5	25.6	Fe_0.20	Ca_0.5Mg_0.5Fe_1.8
0.2	8.4008	592.862	12.4	0.9	12.2	Zn_0.2Fe_0.18	Ca_0.4Mg_0.4Fe_1.82
0.4	8.4250	598.005	15.7	1.2	16.3	Zn_0.4Fe_0.1.9	Ca_0.3Mg_0.3Fe_1.81
0.6	8.4276	598.569	17.4	1.3	16.2	Zn_0.6Fe_0.20	Ca_0.2Mg_0.2Fe_1.8

Group B
x	a (Å)	V (Å)³	D_XRD (nm) ± 0.06	χ²(chi²)	R_Bragg	Cation distribution
x	a (Å)	V (Å)³	D_XRD (nm) ± 0.06	χ²(chi²)	R_Bragg	A-site	B-site
0.0	8.3903	590.661	16.4	1.6	17.9	Fe_0.20	Ca_0.5Mg_0.5Fe_1.8
0.2	8.4067	594.119	24.3	1.3	10.5	Zn_0.2Fe_0.19	Ca_0.4Mg_0.4Fe_1.8
0.4	8.4114	595.109	26.6	1.1	7.5	Zn_0.4Fe_0.1.8	Ca_0.3Mg_0.3Fe_1.8
0.6	8.4199	596.934	28.0	1.5	8.8	Zn_0.6Fe_0.20	Ca_0.2Mg_0.2Fe_1.8

Well-known Bertaut method has been utilized to calculate the cation occupancy (Shirsath et al., 2013) of cations in Zn_xCa_0.5-x/2Mg_0.5-x/2Fe₂O₄ (x = 0.0–0.6) NSFs for group A and B. The ratio of the intensities of I₂₂₀/I₄₄₀ and I₄₂₂/I₄₀₀ planes were used for the cation distribution calculations (Shirsath et al., 2014). This method selects a few pairs of reflections according to the expression;

(1)

\frac{I_{hkl}^{Obs .}}{I_{h^{'} k^{'} l^{'}}^{Obs .}} \propto \frac{I_{hkl}^{Calc .}}{I_{h^{'} k^{'} l^{'}}^{Calc .}}

where

I_{hkl}^{Obs .}

and

I_{hkl}^{Calc .}

are the observed and calculated intensities for reflection (hkl), respectively. In this method the best information on cation distribution is achieved when comparing experimental and calculated intensity ratios for reflections whose intensities (i) are nearly independent of the oxygen parameter, (ii) vary with the cation distribution in opposite ways and (iii) do not differ significantly. If an agreement factor (R) is defined as in Eq. (2), the best-simulated structure which matches the actual structure of the sample will lead to a minimum value of R and the corresponding cation distribution is obtained for each hkl and

h^{'} k^{'} l

reflection pair considered.

(2)

R = |(\frac{I_{hkl}^{Obs .}}{I_{h^{'} k^{'} l^{'}}^{Obs .}}) - (\frac{I_{hkl}^{Calc .}}{I_{h^{'} k^{'} l^{'}}^{Calc .}})|

The intensities of these are nearly independent of the oxygen parameters. The calculations were made for various combinations of cations. The above-mentioned intensity ratios expected for given arrangements of the cations and compare them with the experimental values. The relative integrated intensity of a given diffraction line from powder specimens as observed in a diffractometer with a flat-plate sample holder, the following formula is valid;

(3)

I_{hkl} = {|F|}_{hkl}^{2} P \cdot L_{P}

where P is multiplicity factor, F is structure factor, L_P the Lorentz polarization factor which is,

(4)

L_{P} = \frac{1 + {cos}^{2} 2 θ}{{sin}^{2} cos 2 θ}

The atomic scattering factor for various ions was taken from the literature (Cullity, 1972). The cation distribution calculated by this method is shown in Table 1. Zn²⁺ ions show their preference to occupy the T_d site for both group A and B (Shirsath et al., 2018). In both groups, Ca²⁺ and Mg²⁺ ions occupy B-site only. Fe³⁺ ions are distributed over both T_d and O_h sites, however, the most of these ions occupy the B site.

3.2

3.2 Electron microscopy

Fig. 3 exhibited the SEM images of Zn_xCa_0.5-x/2Mg_0.5-x/2Fe₂O₄ (x = 0.0–0.6) NSFs prepared using green synthesis (group A) and with Ultrasound irradiation (group B). Group A samples were showed highly agglomeration of very fine spherical particles with uniform distribution and some individual particles are obviously visible due to the effect of biosynthesis. While group B presented agglomerated particles of inhomogeneous size distribution. The agglomeration in both groups was due to highly energies magnetic between particles. However, the NSFs of group B were revealed also a high aggregation of little big spherical and cubic particles because of the magnetic interaction between these particles. These observations were confirmed via TEM as seen in Fig. 4. This approves that the green synthesis offered a homogeneous dispersed with narrowly size distribution around 18 nm for group A and nearly to 30 nm for group B. The elemental analysis of Zn_xCa_0.5-x/2Mg_0.5-x/2Fe₂O₄ (x = 0.4) group A and with Ultrasound irradiation (group B were estimated via EDX elemental and mapping as clear from Fig. 5. The EDX spectra substantiated the existence of Zn, Ca, Mg, O and Fe elements which showed the effectiveness of the synthesis method.

SEM images of ZnxCa0.5-x/2Mg0.5-x/2Fe2O4 (x = 0.0–0.6) NSFs of groups A and B.

TEM images of ZnxCa0.5-x/2Mg0.5-x/2Fe2O4 (x = 0.0–0.6) NSFs of groups A and B.

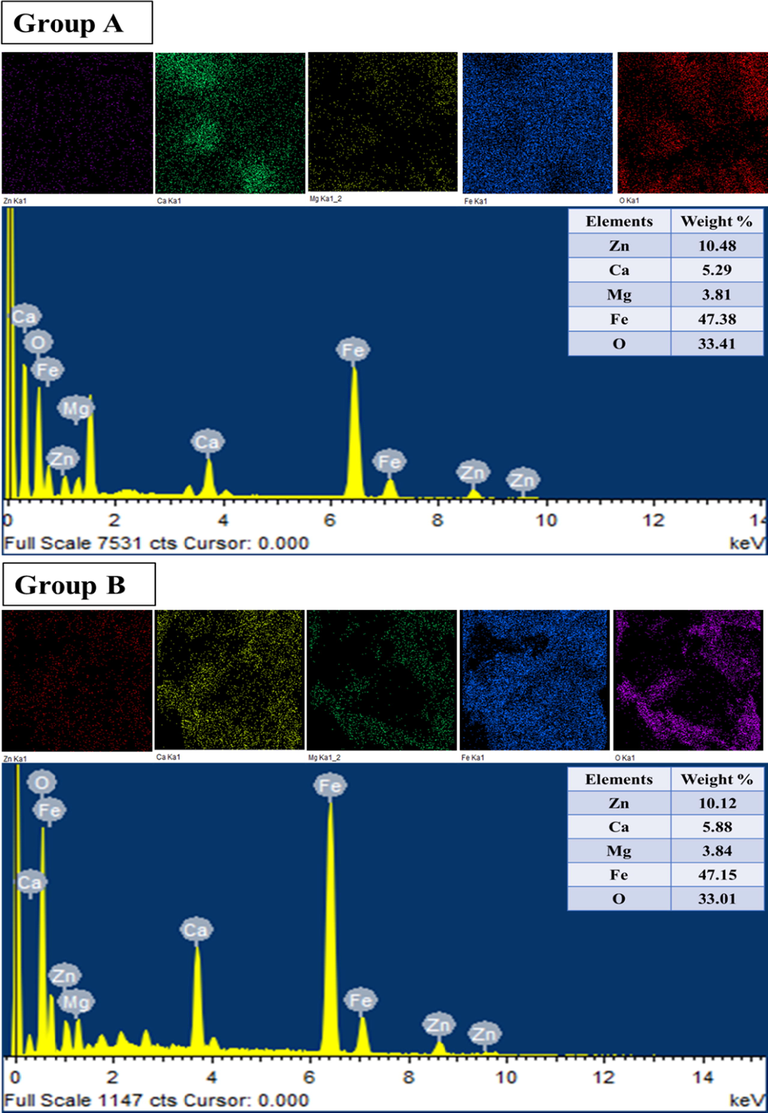

EDX and elemental mapping of ZnxCa0.5-x/2Mg0.5-x/2Fe2O4 (x = 0.4) NSFs of groups A and B.

3.3

3.3 Spectral investigation

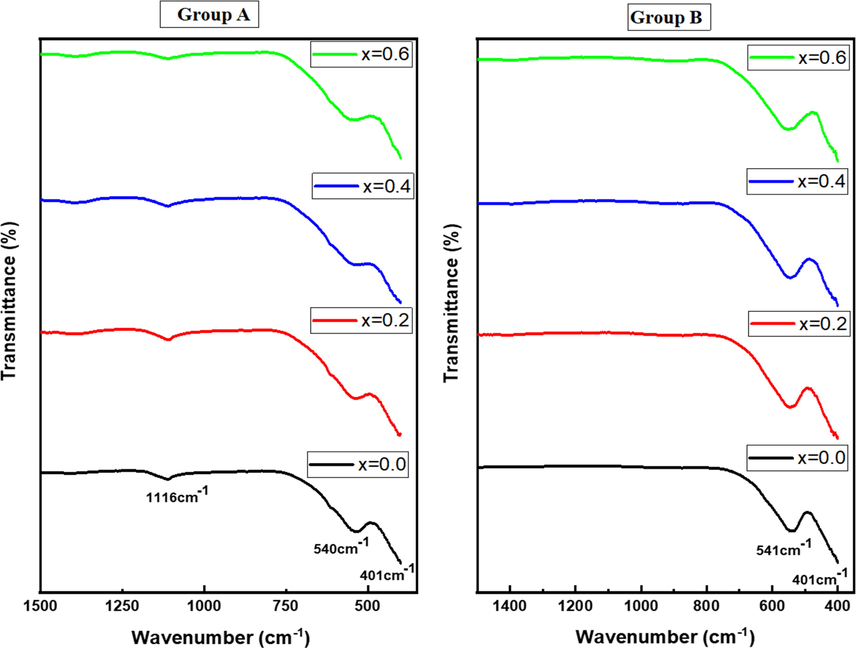

Fig. 6 represented FT-IR spectra of Zn_xCa_0.5-x/2Mg_0.5-x/2Fe₂O₄ (x = 0.0 – 0.6) NSFs of group A and B. The spectra of all samples revealed the index vibration modes of cubic spinel ferrite at 401 and 540 cm⁻¹ due to stretching vibration of metal–oxygen bond in the octahedral site and tetrahedral sites correspondingly. Moreover, it is clear that there is a shift towards high frequency with increasing the Zn ratio caused by differences in the distance between metal–oxygen band for T_d and O_h site jointly via changing the amount of Zn (Ahmad et al., 2018). However, the NSFs of group A presented vibration mode at 1116 cm⁻¹ relevant to stretching vibrations of C—O—C and C—O (Waldron, 1955). The Moringa leaves are known as a rich source of vitamins, polyphenols, iron, calcium, folic acid and beta-carotene. Previous reports have studied the spectrum of Moringa leaf extract that showed various absorption peaks indicating the presence of the hydroxyl functional group in alcohols and phenolic compounds (Sutherland et al., 1994; Ndabigengesere et al., 1995; Sathyavathi et al., 2011 ). The several bands were found indicative of alkane C—H stretch, which is owed to the lipid molecules in the leaf broth. The presence of vibration of —C O, has been also demonstrated and associated with amide II bond from proteins, whereas —C—O—, —C—C— stretches linked to lipids and sugars. It was observed that the bands due to C—H stretch, C≡C, nitro compounds, amine (C—N) stretch, and phenyl (C—H) stretch were missing completely during the reduction of metal ions to nanoparticles. Such studies suggest the binding of protein present in the extract with nanoparticles through free carboxylate group and additionally few of the bio-organics from moringa oleifera constitutes a strong coating/capping on the synthesized nanoparticles.

FT-IR spectra of ZnxCa0.5-x/2Mg0.5-x/2Fe2O4 (x = 0.0–0.6) NSFs of groups A and B.

3.4

3.4 VSM measurements

The magnetic features of the produced Zn_xCa_0.5-_x_/2Mg_0.5-_x_/2Fe₂O₄ (x = 0.0 – 0.6) NSFs for group A and B have been investigated at room (T = 300 K) and low (T = 10 K) temperatures by means of VSM instrument under an applied magnetic field (H) varying from −70 to +70 kOe. Magnetic hysteresis plots, illustrating the variations of magnetization versus the magnetic field, for various prepared samples are presented in Figs. 7 and 8. The various deduced magnetic parameters are illustrated in Fig. 9.

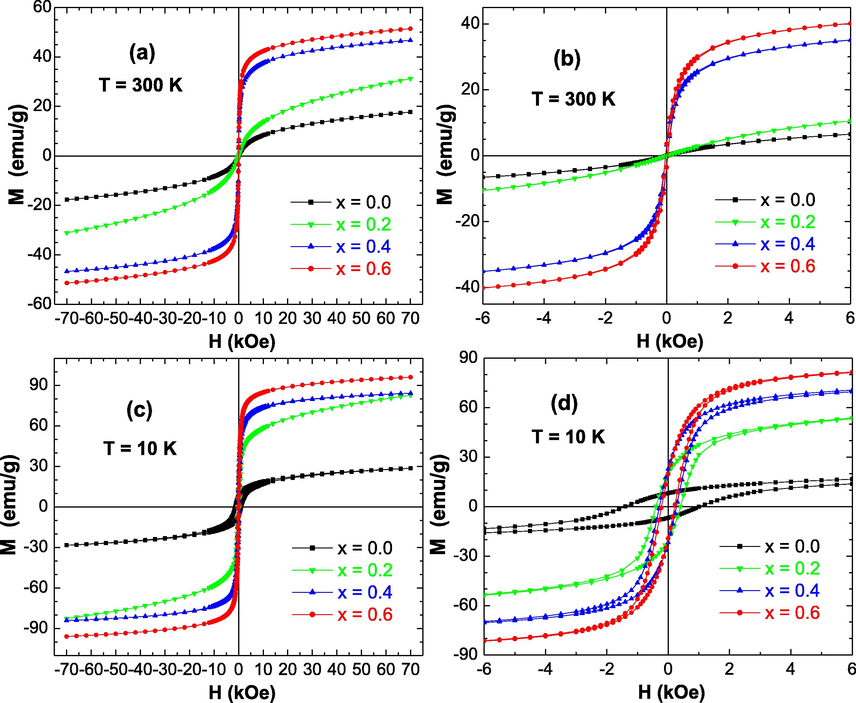

M−H curves performed at (a,b) T = 300 K and (c,d) T = 10 K for ZnxCa0.5-x/2Mg0.5-x/2Fe2O4 (x = 0.0 – 0.6) NSFs prepared without Moringa oleifera extract (Group B samples). The Figures (b) and (d) are enlarged views of Figures (a) and (c) near to H = 0 kOe, respectively.

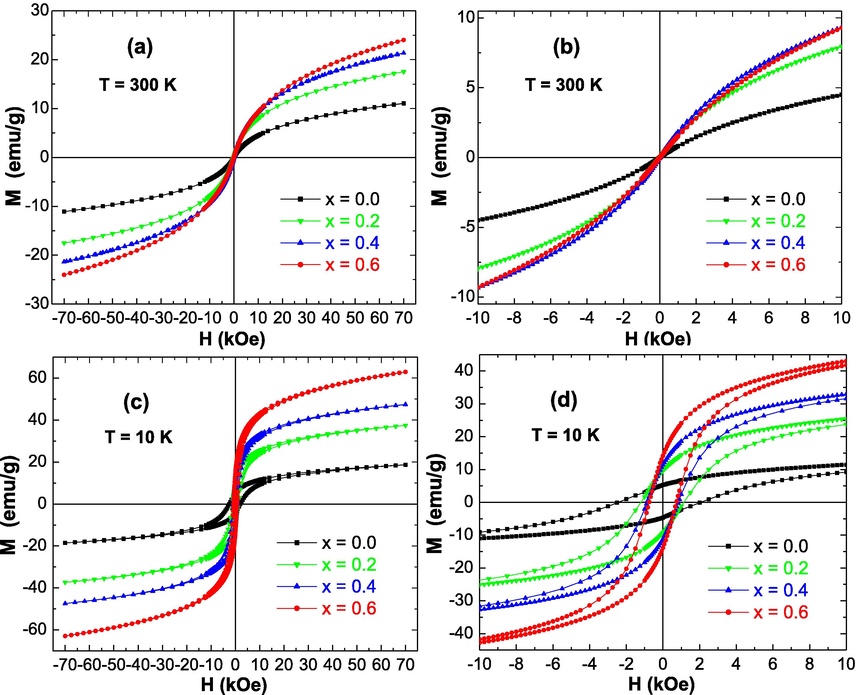

M−H curves performed at (a, b) T = 300 K and (c, d) T = 10 K for ZnxCa0.5-x/2Mg0.5-x/2Fe2O4 (x = 0.0–0.6) NSFs prepared with Moringa oleifera extract (Group A samples). The figures (b) and (d) are enlarged views of figures (a) and (c) near to H = 0 kOe, respectively.

Variations of (a) Ms, (b) Mr, (c) n B , (d) Hc, and (e) SQR with respect to Zn doping content for ZnxCa0.5-x/2Mg0.5-x/2Fe2O4 NSFs for groups A and B.

The non-substituted Ca_0.5Mg_0.5Fe₂O₄ (i.e. × = 0.0) NSFs of group A and B are soft magnetic materials at RT. Similarly, the samples of Zn substituted CaMg NSFs of group A and B are soft magnetic materials at 300 K. All samples displayed SPM (superparamagnetic) behavior at room temperature, with no or negligible coercivity and retentivity. The room temperature SPM behavior of the prepared NPs was studied, considering the values of magnetic squareness ratio (SQR = M_r/M_s), which are presented in Fig. 9(e). When the SQR value is lower than 0.1, it means that higher than 90% of the magnetization has been lost once the external magnetic field is removed. At room temperature, the determined SQR values reveal that all NSFs of group A and B are SPM at T = 300 K, displaying low or negligible H_c and M_r values. The noticed SPM behavior is happened owing to the thermal effects in the products. In these SPM nanoparticles, the thermal fluctuations are strong enough to spontaneously demagnetize a previously saturated assembly (Sulaiman et al., 2018; Slimani et al., 2019). This observed characteristic is believed to be a great magnetic feature, and the SPM behavior of Zn_xCa_0.5-_x_/2Mg_0.5-_x_/2Fe₂O₄ (x = 0.0–0.6) NSFs is apparent in different cases at room temperature. The benefit of SPM ferrites is correlated to their highly sensitive response to an external magnetic field. Such property makes these magnetic NSFs promising candidates for various applications, especially in biomedical areas, like in cell separation and detection, in supporting gene delivery, in cell diagnostics using magnetic resonance imaging (MRI), as well as for anti-bacterial and anti-cancer activities (Yunas et al., 2018; Almessiere et al., 2020; Elayakumar et al., 2019; Akhtar et al., 2019 ). These prospective applications show that the enhanced performances of the superparamagnetic nanoparticles will find vital role in developing forthcoming biomedical technologies particularly for the targeting drugs, therapy, as well as for diagnostics purposes. Moreover, such superparamagnetic NPs could be also employed for the transportation of drug in blood vessels as well as magnetic drug carriers in drug delivery applications, and for the creation of a localized heating effect for selective cancer cells treatments. Nevertheless, the different samples revealed opened M−H hysteresis loops at a temperature of 10 K, which indicates their ferromagnetic (FM) behavior at very low temperatures. As discussed above, a SQR value lower than 0.1 reflects a superparamagnetic behavior. When the SQR is higher than 0.1, this would indicate that the prepared nanoparticles are ferro/ferri-magnetic. It is clear from Fig. 9(e) that the SQR values are higher than 0.1 for all samples at 10 K. This finding confirms the observed ferromagnetic behavior at 10 K for all products. Furthermore, it has been established that the NPs consist of single-magnetic domain for x > 0.5 and of multi-magnetic domain for x < 0.5 (Akhtar et al., 2019; Slimani et al., 2019). In the present study, SQR values at 10 K for all NSFs of group A and B are between 0.2 and 0.3, which is below the theoretical limit of 0.5, reflecting the NPs consist of multi-magnetic domains.

The values of M_s for all NSFs of both groups A and B are much greater at 10 K that those at 300 K. Such trend is a feature of tiny nanoparticles in accordance with the relationship among the thermal energy $k_{B} T$ and the anisotropy energy $KV$ . Here, $T$ is the temperature, $k_{B}$ is the Boltzmann constant, $V$ is the nanoparticle’s volume, and $K$ is the anisotropy constant. The dissimilar values of M_s at 300 and 10 K are thought to reveal the small impact of thermal fluctuation since the particles are nanoscopic. This is reasonable since the thermal fluctuations are being smaller at lower temperatures. The magnetic features at room and low temperatures were found to be analogous to those studied for Mg_1-xZn_xFe₂O₄ NPs synthesized through wet chemical approach (Kondo et al., 2013).

It is clear from Figs. 7, 8 and 9 (a) that the Zn_xCa_0.5-_x_/2Mg_0.5-_x_/2Fe₂O₄ (x = 0.0–0.6) NSFs prepared using Moringa oleifera extract (Group A samples) displayed lower M_s values in comparison to those in NSFs prepared without using Moringa oleifera extract (Group B samples). According to the above performed structural (crystallites size) and morphological (particles size) investigations, Group A samples exhibited very small particles size compared to Group B samples. With decreasing particles size, the effects of spin canting and thermal changes will more efficient and hence provoke a reduction in the value of magnetic saturation (Murugesan and Chandrasekaran, 2015; Slimani et al., 2019). In line with this finding, it was expected that samples prepared using Moringa oleifera extract (Group A samples) will display lower magnetization values in comparison to those in samples prepared without using Moringa oleifera extract (Group B samples). Moreover, FT-IR spectra showed vibration bonds relevant to stretching vibrations of C—O—C and C—O. It is widely reported that the inclusion of carbon-based materials results in a quantitative reduction of magnetization without altering the magnetic ordering (Gunasekaran et al., 2021). In fact, when the Zn_xCa_0.5-_x_/2Mg_0.5-_x_/2Fe₂O₄ (x = 0.0–0.6) NSFs are incorporated by a low-magnetic or non-magnetic matrix such as carbon, carbon nanotubes, graphene oxide, etc., the carbons pertain their self as a host in arresting the ferrite nanoparticles, which will hinder the growth of ferrite nanoparticles, and hence decreasing their size dimensional drastically (which is already shown from structural and morphological examinations). The diminution in particles size as well as the non-magnetic or low-magnetic carbon-matrix will results in lessening the magnitude of magnetization.

On the other hand, it was clear that that the substitution and the increase of Zn²⁺ ions within the CaMg spinel ferrites caused a great variation in the magnetic parameters such as the M_s and H_c values as shown in Fig. 9. The magnetic features of Zn²⁺ substituted CaMg spinel ferrite NPs (Zn_xCa_0.5-_x_/2Mg_0.5-_x_/2Fe₂O₄) highlight that the co-substitution of Mg and Ca by Zn into the spinel structure display linear effects on the M_s and H_c values. It is seen that the M_s values of the Zn_xCa_0.5-_x_/2Mg_0.5-_x_/2Fe₂O₄ (x = 0.0–0.6) NSFs of group A and B progressively intensified with the rise of Zn doping content up to × = 0.6 (Fig. 9(a)). Therefore, the saturation magnetization of Zn_xCa_0.5-_x_/2Mg_0.5-_x_/2Fe₂O₄ (x = 0.0–0.6) NSFs of group A and B is depending mainly on the distribution of Fe³⁺ ions between the tetrahedral (T_d) and octahedral (O_h) sites, since the different other ions Zn²⁺, Ca²⁺, and Mg²⁺ are naturally non-magnetic ions, while the magnetic moment of Fe³⁺ ions is equal to 5 µ_B. The different produced Zn_xCa_0.5-_x_/2Mg_0.5-_x_/2Fe₂O₄ (x = 0.0–0.6) NSFs displayed superparamagnetic (SPM) behavior. This implies that the ions of Ca²⁺ and Mg²⁺ reside either in T_d and/or O_h sites, and the ions of Fe³⁺ at both the T_d and O_h sites, while the dopant ions of Zn²⁺ reside in the T_d sites (Manikandan et al., 2013), hence presenting SPM behavior. Similar findings were founded in the literature (Manikandan et al., 2013). The M_s values achieved maximum values of 51.68 emu/g at 300 K and 96.97 emu/g at 10 K for samples with × content of 0.6 of group B. Similarly, the maximum M_s values are attained for NSFs with × = 0.6 of group A with values of 24.50 emu/g at 300 K and 63.45 emu/g at 10 K. In any case, whatever using Moringa oleifera extraction or without, the obtained M_s values in the present study are higher in comparison to those previously registered in nanoparticles of Ca spinel ferrite (12.8 emu/g (Pereira, 2019), Mg spinel ferrite (16.1 emu/g (Cardoso et al., 2018), and Zn spinel ferrite (∼7 emu/g (Mozaffari et al., 2010). The M_s value of 51.68 emu/g attained at room temperature in the Zn_0.6Ca_0.2Mg_0.2Fe₂O₄ NSFs of group B is greater than the M_s value of about 48.5 emu/g in Mn spinel ferrite nanofibers produced via electrospinning technique (Abraham et al., 2019), 30.5 emu/g in Mg spinel ferrite NPs prepared through sol–gel combustion procedure (Huang et al., 2006), and 14.1 emu/g in Mg spinel ferrite NPs prepared through co-precipitation process (Rashad, 2007). The M_s value of 24.5 emu/g reached at room temperature for Zn_0.6Ca_0.2Mg_0.2Fe₂O₄ NSFs of group A is greater than the M_s of 7.1 emu/g found in ZnFe₂O₄ synthesized via aloe vera plants extraction assisted hydrothermal technique (Phumying et al., 2013), 14.8 emu/g for Mg_0.85Zn_0.15Fe₂O₄ nanoparticles prepared via the modified sol–gel approach using aloe vera plants extraction (Dora et al., 2014), 12.1 emu/g for ZnO-CoFe₂O₄ synthesized through the hydrothermal technique via the use of rambutan peel (Nephelium lappaceum L.) extraction (Rahmayeni et al., 2019).

The growth of M_s values with rising Zn²⁺ content is caused by the misbalance of the ions of Fe³⁺ T_d and O_h sites, the non-collinear nature of moments in the O_h site and the variations in super-exchange interactions, which cause the intensification of the net magnetization (Ramarao et al., 2018). For instance, ZnMg ferrite nanoparticles were produced via co-precipitation process by Rahman et al. (2013). It was found an increase in the values of M_s. Manikandan et al. (2013) investigated the magnetic features of ZnMg ferrites nanoparticles fabricated through rapid microwave combustion approach and they reported an enhancement in M_s values. Ramarao et al. (2018) synthesized Mg_1-xZn_xFe₂O₄ (x = 0.0–0.3) via conventional ceramic route. They indicated that M_s value rises with the increase in the Zn content. Kondo et al. (2013) produced nanoparticles of Zn_xMg_1-xFe₂O₄ (x = 0.0–0.8) via a wet chemical process. They found that M_s value increases with Zn doping content up to × = 0.4 concentration and then starts to decrease with further increasing Zn content.

At both temperatures (300 and 10 K), the M_s values of various Zn_xCa_0.5-_x_/2Mg_0.5-_x_/2Fe₂O₄ (x = 0.0 – 0.6) NSFs are increasing with rising the content of Zn²⁺ ions in Ca_0.5Mg_0.5Fe₂O₄ lattice. This is mostly attributed to the doping with Zn²⁺ ions that have the preference to lodge in the T_d sites, which will drive the Fe³⁺ ions to transfer towards the O_h site. This provides a reduction in the anti-parallel spins coupling and spins canting, causing a strengthening of A-B exchange interactions, and hence resulting in an increase in the values of M_s. The noted variations in M_s values can be explained based on the two sublattices model of proposed by Neel (Almessiere et al., 2020; Vinosha et al., 2020; Vinosha et al., 2020 ). In accordance with this model, the magnetic moments at the T_d and O_h sites are antiparallel to each other. Hence, the resulting magnetic moment would depend on the difference in the magnetic moments of T_d and O_h lattices. We note that the magnetic interactions among the ions occupying the T_d (A) and O_h (B) sites are relatively stronger compared to those of ions accommodated at the identical sublattice, viz. A–A or B–B interactions. So, according to the above-mentioned model, the net magnetization (M) could be expressed as follow:

(5)

M = M_{B} - M_{A}

Here, M_A and M_B are the net magnetization in T_d and O_h sublattices, respectively. Certainly, the net magnetization determines the value of M_s. The replacement of some non-magnetic or magnetic ions within the spinel lattice changes the distribution of cations. If the replaced ions display dissimilar ionic radii, this provokes a decrease or an increase in the bond lengths and bond angles, which could improve or diminish the magnetic interactions and alters the magnetic features of the spinel ferrite. In the present study, the lattice parameter ‘a’ of various NSFs of both group A and B increased with Zn²⁺ doping and led to an expansion of the unit cell volume. This will lead to increase the inter-atomic distances among the different ions, and hence alters the magnetic features. Both structural and magnetic characteristics of CaMg NSFs are greatly depending on Zn²⁺ ions doping content. Zn spinel ferrite is considered as a normal spinel where the nonmagnetic Zn²⁺ ions and the magnetic Fe³⁺ ions are allocated in T_d and O_h sites, respectively (Thummer et al., 2004). Whereas Mg ferrite is considered as an incomplete inverse spinel wherein the Mg²⁺ and Fe³⁺ ions occupy partially the T_d and O_h sites (Ramarao et al., 2018). Based on the literature (Lal et al., 2019), Ca ferrites have also incomplete inverse spinel structure with the preference of Ca²⁺ and Fe³⁺ ions to occupy partially the T_d and O_h sites. The different divalent ions Ca²⁺, Mg²⁺, and Zn²⁺ are naturally non-magnetic (0 µ_B). Hence, it could be expected no variation in the M_s value with the increase of Zn²⁺ ions concentration. Contrary to this expectation, the value of M_s enhances with the Zn substitution. Accordingly, the Ms values of these spinel ferrite NPs is greatly affected by the distribution of cations on T_d and O_h lattice sites. Usually, it is thought that non-substituted Ca ferrite do not display significant magnetic performances since the B–B super-exchange interactions are dominating and the magnetic moments in the O_h sites are antiparallel to each other. In CaMg spinel ferrites, portions of Mg²⁺ ions could enter within the T_d sites. Hence, the inclusion of Mg²⁺ ions will provoke an increase in Fe³⁺ ions at O_h sites and a decrease of Fe³⁺ ions at T_d sites, strengthening the overall magnetization of the entire lattice. Consequently, the net magnetization become non-negligible, which is ascribed to the improvement in A-B interactions. Upon Zn²⁺ doping into CaMg spinel ferrite, the Zn²⁺ ions will tend to reside in the T_d sites. This will also push the Fe³⁺ ions that display large magnetic moment (5 µ_B) to transfer from the T_d sites towards the O_h site, which lead to rising Fe³⁺ ions at O_h sites and reducing Fe³⁺ ions at T_d sites. Consequently, the net magnetic moment in T_d sites is reduced, whereas the net moment in O_h sites is enhanced. As stated above, the resulting magnetic moment of the spinel ferrite is the difference in magnetic moments of T_d and O_h lattices. Hence, the net magnetization is further increased due to the improvement of A-B interactions with Zn substitution into CaMg NSFs.

The magneton number (n_B) per formula unit in μB was calculated for all samples using the following relation (Almessiere et al., 2019; Almessiere et al., 2019):

(6)

n_{B} = (mol w e i g h t \times M_{s}) / 5585

The obtained n_B values are presented with respect to Zn²⁺ doping content in Fig. 9(c). It is clear that the n_B values at both temperatures and for all samples increase with the rise in the content of Zn²⁺ ions within the CaMg ferrite lattice. The findings were displayed analogous trend of M_s values versus Zn²⁺ content. This is in line with the variations in the M_s values. The increase in n_B value upon Zn²⁺ ions doping is correlated to the increase in A-B super-exchange interactions.

Another plausible reason for the increase of M_s values upon Zn doping into CaMg NSFs could be correlated to the variations in crystallites size and/or particles size. Usually, M_s value increase or decrease with the enlargement or reduction in crystallites size and/or particles size, respectively. In the present study, the structural and morphological analyses showed an increase in the crystallites size and particles size with the rise in the Zn²⁺ ions content, and hence the M_s value would increase.

At lower temperatures, the different prepared samples showed opened M−H hysteresis loops. It is observed that the coercivity is large in samples prepared without using Moringa oleifera extract (Group B samples) compared to those prepared using Moringa oleifera extract (Group A samples). It is well-known that the coercive field (H_c) and particles size are inversely proportional (Adeela et al., 2018). In the present study, it is found that samples prepared using Moringa oleifera extract (Group A samples) displayed smaller particles size than those in products prepared without using moringa oleifera extract (Group B samples). Consequently, samples prepared using Moringa oleifera extract (Group A samples) would display larger coercivity than for samples prepared without using Moringa oleifera extract (Group B samples). At lower temperature, the H_c values for both Zn_xCa_0.5-_x_/2Mg_0.5-_x_/2Fe₂O₄ (x = 0.0–0.6) NSFs of both groups A and B decrease with increasing the doping content of Zn²⁺ ions. This indicates a decrease in the ferromagnetic behavior at 10 K with the rise in Zn²⁺ content. Generally, it is well recognized that the coercive field is varying inversely with the grains size (Almessiere et al., 2019). It is obvious that the magnetization in magnetic spinel ferrites acquired via the domain walls motion and domain rotations, and the coercive force is attained by reversing the directions of the walls motion and that of the domain rotations. The products having larger grains size would display higher number of domain walls. As the number of domain walls increases, the movement of domain walls will increase during the magnetization or demagnetization process. The motion of domain walls necessitates an energy lesser than that required by the rotation of domains. Consequently, the product exhibiting larger size of grains is anticipated to illustrate lower value of coercivity. Contrariwise, tinier nanoparticles comprise of smaller amount of domain walls, and hence need greater force for the demagnetization (Verma and Dube, 2005). Such finding is consistent with the structural and morphological investigations.

4 Conclusion

The Zn substituted Mg-Ca nano-spinel ferrite as Zn_xCa_0.5-x/2Mg_0.5-x/2Fe₂O₄ (x = 0.0–0.6) NSFs, were produced efficaciously by biosynthesis Moringa oleifera leaf extraction linked with Ultrasound irradiation and with Ultrasound irradiation only. The XRD pattern approved the good agreement between the structure of NSFs and the standard cubic spinel ferrite. The SEM and TEM showed the difference in morphology among both groups (group A and B). The analyses of magnetization measurements revealed the SPM behavior at room temperature (300 K) for NSFs of both groups A and B. At room temperature, all prepared nanoparticles display SQR values lower than 0.1, which confirm their SPM behavior. At lower temperature (T = 10), a transition from SPM to FM behavior has occurred. SQR values at 10 K for NSFS of both group A and B are between 0.2 and 0.3, which is below the theoretical limit of 0.5, reflecting the NPs consist of multi-magnetic domains. The prepared samples using Moringa oleifera extract (Group A samples) displayed lower M_s values than those prepared without using Moringa oleifera extract (Group B samples). However, H_c values are found to be wider for Group B samples than Group A samples. These is mainly ascribed to the variations in particles size upon the use of Moringa oleifera extract. It is showed that the M_s and n_B values increase upon the doping and increase of Zn²⁺ ions content at room and low temperatures. This could be explained based on the distribution of different cations between Td and Oh sites, changes in magnetic moments, variations in crystallites or particles size, strength of the exchange interactions, etc. The H_c values were found to decrease at 10 K with rise of the Zn²⁺ content, which is attributed to the larger crystallites/particles that lead to lower volume fraction of grains boundaries, which in turn conduce to less pinning of domain walls. According to the obtained results, one can consider the use of Moringa oleifera-extracted solution as an alternative green synthesis route with effective and well control of structural, morphological, and physical properties of ferrite nanoparticles.

Acknowledgment

The authors are thankful to the Institute for Research and Medical Consultations (IMRC) of Imam Abdulrahman Bin Faisal University (IAU – Saudi Arabia) for providing lab facilities.

Declaration of Competing Interest

The authors declare that they have no known competing financial interests or personal relationships that could have appeared to influence the work reported in this paper.
