Effective hydrodeoxygenation bio-oil via natural zeolite supported transition metal oxide catalyst
⁎Corresponding author. junifalaylasihombing@unimed.ac.id (Junifa Layla Sihombing)
-
Received: ,
Accepted: ,
This article was originally published by Elsevier and was migrated to Scientific Scholar after the change of Publisher.
Peer review under responsibility of King Saud University.
Abstract
Bio-oil from biomass pyrolysis is promising to be used as a sustainable biofuel and high-value-added chemical. However, the presence of high acid, water, and oxygenate causes corrosive properties, low higher heating value (HHV), and instability of the bio-oil component. Therefore, refining the bio-oil is essential to improve its quality. In this study, we introduced natural zeolite (HZ) impregnated with transition metal oxide (TMO) to refine the bio-oil using the hydrodeoxygenation method (HDO) at various catalyst ratios and temperatures. We find that ZnO/HZ 5% wt. shows the best catalytic performance, with the conversion of organic phase reaching ∼ 50%. The refined bio-oil from Fe2O3, ZnO, and CuO has high-quality physicochemical properties with carbon, oxygen, water level, and HHV values are 37–52%, 40–53%, 8–27%, and 17–21 MJ/kg, respectively. This result represents a high catalytic performance for the hydrodeoxygenation process of bio-oil using natural zeolite-based transition metal oxide for better and low-cost biofuel production.
Keywords
Hydrodeoxygenation
Upgraded bio-oil
Metal oxide catalyst
Zeolite support
1 Introduction
High dependencies on fossil fuels have a significant impact on climate change which triggers an interest in finding alternative energy that is cleaner and more sustainable. Biofuels are one of the sustainable energies that have the potential to reduce CO2 emissions. It contributes ∼ 6% of the world’s energy mix (IEA, 2021). Biofuel can be produced from biomass pyrolysis as a form of bio-oil. However, bio-oil has poor physiochemical properties (e.g., high acid, oxygenate, and water level), leading to low quality and performance. Hydrodeoxygenation (HDO) and catalytic cracking are the most common techniques to improve bio-oil quality (Elkasabi et al., 2014; Ahmadi et al., 2016; Hita et al., 2020; Ly et al., 2019; Kar, 2018; Chen et al., 2018). Removing oxygen from bio-oil through catalytic cracking can be carried out at atmospheric pressure without hydrogen. However, this process has not been effectively used on a larger scale due to high coke formation and catalyst deactivation (Li et al., 2015; Zhang et al., 2022). HDO is more developed because it includes various reaction pathways such as decarboxylation, hydrogenation, demethylation, demethoxylation, and direct deoxygenation. HDO-assisted hydrogen and heterogeneous catalyst are efeffectively reduce double bonds and/or eliminating oxygen atoms from a compound. The oxygen is released mainly in the form of H2O, CO2, and CO. Moreover, the HDO process is reported to have several advantages over catalytic cracking due to higher organic phase and lower coke product. (Mortensen et al., 2013; Benés et al., 2019).
Bio-oil refining through the HDO process by using a noble metal (Roldugina et al., 2018), transition metal (Cordero-Lanzac et al., 2021; Alvarez-Galvan et al., 2019), carbon, and zeolite (Gea et al., 2022) – catalysts, are widely researched. Transition metal catalysts have a high catalytic performance and low cost. It exhibits a specific reaction pathway and selectivity for a particular compound. An active metal group such as Ruthenium (Ru), palladium (Pd), platinum (Pt), and nickel (Ni) tends to form a hydrogenation process. In contrast, exophilic groups such as iron (Fe), tungsten (W), rhenium (Re), and molybdenum (Mo) have a higher affinity for oxygen atoms and advantageous in the deoxygenation pathway (Wang et al., 2020). However, these metals have a relatively small surface area and are easy to sinter forming aggregations that reduce catalytic performance. On the other hand, zeolite has a large surface area, good thermal stability at high temperatures, and contains Bronsted and Lewis active sites that can be modified by acidity. Further, zeolite can act as a support material by trapped the metals into their frameworks. A support material with suitable acidity can significantly increase the production of liquid hydrocarbons by increasing the dehydration/hydrogenation of the intermediate product. The relatively large pore size of the modified zeolite allows the reactants and intermediates to overcome the limitations of diffusion and adsorptioan at metal active site (Li et al., 2016; Wang et al., 2013). Therefore, combining metal and zeolite as catalysts results in a synergistic role between metal functions and acid sites in facilitating various reaction pathways, both hydrogenation, and deoxygenation.
Gea et al. (Gea et al., 2022) perform HDO bio-oil using a natural zeolite catalyst impregnated with nickel metal at a reaction temperature of 250 °C for 2 h. This catalyst shows good performance in stabilizing raw bio-oil by increasing HHV (up to 21 MJ/kg), decreasing water content (13%), and improving deoxygenation (88%). Moreover, Xu et al. (Xu et al., 2017) suggest that Zn to HZSM-5 and HY could inhibit biochar production and increase the production of organic bio-oils and aromatic amines. When using a ZnO/HZSM-5 catalyst, the carbon yields of organic bio-oils and aromatic amines reach 9.8% and 5.6%, which is much higher than that of HZSM-5 and ZnO/HY catalyst showing the carbon yield of organic bio-oil and aromatic amines reach 5.2% and 4.5%, respectively. Further, Choo et al. (Choo et al., 2020) present that the presence of transition metal oxides such as NiO, ZnO, CuO, CoO, and MnO on zeolite Y change the strength and distribution between Bronsted and Lewis acidity, thus increasing triolein conversion and reducing the intermediate reaction product. Despite the use of transition metal oxide on synthetic zeolite, the study on natural zeolite as a supported catalyst is limited.
In this research, we employ natural zeolite (HZ) as a supported catalyst for the hydrodeoxygenation process of bio-oil refining. First, we introduce transition metal oxide (Fe2O3, CuO, and ZnO) embedded into active sites of natural zeolite to produce Fe2O3/HZ, CuO/HZ, and ZnO/HZ catalysts. The catalyst characteristic is measured by X-ray diffraction (XRD), scanning electron microscope (SEM) equipped with the ability of energy dispersive spectroscopy (EDX), and gas adsorption analyzer. Next, we test their catalytic performance in the bio-oil hydrodeoxygenation process in a fixed-bed reactor at various temperatures and ratios of the catalyst to obtain optimal results. Then, the upgraded bio-oil product's physicochemical (viscosity, elemental, compound, density, HHV, and acidity) is analyzed and compared with the untreated bio-oil. The exploration of novel natural zeolite impregnated with transition metal oxide (TMO/HZ) could contribute to the biofuel and catalyst community finding high-performance and low-cost catalysts.
2 Material and methods
The materials used in this research are bio-oil from coconut shell pyrolysis, distilled water (DI), and natural zeolite from CV. Bratachem, Indonesia, Zn(NO3)2·4H2O (p.a), FeCl3·6H2O (p.a), CuSO4·5H2O (p.a), HCl (p.a) from Merck (Darmstadt, Germany), hydrogen, oxygen and nitrogen gases from PT. Aneka Gas (Medan, Indonesia).
2.1 Preparation of ZnO/H-Z, Fe2O3/H-Z, and CuO/H-Z catalysts
Zeolite is activated using 5 M HCl following the procedure reported by Gea et al. (Gea et al., 2022). The acid-activated zeolites are labeled H-Z. The wet impregnation method carries metal loading on the active zeolite (Sihombing et al., 2020). 100 g of zeolite is mixed with a precursor salt containing 1% (wt.) metal dissolved in 100 mL of distilled water. This mixture is refluxed, stirred at 80 °C for 5 h, and dried. Next, the dried mix is calcinated at 500 °C for 2 h with N2 gas flow and oxidized under the same conditions using O2 gas. The final product is Fe2O3/H-Z, ZnO/H-Z, and CuO/H-Z catalysts.
2.2 Catalyst characterization
The crystallinity properties of the catalyst are analyzed by X-Ray Diffractometer (XRD Shimadzu 6100) Cu Kα (λ = 1.54184) radiation at 40 kV and 30 mA in the area 2θ = 7.00 – 70.00°. The catalyst's surface morphology, elemental analysis, and mapping are analyzed using a Zeiss EPOMH 10Zss SEM equipped with Energy Dispersion X-Ray Spectroscopy (EDX). The nitrogen gas adsorption–desorption isotherm analysis is carried out with the Gas Sorption Analyzer (NOVA 1200e) Quantachrome instrument at 77 K. The specific surface area is analyzed by the Brunauer-Emmett-Teller (BET) method. Meanwhile, the volume and pore diameter is based on the Barret-Joyner-Halenda (BJH) model.
2.3 Hydrodeoxygenation of Bio-oil
The upgrading process of bio-oil using the Hydrodeoxygenation method is carried out in a fixed-bed reactor with the metal oxide catalyst impregnated on an active natural zeolite. The reactor where the reaction takes place has a diameter of 5.5 cm with a height of 25 cm, a catalyst vessel with a diameter of 4.8 cm and a height of 3.5 cm, while the furnace has a diameter of 40 cm and a height of 39 cm. The reactor scheme used is shown in Fig. 1. In mild HDO, the reaction occurs at a temperature of 250 °C and a pressure of 1 atm for 2 h. The catalyst that shows the best catalytic activity is optimized at temperatures 250, 275, and 300 °C, and the catalyst ratio at 2.5, 5.0, 7.5, and 10 % (wt.). The steam resulting from the reaction is passed through a silicone hose and passes through a condenser, where the liquid product consisting of aqueous and organic phases is collected. The aqueous phase and the organic phase were separated and then the mass proportion was calculated from the initial sample mass. During the reaction process, non-condensable gas is also generated and coke is formed on the surface of the catalyst.The product of the reaction is calculated as follows (Oh et al., 2015):

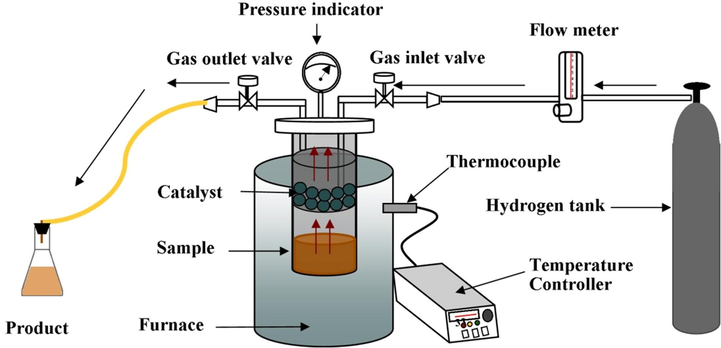

Schematic of hydrodeoxygenation process with fixed-bed reactor system.
Where Yproduct and Mproduct are the yield (liquid phase, organic phase, and coke) and mass of the products, respectively.
2.4 HDO product analysis
Physicochemical properties and components of untreated and treated (HDO) bio-oil products are characterized by using Ostwald Viscometer for viscosity, CHN Analyzer LECO-CHN 628 for elemental analysis, pycnometer for density, titration method for acid number. Analysis of compound composition using GC–MS Model QP2010 (Shimadzu) with RTx-5MS capillary column (5% diphenyl- 95% dimethylpolysiloxane crosslinks) with a film thickness of 30 m × 0.25 mm × 0.25 µm under the following conditions: split less inject mode at 300 °C using He as carrier gas and column flow in 0.54 mL/min. HHV is calculated by using the formula reported by (Sheng and Azevedo, 2005). The degree of deoxygenation (DOD) was estimated based on the molar ratio (MO) of raw bio-oil and upgraded products. MO is the atomic ratio of O/C obtained from the molar ratio of O and C based on elemental analysis.
3 Results and discussion
3.1 Crystallinity properties
The crystallinity properties of the material are analyzed using X-ray diffraction. The obtained diffractogram is compared with the pattern between the active natural zeolite and the metal oxide-impregnated zeolite, as shown in Fig. 2. The resulting diffractogram pattern consists of several characteristic peaks with a certain intensity. High and sharp peaks indicate higher crystallinity (Khawas and Deka, 2016). Peak characteristics for natural zeolite are observed in the range of 2θ = 9-30° for mordenite and clinoptilolite. The mordenite mineral type is shown in 2θ = 9.61°, 19.48°, 25.53°, 27.57°, and 30.76° in line with JCPDS no. 11–0155. The clinoptilolite mineral type can be seen in 2θ = 13.35°, 21.93°, 23.31°, 26.42°, and 29.84°, similar to JCPDS no 25–1349. The presence of these peaks with the same pattern in each zeolite indicates that the treatment that has been given during the impregnation and calcination processes does not damage the mineral structure in general.

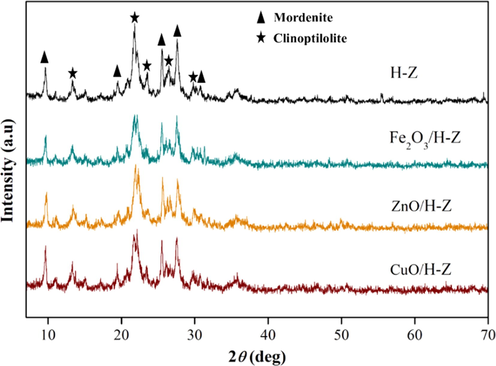

X-ray diffraction of natural zeolite impregnated with transition metal oxide.
The magnitude of the intensity of the peaks possessed by the zeolite can indicate the degree of relative crystallinity of the zeolite (Table 1). The degree of crystallinity of the active zeolite decreases after the immobilization of the metal oxide (Sriningsih et al., 2014). The decrease in peak intensity after the impregnation process suggests that the embedded metal oxides in the zeolite have partially covered the crystal side of the zeolite. However, the typical peaks of metal oxides Fe2O3 pada 33.1°, 35.6°, and 54.0° (JCPDS 01–072-0469), ZnO pada 35.45°, 39.84°, and 43.36° (JCPDS 01–1316), and CuO pada 39.97°, 42.12°, and 57.01° (JCPDS 45–0937) do not appear on the diffractogram because only 1% (wt.) of metal mass is carried in the impregnation process. Moreover, the metals are successfully dispersed into the zeolite pores (Hao et al., 2021; Miao et al., 2020; Pulungan et al., 2021), or well distributed as non-crystalline phases (Shwan et al., 2014). The metal's presence in zeolites can be seen in Fig. 4.
Catalis
Degree of crystallinity (%)
H-Z
84.9
Fe2O3/H-Z
79.1
ZnO/H-Z
74.4
CuO/H-Z
69.9
3.2 Surface morphology
Fig. 3 shows the observed surface morphology of the catalyst at a magnification of 1000 times. The activated natural zeolite exhibits a denser surface and aggregated particles with various particle sizes. Meanwhile, the zeolite modified with metal oxides shows a looser surface morphology, but there are also larger particle clumps, especially in the Fe2O3/H-Z and CuO/H-Z catalysts with large particle sizes. This can occur due to metal sintering embedded on the surface of the zeolite so that the particles form larger aggregates. However, the surface morphology of the ZnO/H-Z catalyst looks more homogeneous particle sizes.
Surface morphology of H-Z, Fe2O3/H-Z, ZnO/H-Z, and CuO/H-Z catalysts at 1000x magnification.

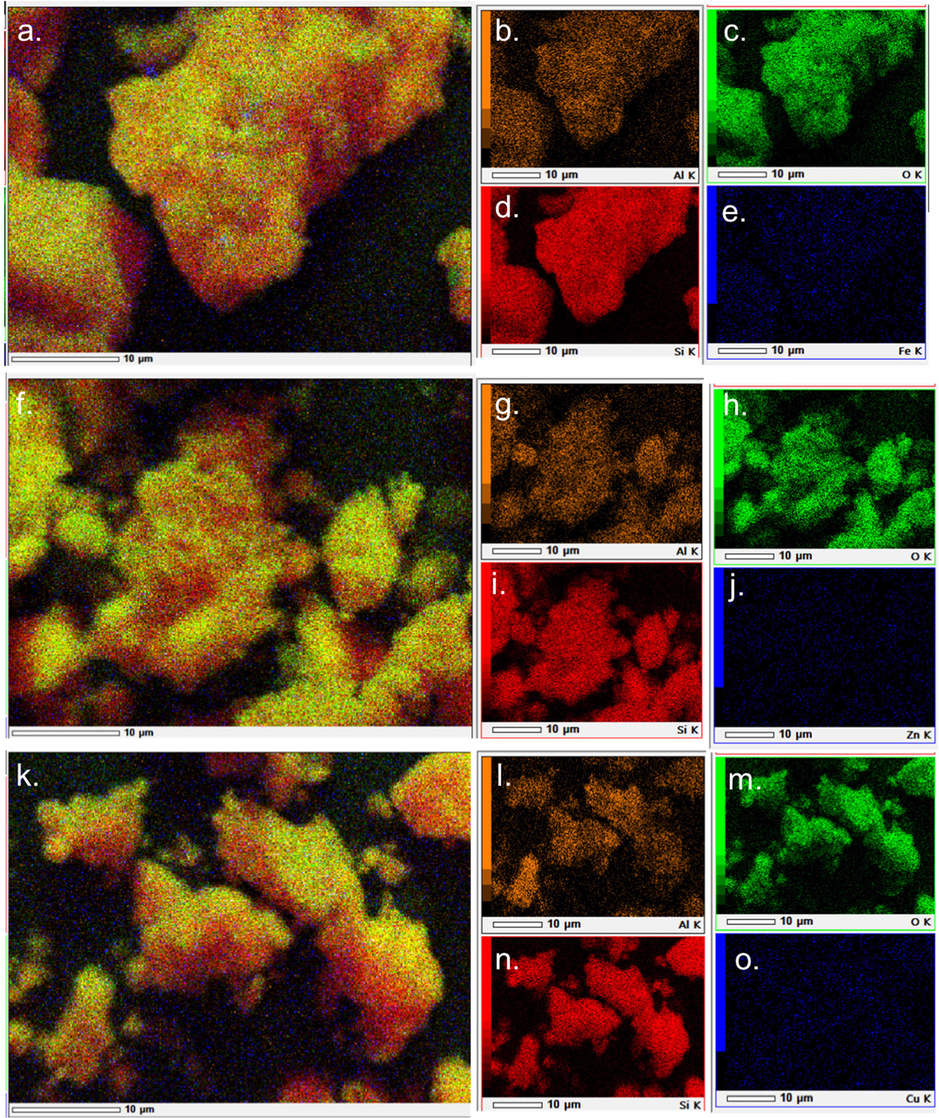

SEM-EDX elemental mapping of the catalyst (a-e) Fe2O3/H-Z, (f-j) ZnO/H-Z; and (k-o) CuO/H-Z. The distribution of elements shows different color for aluminum with orange color, oxygen with green color, silicon with red color, and iron, zinc, and copper with blue color.
The components contained in the catalyst are summarized in Table 2. Zeolite modified with metal oxides decreased Si and Al levels and increased O levels compared to activated natural zeolites. A reduction in Si and Al levels, along with a decrease in the Si/Al ratio, indicates a change that occurred during the impregnation, calcination, as well as oxidation process. Calcination at high temperatures can cause part of the skeleton to collapse, releasing Si and Al from the zeolite framework (Pulungan et al., 2021). The high value of the Si/Al ratio is also linear to the high degree of crystallinity. Meanwhile, the O content increases significantly, almost threefold, due to the presence of metal oxides. Metals Fe, Zn, Cu attached to the zeolite are detected at 1.27, 1.30, and 2.32 wt%, respectively.
Composition (Mass%)
H-Z
Fe2O3/H-Z
ZnO/H-Z
CuO/H-Z
Si
57.7
28.9
32.5
30.4
Al
7.41
4.17
4.90
5.35
O
19.5
50.8
48.4
42.3
Fe
–
1.27
–
–
Zn
–
–
1.30
–
Cu
–
–
–
2.32
Impurities
15.4
14.8
12.9
19.6
Si/Al
7.79
6.94
6.63
5.69
The distribution of the elements on the zeolite can be identified by SEM-Mapping, as shown in Fig. 4. A specific color represents each element. The brighter the color, the more these elements are distributed on the surface of the zeolite. All the catalysts show a color dominated by red, green, and yellow with a slight blue tint (Fig. 4). This is in line with the data on catalyst composition by EDX analysis, where the most significant compositions are O (green) 42–50 wt%, Si (red) 28–32 wt%, and Al (yellow) 4–5 wt%. Meanwhile, Fe, Zn, and Cu metals are shown in blue and are not too dominant because they only have a small percentage. A scattered blue color indicates that the metal distribution occurs evenly on the zeolite surface.
3.3 N2 Gas Sorption analysis
The graph of the adsorption–desorption isotherm of each catalyst is shown in Fig. 5. The catalyst exhibits a type IV N2 adsorption–desorption isotherm based on the IUPAC classification with low adsorption at relatively low pressures associated with micropores (Chu et al., 2019). Meanwhile, the presence of an H3-type hysteresis loop at relatively high pressure is the result of the adsorption and desorption of N2 in the mesopores (Han and Liu, 2015; Sihombing et al., 2020).

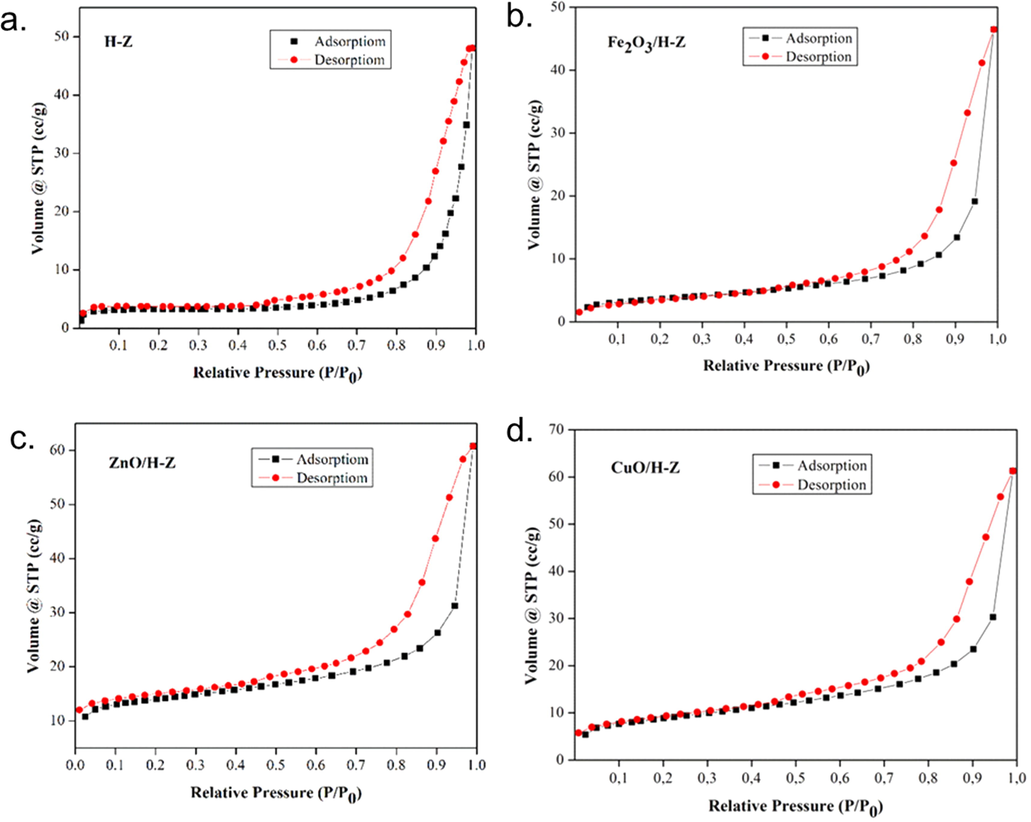

Graph of N2 gas adsorption–desorption isotherm on H-Z, Fe2O3/H-Z, ZnO/H-Z, and CuO/H-Z catalysts.
Further analysis is carried out to determine the effect of the metal oxide loading process on the catalyst characteristics, including surface area, total volume, and pore diameter. The BET method calculates the surface area, while the pore volume and pore size are analyzed from the adsorption band using the BJH method. The results of the measurement of the surface area, pore volume, and pore diameter of each catalyst are summarized in Table 3.
Catalyst
Surface area
(m2/g)
Pore volume
(cc/g)
Pore diameter
(nm)
H-Z
12.3
0.075
3.63
Fe2O3/H-Z
12.9
0.070
3.13
ZnO/H-Z
50.3
0.077
3.33
CuO/H-Z
30.7
0.086
3.10
The data in Table 3 shows that the modification of zeolite with metal oxide loading causes an increase in the surface area, pore size, and pore volume. The ZnO/H-Z catalyst has the largest surface area, but the CuO/H-Z catalyst has the largest pore volume and average pore radius. This change occurs due to the activation process, both acid activation and calcination and metal impregnation processes that impact the surface morphology of the zeolite. These changes are caused by the opening of the active zeolite pores, which are initially still covered by impurities. During the calcination process, impurity molecules such as water and gas, which are chemically bonded to the surface of the zeolite, evaporate to form an empty space (see schematics in Fig. 6). The results of the analysis also show that the specific surface area increases after metal impregnation is carried out. The entry of metal resulted in the expansion of the space between the zeolite layers so that a good pore system is formed, and the surface area is larger. With the increase in surface area, the absorption process will be even greater (Kurnia et al., 2017). According to Widayatno et al. small Cu species may enter the zeolite channel and generate new surface area within the channel by increasing the surface roughness. Meanwhile, Cu species loaded on the outer surface of the zeolite can generate new mesoporous surface areas (Widayatno et al., 2016). The comparison of the pore size distribution for each catalyst is shown in Fig. 7. The pore size distribution for the metal oxide impregnated catalyst shows dominance in the relatively equal radius size range from 15 to 100 Å (1.5–10 nm).

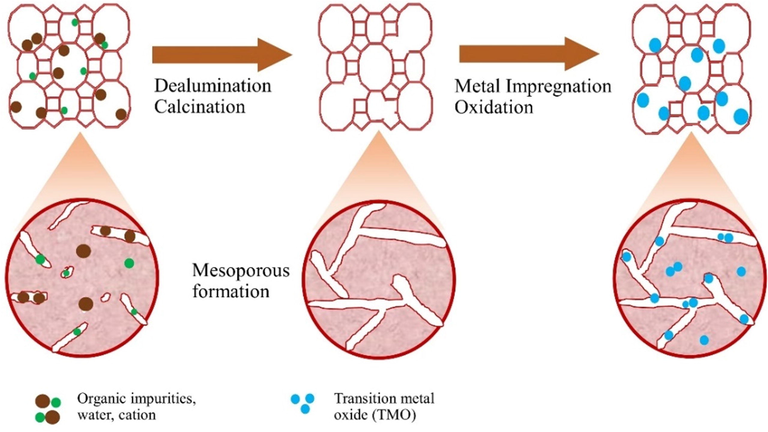

Schematics of impregnated TMO in natural zeolite.

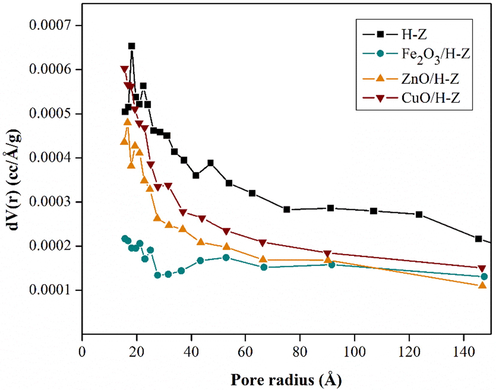

Comparison of the pore size distribution of H-Z, Fe2O3/H-Z, ZnO/H-Z, and CuO/H-Z catalysts.
3.4 Bio-oil hydrodeoxygenation
The distribution of the products resulting from the hydrodeoxygenation of bio-oil with Fe2O3/H-Z, CuO/H-Z, and ZnO/H-Z catalysts is shown in Fig. 8. Based on the data in the table, the bio-oil catalyzed by Fe2O3/H-Z produces more organic, gas, and coke phases than other catalysts. Meanwhile, the bio-oil catalyzed by ZnO/H-Z and CuO/H-Z has the most aqueous phase but less coke, gas, and organic. A lower organic phase yield is associated with more efficient deoxygenation results (Elkasabi et al., 2014). Deoxygenation reaction produces water as a by-product so that large amounts of water are released along with the decrease in the mass of the organic phase. Huang et al. state that Fe2O3 contributes to increased gas yield but decreases liquid bio-oil and bio-char product yield. Fe2O3 can encourage the formation of CO and H2 but inhibit the formation of CH4. (Huang et al., 2019) Meanwhile, Konadu et al. (Konadu et al., 2021) performed hydrodeoxygenation of guaiacol using Cu catalyst and reported that Cu (1 1 1) plays a selective role in the transformation of guaiacol into catechol through the direct demethylation pathway.

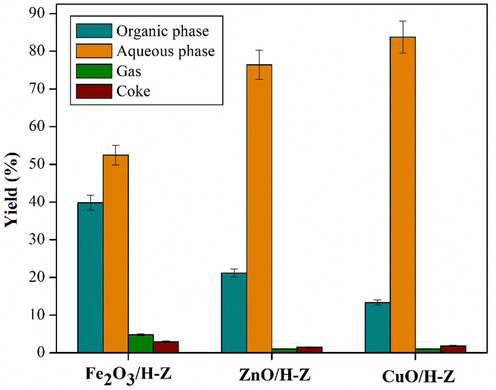

Product distribution of upgraded bio-oil catalyzed by Fe2O3/H-Z, ZnO/H-Z, and CuO/H-Z (catalyst loading of 2.5 wt%, temperature 250 °C for 2 h).
Each catalyst's difference in product distribution is due to the characteristics of each catalyst, such as surface area and pore volume. Fe2O3/H-Z has a smaller surface area and pore volume than ZnO/H-Z and CuO/H-Z. This difference provides a significant gap in the selectivity of the liquid product, where the larger surface area and pores can support better diffusion and adsorption of reactants, which causes more reactant molecules to bind to the active site of the zeolite to undergo a catalytic process.
3.5 Physicochemical properties
The product analyzed in this study is the organic phase because it contains rich organic compounds such as phenols and their derivatives, as well as aromatic compounds which have the potential for fuel applications. While the aqueous phase contains more water and acids which reduce its quality as fuel. Analysis of physicochemical properties of bio-oil products is carried out including elementary content, HHV, viscosity, acid number, and analysis of compound content using GC–MS. The physicochemical properties are summarized in Table 4.
Properties
Raw bio-oil
Fe2O3/H-Z
ZnO/H-Z
CuO/H-Z
Elemental analysis (wt%)
C
14.3
37.9
51.7
51.8
H
9.88
7.77
6.84
6.86
N
0.55
0.01
1.02
1.11
Oa
75.8
53.8
40.5
40.2
Water content (%)
68.6
27.0
10.1
8.30
Density (g/cm3)
1.02
1.11
1.18
1.23
HHV (MJ/kg)b
12.5
17.7
20.9
20.9
Viscosity (cP)
0.98
2.31
2.52
3.13
Acid number (mg NaOH/g oil)
171
139
166
118
H/C
8.29
2.46
1.59
1.59
O/C
3.98
1.06
0.59
0.58
DOD (%)
–
73.4
85.2
85.4
Bio-oil catalyzed by ZnO/H-Z and CuO/H-Z catalysts has less oxygen and higher carbon content than bio-oil catalyzed by Fe2O3/H-Z. A smaller molar O/C and an increased H/C ratio of HDO bio-oil indicates a direct deoxygenation and hydrogenation reaction pathway (Leal et al., October 2018). In this study, the molar ratios of O/C and H/C both decreased. It suggests the deoxygenation pathway releasing water and acid is the dominant pathway in the HDO bio-oil reaction with a metal oxide-embedded activated zeolite catalyst (Elkasabi et al., 2014; Kim et al., 2014). ZnO/H-Z and CuO/H-Z catalysts have DOD ranging ∼ 85%. Product viscosity and HHV also increase as a result of reduced water content in bio-oil (Baloch et al., 2021). However, the acid number is still high (118–166 mg NaOH/g oil) due to the high acid content in bio-oil. This high acidity level is mainly determined by phenolic compounds, which are measured as weak acids by the TAN method (Oh et al., 2020).
ZnO/H-Z catalyst has a larger surface area, pore volume, and pore diameter and shows better selectivity for the water fraction. This is related to the character of the catalyst with a larger surface area and pores, facilitating more reaction pathways. The deoxygenation pathway can occur more by producing water as a by-product (Kurnia et al., 2017). Zn can selectively break C–O bonds in various lignin molecules under relatively mild reaction conditions (Parsell et al., 2013; Spanjers et al., 2015; Oh et al., 2020). With more oxygen coming out as water molecules, the bio-oil product catalyzed by the ZnO/H-Z catalyst has a higher viscosity and HHV value of 2.52 cP and 20.9 MJ/Kg, respectively. Meanwhile, the bio-oil catalyzed by the Fe2O3/H-Z catalyst tends to have a high oxygen content, and the HHV value only increases slightly compared to the pyrolysis bio-oil.
3.6 Compounds in Bio-oil
GC–MS are carried out to examine molecule content in the bio-oil and HDO products, which is summarized in Fig. 9.

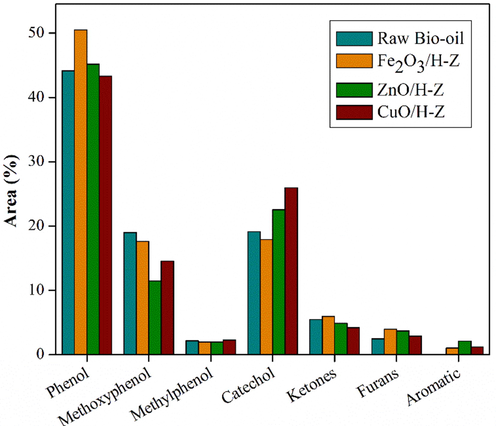

Composition of compounds in raw bio-oil and organic phase products catalyzed by Fe2O3/H-Z, ZnO/H-Z, and CuO/H-Z (catalyst loading of 2.5 wt%, temperature 250 °C for 2 h).
GC–MS diffractogram of bio-oil reveals the composition of ketones, phenols, methyl phenols, methoxyphenyl, and furans. Compounds in bio-oil are dominated by lignin derivatives such as phenol, guaiacol, syringol, and pyrocatechol compounds, as well as cellulose derivatives such as aldehydes, ketones, furan derivatives, and phenols (Grioui et al., 2014). Furfural compounds during the HDO process can undergo hydrogenation to produce furfuryl alcohol compounds which are further converted to tetrahydrofurfuryl alcohol, ketones, and other open ring products (Dwiatmoko et al., 2015). This can be proven by the decrease in the percent area of furan compounds and the increase in the percent area of ketone compounds in the HDO bio-oil product of each catalyst.
The phenol content generally increased after the HDO process with all catalysts, especially with Fe2O3/H-Z and ZnO/H-Z catalysts. Meanwhile, the methoxy phenol group of compounds decreased, including syringol and guaiacol (Leal et al., October 2018). However, intermediate compounds such as catechol and pyrocatechol compounds have increased. Catechol is formed as an intermediate in the conversion of Phenol-2 methoxy to cyclohexanone, produced by the cleavage of the methyl and methoxy groups from guaiacol and syringol, respectively (Oh et al., 2020). In this case, the increase in certain compounds related to the conversion of other compounds, such as reduced syringol may undergo a demethoxylation reaction to guaiacol, which then undergoes demethoxylation again to produce more stable phenolic compounds (Oh et al., 2015; Gea et al., 2020). Meanwhile, another methoxyphenol group, guaiacol, can go through several reaction pathways, (i) through demethoxylation where the methoxy group is cleaved to produce phenol; (ii) through the demethylation pathway, where the C-O bond cleaves from methoxy and releases it as CH4 to produce catechol intermediates. Catechol can be deoxygenated to produce phenol, (iii) deoxygenated to cresol which can then be demethylated to produce phenol (Liu et al., 2017; Venkatesan et al., 2021; Oh et al., 2015). The various reaction pathways that lead to the formation of phenol compounds cause by the high percentage of the area owned by phenol. Furthermore, through the direct deoxygenation pathway, phenol breaks the Caromatic –OH bond to form benzene as an aromatic hydrocarbon product (Shafaghat et al., 2015; Teixeira Cardoso et al., 2019). Some schematics of the possible reaction pathways during the HDO bio-oil process are shown in Fig. 10.

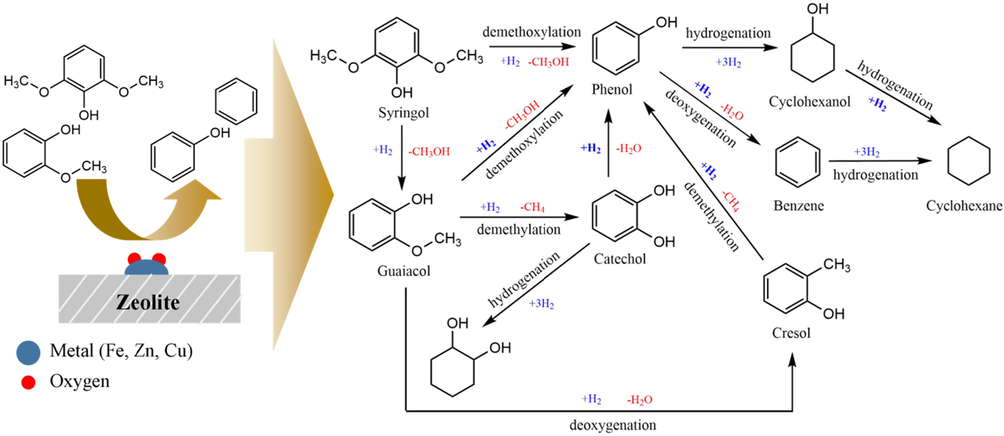

Possible reaction pathways in the bio-oil component HDO.
The acidic sites in the catalyst promote C-O cleavage, while metal sites influence the hydrogenation of the benzene ring. Metals activate H2, while oxygenating Brønsted acid sites activate compounds. The Brønsted acid site interacts with the oxygen atom of the oxy compound, whereas H2 is started by metals and causes C-O bond cleavage instead of C–C bond cleavage (He and Wang, 2013). Furthermore, the redox-active components of metals play an important role in HDO reactions because these metal sites can facilitate both hydrogenation and dehydrogenation reactions (Botas et al., 2014).
The active site of Fe is reported to have good ability in the direct deoxygenation pathway (Olcese et al., 2012; Shafaghat et al., 2016), but in this study, the characteristics of the Fe2O3/H-Z catalyst were not superior to the material aspects of the ZnO/H-Z catalyst. Meanwhile, the presence of copper in the catalyst is essential for the hydrogenation reaction, which can increase the conversion yield of bio-oil products (Awan et al., 2021). Moreover, Cu catalysts can facilitate dehydration reactions by forming Cu-alkoxide species (Gabrysch et al., 2018). In addition, ZnO provided suitable acidity to reduce the C-O hydrogenolysis reactivity (Wang et al., 2020). In the metal oxide catalytic mechanism, lattice oxygen reacts with H2, and an oxygen vacancy is created, which is further filled by oxygen from the oxy compound. Then the intermediate compound undergoes C-O cleavage and forms the final product. He and Wang (He and Wang, 2013) reported that the order of metal–oxygen bonds from the stronger is Zn > Fe > Cu. This metal–oxygen bond will affect the course of the reaction during HDO. When the metal–oxygen bond is too weak, it will be difficult for the catalyst to abstract oxygen from the oxy compound. Still, when the metal–oxygen bond is too strong, it is challenging to create a surface vacancy to adsorb the oxy-compound (Moberg et al., 2010).
3.7 Effect of temperature
The ZnO/H-Z catalyst is further tested for its activity to catalyze bio-oil at higher temperatures, 275 and 300 °C. The distribution of the resulting product is shown in Fig. 11. Organic phase and gas increase when the temperature is increased to 275 °C and then decrease when the temperature reaches 300 °C. On the other hand, the aqueous phase and coke drop at 275 °C and then increase at 300 °C. This difference in product distribution trends at each temperature indicates that temperature affects the yield (Pourzolfaghar et al., 2018). Meanwhile, more gas content occurs at a temperature of 275 °C, suggesting that increasing temperature promotes gasification reactions or hydrocracking of bio-oil to convert organic compounds into gaseous products (Ahmadi et al., 2017). In a previous study, Cheng et al. (Cheng et al., 2017) tested out HDO bio-oil at temperatures of 250, 300, 350, and 400 °C and reported that the main compositions of gaseous products formed during HDO were CO2, H2, CO, N2, CH4, and C2H6. Meanwhile, at the highest temperature at 300 °C, the organic phase was reduced significantly and tended to promote coke formation on the catalyst surface, reducing the catalytic activity. The increase in coke at high temperatures can be caused by polymerization reactions and condensation of bio-oil components (Kim et al., 2014). The organic phase is then analyzed for its components using GC–MS, and the resulting compounds are summarized in Fig. 11a.

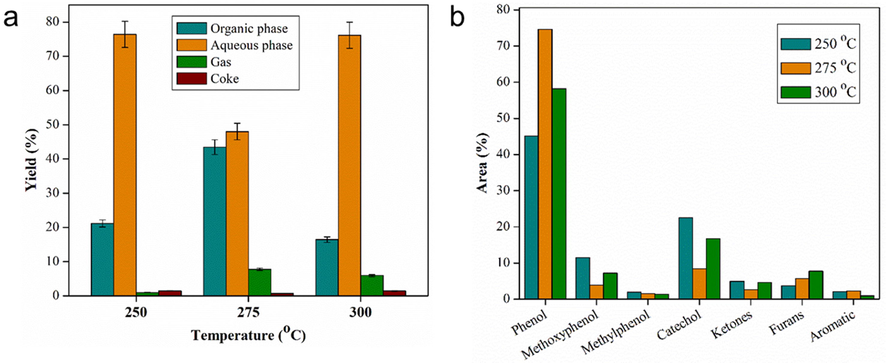

(a) Product distribution of upgraded bio-oil and (b) selectivity of organic phase bio-oil components with ZnO/H-Z catalyst at temperatures of 250, 275, and 300 °C (catalyst loadig of 2.5 wt%, reaction time of 2 h).
Based on the selectivity data of the bio-oil components in Fig. 11b, there are significant differences in several groups of compounds observed. The increase in temperature causes an increase in phenol levels, especially when the temperature is 275 °C, with the percentage of phenol area reaching 87%. At this temperature, it is assumed that the highest conversion rate is to convert methoxyphenol into phenol and reduce catechol as an intermediate compound. This is also supported by the percentage area of methoxyphenol and catechol, which is much lower than other temperatures. Temperature is reported to play an active role in the HDO reaction's selectivity by affecting the intermediate's stability. At higher temperatures, the hydrogenation activity decreases due to the reduction in hydrogen adsorption, which is an exothermic reaction. Therefore at high temperatures, more deoxygenation pathways occur compared to hydrogenation (Shafaghat et al., 2015).
3.8 Effect of catalyst loading
The catalytic activity of a zeolite is closely related to the presence of an active site in the zeolite. Many acid sites increase the possibility of converting oxygenate compounds (Lee et al., 2016). Therefore, this study observes the effect of increasing the catalyst mass used during the HDO process. The distribution of the resulting products is summarized in Fig. 12a, while the selectivity of the upgraded bio-oil content is shown in Fig. 12b.

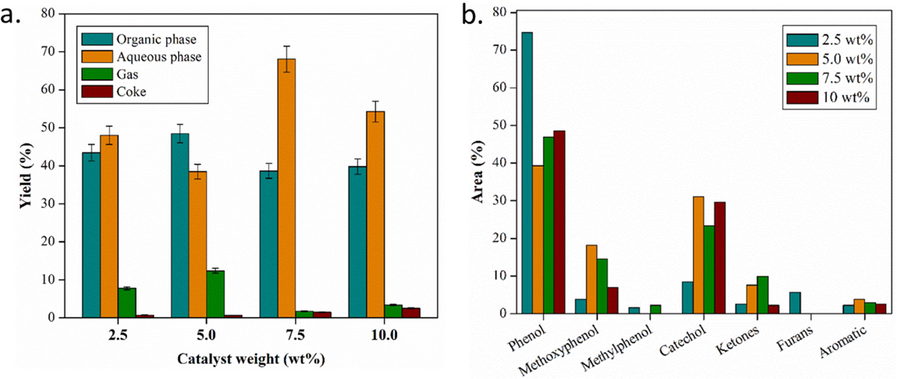

(a) Distribution of upgraded bio-oil product and (b) selectivity of organic phase components catalyzed by ZnO/H-Z with various catalyst masses 2.5, 5.0, 7.5, and 10 wt% (at 275 °C for 2 h).
Bio-oil catalyzed by a 5.0 wt% catalyst produces more organic phase, gas, and a less aqueous phase than other catalysts. On the other hand, the 7.5 wt% catalysts produce the highest aqueous phase yield but the minor organic phase and gas. This result is in line with that reported by Benés et al. (Benés et al., 2019), the highest yield of the organic phase is obtained from HDO with a catalyst loading ratio of 5.0 wt%. Up to a catalyst loading ratio of 5%, the removal of oxygen in the form of CO2 increases significantly. The yield difference produce in this case is related to the number of catalysts used to add to the active sites that play a role during the HDO reaction (Sankaranarayanan et al., 2015; Roldugina et al., 2018). This can be seen in the 5.0 wt% catalyst, where the amount of gas produced indicates a decarboxylation reaction pathway that produces gases such as CO2 as one of the by-products of HDO. The amount of water produced in the aqueous phase suggests that the dominant reaction pathway is deoxygenation. On the other hand, an increase in the amount of catalyst above 5.0 wt% indicates an increase in the coke formed. The strong acidity of the support material supports polymerization and condensation reactions that lead to coke formation (Nava et al., 2009).
Based on the data on the selectivity of the compounds produced in the organic phase upgraded bio-oil (Fig. 12), with the addition of the percentage of the metal as the active site of the catalyst, there is a change in the percentage area of the leading compound group of bio-oil. The comparison between the chromatograms of raw bio-oil and the upgraded product is shown in Fig. 13. Several compounds, such as phenol and furan, show a significant decrease, while methoxyphenol, catechol, ketone, and aromatic hydrocarbons project an increase. The decline in phenol content occurs due to further reactions during the HDO process. Phenol undergoes a deoxygenation reaction so that it releases oxygen and becomes an aromatic hydrocarbon compound. In the conversion of phenol to aromatic hydrocarbons, the oxide catalyst, in its application as a catalyst, goes through approximately three steps, including chemisorption through the oxygen atom at the unsaturated coordinate metal site, donation of protons from the hydroxyl group, and desorption (Moberg et al., 2010; Mortensen et al., 2013). Further, furan is no longer detected in bio-oil, which is upgraded with a catalyst of 5.0, 7.5, and 10 wt%. It is presumably due to further conversion of furan to produce ketone compounds, so the percentage of ketone area is relatively increased. However, it is different for the 10 wt% catalyst, which shows a decrease in the percentage of ketone area, but the percentage of 9-tetradecenal and 9-octadecenal areas increase significantly. This is presumably due to ring opening in furans, ketones, and other aromatic compounds to form esters and long chain aldehydes (Oh et al., 2015).

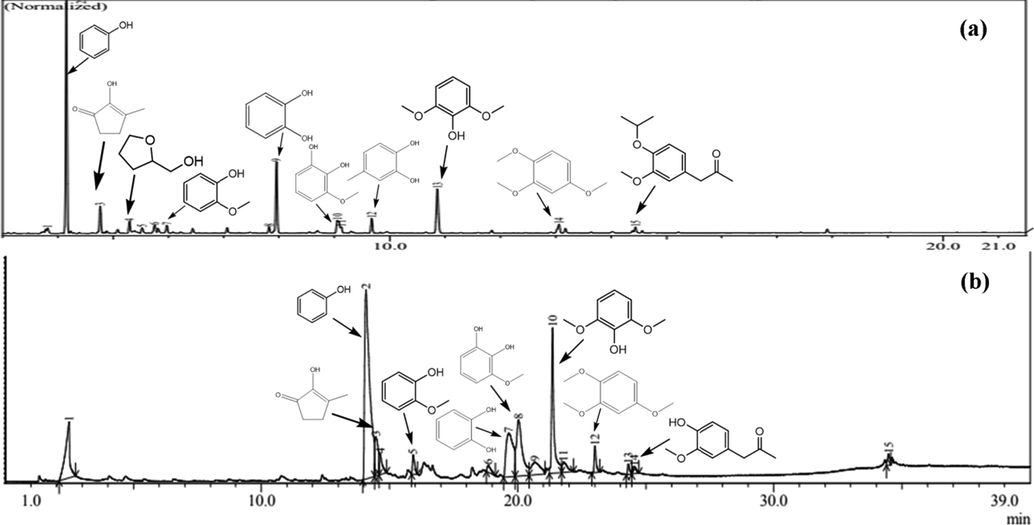

GC–MS chromatograms of (a) raw bio-oil and (b) upgraded product catalyzed by 5 wt% ZnO/HZ at 275 °C.
4 Conclusion
We have presented the performance of natural zeolite (HZ) supported transition metal oxide (TMO) in the bio-oil hydrodeoxygenation process. The Fe2O3/HZ, ZnO/HZ, and CuO/HZ catalysts show suitable catalyst characteristics with good crystallinity, large surface area and pore volume, and small pore size that determine catalyst performance (high conversion and selectivity). The optimum temperature is found at 275 °C with ZnO/HZ catalyst 5% wt. with high conversion (∼50%) for the hydrodeoxygenation process. All refined bio-oil show upgraded physicochemical content, which further proves the performance of HZ-based TMO catalysts. Therefore, this finding is a step forward to producing a future affordable catalyst by utilizing natural zeolite as a supported catalyst in bio-oil refining through hydrodeoxygenation.
