Impact of ionic liquids on silver thermoplastic polyurethane composite membranes for propane/propylene separation

2.1 Materials

AgNO₃, Ag[BF₄], Ag[PF₆] and tetrahydrofuran (THF) were all purchased from Sigma-Aldrich with a purity close to 99%, 98%, 98% and 99.9%, respectively and were used without any further purification. Ag[Tf₂N] and the ILs 1-butyl-3-methylimidazolium tetrafluororborate ([C₄mim][BF₄]), 1-butyl-3-methylimidazolium nitrate ([C₄mim][NO₃]), 1-butyl-3-methylimidazolium hexafluorophosphate ([C₄mim][PF₆]) and 1-butyl-3-methylimidazolium bis(trifluoromethanesulfonyl)imide ([C₄mim][Tf₂N]) were synthesized in the QUILL Research Centre (Queen’s University Belfast) and were dried under vacuum at 338 K for 12 h before use. The water content was measured by Karl Fischer analysis and was carried out in duplicate for each sample using a GRScientific Cou-Lo Compact titrator and the average values are as given in the results; Ag[Tf₂N] solid was dissolved into 1-hexene before titration. Elemental analyses (Perkin Elmer 2400 CHN Elemental Analyser and ICP-OES Perkin–Elmer Optima 4300) were carried out to validate the chemicals’ purity. The detailed results are shown in Table 1. TPU was purchased from BASF under the brand of Elastollan® TPU.

The propane, propylene and argon cylinders were all purchased from BOC, all with the reported purity of above 99.5%.

2.2 Membrane preparation

0.8 g of TPU was weighed (Ohaus balance with a precision of 1 mg) and dissolved in THF solvent at a constant temperature of 340 K. The mixture was continuously stirred using a magnetic stirrer until all the solid TPU had completely dissolved. Following a standard procedure, the dissolved liquid was then cast in a Petri dish of diameter of 80 mm and left in dark for about 48 h at room temperature in order to obtain the membrane. The membrane was formed visibly with a thickness of 100–300 μm measured by optical microscopy, as described below. Other membranes were prepared by replacing pure TPU with mixtures of TPU and either AgNO₃, Ag[BF₄], Ag[PF₆] or Ag[Tf₂N] with a weight percentage of 10 wt.%, 20 wt.% or 30 wt.% correspondingly. ILs were also added into the solutions of silver salt and TPU with the ILs [C₄mim][NO₃], [C₄mim][BF₄], [C₄mim][PF₆] and [C₄mim][Tf₂N] added to the membranes containing the corresponding anion of the silver salt mentioned above. Different weight percentages of the ILs were studied by employing 10 wt.% and 20 wt.% of each IL while the weight of silver salt was always 10 wt.%. Moreover, 10 wt.% and 20 wt.% [C₄mim][Tf₂N] with 10 wt.% AgNO₃ were also incorporated in order to study whether there are enhancements for the propane/propylene separation with the alternation of the presence of differing anions.

2.3 Membrane characterization

The structure and thickness of the prepared membranes were observed using a Nikon SMZ800 optical microscope at 293 K and at atmospheric pressure. The thickness of the membrane was measured by using the ruler included in the optical microscope software package provided by Nikon. A thermogravimetric analyzer (TGA, TA Instruments Q5000) was used to measure the thermal decomposition characteristics of the prepared membranes. The measurements were performed by using non-isothermal mode whereby membrane samples (0.1–0.2 mg) were placed in a platinum pan and heated at a constant scan rate (10 K/min) under a N₂ atmosphere from room temperature up to 873 K. Decomposition temperature onsets, T_d, were taken when the samples lost 5% of their initial masses. Reported thermal properties are given with accuracy close to ±1 K. Attenuated total reflection infrared spectra (ATR-IR, Perkin Elmer Spectrum 100) of the membranes were obtained at 293 K and at atmospheric pressure. About 100–200 mg of membrane was placed on the spectrometer's Smart Orbit accessory and pressed against a ZnSe crystal with a force of ∼87 N. A background spectrum of the atmosphere was taken prior to every sample run. Herein, each reported spectrum is an average of 20 scans, with a spectral resolution of 4 cm⁻¹, between 4000 cm⁻¹ and 550 cm⁻¹. Spectra were obtained for a selection of membranes which were freshly prepared, used in a gas separation test or heated in an oven at 473 K for 30 min.

2.4 Gas separation process

A membrane cell from Sterlitech was used to hold the prepared circular membrane with a diameter of 47 mm (area = 17.3 cm²). The temperature of the membrane was controlled by an oven with a thermocouple within an accuracy close to 0.5 K. The propane/propylene gases were first mixed in a ballast vessel before the measurements were taken. Herein, the partial pressure of the gas mixture was used to control the feed composition; for instance, first 2 bar of propane was placed into the ballast vessel; then the propylene gas cylinder was opened until a total pressure of 4 bar was achieved. The vessel was then left for one day before membrane tests were carried out to achieve homogeneous mixing within the ballast. By this means, the molar mixing ratio of the feed compositions we tested before each measurement was close to 1.00 ± 0.01. The propane/propylene gas compositions were all measured by gas chromatography (GC) using a Perkin Elmer Clarus 400 with a thermal conductivity detector (TCD) and a Durapak n-octane packed column. The feed pressure was controlled at 2 bar by a regulator at the outlet of the ballast vessel. In order to verify the gas pressure in the membrane cell, a manometer was set in the feed line with an accuracy of 0.05 bar. A bubble flow meter was used to measure gas flow rate. The membrane cell within the oven contained a permeate side and retentate side and the temperature was set at 293 K, 313 K or 333 K (±0.5 K accuracy) for membrane separation tests. Argon was used as the sweep gas in the permeate line to ensure a fixed composition of feed gas mixtures in the membrane cell. The flow rate of the sweep gas was controlled by a mass flow controller at 4 mL/min. The gas composition was tested twice to calculate the average value and relative deviation of the composition was about 6.5%. Fig. 1 illustrates the schematic process diagram of the gas permeation apparatus.

Close

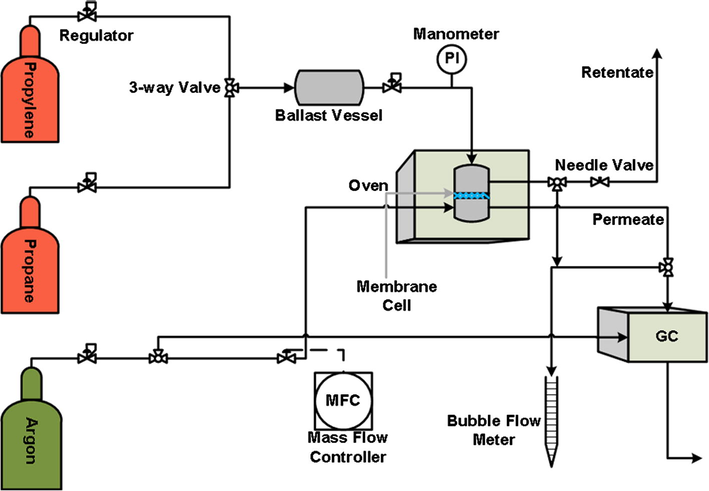

Fig. 1

Schematic process of gas permeation apparatus for propane/propylene separation.

Export to PPT

3.1 Characterization of ILs membranes

Optical microscopy was used to measure the thickness as well as homogeneity of the prepared membranes at 293 K and at atmospheric pressure. Fig. 2 shows several chosen images of different composite membranes including that of the pure TPU membrane (Fig. 2a). The images show that TPU forms a homogeneous membrane and on addition of 10 wt.% AgNO₃ (Fig. 2b) a similarly homogeneously structured membrane is formed that indicates the miscibility of the used components (e.g. ILs) was successfully embedded inside the prepared membrane matrix. However as the amount of IL in the membrane increases, a phase separation leads to formation of micro-pockets of IL in the polymer matrix. For instance, with the addition of 20 wt.% AgNO₃ (Fig. 2c) the heterogeneity of the membrane appears increased and is overall not as flat as that with only 10 wt.% AgNO₃. The increased heterogeneity of this membrane is predicted to be due to formation of areas of undissolved salt in the polymer matrix during the manufacturing step. In contrast, membranes that are formed with 10 wt.% Ag[PF₆], Ag[BF₄] or Ag[Tf₂N] (Fig. 2d–f, respectively) all show good homogeneity and their structure is maintained when the loading of salt is increased to 20 wt.% (Fig. 2g–i, respectively) showing the higher solubility of these salts in the polymer matrix as compared with AgNO₃. Similarly, addition of 10 wt.% IL ([C₄mim][X] where [X] = [NO₃]⁻, [PF₆]⁻, [BF₄]⁻ or [Tf₂N]⁻) to the corresponding 10 wt.% Ag[X] membrane also gives samples with a good level of homogeneity compared to Fig. 2b for example (Fig. 2j–m, respectively). However, when the amount of the [NO₃]⁻- or [PF₆]⁻-based IL added is increased to 20 wt.% (Fig. 2n–o, respectively) the membrane shows regions of heterogeneity and in the case of [C₄mim][PF₆] a different structure is also observed. For example, in the case of the TPU + 10 wt.% Ag[PF₆] + 20% [C₄mim][PF₆] membrane, it can be observed that an IL/Ag-salt phase separation occurs within the membrane as evident in Fig. 2o. Again this is attributed to areas of undissolved IL and silver salt within the polymer matrix.

Close

Fig. 2

Optical microscope photographs of TPU membranes with silver salt and ionic liquid additives; a: pure TPU membrane; b: 10 wt.% AgNO₃; c: 20 wt.% AgNO₃; d: 10 wt.% Ag[PF₆]; e: 10 wt.% Ag[BF₄]; f: 10 wt.% Ag[Tf₂N]; g: 20 wt.% Ag[PF₆]; h: 20 wt.% Ag[BF₄]; i: 20 wt.% Ag[Tf₂N]; j: 10 wt.% AgNO₃ + 10% [C₄mim][NO₃]; k: 10 wt.% Ag[PF₆] + 10% [C₄mim][PF₆]; l: 10 wt.% Ag[BF₄] + 10% [C₄mim][BF₄]; m: 10 wt.% Ag[Tf₂N] + 10% [C₄mim][Tf₂N]; n: 10 wt.% AgNO₃ + 20% [C₄mim][NO₃]; o: 10 wt.% Ag[PF₆] + 20% [C₄mim][PF₆] at 293 K and at atmospheric pressure.

Export to PPT

The thickness of the composite membranes all exceed 160 μm except those prepared with Ag[PF₆] and Ag[PF₆] + [C₄mim][PF₆] which were about 100 ± 10 μm, similar to the thickness of the pure TPU membrane. In addition, the Ag[PF₆] membranes were less flexible and more rigid compared to the other membranes.

Due to the experimental conditions used, some dark spots and overall dark brown color appeared in the microscope images of some membranes. This can be explained by unwanted exposure of these membranes to light while obtaining the images and the presence of silver nanoparticles (Kim et al., 2005). These are rapidly formed on exposure to light but did not occur during gas separation.

3.2 TGA analysis

TGA was undertaken to estimate the thermal stability of the membranes and obtain the range of possible operating temperatures. TGA measurements of selected TPU membranes as a function of silver salts and/or ILs structure and loading are exemplified in Fig. 3 for membranes containing 10 wt.% silver salt. All TGA measurements carried-out during this work are provided in Figs. S1–S8 of the electronic supporting information (ESI) along with their decomposition temperature onsets tabulated in Table S1 of the ESI. The TGA results clearly indicate that the pure TPU membrane is the most stable with a decomposition temperature of ∼548 K (Fig. 3) and the thermal stability of TPU membranes seems to decrease on addition of either silver salt or silver salt-IL (see Figs. 3 and S1–S8 of the ESI). As reported in Table S1 of the ESI and shown in Fig. 3, membranes containing 10 wt.% silver salt have the following order of stability and decomposition temperature onsets, T_d, Ag[BF₄] (∼533 K) > Ag[PF₆] (∼477 K) ≥ Ag[Tf₂N] (∼471 K) > AgNO₃ (∼382 K). In other words, a clear effect of the presence of these salts on the stability of the TPU material is observed whatever the salt added.

Close

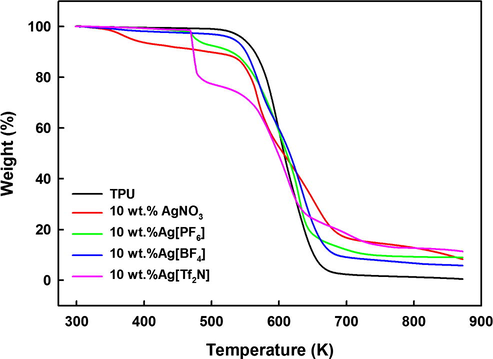

Fig. 3

TGA measurements of pure TPU and 10 wt% silver salt TPU-based membranes.

Export to PPT

There was about 20–23 wt.% mass loss at 470 K for all [Tf₂N]⁻-based membranes which indicates that the polymer decomposed more easily in the presence of [Tf₂N]⁻-based silver salt (Fig. S1 of the ESI) and after addition of [Tf₂N]⁻-based IL (Fig. S2 of the ESI). As shown in Fig. S1 of the ESI whatever the salt loading (up to 30 wt.%), at 873 K the total mass loss of all [Tf₂N]⁻-based membranes were close to 80–90%. The role of ions on the thermal instability of the membrane is thought to be due to the strong interaction between ions and the TPU material, driven by the weak coulombic interactions between Ag⁺ and [Tf₂N]⁻ which reduces the likelihood of ion-ion association in the membrane (Agel et al., 2011). In contrast, as shown in Figs. S3–S5 of the ESI, the total mass loss observed at 873 K for the AgNO₃-, Ag[PF₆]- or Ag[BF₄]-based TPU membranes seems to decrease on increase in the silver salt loading. Differences observed in the total mass loss at 873 K of silver salts-TPU membranes and in the stability of the TPU in these media may be explained by the differences in ion-ion and ion-TPU interactions in the membrane as NO₃⁻, [PF₆]⁻ and [BF₄]⁻ have a more localized negative charge than that of the [Tf₂N]⁻ anion (Zaidi et al., 2014). Moreover, Fig. S3 of the ESI shows that the membrane stability increases at higher concentrations of AgNO₃, which could be due to the increased heterogeneity of the membrane resulting in the membrane behaving more like a physical mixture of pure TPU and salt.

Interestingly, the addition of the corresponding [C₄mim]⁺-based IL to the silver salt-TPU mixtures shows little influence on the thermal stability of the [Tf₂N]⁻, [BF₄]⁻ and [PF₆]⁻ based membranes as shown in Figs. S2, S6 and S7 of the ESI, respectively. In contrast, addition of either [C₄mim][NO₃] or [C₄mim][Tf₂N] enhance the stability of the AgNO₃-based membrane (see Table S1 and Fig. S8 of the ESI).

The knowledge of the thermal stability of these membranes has been used to determine the operating temperature for the following FT-IR analysis and separation performance tests (Gan et al., 2011).

3.3 FT-IR analysis

FT-IR was conducted for each membrane to determine the molecular structure and interactions on addition of silver salts, silver salt/ILs and olefins. Fig. 4 shows selected spectra of the prepared TPU and silver salt-TPU membranes. Fig. 4a shows the spectra of various membranes, those prepared with pure TPU as well as those containing different silver salts. At about 3320 cm⁻¹, Fig. 4b, the N—H stretching band for the pure TPU membrane is observed which was previously reported by Lu et al. (2003). In addition, bands at 2942 cm⁻¹ and 2861 cm⁻¹, from the aliphatic C—H stretching frequencies are also observed. Markedly, all samples showed the N—H and C—H stretching bands at the same wavelength except for Ag[PF₆] where the N—H and C—H bond stretching frequencies were sharpened and shifted to 2918 cm⁻¹ and 2850 cm⁻¹, respectively. The decrease in wavenumber of the N—H and C—H stretching frequencies indicates a weakening of these bonds, possibly due to a H-bonding type interaction of the N—H with the [PF₆]⁻ anion. It is proposed that during the formation of this membrane, the highly charge-localized and dense [PF₆]⁻ anion tends to create a tight configuration of the TPU polymer compared with other silver salts of weakly coordinating and/or less dense anions. This is supported by the Ag[PF₆] membrane being thinner than the other silver containing membranes showing a denser structure.

Close

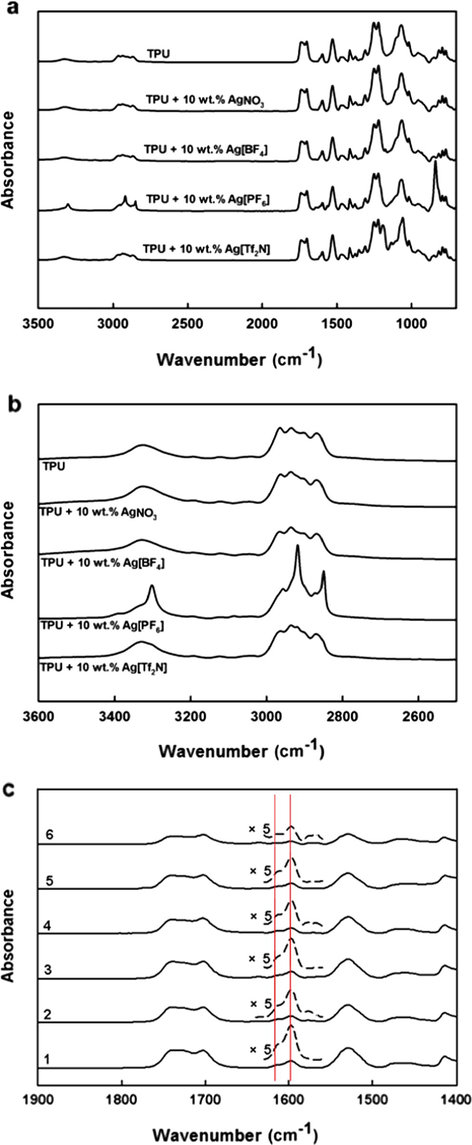

Fig. 4

FTIR of prepared membranes; (a) silver salt membranes; (b) expansion of the N—H and C—H bond stretching region; (c) FTIR before/after membrane separation test, 1 and 2 denote 10 wt.% AgNO₃ membrane before and after membrane tests, 3 and 4 denote 10 wt.% AgNO₃ + 10 wt.% [C₄mim][NO₃] membrane before and after membrane tests, 5 and 6 denote AgNO₃ + 10 wt.% [C₄mim][Tf₂N] membrane before and after membrane tests.

Export to PPT

Fig. 4c shows the interaction between the silver in the membrane and propylene. FT-IR spectra were taken of the membrane before and after gas separation measurements. The comparison of each membrane is shown by enlarging the spectra 5 times. The complexation between silver and propylene is shown by the presence of a peak at 1591 cm⁻¹ for the AgNO₃ membrane and 1580 cm⁻¹ and for the AgNO₃ + [C₄mim][NO₃] and AgNO₃ + [C₄mim][TF₂N] membranes which are not present in the spectra taken before the gas separation tests. This band is attributed to the carbon-carbon double bond in the olefin which is normally in the range from 1680 to 1640 cm⁻¹ (Huang et al., 2008). When complexed to the silver salt, the olefin bond is weakened and is shifted to a lower wavenumber. The increased shift observed upon addition of [C₄mim][NO₃] or [C₄mim][Tf₂N] indicates an even stronger interaction between the silver and olefin in the presence of IL. This is possibly due to the IL improving the solubility of AgNO₃, which has the effect of weakening the interaction between the silver cation and nitrate anion, thereby leaving the silver able to interact with the olefin more efficiently.

The significant mass loss observed at 470 K for [Tf₂N]⁻ based membranes is in contrast to all other systems studied. In order to investigate the nature of this decomposition and confirm there were changes occurring in the polymer a sample of the 10 wt.% Ag[Tf₂N] membrane which had been previously analyzed by FT-IR spectroscopy, was placed in an oven at 473 K for 30 min. After this treatment, the sample was cooled to room temperature, before being analyzed again by FT-IR. Comparison of the FT-IR spectra of the 10 wt.% Ag[Tf₂N] membrane before and after this treatment is shown in Fig. 5. From the complete spectra shown in Fig. 5a, there is a significant difference in the carbonyl region from 1750 cm⁻¹ to 1700 cm⁻¹ and the ether fingerprint region from 1300 cm⁻¹ to 1100 cm⁻¹. Fig. 5b and c shows expansions of these regions of the spectra to highlight these differences. Fig. 5b shows the presence of a number of broad overlapping peaks with one centered at about 1700 cm⁻¹ and a second at about 1742 cm⁻¹ in the fresh membrane attributable to the C⚌O stretching vibrations (Silverstein et al., 2005). These dominant peaks are no longer present in the spectra of the membrane after being heated with only one broad peak near 1720 cm⁻¹ remaining. The overall carbonyl peak is formed from C⚌O species present in a number of different environments and although it is not possible to attribute the changes observed to one particular C⚌O species, it is clear that the structure of the polymer has changed altering the environment near at least one of these C⚌O species. In addition, the peaks near 1225 cm⁻¹ and 1055 cm⁻¹ from ether linkages in the polymer have also altered considerably. The bands from the symmetric stretching of C—O—C linkages at 1225 cm⁻¹, show a change in relative intensity of the peaks and the asymmetric stretch of the same linkage at 1055 cm⁻¹ decreases in intensity with the shoulder at 1070 cm⁻¹ present in the spectra of the fresh membrane disappearing on heating, Fig. 5c. This also suggests that the membrane has gone through a structural change or deformation after being heated to 473 K in the presence of Ag[Tf₂N]. Given the ∼ 20wt.% weight loss observed by TGA analysis at this temperature it is likely that the mass loss is due to decomposition of the ester groups of the TPU membrane.

Close

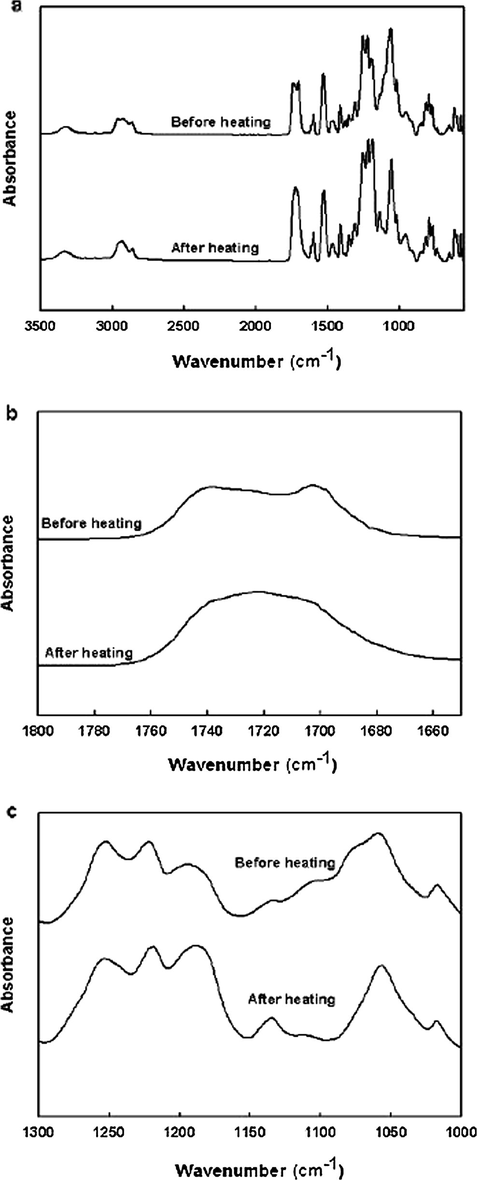

Fig. 5

FTIR of 10 wt.% Ag[Tf₂N] TPU membrane tested under room temperature before and after heating the sample at 473 K for 30 min.

Export to PPT

3.4 Gas separation studies

In order to estimate the membrane separation performance, the selectivity and permeability of each membrane were calculated (Gan et al., 2011). The selectivity $S$ is defined as the ratio of mole fractions of the gas components in permeate stream divided by the ratio of the mole fractions of the gas components in the feed:

The permeability coefficient which denotes gas transported through the membrane can be defined as follows:

3.5 Effects of concentration, temperature and anion

The selectivity of propylene over propane and the mixed gas permeability for different silver salt composite membranes are shown in Fig. 6 with the data provided in Table S2 of the supporting information. The results for the 20 wt.% and 30 wt.% AgNO₃ membranes are not shown as no further improvement in the separation was achieved at these higher loadings of salt. Moreover, after these membranes had been repeatedly synthesized and tested 5 times, microscopy images indicated that these membranes were porous in structure instead of being dense membranes, negating any meaningful comparison of the transport properties. The selectivity and gas permeability measured for the pure TPU polymeric membrane are 2.0 and 1900.2 Barrers, respectively at 293 K. By adding a silver salt to the TPU polymeric membrane, with the exception of Ag[PF₆] membranes, its permeability and selectivity increased with the addition of silver salts. Permeability through the Ag[PF₆] membrane (590 at 293 K for 10 wt.%) was lower than other membranes as expected from the decreased thickness and resulting increased density of this membrane. However, it is noted that the selectivity for propylene (5.5 at 293 K for 10 wt.%) was comparable with that obtained for similar loadings of the other silver salts.

Close

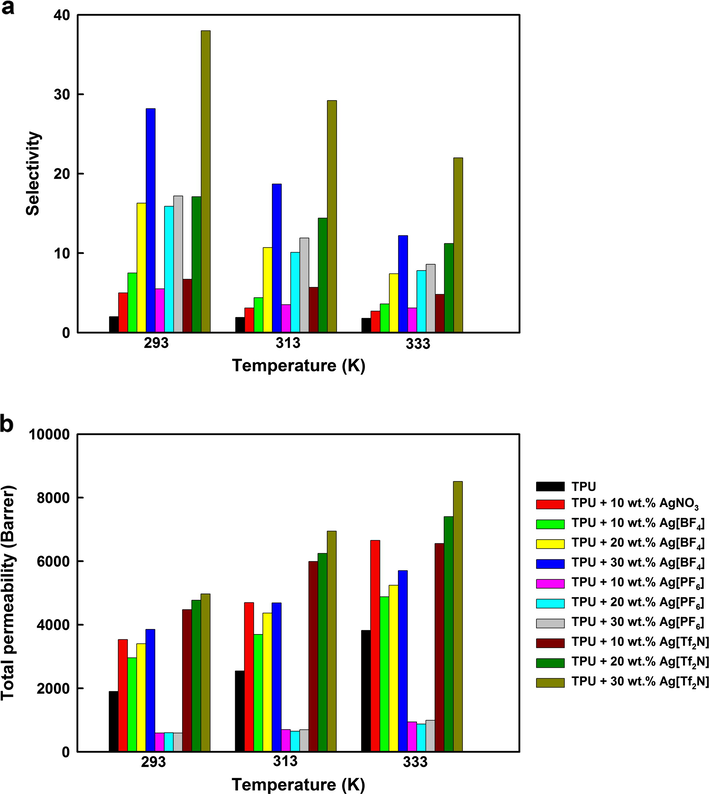

Fig. 6

Selectivity and total gas permeability at various temperatures and silver salt concentrations of the silver salt-TPU membranes.

Export to PPT

The solution-diffusion model defines the permeability of a gas passing through the membrane as the product of its solubility in and diffusivity through the membrane. Therefore an increase in propylene solubility occurs from complexation with the silver ions present, which in turn increases the solubility of the nonpolar propane. However, the increase in solubility is sufficient to overcome the decrease in propylene diffusivity from its complexation with the silver ions and results in an overall increase in permeability of the mixed gas stream (Agel et al., 2011). This complexation of propylene with the silver ions and resulting increased permeability relative to propane also results in increased selectivity compared to membranes containing no silver salts.

As expected from the pure TPU membrane, for all silver salts tested, the permeability increased with increase in temperature from 293 to 333 K, which again can be explained by the solution-diffusion model. As the temperature is increased the diffusivity of both gases being transported through the membranes is also increased resulting in improved permeability despite the lower solubility of the gases at the higher temperatures. However, in all cases of increasing temperature the selectivity to propylene decreased due to a weaker interaction with the silver ions which, combined with the increased diffusion of both gases through the membrane, resulted in lower selectivity compared with those observed at lower temperatures.

The permeability of the membrane is dependent on the silver salt present and for each silver loading follows the order: Ag[PF₆] (590.4–995.2 Barrers) ≪ Ag[BF₄] (2958.1–5703.2 Barrers) < AgNO₃ (3535.2–6656.2 Barrers) < Ag[Tf₂N] (4478.8–8512.3 Barrers). The Ag[PF₆] membrane has a lower thickness but about the same mass compared with other membranes and this leads to higher Ag[PF₆] membrane density. Alongside membrane density, the permeability of the other membranes is dependent on a number of factors such as diffusivity and solubility of the gases and is not correlated with a single factor.

However, the selectivity of the membranes is dependent on the anion coordinating with the Ag⁺ ions and is in the order AgNO₃ (2.7–5.0) < Ag[PF₆] (3.1–17.2) < Ag[BF₄] (3.6–28.2) < Ag[Tf₂N] (4.8–38.0). This has been explained in terms of their lattice energies which control the strength of interaction with the olefin as reported by Faiz and Li (2012a) The high lattice energy of 822 kJ mol⁻¹ for AgNO₃ means there is a strong interaction between the silver cation and nitrate anion resulting in a weak interaction between the silver and olefin and low selectivity (5.0 at 293 K for 10 wt.%). In contrast, Ag[BF₄], with a lattice energy of 658 kJ mol⁻¹ has a much weaker interaction between the silver and [BF₄]⁻ anion, allowing a stronger interaction between the silver and olefin resulting in increased propylene selectivity (7.5 at 293 K for 10 wt.%). The salts of the larger [Tf₂N]⁻ anion with its delocalized charge have a relatively low lattice energy (Sun et al., 2003), which allows an even stronger interaction between the silver and olefin resulting generally in high selectivity.

In contrast to the decreased selectivity observed with the higher permeability at elevated temperatures, the higher permeability observed with higher silver concentrations is accompanied by high selectivity for all silver salt membranes tested. The high concentration of silver ions provides good facilitated transport for propylene which as described by the solution diffusion model increases the solubility of propane and in turn the overall permeability. However, unlike the case where the permeability was increased at elevated temperatures due to increased diffusion but weakened silver-olefin interaction; here the strong interaction between the silver and propylene is maintained leading to a higher selectivity along with higher permeability. Therefore, the combination of high silver concentration to optimize potential sites for interaction with the olefin, weakly coordinating anion to make the sites available and low temperature to allow high gas solubility and strong Ag-olefin interaction results in the highest selectivity of 38.0 observed herein for the 30 wt.% Ag[Tf₂N] membrane at room temperature.

3.6 Effects of addition of IL on the performance of the membrane

The selectivity and mixed gas permeability of IL containing membranes is shown in Fig. 7 with the data provided in Table S2 of the supporting information. [C₄mim]⁺-based ILs were added to membrane blends with their corresponding silver salts. At all temperatures tested, the selectivity was enhanced in the presence of ILs for all silver salt membranes and the permeability increased on addition of 10 wt.% [C₄mim][Tf₂N] to the Ag[Tf₂N] membrane from 4478.8 to 4929.1 Barrers and increased again to 5272.7 Barrers on addition of 20 wt.% IL. A large increase in permeability was also observed when [C₄mim][PF₆] was added to the Ag[PF₆] membrane (from 590.4 to 1801.9 Barrers) and on addition of 20 wt.% a further increase to 1991.2 Barrers was observed. In contrast, addition of either [C₄mim][BF₄] or [C₄mim][NO₃] to the Ag⁺ containing membranes of the corresponding anions resulted in a slight decrease in permeability. As the relative rate of permeability is due to a number of factors such as solubility of gases in the composite membrane, solubility in the membrane, dispersion of the silver ions, diffusion through the membrane and improved plasticization of the membrane it cannot be correlated with one parameter (Sanchez et al., 2009). For example, Kang et al. (2011) reported that the addition of the 1-butyl-3-methylimidazolium nitrate IL to polymeric membranes such as poly(2-ethyl-2-oxazoline) (POZ) + AgNO₃ and poly(ethylene oxide) (PEO) + AgNO₃ improved their membrane permeability which, according to the conclusions given, was due to the plasticization effect this IL.

Close

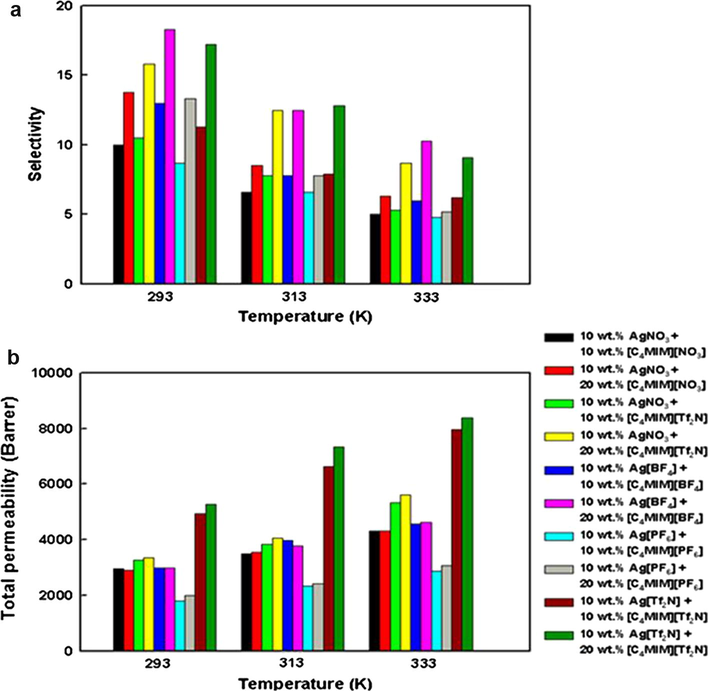

Fig. 7

Selectivity and total gas permeability at various temperatures and ionic liquid concentrations.

Export to PPT

The selectivity in contrast is largely dependent on the ability of the silver ions present to interact with the olefin and the trends in this separation parameter are more easily explained. For all ILs tested the selectivity increased with addition of [C₄mim]⁺-based ILs with the highest selectivity observed here for the Ag[BF₄] + 20 wt.% [C₄mim][BF₄] which increased from 7.5 in the absence of IL to 18.02. Addition of the IL improves the mobility of the Ag⁺ ions assisting the coordination of the olefin with the Ag⁺. The order of selectivity is Ag[PF₆] + [C₄mim][PF₆] (4.8–13.3) < AgNO₃ + [C₄mim][NO₃] (5.0–13.8) < AgNO₃ + [C₄mim][Tf₂N] (5.2–15.8) < Ag[Tf₂N] + [C₄mim][Tf₂N] (6.2–17.2) ∼ Ag[BF₄] + [C₄mim][BF₄] (6.0–18.3). The comparison between addition of [C₄mim][NO₃] or [C₄mim][Tf₂N] shows that [Tf₂N]⁻ based ILs have a better ability to dissociate the silver cation to its counterion in solution than other tested ILs. This ability enhances the selectivity of the membrane through a Ag-olefin complexation mechanism.

A comparison plot was used to estimate the membranes’ performances. A Robeson plot including polymeric membrane separation data (Azhin et al., 2008; Burns and Koros, 2003; Faiz and Li, 2012b; Hayashi et al., 1996; Ilinitch et al., 1992; Okamoto et al., 1999; Semenova, 2004; Tanaka et al., 1996) and composite membrane separation data (Azhin et al., 2008; Duan et al., 2003; Faiz and Li, 2012a; Fallanza et al., 2013; Hong et al., 2001; Kang et al., 2004, 2006, 2011; Kim et al., 2003, 2006; Lee et al., 2009; Park et al., 2001; Pinnau and Toy, 2001; Yoon et al., 2000) collected from the literature is presented in Fig. 8. A Robeson plot (using Barrer units) presents log selectivity against log permeability and inclines to have a tradeoff effect between the two key separation performance indicators (Nath, 2008). The TPU polymeric membrane separations described in this work falls on the empirical upper bound curve of the polymeric membrane due to its high permeability. Although the composite membrane separation results fall inside the empirical upper bound curve of composite membrane, it appears that the membranes prepared in this work were highly permeable compared with the literature data points. In addition, Agel et al. (2011) calculated that the membrane selectivity of pure Ag[Tf₂N] salt, based on the solution-diffusion model at 295 K with 1:1 propane/propylene feed composition, is close to 19. In other words, by adding 20 wt.% or 30 wt.% Ag[Tf₂N] to TPU an improvement of the membrane selectivity is observed in comparison with that expected for the pure Ag[Tf₂N] salt.

Close

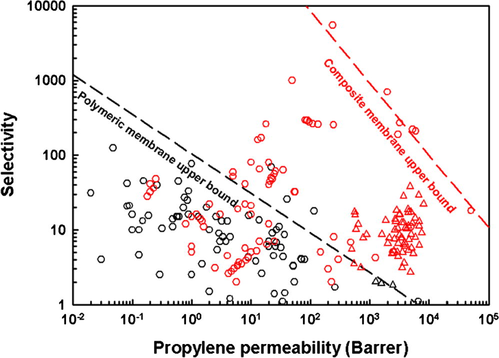

Fig. 8

Robeson plot of selectivity and permeability data taken from the literature and the work reported herein for propane/propylene membrane separation; black symbols: polymeric membrane (Azhin et al., 2008; Burns and Koros, 2003; Faiz and Li, 2012b; Hayashi et al., 1996; Ilinitch et al., 1992; Okamoto et al., 1999; Semenova, 2004; Tanaka et al., 1996); red symbols: composite membrane (Azhin et al., 2008; Duan et al., 2003; Faiz and Li, 2012a; Fallanza et al., 2013; Hong et al., 2001; Kang et al., 2004, 2006, 2011; Kim et al., 2003, 2006; Lee et al., 2009; Park et al., 2001; Pinnau and Toy, 2001; Yoon et al., 2000); circles: the literature data; triangles: this work.
